INFINITI FX35 2007 Service Manual

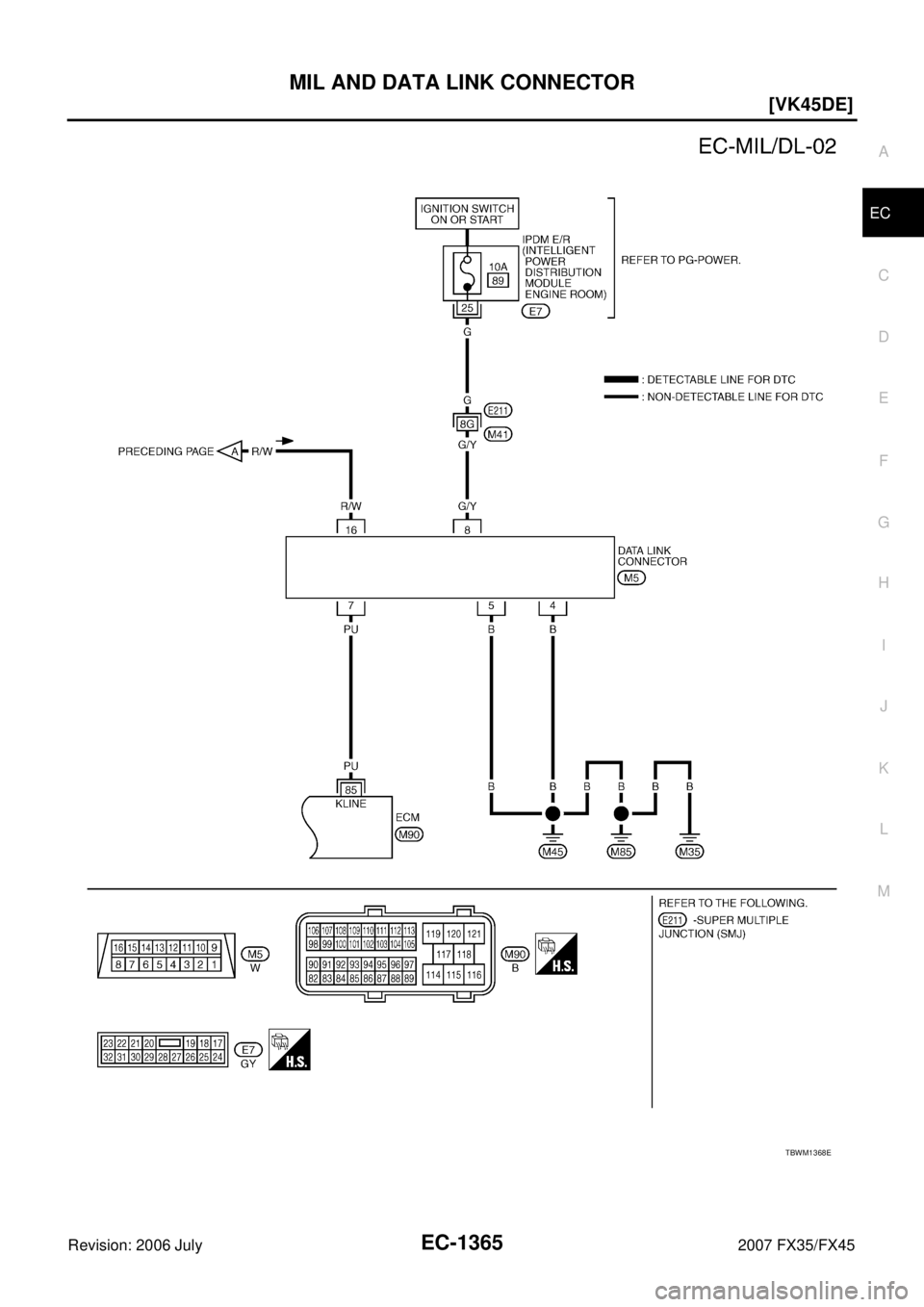

MIL AND DATA LINK CONNECTOR EC-1365
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
TBWM1368E

EC-1366
[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureNBS004I1
Idle Speed and Ignition TimingNBS004I2
*: Under the following conditions:

Air conditioner switch: OFF

Electric load: OFF (Lights, heater fan & rear window defogger)

Steering wheel: Kept in straight-ahead position
Calculated Load ValueNBS004I3
Mass Air Flow SensorNBS004I4
*: Engine is warmed up to normal operating temperature and running under no load.
Intake Air Temperature SensorNBS004I5
Engine Coolant Temperature SensorNBS004I6
Fuel Tank Temperature SensorNBS004I7
Crankshaft Position Sensor (POS)NBS004I8
Refer to EC-1037, "Component Inspection" .
Camshaft Position Sensor (PHASE)NBS004I9
Refer to EC-1044, "Component Inspection" .
A/F Sensor 1 HeaterNBS004LW
Fuel pressure at idling kPa (kg/cm2 , psi) Approximately 350 (3.57, 51)
Target idle speed No load* (in P or N position) 650
±50 rpm
Air conditioner: ON In P or N position 700 rpm or more
Ignition timing In P or N position 12 ° ± 5 ° BTDC
Condition Calculated load value% (Using CONSULT-II or GST)
At idle 14.0 - 33.0
At 2,500 rpm 12.0 - 25.0
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle 1.0 - 1.3V*
Mass air flow (Using CONSULT-II or GST) 2.0 - 6.0 g·m/sec at idle*
7.0 - 20.0 g·m/sec at 2,500 rpm*
Temperature °C ( °F) Resistance k Ω
25 (77) 1.800 - 2.200
Temperature °C ( °F) Resistance k Ω
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Temperature °C ( °F) Resistance k Ω
20 (68) 2.3 - 2.7
50 (122) 0.79 - 0.90
Resistance [at 25°C (77 °F)] 2.3 - 4.3 Ω

SERVICE DATA AND SPECIFICATIONS (SDS) EC-1367
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Heated Oxygen sensor 2 HeaterNBS004IB
Throttle Control MotorNBS004IC
Fuel InjectorNBS004ID
Fuel PumpNBS004IE
Resistance [at 25°C (77 °F)] 5.0 - 7.0 Ω
Resistance [at 25°C (77 °F)] Approximately 1 - 15 Ω
Resistance [at 10 - 60°C (50 - 140 °F)] 13.5 - 17.5 Ω
Resistance [at 25°C (77 °F)] 0.2 - 5.0 Ω

EC-1368
[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 July 2007 FX35/FX45

EI-1
EXTERIOR & INTERIOR
I BODY
CONTENTS
C
D E
F
G H
J
K L
M
SECTION
A
B
EI
Revision: 2006 July 2007 FX35/FX45
EXTERIOR & INTERIOR
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Procedures without Cowl Top Cover ..... 3
Precautions for Work ........................................... ..... 3
PREPARATION ...................................................... ..... 4
Special Service Tools .......................................... ..... 4
Commercial Service Tools ................................... ..... 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ........................................................... ..... 5
CUSTOMER INTERVIEW ................................ ..... 5
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 6
CHECK RELATED SERVICE BULLETINS ...... ..... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 6
REPAIR THE CAUSE ...................................... ..... 6
CONFIRM THE REPAIR .................................. ..... 7
Generic Squeak and Rattle Troubleshooting ...... ..... 7
INSTRUMENT PANEL ..................................... ..... 7
CENTER CONSOLE ........................................ ..... 7
DOORS ............................................................ ..... 7
TRUNK ............................................................. ..... 8
SUNROOF/HEADLINING ................................ ..... 8
SEATS .............................................................. ..... 8
UNDERHOOD .................................................. ..... 8
Diagnostic Worksheet ......................................... ..... 9
CLIP AND FASTENER .......................................... ....11
Clip and Fastener ................................................ .... 11
FRONT BUMPER .................................................. ... 14
Removal and Installation ..................................... ... 14
REMOVAL ........................................................ ... 15
INSTALLATION ................................................ ... 16
REMOVAL AND INSTALLATION OF FILLET
MOLDING ........................................................ ... 16
REMOVAL AND INSTALLATION OF BUMPER
CENTER MOLDING ......................................... ... 16 REAR BUMPER .....................................................
... 17
Removal and Installation ..................................... ... 17
REMOVAL ........................................................ ... 18
INSTALLATION ................................................ ... 19
DISASSEMBLY AND ASSEMBLY OF REAR
BUMPER FASCIA ............................................ ... 19
REMOVAL AND INSTALLATION OF REAR
BUMPER CLOSING ......................................... ... 20
REMOVAL AND INSTALLATION OF DRAFTER
GUARD ............................................................ ... 20
REMOVAL AND INSTALLATION OF REAR FIL-
LET MOLDING ASSEMBLY ............................. ... 21
FRONT GRILLE ..................................................... ... 22
Removal and Installation ..................................... ... 22
REMOVAL ........................................................ ... 22
INSTALLATION ................................................ ... 22
COWL TOP ............................................................ ... 23
Removal and Installation ..................................... ... 23
REMOVAL ........................................................ ... 23
INSTALLATION ................................................ ... 23
FENDER PROTECTOR ......................................... ... 24
Removal and Installation ..................................... ... 24
REMOVAL ........................................................ ... 24
INSTALLATION ................................................ ... 24
DOOR OUTSIDE MOLDING .................................. ... 25
Removal and Installation ..................................... ... 25
FRONT DOOR OUTSIDE MOLDING ............... ... 25
REAR DOOR OUTSIDE MOLDING ................. ... 25
DOOR OUTSIDE LOWER MOLDING ................... ... 26
Removal and Installation ..................................... ... 26
FRONT AND REAR DOOR OUTSIDE LOWER
MOLDING ......................................................... ... 26
DOOR PARTING SEAL ......................................... ... 27
Removal and Installation ..................................... ... 27
REMOVAL ........................................................ ... 27
INSTALLATION ................................................ ... 28
CENTER MUD GUARD ......................................... ... 29
Removal and Installation ..................................... ... 29
REMOVAL ........................................................ ... 29
INSTALLATION ................................................ ... 29

EI-2Revision: 2006 July 2007 FX35/FX45
WINDSHIELD MOLDING .......................................
... 30
Removal and Installation ..................................... ... 30
REMOVAL ........................................................ ... 30
INSTALLATION ................................................. ... 30
BACK DOOR WINDOW MOLDING ....................... ... 31
Removal and Installation ..................................... ... 31
REMOVAL ........................................................ ... 31
INSTALLATION ................................................. ... 31
ROOF SIDE MOLDING .......................................... ... 33
Removal and Installation ..................................... ... 33
REMOVAL ........................................................ ... 33
INSTALLATION ................................................. ... 33
ROOF RAIL ............................................................ ... 34
Removal and Installation ..................................... ... 34
REMOVAL ........................................................ ... 34
INSTALLATION ................................................. ... 34
REMOVAL AND INSTALLATION OF ROOF RAIL
BRACKET ......................................................... ... 34
BACK DOOR FINISHER ........................................ ... 35
Removal and Installation ..................................... ... 35
REMOVAL ........................................................ ... 35
INSTALLATION ................................................. ... 35
DOOR FINISHER ................................................... ... 36
Removal and Installation ..................................... ... 36
DOOR FINISHER (FRONT AND REAR) .......... ... 36 BODY SIDE TRIM ..................................................
... 38
Removal and Installation ...................................... ... 38
CENTER PILLAR LOWER GARNISH .............. ... 38
CENTER PILLAR UPPER GARNISH ............... ... 39
DASH SIDE FINISHER ..................................... ... 39
FRONT PILLAR GARNISH ............................... ... 40
KICKING PLATE ............................................... ... 40
CENTER MUDGUARD FINISHER (FRONT/
REAR) ............................................................... ... 40
FLOOR TRIM .......................................................... ... 41
Removal and Installation ...................................... ... 41
REMOVAL ......................................................... ... 41
INSTALLATION ................................................. ... 42
HEADLINING .......................................................... ... 43
Removal and Installation ...................................... ... 43
REMOVAL ......................................................... ... 44
INSTALLATION ................................................. ... 44
LUGGAGE FLOOR TRIM ...................................... ... 45
Removal and Installation ...................................... ... 45
REMOVAL ......................................................... ... 46
INSTALLATION ................................................. ... 46
BACK DOOR TRIM ................................................ ... 47
Removal and Installation ...................................... ... 47
REMOVAL ......................................................... ... 47
INSTALLATION ................................................. ... 47

PRECAUTIONS EI-3
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 July 2007 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NIS001TF
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Procedures without Cowl Top CoverNIS001TG
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precautions for WorkNIS001TH

After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check
their operation.

Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.
PIIB3706J

EI-4
PREPARATION
Revision: 2006 July 2007 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNIS001TI
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNIS001TJ
Tool number
(Kent-Moore No.)
Tool name Description
(J-39570)
Chassis ear Locationg the noise
(J-43980)
NISSAN Squeak and Rattle
Kit Repairing the cause of noise
SIIA0993E
SIIA0994E
Tool name
Description
Engine ear Locating the noise
Power tool
SIIA0995E
PIIB1407E

SQUEAK AND RATTLE TROUBLE DIAGNOSES EI-5
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 July 2007 FX35/FX45
SQUEAK AND RATTLE TROUBLE DIAGNOSESPFP:00000
Work FlowNIS001TK
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to EI-9, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces=higher pitch noise/softer surfaces=lower pitch noises/edge to surface=chirping

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

EI-6
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool (Chassis Ear: J-39570,Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to EI-7, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A Nissan Squeak and Rattle Kit (J-43980) is available through your authorized Nissan Parts
Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
Always check with the Parts Department for the latest parts information.
The following materials are contained in the Nissan Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.94 × 5.31 in)/76884-71L01: 60 × 85 mm (2.36 × 3.35 in)/76884-71L02:15 ×
25 mm (0.59 × 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 × 50 mm (1.97 × 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick, 50
× 50 mm (1.97 × 1.97 in)
