INFINITI FX35 2007 Service Manual

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-227
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
Vehicle Does Not Decelerate by Engine BrakeNCS001I4
SYMPTOM:
No engine brake is applied when the gear is shifted from the 2nd to 1st gear.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 2 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to AT- 9 2 , "SELF-DIAGNOSTIC RESULT MODE" , AT-
103, "Judgement Self-diagnosis Code" .
NO >> GO TO 2.
2. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 3 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 3.
NG >> Refill ATF.
3. CHECK A/T POSITION
Check the A/T position. Refer to AT- 2 3 1 , "
Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust A/T position. Refer to AT- 2 3 1 , "
Adjustment of A/T
Position" .
4. CHECK MANUAL MODE SWITCH
Check the manual mode switch. Refer to AT- 1 6 6 , "
DTC P1815 MANUAL MODE SWITCH" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
SAT638A
SCIA2119E

AT-228
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 July 2007 FX35/FX45
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.58).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 6 1 , "
Cruise Test - Part 3" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.58).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
SCIA5199E

SHIFT CONTROL SYSTEM AT-229
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
SHIFT CONTROL SYSTEMPFP:34901

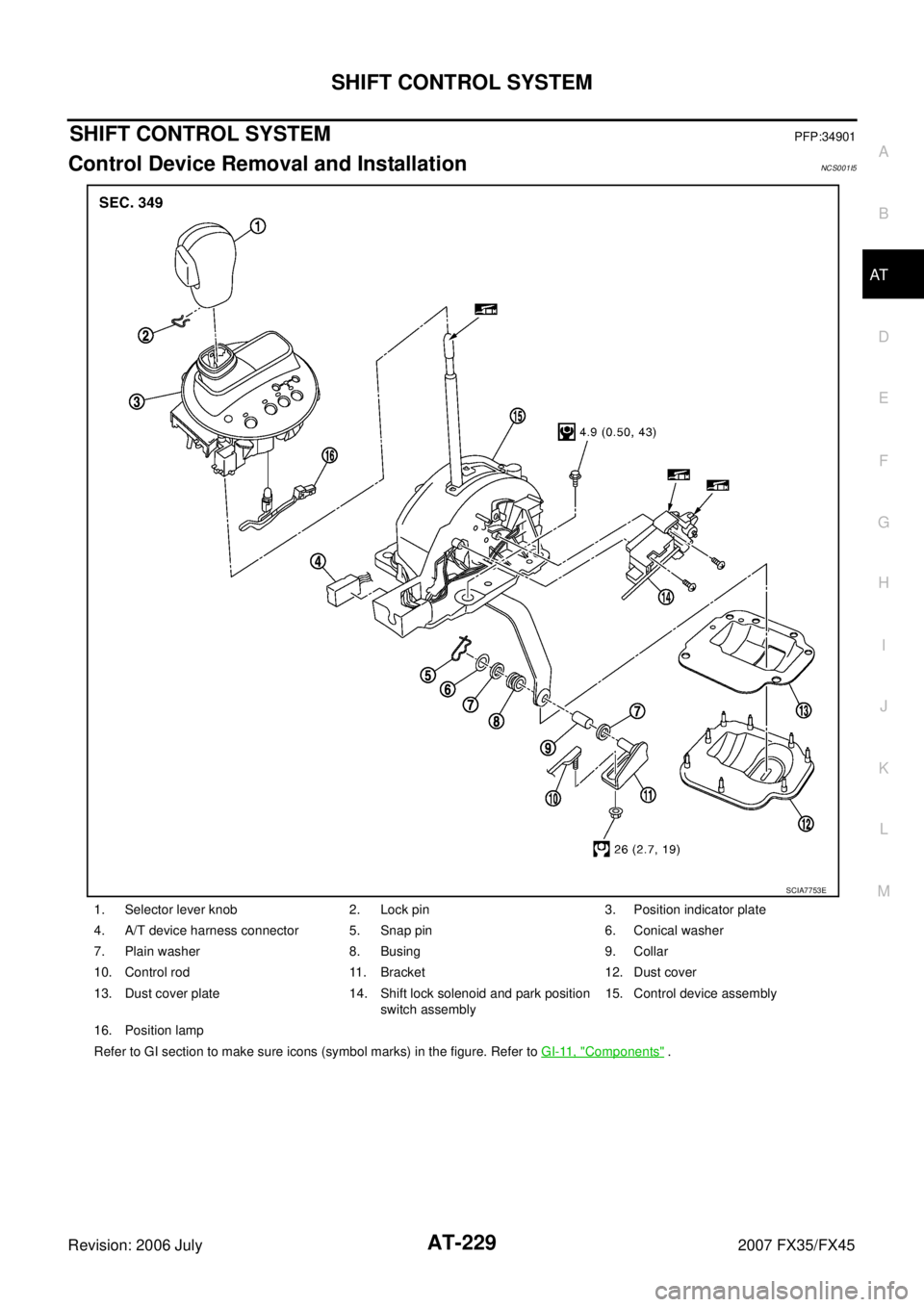

Control Device Removal and InstallationNCS001I5
1. Selector lever knob 2. Lock pin 3. Position indicator plate
4. A/T device harness connector 5. Snap pin 6. Conical washer
7. Plain washer 8. Busing 9. Collar
10. Control rod 11. Bracket 12. Dust cover
13. Dust cover plate 14. Shift lock solenoid and park position switch assembly 15. Control device assembly
16. Position lamp
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
SCIA7753E

AT-230
SHIFT CONTROL SYSTEM
Revision: 2006 July 2007 FX35/FX45
REMOVAL
CAUTION:
Make sure that parking brake is applied before removal/installation.
1. Disconnect lower lever of control device and control rod.
2. Remove knob cover (1) below selector lever downward.
3. Pull lock pin (2) out of selector lever knob (3).
4. Remove selector lever knob (3).
5. Remove A/T console finisher. Refer to IP-10, "
Component Parts
Drawing" .
6. Remove center console. Refer to IP-10, "
Component Parts
Drawing" .
7. Remove rear ventilator duct 2. Refer to ATC-133, "
Removal and
Installation" .
8. Remove key interlock cable (1) from control device. Refer to AT-
237, "Removal and Installation" .
9. Disconnect A/T device harness connector (2).
10. Remove control device assembly.
INSTALLATION
Install in reverse order of removal. Be careful of the following:

After installation is completed, adjust and check A/T position. Refer to AT- 2 3 1 , "Adjustment of A/T Posi-
tion" and AT- 2 3 1 , "Checking of A/T Position" .
Control Rod Removal and InstallationNCS001I6
CONTROL ROD COMPONENTS
SCIA7733E
SCIA7754E
1. Control device assembly 2. A/T assembly 3. Manual lever
4. Control rod 5. Lower lever
SCIA6589E

SHIFT CONTROL SYSTEM AT-231
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
REMOVAL
1. Disconnect lower lever of control device and control rod.
2. Remove manual lever from A/T assembly.
3. Remove control rod from vehicle.
INSTALLATION
Install in reverse order of removal. Be careful of the following:

After installation is completed, adjust and check A/T position. Refer to AT- 2 3 1 , "Adjustment of A/T Posi-
tion" and AT- 2 3 1 , "Checking of A/T Position" .
Adjustment of A/T PositionNCS001I7
1. Loosen nut of control rod.
2. Place PNP switch and selector lever in “P” position.
3. While pressing lower lever toward rear of vehicle (in “P” position direction), tighten nut to the specified torque. Refer to AT- 2 3 0 ,
"CONTROL ROD COMPONENTS" .
CAUTION:
Do not push the bracket.
Checking of A/T PositionNCS001I8
1. Place selector lever in “P” position, and turn ignition switch ON.
2. Check selector lever can be shifted to other than “P” position when brake pedal is depressed. Also check selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Move the selector lever and check for excessive effort, sticking, noise or rattle.
4. Check the selector lever stops at each position with the feel of engagement when it is moved through all the positions. Check whether or not the actual position the selector lever is in matches the position shown
by the shift position indicator and the transmission body.
5. The method of operating the lever to individual positions cor- rectly should be as shown in the figure.
6. When selector button is pressed in “P”, “R”, or “N” position with- out applying forward/backward force to selector lever, check but-
ton operation for sticking.
7. Check the back-up lamps illuminate only when lever is placed in the “R” position. Check the back-up lamps does not illuminate
when selector lever is pushed against “R” position in the “P” or
“N” position.
8. Check the engine can only be started with the selector lever in the “P” and “N” positions. (With selector lever in the “P” position,
engine can be started even when selector lever is moved for-
ward and backward.)
9. Check transmission is locked completely in “P” position.
10. When selector lever is set to manual shift gate, check manual mode is displayed on combination meter. Shift selector lever to “+” and “-” sides, and check set shift position changes. (Only while a vehicle is oper-
ating.)
SCIA5736E
SCIA2119E
SCIA7465E

AT-232
A/T SHIFT LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45
A/T SHIFT LOCK SYSTEMPFP:34950
DescriptionNCS001I9

The mechanical key interlock mechanism also operates as a shift lock:
With the ignition switch turned to ON, the selector lever cannot be shifted from “P” position to any other
position unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from “P” position to any other position.
The key cannot be removed unless the selector lever is placed in “P” position.

The shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside the key cylinder.
Shift Lock System Electrical Parts LocationNCS001IA
1. Stop lamp switch 2. Brake pedal 3. Key interlock cable
4. Shift lock solenoid
A. Center console assembly B. Shift lock release button C. Brake pedal, upper
D. Control device assembly E. Shift lock solenoid, reverse side F. Park position switch
SCIA8107E

A/T SHIFT LOCK SYSTEM AT-233
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45

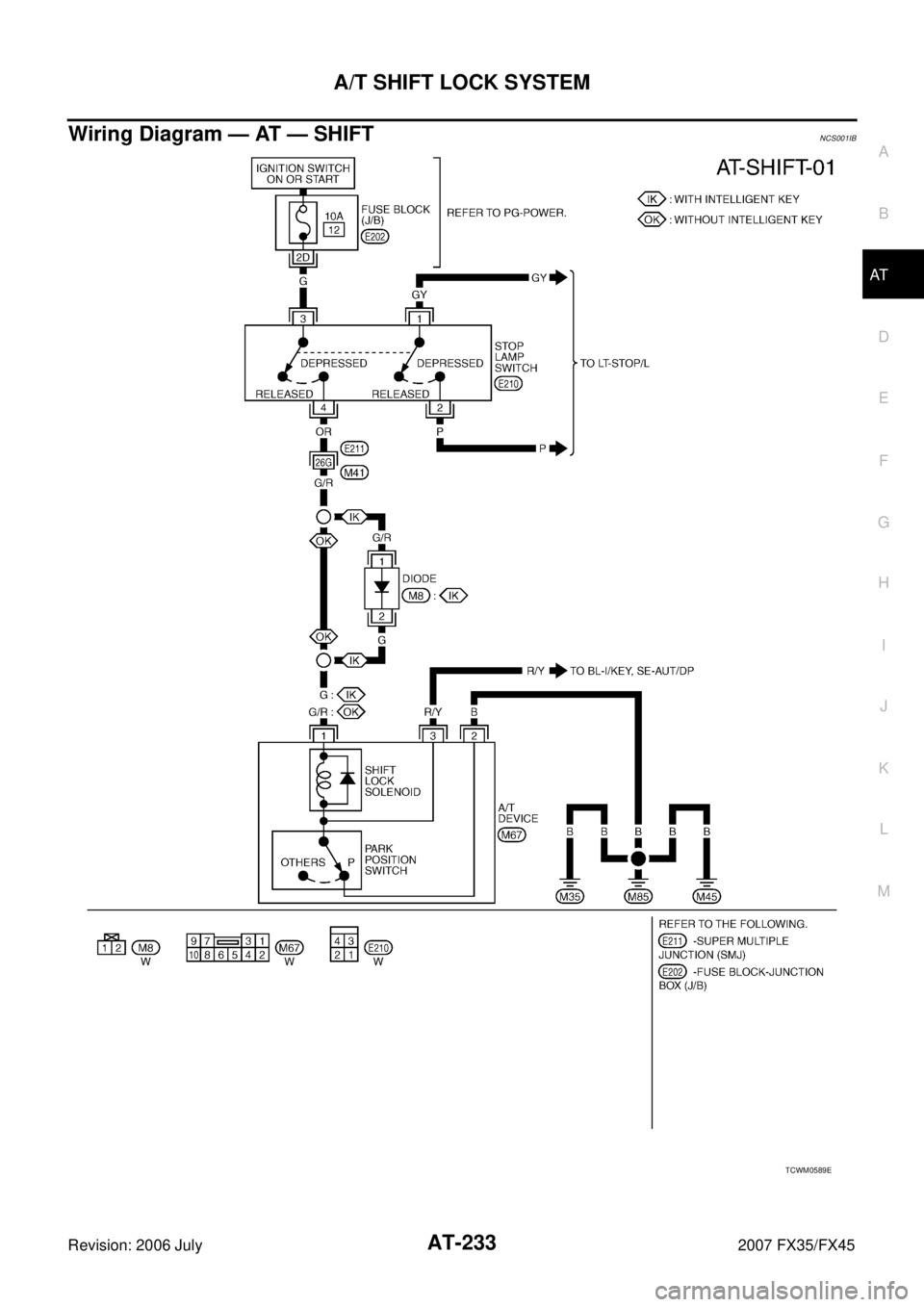

Wiring Diagram — AT — SHIFTNCS001IB
TCWM0589E

AT-234
A/T SHIFT LOCK SYSTEM
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNCS001IC
SYMPTOM 1:

Selector lever cannot be moved from “P” position with key in ON position and brake pedal
applied.

Selector lever can be moved from “P” position with key in ON position and brake pedal released.

Selector lever can be moved from “P” position when key is removed from key cylinder.
SYMPTOM 2:

Ignition key cannot be removed when selector lever is set to “P” position.

Ignition key can be removed when selector lever is set to any position except “P” position.
1. CHECK KEY INTERLOCK CABLE
Check the key interlock cable for damage.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace key interlock cable. Refer to AT- 2 3 6 , "
KEY INTERLOCK CABLE" .
2. CHECK SELECTOR LEVER POSITION
Check the selector lever position for damage. Refer to AT- 2 3 1 , "
Checking of A/T Position"
OK or NG
OK >> GO TO 3.
NG >> Adjust A/T position. Refer to AT- 2 3 1 , "
Adjustment of A/T Position" .
3. CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
1. Connect A/T device harness connector.
2. Turn ignition switch ON.
3. Selector lever is set in “P” position.
4. Check operation.
OK or NG
OK >> INSPECTION END
NG >> GO TO 4.
4. CHECK POWER SOURCE
1. Turn ignition switch ON.
2. Check the voltage between A/T device harness connector M67 terminal 1 and ground. Refer to AT- 2 3 3 , "
Wiring Diagram — AT
— SHIFT" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
Condition Brake pedal Operation
When ignition switch is turned to ON and selector lever is set in
“P” position. Depressed Yes
Released No
Condition Brake pedal Data (Approx.)
When ignition switch is turned to
ON. Depressed Battery voltage
Released 0 V
SCIA2122E

A/T SHIFT LOCK SYSTEM AT-235
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
5. CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch harness connector E210 terminals 3 and 4.
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
BRAKE PEDAL" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
Check the following items. If any items are damaged, repair or replace damaged parts.

Harness for short or open between ignition switch and stop lamp switch harness connector E210 terminal
3.

Harness for short or open between stop lamp switch harness connector E210 terminal 4 and A/T device
harness connector M67 terminal 1.

10 A fuse [No.12, located in the fuse block (J/B)].

Ignition switch, Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
7. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect A/T device harness connector.
3. Check continuity between A/T device harness connector M67 terminal 2 and ground.
OK or NG
OK >> Replace shift lock solenoid and park position switch assembly.
NG >> Repair open circuit in harness or connectors.
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA2126E
Continuity should exist.
SCIA2125E

AT-236
KEY INTERLOCK CABLE
Revision: 2006 July 2007 FX35/FX45
KEY INTERLOCK CABLEPFP:34908
ComponentsNCS001ID
CAUTION:

Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or inter-
ference with adjacent parts.

After installing key interlock cable to control device, make sure that casing cap and bracket are
firmly secured in their positions. If casing cap be removed with an external load of less than 39.2 N
(4.0 kg, 8.8 lb), replace key interlock cable with new one.
1. Key interlock cable 2. Key cylinder
A. Holder B. Clip C. Slider
D. Adjuster holder E. Interlock rod F. Unlock
G. Lock
SCIA7755E
