INDEX FOR DTCPFP:00024
Alphabetical Index NCS001AL
NOTE:
If “DTC U1000” is displayed with other DTCs, first perform the trouble diagnosis for “DTC U1000 CAN
COMMUNICATION”. Refer to AT- 1 0 4 , "
DTC U1000 CAN COMMUNICATION LINE" .
*1: These numbers are prescribed by SAE J2012.
*2: These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL. Items
(CONSULT-II screen terms) DTC
Reference page
OBD-II Except OBD-II
CONSULT-II GST
(*1) CONSULT-II only “A/T”
A/T 1ST E/BRAKING — P1731 AT- 1 4 4
ATF PRES SW 1/CIRC — P1841AT- 1 7 1
ATF PRES SW 3/CIRC — P1843AT- 1 7 3
ATF PRES SW 5/CIRC — P1845AT- 1 7 5
ATF PRES SW 6/CIRC — P1846AT- 1 7 7
A/T INTERLOCK P1730 P1730AT- 1 4 1
A/T TCC S/V FNCTN
P0744(*2)P0744 AT- 1 2 7
ATF TEMP SEN/CIRC P0710 P1710 AT- 1 3 4
CAN COMM CIRCUIT U1000 U1000AT- 1 0 4
D/C SOLENOID/CIRC P1762 P1762AT- 1 5 4
D/C SOLENOID FNCTN
P1764(*2)P1764 AT- 1 5 6
ENGINE SPEED SIG — P0725 AT- 1 2 3
FR/B SOLENOID/CIRC P1757 P1757AT- 1 5 0
FR/B SOLENOID FNCT
P1759(*2)P1759 AT- 1 5 2
HLR/C SOL/CIRC P1767 P1767 AT- 1 5 8
HLR/C SOL FNCTN
P1769(*2) P1769
AT- 1 6 0
I/C SOLENOID/CIRC P1752 P1752 AT- 1 4 6
I/C SOLENOID FNCTN
P1754(*2)P1754 AT- 1 4 8
L/PRESS SOL/CIRC P0745 P0745 AT- 1 2 9
LC/B SOLENOID/CIRC P1772 P1772AT- 1 6 2
LC/B SOLENOID FNCT
P1774(*2)P1774 AT- 1 6 4
MANU MODE SW/CIRC — P1815 AT- 1 6 6
PNP SW/CIRC P0705 P0705 AT- 11 2
STARTER RELAY/CIRC — P0615AT- 1 0 7
TCC SOLENOID/CIRC P0740 P0740AT- 1 2 5
TCM P0700 P0700 AT- 111
TP SEN/CIRC A/T — P1705AT- 1 3 1
TURBINE REV S/CIRC P0717 P0717 AT- 11 6
VEH SPD SE/CIR-MTR — P1721AT- 1 3 9
VEH SPD SEN/CIR AT P0720 P0720 AT- 11 8

AT-6
INDEX FOR DTC
Revision: 2006 July 2007 FX35/FX45
DTC No. Index NCS001AM
NOTE:
If “DTC U1000” is displayed with other DTCs, first perform the trouble diagnosis for “DTC U1000 CAN
COMMUNICATION”. Refer to AT- 1 0 4 , "
DTC U1000 CAN COMMUNICATION LINE" .
*1: These numbers are prescribed by SAE J2012.
*2: These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL. DTC
Items
(CONSULT-II screen terms) Reference page
OBD-II Except OBD-II
CONSULT-II GST
(*1)CONSULT-II only “A/T”
— P0615 STARTER RELAY/CIRC AT- 1 0 7
P0700 P0700 TCM AT- 111
P0705 P0705 PNP SW/CIRCAT- 11 2
P0710 P1710 ATF TEMP SEN/CIRCAT- 1 3 4
P0717 P0717 TURBINE REV S/CIRC AT- 11 6
P0720 P0720 VEH SPD SEN/CIR ATAT- 11 8
— P0725 ENGINE SPEED SIGAT- 1 2 3
P0740 P0740 TCC SOLENOID/CIRC AT- 1 2 5
P0744(*2)P0744 A/T TCC S/V FNCTNAT- 1 2 7
P0745 P0745 L/PRESS SOL/CIRC AT- 1 2 9
— P1705 TP SEN/CIRC A/TAT- 1 3 1
— P1721 VEH SPD SE/CIR-MTRAT- 1 3 9
P1730 P1730 A/T INTERLOCK AT- 1 4 1
— P1731 A/T 1ST E/BRAKINGAT- 1 4 4
P1752 P1752 I/C SOLENOID/CIRC AT- 1 4 6
P1754(*2)P1754 I/C SOLENOID FNCTNAT- 1 4 8
P1757 P1757 FR/B SOLENOID/CIRC AT- 1 5 0
P1759(*2)P1759 FR/B SOLENOID FNCTAT- 1 5 2
P1762 P1762 D/C SOLENOID/CIRC AT- 1 5 4
P1764(*2)P1764 D/C SOLENOID FNCTNAT- 1 5 6
P1767 P1767 HLR/C SOL/CIRC AT- 1 5 8
P1769(*2)P1769 HLR/C SOL FNCTNAT- 1 6 0
P1772 P1772 LC/B SOLENOID/CIRC AT- 1 6 2
P1774(*2)P1774 LC/B SOLENOID FNCTAT- 1 6 4
— P1815 MANU MODE SW/CIRC AT- 1 6 6
— P1841 ATF PRES SW 1/CIRCAT- 1 7 1
— P1843 ATF PRES SW 3/CIRCAT- 1 7 3
— P1845 ATF PRES SW 5/CIRCAT- 1 7 5
— P1846 ATF PRES SW 6/CIRCAT- 1 7 7
U1000 U1000 CAN COMM CIRCUIT AT- 1 0 4

AT-8
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45
Precautions NCS001AP

Before connecting or disconnecting the A/T assembly har-
ness connector, turn ignition switch OFF and disconnect
the battery cable from the negative terminal. Because bat-
tery voltage is applied to TCM even if ignition switch is
turned OFF.

After performing each TROUBLE DIAGNOSIS, perform
“DTC (Diagnostic Trouble Code) Confirmation Procedure”.
If the repair is completed the DTC should not be displayed
in the “DTC Confirmation Procedure”.

Always use the specified brand of ATF. Refer to MA-12, "Fluids and Lubricants" .

Use lint-free paper not cloth rags during work.

After replacing the ATF, dispose of the waste oil using the methods prescribed by law, ordinance, etc.

Before proceeding with disassembly, thoroughly clean the outside of the transmission. It is important to
prevent the internal parts from becoming contaminated by dirt or other foreign matter.

Disassembly should be done in a clean work area.

Use lint-free paper or towels for wiping parts clean. Common shop rags can leave fibers that could inter-
fere with the operation of the transmission.

Place disassembled parts in order for easier and proper assembly.

All parts should be carefully cleansed with a general purpose, non-flammable solvent before inspection or
reassembly.

Gaskets, seals and O-rings should be replaced any time the transmission is disassembled.

It is very important to perform functional tests whenever they are indicated.

The valve body contains precision parts and requires extreme care when parts are removed and serviced.
Place disassembled valve body parts in order for easier and proper assembly. Care will also prevent
springs and small parts from becoming scattered or lost.

Properly installed valves, sleeves, plugs, etc. will slide along bores in valve body under their own weight.

Before assembly, apply a coat of recommended ATF to all parts. Apply petroleum jelly to protect O-rings
and seals, or hold bearings and washers in place during assembly. Do not use grease.

Extreme care should be taken to avoid damage to O-rings, seals and gaskets when assembling.

After overhaul, refill the transmission with new ATF.

When the A/T drain plug is removed, only some of the ATF is drained. Old ATF will remain in torque con-
verter and ATF cooling system.
Always follow the procedures under “Changing A/T Fluid” in the AT section when changing A/T fluid. Refer
to AT- 1 2 , "
Changing A/T Fluid" , AT- 1 3 , "Checking A/T Fluid" .
SEF289H
SEF217U

PRECAUTIONS AT-9
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
Service Notice or PrecautionsNCS001AQ
ATF COOLER SERVICE
If ATF contains frictional material (clutches, bands, etc.), or if an A/T is repaired, overhauled, or replaced,
inspect and clean the A/T fluid cooler mounted in the radiator or replace the radiator. Flush cooler lines using
cleaning solvent and compressed air after repair. For A/T fluid cooler cleaning procedure, refer to AT- 1 5 , "
A/T
Fluid Cooler Cleaning" . For radiator replacement, refer to CO-14, "RADIATOR" (for VQ35DE), CO-41, "RADI-
AT O R" (for VK45DE).
OBD-II SELF-DIAGNOSIS

A/T self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through
the blinking pattern of the A/T CHECK indicator or the malfunction indicator lamp (MIL). Refer to the table
on AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" for the indicator used to display each self-diagnostic
result.

The self-diagnostic results indicated by the MIL are automatically stored in both the ECM and TCM mem-
ories.
Always perform the procedure on AT- 4 1 , "
HOW TO ERASE DTC" to complete the repair and avoid
unnecessary blinking of the MIL.
For details of OBD-II, refer to EC-53, "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" (for VQ35DE) or EC-715,
"ON BOARD DIAGNOSTIC (OBD) SYSTEM" (for VK45DE).

Certain systems and components, especially those related to OBD, may use the new style slide-
locking type harness connector. For description and how to disconnect, refer to PG-71, "
HAR-
NESS CONNECTOR" .

AT-40
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision: 2006 July 2007 FX35/FX45
ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionNCS001B7
The A/T system has two self-diagnostic systems.
The first is the emission-related on board diagnostic system (OBD-II) performed by the TCM in combination
with the ECM. The malfunction is indicated by the MIL (malfunction indicator lamp) and is stored as a DTC in
the ECM memory but not the TCM memory.
The second is the TCM original self-diagnosis indicated by the A/T CHECK indicator lamp. The malfunction is
stored in the TCM memory. The detected items are overlapped with OBD-II self-diagnostic items. For detail,
refer to AT- 9 2 , "
Display Items List" .
OBD-II Function for A/T SystemNCS001B8
The ECM provides emission-related on board diagnostic (OBD-II) functions for the A/T system. One function
is to receive a signal from the TCM used with OBD-related parts of the A/T system. The signal is sent to the
ECM when a malfunction occurs in the corresponding OBD-related part. The other function is to indicate a
diagnostic result by means of the MIL (malfunction indicator lamp) on the instrument panel. Sensors, switches
and solenoid valves are used as sensing elements.
The MIL automatically illuminates in “One or Two Trip Detection Logic” when a malfunction is sensed in rela-
tion to A/T system parts.
One or Two Trip Detection Logic of OBD-IINCS001B9
ONE TRIP DETECTION LOGIC
If a malfunction is sensed during the first test drive, the MIL will illuminate and the malfunction will be stored in
the ECM memory as a DTC. The TCM is not provided with such a memory function.
TWO TRIP DETECTION LOGIC
When a malfunction is sensed during the first test drive, it is stored in the ECM memory as a 1st trip DTC
(diagnostic trouble code) or 1st trip freeze frame data. At this point, the MIL will not illuminate. — 1st trip
If the same malfunction as that experienced during the first test drive is sensed during the second test drive,
the MIL will illuminate. — 2nd trip
The “Trip” in the “One or Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed
during vehicle operation.
OBD-II Diagnostic Trouble Code (DTC)NCS001BA
HOW TO READ DTC AND 1ST TRIP DTC
DTC and 1st trip DTC can be read by the following methods.
( with CONSULT-II or GST) CONSULT-II or GST (Generic Scan Tool) Examples: P0705, P0720 etc.
These DTC are prescribed by SAE J2012.
(CONSULT-II also displays the malfunctioning component or system.)

1st trip DTC No. is the same as DTC No.

Output of the diagnostic trouble code indicates that the indicated circuit has a malfunction. How-
ever, in case of the Mode II and GST, they do not indicate whether the malfunction is still occurring
or occurred in the past and returned to normal.
CONSULT-II can identify them as shown below, therefore, CONSULT-II (if available) is recom-
mended.
A sample of CONSULT-II display for DTC and 1st trip DTC is shown
on the next page. DTC or 1st trip DTC of a malfunction is displayed
in SELF-DIAGNOSTIC RESULTS mode for “ENGINE” with CON-
SULT-II. Time data indicates how many times the vehicle was driven
after the last detection of a DTC.
BCIA0030E

ON BOARD DIAGNOSTIC (OBD) SYSTEM AT-41
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
If the DTC is being detected currently, the time data will be “0”.
If a 1st trip DTC is stored in the ECM, the time data will be “1t”.
Freeze Frame Data and 1st Trip Freeze Frame Data
The ECM has a memory function, which stores the driving condition such as fuel system status, calculated
load value, engine coolant temperature, short term fuel trim, long term fuel trim, engine speed and vehicle
speed at the moment the ECM detects a malfunction.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data,
and the data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-II
or GST. The 1st trip freeze frame data can only be displayed on the CONSULT-II screen, not on the GST. For
detail, refer to EC-118, "
CONSULT-II Function (ENGINE)" (for VQ35DE) or EC-781, "CONSULT-II Function
(ENGINE)" (for VK45DE).
Only one set of freeze frame data (either 1st trip freeze frame data of freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.
Both 1st trip freeze frame data and freeze frame data (along with the DTC) are cleared when the ECM mem-
ory is erased.

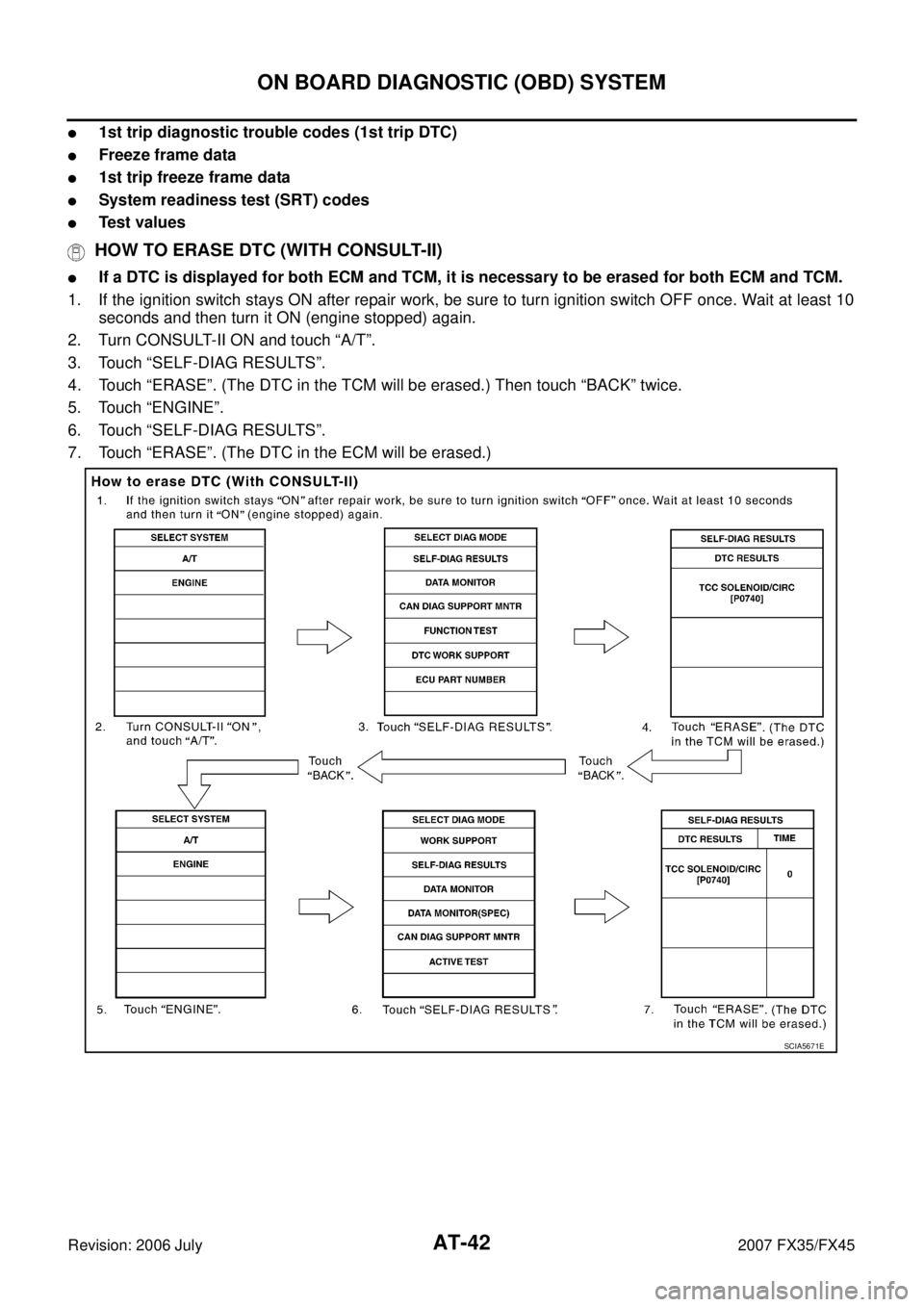

HOW TO ERASE DTC
The diagnostic trouble code can be erased by CONSULT-II, GST or ECM DIAGNOSTIC TEST MODE as
described following.

If the battery cable is disconnected, the diagnostic trouble code will be lost within 24 hours.

When you erase the DTC, using CONSULT-II or GST is easier and quicker than switching the mode
selector on the ECM.
The following emission-related diagnostic information is cleared from the ECM memory when erasing DTC
related to OBD-II. For details, refer to EC-54, "
Emission-Related Diagnostic Information" (for VQ35DE) or EC-
716, "Emission-related Diagnostic Information" (for VK45DE).

Diagnostic trouble codes (DTC)
SAT015K
SAT016K
Priority Items
1 Freeze frame data Misfire — DTC: P0300 - P0306
Fuel Injection System Function — DTC: P0171, P0172, P0174, P0175
2 Except the above items (Includes A/T related items)
3 1st trip freeze frame data

AT-42
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision: 2006 July 2007 FX35/FX45

1st trip diagnostic trouble codes (1st trip DTC)

Freeze frame data

1st trip freeze frame data

System readiness test (SRT) codes

Test values
HOW TO ERASE DTC (WITH CONSULT-II)

If a DTC is displayed for both ECM and TCM, it is necessary to be erased for both ECM and TCM.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10 seconds and then turn it ON (engine stopped) again.
2. Turn CONSULT-II ON and touch “A/T”.
3. Touch “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (The DTC in the TCM will be erased.) Then touch “BACK” twice.
5. Touch “ENGINE”.
6. Touch “SELF-DIAG RESULTS”.
7. Touch “ERASE”. (The DTC in the ECM will be erased.)
SCIA5671E

AT-44
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
TROUBLE DIAGNOSISPFP:00004
DTC Inspection Priority ChartNCS001BC
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If “DTC U1000” is displayed with other DTCs, first perform the trouble diagnosis for “DTC U1000 CAN
COMMUNICATION”. Refer to AT- 1 0 4
.
Fail-safeNCS001BD
The TCM has an electrical fail-safe mode. This mode makes it possible to operate even if there is a an error in
a main electronic control input/output signal circuit.
In fail-safe mode, even if the selector lever is “D” or “M” mode, the transmission is fixed in 2nd, 4th or 5th
(depending on the breakdown position), so the customer should feel “slipping” or “poor acceleration”.
Even when the electronic circuits are normal, under special conditions (for example, when slamming on the
brake with the wheels spinning drastically and stopping the tire rotation), the transmission can go into fail-safe
mode. If this happens, switch OFF the ignition switch for 10 seconds, then switch it ON again to return to the
normal shift pattern. Therefore, the customer's vehicle has returned to normal, so handle according to the
“WORK FLOW” (Refer to AT- 4 6
).
FAIL-SAFE FUNCTION
If any malfunction occurs in a sensor or solenoid, this function controls the A/T to mark driving possible.
Vehicle Speed Sensor
Signals are input from two systems - from vehicle speed sensor A/T (revolution sensor) installed on the trans-
mission and from combination meter so normal driving is possible even if there is a malfunction in one of the
systems. And if vehicle speed sensor A/T (revolution sensor) has unusual cases, 5th gear and manual mode
are prohibited.
Accelerator Pedal Position Sensor
If there is a malfunction in one of the systems, the accelerator opening angle is controlled by ECM according
to a pre-determined accelerator angle to make driving possible. And if there are malfunctions in tow systems,
the engine speed is fixed by ECM to a pre-determined engine speed to make driving possible.
Throttle Position Sensor
If there is a malfunction in one of the systems, the accelerator opening angle is controlled by ECM according
to a pre-determined accelerator angle to make driving possible. And if there are malfunctions in tow systems,
the accelerator opening angle is controlled by the idle signal sent from the ECM which is based on input indi-
cating either idle condition or off-idle condition (pre-determined accelerator opening) in order to make driving
possible.
PNP Switch
In the unlikely event that a malfunction signal enters the TCM, the position indicator is switched OFF, the
starter relay is switched OFF (starter starting is disabled), the back-up lamp relay switched OFF (back-up lamp
is OFF) and the position is fixed to the “D” position to make driving possible.
Starter Relay
The starter relay is switched OFF. (Starter starting is disabled.)
Priority Detected items (DTC)
1 U1000 CAN communication line
2 Except above

TROUBLE DIAGNOSIS AT-45
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
A/T Interlock

If there is an A/T interlock judgment malfunction, the A/T is fixed in 2nd gear to make driving possible.
NOTE:
When the vehicle is driven fixed in 2nd gear, a turbine revolution sensor malfunction is displayed,
but this is not a turbine revolution sensor malfunction.

When the coupling pattern below is detected, the fail-safe action corresponding to the pattern is per-
formed.
A/T INTERLOCK COUPLING PATTERN TABLE

: NG X: OK
A/T 1st Engine Braking
When there is an A/T first gear engine brake judgment malfunction, the low coast brake solenoid is switched
OFF to avoid the engine brake operation.
Line Pressure Solenoid
The solenoid is switched OFF and the line pressure is set to the maximum hydraulic pressure to make driving
possible.
Torque Converter Clutch Solenoid
The solenoid is switched OFF to release the lock-up.
Low Coast Brake Solenoid
When a malfunction (electrical or functional) occurs, in order to make driving possible, if the solenoid is ON,
the transmission is held in 2nd gear; if the solenoid is OFF, the A/T is held in 4th gear. (Engine brake is not
applied in 1st and 2nd gear.)
Input Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th gear
to make driving possible.
Direct Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th gear
to make driving possible.
Front Brake Solenoid
If a malfunction (electrical or functional) occurs with the solenoid ON, in order to make driving possible, the A/
T is held in 5th gear; if the solenoid is OFF, 4th gear.
High and Low Reverse Clutch Solenoid
If a malfunction (electrical or functional) occurs with the solenoid either ON or OFF, the A/T is held in 4th gear
to make driving possible.
Turbine Revolution Sensor 1 or 2
The control is the same as if there were no turbine revolution sensors, 5th gear and manual mode are prohib-
ited.
Gear position ATF pressure switch output
Fail-safe function Clutch pressure output pattern after fail-safe func-
tion
SW3 (I/C) SW6
(HLR/
C) SW5
(D/C) SW1
(FR/B) SW2
(LC/B) I/C HLR/C D/C FR/B LC/B L/U
A/T inter-
lock cou-
pling pattern 3rd – X X –

Held in
2nd gear OFF OFF ON OFF OFF OFF
4th – X X –
Held in
2nd gear OFF OFF ON OFF OFF OFF
5th X X – X
Held in
2nd gear OFF OFF ON OFF OFF OFF

AT-90
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
CONSULT-II Function (A/T)NCS001BR
CONSULT-II can display each diagnostic item using the diagnostic test models shown following.
FUNCTION
CONSULT-II REFERENCE VALUE
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man- ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Display of solenoid valves on CONSULT-II changes at the start of shifting, while gear position is displayed upon completion of shifting (which is computed by TCM).
Diagnostic test mode Function Reference page
Self-diagnostic results Self-diagnostic results can be read and erased quickly. AT- 9 2
Data monitor Input/Output data in the ECU can be read.AT- 9 5
CAN diagnostic support
monitor The results of transmit/receive diagnosis of CAN communication can be read.
AT- 9 9
Function test Performed by CONSULT-II instead of a technician to determine whether each system
is “OK” or “NG”. —
DTC work support Select the operating condition to confirm Diagnosis Trouble Codes. AT- 9 9
ECU part number TCM part number can be read. —
Item name Condition Display value
(Approx.)
VHCL/S SE-A/T During driving Approximately
matches the speed-
ometer reading.
VHCL/S SE-MTR
ACCELE POSI Released accelerator pedal. 0.0/8
Fully depressed accelerator pedal. 8.0/8
CLSD THL POS Released accelerator pedal. ON
Fully depressed accelerator pedal. OFF
W/O THL POS Fully depressed accelerator pedal. ON
Released accelerator pedal. OFF
BRAKE SW Depressed brake pedal. ON
Released brake pedal. OFF
ENGINE SPEED Engine running Closely matches the
tachometer reading.
TURBINE REV During driving (lock-up ON) Approximately
matches the engine
speed.
ATF TEMP SE 1 0 °C (32 ° F) - 20 °C (68 °F) - 80 °C (176 °F) 3.3 - 2.7 - 0.9 V
ATF TEMP SE 2 3.3 - 2.5 - 0.7 V
TCC SOLENOID Slip lock-up is active 0.2 - 0.4 A
Lock-up is active 0.4 - 0.6 A
LINE PRES SOL During driving 0.2 - 0.6 A
