AUTOMATIC DRIVE POSITIONER SE-13
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
MEMORY SWITCH OPERATION
Selecting the memory
NOTE:
The driver's seat position and steering adjustment functions (see the following table) operate simultaneously in
the order of priority.
*: In conjunction with sliding the seat, the door mirrors are positioned.
ENTRY OPERATION
When the seat are on the exiting positions, the following operation moves the seat to the previous position
before the exiting operation.
EXITING OPERATION
At exit, the seat are automatically moved to the exiting position.
Priority Function Priority Function
1 Seat sliding, door mirror LH/RH* 4 Seat reclining
2 Steering wheel telescoping 5 Seat lifter-FR
3 Steering wheel tilt 6 Seat lifter-RR
PIIA6137E
PIIA6135E
PIIA6136E

SE-14
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
KEYFOB INTERLOCK OPERATION

Perform memory operation, exiting operation and entry operation by pressing keyfob unlock button.
NOTE:

If steering wheel operation is cancelled, the system performs seat and mirror operation only.

If Entry/Exiting operation is cancelled, the system performs steering wheel operation and mirror operation
only.

If ignition switch turns ON in the middle of memory operation, the system does not perform exiting opera-
tion after memory operation.

If ignition switch turns ON in the middle of exiting operation, entry operation starts at that time.
FAIL - SAFE MO DE
When any manual and automatic operations are not performed, if any motor operations of seats or tilt of steer-
ing are detected for approx. 0.1 sec or more, status is judged “Output malfunction”. Motor operation will be
suspended automatically, and all automatic operations will be ineffective (in this case, the motor will not oper-
ate manually).
CANCEL OF FAIL-SAFE MODE

The mode is cancelled when the selector lever is shifted to P position from any other position.
PIIA6949E
OPERATED PORTION Seat sliding
Seat reclining
Seat lifting (Front)
Seat lifting (Rear)
steering tilt
steering telescopic

AUTOMATIC DRIVE POSITIONER SE-15
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45

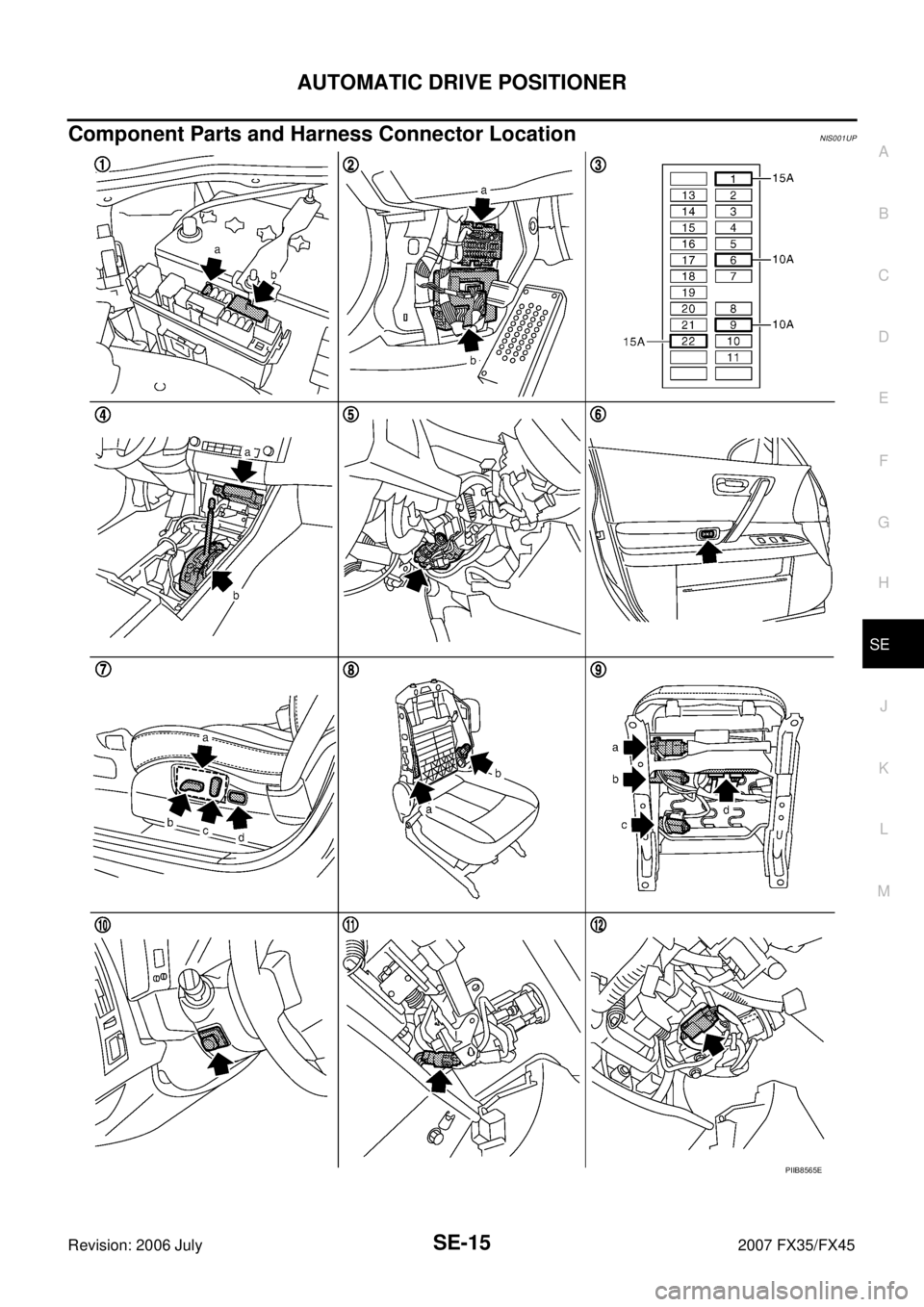

Component Parts and Harness Connector LocationNIS001UP
PIIB8565E

SE-16
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
CAN Communication System DescriptionNIS001UQ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNIS001UR
Refer to LAN-49, "CAN System Specification Chart" .
1. a: 10A 38 fuse (With Intelligent Key)
b: 50A M fusible link 2. a: Fuse block (J/B) M1, M2
b: BCM M3, M4, B14
(View with the dash side LH
removed) 3. Fuse block (J/B) fuse layout
4. a: Automatic drive positioner control unit M49, M50
b: A/T device (park position switch)
M67
(View with the center console
removed) 5. Tilt motor and telescopic motor M27
Tilt sensor and telescopic sensor M28
(View with the instrument driver lower
panel removed) 6. Seat memory switch D22
7. a: Power seat switch B175 b: Sliding switch & Lifting switch
(front & rear)
c: Reclining switch
d: Lumbar support switch B158 8. a: Lumbar support motor B172
b: Reclining motor B166 9. a: Sliding motor B161
b: Lifting motor (front) B164
c: Lifting motor (rear) B162
d: Driver seat control unit B152,
B153
10. ADP steering switch M13 11. Key switch connector M23 (Without Intelligent Key) 12. Key switch and ignition knob switch
connector M22
(With Intelligent Key)
13. Front door switch (Driver side) B26 14. Door mirror (Driver side) D2 15. Door mirror (Passenger side) D32
16. Door mirror remote control switch M18 17. Unified meter and A/C amp. M55
(View with the cluster lid C removed)
PIIB8566E

AUTOMATIC DRIVE POSITIONER SE-17
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45

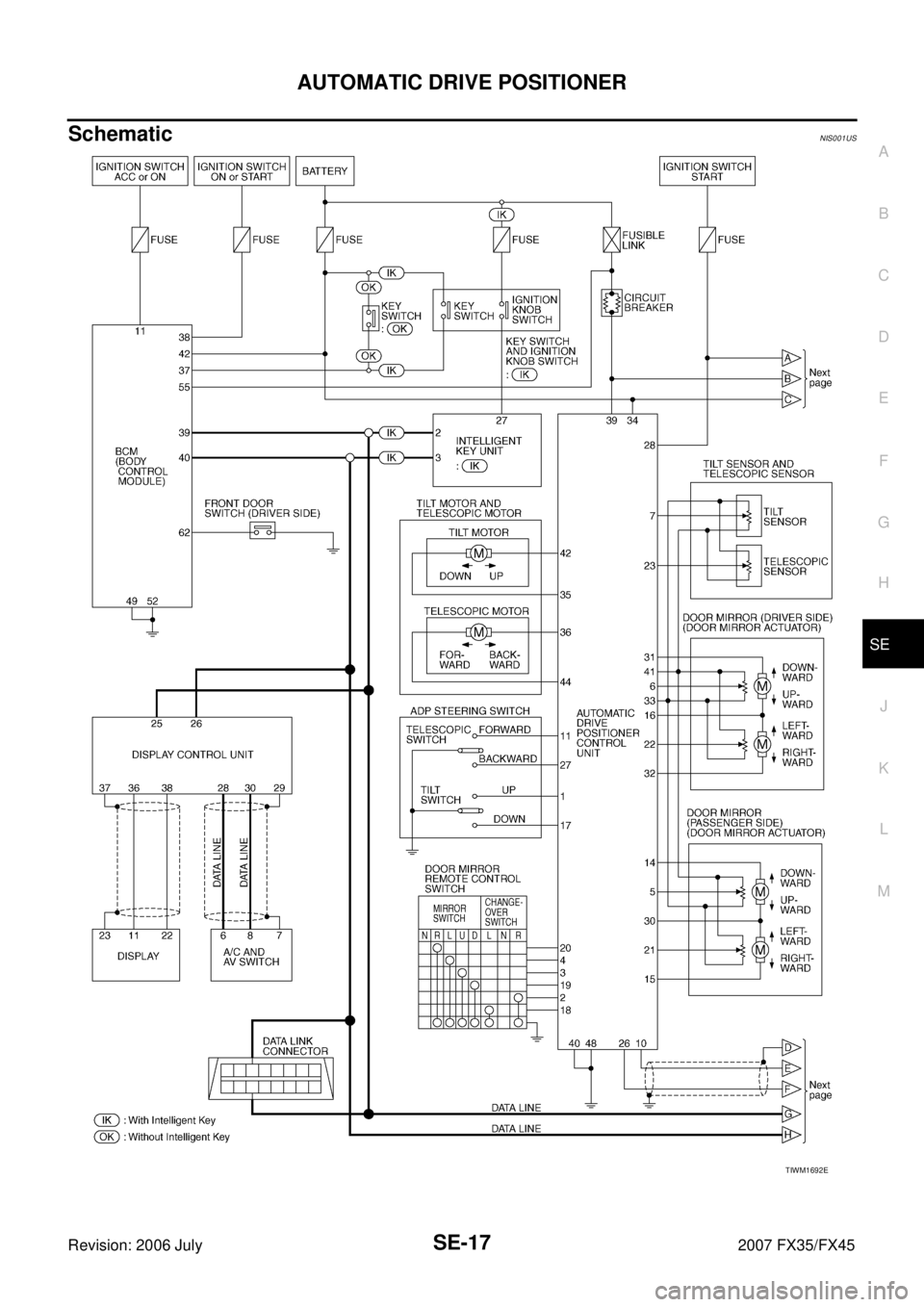

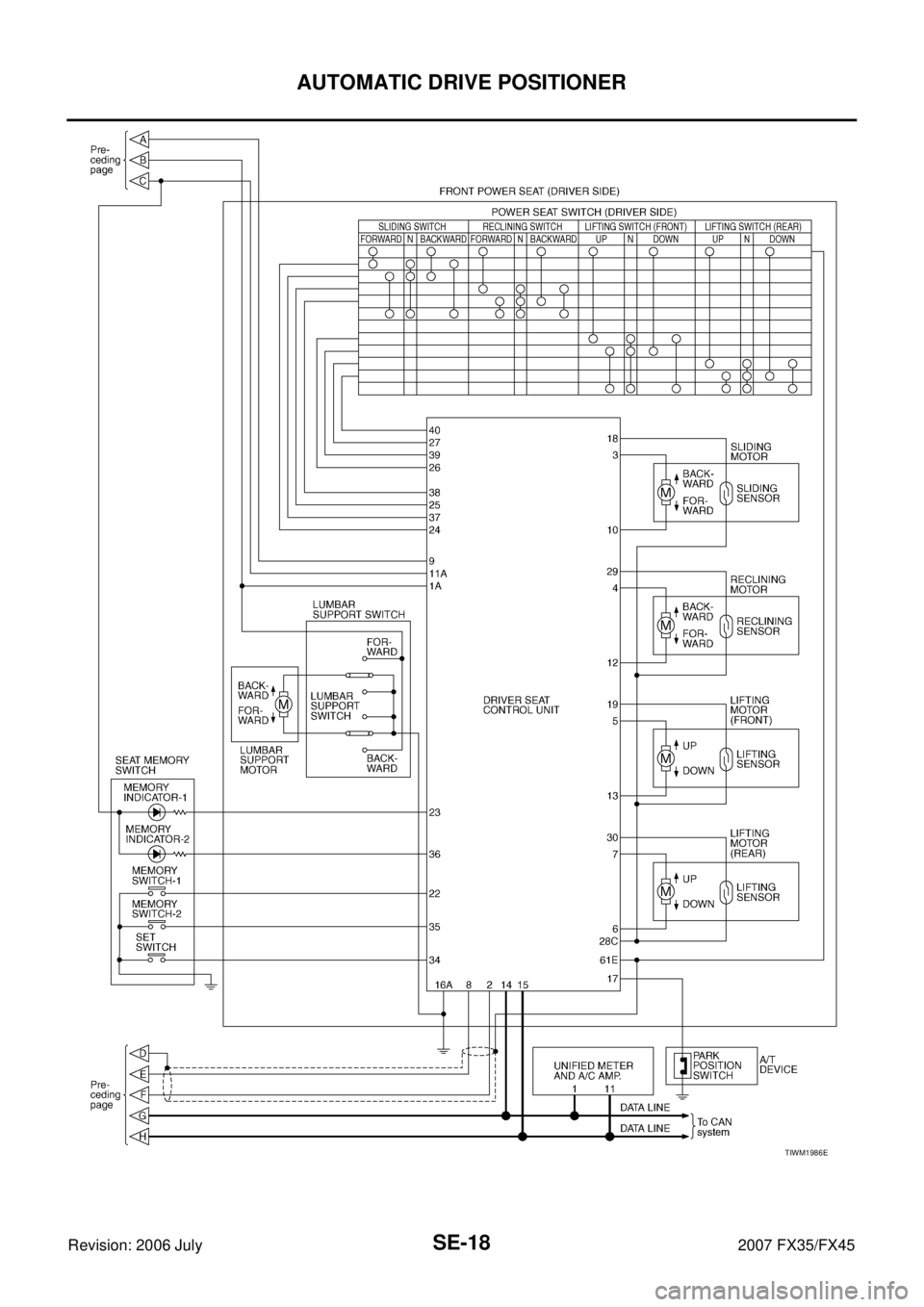

SchematicNIS001US
TIWM1692E

SE-18
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
TIWM1986E

AUTOMATIC DRIVE POSITIONER SE-19
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45

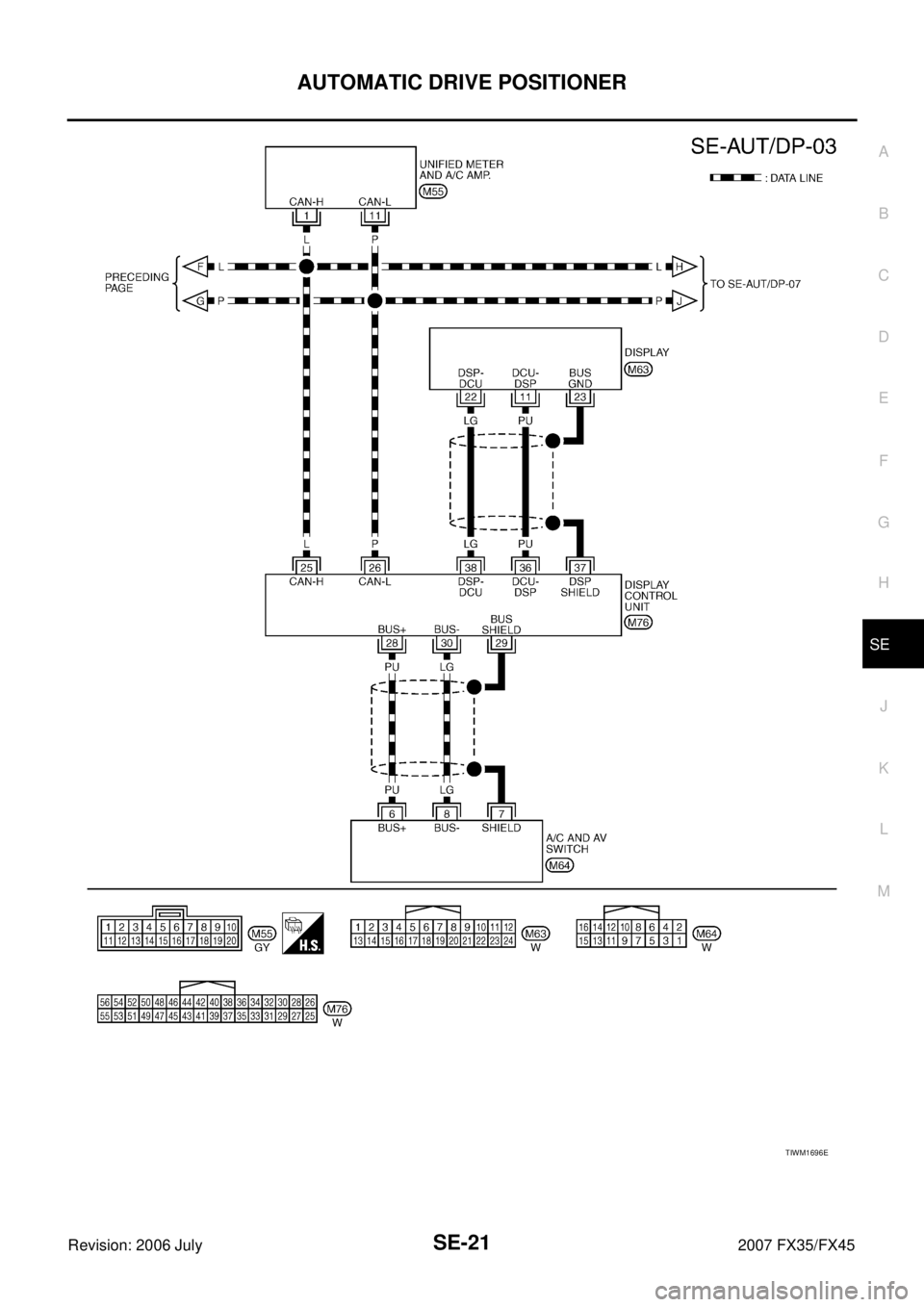

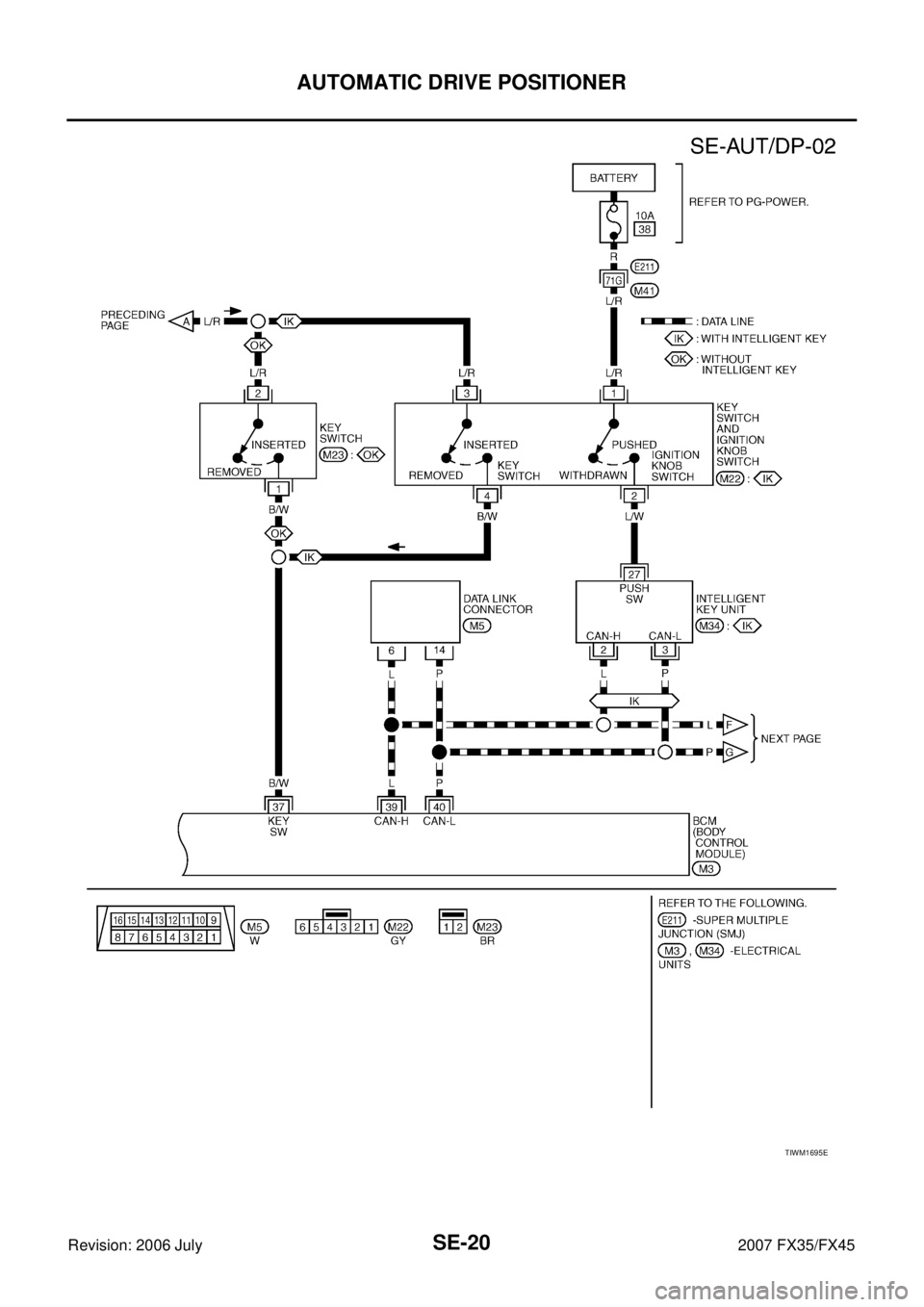

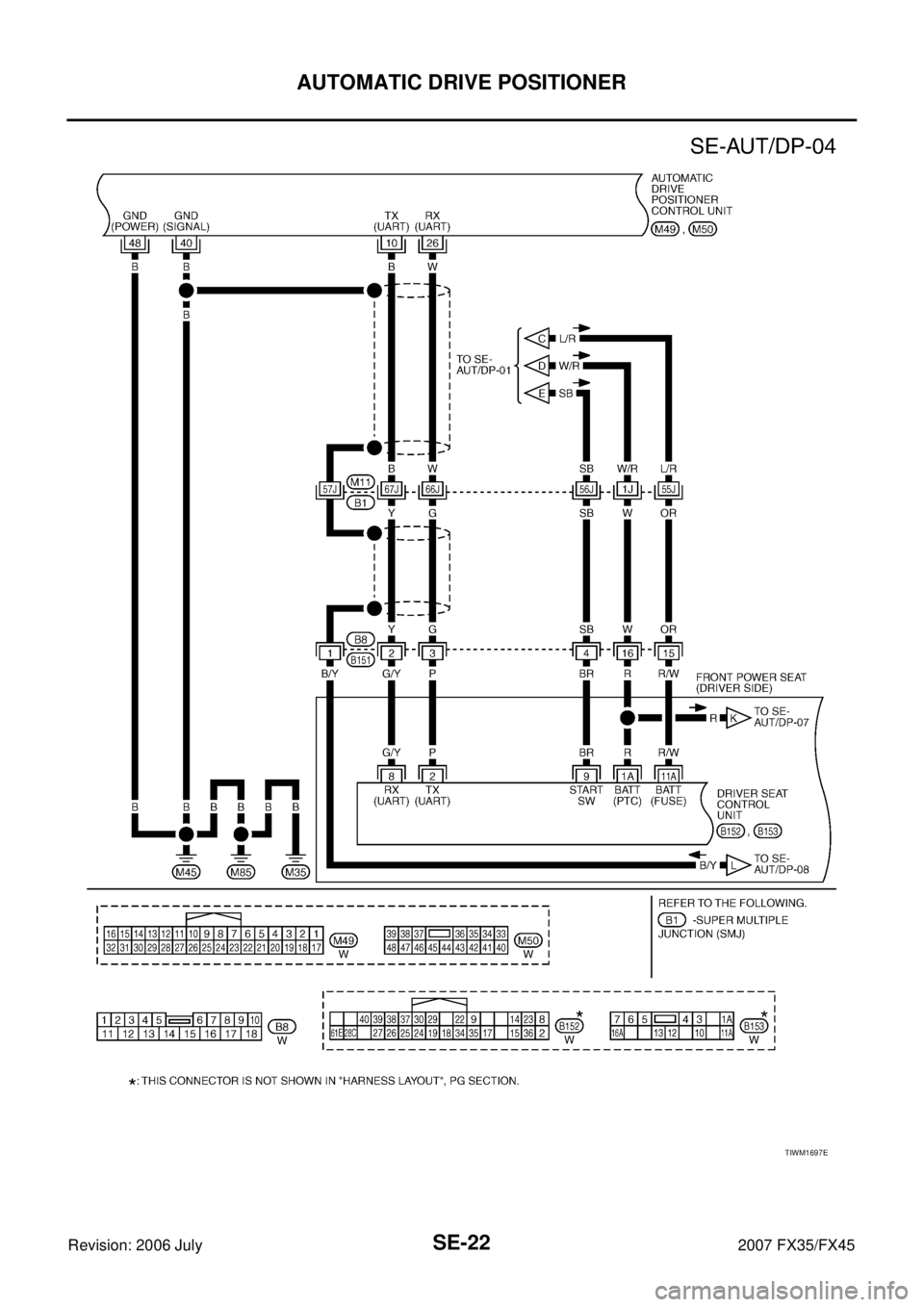

Wiring Diagram — AUT/DP —NIS001UT
TIWM1694E

SE-20
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
TIWM1695E

AUTOMATIC DRIVE POSITIONER SE-21
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
TIWM1696E

SE-22
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
TIWM1697E
