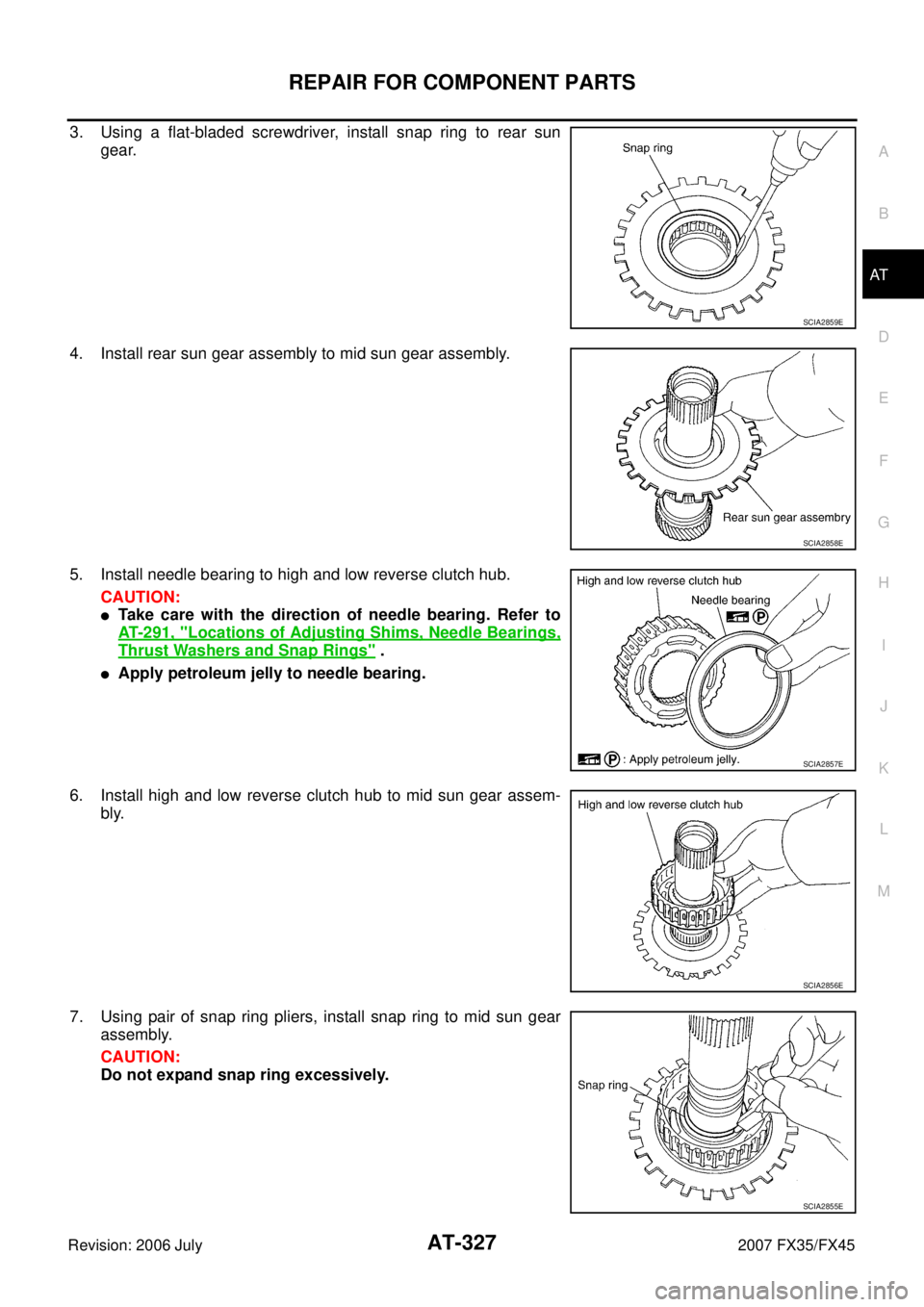

3. Using a flat-bladed screwdriver, install snap ring to rear sun
gear.
4. Install rear sun gear assembly to mid sun gear assembly.
5. Install needle bearing to high and low reverse clutch hub. CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 9 1 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
6. Install high and low reverse clutch hub to mid sun gear assem- bly.
7. Using pair of snap ring pliers, install snap ring to mid sun gear assembly.
CAUTION:
Do not expand snap ring excessively.
SCIA2859E
SCIA2858E
SCIA2857E
SCIA2856E
SCIA2855E

AT-328
REPAIR FOR COMPONENT PARTS
Revision: 2006 July 2007 FX35/FX45
8. Check operation of 1st one-way clutch.
a. Hold mid sun gear and turn rear sun gear.
b. Check 1st one-way clutch for correct locking and unlocking directions.
CAUTION:
If not as shown in the figure, check installation direction of
1st one-way clutch.
9. Install needle bearing and bearing races to high and low reverse clutch hub. CAUTION:

Take care with the direction of needle bearing . Refer to AT- 2 9 1 , "Locations of Adjusting Shims,
Needle Bearings, Thrust Washers and Snap Rings" .


Apply petroleum jelly to needle bearing and bearing races.

VQ35DE models

VK45DE models
SCIA3132E
SCIA2854E
SCIA5238E

REPAIR FOR COMPONENT PARTS AT-329
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
High and Low Reverse ClutchNCS001IU

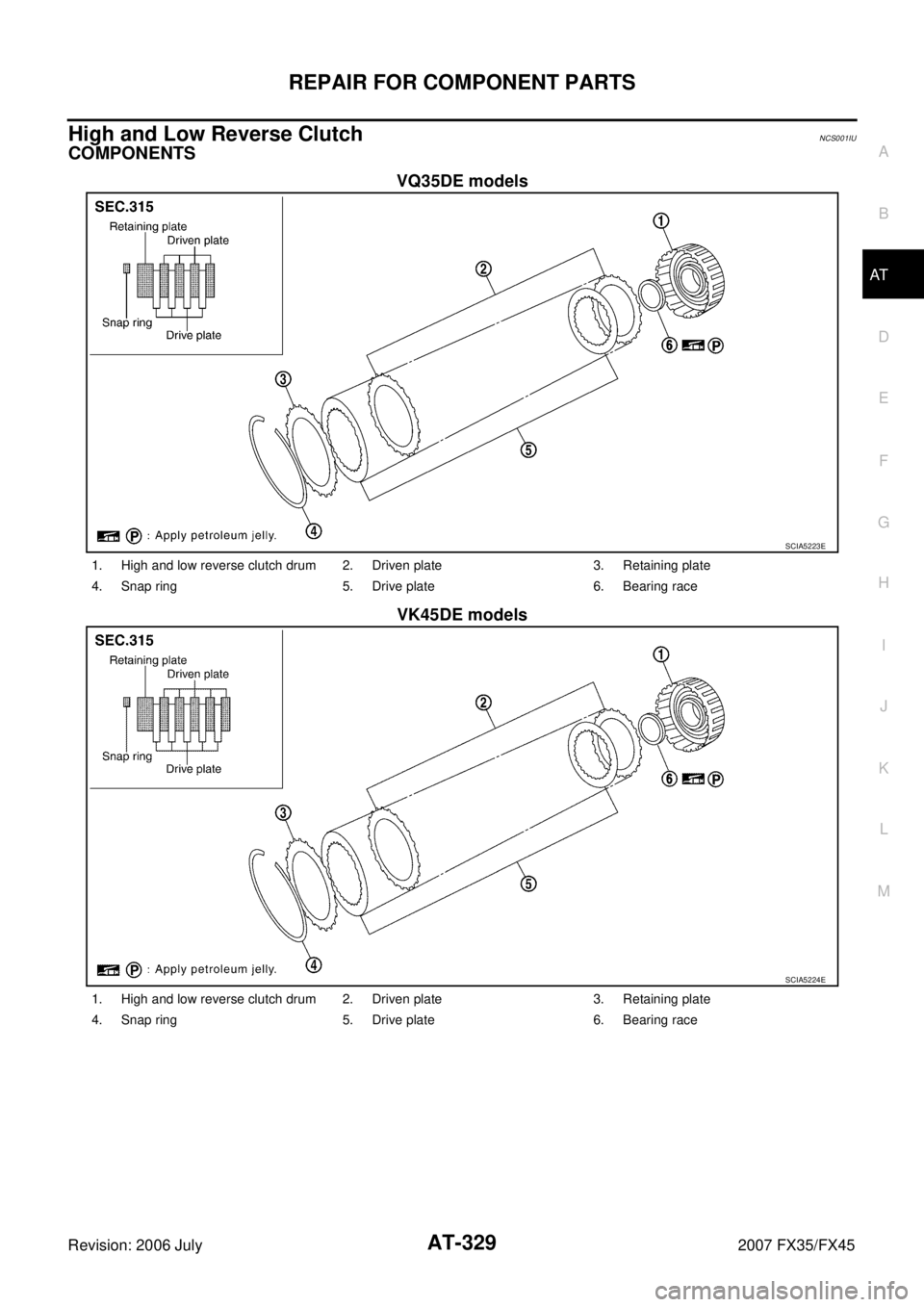

COMPONENTS
VQ35DE models
VK45DE models
SCIA5223E
1. High and low reverse clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Bearing race
SCIA5224E
1. High and low reverse clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Bearing race

AT-330
REPAIR FOR COMPONENT PARTS
Revision: 2006 July 2007 FX35/FX45
DISASSEMBLY
1. Remove bearing race from high and low reverse clutch drum.
2. Using a flat-bladed screwdriver, remove snap ring from high and
low reverse clutch drum.
3. Remove drive plates, driven plates and retaining plate from high and low reverse clutch drum.
INSPECTION

Check the following, and replace high and low reverse clutch assembly if necessary.
High and Low Reverse Clutch Snap Ring

Check for deformation, fatigue or damage.
High and Low Reverse Clutch Drive Plates

Check facing for burns, cracks or damage.
High and Low Reverse Clutch Retaining Plates and Driven Plates

Check facing for burns, cracks or damage.
ASSEMBLY
1. Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.
CAUTION:
Take care with order of plates.
2. Using a flat-bladed screwdriver, install snap ring in high and low reverse clutch drum.
SCIA5215E
SCIA2868E
SCIA2868E

REPAIR FOR COMPONENT PARTS AT-331
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
3. Install bearing race to high and low reverse clutch drum.
CAUTION:

Take care with he direction of needle bearing. Refer to AT-
291, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to bearing race.
SCIA5215E

AT-332
REPAIR FOR COMPONENT PARTS
Revision: 2006 July 2007 FX35/FX45
Direct ClutchNCS001IV

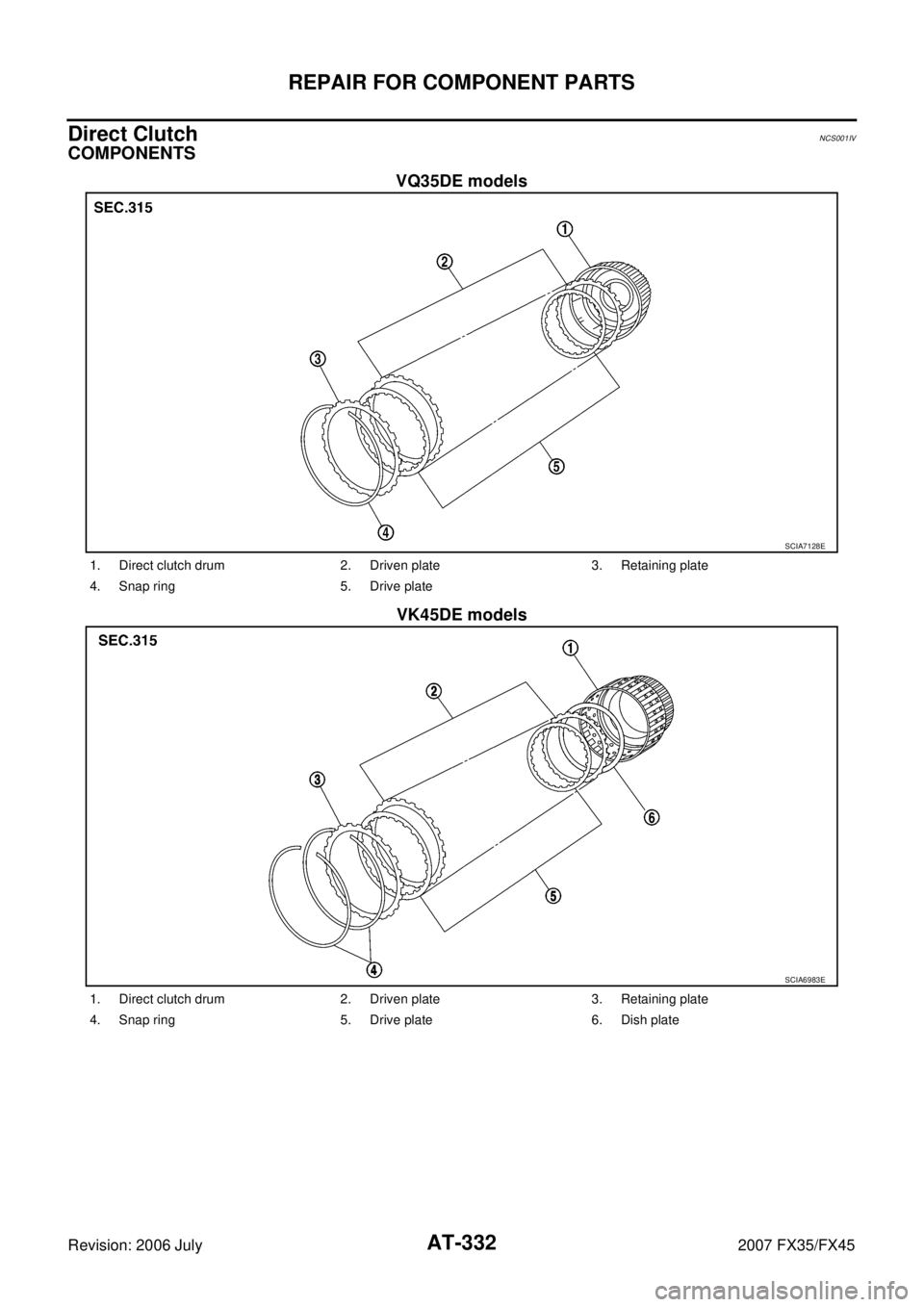

COMPONENTS
VQ35DE models
VK45DE models
SCIA7128E
1. Direct clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate
SCIA6983E
1. Direct clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Dish plate

REPAIR FOR COMPONENT PARTS AT-333
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
DISASSEMBLY

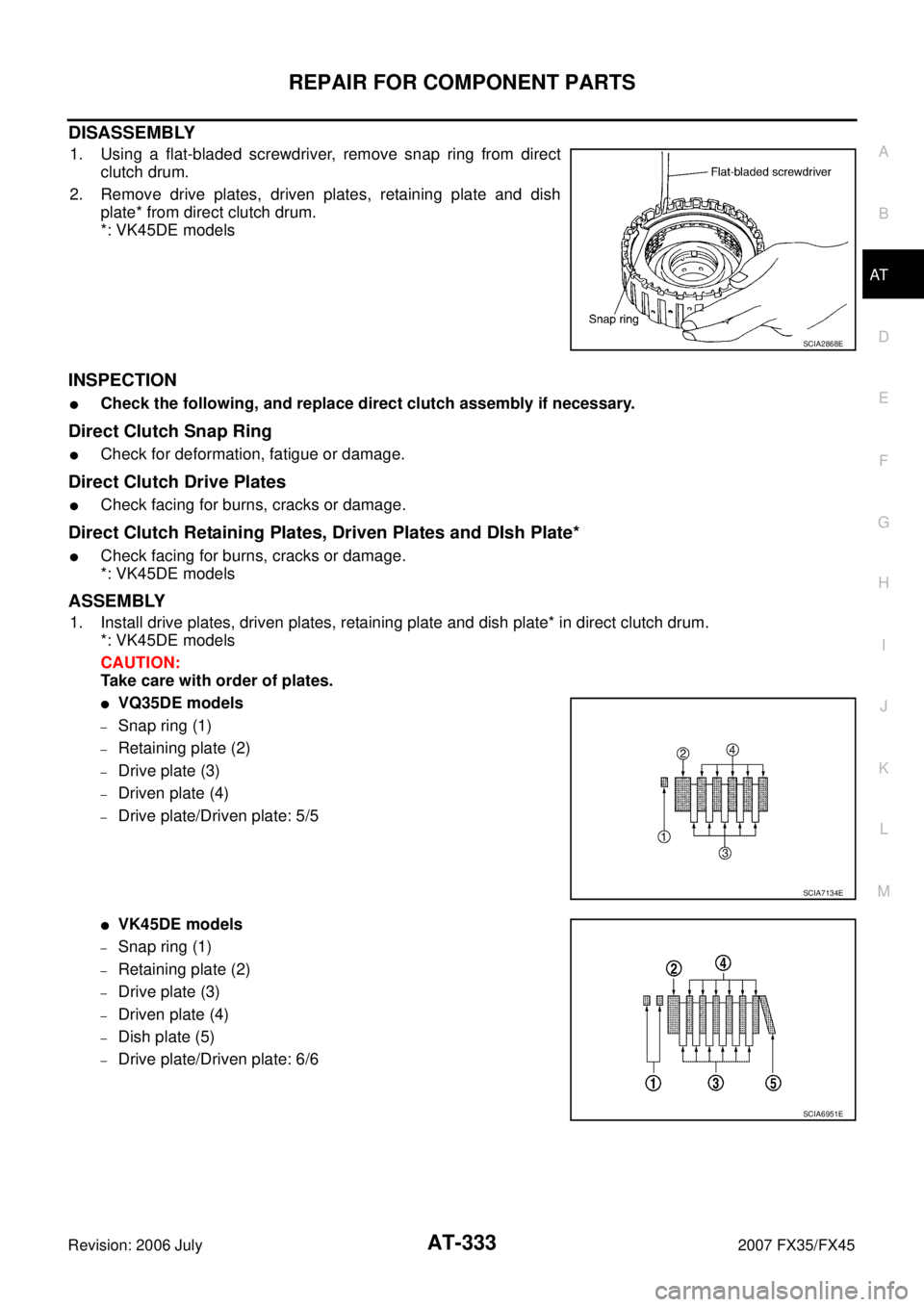

1. Using a flat-bladed screwdriver, remove snap ring from direct
clutch drum.
2. Remove drive plates, driven plates, retaining plate and dish plate* from direct clutch drum.
*: VK45DE models
INSPECTION

Check the following, and replace direct clutch assembly if necessary.
Direct Clutch Snap Ring

Check for deformation, fatigue or damage.
Direct Clutch Drive Plates

Check facing for burns, cracks or damage.
Direct Clutch Retaining Plates, Driven Plates and DIsh Plate*

Check facing for burns, cracks or damage.
*: VK45DE models
ASSEMBLY
1. Install drive plates, driven plates, retaining plate and dish plate* in direct clutch drum. *: VK45DE models
CAUTION:
Take care with order of plates.

VQ35DE models
–Snap ring (1)
–Retaining plate (2)
–Drive plate (3)
–Driven plate (4)
–Drive plate/Driven plate: 5/5

VK45DE models
–Snap ring (1)
–Retaining plate (2)
–Drive plate (3)
–Driven plate (4)
–Dish plate (5)
–Drive plate/Driven plate: 6/6
SCIA2868E
SCIA7134E
SCIA6951E

AT-334
REPAIR FOR COMPONENT PARTS
Revision: 2006 July 2007 FX35/FX45
2. Using a flat-bladed screwdriver, install snap ring in direct clutch
drum.
SCIA2868E

ASSEMBLY AT-335
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
ASSEMBLYPFP:00000
Assembly (1)NCS001IW
1. As shown in the figure, use a drift [commercial service tool: 22
mm (0.87 in) dia.] to drive manual shaft oil seals into the trans-
mission case until it is flush.
CAUTION:

Do not reuse manual shaft oil seals.

Apply ATF to manual shaft oil seals.
2. Install detent spring and spacer in transmission case, and then tighten detent spring and spacer mounting bolt to the specified
torque. Refer to AT- 2 7 4 , "
Components" .
3. Install manual shaft to transmission case.
4. Install parking rod to manual plate.
SCIA5259E
SCIA5248E
SCIA5716E
SCIA5220E

AT-336
ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
5. Install manual plate (with parking rod) to manual shaft.
6. Install retaining pin into the manual plate and manual shaft.
a. Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.
b. Use a hammer to tap the retaining pin into the manual plate. CAUTION:

Do not reuse retaining pin.

Drive retaining pin to 2 ±0.5 mm (0.08 ±0.020 in) over the
manual plate.
7. Install retaining pin into the transmission case and manual shaft.
a. Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.
b. Use a hammer to tap the retaining pin into the transmission case.
CAUTION:

Do not reuse retaining pin.

Drive retaining pin to 5 ±1 mm (0.20 ±0.04 in) over the
transmission case.
8. Install O-rings to servo assembly. CAUTION:

Do not reuse O-rings.

Apply petroleum jelly to O-rings.
SCIA5715E
SCIA5297E
SCIA2427E
SCIA5719E
