INFINITI FX35 2007 Service Manual

OVERHAUL AT-287
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
7. Return spring 8. Pawl shaft 9. Seal ring
10. Needle bearing 11. Gasket 12. Revolution sensor
13. Parking gear 14. Output shaft 15. Bearing race
16. Needle bearing 17. Manual plate 18. Parking rod
19. Manual shaft oil seal 20. Manual shaft 21. O-ring
22. Band servo anchor end pin 23. Detent spring 24. Spacer
25. Seal ring 26. Snap ring 27. Return spring
28. O-ring 29. Servo assembly 30. Snap ring
31. Sub-harness 32. Control valve with TCM 33. Bracket
34. A/T fluid temperature sensor 2 35. Clip 36. Bracket
37. Bracket 38. Oil pan mounting bolt 39. Oil pan
40. Magnet 41. Drain plug 42. Drain plug gasket
43. Oil pan gasket 44. Terminal cord assembly 45. O-ring
46. Retaining pin 47. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .

AT-288
OVERHAUL
Revision: 2006 July 2007 FX35/FX45
Oil ChannelNCS001IN
2WD models
SCIA6387E

OVERHAUL AT-289
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45

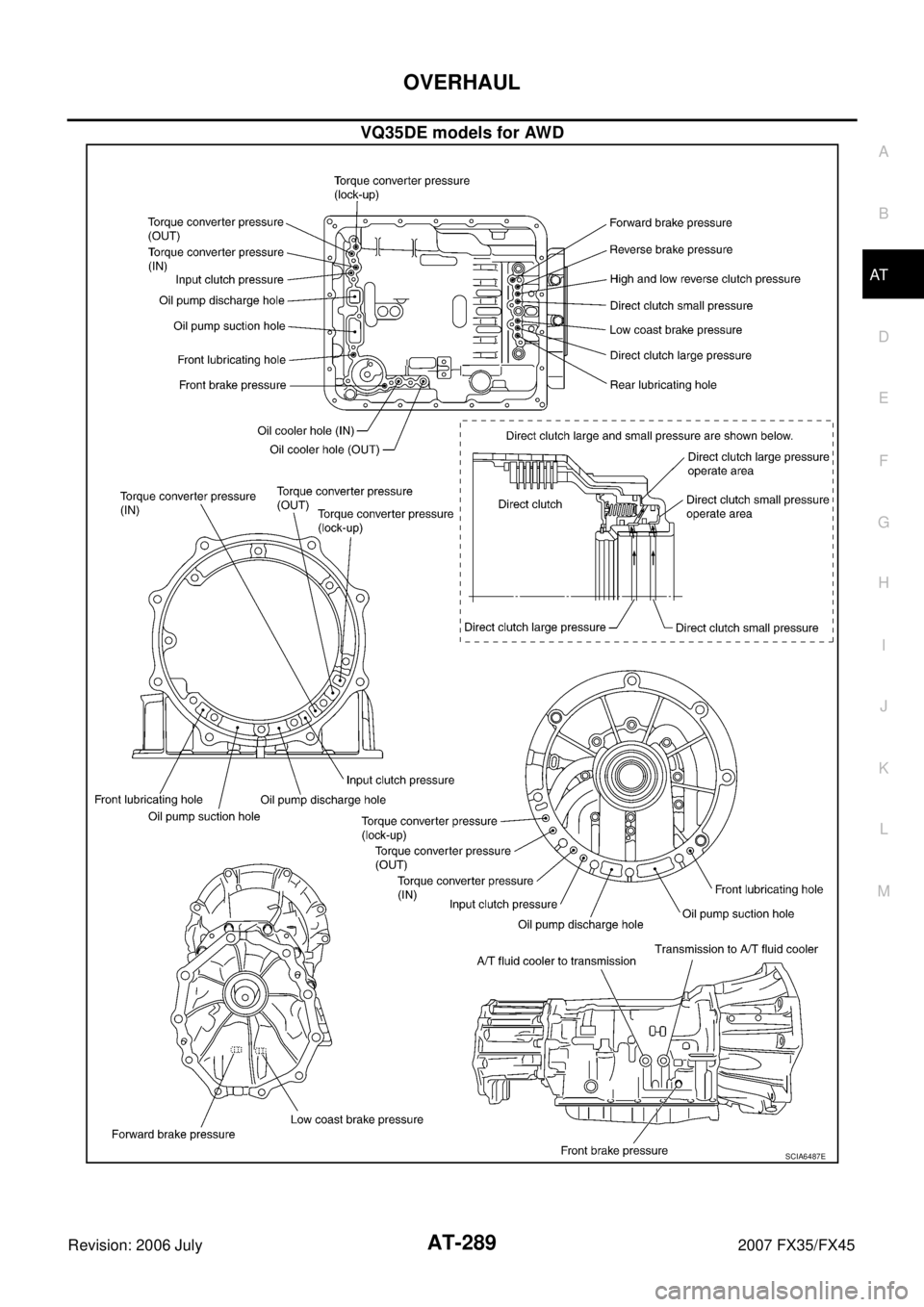

VQ35DE models for AWD
SCIA6487E

AT-290
OVERHAUL
Revision: 2006 July 2007 FX35/FX45
VK45DE models for AWD
SCIA5189E

OVERHAUL AT-291
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap
Rings
NCS001IO
2WD models
SCIA6535E

AT-292
OVERHAUL
Revision: 2006 July 2007 FX35/FX45
VQ35DE models for AWD
SCIA6488E

OVERHAUL AT-293
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45

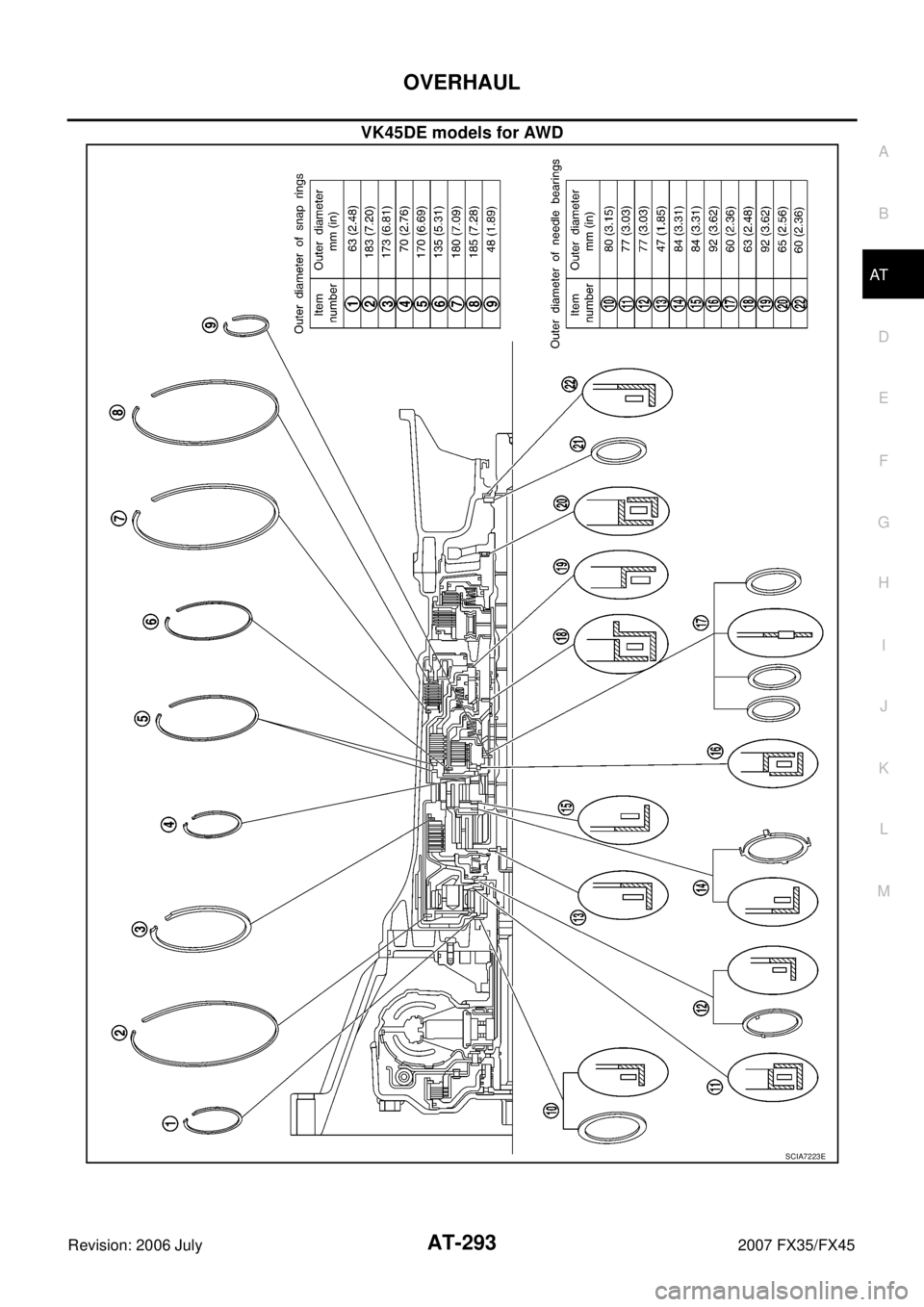

VK45DE models for AWD
SCIA7223E

AT-294
DISASSEMBLY
Revision: 2006 July 2007 FX35/FX45
DISASSEMBLYPFP:31020
DisassemblyNCS001IP
CAUTION:
Do not disassemble parts behind drum support. Refer to AT- 1 8 , "
Cross-sectional View (2WD Models)"
, AT- 1 9 , "Cross-sectional View (VQ35DE Models for AWD)" or AT- 2 0 , "Cross-sectional View (VK45DE
Models for AWD)" .
1. Drain ATF through drain plug.
2. Remove torque converter by holding it firmly and turing while pulling straight out.
3. Check torque converter one-way clutch using check tool as shown in the figure.
a. Insert check tool into the groove of bearing support built into one-way clutch outer race.
b. When fixing bearing support with check tool, rotate one-way clutch spline using screwdriver.
c. Make sure that inner race rotates clockwise only. If not, replace torque converter assembly.
4. Remove tightening bolts (1) for converter housing and transmis- sion case.

: Bolt (8)

Self-sealing bolts (2)
5. Remove converter housing from transmission case. CAUTION:
Be careful not to scratch converter housing.
SCIA5010E
SCIA3171E
SCIA7985E

DISASSEMBLY AT-295
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45

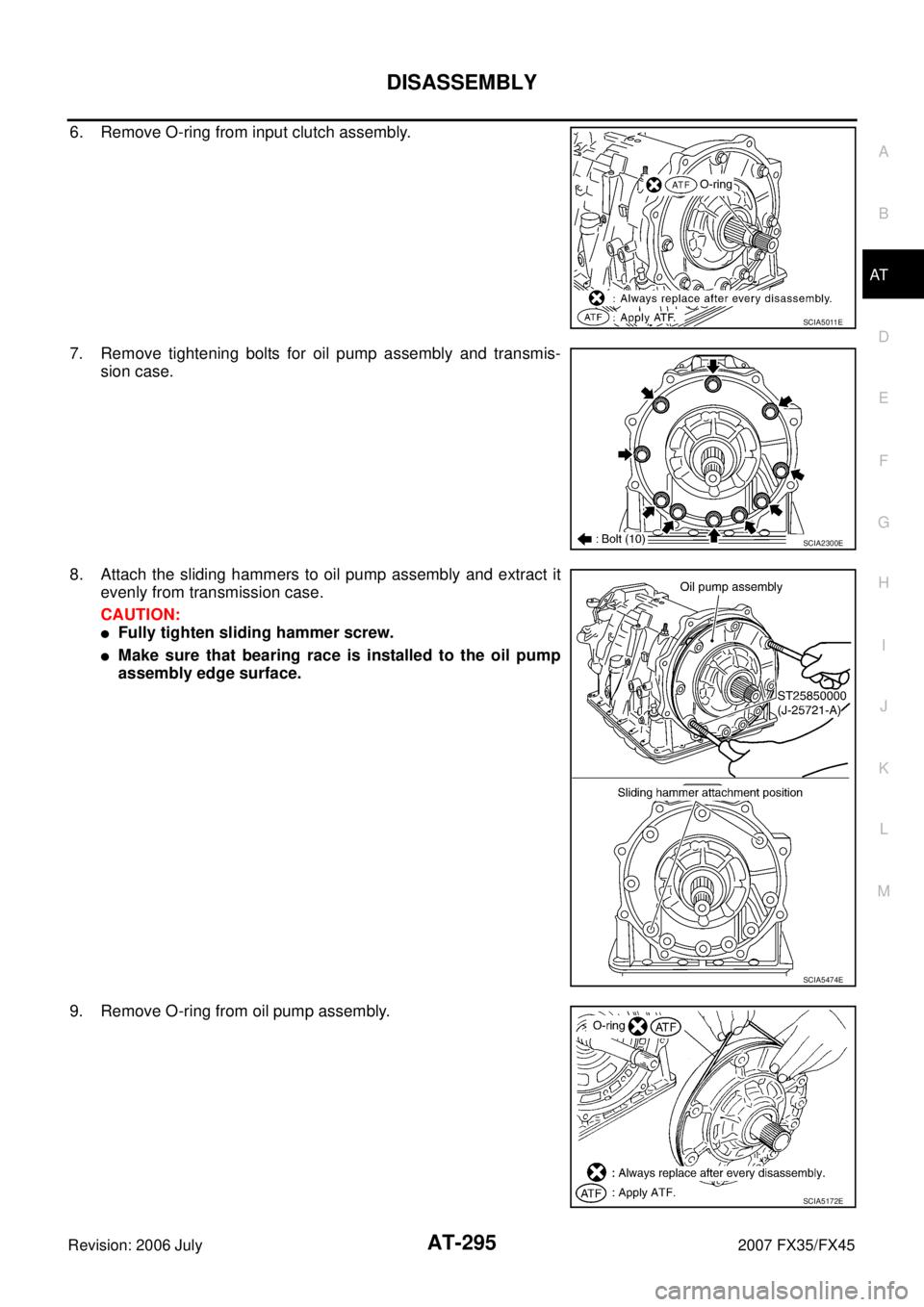

6. Remove O-ring from input clutch assembly.
7. Remove tightening bolts for oil pump assembly and transmis-
sion case.
8. Attach the sliding hammers to oil pump assembly and extract it evenly from transmission case.
CAUTION:

Fully tighten sliding hammer screw.

Make sure that bearing race is installed to the oil pump
assembly edge surface.
9. Remove O-ring from oil pump assembly.
SCIA5011E
SCIA2300E
SCIA5474E
SCIA5172E

AT-296
DISASSEMBLY
Revision: 2006 July 2007 FX35/FX45
10. Remove bearing race from oil pump assembly.
11. Remove needle bearing from front sun gear.
12. Remove front sun gear assembly from front carrier assembly.
NOTE:
Remove front sun gear by rotating left/right.
13. Remove seal rings from input clutch assembly.
14. Remove front carrier assembly from rear carrier assembly. (With input clutch assembly and rear internal gear.)
CAUTION:
Be careful to remove it with needle bearing.
SCIA5252E
SCIA2808E
SCIA5014E
SCIA2470E
SCIA5015E
