NAVIGATION SYSTEM AV-131
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
AUTO CLIMATE CONTROL
Refer to AT C - 5 2 , "Self-diagnosis Function" .
NAVIGATION

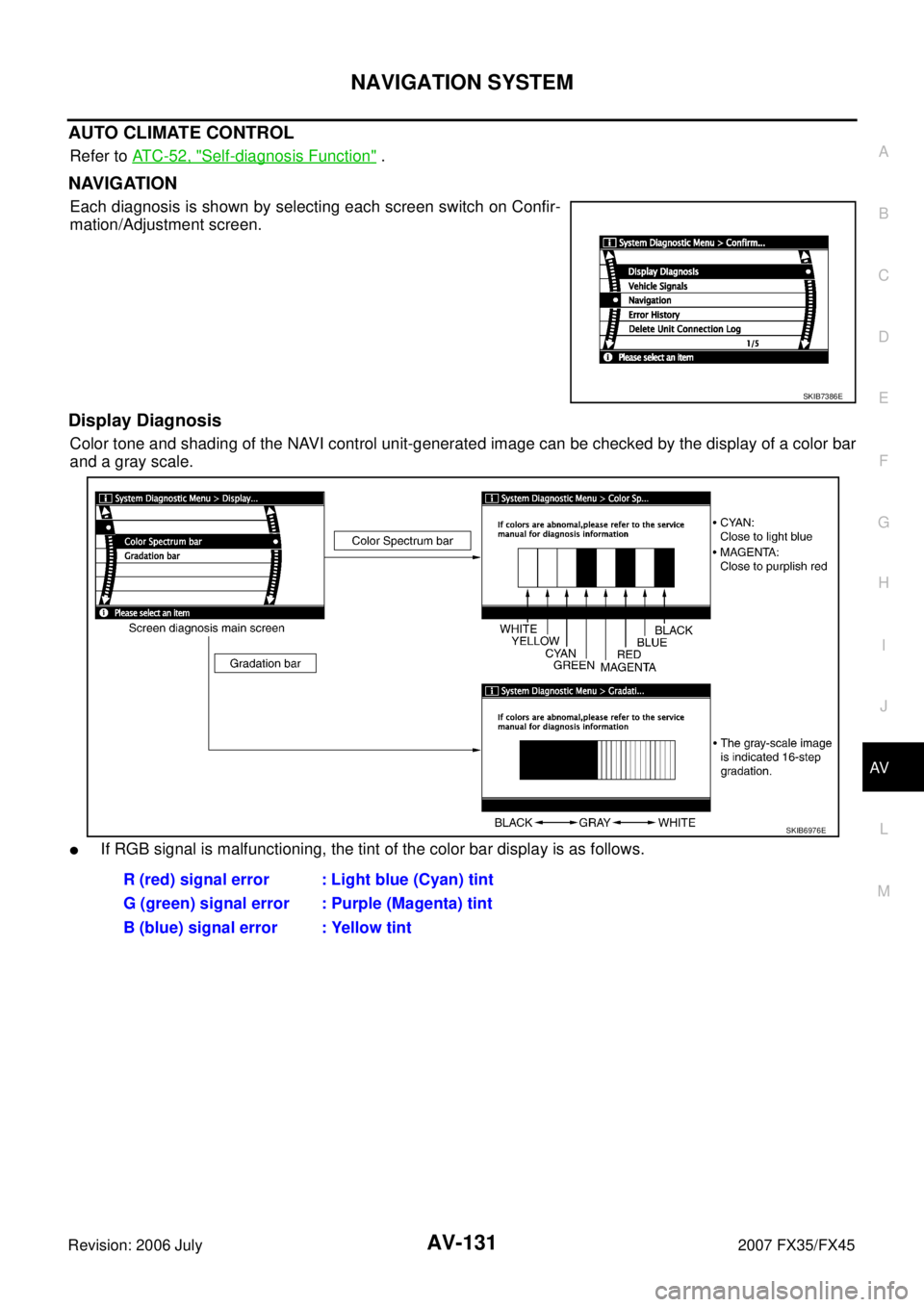

Each diagnosis is shown by selecting each screen switch on Confir-
mation/Adjustment screen.
Display Diagnosis
Color tone and shading of the NAVI control unit-generated image can be checked by the display of a color bar
and a gray scale.

If RGB signal is malfunctioning, the tint of the color bar display is as follows.
SKIB7386E
R (red) signal error : Light blue (Cyan) tint
G (green) signal error : Purple (Magenta) tint
B (blue) signal error : Yellow tint
SKIB6976E

AV-132
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
Vehicle Signals
A comparison check can be made of each actual vehicle signal and
the signals recognized by the NAVI control unit.
Navigation
Steering Angle Adjustment
The steering angle output value detected by the gyroscope can be
adjusted.
Speed Calibration
Usually the automatic distance correction function adjusts the mal-
function in distance caused by the tires wearing down or the tire
pressure change. If prompt adjustment is necessary when the tire
chains are installed, etc., perform this procedure.
SKIB6977E
Diagnosis item Display Condition Remarks
Vehicle speed ON When vehicle speed is more than 0 km/h (0 MPH)
Changes in indication may be delayed.
This is normal.
OFF When vehicle speed is 0 km/h (0 MPH)
— Ignition switch in ACC position
Lights ON Lighting switch ON
—
OFF Lighting switch OFF
Ignition ON Ignition switch ON
—
OFF Ignition switch ACC position
Reverse ON Selector lever in R position
Changes in indication may be delayed.
This is normal.
OFF Selector lever in any position other than R position
— Ignition switch in ACC position
SKIB3684E
SKIB3685E

NAVIGATION SYSTEM AV-133
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Error History
Diagnosis results of self-diagnosis depend on if any error occurred during the time after selecting “Self Diag-
nosis” until self-diagnosis results is displayed.
Meanwhile, when an error occurs before selecting “Self Diagnosis”, and if an error does not occur until self-
diagnosis results is displayed, a diagnosis result is judged as normal.
Consequently, a diagnosis needs to be performed with “Error History” for the past error that is not available
with self-diagnosis.
“Error History” displays the time and place of the most recent occurrence of that error. However, take note of
the following points.

Correct time of the error occurrence may not be displayed when the GPS antenna substrate within the
NAVI control unit has malfunctioned.

Place of the error occurrence is represented by the position of the vehicle mark at the time when the error
occurred. If the vehicle mark has deviated from the correct position, then the place of the error occurrence
may not be located correctly.

When the ignition switch is turned ON if the error is detected, the counter increases 1. Even if it is normal
when the ignition switch is turned ON the next time, the counter does not decrease.

The upper limit of the counter is 50. 51 or more is displayed as 50. It can be reset to 0 by “Delete log”
switch.
SKIB6978E

AV-134
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
Diagnosis by Error History

When having a difficulty on the investigation of cause due to multiple errors with a reproducible malfunc-
tion, turn ON the ignition switch from OFF mode after making a memo of the item and number of time (or
delete “Error History”). Check “Error History” again after the malfunction was reproduced, and then per-
form diagnosis focusing on the item of which number of time increased.

DVD-ROM error history may be restored because DVD-ROM cannot be temporarily read. (Driving on
rough road etc.) Then, erase the error history. (This is not a malfunction.) Perform service in “Action to
take” if error history are repeatedly indicated again.
Error item Possible cause Action to take
GPS Antenna Error GPS antenna connection malfunction
is detected. 1. Start self-diagnosis, and make sure of
the result.
2. If any error is found, GO TO 3. If any error is not found, delete the error his-
tory and end the diagnosis. (This is not
a malfunction.)
3. Check if GPS antenna feeder line is snapped or pinched.
4. If the results from the above checkup show no malfunction, replace GPS
antenna, and then restart self-diagno-
sis.
5. If self-diagnosis results still show any malfunction, replace NAVI control unit.
FLASH-ROM Error Of Control Unit
NAVI control unit malfunction is
detected. 1. Start self-diagnosis, and make sure of
the result.
2. If any error is found, replace NAVI con- trol unit. Refer to AV-155, "
Removal
and Installation of NAVI Control Unit" .
If any error is not found, delete the error
history and end the diagnosis. (This is
not a malfunction.)
Connection Of Gyro
GPS Communication Error GPS malfunction is detected. If the symptoms such as the GPS receipt
malfunction occur, intermittent malfunc-
tion caused by strong radio interference
may be detected.
If the malfunction always occurs, replace
NAVI control unit.
GPS ROM Error
GPS RAM Error
GPS RTC Error
DVD-ROM Mechanism not Detected

Malfunction is detected on DVD-
ROM drive pickup lens in NAVI con-
trol unit.

There is dirt and damage on the
DVD-ROM. 1. Check if the inserted DVD-ROM is
specified for this navigation system,
and the DVD-ROM is dirty, scratched or
warped.
2. If the results from the above checkup show no malfunction, insert the same
DVD-ROM, and then restart self-diag-
nosis.
3. If self-diagnosis results still show any malfunction, replace NAVI control unit.
DVD-ROM Communication Error
DVD-ROM Mechanism Error
DVD-ROM Focus Error
DVD-ROM TOC Error
DVD-ROM Disc Error
DVD-ROM Seek Error
DVD-ROM Error Correction Error
DVD-ROM Read Error
DVD-ROM Data Transfer Error
DVD-ROM Data Error
DVD-ROM Loading / Eject Error
DVD-ROM Time-out

NAVIGATION SYSTEM AV-135
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Delete Unit Connection Log
Erase the connection history of unit and error history that is recorded
in NAVI control unit (clear the connection history of the removed
unit).
SKIB6979E

AV-136
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
CAN DIAG SUPPORT MONITORNKS003KI
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the “4” button, turn the volume control dial clock- wise or counterclockwise for 30 clicks or more. (When the self-
diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “BACK” button.
4. The initial trouble diagnosis screen will be shown, and items “Self Diagnosis (DCU)”, “Self Diagnosis (NAVI)”, “Confirmation/
Adjustment” and “CAN DIAG SUPPORT MONITOR” will
become selective.
5. Select “CAN DIAG SUPPORT MONITOR”.
6. The transmitting/receiving of CAN communication can be moni- tored.
NOTE:
Counter shows the status of CAN communication.
SKIB8642E
SKIB7874E
Item Content Error counter
(Reference value)
CAN_COMM OK/NG 0 - 50
CAN_CIRC_1 OK/UNKWN 0 - 50
CAN_CIRC_2 OK/UNKWN 0 - 50
CAN_CIRC_3 OK/UNKWN 0 - 50
CAN_CIRC_4 OK/UNKWN 0 - 50
CAN_CIRC_5 OK/UNKWN 0 - 50
CAN_CIRC_6 OK/UNKWN 0 - 50
CAN_CIRC_7 OK/UNKWN 0 - 50
CAN_CIRC_8 OK/UNKWN 0 - 50
CAN_CIRC_9 OK/UNKWN 0 - 50
SKIA4288E

NAVIGATION SYSTEM AV-137
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
A/C and AV Switch Self-Diagnosis FunctionNKS003KJ
Performing self-diagnosis makes it possible to check operation of A/C and AV switch indicator (LED) and other
switch.
STARTING THE SELF-DIAGNOSIS MODE
1. Turn ignition switch from OFF to ACC.
2. Within 10 seconds press and hold the switches “1” and “6” simultaneously for 3 seconds.
DIAGNOSIS FUNCTION
The following are checked:

All the indicators (LED) in the A/C and AV switch.

Continuity of the switches by sounding the buzzer when the A/C and AV switch and audio steering wheel
switch is pressed.

Continuity of harness between A/C and AV switch and audio steering wheel switch.
NOTE:
Rear window defogger switch operation is not checked (No beep sound even under normal status).
EXITING THE SELF-DIAGNOSIS MODE

Turn ignition switch OFF.
SKIB8660E

AV-138
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
CAN Communication CheckNKS003KM
1. CHECK MONITOR DESCRIPTION
1. Start self-diagnosis of DCU. Refer to AV- 1 2 3 , "
Self-Diagnosis Mode (DCU)" .
2. Select “CAN DIAG SUPPORT MONITOR”. Refer to AV- 1 3 6 ,
"CAN DIAG SUPPORT MONITOR" .
3. Record each item display description (OK/NG/UNKWN) displayed on the following CAN DIAG SUPPORT MONITOR Check Sheet.
CAN DIAG SUPPORT MONITOR Check Sheet
>> After filling in CAN DIAG SUPPORT MONITOR Check Sheet, GO TO LAN-49, "
CAN System
Specification Chart" .
Item content
Error counter
(Reference value)
Normal condition Error (Example)
CAN_COMM OK NG 0 - 50
CAN_CIRC_1 OK UNKWN 0 - 50
CAN_CIRC_2 OK UNKWN 0 - 50
CAN_CIRC_3 OK UNKWN 0 - 50
CAN_CIRC_4 OK UNKWN 0 - 50
CAN_CIRC_5 OK UNKWN 0 - 50
CAN_CIRC_6 OK UNKWN 0 - 50
CAN_CIRC_7 OK UNKWN 0 - 50
CAN_CIRC_8 OK UNKWN 0 - 50
CAN_CIRC_9 UNKWN UNKWN 0 - 50
PKIB6080E
Diagnosis item Screen display Diagnosis item Screen display CAN_COMM OK NG CAN_CIRC_5 OK UNKWN
CAN_CIRC_1 OK UNKWN CAN_CIRC_6 OK UNKWN
CAN_CIRC_2 OK UNKWN CAN_CIRC_7 OK UNKWN
CAN_CIRC_3 OK UNKWN CAN_CIRC_8 OK UNKWN
CAN_CIRC_4 OK UNKWN CAN_CIRC_9 OK UNKWN

NAVIGATION SYSTEM AV-139
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Unable to Operate System with A/C and AV SwitchNKS003KN
Symptom: Unable to operate A/C system, audio system and navigation system with A/C and AV switch.
(Unable to start self-diagnosis.)
1. CHECK CONDITION
1. Turn ignition switch ON.
2. Check if an image is displayed on the screen.
Is an image displayed on the screen?
YES >> GO TO 2.
NO >> Repair malfunctioning part. Refer to AV- 1 4 1 , "
All Images Are Not Displayed" .
2. SELF-DIAGNOSIS OF A/C AND AV SWITCH
Start self-diagnosis of A/C and AV switch, and check the self-diagnosis result. Refer to AV- 1 3 7 , "
A/C and AV
Switch Self-Diagnosis Function" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK A/C AND AV SWITCH POWER SUPPLY AND GROUND CIRCUIT
1. Check voltage between A/C and AV switch harness connector terminals and ground.
2. Turn ignition switch OFF.
3. Disconnect A/C and AV switch connector.
4. Check continuity between A/C and AV switch harness connector M64 terminal 5 and ground.
OK or NG
OK >> Replace A/C and AV switch.
NG >> Repair harness or connector.
Te r m i n a l s
OFF ACC ON
(+)
(–)
Connector Terminal
M64 1
Ground Battery
voltage Battery
voltage Battery
voltage
20 V Battery
voltage Battery
voltage
5 – Ground : Continuity should exist.
SKIB7836E
SKIB7837E

AV-140
NAVIGATION SYSTEM
Revision: 2006 July 2007 FX35/FX45
4. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect display control unit and A/C and AV switch connectors.
3. Check continuity between display control unit harness connector (A) M76 terminals 28, 30 and A/C and AV switch harness con-
nector (B) M64 terminals 6, 8.
4. Check continuity between display control unit harness connector (A) M76 terminals 28, 30 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK A/C AND AV SWITCH AND DISPLAY CONTROL UNIT
1. Replace A/C and AV switch or display control unit.
2. Make sure that A/C system, audio system and navigation system can be operated by A/C and AV switch.
OK or NG
OK >> INSPECTION END
NG >> Replace the other unit. 28 – 6 : Continuity should exist.
30 – 8 : Continuity should exist.
28, 30 – Ground : Continuity should not exist.
SKIB7838E
