INFINITI MOBILE ENTERTAINMENT SYSTEM AV-157
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
INFINITI MOBILE ENTERTAINMENT SYSTEMPFP:28184
System DescriptionNKS003E2
Refer to Owner's Manual for mobile entertainment system operating instructions.
Power is supplied at all times

through 15A fuse (No. 32, located in the fuse and fusible link block)

to DVD player terminal 16

through DVD player terminals 31 and 32

to DVD display terminals 15 and 16.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to DVD player terminal 15

through DVD player terminal 21

to DVD display terminal 5.
Ground is supplied

to DVD player terminal 22

through body ground B15 and B45

to DVD player terminals 19, 27

through DVD display terminals 6, 10 and 12.
When DVD player power switch is ON, power is supplied

through DVD player terminal 9

to audio unit terminal 38 and

through audio unit terminal 40

to DVD player terminal 11.
When DVD player power switch is ON, DVD sound signals are supplied

through DVD player terminals 17, 18, and 20

to DVD display terminals 1, 2 and 4.
DVD sound can be heard by the head phone.
When rear AV switch is ON, audio signals are supplied

through DVD player terminals 1, 2, 3, and 4

to audio unit terminals 37, 39, 43, and 42.
DVD sound can be heard from the speaker.
When DVD player power switch is ON, video signals are supplied

through DVD player terminals 23 and 24

to DVD display terminals 7 and 8.
When remote controller is operated, operation signals are supplied

through DVD display terminal 14

to DVD player terminal 30 and

through DVD player terminal 29

to DVD display terminal 13.

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-161
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for DVD PlayerNKS003E5
Terminal
(Wire color) Item Signal
input/
output Condition
Reference value
(+) (–) Ignition
switch Operation
1 (L) 2 (R) MES output signal
(LH)
Output ACC Rear AV
switch is ON
3 (LG) 4 (PU) MES output signal
(RH)
8 — Shield — — — —
9 (Y/B) Ground Audio ON signal
(MES - H/U) Output ACCPress “POWER” switch of
DVD player Approx. 5 V
11 (L/W) Ground Control signal
(H/U - MES) Input ACC
Press “POWER” switch of
DVD player Approx. 5 V
15 (LG) Ground ACC power supply Input ACC — Battery voltage
16 (W/L) Ground Battery power supply Input OFF — Battery voltage
17 (G) 19 (LG) MES output signal
(Common) Output ACC Play CD or DVD video Approx. 0 V
18 (L) 19 (LG) MES output signal
(L+) Output ACC Play CD or DVD video
19 (LG) Ground Ground — ON — Approx. 0 V 20 (Y) 19 (LG) MES output signal
(R+) Output ACC Play CD or DVD video
21 (L) Ground ACC power supply Output ACC — Approx. 5 V
22 (B) Ground Ground — ON — Approx. 0 V
23 (OR) 24 (W) VIDEO output signal Output ACC Play DVD video
26 — Shield (Video) — — — —
27 (PU) Ground Ground — ON — Approx. 0 V
SKIA0177E
SKIA5828E
SKIA5828E
SKIA8863J

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-165
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
4. CHECK HARNESS
1. Disconnect audio unit connector.
2. Check continuity between DVD player harness connector M73 terminals 9 , 11 and audio unit harness connector M65 terminals 38 , 40.
3. Check continuity between DVD player harness connector M73 terminals 9 , 11 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK CONTROL SIGNAL
1. Connect DVD player connector and audio unit connectors.
2. Turn ignition switch ACC.
3. Check voltage between DVD player harness connector M73 ter- minal 9 and ground.
OK or NG
OK >> GO TO 6.
NG >> Replace DVD player.
6. CHECK CONTROL SIGNAL
Check voltage between DVD player harness connector M73 terminal
11 and ground.
OK or NG
OK >> Replace DVD player.
NG >> Replace audio unit. 9 – 38 : Continuity should exist.
11 – 40 : Continuity should exist.
9 , 11 – Ground : Continuity should not exist.
Te r m i n a l s Condition Reference
value
(+) (–)
Connector Terminal Ground
M73 9 Ground Press “power” switch
of DVD player Approx. 5 V
SKIB0326E
Te r m i n a l s
Condition Reference
value
(+) (–)
Connector Terminal Ground
M73 11 Ground Press “power”
switch of DVD player Approx. 5 V
SKIB0328E

AV-166
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 July 2007 FX35/FX45
Screen Is Not Shown (While Sounds Come Out of an Audio Speaker, Did Not Do
of a Head Phone)
NKS003E8
1. CHECK POWER SUPPLY CIRCUIT
1. Check voltage between DVD player harness connector B19 ter- minals 31, 32 and ground.
2. Turn ignition switch ACC.
3. Check voltage between DVD player harness connector B19 ter- minal 21 and ground.
OK or NG
OK >> GO TO 2.
NG >> Replace DVD player.
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD display connector.
3. Check continuity between DVD player harness connector B19 terminals 21, 31, 32 and DVD display harness connector B61
terminals 5, 15, 16.
4. Check continuity between DVD player harness connector B19 terminals 21, 31, 32 and ground.
5. Check continuity between DVD player harness connector B19 terminals 19, 27 and DVD display harness connector B61 termi-
nals 6, 10, 12.
6. Check continuity between DVD player harness connector B19 terminals 19, 27 and ground.
OK or NG
OK >> Replace DVD display.
NG >> Repair harness or connector. 31 , 32 – Ground : Battery voltage
SKIA5850E
21 – Ground : Approx. 5 V
SKIA7021E
21 – 5 : Continuity should exist.
31 – 15 : Continuity should exist.
32 – 16 : Continuity should exist.
21, 31, 32 – Ground : Continuity should not exist.
19 – 6 : Continuity should exist.
27 – 10, 12 : Continuity should exist.
19, 27 – Ground : Continuity should not exist.
SKIA7032E
PKIB6543E

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-167
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Screen Is not Shown (Sounds Come Out of Both an Audio Speaker and a Head
Phone)
NKS003E9
1. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminals 23, 24 and DVD display harness connector B61 termi-
nals 7, 8.
4. Check continuity between DVD player harness connector B19 terminals 23, 24 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. CHECK VIDEO SIGNAL
1. Connect DVD player and DVD display connectors.
2. Turn ignition switch ACC.
3. Check the signal between DVD player harness connector B19 terminal 23 and 24 with CONSULT-II or oscilloscope.
OK or NG
OK >> GO TO 3.
NG >> Replace DVD player.
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminal 29 and DVD display harness connector B61 terminal
13.
4. Check continuity between DVD player harness connector B19 terminal 29 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector. 23 – 7 : Continuity should exist.
24 – 8 : Continuity should exist.
23, 24 – Ground : Continuity should not exist.
SKIA7044E
Terminal Condition Reference value
(+) (–)
23 24 Play DVD video
SKIA7050E
SKIA8863J
29 – 13 : Continuity should exist.
29 – Ground : Continuity should not exist.
SKIB0333E

AV-170
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 July 2007 FX35/FX45
2. CHECK REMOTE CONTROLLER AND SENSOR
Check the inspection items below to diagnose the malfunction.

Check that remote controller is facing to the sensor.

Check that sensor does not have any seals or dirt that is inter-
rupting signal.

Check that the remote controller battery has run down.
OK or NG
OK >> GO TO 3.
NG >>

When operating, face remote controller to the sensor.

Remove seal or dirt that is interrupting signal.

If the battery has run down, replace it with new one.
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminal 30 and DVD display harness connector B61 terminal
14.
4. Check continuity between DVD player harness connector B19 terminal 30 (BR) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK DATA (LCD – DVD) SIGNAL
1. Connect DVD display connector.
2. Turn ignition switch ACC.
3. Check the signal between DVD player harness connector B19 terminal 30 and ground.
OK or NG
OK >> Replace DVD player.
NG >> Replace DVD display.
No CD·DVD Sound From All SpeakersNKS003EC
1. VERIFY THE PHENOMENON
1. Turn ignition switch ACC.
2. Turn on the radio, receive radio program, check that the sound is heard from all the speakers.
OK or NG
OK >> GO TO 2.
NG >> Replace audio unit.
SKIA5855E
30 – 14 : Continuity should exist.
30 – Ground : Continuity should not exist.
SKIB0335E
30 – Ground:
SKIA7043E
SKIA5832E

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-171
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
2. CHECK A/C AND AV SWITCH SELF-DIAGNOSIS
A/C and AV switch self-diagnosis. Check “REAR AV” switch. Refer to AV- 8 2 , "
A/C and AV Switch Self-Diagno-
sis Function" .
OK or NG
OK >> GO TO 3.
NG >> Replace A/C and AV switch.
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and audio unit connectors.
3. Check continuity between DVD player harness connector M73 terminals 1, 2, 3, 4 and audio unit harness connector M65 termi-
nals 37, 39, 43, 42.
4. Check continuity between DVD player harness connector M73 terminals 1, 2, 3, 4 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK MES SOUND SIGNAL
1. Connect DVD player and audio unit connectors.
2. Turn ignition switch ACC and Press “POWER” switch of DVD player.
3. Check the signal between DVD player harness connector M73 terminals 1 and 2, 3 and 4 with CONSULT-II or oscilloscope.
OK or NG
OK >> Replace audio unit.
NG >> Replace DVD player. 1 – 37 : Continuity should exist.
2 – 39 : Continuity should exist.
3 – 43 : Continuity should exist.
4 – 42 : Continuity should exist.
1, 2, 3, 4 – Ground : Continuity should not exist.
SKIA7034E
Terminal Condition Reference value
(+) (–)
12
Play CD or DVD video.
34
SKIA7035E
SKIA8863J

AV-174
TELEPHONE
Revision: 2006 July 2007 FX35/FX45
TELEPHONEPFP:28342

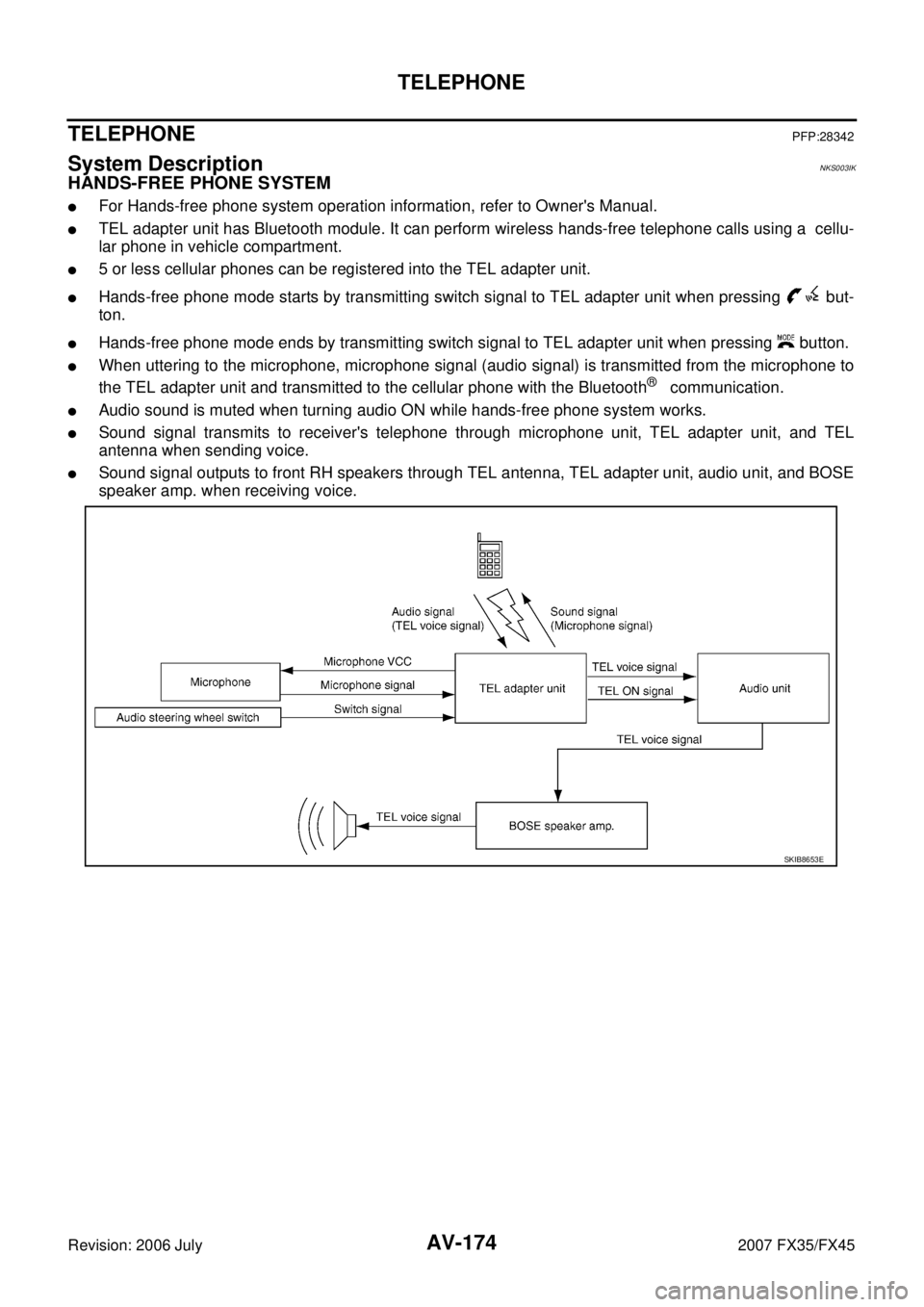

System DescriptionNKS003IK
HANDS-FREE PHONE SYSTEM

For Hands-free phone system operation information, refer to Owner's Manual.

TEL adapter unit has Bluetooth module. It can perform wireless hands-free telephone calls using a cellu-
lar phone in vehicle compartment.

5 or less cellular phones can be registered into the TEL adapter unit.

Hands-free phone mode starts by transmitting switch signal to TEL adapter unit when pressing but-
ton.

Hands-free phone mode ends by transmitting switch signal to TEL adapter unit when pressing button.

When uttering to the microphone, microphone signal (audio signal) is transmitted from the microphone to
the TEL adapter unit and transmitted to the cellular phone with the Bluetooth
® communication.

Audio sound is muted when turning audio ON while hands-free phone system works.

Sound signal transmits to receiver's telephone through microphone unit, TEL adapter unit, and TEL
antenna when sending voice.

Sound signal outputs to front RH speakers through TEL antenna, TEL adapter unit, audio unit, and BOSE
speaker amp. when receiving voice.
SKIB8653E

AV-186
TELEPHONE
Revision: 2006 July 2007 FX35/FX45
Basic Inspection of Hands-Free PhoneNKS003IS
Check the parts or circuit listed below when the hands-free phone system is inoperative at all or a communica-
tion error exists between TEL and TEL adopter unit.

TEL

TEL adapter unit power supply circuit
1. CHECK INDICATOR OPERATION
1. Turn ignition switch ACC.
2. Check the indicator is blinking.
OK or NG
OK >> GO TO 2
NG >> Check indicator circuit and MIC. circuit.
2. CHECK AUDIO STEERING WHEEL SWITCH OPERATION
1. Press the switch.
2. Check the indicator is blinking.
OK or NG
OK >> INSPECTION END
NG >> Check audio steering wheel switch circuit.

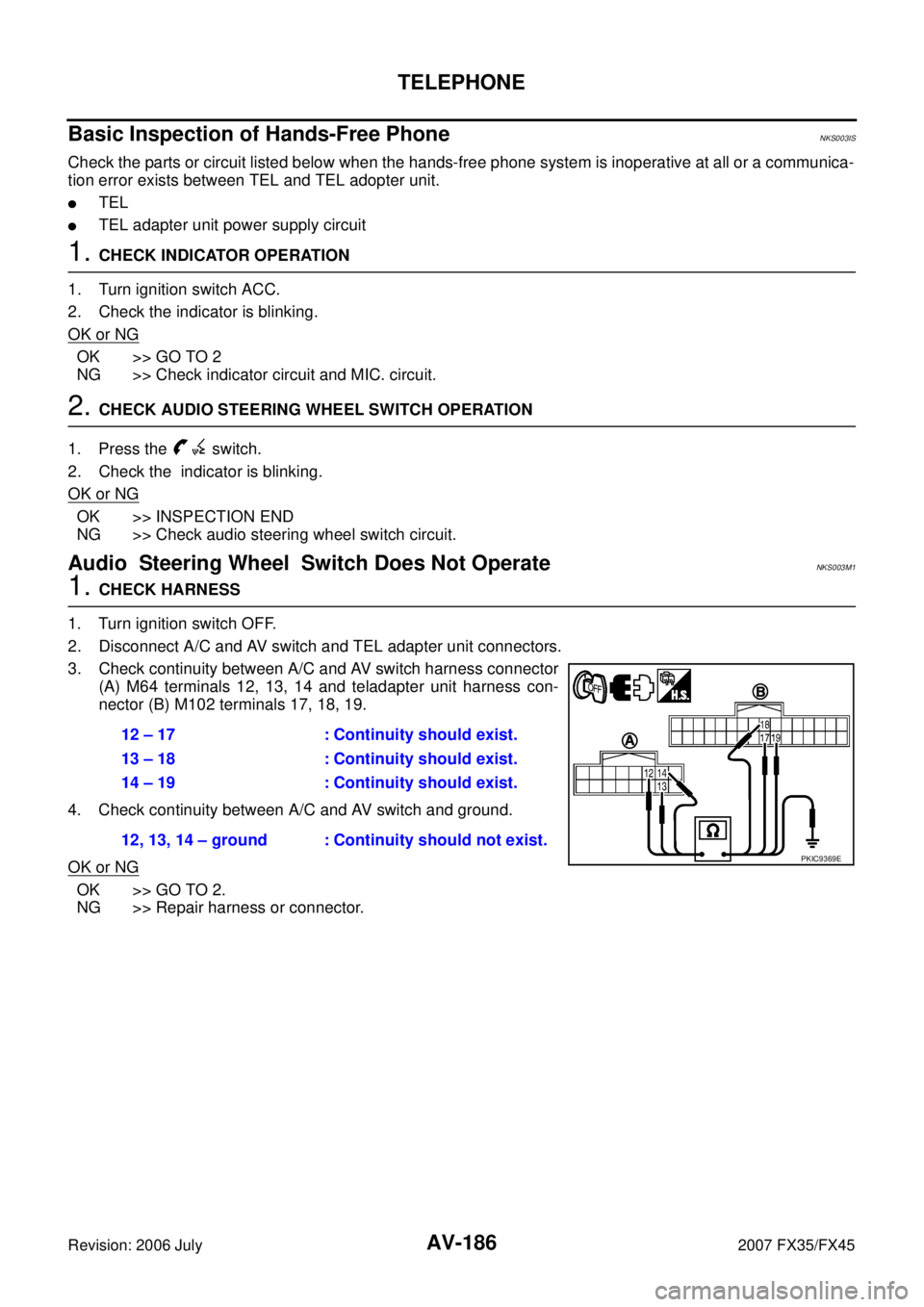

Audio Steering Wheel Switch Does Not OperateNKS003M1
1. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect A/C and AV switch and TEL adapter unit connectors.
3. Check continuity between A/C and AV switch harness connector (A) M64 terminals 12, 13, 14 and teladapter unit harness con-
nector (B) M102 terminals 17, 18, 19.
4. Check continuity between A/C and AV switch and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
12 – 17 : Continuity should exist.
13 – 18 : Continuity should exist.
14 – 19 : Continuity should exist.
12, 13, 14 – ground : Continuity should not exist.
PKIC9369E

TELEPHONE AV-187
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45

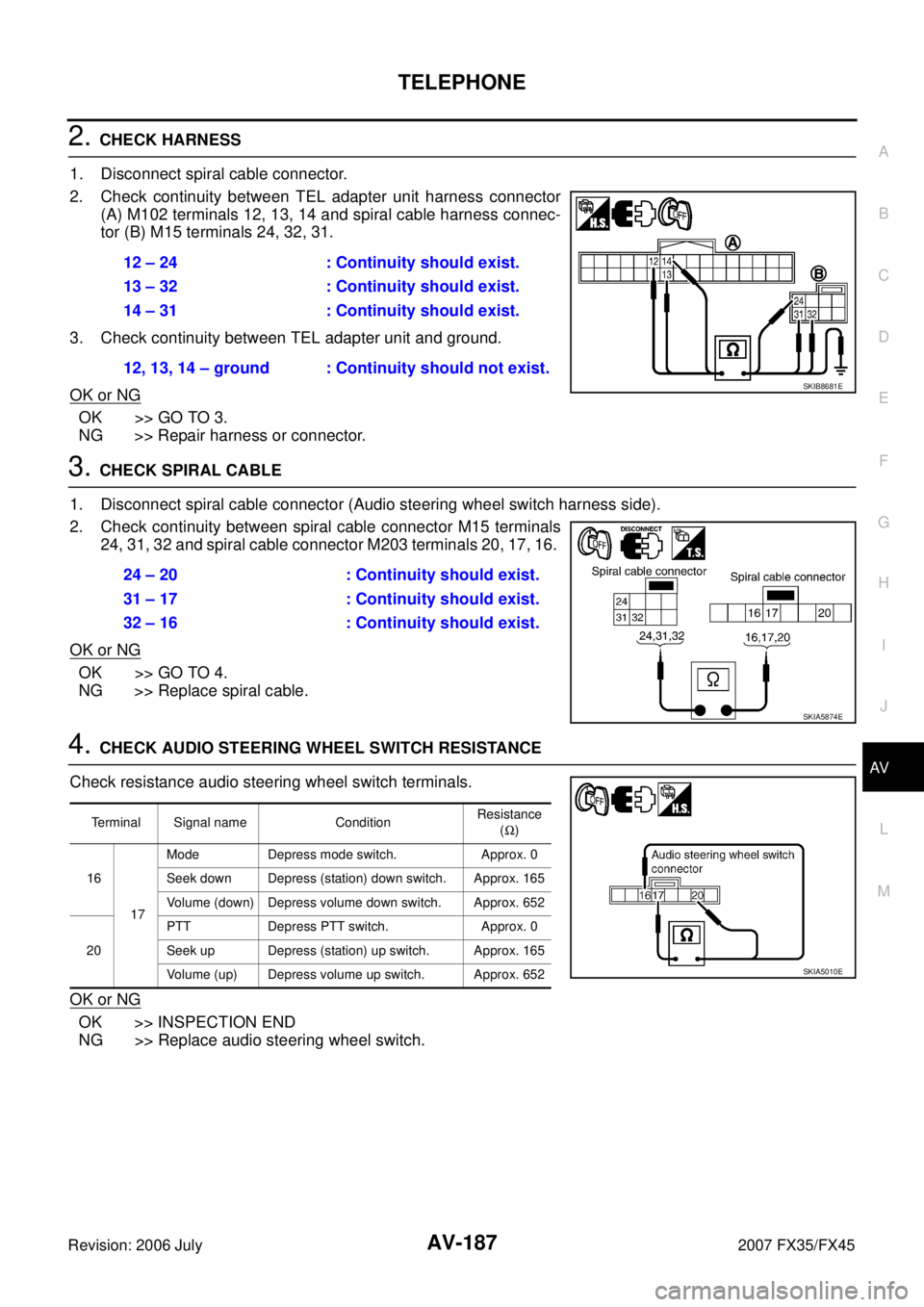

2. CHECK HARNESS
1. Disconnect spiral cable connector.
2. Check continuity between TEL adapter unit harness connector (A) M102 terminals 12, 13, 14 and spiral cable harness connec-
tor (B) M15 terminals 24, 32, 31.
3. Check continuity between TEL adapter unit and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK SPIRAL CABLE
1. Disconnect spiral cable connector (Audio steering wheel switch harness side).
2. Check continuity between spiral cable connector M15 terminals 24, 31, 32 and spiral cable connector M203 terminals 20, 17, 16.
OK or NG
OK >> GO TO 4.
NG >> Replace spiral cable.
4. CHECK AUDIO STEERING WHEEL SWITCH RESISTANCE
Check resistance audio steering wheel switch terminals.
OK or NG
OK >> INSPECTION END
NG >> Replace audio steering wheel switch. 12 – 24 : Continuity should exist.
13 – 32 : Continuity should exist.
14 – 31 : Continuity should exist.
12, 13, 14 – ground : Continuity should not exist.
SKIB8681E
24 – 20 : Continuity should exist.
31 – 17 : Continuity should exist.
32 – 16 : Continuity should exist.
SKIA5874E
Terminal Signal name Condition Resistance
( Ω )
16 17 Mode Depress mode switch. Approx. 0
Seek down Depress (station) down switch. Approx. 165
Volume (down) Depress volume down switch. Approx. 652
20 PTT Depress PTT switch. Approx. 0
Seek up Depress (station) up switch. Approx. 165
Volume (up) Depress volume up switch. Approx. 652
SKIA5010E
