DTC P1421 COLD START CONTROL
DescriptionINFOID:0000000001326914
ECM controls ignition timing and engine idle speed when engine is started with prewarming up condition.
This control promotes the activation of three way ca
talyst by heating the catalyst and reduces emissions.
On Board Diagnosis LogicINFOID:0000000001326915
DTC Confirmation ProcedureINFOID:0000000001326916
NOTE:
 If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
 If DTC P1421 is displayed with other DTC, firs t perform the trouble diagnosis for other DTC.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-III.
4. Check that the “COOLAN TEMP/S” indication is between 4°C (39 °F) and 36 °C (97 °F).
If “COOLAN TEMP/S” indication is within the specified value, go to the following step.
If “COOLANT TEMP/S” indication is out of the specified value, cool engine down or warm engine up and
go to step 1.
5. Start engine and let it idle for 5 minutes.
6. Check 1st trip DTC.
7. If 1st trip DTC is detected, go to EC-1045, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III” above.
Diagnosis ProcedureINFOID:0000000001326917
1.PERFORM IDLE AIR VOLUME LEARNING
Perform EC-663, "
Idle Air Volume Learning".
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Yes >> GO TO 2.
No >> Follow the instruction of Idle Air Volume Learning.
2.CHECK INTAKE SYSTEM
Check for the cause of intake air volume lacking. Refer to the following.
 Crushed intake air passage
 Intake air passage clogging
OK or NG
OK >> GO TO 3.
NG >> Repair or replace malfunctioning part
3.CHECK FUEL INJECTION SYSTEM FUNCTION
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1421
1421 Cold start emission reduction
strategy monitoring ECM does not control ignition timing and engine
idle speed properly when engine is started with
prewarming up condition.  Lack of intake air volume
 Fuel injection system
ECM
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1187
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VARIABLE INDUCTION AI
R CONTROL SYSTEM (VIAS)
DescriptionINFOID:0000000001327082
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of engine speed and battery voltage.
When the engine is running at low or medium speed, the power valve isfully closed. Under this condition, the
effective suction port length is equivalentto the total lengt h of the intake manifold collector's suction port includ-
ingthe intake valve. This long suction port provides incr eased air intake whichresults in improved suction effi-
ciency and higher torque generation.
The surge tank and one-way valve are provided. When engine is runningat high speed, the ECM sends the
signal to the VIAS control solenoid valve.This signal introduces the intake manifold vacuum into the power
valve actuatorand therefore opens the power valve to two suction passages together in thecollector.
Under this condition, the effective port length is equi valent to thelength of the suction port provided indepen-
dently for each cylinder. Thisshortened port length results in enhanced engine output with reduced suctionre-
sistance under high speeds.
The power valve is always open regardless of the engine speed when gear position is in N or P.
COMPONENT DESCRIPTION
Power Valve
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
VIAS control VIAS control solenoid valve
Mass air flow sensor Amount of intake air
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
Engine coolant temperature sensor Engine coolant temperature
PBIB1876E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1196
< SERVICE INFORMATION >[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Fuel PressureINFOID:0000000001327089
Idle Speed and Ignition TimingINFOID:0000000001327090
*: Under the following conditions:
 Air conditioner switch: OFF
 Electric load: OFF (Lights, heater fan & rear window defogger)
 Steering wheel: Kept in straight-ahead position
Calculated Load ValueINFOID:0000000001327091
Mass Air Flow SensorINFOID:0000000001327092
*: Engine is warmed up to normal operating temperature and running under no load.
Intake Air Temperature SensorINFOID:0000000001327093
Engine Coolant Te
mperature SensorINFOID:0000000001327094
Fuel Tank Temperature SensorINFOID:0000000001327095
Fuel pressure at idling kPa (kg/cm2, psi) Approximately 350 (3.57, 51)
Target idle speed No load* (in P or N position) 650
±50 rpm
Air conditioner: ON In P or N position 700 rpm or more
Ignition timing In P or N position 12 ° ± 5 ° BTDC
Condition Calculated load value% (Using CONSULT-III or GST)
At idle 14.0 - 33.0
At 2,500 rpm 12.0 - 25.0
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle 1.0 - 1.3V*
Mass air flow (Using CONSULT-III or GST) 2.0 - 6.0 g·m/sec at idle*
7.0 - 20.0 g·m/sec at 2,500 rpm*
Temperature °C ( °F) Resistance k Ω
25 (77) 1.800 - 2.200
Temperature °C ( °F) Resistance k Ω
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Temperature °C ( °F) Resistance k Ω
20 (68) 2.3 - 2.7
50 (122) 0.79 - 0.90
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-1
ENGINE
C
DE
F
G H
I
J
K L
M
SECTION EM
A
EM
N
O P
CONTENTS
ENGINE MECHANICAL
VQ35DE
SERVICE INFORMATION .. ..........................
4
PRECAUTIONS .............................................. .....4
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
4
Precaution for Drain Engine Coolant and Engine
Oil ..............................................................................
4
Precaution for Disconnecting Fuel Piping .................4
Precaution for Removal and Disassembly ................4
Precaution for Inspection, Repair and Replace-
ment ..........................................................................
4
Precaution for Assembly and Installation ..................5
Precaution for Angle Tightening ................................5
Precaution for Liquid Gasket .....................................5
PREPARATION ...................................................7
Special Service Tool ........................................... ......7
Commercial Service Tool ..........................................9
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ............................
12
NVH Troubleshooting - Engine Noise ................. ....12
Use the Chart Below to Help You Find the Cause
of the Symptom .......................................................
12
DRIVE BELTS ....................................................14
Checking Drive Belts ........................................... ....14
Tension Adjustment ................................................14
Removal and Installation .........................................15
AIR CLEANER AND AIR DUCT ........................17
Component .......................................................... ....17
Removal and Installation .........................................17
Changing Air Cleaner Filter .....................................18
INTAKE MANIFOLD COLLECTOR ...................19
Component .......................................................... ....19
Removal and Installation .........................................19
INTAKE MANIFOLD ...........................................24
Component .......................................................... ....24
Removal and Installation .........................................24
EXHAUST MANIFOLD AND THREE WAY
CATALYST ........................................................
26
Component ..............................................................26
Removal and Installation .........................................26
OIL PAN AND OIL STRAINER .........................30
Component (2WD Models) ......................................30
Removal and Installation (2WD Models) .................30
Component (AWD Models) ......................................35
Removal and Installation (AWD Models) .................36
IGNITION COIL .................................................42
Component ..............................................................42
Removal and Installation .........................................42
SPARK PLUG (PLATINUM-TIPPED TYPE) .....43
Component ..............................................................43
Removal and Installation .........................................43
FUEL INJECTOR AND FUEL TUBE ................45
Component ..............................................................45
Removal and Installation .........................................45
ROCKER COVER .............................................51
Component ..............................................................51
Removal and Installation .........................................51
FRONT TIMING CHAIN CASE .........................54
Removal and Installation .........................................54
TIMING CHAIN ..................................................64
Component .......................................................... ....64
Removal and Installation .........................................65
CAMSHAFT .......................................................83
Component ..............................................................83
Removal and Installation .........................................84
Valve Clearance ......................................................91
OIL SEAL ..........................................................97
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-2
Removal and Installation of Valve Oil Seal .............97
Removal and Installation of Front Oil Seal .............97
Removal and Installation of Rear Oil Seal ..............98
CYLINDER HEAD ............................................100
On-Vehicle Service .............................................. ..100
Component ............................................................101
Removal and Installation .......................................101
Disassembly and Assembly ...................................105
Inspection After Disassembly ................................107
ENGINE ASSEMBLY .......................................112
Component (2WD Models) .................................. ..112
Removal and Installation (2WD Models) ...............112
Component (AWD Models) ....................................117
Removal and Installation (AWD Models) ...............117
CYLINDER BLOCK .........................................122
Component .......................................................... ..122
Disassembly and Assembly ...................................123
How to Select Piston and Bearing .........................134
Inspection After Disassembly ................................138
SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................
149
Standard and Limit .............................................. ..149
VK45DE
SERVICE INFORMATION ..........................
160
PRECAUTIONS .............................................. .160
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ..
160
Precaution for Drain Engine Coolant and Engine
Oil ..........................................................................
160
Precaution for Disconnecting Fuel Piping ..............160
Precaution for Removal and Disassembly .............160
Precaution for Inspection, Repair and Replace-
ment .......................................................................
160
Precaution for Assembly and Installation ..............161
Parts Requiring Angle Tightening ..........................161
Precaution for Liquid Gasket .................................161
PREPARATION .............................................. .163
Special Service Tool ............................................ ..163
Commercial Service Tool ......................................164
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ..........................
167
NVH Troubleshooting - Engine Noise .................. ..167
Use the Chart Below to Help You Find the Cause
of the Symptom .....................................................
167
ENGINE ROOM COVER ..................................169
Component .......................................................... ..169
Removal and Installation .......................................169
DRIVE BELTS ..................................................170
Component .......................................................... ..170
Checking Drive Belts .............................................170
Tension Adjustment ...............................................170
Removal and Installation ...................................... .170
Component ...........................................................171
Drive Belt Auto Tensioner and Idler Pulley ...........172
AIR CLEANER AND AIR DUCT .......................173
Component .......................................................... .173
Removal and Installation .......................................173
Changing Air Cleaner Filter ...................................174
INTAKE MANIFOLD .........................................175
Component .......................................................... .175
Removal and Installation .......................................176
EXHAUST MANIFOLD AND THREE WAY
CATALYST .......................................................
179
Component .......................................................... .179
Removal and Installation .......................................179
OIL PAN AND OIL STRAINER ........................183
Component .......................................................... .183
Removal and Installation .......................................183
IGNITION COIL .................................................187
Component .......................................................... .187
Removal and Installation .......................................187
SPARK PLUG (PLATINUM-TIPPED TYPE) ....188
Component .......................................................... .188
Removal and Installation .......................................188
FUEL INJECTOR AND FUEL TUBE ................190
Component .......................................................... .190
Removal and Installation .......................................190
ROCKER COVER .............................................196
Component .......................................................... .196
Removal and Installation .......................................196
TIMING CHAIN .................................................199
Component .......................................................... .199
Removal and Installation .......................................200
CAMSHAFT ......................................................211
Component .......................................................... .211
Removal and Installation .......................................211
Valve Clearance ....................................................218
OIL SEAL ..........................................................222
Removal and Installation of Valve Oil Seal ...........222
Removal and Installation of Front Oil Seal ........... .222
Removal and Installation of Rear Oil Seal ............224
CYLINDER HEAD .............................................226
On-Vehicle Service .............................................. .226
Component ...........................................................227
Removal and Installation .......................................227
Disassembly and Assembly ..................................229
Inspection After Disassembly ................................232
ENGINE ASSEMBLY ..................................... ..237
Component .......................................................... .237
Removal and Installation .......................................237
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-4
< SERVICE INFORMATION >[VQ35DE]
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution Necessary for Steering W
heel Rotation After Battery Disconnect
INFOID:0000000001524592
NOTE:
• This Procedure is applied only to models with In telligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).
 Remove and install all control units after disconnecting both battery cables with the ignition knob in the ″LOCK ″ position.
 Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS /IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery pow er is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables. NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-III.
Precaution for Drain Engine Coolant and Engine OilINFOID:0000000001325693
Drain engine coolant and engine oil when the engine is cooled.
Precaution for Disconnecting Fuel PipingINFOID:0000000001325694
 Before starting work, make sure no fire or spark producing items are in the work area.
 Release fuel pressure before disconnecting and disassembly.
 After disconnecting pipes, plug openings to stop fuel leakage.
Precaution for Removal and DisassemblyINFOID:0000000001325695
 When instructed to use SST, use specified tools. Always be careful to work safely, avoid forceful or unin-
structed operations.
 Exercise maximum care to avoid damage to mating or sliding surfaces.
 Cover openings of engine system with a tape or equival ent, if necessary, to seal out foreign materials.
 Mark and arrange disassembly parts in an organi zed way for easy troubleshooting and re-assembly.
 When loosening nuts and bolts, as a basic rule, star t with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be used
in the step.
Precaution for Inspection, Repair and ReplacementINFOID:0000000001325696
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PRECAUTIONSEM-5
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Precaution for Assembly and InstallationINFOID:0000000001325697
 Use torque wrench to tighten bolts or nuts to specification.
 When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,
do exactly as specified.
 Replace with new gasket, packing, oil seal or O-ring.
 Dowel pins are used for several parts alignment. When replacing and reassembling parts with dowel pins, make sure that dowel pins are installed in the original position.
 Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for any restriction and blockage.
 Avoid damaging sliding or mating surfaces. Completely re move foreign materials such as cloth lint or dust.
Before assembly, oil sliding surfaces well.
 Release air within route when refilling after draining engine coolant.
 After repairing, start the engine and increase engine speed to check engine coolant, fuel, engine oil, and
exhaust gases for leakage.
Precaution for Angle TighteningINFOID:0000000001325698
 Use the angle wrench [SST: KV10112100 (BT8653-A)] for the final tightening of the following engine parts:
- Cylinder head bolts
- Main bearing cap bolts
- Connecting rod cap bolts
- Crankshaft pulley bolt (No the angle wrench is required as bolt flange is provided with notches for angletightening)
 Do not use a torque value for final tightening.
 The torque value for these parts are for a preliminary step.
 Ensure thread and seat surfaces are clean and coated with engine oil.
Precaution for Liquid GasketINFOID:0000000001325699
REMOVAL OF LIQUID GASKET SEALING
 After removing mounting nuts and bolts, separate the mating sur- face using the seal cutter (SST) and remove old liquid gasket seal-
ing.
CAUTION:
Be careful not to damage the mating surfaces.
 Tap the seal cutter to insert it, and then slide it by tapping on the side as shown in the figure.
 In areas where the seal cutter is difficult to use, use a plastic ham-
mer to lightly tap the parts, to remove it.
CAUTION:
If for some unavoidable reason tool such as a screwdriver is
used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove old liquid gasket adhering to the gasket application surface and the mating surface.
 Remove liquid gasket completely from the groove of the gas-
ket application surface, mounting bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating sur- face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
PBIC0002E
PBIC0003E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-6
< SERVICE INFORMATION >[VQ35DE]
PRECAUTIONS
3. Attach liquid gasket tube to the tube presser (commercial ser-
vice tool).
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44
.
4. Apply liquid gasket without breaks to the specified location with the specified dimensions.
 If there is a groove for liquid gasket application, apply liquid
gasket to the groove.
 As for bolt holes, normally apply liquid gasket inside the holes. Occasionally, it should be applied outside the holes. Make
sure to read the text of this manual.
 Within five minutes of liquid gasket application, install the mat-
ing component.
 If liquid gasket protrudes, wipe it off immediately.
 Do not retighten mounting bolts or nuts after the installation.
 After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.
CAUTION:
If there are specific instruct ions in this manual, observe
them.
EMA0622D
SEM159F
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DRIVE BELTSEM-15
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
 When belt is replaced with a new one, adjust it
to value for “New belt” to accommodate for insuffi-
cient adaptability with pulley grooves.
 When deflection or tension of belt being used exceeds “Limit”, adjust it to value for “After adjust-
ment”.
 When checking belt deflection or tension immediately af ter installation, first adjust it to the specified
value. Then, after turning crankshaft two turns or mo re, re-adjust to the specified value to avoid vari-
ation in deflection between pulleys.
 When installing belt, make sure that it is correctly engaged with pulley grooves.
 Keep engine oil, working fl uid and engine coolant away from belt and pulley grooves.
 Do not twist or bend belt excessively.
ALTERNATOR AND POWER STEERING OIL PUMP BELT
1. Remove front engine undercover with power tool.
2. Loosen idler pulley lock nut (A ) and adjust tension by turning
adjusting bolt (B).
 For the specified belt tension, refer to EM-14, "
Checking Drive
Belts".
3. Tighten nut (A).
A/C COMPRESSOR BELT
1. Remove front engine undercover with power tool.
2. Loosen idler pulley lock nut (C) and adjust tension by turning adjusting bolt (D).  For the specified belt tension, refer to EM-14, "
Checking Drive Belts".
3. Tighten nut (C).
Removal and InstallationINFOID:0000000001429498
REMOVAL
1. Remove front engine undercover with power tool.
2. Remove alternator and power steering oil pump belt. Refer to EM-14, "
Tension Adjustment".
3. Remove A/C compressor belt. Refer to EM-14, "
Tension Adjustment".
CAUTION:
Grease is applied to idler pulley adjusting bol t. Be careful to keep grease away from belt.
INSTALLATION
1. Install belts to pulley in reverse order of removal.
CAUTION:
 Make sure drive belt is correctly engaged with pulley groove.
 Make sure that for engine oil and engine cool ant do not adhere to belt and each pulley grooves.

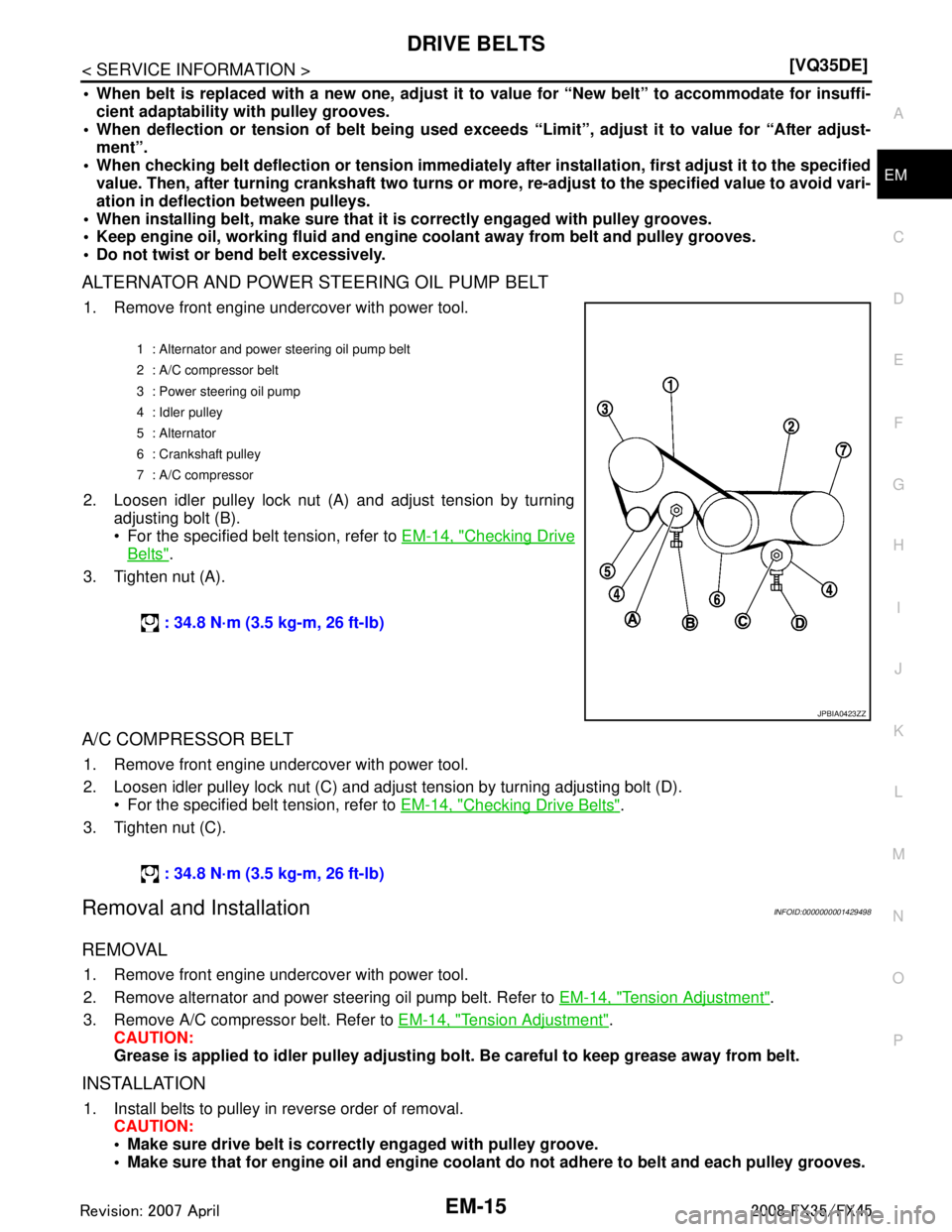

1 : Alternator and power steering oil pump belt
2 : A/C compressor belt
3 : Power steering oil pump
4 : Idler pulley
5 : Alternator
6 : Crankshaft pulley
7: A/C compressor
: 34.8 N·m (3.5 kg-m, 26 ft-lb)
JPBIA0423ZZ
: 34.8 N·m (3.5 kg-m, 26 ft-lb)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INTAKE MANIFOLD COLLECTOREM-19
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
INTAKE MANIFOLD COLLECTOR
ComponentINFOID:0000000001325710
Removal and InstallationINFOID:0000000001325711
REMOVAL
WARNING:
 To avoid the danger of being scalded, never dr
ain engine coolant when the engine is hot.
 Gasket for intake manifold collector (upper) is secu red together with mounting bolt for intake mani-
fold collector (lower). Thus, even when only gasket for upper side is replaced, gasket for lower side
must be also replaced.

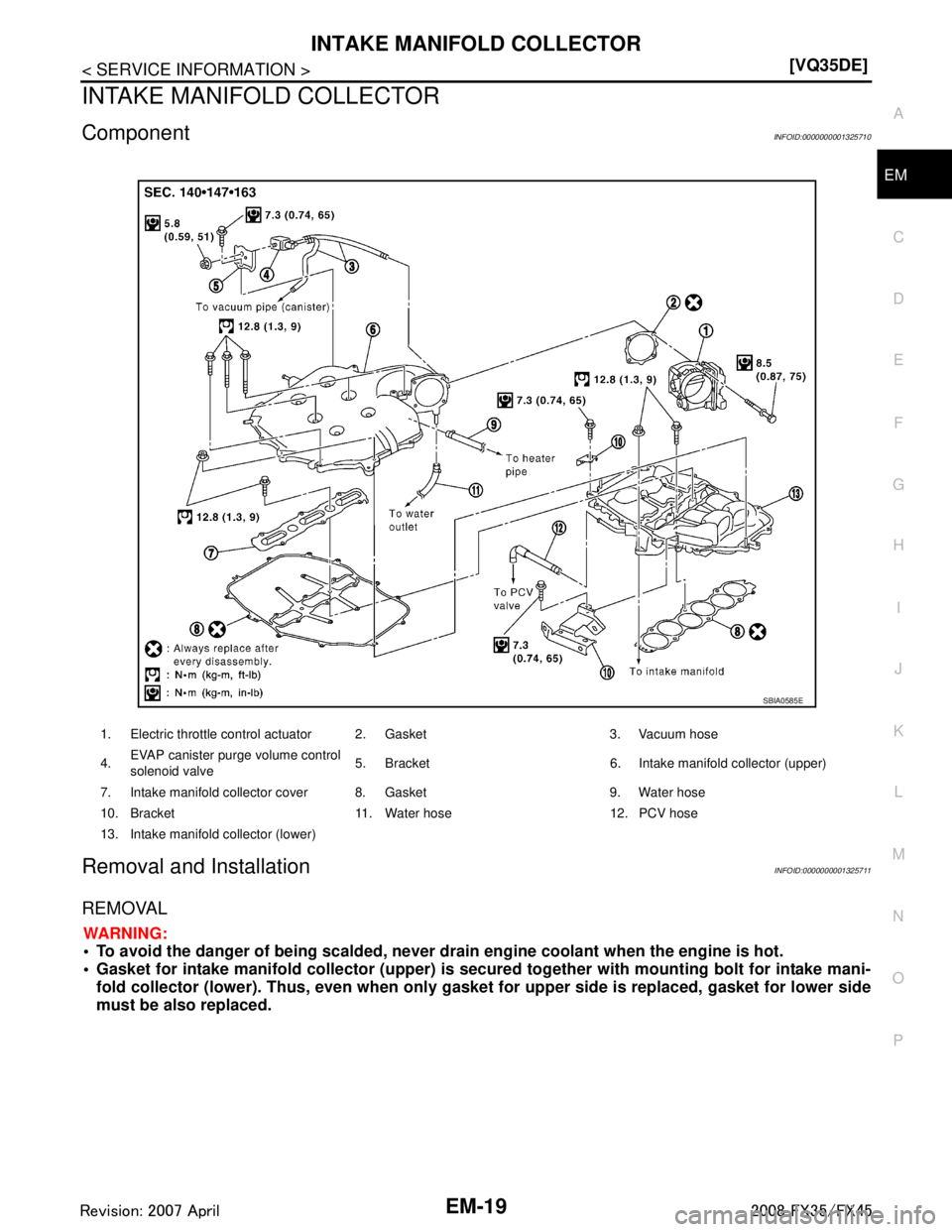

1. Electric throttle control actuator 2. Gasket 3. Vacuum hose
4. EVAP canister purge volume control
solenoid valve
5. Bracket 6. Intake manifold collector (upper)
7. Intake manifold collector cover 8. Gasket 9. Water hose
10. Bracket 11. Water hose 12. PCV hose
13. Intake manifold collector (lower)
SBIA0585E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
