CONTENTS
AUDIO VISUAL, NAVIGATION & TELEPHONE SYS- TEM
SERVICE INFORMATION ............................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
PREPARATION ...................................................4
Commercial Service Tool .................................... ......4
AUDIO .................................................................5
System Description ............................................. ......5
Component Parts Location ........................................6
Schematic - AUDIO - / with Navigation System ........7
Wiring Diagram - AUDIO - / with Navigation Sys-
tem ............................................................................
8
Schematic - AUDIO - without Navigation System ....18
Wiring Diagram - AUDIO - / without Navigation
System ....................................................................
19
Terminal and Reference Value for Audio Unit .........28
Terminal and Reference Value for BOSE Speaker
Amp .........................................................................
30
Terminal and Reference Value for A/C and AV
Switch ......................................................................
32
Terminal and Reference Value for Woofer ..............33
Terminal and Reference Value for Satellite Radio
Tuner ................................................................... ....
34
A/C and AV Switch Self-Diagnosis Function ...........34
Trouble Diagnosis ...................................................35
Power Supply Circuit Inspection .............................36
Audio Steering Wheel Switch Inspection ................37
A/C and AV Switch Inspection ................................39
BOSE Speaker Amp. Inspection .............................39
Vehicle Speed Signal Inspection .............................40
Locking CD Auto-Changer Mechanism ...................41
Removal and Installation of Audio Unit ...................41
Disassembly and Assembly of Audio Unit ...............42
Removal and Installation for A/C and AV Switch ....42
Removal and Installation for Front Door Speaker ....43
Removal and Installation for Rear Door Speaker ....43
Removal and Installation for Instrument Speaker ....43
Removal and Installation for Tweeter .................. ....44
Removal and Installation for Woofer (BOSE Sys-
tem) .........................................................................
44
Removal and Installation for BOSE Speaker Amp ....44
Removal and Installation of Satellite Radio Tuner ....45
Removal and Installation of Satellite Radio Anten-
na ......................................................................... ....
45
ANTENNA .........................................................46
System Description ..................................................46
Wiring Diagram - M/ANT - .......................................47
Terminal and Reference Value for Audio Unit .........48
Antenna Amp. Inspection ........................................48
Location of Antenna .................................................49
Window Antenna Repair ..........................................49
Removal and Installation of Roof Antenna ..............51
Removal and Installation of Satellite Radio Anten-
na ......................................................................... ....
51
INTEGRATED DISPLAY SYSTEM ...................52
System Description ..................................................52
Component Description ...........................................52
CAN Communication Unit ........................................53
Component Parts Location ......................................53
Schematic - INF/D - .................................................54
Wiring Diagram - INF/D - .........................................55
Schematic - COMM - ...............................................61
Wiring Diagram - COMM - .......................................62
Terminal and Reference Value for Display Control
Unit ...................................................................... ....
67
Terminal and Reference Value for Display ..............69
Terminal and Reference Value for A/C and AV
Switch ......................................................................
71
Special Note for Trouble Diagnosis .........................72
On Board Self-Diagnosis Function ..........................72
Self-Diagnosis Mode (DCU) ....................................73
Confirmation/Adjustment Mode ...............................75
CAN Diagnostic Support Monitor .............................77
A/C and AV Switch Self-Diagnosis Function ...........78
CAN Communication Check ....................................79
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AUDIOAV-35
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
STARTING THE SELF-DIAGNOSIS MODE
1. Turn ignition switch from OFF to ACC.
2. Within 10 seconds press and hold the switches “1” and “6” simultaneously for 3 seconds.
DIAGNOSIS FUNCTION
The following are checked: All the indicators (LED) in the A/C and AV switch.
 Continuity of the switches by sounding the buzze r when the A/C and AV switch and audio steering wheel
switch is pressed.
 Continuity of harness between A/C and AV switch and audio steering switch.
NOTE:
Rear window defogger switch operation is not checked. (No beep sound even under normal status)
EXITING THE SELF-DIAGNOSIS MODE
 Turn ignition switch OFF.
Trouble DiagnosisINFOID:0000000001328684
 The majority of the audio malfunctions are the result of outside causes (bad CD, electromagnetic interfer-
ence, etc.). Check the symptoms below to diagnose the malfunction.
 The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.
Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and oper-
ation of each piece of electrical equipment, and then determine the cause.
 Make sure that other operation except audio system can be performed with A/C and AV switch. If these
operations are inoperative with A/C and AV switch, refer to AV-79, "
Unable to Operate System with A/C and
AV Switch" (Without navigation system), or AV-127, "Unable to Operate System with A/C and AV Switch"
(With navigation system).
 Refer to "SERVICE BULLETIN ITB04-055" for the diagnosis of satellite radio.
SKIB8660E
Symptom Possible malfunction location
Audio system does not work properly.  Audio unit power supply circuit
 Communication signal circuit between audio unit and display control unit
 A/C and AV switch
 Audio unit
No sound can be heard from all speakers.  BOSE speaker amp. power supply and ground circuit
 BOSE speaker amp. ON signal circuit
 Audio unit
 BOSE speaker amp.
No sound can be heard from one or several speakers.  Audio signal circuit between audio unit and BOSE speaker amp.
 Audio signal circuit between BOSE speaker amp. and speaker
 Speaker
Tweeter
 Audio unit
 BOSE speaker amp.
No sound can be heard from woofer.  Audio signal circuit between BOSE speaker amp. and woofer
Woofer
 BOSE speaker amp.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AUDIOAV-41
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
3. Check the signal between audio unit harness connector M60 terminal 22 and ground with CONSULT-III or oscilloscope.
OK or NG
OK >> INSPECTION END (System is OK.)
NG >> Replace unified meter and A/C amp.
Locking CD Auto-Changer MechanismINFOID:0000000001328690
CAUTION:
 Prior to removing a malfunctioning CD auto-changer unit that will be shipped for repair, the changer mechanism MUST BE LOCKED to prevent the mech anism from being damaged during shipping.
 If a CD is jammed or unable to be removed from th e unit, do NOT lock the changer mechanism. If the
unit is to be shipped for repair, carefully package the unit to prevent vibration and shock.
DAMPER LOCK PROCEDURE
1. Eject and remove any CDs from the audio unit.
2. Turn ignition switch OFF. Wait until audio unit display is off and mechanism stops moving (mechanism
sound stops).
3. Press any one of the disc selection buttons once. When a display shows on the audio unit, press the
same disc selection button again within 5 seconds.
 The changer mechanism will lock itself within 10 seconds.
4. After mechanism stops moving (mechanism s ound stops), open the driver and passenger window, and
then disconnect negative battery cable.
NOTE:
After installing a new or remanufactured audio unit, switching the audio unit ON will automatically unlock the
mechanism. A special unlocking procedure is not required.
Removal and Installation of Audio UnitINFOID:0000000001328691
REMOVAL
1. Perform damper lock operation. Refer to AV-41, "Locking CD Auto-Changer Mechanism".
2. Remove cluster lid C. Refer to IP-10
.
3. Remove screws (6) with power tool, and remove audio unit with display and unified meter and A/C amp. from instrument panel.
4. Remove screws and remove audio unit.
INSTALLATION
Te r m i n a l Condition Reference
signal
(+) (–)
22 Ground When vehicle speed is ap-
prox. 40 km/h (25 MPH)
SKIA6809E
ELF1080D
SKIA5800E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ANTENNAAV-49
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P

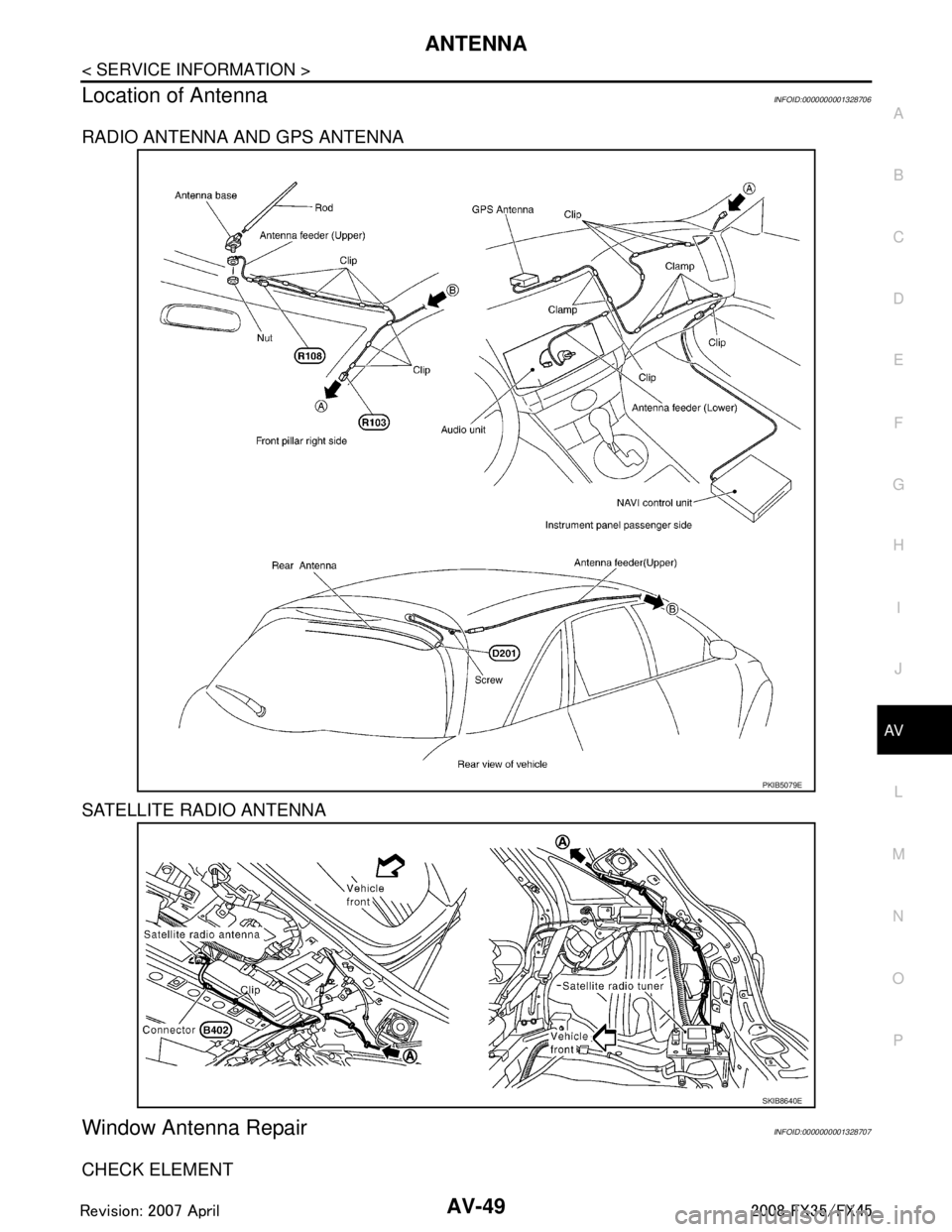

Location of AntennaINFOID:0000000001328706
RADIO ANTENNA AND GPS ANTENNA
SATELLITE RADIO ANTENNA
Window Antenna RepairINFOID:0000000001328707
CHECK ELEMENT
PKIB5079E
SKIB8640E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INTEGRATED DISPLAY SYSTEMAV-79
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
Rear window defogger switch operation is not checked (No beep sound even under normal status).
EXITING THE SELF-DIAGNOSIS MODE
 Turn ignition switch OFF.
CAN Communication CheckINFOID:0000000001328727
1.CHECK MONITOR DESCRIPTION
1. Start self-diagnosis of DCU. Refer to AV-73, "
Self-Diagnosis Mode (DCU)".
2. Select “CAN DIAG SUPPORT MONITOR”. Refer to AV-77,
"CAN Diagnostic Support Monitor".
3. Record each item display description (OK/NG/UNK WN) displayed on the following CAN DIAG SUPPORT
MONITOR Check Sheet.
CAN DIAG SUPPORT MONITOR Check Sheet
>> After filling in CAN DIAG SUPPORT MONITOR Check Sheet, Go to LAN-43, "CAN System Spec-
ification Chart".
Unable to Operate System with A/C and AV SwitchINFOID:0000000001328728
Symptom: Unable to operate A/C system and audio system with A/C and AV switch. (Unable to start self-diag-
nosis.)
1.CHECK CONDITION
1. Turn ignition switch ON.
2. Check if an image is displayed on the screen.
Is an image displayed on the screen?
YES >> GO TO 2.
NO >> Repair malfunctioning part. Refer to AV-80, "
All Images Are Not Displayed".
2.SELF-DIAGNOSIS OF A/C AND AV SWITCH
Start self-diagnosis of A/C and AV switch, and check the self-diagnosis result. Refer to AV-78, "
A/C and AV
Switch Self-Diagnosis Function".
OK or NG
Item content
Error counter
(Reference value)
Normal conditio n Error (Example)
CAN_COMM OK NG 0 - 50
CAN_CIRC_1 OK UNKWN 0 - 50
CAN_CIRC_2 OK UNKWN 0 - 50
CAN_CIRC_3 OK UNKWN 0 - 50
CAN_CIRC_4 OK UNKWN 0 - 50
CAN_CIRC_5 OK UNKWN 0 - 50
CAN_CIRC_6 OK UNKWN 0 - 50
CAN_CIRC_7 OK UNKWN 0 - 50
CAN_CIRC_8 OK UNKWN 0 - 50
CAN_CIRC_9 UNKWN UNKWN 0 - 50
PKIB6080E
Diagnosis item Screen display Diagnosis item Screen display CAN_COMM OK NG CAN_CIRC_5 OK UNKWN
CAN_CIRC_1 OK UNKWN CAN_CIRC_6 OK UNKWN
CAN_CIRC_2 OK UNKWN CAN_CIRC_7 OK UNKWN
CAN_CIRC_3 OK UNKWN CAN_CIRC_8 OK UNKWN
CAN_CIRC_4 OK UNKWN CAN_CIRC_9 OK UNKWN
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AV-126
< SERVICE INFORMATION >
NAVIGATION SYSTEM
NOTE:
Counter shows the status of CAN communication.
A/C and AV Switch Self-Diagnosis FunctionINFOID:0000000001328757
Performing self-diagnosis makes it possible to check operation of A/C and AV switch indicator (LED) and other
switch.
STARTING THE SELF-DIAGNOSIS MODE
1. Turn ignition switch from OFF to ACC.
2. Within 10 seconds press and hold the switches “1” and “6”simultaneously for 3 seconds.
DIAGNOSIS FUNCTION
The following are checked: All the indicators (LED) in the A/C and AV switch.
 Continuity of the switches by sounding the buzze r when the A/C and AV switch and audio steering wheel
switch is pressed.
 Continuity of harness between A/C and AV switch and audio steering wheel switch.
NOTE:
Rear window defogger switch operation is not checked (No beep sound even under normal status).
EXITING THE SELF-DIAGNOSIS MODE
 Turn ignition switch OFF.
CAN Communication CheckINFOID:0000000001328758
1.CHECK MONITOR DESCRIPTION
1. Start self-diagnosis of DCU. Refer to AV-114, "
Self-Diagnosis Mode (DCU)".
2. Select “CAN DIAG SUPPORT MONITOR”. Refer to AV-125,
"CAN Diagnostic Support Monitor".
CAN_CIRC_8 OK/UNKWN 0 - 50
CAN_CIRC_9 OK/UNKWN 0 - 50
SKIB8660E
Item content
Error counter
(Reference value)
Normal conditio n Error (Example)
CAN_COMM OK NG 0 - 50
CAN_CIRC_1 OK UNKWN 0 - 50
CAN_CIRC_2 OK UNKWN 0 - 50
CAN_CIRC_3 OK UNKWN 0 - 50
CAN_CIRC_4 OK UNKWN 0 - 50
CAN_CIRC_5 OK UNKWN 0 - 50
CAN_CIRC_6 OK UNKWN 0 - 50
CAN_CIRC_7 OK UNKWN 0 - 50
CAN_CIRC_8 OK UNKWN 0 - 50
CAN_CIRC_9 UNKWN UNKWN 0 - 50
PKIB6080E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BCM (BODY CONTROL MODULE)BCS-7
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BCS
N
O P
- Door lock/unlock switch
- Front door switch (driver side, passenger side)
- Rear door switch (LH, RH)
- Back door opener switch
- Combination switch (passing, lighting switch 1ST position, front fog lamp)
- Key fob (lock/unlock signal)
- Key cylinder switch
 When control performed only by BCM is required by switch, it shifts to CAN communication inactive mode.
 Operation mode of combination switch reading function is changed.
SYSTEMS CONTROLLED BY BCM DIRECTLY
NOTE:
Power supply only. No system control.
SYSTEMS CONTROLLED BY BCM AND IPDM E/R
SYSTEMS CONTROLLED BY BCM AND COMBINATION METER
SYSTEMS CONTROLLED BY BCM AND INTELLIGENT KEY UNIT
SYSTEMS CONTROLLED BY BCM, CO MBINATION METER AND IPDM E/R
System Reference
Power door lock system BL-21
Remote keyless entry systemBL-50
Power window system NOTEGW-15
Sunroof NOTERF-10
Room lamp timerLT- 1 3 8
Rear wiper and washer systemWW-30
System Reference
Panic alarm
BL-50
BL-76
Theft warning system BL-163
IVIS (NATS)BL-185
HeadlampLT- 5
Daytime light systemLT- 3 2
Auto light systemLT- 4 7
Front fog lampLT- 6 6
 Parking, license plate, side marker and tail lamps
 Exterior lamp battery saver control LT- 11 8
Front wiper and washer system
WW-4
Rear window defoggerGW-60
System Reference
Warning chime DI-51
Turn signal and hazard warning lampsLT- 7 8
Tire pressure monitoring systemWT-10
System Reference
Intelligent Key system BL-76
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BCS-8
< SERVICE INFORMATION >
BCM (BODY CONTROL MODULE)
MAJOR COMPONENTS AND CONTROL SYSTEM
System Reference
Oil pressure warning lamp DI-34
System Input Output
Remote control entry system Key fob  All-door locking actuator
 Fuel lid Lock actuator
 Turn signal lamp (LH, RH)
 Combination meter
Intelligent Key system Intelligent Key unit  All-door locking actuator
 Fuel lid Lock actuator
 Turn signal lamp (LH, RH)
 Combination meter
Power door lock system  Power window main switch
(door lock and unlock switch)
 Power window sub switch (passenger side) (door lock and unlock switch) All-door locking actuator
Power supply (IGN) to power window, sunroof Ignition power supply Power window and sunroof system
Power supply (BAT) to power window, sunroof
and power seat Battery power supplyPower window, sunroof system and
power seat
Panic alarm  Key switch
 Key fobIPDM E/R
Theft warning system  All-door switch
 Hood switch
 Key fob
 Power window main switch (door lock and
unlock switch)
 Power window sub switch (passenger side) (door lock and unlock switch)  IPDM E/R
 Security indicator lamp
Auto light system  Optical sensor
 Combination switch
 Ignition switchIPDM E/R
Exterior lamp battery saver control  Ignition switch
 Combination switchIPDM E/R
Headlamp Combination switch IPDM E/R
Daytime light system  Combination meter
ECM
 Combination switch
 Ignition switchIPDM E/R
Parking, license plate, side marker and tail
lamps Combination switch IPDM E/R
Front fog lamp Combination switch IPDM E/R
Turn signal lamp  Combination switch
 Ignition switch Turn signal lamp
 Combination meter
Hazard lamp Hazard switch  Turn signal lamp
 Combination meter
Room lamp timer  Key switch
 Key fob
 Power window main switch (door lock and
unlock switch)
 Front door switch driver side
 All-door switch Interior room lamp
Key warning chime  Key switch
 Front door switch driver sideCombination meter
(warning buzzer)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BCM (BODY CONTROL MODULE)BCS-9
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BCS
N
O P
CAN Communication UnitINFOID:0000000001328609
Refer to LAN-43, "CAN System Specification Chart".
Light warning chime  Combination switch
 Key switch
 Front door switch driver sideCombination meter
(warning buzzer)
Seat belt warning chime  Combination meter [Seat belt buckle (driver
side) switch]
 Ignition switch Combination meter
(warning buzzer)
Front wiper and washer system  Combination switch
 Combination meter
 Ignition switchIPDM E/R
Rear wiper and washer system  Combination switch
 Ignition switchRear wiper motor
Rear window defogger  Rear window defogger switch
 Ignition switch
IPDM E/R
A/C switch signal Unified meter and A/C amp. ECM
Blower fan switch signal Unified meter and A/C amp. ECM
Low tire pressure warning system Remote keyless entry receiver Combination meter System Input Output
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BCS-12
< SERVICE INFORMATION >
BCM (BODY CONTROL MODULE)
ITEMS OF EACH PART
BCM can perform the following functions for each system.
NOTE:
CONSULT-III displays systems equipped in the vehicle.
×:Applicable
NOTE:
 *1: Vehicle with remote keyless entry system display this item.
 *2: Vehicle with Intelligent Key system display this item.
 *3: This item is displayed, but does not function.
WORK SUPPORT
Display Item List
BCM Diagnostic test item Check item, diagnostic test mode Content
Inspection by part WORK SUPPORT Changes setting of each function.
SELF-DIAG RESULTS BCM performs self-diagnosis of CAN communication.
DATA MONITOR Displays the input data of BCM in real time.
CAN DIAG SUPPORT MNTR
The transmit/receive diagnosis result of CAN communication can be
read.
ACTIVE TEST Gives a drive signal to a load to check the operation.
ECU PART NUMBER ECM part number can be read.
CONFIGURATION (Not be used)
System and item CONSULT-III display Diagnostic test mode (Inspection by part)
WORK SUPPORT DATA MONITOR ACTIVE TEST
BCM BCM ×
Power door lock system DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ××
Warning chime BUZZER ××
Room lamp timer INT LAMP ×××
Remote keyless entry system*
1MULTI REMOTE ENT ×××
Headlamp HEAD LAMP ×××
Wiper WIPER ×××
Turn signal lamp
Hazard lamp FLASHER
××
Blower fan switch signal
A/C switch signal AIR CONDITONER
×
Intelligent Key system*
2INTELLIGENT KEY ×
Combination switch COMB SW ×
NVIS IMMU ××
Room lamp battery saver BATTERY SAVER ×× ×
Trunk lid TRUNK*
3××
Vehicle security system THEFT ALM ×××
Retained power control RETAINED PWR ×××
Oil pressure swit ch SIGNAL BUFFER ××
Low tire pressure warning system AIR PRESSURE MONITOR ×××
Panic system PANIC ALARM ×
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
