INFINITI FX35 2008 Service Manual

ROCKER COVEREM-197
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

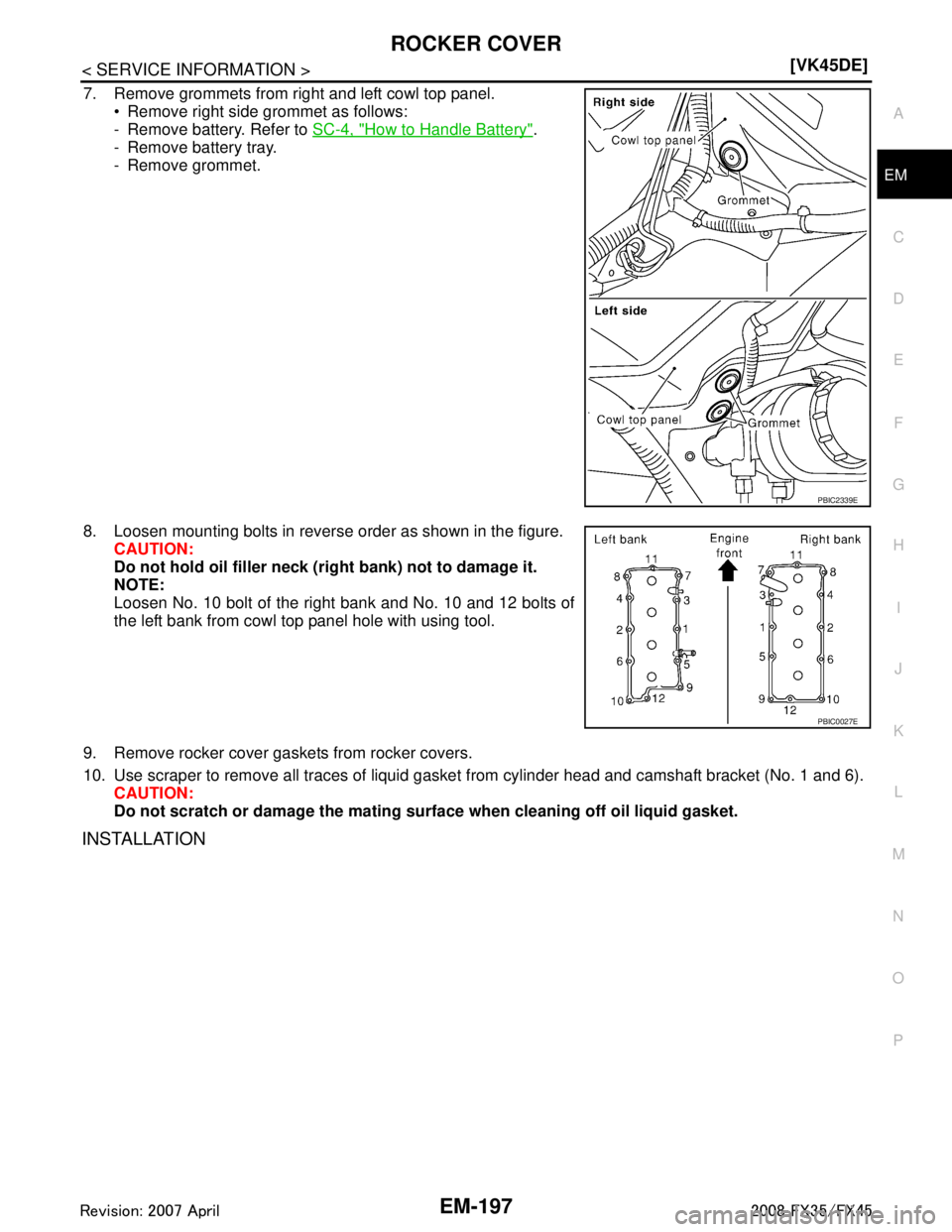

7. Remove grommets from right and left cowl top panel.
 Remove right side grommet as follows:
- Remove battery. Refer to SC-4, "
How to Handle Battery".
- Remove battery tray.
- Remove grommet.
8. Loosen mounting bolts in reverse order as shown in the figure. CAUTION:
Do not hold oil filler neck (right bank) not to damage it.
NOTE:
Loosen No. 10 bolt of the right bank and No. 10 and 12 bolts of
the left bank from cowl top panel hole with using tool.
9. Remove rocker cover gaskets from rocker covers.
10. Use scraper to remove all traces of liquid gaske t from cylinder head and camshaft bracket (No. 1 and 6).
CAUTION:
Do not scratch or damage the mating su rface when cleaning off oil liquid gasket.
INSTALLATION
PBIC2339E
PBIC0027E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-198
< SERVICE INFORMATION >[VK45DE]
ROCKER COVER
1. Apply liquid gasket with tube presser (commercial service tool)
to joint among rocker cover, cylinder head and camshaft bracket
(No. 1 and 6) as follows:
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
NOTE:
The figure shows an example of left bank side [zoomed in shows
camshaft bracket (No. 1)]. Apply only to camshaft bracket (No.
1) for right bank side.
a. Refer to the figure “a” to apply liquid gasket to joint part of cam- shaft bracket (both No. 1 and 6) and cylinder head.
b. Refer to the figure “b” to apply liquid gasket to the figure “a” squarely.
2. Install new rocker cover gaskets to rocker covers.
3. Install rocker cover.  Check if rocker cover gasket is not dropped from installation groove of rocker cover.
4. Tighten mounting bolts in two steps separately in numerical order as shown in the figure.
CAUTION:
Do not hold oil filler neck (r ight bank) not to damage it.
NOTE:
Tighten No. 10 bolt of the right bank and No. 10 and 12 bolts of
the left bank from cowl top panel hole with using tool.
5. Install oil filler cap and oil catcher to rocker cover (right bank), if removed.
6. Install new O-rings and PCV valves to rocker covers (right and left bank), if removed.
7. Install in the reverse order of removal.
PBIC2444E
1st step : 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step : 8.3 N·m (0.85 kg-m, 73 in-lb)
PBIC0027E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TIMING CHAINEM-199
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
TIMING CHAIN
ComponentINFOID:0000000001325788
1. Camshaft sprocket (EXH) 2. Camshaft sprocket (INT) 3. Camshaft sprocket (INT)
4. Camshaft sprocket (EXH) 5. Front cover 6.
Intake valve timing control solenoid
valve (right bank)
PBIC4570E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-200
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
 Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325789
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-237, "Component".
2. Remove the following components and related parts:  Drive belt auto tensioner and idler pulley: Refer to EM-172, "
Drive Belt Auto Tensioner and Idler Pulley".
 Thermostat housing and hoses: Refer to CO-52, "
Component".
 Ignition coil: Refer to EM-187, "
Component".
 Rocker cover: Refer to EM-196, "
Component".
3. If necessary, remove intake valve timing control position sensor (right and left bank) and camshaft position sensor (PHASE) from
intake valve timing control cover and front cover.
CAUTION:
 Handle carefully to avoid dropping and shocks.
 Do not disassemble.
4. If necessary, remove intake valve timing control solenoid valve from intake valve timing control cover. CAUTION:
 Handle components and parts caref ully to avoid dropping and shocks.
 Do not disassemble.
 Do not allow metal powder to adhere to magnetic part at sensor tip.
 Do not place sensors in a location wh ere they are exposed to magnetism.
7. O-ring 8. Seal ring 9. Intake valve timing control position
sensor (right bank)
10. O-ring 11. Intake valve timing control cover
(right bank)
12.Intake valve timing control position
sensor (left bank)
13. O-ring 14. Intake valve timing control cover (left
bank)15. Seal ring
16. Intake valve timing control solenoid-
valve (left bank) 17. O-ring 18. Oil level gauge
19. Oil level gauge guide 20. O-ring 21. Crankshaft pulley bolt
22. Crankshaft pulley 23. Front oil seal 24. Chain tensioner cover
25. Camshaft position se nsor (PHASE) 26. O-ring 27. Oil pump drive spacer
28. Oil pump assembly 29. Crankshaft sprocket 30. O-ring
31. O-ring 32. Timing chain tension guide
(right bank)33.
Timing chain slack guide
(right bank)
34. Timing chain (right bank) 35. Timing chain (left bank) 36. Chain tensioner (left bank)
37. Chain tensioner (right bank) 38. Timing chain slack guide
(left bank)39.
Timing chain tension guide
(left bank)
40. O-ring
A. Refer to EM-200
PBIC0050E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TIMING CHAINEM-201
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
5. Remove intake valve timing control cover as follows:
a. Loosen and remove mounting bolts in the reverse order as
shown in the figure.
b. Use seal cutter [SST: KV10111100 (J37228)] to cut liquid gasket for removal.
CAUTION:
 Exercise care not to damage mating surfaces.
 Pull out cover keeping level ness without an angle, as
inner part of cover is engaged with the center of camshaft
sprocket (INT).
6. Remove O-rings from front cover.
7. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
a. Rotate crankshaft pulley clockwise to align the TDC identifica- tion notch (without paint mark) with timing indicator on front
cover.
b. Make sure that both intake and exhaust cam noses of No. 1 cyl- inder (engine front side of left bank) are located as shown in the
figure.
 If not, turn crankshaft one revolution (360 degrees) and alignas shown in the figure.
8. Remove crankshaft pulley as follows:
PBIC0051E
SBIA0374E
PBIC2341E
KBIA0400J
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-202
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
a. Remove rear plate cover, and set ring gear stopper (SST).
b. Loosen crankshaft pulley bolt, and then pull crankshaft pulley
with both hands to remove it.
CAUTION:
 Do not remove crankshaft pulley bolt. Keep loosenedcrankshaft pulley bolt in place to protect removed crank-
shaft pulley from dropping.
 Do not remove balance weight (inner hexagon bolt) at the
front of crankshaft pulley.
9. Remove oil pan and oil strainer. Refer to EM-183, "
Component".
10. Remove front cover as follows:
a. Loosen mounting bolts in reverse order as shown in the figure.
b. Use seal cutter [SST: KV10111100 (J37228)] to cut liquid gasket for removal.
CAUTION:
 Exercise care not to damage mating surfaces.
 After removal, handle front cover carefully so it does not
tilt, cant, or warp under a load.
11. Remove front oil seal from front cover using suitable tool.  Use screwdriver for removal.
CAUTION:
Be careful not to damage front cover.
12. Remove O-rings from cylinder heads (right and left bank) and
cylinder block.
13. Remove chain tensioner cover from front cover.  Use seal cutter [SST: KV10111100 (J37228)] to cut liquid gasket for remove.
14. Remove oil pump drive spacer.  Set bolts in the two bolt holes [M6 × pitch 1.0 mm (0.04 in)] on
front surface. Using suitable puller, pull oil pump drive spacer
off from crankshaft.
NOTE:
The dimension between the centers of the two bolt holes is 33
mm (1.30 in).
In the figure, a commercial steering puller is used.
15. Remove oil pump. Refer to LU-29, "
Component".
16. Remove chain tensioner (left bank) as follows:
PBIC1656E
KBIA0354J
SBIA0373E
PBIC2342E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TIMING CHAINEM-203
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
NOTE:
To remove timing chain and related parts, start with those on left bank. The procedure for removing parts
on right bank is omitted because it is
the same as that for left bank.
a. Press tab in the direction of arrow (or turn lever in the direction of arrow) to unlock the locking with the groove that stops ten-
sioner plunger from returning.
 Lightly press tensioner plunger to release the tension of springfor this operation.
b. Push in tensioner plunger to align the hole on lever and that on pump main body.
 Pushing in tensioner too far does not allow the holes to align.Therefore, push in plunger to the degree at which the start of
stopper groove and tab engages.
c. Insert stopper pin [hard wire with approx. 0.5 mm (0.020 in) diameter or similar tool] to fix plunger. With plunger fixed,
remove chain tensioner.
17. Remove chain tension guide and timing chain slack guide.
18. Remove timing chain and crankshaft sprocket. CAUTION:
After removing timing chain, do not turn cranksh aft and camshaft separately, or valves will strike
the piston head.
19. With hexagonal part of camshaft locked with wrench, loosen mounting bolts securing camshaft sprocket to remove camshaft
sprocket.
CAUTION:
Do not loosen mounting bolts with securing anything other
than the camshaft hexagonal porti on or with tensioning the
timing chain.
20. Perform same procedure as for left bank, remove timing chain and related parts on right side.
21. Use scraper to remove all traces of old liquid gasket from front cover and opposite mating surfaces.  Remove oil liquid gasket from bolt hole and thread.
22. Use scraper to remove all trace of liquid gasket from chain tensioner cover and intake valve timing control covers.
INSPECTION AFTER REMOVAL
Timing Chain
PBIC2343E
PBIC0030E
PBIC2084E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-204
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
Check for cracks and any excessive wear at link plates and roller
links of timing chain. Replace timing chain as necessary.
INSTALLATION
NOTE:
 The above figure shows the relationship between the ma
ting mark on each timing chain and that on the cor-
responding sprocket, with the components installed.
 Parts with an identification mark (R or L) should be installed on the corresponding bank according to the
mark.
Parts with an identification mark:
- Camshaft sprocket (INT)
- Dowel pin groove of camshaft sprocket (EXH) (camshaft sprocket is same part both banks)
- Chain tension guide
- Chain slack guide
 To install timing chain and related parts, start with those on right bank. The procedure for installing parts on left bank is omitted because it is the sa me as that for installation on right bank.
PBIC0282E
PBIC2344E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TIMING CHAINEM-205
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the figure. (No. 1 cylinder at compres-
sion TDC)
NOTE:
Though camshaft does not stop at the position as shown in the
figure, for the placement of cam nose, it is generally accepted
camshaft is placed for the same direction of the figure.
2. Install camshaft sprockets.  Install onto correct side by checking with identification mark onsurface.
 Install camshaft sprocket (EXH) by selectively using the
groove of dowel pin according to the bank. (Common part
used for both banks.)
 Lock the hexagonal part of camshaft in the same procedure as for removal, and tighten mounting bolts.
3. Install crankshaft sprockets for both banks.  Install each crankshaft sprocket so that its flange side (thelarger diameter side without teeth) faces in the direction shown
in the figure.
NOTE:
The same parts are used but facing directions are different. Camshaft dowel pin
: At cylinder head upper face side in each bank
Crankshaft key : At cylinder head side of left bank
SBIA0356E
PBIC2345E
PBIC0057E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-206
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
4. Install timing chains and related parts.
 Align the mating mark on each sprocket and timing chain for installation.NOTE:
Before installing chain tensioner, it is possible to change the position of mating mark on timing chain for
that on each sprocket for alignment.
CAUTION:
For the above reason, after the mating marks ar e aligned, keep them aligned by holding them
with a hand.
 Install slack guides and tension guides onto correct si de by checking with identification mark on surface.
 Install chain tensioner with plunger fixed as described in its removal.
CAUTION:
 Before and after the installation of chain tens ioner, make sure that the mating mark on timing
chain is not out of alignment.
 After installing chain tensioner, remove stoppe r pin to release tensioner. Make sure tensioner
is released.
 To avoid chain-link skipping of timing chain, do not move crankshaft or camshafts until front
cover is installed.
5. Perform the same procedure as for right bank, install timing chain and related parts on left side.
6. Install oil pump. Refer to LU-29
.
7. Install oil pump drive spacer as follows:
a. Insert oil pump drive spacer according to the directions of crank- shaft key and the two flat surfaces of oil pump inner rotor.
 If the positional relationship does not allow the insertion, rotate
oil pump inner rotor with a finger to allow spacer.
b. After confirming that the position of each part is in correct condi- tion to allow for spacer, force fit spacer by lightly tapping with
plastic hammer until it contacts and does not go further.
8. Install front oil seal on front cover.  Apply new engine oil to both oil seal lip and dust seal lip.
PBIC2344E
PBIC0058E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
