TROUBLE DIAGNOSISEC-703
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: Leaving cooling fan OFF with CONSULT-III while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to
EC-633, "Emission-related Diagnostic Information".
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
DTC WORK SUPPORT Mode
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION  Engine: Return to the original
trouble condition
 Change the amount of fuel injec-
tion using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
 Harness and connectors
 Fuel injector
 A/F sensor 1
IGNITION TIM-
ING  Engine: Return to the original
trouble condition
 Timing light: Set
 Retard the ignition timing using
CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
 Perform Idle Air Volume Learning.
POWER BAL-
ANCE  Engine: After warming up, idle the
engine.
 A/C switch: OFF
Shift lever: N
 Cut off each fuel injector signal one at a time using CONSULT-III. Engine runs rough or dies.
 Harness and connectors
 Compression
 Fuel injector
 Power transistor
Spark plug
 Ignition coil
COOLING FAN*  Ignition switch: ON
 Turn the cooling fan “HI”, “MID”
and “OFF” using CONSULT-III. Cooling fan moves and stops.  Harness and connectors
 Cooling fan motor
IPDM E/R
ENG COOLANT
TEMP  Engine: Return to the original
trouble condition
 Change the engine coolant tem- perature using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.  Harness and connectors
 Engine coolant temperature sen-
sor
 Fuel injector
FUEL PUMP RE-
LAY  Ignition switch: ON (Engine
stopped)
 Turn the fuel pump relay “ON” and “OFF” using CONSULT-III
and listen to operating sound. Fuel pump relay makes the operat-
ing sound.
 Harness and connectors
 Fuel pump relay
VIAS S/V-1  Ignition switch: ON
 Turn solenoid valve “ON” and
“OFF” with CONSULT-III and lis-
ten to operating sound. Solenoid valve makes an operating
sound.
 Harness and connectors
 Solenoid valve
PURG VOL
CONT/V  Engine: After warming up, run en-
gine at 1,500 rpm.
 Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-III. Engine speed changes according to
the opening percent.
 Harness and connectors
 Solenoid valve
FUEL/T TEMP
SEN  Change the fuel tank temperature using CONSULT-III.
VENT CON-
TROL/V  Ignition switch: ON (Engine
stopped)
 Turn solenoid valve “ON” and “OFF” with the CONSULT-III and
listen to operating sound. Solenoid valve makes an operating
sound.
 Harness and connectors
 Solenoid valve
V/T ASSIGN AN-
GLE
 Engine: Return to the original trouble condition
 Change intake valve timing using
CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
 Harness and connectors
 Intake valve timing control sole-
noid valve
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-768
< SERVICE INFORMATION >[VK45DE]
DTC P0102, P0103 MAF SENSOR
DTC P0102, P0103 MAF SENSOR
Component DescriptionINFOID:0000000001326595
The mass air flow sensor is placed in the stream of intake air. It mea-
sures the intake flow rate by measuring a part of the entire intake
flow. The mass air flow sensor controls the temperature of the hot
wire to a certain amount. The heat generated by the hot wire is
reduced as the intake air flows around it. The more air, the greater
the heat loss.
Therefore, the electric current
supplied to hot wire is changed to
maintain the temperature of the hot wire as air flow increases. The
ECM detects the air flow by means of this current change.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326596
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326597
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326598
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P0102
1. Start engine and wait at least 5 seconds.
2. Check DTC.
PBIB1604E
MONITOR ITEM CONDITION SPECIFICATION
MAS A/F SE-B1 See EC-709
.
CAL/LD VALUE  Engine: After warming up
 Selector lever: P or N
 Air conditioner switch: OFF
No load Idle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW  Engine: After warming up
 Selector lever: P or N
 Air conditioner switch: OFF
No load Idle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
DTC No.
Trouble diagnosis
name DTC detecting condition Possible cause
P0102
0102 Mass air flow sensor
circuit low input An excessively low voltage from the sensor is sent
to ECM.  Harness or connectors
(The sensor circuit is open or shorted.)
 Intake air leaks
 Mass air flow sensor
P0103
0103 Mass air flow sensor
circuit high input An excessively high voltage from the sensor is
sent to ECM.  Harness or connectors
(The sensor circuit is open or shorted.)
 Mass air flow sensor
Detected items Engine operating condition in fail-safe mode
Mass air flow sensor circuit Engine speed will no t rise more than 2,400 rpm due to the fuel cut.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-784
< SERVICE INFORMATION >[VK45DE]
DTC P0122, P0123 TP SENSOR
DTC P0122, P0123 TP SENSOR
Component DescriptionINFOID:0000000001326617
Electric throttle control actuator
consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has t he two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326618
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagn osis LogicINFOID:0000000001326619
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326620
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-786, "
Diagnosis Procedure".
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
TP SEN 1-B1
TP SEN 2-B1*  Ignition switch: ON
(Engine stopped)
 Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122
0122 Throttle position sensor
2 circuit low input An excessively low voltage from the TP sensor
2 is sent to ECM.  Harness or connectors
(TP sensor 2 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
 Electric throttle control actuator (TP sensor 2)
 Accelerator pedal position sensor (APP sensor 2)
P0123
0123
Throttle position sensor
2 circuit high input An excessively high voltage from the TP sensor
2 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
EC-861
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0171, P0174 FUEL IN
JECTION SYSTEM FUNCTION
On Board Diagnosis LogicINFOID:0000000001326698
With the Air-Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the
theoretical mixture ratio based on the mixture ratio feedback signal from the air fuel ratio (A/F) sensor 1. The
ECM calculates the necessary compensation to corre ct the offset between the actual and the theoretical
ratios.
In case the amount of the compensation value is extrem ely large (The actual mixture ratio is too lean.), the
ECM judges the condition as the fuel injection system malfunction and lights up the MIL (2 trip detection logic).
DTC Confirmation ProcedureINFOID:0000000001326699
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON- SULT-III.
4. Clear the self-learning control coefficient by touching “CLEAR”.
5. Start engine. If it is difficult to start engine, t he fuel injection system has a malfunction.
Perform the following procedure is advised.
a. Crank engine while depressing accelerator pedal.
b. If engine starts, go to EC-866, "
Diagnosis Procedure".
If engine does not start, check exhaust and intake air leak visually.
6. Keep engine at idle for at least 10 minutes.
7. Check 1st trip DTC.
8. If 1st trip DTC is detected, go to EC-866, "
Diagnosis Procedure".
If 1st trip DTC is not detected, per forming the following procedure is advised.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Start engine and drive the vehicle under the similar condi tions to (1st trip) Freeze Frame Data for 10 min-
utes. Refer to the table below.
Hold the accelerator pedal as steady as possible.
The similar conditions to (1st trip) Freeze Frame Da ta means the vehicle operation that the following con-
ditions should be satisfied at the same time.
Sensor Input Signal to ECM ECM function Actuator
A/F sensor 1 Density of oxygen in exhaust gas
(Mixture ratio feedback signal) Fuel injection control Fuel injector
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0171
0171
(Bank 1) Fuel injection system too
lean  Fuel injection system does not operate properly.
 The amount of mixture ratio compensation is too
large. (The mixture ratio is too lean.)  Intake air leaks
 A/F sensor 1
 Fuel injector
 Exhaust gas leaks
 Incorrect fuel pressure
 Lack of fuel
 Mass air flow sensor
 Incorrect PCV hose connection
P0174
0174
(Bank 2)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-871
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
On Board Diagnosis LogicINFOID:0000000001326702
With the Air-Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the
theoretical mixture ratio based on the mixture ratio feedback signal from the air fuel ratio (A/F) sensor 1. The
ECM calculates the necessary compensation to corre ct the offset between the actual and the theoretical
ratios.
In case the amount of the compensation value is extrem ely large (The actual mixture ratio is too rich.), the
ECM judges the condition as the fuel injection system malfunction and lights up the MIL (2 trip detection logic).
DTC Confirmation ProcedureINFOID:0000000001326703
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON- SULT-III.
4. Clear the self-learning control coefficient by touching “CLEAR”.
5. Start engine. If it is difficult to start engine, t he fuel injection system has a malfunction.
Perform the following procedure is advised.
a. Crank engine while depressing accelerator pedal.
b. If engine starts, go to EC-866, "
Diagnosis Procedure".
If engine does not start, remove ignition plugs and check for fouling, etc.
6. Keep engine at idle for at least 10 minutes.
7. Check 1st trip DTC.
8. If 1st trip DTC is detected, go to EC-866, "
Diagnosis Procedure".
If 1st trip DTC is not detected, per forming the following procedure is advised.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Start engine and drive the vehicle under the similar condi tions to (1st trip) Freeze Frame Data for 10 min-
utes. Refer to the table below.
Hold the accelerator pedal as steady as possible.
The similar conditions to (1st trip) Freeze Frame Da ta means the vehicle operation that the following con-
ditions should be satisfied at the same time.
Sensor Input Signal to ECM ECM function Actuator
A/F sensor 1 Density of oxygen in exhaust gas
(Mixture ratio feedback signal) Fuel injection control Fuel injector
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0172
0172
(Bank 1) Fuel injection system too
rich  Fuel injection system does not operate properly.
 The amount of mixture ratio compensation is too
large. (The mixture ratio is too rich.)  A/F sensor 1
 Fuel injector
 Exhaust gas leaks
 Incorrect fuel pressure
 Mass air flow sensor
P0175
0175
(Bank 2)
Engine speed Engine speed in the freeze frame data
± 400 rpm
Vehicle speed Vehicle speed in the freeze frame data ± 10 km/h (6 MPH)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0222, P0223 TP SENSOREC-889
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0222, P0223 TP SENSOR
Component DescriptionINFOID:0000000001326720
Electric throttle control actuator
consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has t he two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect t he opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001326721
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicINFOID:0000000001326722
These self-diagnoses have the on e trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM ent ers fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326723
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-891, "
Diagnosis Procedure".
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
TP SEN 1-B1
TP SEN 2-B1*  Ignition switch: ON
(Engine stopped)
 Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222 Throttle position sensor
1 circuit low input An excessively low voltage from the TP sensor
1 is sent to ECM.  Harness or connectors
(TP sensor 1 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
 Electric throttle control actuator (TP sensor 1)
 Accelerator pedal position sensor (APP sensor 2)
P0223
0223
Throttle position sensor
1 circuit high input An excessively high voltage from the TP sensor
1 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0441 EVAP CONTROL SYSTEMEC-923
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2.CHECK PURGE FLOW
With CONSULT-III
1. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP ser-
vice port and install vacuum gauge. For the location of EVAP service port, refer to EC-618, "
Description".
2. Start engine and let it idle.
3. Select “PURG VOL CONT/V” in “A CTIVE TEST” mode with CONSULT-III.
4. Rev engine up to 2,000 rpm.
5. Touch “Qd” and “Qu” on CONSULT-III screen to adjust “PURG VOL CONT/V” opening and check vacuum
existence.
OK or NG
OK >> GO TO 7.
NG >> GO TO 4.
3.CHECK PURGE FLOW
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Stop engine.
3. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP ser-
vice port and install vacuum gauge. For the location of EVAP service port, refer to EC-618, "
Description".
4. Start engine and let it idle.
Do not depress accelerator pedal even slightly.
5. Check vacuum gauge indication before 60 seconds passed after starting engine.
6. Revving engine up to 2,000 rpm after 100 seconds passed after starting engine.
OK or NG
OK >> GO TO 7.
NG >> GO TO 4.
4.CHECK EVAP PURGE LINE
1. Turn ignition switch OFF.
2. Check EVAP purge line for improper connection or disconnection. Refer to EC-618, "
Description".
OK or NG
OK >> GO TO 5.
NG >> Repair it.
5.CHECK EVAP PURGE HOSE AND PURGE PORT
1. Disconnect purge hoses connect ed to EVAP service port A and
EVAP canister purge volume control solenoid valve B.
2. Blow air into each hose and EVAP purge port C.
PURG VOL CONT/V Vacuum
100% Should exist.0% Should not exist.
Vacuum should not exist.
Vacuum should exist.
SEF367U
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-957
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

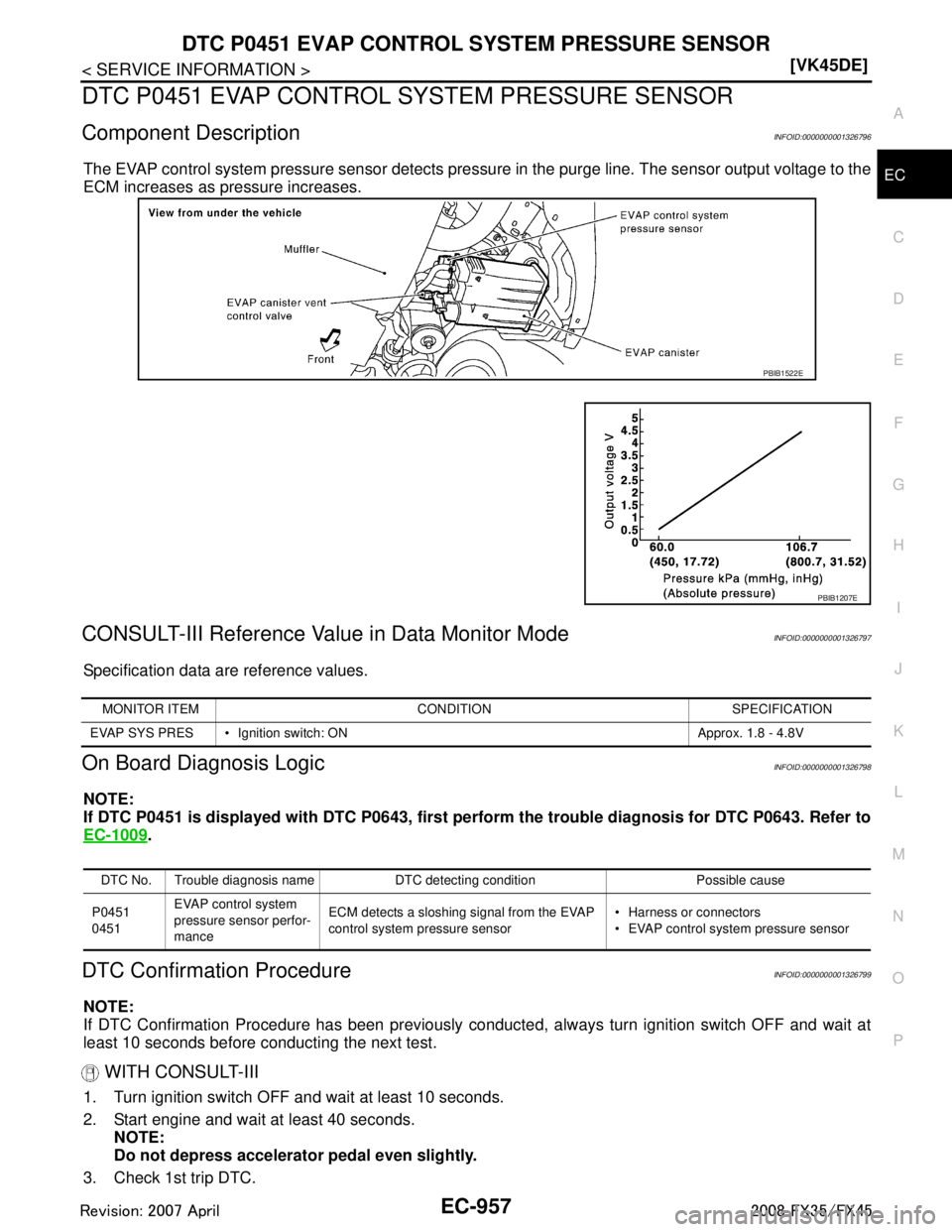

DTC P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR
Component DescriptionINFOID:0000000001326796
The EVAP control system pressure sens
or detects pressure in the purge line. The sensor output voltage to the
ECM increases as pressure increases.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001326797
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001326798
NOTE:
If DTC P0451 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-1009
.
DTC Confirmation ProcedureINFOID:0000000001326799
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Start engine and wait at least 40 seconds. NOTE:
Do not depress accelerator pedal even slightly.
3. Check 1st trip DTC.
PBIB1522E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES  Ignition switch: ON Approx. 1.8 - 4.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0451
0451 EVAP control system
pressure sensor perfor-
mance ECM detects a sloshing signal from the EVAP
control system pressure sensor
 Harness or connectors
 EVAP control system pressure sensor
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-998
< SERVICE INFORMATION >[VK45DE]
DTC P0550 PSP SENSOR
DTC P0550 PSP SENSOR
Component DescriptionINFOID:0000000001326851
Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326852
Specification data are reference values.
On Board Diagn
osis LogicINFOID:0000000001326853
The MIL will not light up for this diagnosis.
NOTE:
If DTC P0550 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-1009
.
DTC Confirmation ProcedureINFOID:0000000001326854
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Start engine and let it idle for at least 5 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-1000, "
Diagnosis Procedure".
PBIB1484E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL  Engine: After warming up, idle the
engine Steering wheel: Not being turned OFF
Steering wheel: Being turned ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0550
0550 Power steering pressure
sensor circuit An excessively low or high voltage from the
sensor is sent to ECM.  Harness or connectors
(The sensor circuit is open or shorted)
 Power steering pressure sensor
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0643 SENSOR POWER SUPPLYEC-1009
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0643 SENSOR POWER SUPPLY
On Board Diagnosis LogicINFOID:0000000001326868
This self-diagnosis has the on
e trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM ent ers fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326869
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-1011, "
Diagnosis Procedure".
DTC No.Trouble diagnosis
name DTC detecting condition Possible cause
P0643
0643 Sensor power supply
circuit short ECM detects a voltage of power source for
sensor is excessively low or high.  Harness or connectors
(APP sensor 1 circuit is shorted.)
(EVAP control system pressure sensor is
shorted.)
(Refrigerant pressure sensor circuit is short-
ed.)
(PSP sensor circuit is shorted.)
 Accelerator pedal position sensor
 EVAP control system pressure sensor
 Refrigerant pressure sensor
 Power steering pressure sensor
Engine operation condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
