INFINITI G-CONVERTIBLE 2010 Owners Manual

3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-4
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-5
Intelligent Key system ............................. 3-6
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-8
Intelligent Key operation ........................ 3-9
Battery saver system ........................... 3-11
Warning signals ................................ 3-11
Troubleshooting guide ......................... 3-12
Remote keyless entry system ......................3-14
How to use remote keyless entry system ........3-14
Hood ............................................. 3-17
Retractable hard top .............................. 3-18
Before operating the retractable hard top .......3-18 When operating the retractable hard top
........3-20
Indicators for the retractable hard top ..........3-22
Opening the retractable hard top ...............3-22
Closing the retractable hard top ................3-23
If the retractable hard top does not open
or close electrically ............................ 3-23
Operating the retractable hard top using
the Intelligent Key ............................. 3-24
Initializing of the retractable hard top ...........3-24
Troubleshooting guide ......................... 3-26
Trunk lid ........................................ 3-28
Trunk lid release switch ........................ 3-28
Trunk open request switch .....................3-28
Auto closure .................................. 3-28
Trunk release power cancel switch ..............3-29
Interior trunk lid release ....................... 3-30
Fuel-filler door ................................... 3-32
Opening the fuel-filler door ....................3-32
Fuel-filler cap ................................. 3-33
Tilt/telescopic
steering........................... 3-34
Manual operation (if so equipped) ..............3-35
Electric operation (if so equipped) ..............3-35
Sun visors ....................................... 3-35
—
—
04/28/10—diane

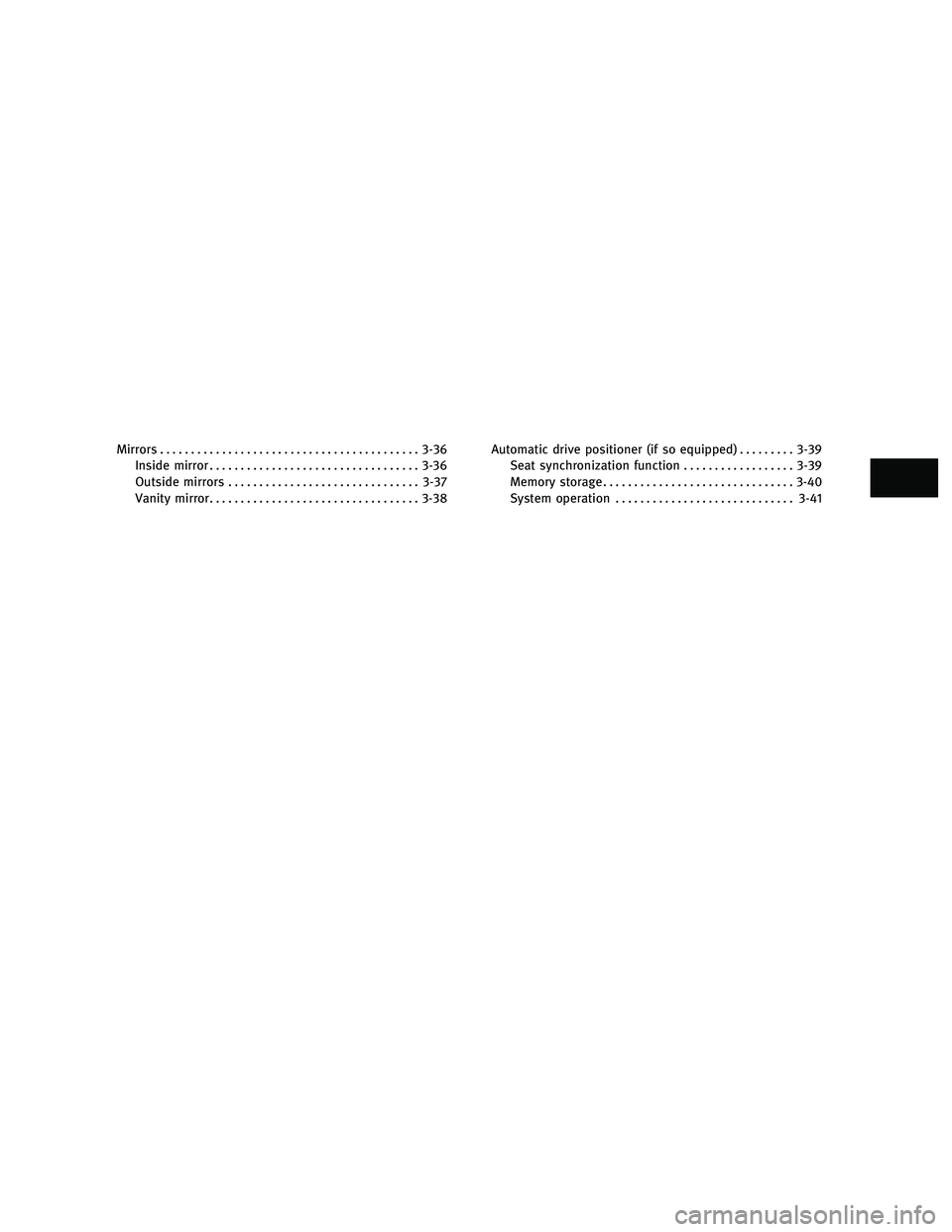

Mirrors.......................................... 3-36
Inside mirror .................................. 3-36
Outside mirrors ............................... 3-37
Vanity mirror .................................. 3-38Automatic drive positioner (if so equipped)
.........3-39
Seat synchronization function ..................3-39
Memory storage ............................... 3-40
System operation ............................. 3-41
—
—
04/28/10—diane

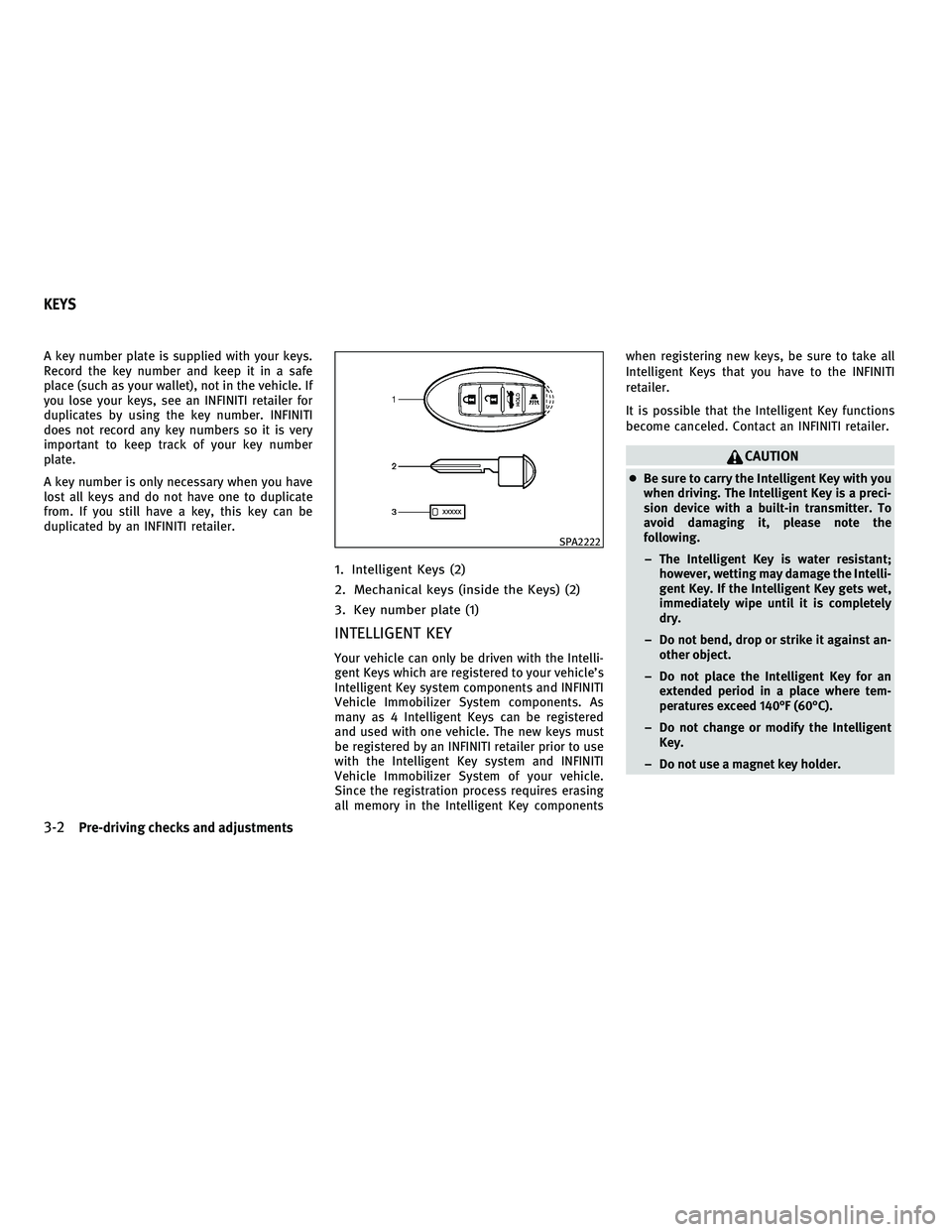

A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see an INFINITI retailer for
duplicates by using the key number. INFINITI
does not record any key numbers so it is very
important to keep track of your key number
plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by an INFINITI retailer.
1. Intelligent Keys (2)
2. Mechanical keys (inside the Keys) (2)
3. Key number plate (1)
INTELLIGENT KEY
Your vehicle can only be driven with the Intelli-
gent Keys which are registered to your vehicle’s
Intelligent Key system components and INFINITI
Vehicle Immobilizer System components. As
many as 4 Intelligent Keys can be registered
and used with one vehicle. The new keys must
be registered by an INFINITI retailer prior to use
with the Intelligent Key system and INFINITI
Vehicle Immobilizer System of your vehicle.
Since the registration process requires erasing
all memory in the Intelligent Key componentswhen registering new keys, be sure to take all
Intelligent Keys that you have to the INFINITI
retailer.
It is possible that the Intelligent Key functions
become canceled. Contact an INFINITI retailer.
CAUTION
●
Be sure to carry the Intelligent Key with you
when driving. The Intelligent Key is a preci-
sion device with a built-in transmitter. To
avoid damaging it, please note the
following.
– The Intelligent Key is water resistant; however, wetting may damage the Intelli-
gent Key. If the Intelligent Key gets wet,
immediately wipe until it is completely
dry.
– Do not bend, drop or strike it against an- other object.
– Do not place the Intelligent Key for an extended period in a place where tem-
peratures exceed 140°F (60°C).
– Do not change or modify the Intelligent Key.
– Do not use a magnet key holder.
SPA2222
KEYS
3-2Pre-driving checks and adjustments
—
—
10/14/09—tbrooks

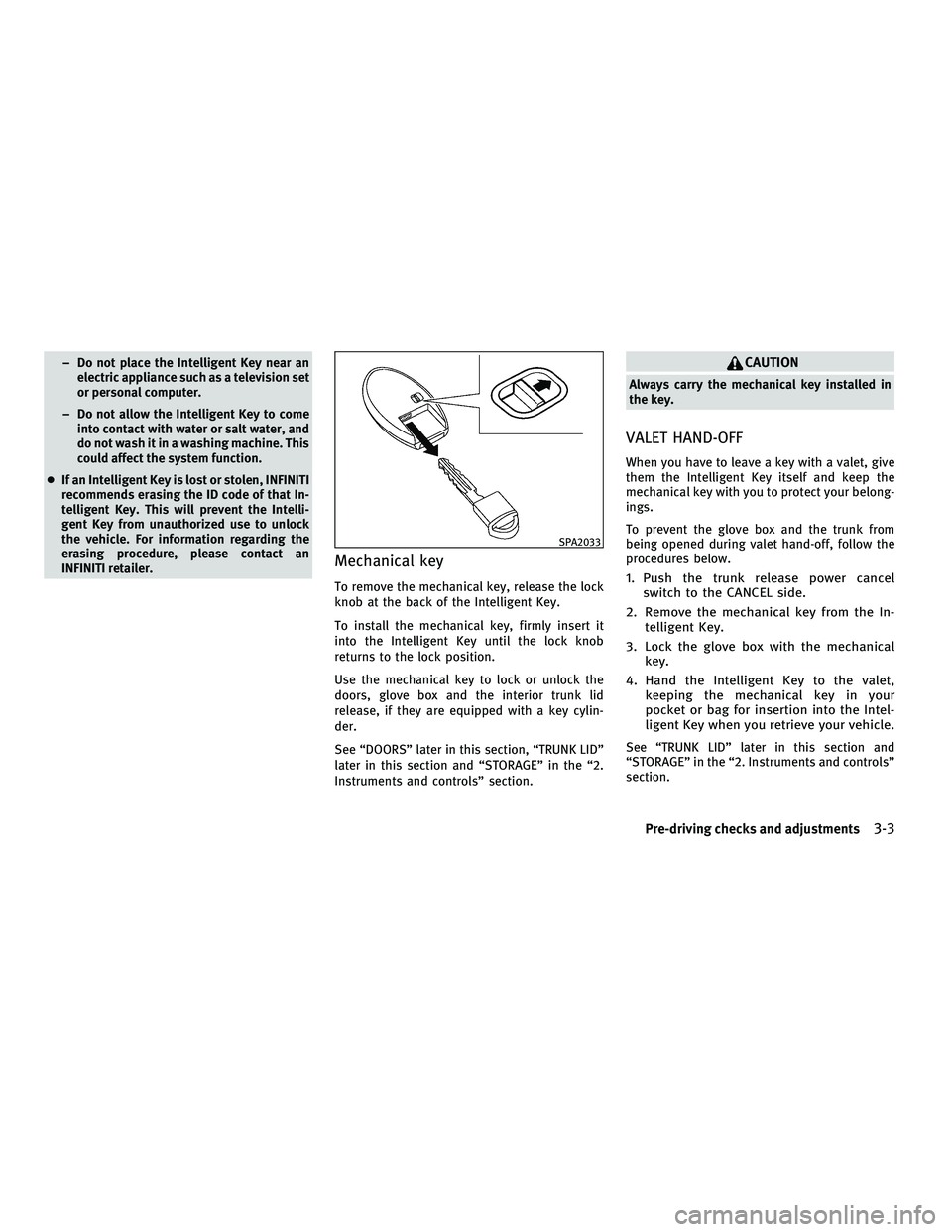

– Do not place the Intelligent Key near anelectric appliance such as a television set
or personal computer.
– Do not allow the Intelligent Key to come into contact with water or salt water, and
do not wash it in a washing machine. This
could affect the system function.
● If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key. This will prevent the Intelli-
gent Key from unauthorized use to unlock
the vehicle. For information regarding the
erasing procedure, please contact an
INFINITI retailer.
Mechanical key
To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
doors, glove box and the interior trunk lid
release, if they are equipped with a key cylin-
der.
See “DOORS” later in this section, “TRUNK LID”
later in this section and “STORAGE” in the “2.
Instruments and controls” section.
CAUTION
Always carry the mechanical key installed in
the key.
VALET HAND-OFF
When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your belong-
ings.
To prevent the glove box and the trunk from
being opened during valet hand-off, follow the
procedures below.
1. Push the trunk release power cancel switch to the CANCEL side.
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key.
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your
pocket or bag for insertion into the Intel-
ligent Key when you retrieve your vehicle.
See “TRUNK LID” later in this section and
“STORAGE” in the “2. Instruments and controls”
section.
SPA2033
Pre-driving checks and adjustments3-3
—
—
10/14/09—tbrooks

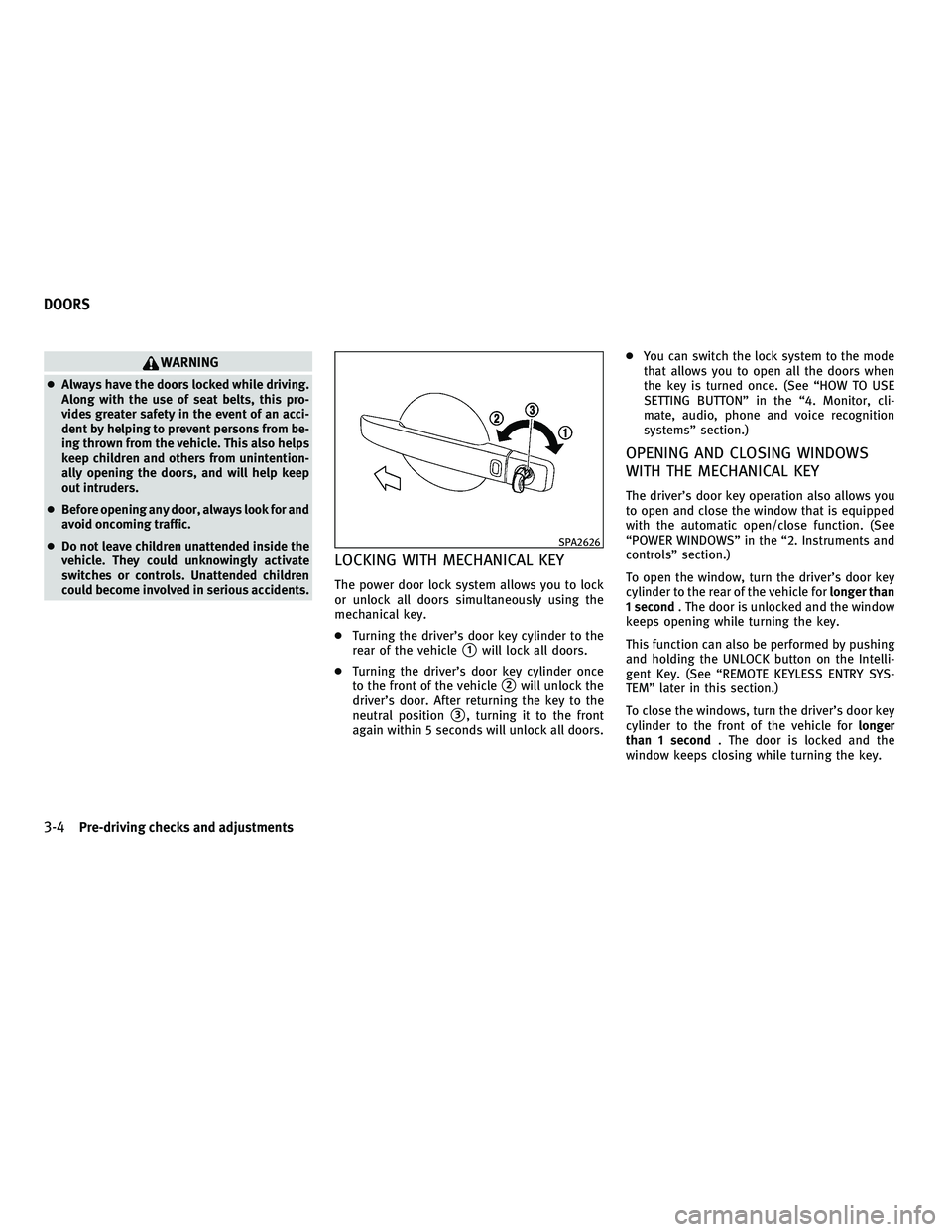

WARNING
●Always have the doors locked while driving.
Along with the use of seat belts, this pro-
vides greater safety in the event of an acci-
dent by helping to prevent persons from be-
ing thrown from the vehicle. This also helps
keep children and others from unintention-
ally opening the doors, and will help keep
out intruders.
● Before opening any door, always look for and
avoid oncoming traffic.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
LOCKING WITH MECHANICAL KEY
The power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
● Turning the driver’s door key cylinder to the
rear of the vehicle
1will lock all doors.
● Turning the driver’s door key cylinder once
to the front of the vehicle
2will unlock the
driver’s door. After returning the key to the
neutral position
3, turning it to the front
again within 5 seconds will unlock all doors. ●
You can switch the lock system to the mode
that allows you to open all the doors when
the key is turned once. (See “HOW TO USE
SETTING BUTTON” in the “4. Monitor, cli-
mate, audio, phone and voice recognition
systems” section.)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
The driver’s door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
“POWER WINDOWS” in the “2. Instruments and
controls” section.)
To open the window, turn the driver’s door key
cylinder to the rear of the vehicle for longer than
1 second . The door is unlocked and the window
keeps opening while turning the key.
This function can also be performed by pushing
and holding the UNLOCK button on the Intelli-
gent Key. (See “REMOTE KEYLESS ENTRY SYS-
TEM” later in this section.)
To close the windows, turn the driver’s door key
cylinder to the front of the vehicle for longer
than 1 second . The door is locked and the
window keeps closing while turning the key.
SPA2626
DOORS
3-4Pre-driving checks and adjustments
—
—
10/14/09—tbrooks

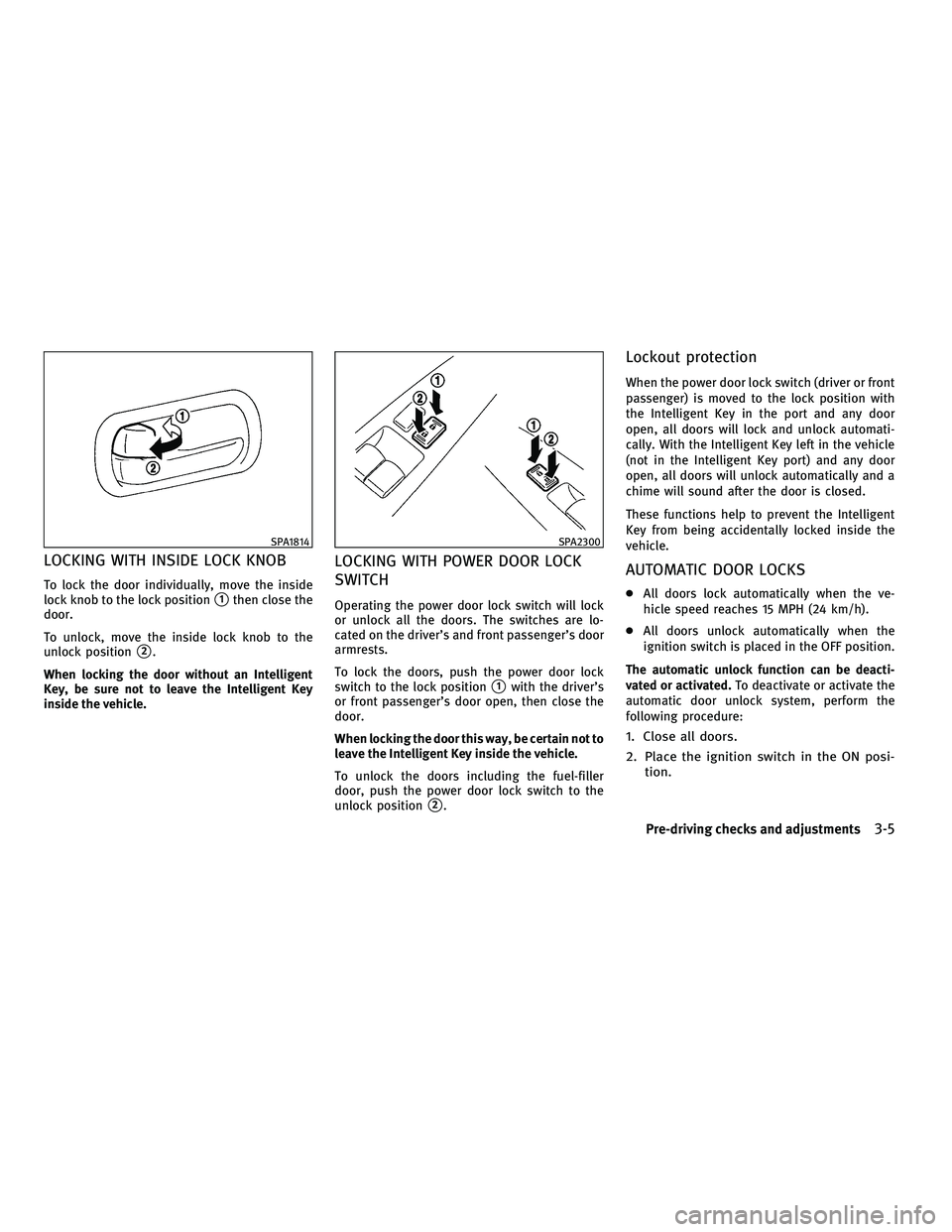

LOCKING WITH INSIDE LOCK KNOB
To lock the door individually, move the inside
lock knob to the lock position
1then close the
door.
To unlock, move the inside lock knob to the
unlock position
2.
When locking the door without an Intelligent
Key, be sure not to leave the Intelligent Key
inside the vehicle.
LOCKING WITH POWER DOOR LOCK
SWITCH
Operating the power door lock switch will lock
or unlock all the doors. The switches are lo-
cated on the driver’s and front passenger’s door
armrests.
To lock the doors, push the power door lock
switch to the lock position
1with the driver’s
or front passenger’s door open, then close the
door.
When locking the door this way, be certain not to
leave the Intelligent Key inside the vehicle.
To unlock the doors including the fuel-filler
door, push the power door lock switch to the
unlock position
2.
Lockout protection
When the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key in the port and any door
open, all doors will lock and unlock automati-
cally. With the Intelligent Key left in the vehicle
(not in the Intelligent Key port) and any door
open, all doors will unlock automatically and a
chime will sound after the door is closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
● All doors lock automatically when the ve-
hicle speed reaches 15 MPH (24 km/h).
● All doors unlock automatically when the
ignition switch is placed in the OFF position.
The automatic unlock function can be deacti-
vated or activated. To deactivate or activate the
automatic door unlock system, perform the
following procedure:
1. Close all doors.
2. Place the ignition switch in the ON posi- tion.
SPA1814SPA2300
Pre-driving checks and adjustments3-5
—
—
10/14/09—tbrooks


3. Within 20 seconds of performing Step 2,push and hold the power door lock switch
to the
position (UNLOCK) for more
than 5 seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver’s or
front passenger’s side).
WARNING
●Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
● The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA ad-
vises that the radio waves may affect aircraft
navigation and communication systems. Do
not operate the Intelligent Key while on an
airplane. Make sure the buttons are not op-
erated unintentionally when the unit is
stored during a flight.
The Intelligent Key system can operate all the
door and the trunk lid lock using the remote
controller function or pushing the request
switch on the vehicle without taking the key out
from a pocket or purse. The operating environ-
ment and/or conditions may affect the Intelli-
gent Key system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
● Be sure to carry the Intelligent Key with you
when operating the vehicle.
● Never leave the Intelligent Key in the vehicle
when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
● When operating near a location where strong
radio waves are transmitted, such as a TV
tower, power station and broadcasting sta-
tion.
● When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
● When the Intelligent Key is in contact with or
covered by metallic materials.
● When any type of radio wave remote control
is used nearby.
● When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter.
INTELLIGENT KEY SYSTEM
3-6Pre-driving checks and adjustments
—
—
10/14/09—tbrooks


●When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depend-
ing on the operating conditions, the battery’s
life is approximately 2 years. If the battery is
discharged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the
Intelligent Key port to start the engine. For more
details, see “PUSH-BUTTON IGNITION SWITCH”
in the “5. Starting and driving” section. Replace
the discharged battery with a new one as soon
as possible.
Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equip-
ment which transmits strong radio waves, such
as signals from a TV and personal computer, the
battery life may become shorter.
For information regarding replacement of a bat-
tery, see “INTELLIGENT KEY BATTERY REPLACE-
MENT” in the “8. Maintenance and do-it-
yourself” section. Because the steering wheel is locked electri-
cally, unlocking the steering wheel with the
ignition switch in the LOCK position is impos-
sible when the vehicle battery is completely
discharged. Pay special attention that the ve-
hicle battery is not completely discharged.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information
about the purchase and use of additional Intel-
ligent Keys, contact an INFINITI retailer.
CAUTION
●
Do not allow the Intelligent Key, which con-
tains electrical components, to come into
contact with water or salt water. This could
affect the system function.
● Do not drop the Intelligent Key.
● Do not strike the Intelligent Key sharply
against another object.
● Do not change or modify the Intelligent Key.
● Wetting may damage the Intelligent Key. If
the Intelligent Key gets wet, immediately
wipe until it is completely dry.
● Do not place the Intelligent Key for an ex-
tended period in an area where tempera-
tures exceed 140°F (60°C). ●
Do not attach the Intelligent Key with a key
holder that contains a magnet.
● Do not place the Intelligent Key near equip-
ment that produces a magnetic field, such as
a TV, audio equipment and personal
computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to oper-
ate the vehicle. For information regarding the
erasing procedure, contact an INFINITI retailer.
The Intelligent key function can be disabled. For
information about disabling the Intelligent key
function, contact an INFINITI retailer.
Pre-driving checks and adjustments3-7
—
—
10/14/09—tbrooks

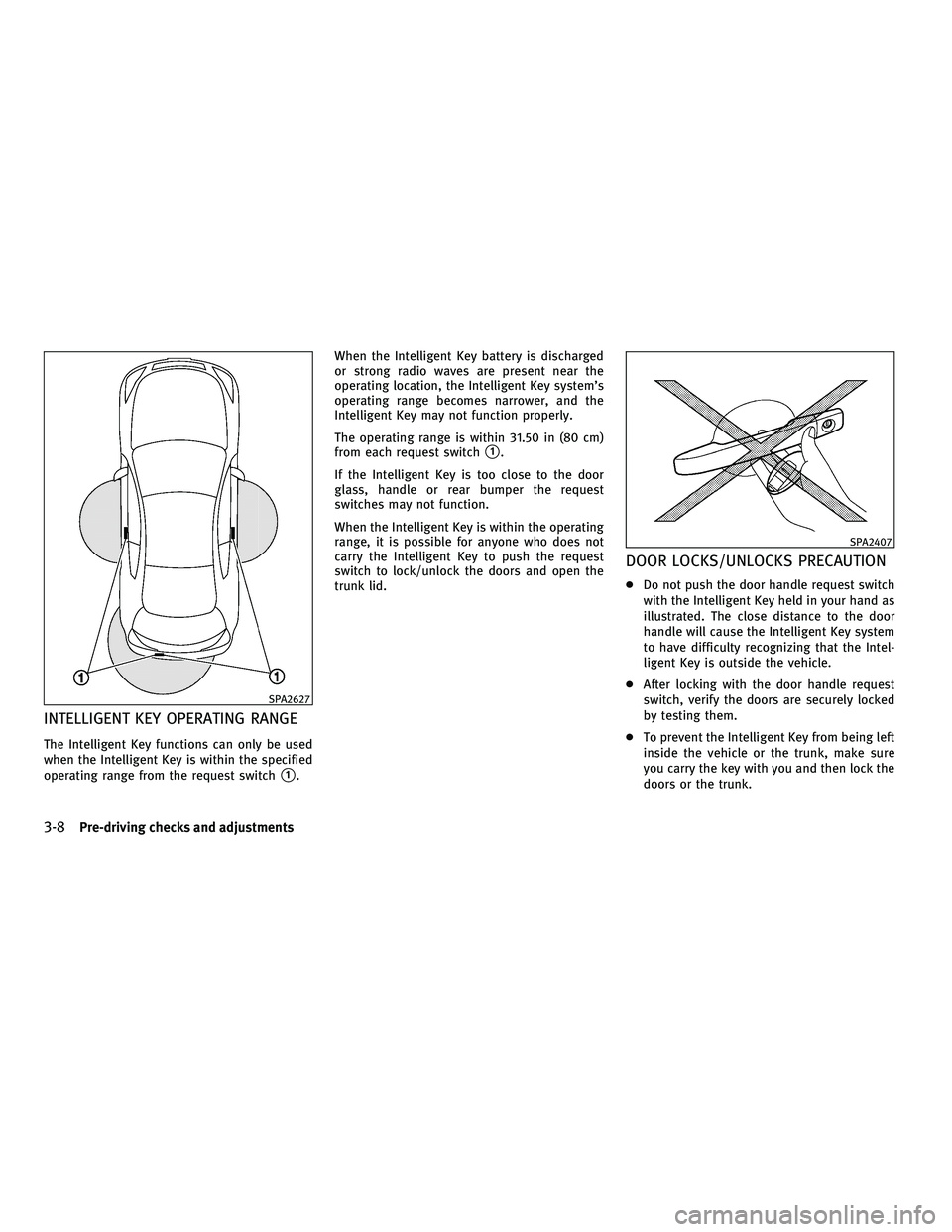

INTELLIGENT KEY OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch
1.When the Intelligent Key battery is discharged
or strong radio waves are present near the
operating location, the Intelligent Key system’s
operating range becomes narrower, and the
Intelligent Key may not function properly.
The operating range is within 31.50 in (80 cm)
from each request switch
1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper the request
switches may not function.
When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors and open the
trunk lid.
DOOR LOCKS/UNLOCKS PRECAUTION
● Do not push the door handle request switch
with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the Intel-
ligent Key is outside the vehicle.
● After locking with the door handle request
switch, verify the doors are securely locked
by testing them.
● To prevent the Intelligent Key from being left
inside the vehicle or the trunk, make sure
you carry the key with you and then lock the
doors or the trunk.
SPA2627
SPA2407
3-8Pre-driving checks and adjustments
—
—
10/14/09—tbrooks


●Do not pull the door handle before pushing
the door handle request switch. The door
will be unlocked but will not open. Release
the door handle once and pull it again to
open the door.
● The Intelligent Key system (opening/closing
doors with the door handle request switch)
can be set to remain inactive. (See “VEHICLE
INFORMATION AND SETTINGS” in the “4.
Monitor, climate, audio, phone and voice
recognition systems” section.)
INTELLIGENT KEY OPERATION
You can lock or unlock the doors without taking
the key out from your pocket or bag. When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch (driver’s or front passen-
ger’s)
Awithin the range of operation.
When you lock or unlock the doors or the trunk
lid, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, see “Setting hazard indicator
and horn mode” later in this section.
Locking doors and fuel-filler door
1. Push the ignition switch to the OFF posi- tion and make sure you carry the Intelli-
gent Key with you.*1
2. Close all the doors.*2
SPA2584SPA2585
Pre-driving checks and adjustments3-9
—
—
10/14/09—tbrooks
