INFINITI G-CONVERTIBLE 2010 Owners Manual

TURN SIGNAL SWITCH
1Turn signal
Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
2Lane change signal
To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
FOG LIGHT SWITCH
To turn the fog lights on, turn the headlight
switch to theposition, then turn the
switch to theposition. To turn them off,
turn the switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight switch is in the AUTO
position and the fog light switch is in the
position, the headlights and fog lights turn ON
at night. Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.
WARNING
●
If stopping for an emergency, be sure to
move the vehicle well off the road.
● Do not use the hazard warning flashers while
moving on the highway unless unusual cir-
cumstances force you to drive so slowly that
your vehicle might become a hazard to other
traffic.
● Turn signals do not work when the hazard
warning flasher lights are on.
SIC3271SIC3272SIC2574
HAZARD WARNING FLASHER SWITCH
2-34Instruments and controls
—
—
10/14/09—tbrooks


The flasher can be actuated with the ignition
switch in any position.
Some state laws may prohibit the use of the
hazard warning flasher switch while driving.To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so could
affect proper operation of the supplemental
front air bag system. Tampering with the
supplemental front air bag system may result
in serious personal injury.
WARNING
Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inability
to feel pain in those body parts in contact with
the seat. Use of the seat heater by such people
could result in serious injury.
CAUTION
●The battery could run down if the seat heater
is operated while the engine is not running.
● Do not use the seat heater for extended pe-
riods or when no one is using the seat.
● Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.
● Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the heater.
● Any liquid spilled on the heated seat should
be removed immediately with a dry cloth.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials.
● If any abnormalities are found or the heated
seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.
SIC3312
HORN HEATED SEATS (if so equipped)
Instruments and controls2-35
—
—
10/14/09—tbrooks

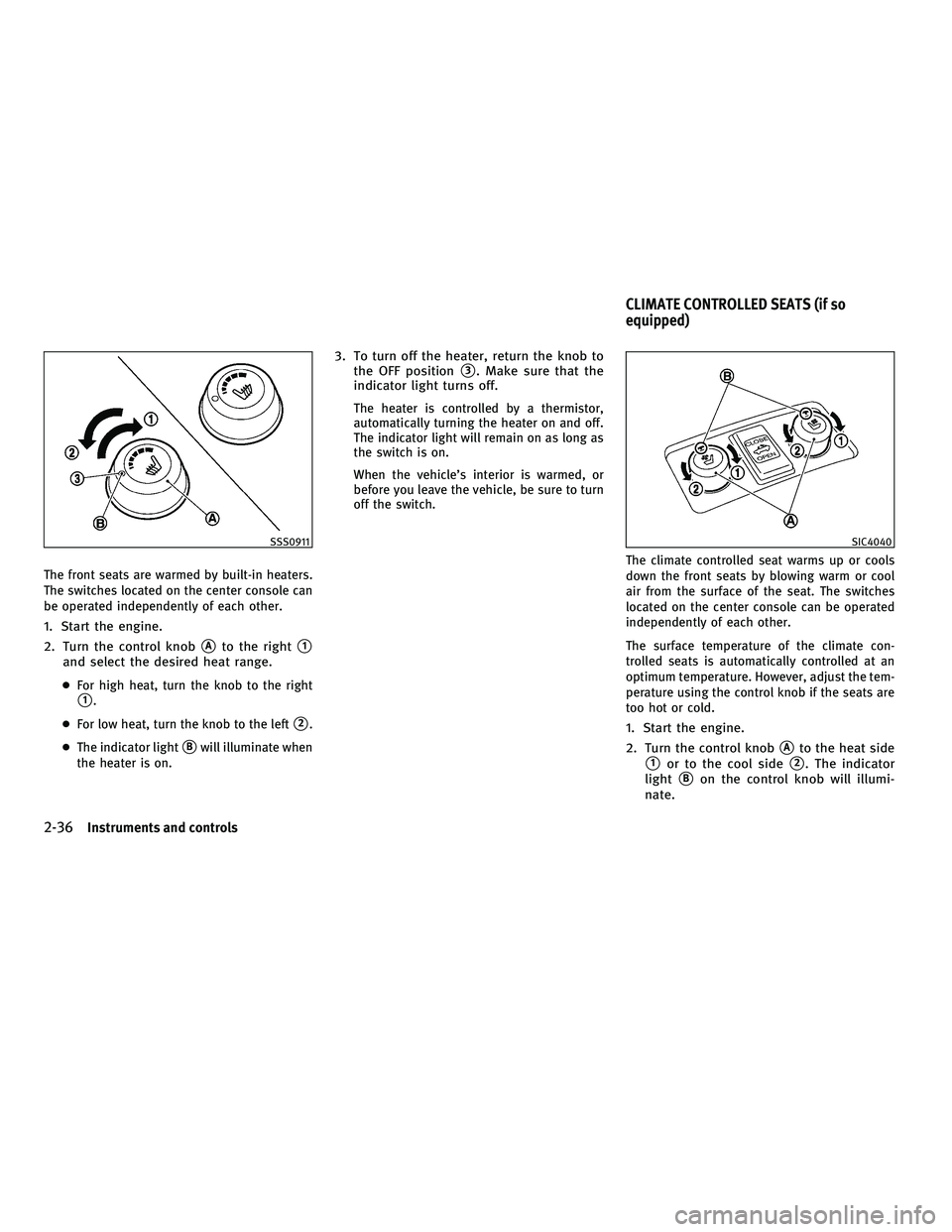

The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.
1. Start the engine.
2. Turn the control knob
Ato the right1
and select the desired heat range.
●For high heat, turn the knob to the right
1.
● For low heat, turn the knob to the left
2.
● The indicator light
Bwill illuminate when
the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a thermistor,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
The climate controlled seat warms up or cools
down the front seats by blowing warm or cool
air from the surface of the seat. The switches
located on the center console can be operated
independently of each other.
The surface temperature of the climate con-
trolled seats is automatically controlled at an
optimum temperature. However, adjust the tem-
perature using the control knob if the seats are
too hot or cold.
1. Start the engine.
2. Turn the control knob
Ato the heat side
1or to the cool side2. The indicator
light
Bon the control knob will illumi-
nate.
SSS0911SIC4040
CLIMATE CONTROLLED SEATS (if so
equipped)
2-36Instruments and controls
—
—
10/14/09—tbrooks


3. Adjust the desired amount of the air usingthe control knob
A.
4. When the vehicle’s interior is warmed or cooled, and/or before you leave the ve-
hicle, be sure to turn the control knob to
the OFF position (center). The indicator
light
Bon the control knob goes off at
the OFF position.
To check the air filter for the climate con-
trolled seat, contact an INFINITI retailer.
CAUTION
● Do not place objects in front of the intake
inlet located behind the front seat. Doing so
could cause improper operation or interrup-
tion of the operation.
● The battery could run down if the climate
controlled seat is operated while the engine
is not running.
● Do not use the climate controlled seat for
extended periods or when no one is using
the seat.
● Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated. ●
Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the climate
controlled seat.
● Any liquid spilled on the seat should be re-
moved immediately with a dry cloth.
● The climate controlled seat has air filters. Do
not operate the climate controlled seat with-
out the air filters. This may result in damage
to the system.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials.
● If any malfunctions are found or the climate
controlled seat does not operate, turn the
switch off and have the system checked by
an INFINITI retailer. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “VEHICLE
DYNAMIC CONTROL (VDC) SYSTEM” in the “5.
Starting and driving” section.)
SIC1881
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH
Instruments and controls2-37
—
—
10/14/09—tbrooks


If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
1.
2. To set the clock backward, push the but- ton
2.
3. To move forward or backward faster, push and hold the button more than 5 seconds.
For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section. The power outlet is located in the center con-
sole box and storage box (if so equipped).
CAUTION
●
The outlet and plug may be hot during or
immediately after use.
● Do not use with accessories that exceed a 12
volt, 120W (10A) power draw. Do not use
double adapters or more than one electrical
accessory.
● Use power outlet with the engine running to
avoid discharging the vehicle battery.
SIC3325
Automatic transmission models
SIC4302
Automatic transmission models
SIC4316
Manual transmission models
SIC4171
CLOCK POWER OUTLETS
2-38Instruments and controls
—
—
10/14/09—tbrooks


●Avoid using power outlet when the air condi-
tioner, headlights or rear window defroster
is on.
● This power outlet is not designed for use
with a cigarette lighter unit.
● Push the plug in as far as it will go. If good
contact is not made, the plug may overheat
or the internal temperature fuse may blow.
● Before inserting or disconnecting a plug, be
sure the electrical accessory being used is
turned OFF.
● When not in use, be sure to close the cap. Do
not allow water to contact the outlet.
FRONT
To open the ashtray lid, push the lid down and
release it
1.
To empty the ashtray, pull out
2.
The cigarette lighter operates when the ignition
switch is in the ON position.
Push the lighter in all the way
3, then release
it. When the lighter is heated, it will spring out.
Return the lighter to its original position after
use.
CAUTION
● The cigarette lighter socket is a power
source for the cigarette lighter element only.
The use of the cigarette lighter socket as a
power source for any other accessory is not
recommended.
● Do not use any other power outlet for an
accessory lighter.
SIC3219
CIGARETTE LIGHTER AND ASHTRAYS (if so
equipped)
Instruments and controls2-39
—
—
10/14/09—tbrooks


REAR
To open the ashtray lid, pull1.
To empty the ashtray, push down
2, and pull
out.
CUP HOLDERS
CAUTION
● Avoid abrupt starting and braking when the
cup holder is being used to prevent spilling
the drink. If the liquid is hot, it can scald you
or your passenger.
● Use only soft cups in the cup holder. Hard
objects can injure you in an accident.
To open the cup holder, push the lid
1.
The flap
Awill be folded down when inserting
a large container.
SIC2570
Automatic transmission models — Front
SIC4304
STORAGE
2-40Instruments and controls
—
—
10/14/09—tbrooks

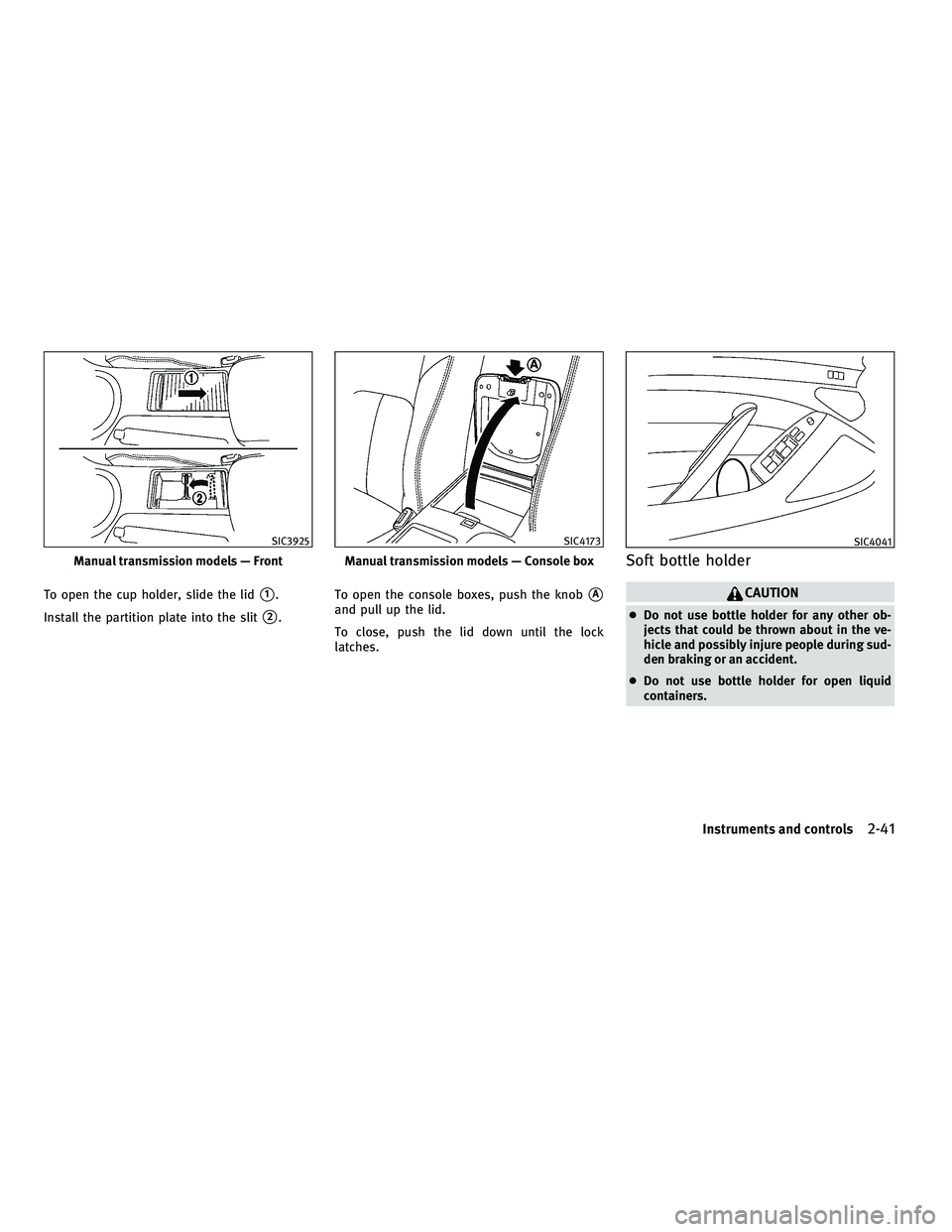

To open the cup holder, slide the lid1.
Install the partition plate into the slit
2. To open the console boxes, push the knob
A
and pull up the lid.
To close, push the lid down until the lock
latches.
Soft bottle holder
CAUTION
●
Do not use bottle holder for any other ob-
jects that could be thrown about in the ve-
hicle and possibly injure people during sud-
den braking or an accident.
● Do not use bottle holder for open liquid
containers.
Manual transmission models — Front
SIC3925
Manual transmission models — Console box
SIC4173SIC4041
Instruments and controls2-41
—
—
10/14/09—tbrooks


GLOVE BOX
WARNING
Keep glove box lid closed while driving to help
prevent injury in an accident or a sudden stop.
To open the glove box, pull the handle
1.
To close, push the lid in until the lock latches.
To lock
2/unlock3the glove box, use the
mechanical key. For the mechanical key usage,
see “KEYS” in the “3. Pre-driving checks and
adjustments” section.
CONSOLE BOX
To open the console boxes, push the knobA
and pull up the lid.
To close, push the lid down until latched.
The inner tray (if so equipped) can be moved to
the front or rear position.
SIC3469
Automatic transmission models
SIC4363
Manual transmission models
SIC4174
2-42Instruments and controls
—
—
12/14/09—tbrooks


Removing the console lid (Manual
transmission model)
To remove the console lid:
1. Remove the hinge maskAusing a screw-
driver wrapped with a cloth.
2. Loosen four screws, and remove the lid.
3. Tighten the two outside screws
B.
4. Install the removed hinge mask
Ato the
original position.
STORAGE BOX (if so equipped)
To open, push the storage box lid1as illus-
trated.
Do not use the storage box as an ashtray.
Coupe — Manual transmission model
SIC3468
SIC4308
Instruments and controls2-43
—
—
10/14/09—tbrooks
