INFINITI G-CONVERTIBLE 2010 Owners Manual

POWER WINDOWS
WARNING
●Make sure that all passengers have their
hands, etc. inside the vehicle while it is in
motion and before closing the windows. Use
the window lock switch to prevent unex-
pected use of the power windows.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls and become trapped in
the window. Unattended children could be-
come involved in serious accidents.
The power windows operate when the ignition
switch is in the ON position or for about 45
seconds after the ignition switch is pushed to
the OFF position. If the driver’s or front passen-
ger’s door is opened during this period of about
45 seconds, power to the windows is canceled.
Main power window switch (driver’s
side)
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button
To open or close the window, push downAor
pull up
Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windows
When the lock buttonCis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC3279
WINDOWS
2-44Instruments and controls
—
—
10/14/09—tbrooks


Passenger side power window switch
The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
Automatic operation (for front door
windows)
To fully open or close the window, completely
push down or pull up the switch and release it;
it need not be held. The window will automati-
cally open or close all the way. To stop the
window, just push or lift the switch in the
opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
The rear window automatic operation is for the
opening function only.
Simultaneous operation of all four
windows
WARNING
There is a small distance just before the closed
position that cannot be detected. Make sure
that all passengers have their hands, etc. in-
side the vehicle before closing the windows.
When the driver’s and passenger’s door window
switches are pushed down or pulled up simul-
taneously, all four windows are opened or
closed.
Auto reverse function
WARNING
There are some small distances immediately
before the closed position which cannot be de-
tected. Make sure that all passengers have
their hands, etc., inside the vehicle before clos-
ing the window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
SIC3241SIC3289
Instruments and controls2-45
—
—
10/14/09—tbrooks

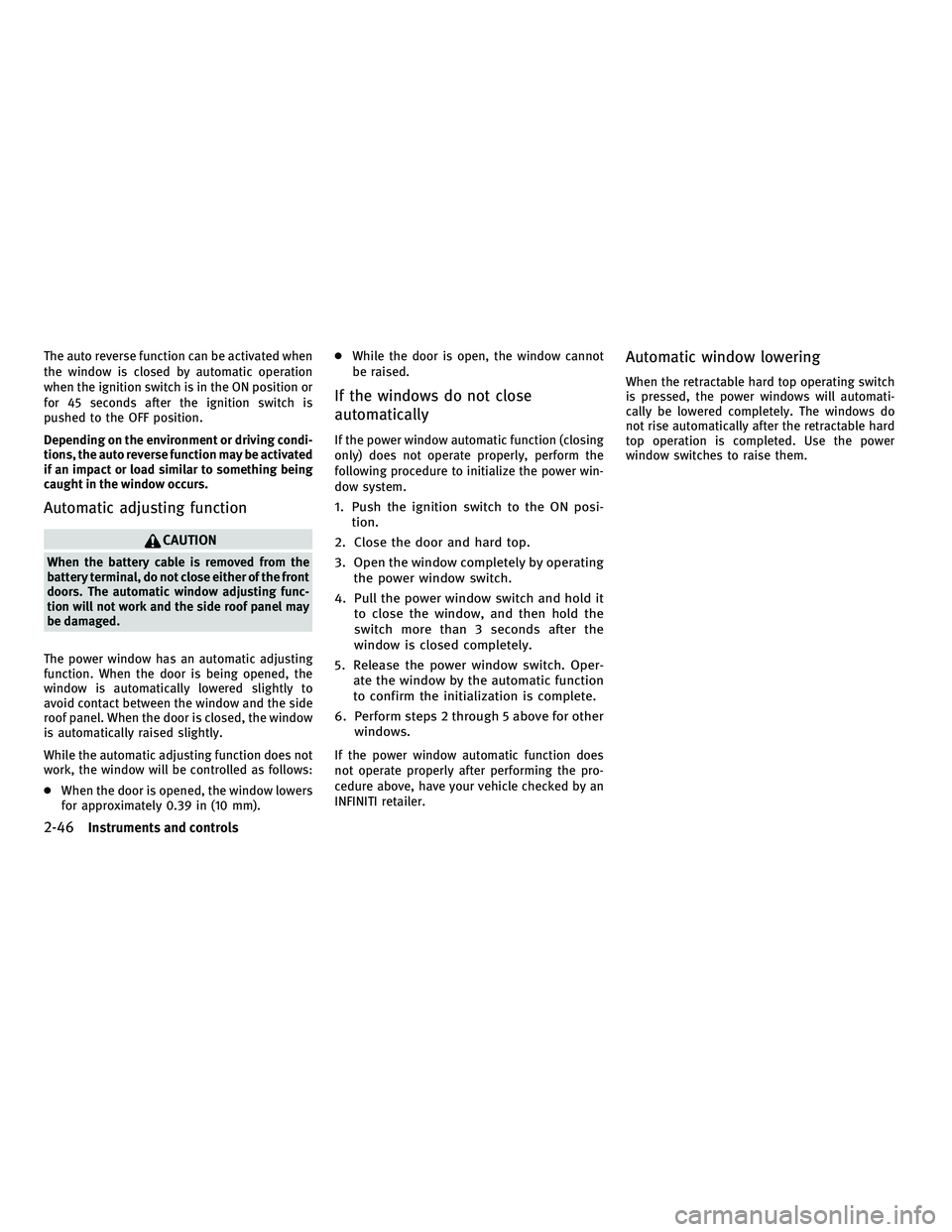

The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving condi-
tions, the auto reverse function may be activated
if an impact or load similar to something being
caught in the window occurs.
Automatic adjusting function
CAUTION
When the battery cable is removed from the
battery terminal, do not close either of the front
doors. The automatic window adjusting func-
tion will not work and the side roof panel may
be damaged.
The power window has an automatic adjusting
function. When the door is being opened, the
window is automatically lowered slightly to
avoid contact between the window and the side
roof panel. When the door is closed, the window
is automatically raised slightly.
While the automatic adjusting function does not
work, the window will be controlled as follows:
● When the door is opened, the window lowers
for approximately 0.39 in (10 mm). ●
While the door is open, the window cannot
be raised.
If the windows do not close
automatically
If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power win-
dow system.
1. Push the ignition switch to the ON posi- tion.
2. Close the door and hard top.
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the
switch more than 3 seconds after the
window is closed completely.
5. Release the power window switch. Oper- ate the window by the automatic function
to confirm the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by an
INFINITI retailer.
Automatic window lowering
When the retractable hard top operating switch
is pressed, the power windows will automati-
cally be lowered completely. The windows do
not rise automatically after the retractable hard
top operation is completed. Use the power
window switches to raise them.
2-46Instruments and controls
—
—
10/14/09—tbrooks


MAP LIGHTS
Push the button as illustrated to turn the light
on or off.
INTERIOR LIGHT CONTROL SWITCH
The interior light control switch has three posi-
tions: ON, DOOR and OFF.
ON position
When the switch is in the ON position1the
map lights will illuminate.
DOOR position
When the switch is in the DOOR position2, the
map lights will illuminate under the following
conditions:
● ignition switch is switched to the OFF or
LOCK position
– remain on for about 15 seconds. ●
doors are unlocked by pushing the UNLOCK
button on the Intelligent Key or door handle
request switch with the ignition switch in the
LOCK position
– remain on for about 15 seconds.
● any door is opened and then closed with the
ignition switch in the LOCK position
– remain on for about 15 seconds.
● any door is opened with the ignition switch
in the ACC or ON position
– remain on while the door is opened. When the door is closed, the lights go off.
The lights will also turn off after 15 minutes when
the lights remain illuminated after the ignition
switch has been pushed to the OFF or LOCK po-
sition to prevent the battery from becoming dis-
charged.
When the auto interior illumination is set to the
OFF position (see “VEHICLE INFORMATION AND
SETTINGS” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section),
the lights will illuminate under the following
condition:
● any door is opened with the ignition switch
in any position
– remain on while the door is opened. When the door is closed, the lights go off.
SIC4043SIC4044
INTERIOR LIGHTS
Instruments and controls2-47
—
—
10/14/09—tbrooks

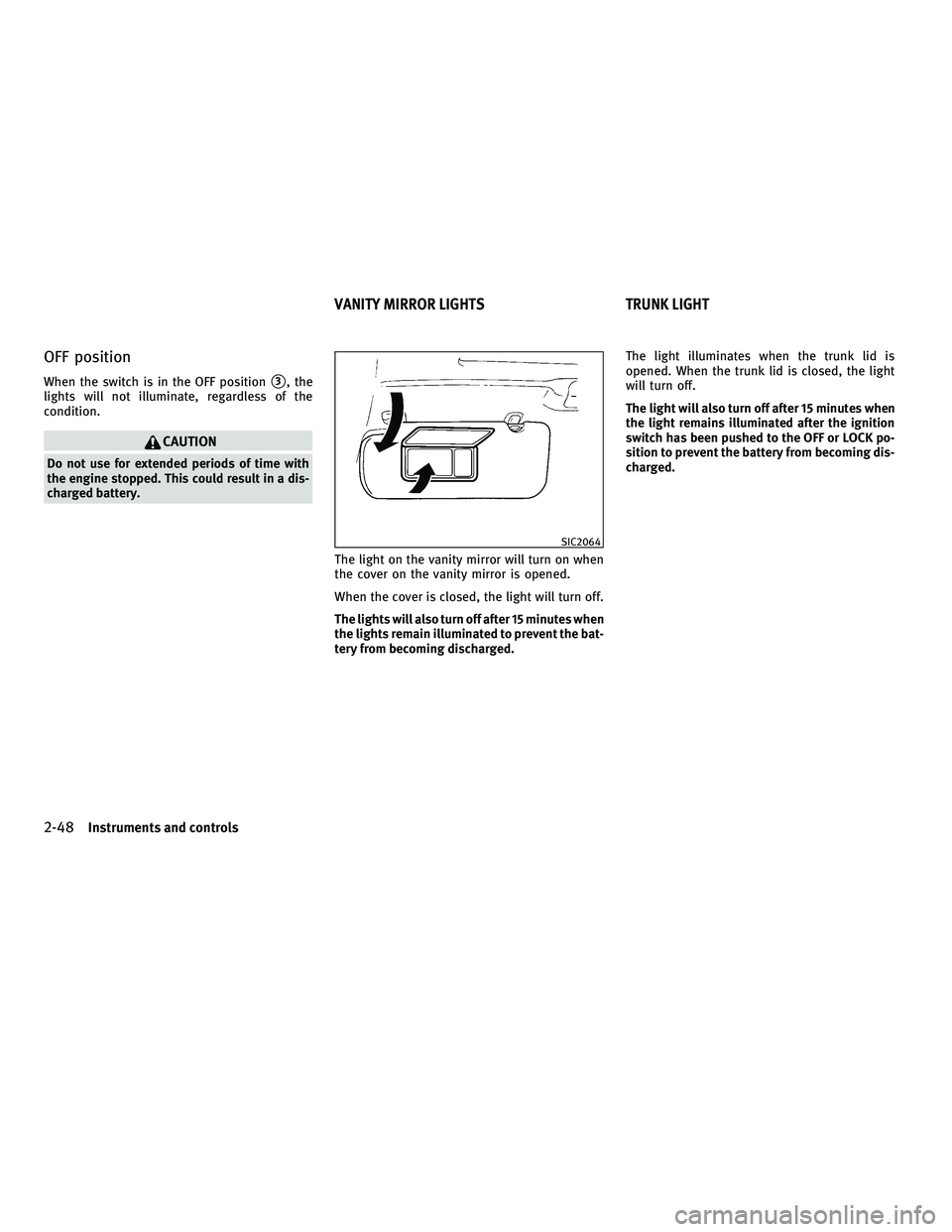

OFF position
When the switch is in the OFF position3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time with
the engine stopped. This could result in a dis-
charged battery.
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will also turn off after 15 minutes when
the lights remain illuminated to prevent the bat-
tery from becoming discharged. The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the light
will turn off.
The light will also turn off after 15 minutes when
the light remains illuminated after the ignition
switch has been pushed to the OFF or LOCK po-
sition to prevent the battery from becoming dis-
charged.
SIC2064
VANITY MIRROR LIGHTS
TRUNK LIGHT
2-48Instruments and controls
—
—
10/14/09—tbrooks

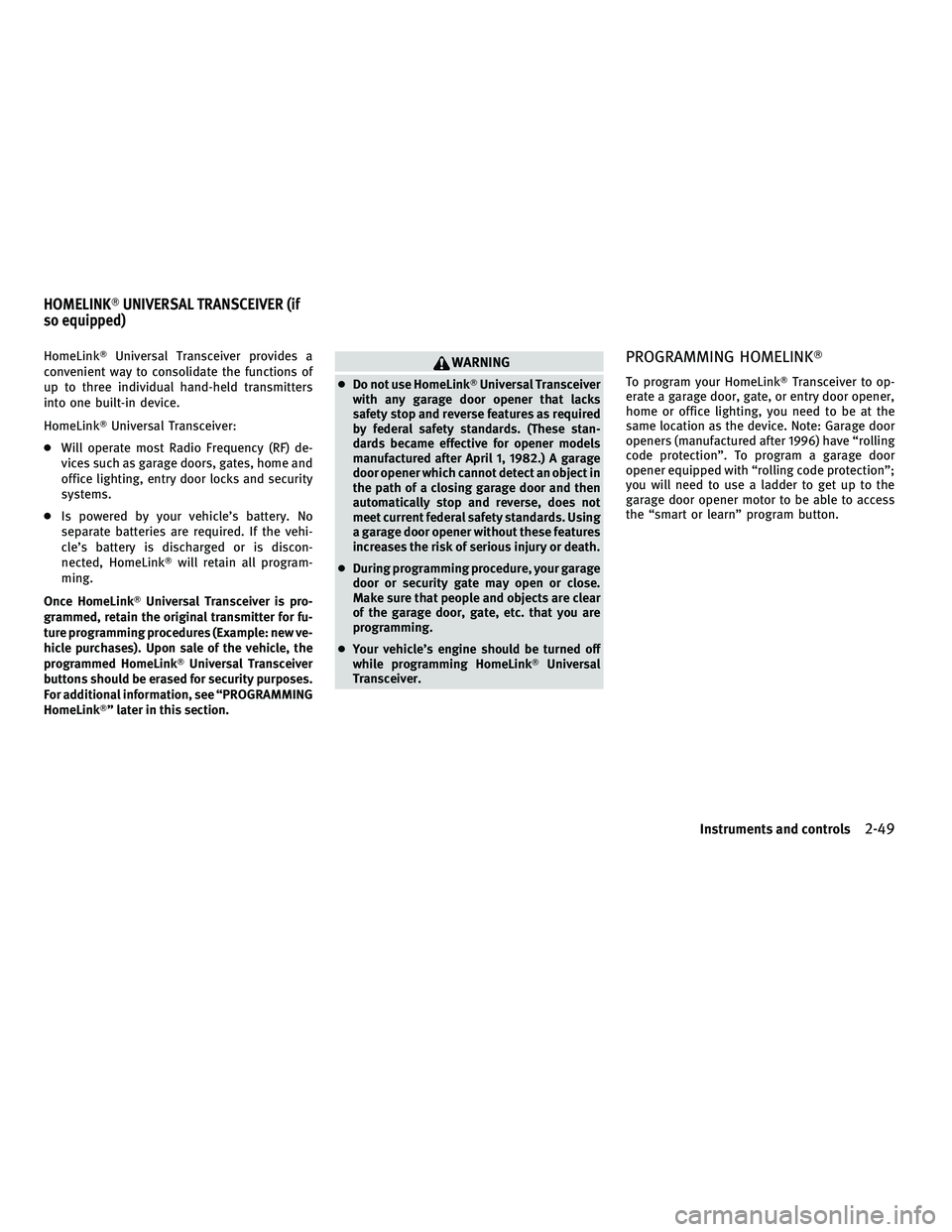

HomeLinkUniversal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters
into one built-in device.
HomeLink Universal Transceiver:
● Will operate most Radio Frequency (RF) de-
vices such as garage doors, gates, home and
office lighting, entry door locks and security
systems.
● Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink will retain all program-
ming.
Once HomeLink Universal Transceiver is pro-
grammed, retain the original transmitter for fu-
ture programming procedures (Example: new ve-
hicle purchases). Upon sale of the vehicle, the
programmed HomeLink Universal Transceiver
buttons should be erased for security purposes.
For additional information, see “PROGRAMMING
HomeLink” later in this section.WARNING
● Do not use HomeLink Universal Transceiver
with any garage door opener that lacks
safety stop and reverse features as required
by federal safety standards. (These stan-
dards became effective for opener models
manufactured after April 1, 1982.) A garage
door opener which cannot detect an object in
the path of a closing garage door and then
automatically stop and reverse, does not
meet current federal safety standards. Using
a garage door opener without these features
increases the risk of serious injury or death.
● During programming procedure, your garage
door or security gate may open or close.
Make sure that people and objects are clear
of the garage door, gate, etc. that you are
programming.
● Your vehicle’s engine should be turned off
while programming HomeLink Universal
Transceiver.
PROGRAMMING HOMELINK
To program your HomeLink Transceiver to op-
erate a garage door, gate, or entry door opener,
home or office lighting, you need to be at the
same location as the device. Note: Garage door
openers (manufactured after 1996) have “rolling
code protection”. To program a garage door
opener equipped with “rolling code protection”;
you will need to use a ladder to get up to the
garage door opener motor to be able to access
the “smart or learn” program button.
HOMELINK UNIVERSAL TRANSCEIVER (if
so equipped)
Instruments and controls2-49
—
—
10/14/09—tbrooks

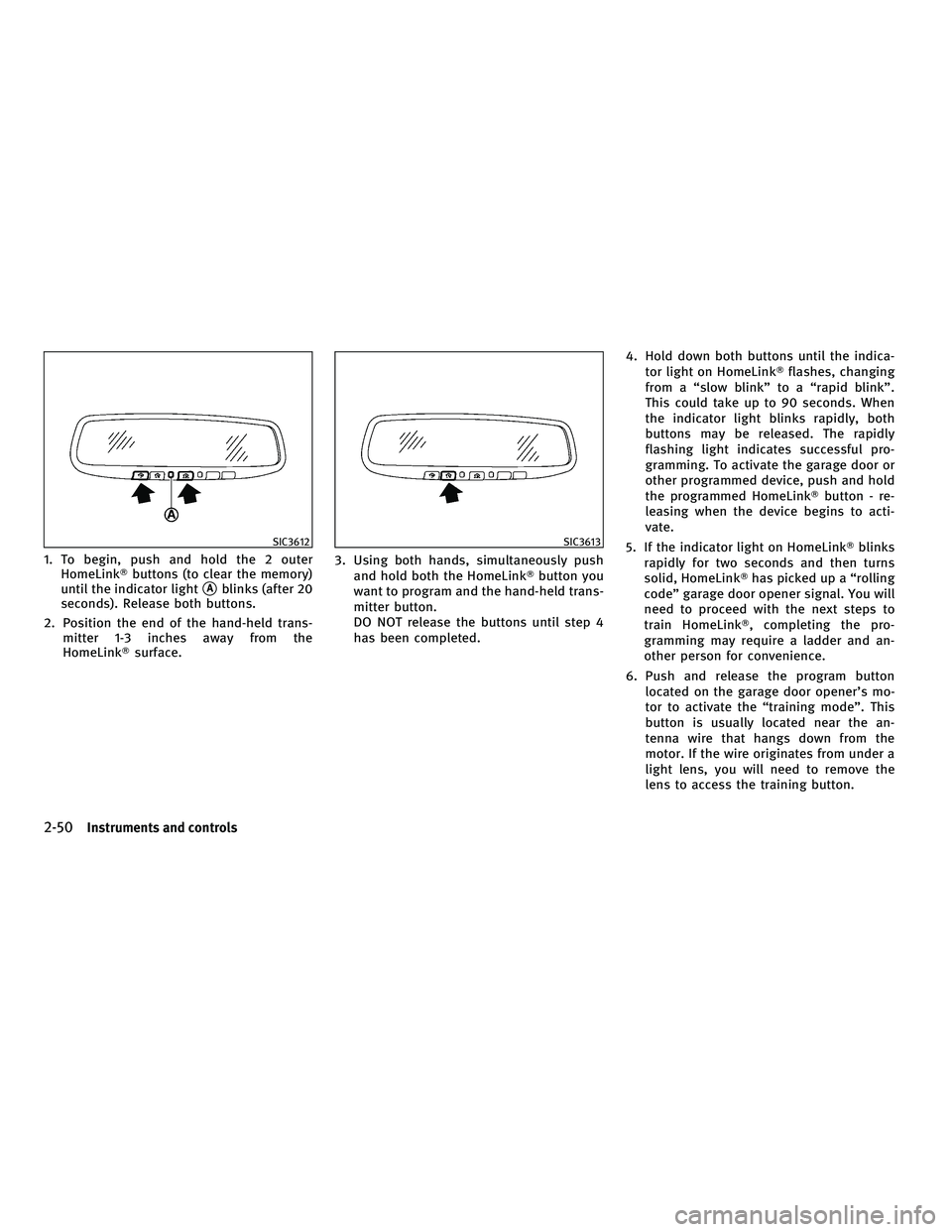

1. To begin, push and hold the 2 outerHomeLink buttons (to clear the memory)
until the indicator light
Ablinks (after 20
seconds). Release both buttons.
2. Position the end of the hand-held trans- mitter 1-3 inches away from the
HomeLink surface. 3. Using both hands, simultaneously push
and hold both the HomeLink button you
want to program and the hand-held trans-
mitter button.
DO NOT release the buttons until step 4
has been completed. 4. Hold down both buttons until the indica-
tor light on HomeLink flashes, changing
from a “slow blink” to a “rapid blink”.
This could take up to 90 seconds. When
the indicator light blinks rapidly, both
buttons may be released. The rapidly
flashing light indicates successful pro-
gramming. To activate the garage door or
other programmed device, push and hold
the programmed HomeLink button - re-
leasing when the device begins to acti-
vate.
5. If the indicator light on HomeLink blinks
rapidly for two seconds and then turns
solid, HomeLink has picked up a “rolling
code” garage door opener signal. You will
need to proceed with the next steps to
train HomeLink, completing the pro-
gramming may require a ladder and an-
other person for convenience.
6. Push and release the program button located on the garage door opener’s mo-
tor to activate the “training mode”. This
button is usually located near the an-
tenna wire that hangs down from the
motor. If the wire originates from under a
light lens, you will need to remove the
lens to access the training button.
SIC3612SIC3613
2-50Instruments and controls
—
—
10/14/09—tbrooks

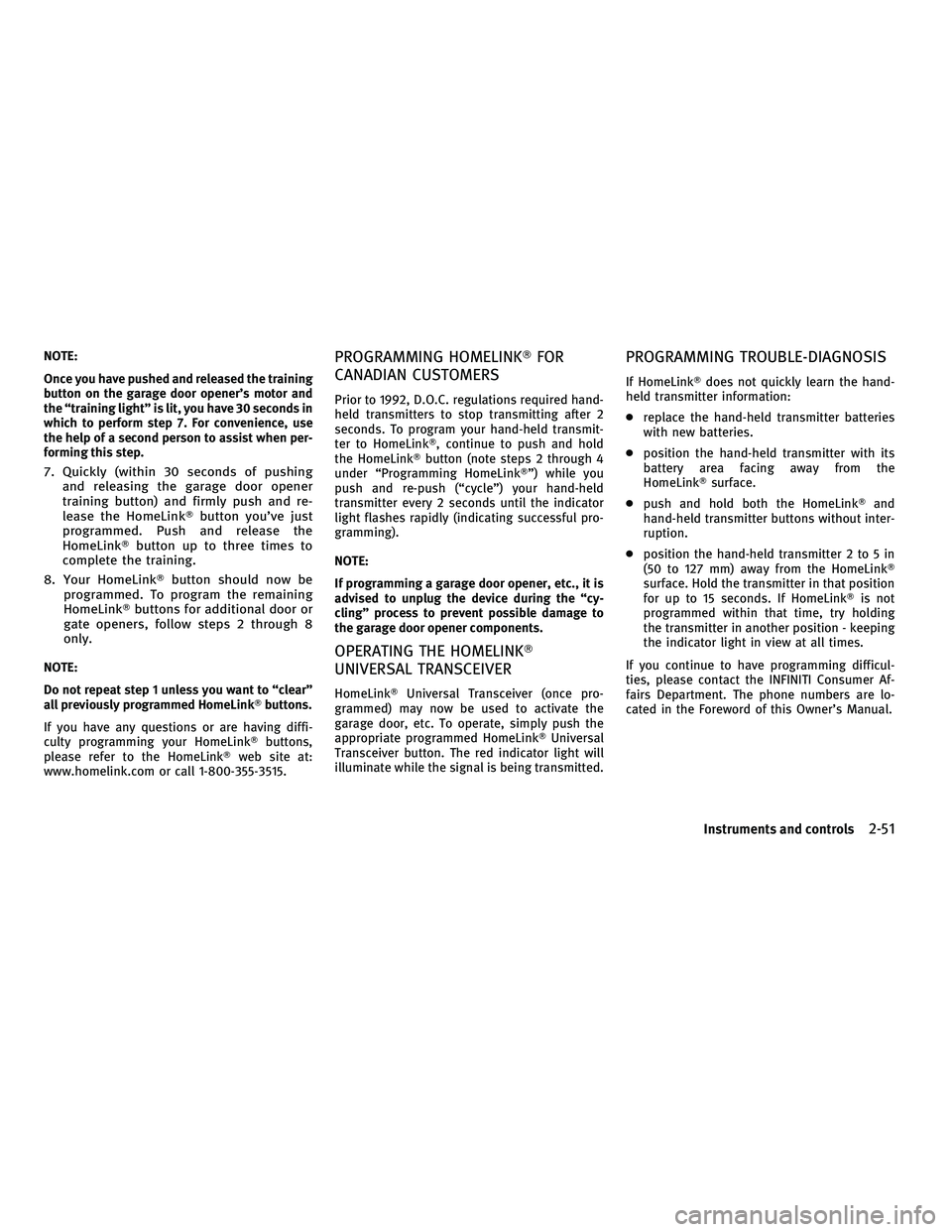

NOTE:
Once you have pushed and released the training
button on the garage door opener’s motor and
the “training light” is lit, you have 30 seconds in
which to perform step 7. For convenience, use
the help of a second person to assist when per-
forming this step.
7. Quickly (within 30 seconds of pushingand releasing the garage door opener
training button) and firmly push and re-
lease the HomeLink button you’ve just
programmed. Push and release the
HomeLink button up to three times to
complete the training.
8. Your HomeLink button should now be
programmed. To program the remaining
HomeLink buttons for additional door or
gate openers, follow steps 2 through 8
only.
NOTE:
Do not repeat step 1 unless you want to “clear”
all previously programmed HomeLink buttons.
If you have any questions or are having diffi-
culty programming your HomeLink buttons,
please refer to the HomeLink web site at:
www.homelink.com or call 1-800-355-3515.
PROGRAMMING HOMELINK FOR
CANADIAN CUSTOMERS
Prior to 1992, D.O.C. regulations required hand-
held transmitters to stop transmitting after 2
seconds. To program your hand-held transmit-
ter to HomeLink, continue to push and hold
the HomeLink button (note steps 2 through 4
under “Programming HomeLink”) while you
push and re-push (“cycle”) your hand-held
transmitter every 2 seconds until the indicator
light flashes rapidly (indicating successful pro-
gramming).
NOTE:
If programming a garage door opener, etc., it is
advised to unplug the device during the “cy-
cling” process to prevent possible damage to
the garage door opener components.
OPERATING THE HOMELINK
UNIVERSAL TRANSCEIVER
HomeLink Universal Transceiver (once pro-
grammed) may now be used to activate the
garage door, etc. To operate, simply push the
appropriate programmed HomeLink Universal
Transceiver button. The red indicator light will
illuminate while the signal is being transmitted.
PROGRAMMING TROUBLE-DIAGNOSIS
If HomeLink does not quickly learn the hand-
held transmitter information:
● replace the hand-held transmitter batteries
with new batteries.
● position the hand-held transmitter with its
battery area facing away from the
HomeLink surface.
● push and hold both the HomeLink and
hand-held transmitter buttons without inter-
ruption.
● position the hand-held transmitter 2 to 5 in
(50 to 127 mm) away from the HomeLink
surface. Hold the transmitter in that position
for up to 15 seconds. If HomeLink is not
programmed within that time, try holding
the transmitter in another position - keeping
the indicator light in view at all times.
If you continue to have programming difficul-
ties, please contact the INFINITI Consumer Af-
fairs Department. The phone numbers are lo-
cated in the Foreword of this Owner’s Manual.
Instruments and controls2-51
—
—
10/14/09—tbrooks


CLEARING THE PROGRAMMED
INFORMATION
Individual buttons cannot be cleared, however
to clear all programming, push and hold the two
outside buttons and release when the indicator
light begins to flash (in approximately 20 sec-
onds).
REPROGRAMMING A SINGLE
HOMELINKBUTTON
To reprogram a HomeLink Universal Trans-
ceiver button, complete the following.
1. Push and hold the desired HomeLink button. Do notrelease the button until
step 4 has been completed.
2. When the indicator light begins to flash slowly (after 20 seconds), position the
hand-held transmitter 2 to 5 in (50 to 127
mm) away from the HomeLink surface.
3. Push and hold the hand-held transmitter button.
4. The HomeLink indicator light will flash,
first slowly and then rapidly. When the
indicator light begins to flash rapidly,
release both buttons.
The HomeLink Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink
buttons.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink. Consult the
Owner’s Manual of each device or call the
manufacturer or retailer of those devices for
additional information.
When your vehicle is recovered, you will need to
reprogram the HomeLink Universal Transceiver
with your new transmitter information.
FCC Notice:
This device complies with FCC rules part 15. Op-
eration is subject to the following two condi-
tions: (1) This device may not cause harmful in-
terference and (2) This device must accept any
interference that may be received, including in-
terference that may cause undesired operation.
The transmitter has been tested and complies
with FCC and DOC/MDC rules. Changes or modi-
fications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the device.
DOC: ISTC 1763K1313
FCC I.D.: CB2V67690
2-52Instruments and controls
—
—
10/14/09—tbrooks

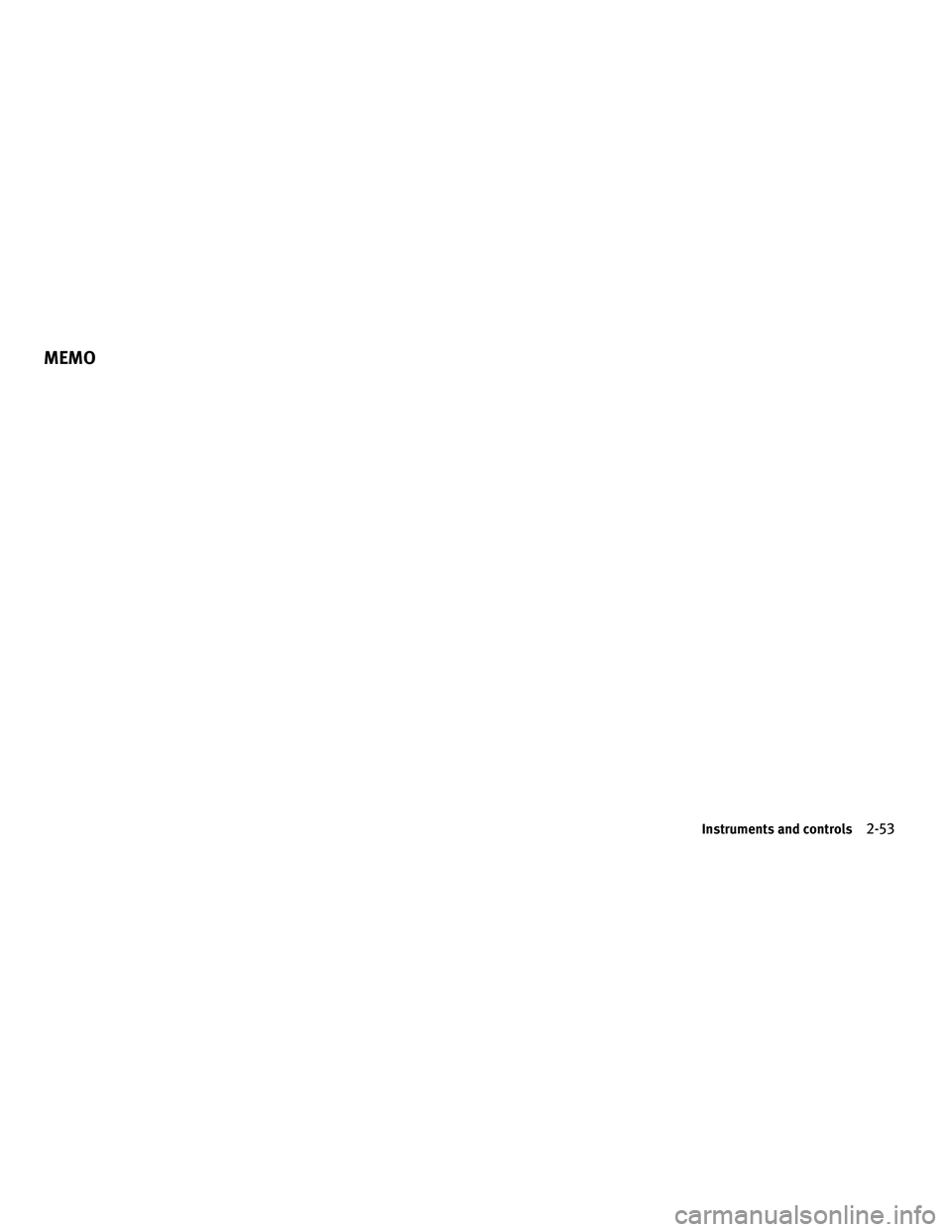

Instruments and controls2-53
MEMO
