fog light bulb INFINITI G-CONVERTIBLE 2010 Owners Manual

1. Hood (P. 3-17)
2. Headlight and turn signal— Operation (P. 2-30)
— Bulb replacement (P. 8-23)
— Fog light (P. 2-34) 3. Windshield wiper and washer
— Operation (P. 2-28)
— Maintenance (P. 8-17)
4. Power windows (P. 2-44)
5. Recovery hook (P. 6-22)
6. Front license plate installation (P. 9-12) 7. Tires
— Wheel and tires (P. 8-26, P. 9-8)
— Flat tire (P. 6-2)
— Tire pressure monitoring system (TPMS)
(P. 2-10, P. 5-3)
8. Outside mirrors (P. 3-37)
9. Doors — Keys (P. 3-2)
— Door locks (P. 3-4)
— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-14)
SSI0342
EXTERIOR FRONT
Illustrated table of contents0-3
—
—
04/28/10—pattie


2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-4
Speedometer and odometer ..................... 2-5
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-6
Fuel gauge ..................................... 2-7
Warning/indicator lights and audible reminders ...... 2-8
Checking bulbs ................................ 2-8
Warning lights ................................. 2-9
Indicator lights ................................ 2-13
Audible reminders .............................. 2-15
Dot matrix liquid crystal display ....................2-15
Indicators for operation ........................ 2-18
Indicators for retractable hard top ..............2-20
Indicators for maintenance .....................2-21
Trip computer ................................. 2-22
Security systems ................................. 2-25
Vehicle security system ........................ 2-25
INFINITI Vehicle Immobilizer System ............2-26
Windshield wiper and washer switch ...............2-28
Rain-sensing auto wiper system
(if so equipped) ............................... 2-29Rear window and outside mirror defroster switch . . . 2-29
Headlight and turn signal switch
..................2-30
Xenon headlights ............................. 2-30
Headlight switch .............................. 2-30
Turn signal switch ............................. 2-34
Fog light switch ............................... 2-34
Hazard warning flasher switch .....................2-34
Horn ............................................ 2-35
Heated seats (if so equipped) .....................2-35
Climate controlled seats (if so equipped) ...........2-36
Vehicle Dynamic Control (VDC) OFF switch ..........2-37
Clock ............................................ 2-38
Adjusting the time ............................. 2-38
Power outlets .................................... 2-38
Cigarette lighter and ashtrays (if so equipped) ......2-39
Front ......................................... 2-39
Rear ......................................... 2-40
Storage ......................................... 2-40
Cup

holders .................................. 2-40
Glove box .................................... 2-42
Console box .................................. 2-42
Storage box (if so equipped) ...................2-43
Windows ........................................ 2-44
—
—
04/28/10—diane


Anti-lock Braking System (ABS) warn-
ing lightIntelligent Key warning lightFront passenger air bag status light
Low tire pressure warning lightHigh beam indicator light
Automatic transmission check warn-
ing lightMaster warning lightMalfunction Indicator Light (MIL)
Brake warning lightPreview Function warning light (or-
ange)*Security indicator light
Seat belt warning lightSlip indicator light
Charge warning lightSupplemental air bag warning lightLow beam indicator light
Engine oil pressure warning lightAutomatic transmission position indi-
cator light*Turn signal/hazard indicator lights
Intelligent Cruise Control (ICC) sys-
tem warning light (orange)*Front fog light indicator lightVehicle Dynamic Control (VDC) off
indicator light
*: if so equipped
CHECKING BULBS
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
,or,,,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,
,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer. Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-8Instruments and controls
—
—
10/22/09—tbrooks

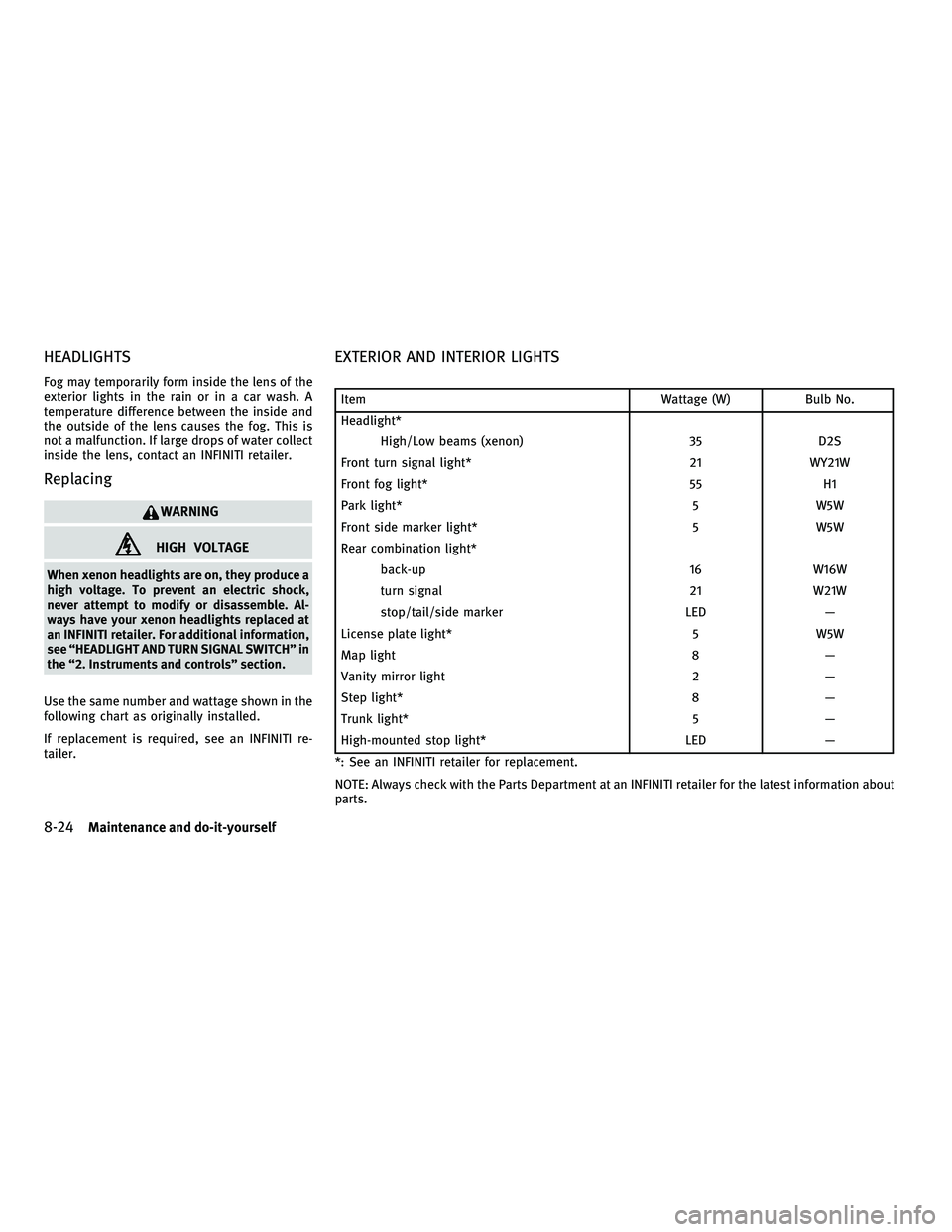

HEADLIGHTS
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact an INFINITI retailer.
Replacing
WARNING
HIGH VOLTAGE
When xenon headlights are on, they produce a
high voltage. To prevent an electric shock,
never attempt to modify or disassemble. Al-
ways have your xenon headlights replaced at
an INFINITI retailer. For additional information,
see “HEADLIGHT AND TURN SIGNAL SWITCH” in
the “2. Instruments and controls” section.
Use the same number and wattage shown in the
following chart as originally installed.
If replacement is required, see an INFINITI re-
tailer.
EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.
Headlight* High/Low beams (xenon) 35D2S
Front turn signal light* 21WY21W
Front fog light* 55H1
Park light* 5W5W
Front side marker light* 5W5W
Rear combination light* back-up 16W16W
turn signal 21W21W
stop/tail/side marker LED—
License plate light* 5W5W
Map light 8—
Vanity mirror light 2—
Step light* 8—
Trunk light* 5—
High-mounted stop light* LED—
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest information about
parts.
8-24Maintenance and do-it-yourself
—
—
10/15/09—tbrooks


Engine coolant temperature gauge......2-6
Event Data Recorders (EDR) ..........9-21
Exhaust gas (carbon monoxide) ........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . .9-11
Filter Air cleaner housing filter .........8-17
Changing engine oil and filter .......8-9
Flashers (See hazard warning
flasher switch) ................ .2-34
Flat tire ..................... .6-2
Flat tire Changing flat tire (with spare tire) . . . .6-12
Repairing flat tire (with emergency tire
puncture repair kit) .............6-3
Flat towing .................. .9-17
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-11
Brake and clutch fluid ...........8-11
Capacities and recommended
fuel/lubricants ...............9-2
Engine coolant ...............8-7
Engine oil ..................8-8
Power steering fluid ............8-11
Window washer fluid ...........8-12
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-49
Fog light switch ............... .2-34
Front passenger air bag and status light . . .1-41
Front power seat adjustment ..........1-3
Front seat, Front seat adjustment .......1-3Front-seat active head restraints
.......1-10
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ................ 5-41
Fuel economy information (display) ....4-9
Fuel octane rating .............9-3
Fuel recommendation ...........9-3
Fuel-filler cap ............... 3-32
Fuel-filler door ............... 3-32
Gauge ....................2-7
Fuses ..................... .8-19
Fusible links ................. .8-20
G
Garage door opener, HomeLink Universal
Transceiver .................. .2-49
Gascap .................... .3-32
Gauge ...................... .2-4
Gauge Engine

coolant temperature gauge . . . .2-6
Fuel gauge ..................2-7
Odometer ..................2-5
Speedometer ................2-5
Tachometer .................2-6
Trip computer ............... 2-22
General maintenance ..............8-2
Glove box ................... .2-42
H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-78Hands-free phone system, Bluetooth
(without navigation system)
.........4-89
Hard top If the top does not open or close . . . .3-23
Indicators for retractable hard top (dot
matrix) ................... 3-22
Initializing ................. 3-24
Operating using the Intelligent Key . . . 3-24
Retractable hard top operation ......3-18
Hazard warning flasher switch . . . . . . . .2-34
Head restraints ................. .1-7
Headlights Bulb replacement .............8-24
Headlight switch .............. 2-30
Xenon headlights ............. 2-30
Heated seats ................. .2-35
Heater Automatic climate control .........4-28
Engine block heater ............5-53
HomeLink Universal Transceiver ......2-49
Hood release ................. .3-17
Horn ...................... .2-35
Ignition switch Automatic transmission models ......5-11
Manual transmission models .......5-15
I
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-26
In-cabin microfilter .............. .4-35
Indicator lights ................ .2-13
Indicator,
Dot matrix display .........2-15
INFINITI Vehicle Immobilizer System .....2-26
10-3
—
—
04/30/10—diane


INFINITI voice recognition standard
mode..................... .4-102
INFINITI voice recognition system ......4-102
INFO button .................. .4-8
Inside mirror ................. .3-36
Inspection/maintenance (I/M) test ......9-20
Instrument brightness control ........2-33
Instrument panel ............... .2-3
Intelligent cruise control (ICC) system . . . .5-20
Intelligent cruise control (ICC) system main
switch indicator ............... .2-20
Intelligent Cruise Control (ICC) system
warning light ................. .2-10
Intelligent cruise control (ICC) system,
Preview function ............... .5-40
Intelligent Key ................. .3-2
Intelligent Key battery discharge indicator .2-19
Intelligent Key insertion indicator ......2-18
Intelligent Key removal indicator .......2-18
Intelligent Key system .............3-6
Intelligent Key system Battery replacement ............8-21
Key operating range ............3-8
Key operation ................3-9
Warning light ................ 2-10
Warning signals .............. 3-11
Intelligent Key warning light .........2-10
Interior light control switch ..........2-47
Interior light replacement ...........8-24
Interior lights ................. .2-47
Interior trunk lid release ...........3-30
iPod player operation ............4-65
ISOFIX child restraint ............. .1-20 J
Jump starting ................. .6-17
K
Keyless entry (See remote keyless entry
system) .................... .3-14
Keys ....................... .3-2
Keys, For Intelligent Key system ........3-6
Labels Air bag warning labels ...........1-46
Air conditioner specification label ....9-12
Emission
control information label ....9-11
Engine serial number ...........9-10
F.M.V.S.S./C.M.V.S.S. certification
label ..................... 9-11
Tire and Loading information label ....9-11
Vehicle identification number (VIN) . . . 9-10
L
LATCH Lower Anchors .............1-20
License plate, Installing front license
plate ...................... .9-12
Light Air bag warning light ............1-46
Bulb replacement ............. 8-23
Fog light switch .............. 2-34
Headlight switch .............. 2-30
Headlights bulb replacement ......8-24
Indicator lights ............... 2-13
Interior light control switch .......2-47 Interior lights
............... 2-47
Map lights ................. 2-47
Trunk light ................. 2-48
Vanity mirror lights ............2-48
Warning/indicator lights and audible
reminders ..................2-9
Xenon headlights ............. 2-30
Light replacement .............. .8-23
Lights, Exterior and interior light
replacement ................. .8-24
Loading information (See vehicle loading
information) .................. .9-14
Lock Automatic door locks ............3-5
Door locks ..................3-4
Power door lock ...............3-4
Trunk lid .................. 3-28
Locking with mechanical key ..........3-4
Low fuel warning ............... .2-19
Low outside temperature warning . . . . . .2-19
Low tire pressure warning light ........2-10
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .....5-3
Low washer fluid warning ...........2-19
Maintenance Battery ................... .8-13
General
maintenance ............8-2
Indicators for maintenance
(dot matrix) ................. 2-21
Inside the vehicle ..............8-3
Maintenance precautions .........8-5
Maintenance requirements . . ......8-2
Outside the vehicle .............8-2
Seat belt maintenance ...........1-17
10-4
—
—
04/30/10—diane
