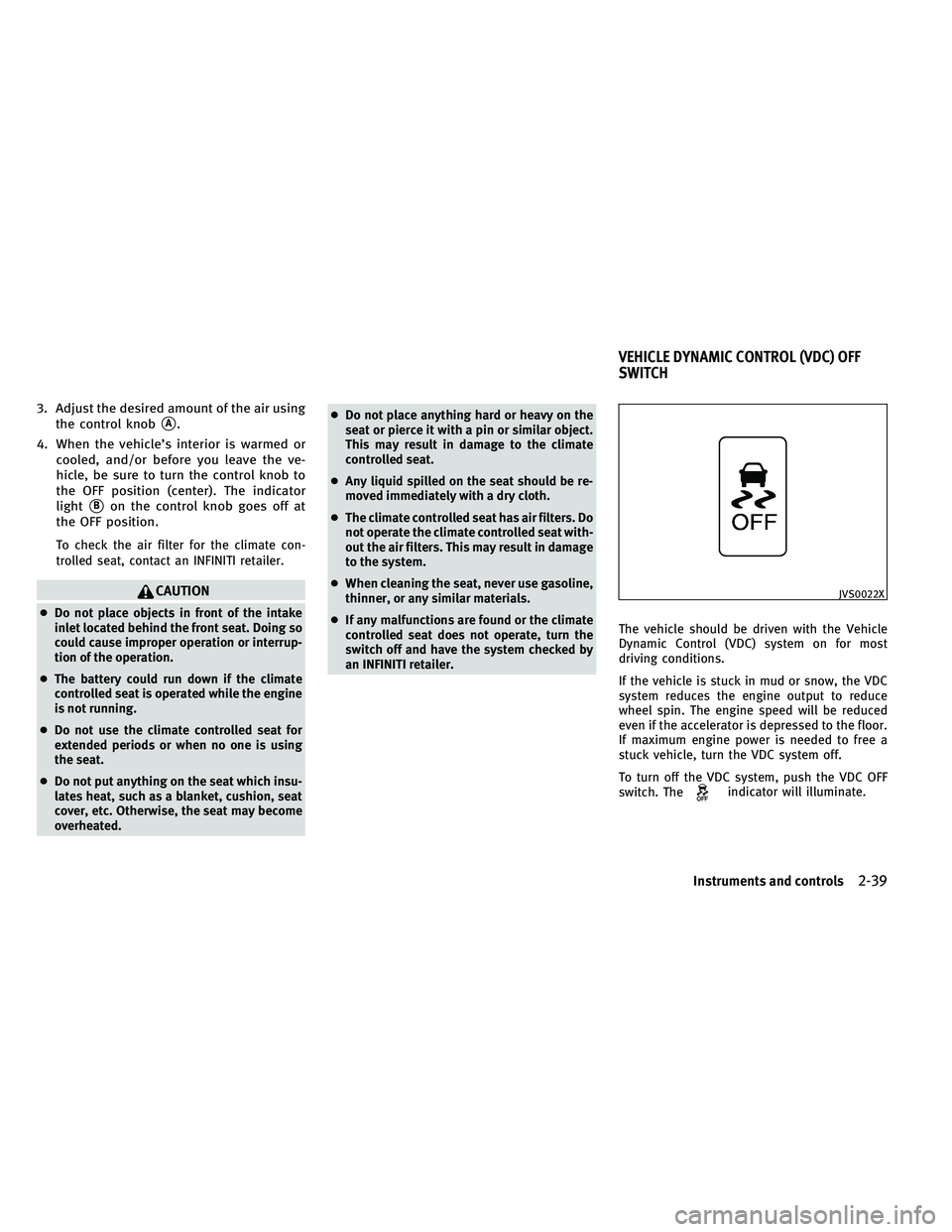

3. Adjust the desired amount of the air usingthe control knob
A.
4. When the vehicle’s interior is warmed or cooled, and/or before you leave the ve-
hicle, be sure to turn the control knob to
the OFF position (center). The indicator
light
Bon the control knob goes off at
the OFF position.
To check the air filter for the climate con-
trolled seat, contact an INFINITI retailer.
CAUTION
● Do not place objects in front of the intake
inlet located behind the front seat. Doing so
could cause improper operation or interrup-
tion of the operation.
● The battery could run down if the climate
controlled seat is operated while the engine
is not running.
● Do not use the climate controlled seat for
extended periods or when no one is using
the seat.
● Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated. ●
Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the climate
controlled seat.
● Any liquid spilled on the seat should be re-
moved immediately with a dry cloth.
● The climate controlled seat has air filters. Do
not operate the climate controlled seat with-
out the air filters. This may result in damage
to the system.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials.
● If any malfunctions are found or the climate
controlled seat does not operate, turn the
switch off and have the system checked by
an INFINITI retailer. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
JVS0022X
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH
Instruments and controls2-39

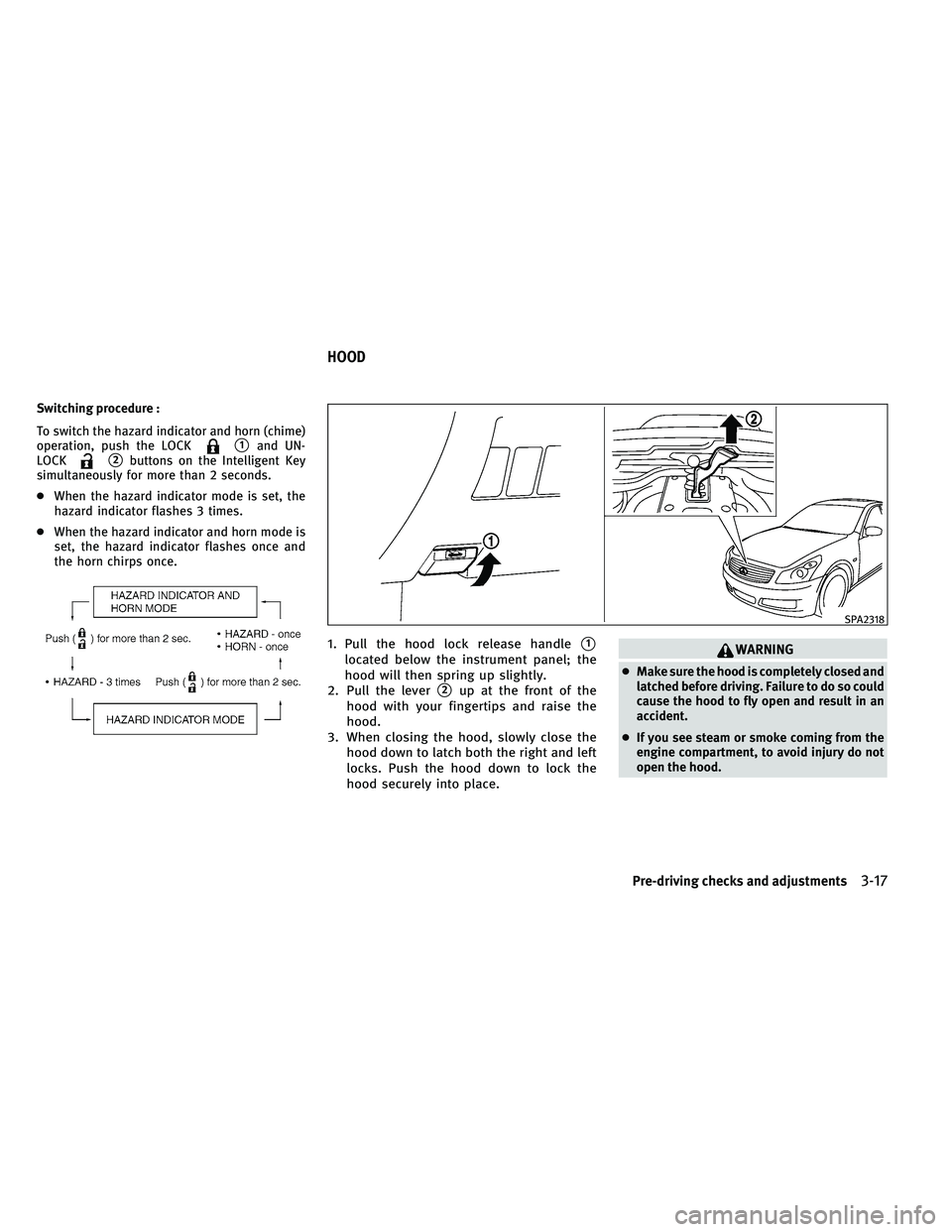

Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2318
HOOD
Pre-driving checks and adjustments3-17

To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
●Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire.
● Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the malfunction indicator light to
come on. ●
Never pour fuel into the throttle body to at-
tempt to start your vehicle.
● Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can cause
an explosion of flammable liquid, vapor or
gas in any vehicle or trailer. To reduce the
risk of serious injury or death when filling
portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel contain- ers for flammable liquid.
CAUTION
●If fuel is spilled on the vehicle body, flush it
away with water to avoid paint damage. ●
Insert the cap straight into the fuel-filler
tube, then tighten until a single click is
heard. Failure to tighten the fuel-filler cap
properly may cause the
malfunction
indicator light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten or in-
stall the cap and continue to drive the ve-
hicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer.
● The LOOSE FUEL CAP warning will appear if
the fuel-filler cap is not properly tightened.
Failure to tighten the fuel-filler cap properly
after the LOOSE FUEL CAP warning appears
may cause the
Malfunction Indicator
Light (MIL) to illuminate.
Pre-driving checks and adjustments3-31

Confirming memory storage
●Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback.
3. Use one of the following methods to move
the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON position
and push the memory switch (1 or 2) fully for
at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2) fully
for at least 1 second.
The driver’s seat, steering column and out-
side mirrors will move to the memorized
position with the indicator light flashing,
and then the light will stay on for approxi-
mately 5 seconds.
For manual transmission models, the memory
positions can be selected even when the engine
is running. In this case, move the shift lever to
the N (Neutral) position and apply the parking
brake. Then, perform step 2.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the parking brake is released (MT
models).
● When the speed is above 4 MPH (7 km/h)
while the parking brake is applied (MT mod-
els).
To restart the drive positioner system, move
the parking brake to off and on.
● When the engine is started while moving the
automatic drive positioner.
Pre-driving checks and adjustments3-39

●Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head restraints.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section.)1. Apply the parking brake.
2. Automatic Transmission (AT) model:
Move the selector lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral) posi-
tion. Depress the clutch pedal fully to the
floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried when op-
erating the ignition switch.
3. Push the ignition switch to the ON posi-
tion. Depress the brake pedal (AT model)
or the clutch pedal (MT model) and push
the ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal or the clutch pedal (MT
model) with the ignition switch in any posi-
tion. ●
If the engine is very hard to start in
extremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
● If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON posi-
tion to start cranking the engine. After 5
or 6 seconds, stop cranking by pushing
the ignition switch to OFF. After cranking
the engine, release the accelerator pedal.
Crank the engine with your foot off the
accelerator pedal by depressing the brake
pedal and the clutch pedal (MT model)
and pushing the push-button ignition
switch to start the engine. If the engine
starts, but fails to run, repeat the above
procedure.CAUTION
Do not operate the starter for more than 15
seconds at a time. If the engine does not start,
push the ignition switch to OFF and wait 10
seconds before cranking again, otherwise the
starter could be damaged.
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving5-11

When shifting down, move the selector lever to
the(down) side or pull the left-side paddle
shifter ()
B(if so equipped). The transmis-
sion shifts to the lower range.
When canceling the manual shift mode, return
the selector lever to the D (Drive) position. The
transmission returns to the normal driving mode.
When you pull the paddle shifter while in the D
(Drive) position, the transmission will shift to the
upper or lower range temporarily. The transmis-
sion will automatically return to the D (Drive)
position after a short period of time. If you want
to return to the D (Drive) position manually, pull
and hold the paddle shifter for about 1.5 seconds.
In the manual shift mode, the shift range is
displayed on the position indicator in the meter.
Shift ranges up or down one by one as follows:
M1 →
←M2→
←M3→
←M4→
←M5→
←M6→
←M7
M7 (7th) :
Use this position for all normal forward driving
at highway speeds.
M6 (6th) andM5 (5th) :
Use this position when driving up long slopes,
or for engine braking when driving down long
slopes.
M4 (4th),M3 (3rd) andM2 (2nd) :
Use for hill climbing or engine braking on
downhill grades.
M1 (1st) :
Use this position when climbing steep hills
slowly or driving slowly through deep snow, or
for maximum engine braking on steep downhill
grades.
● Remember not to drive at high speeds for
extended periods of time in lower than 7th
gear. This reduces fuel economy.
●
Moving the selector lever rapidly to the same
side twice will shift the ranges in succession.
●In the manual shift mode, the transmission
may not shift to the selected gear. This helps
maintain driving performance and reduces the
chance of vehicle damage or loss of control.
When this situation occurs, the Automatic
Transmission (AT) position indicator light (on
the dot matrix liquid crystal display) will
blink and the chime will sound.
● In the manual shift mode, the transmission
automatically shifts down to 1st gear before
the vehicle comes to a stop. When accelerat-
ing again, it is necessary to shift up to the
desired range.
Accelerator downshift — In D (Drive)
position —
For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into the lower gear, depend-
ing on the vehicle speed.
Fail-safe
When the fail-safe operation occurs, note that
the transmission will be locked in any of the
forward gears according to the condition.
If the vehicle is driven under extreme conditions,
such as excessive wheel spinning and subse-
quent hard braking, the fail-safe system may be
activated. This will occur even if all electrical
circuits are functioning properly. In this case,
push the ignition switch to the OFF position and
wait for 3 seconds. Then push the ignition switch
back to the ON position. The vehicle should re-
turn to its normal operating condition. If it does
not return to its normal operating condition,
have an INFINITI retailer check the transmission
and repair if necessary.
Starting and driving5-15

Shift lock release
If the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed and the selector lever button pushed.
To move the selector lever, perform the follow-
ing procedure:
1. Push the ignition switch to the OFF orLOCK position.
2. Apply the parking brake.
3. Remove the shift lock cover
Ausing a
suitable tool. 4. Push down the shift lock
Bas illustrated.
5. Push the selector lever button
Cand
move the selector lever to N (Neutral)
position
Dwhile holding down the shift
lock.
Push the ignition switch to the ON position to
unlock the steering wheel (if so equipped). Now
the vehicle may be moved to the desired loca-
tion.
For models with a steering wheel lock mecha-
nism: If the battery is discharged completely,
the steering wheel cannot be unlocked. Do not
move the vehicle with the steering wheel
locked.
If the lever cannot be moved out of P (Park),
have an INFINITI retailer check the automatic
transmission system as soon as possible.
MANUAL TRANSMISSION
WARNING
● Do not downshift abruptly on slippery roads.
This may cause a loss of vehicle control.
● Do not over-rev the engine when shifting to a
lower gear. This may cause a loss of vehicle
control or engine damage.
CAUTION
● Do not rest your foot on the clutch pedal
while driving. This may damage the clutch.
● Fully depress the clutch pedal before shift-
ing to help prevent transmission damage.
● Stop your vehicle completely before shifting
into the R (Reverse) position.
● When the vehicle is stopped with the engine
running for a period of time, for example at a
stop light, shift to the N (Neutral) position
and release the clutch pedal with the foot
brake applied.SSD0598
5-16Starting and driving

MANUAL TRANSMISSION MODELS
To apply:Pull the parking brake lever up1.
To release:
1. Firmly apply the foot brake.
2. While pulling up on the parking brake lever slightly, push the button
2and
lower the lever completely
3.
3. Before driving, be sure the brake warning light goes out.
PRECAUTIONS ON CRUISE CONTROL
●If the cruise control system malfunctions, it
will cancel automatically. The SET indicator
on the dot matrix crystal display will then
blink to warn the driver.
● If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the SET indicator blinks, turn the cruise
control main switch off and have the system
checked by your INFINITI retailer.
● The SET indicator may sometimes blink
when the cruise control main switch is
turned ON while pushing the
RESUME/ACCELERATE, SET/COAST or CAN-
CEL switch. To properly set the cruise control
system, perform the steps below in the order
indicated.
WARNING
Do not use the cruise control when driving un-
der the following conditions:
● when it is not possible to keep the vehicle at
a set speed
● in heavy traffic or in traffic that varies in
speed
● on winding or hilly roads
● on slippery roads (rain, snow, ice, etc.)
● in very windy areas
Doing so could cause a loss of vehicle control
and result in an accident.
CAUTION
On manual transmission models, do not shift
into N (Neutral) without depressing the clutch
pedal when the cruise control is set. Should
this occur, depress the clutch pedal and turn
the main switch off immediately. Failure to do
so may cause engine damage.
SPA2110
CRUISE CONTROL
Starting and driving5-19

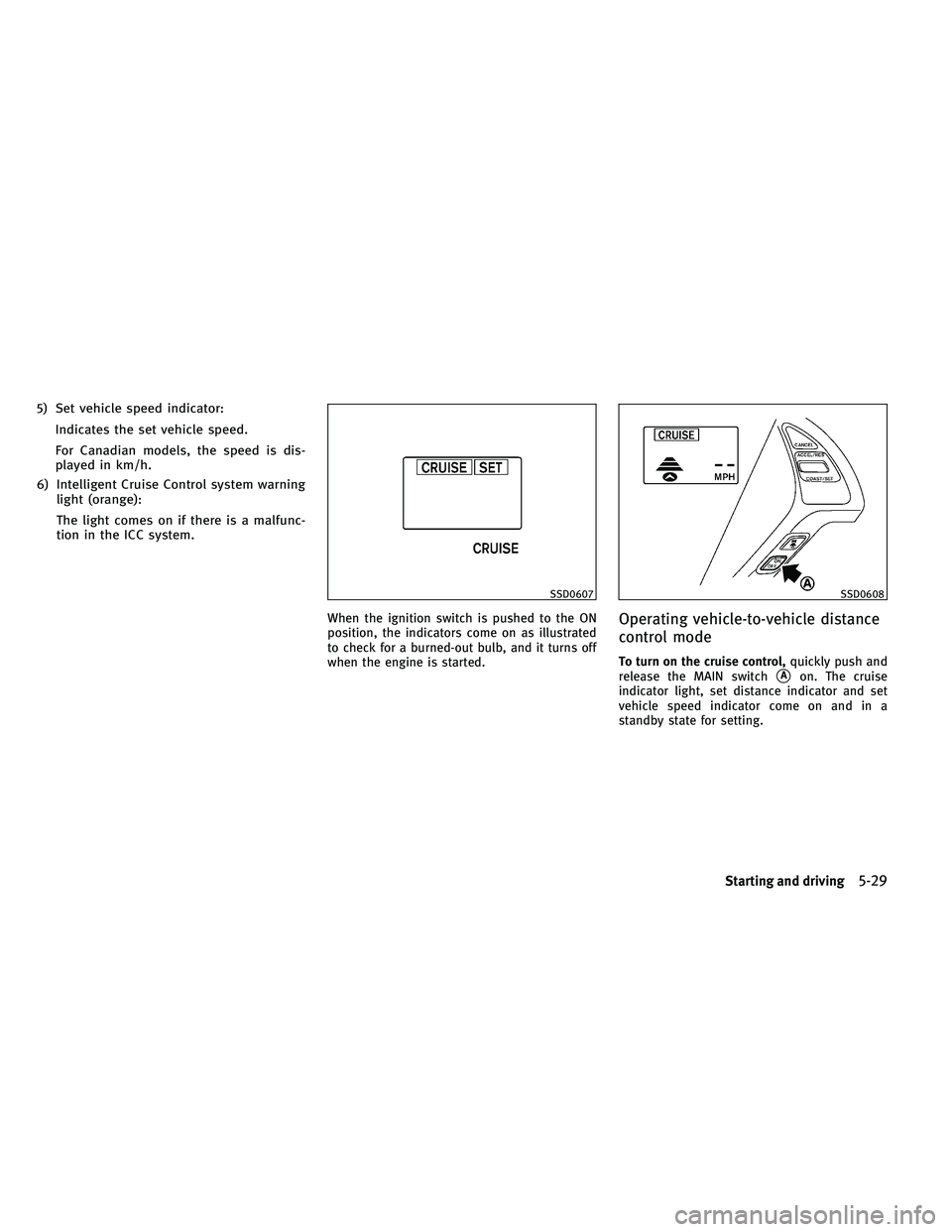

5) Set vehicle speed indicator:Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
6) Intelligent Cruise Control system warning light (orange):
The light comes on if there is a malfunc-
tion in the ICC system.
When the ignition switch is pushed to the ON
position, the indicators come on as illustrated
to check for a burned-out bulb, and it turns off
when the engine is started.Operating vehicle-to-vehicle distance
control mode
To turn on the cruise control, quickly push and
release the MAIN switch
Aon. The cruise
indicator light, set distance indicator and set
vehicle speed indicator come on and in a
standby state for setting.
SSD0607SSD0608
Starting and driving5-29

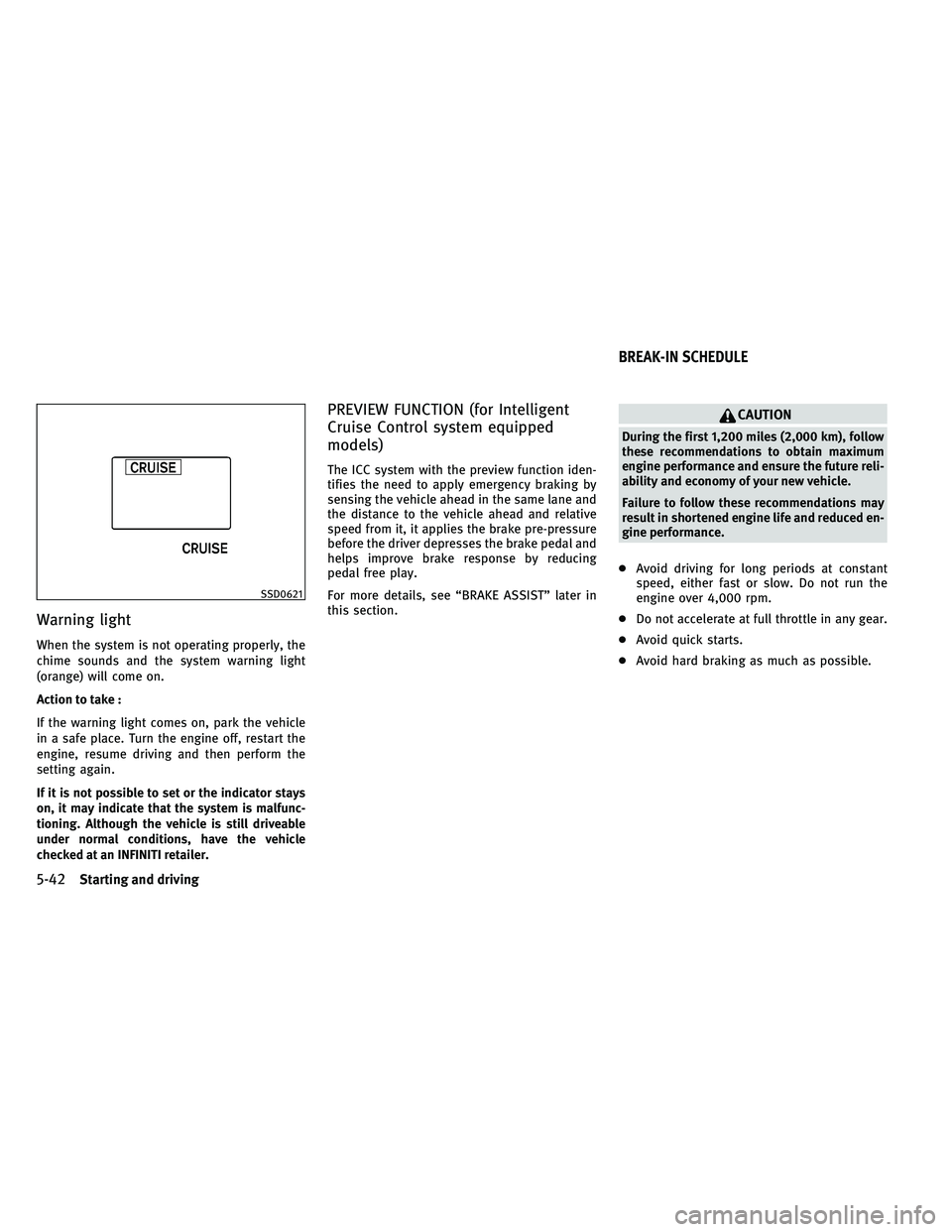

Warning light
When the system is not operating properly, the
chime sounds and the system warning light
(orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and then perform the
setting again.
If it is not possible to set or the indicator stays
on, it may indicate that the system is malfunc-
tioning. Although the vehicle is still driveable
under normal conditions, have the vehicle
checked at an INFINITI retailer.
PREVIEW FUNCTION (for Intelligent
Cruise Control system equipped
models)
The ICC system with the preview function iden-
tifies the need to apply emergency braking by
sensing the vehicle ahead in the same lane and
the distance to the vehicle ahead and relative
speed from it, it applies the brake pre-pressure
before the driver depresses the brake pedal and
helps improve brake response by reducing
pedal free play.
For more details, see “BRAKE ASSIST” later in
this section.
CAUTION
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle.
Failure to follow these recommendations may
result in shortened engine life and reduced en-
gine performance.
● Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
● Do not accelerate at full throttle in any gear.
● Avoid quick starts.
● Avoid hard braking as much as possible.
SSD0621
BREAK-IN SCHEDULE
5-42Starting and driving
