INFINITI G-CONVERTIBLE 2011 Owners Manual

●When the vehicle traveling ahead has moved
out from its lane of travel, the vehicle-to-
vehicle distance control mode accelerates
and maintains vehicle speed up to the set
speed.
The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll
gates or traffic congestion.
The detection zone of the ICC sensor is limited.
A vehicle ahead must be in the detection zone
for the vehicle-to-vehicle distance detection
mode to maintain the selected distance from
the vehicle ahead.
A vehicle ahead may move outside of the de-
tection zone due to its position within the same
lane of travel. Motorcycles may not be detected
in the same lane ahead if they are traveling
offset from the centerline of the lane. A vehicle
that is entering the lane ahead may not be
detected until the vehicle has completely
moved into the lane.If this occurs, the ICC
system may warn you by blinking the system
indicator and sounding the chime. The driver may have to manually control the proper dis-
tance away from vehicle traveling ahead.
SSD0252
5-26Starting and driving

When driving on some roads, such as winding,
hilly, curved, narrow roads, or roads which are
under construction, the ICC sensor may detect
vehicles in a different lane, or may temporarily
not detect a vehicle traveling ahead. This may
cause the ICC system to decelerate or acceler-
ate the vehicle.The detection of vehicles may also be affected
by vehicle operation (steering maneuver or trav-
eling position in the lane, etc.) or vehicle con-
dition.
If this occurs, the ICC system may warn
you by blinking the system indicator and sound-
ing the chime unexpectedly. You will have to
manually control the proper distance away from
the vehicle traveling ahead. When driving on the freeway at a set speed and
approaching a slower traveling vehicle ahead,
the ICC will adjust the speed to maintain the
distance, selected by the driver, from the ve-
hicle ahead. If the vehicle ahead changes lanes
or exits the freeway, the ICC system will accel-
erate and maintain the speed up to the set
speed. Pay attention to the driving operation to
maintain control of the vehicle as it accelerates
to the set speed.
The vehicle may not maintain the set speed on
winding or hilly roads. If this occurs, you will
have to manually control the vehicle speed.
SSD0253SSD0254
Starting and driving5-27

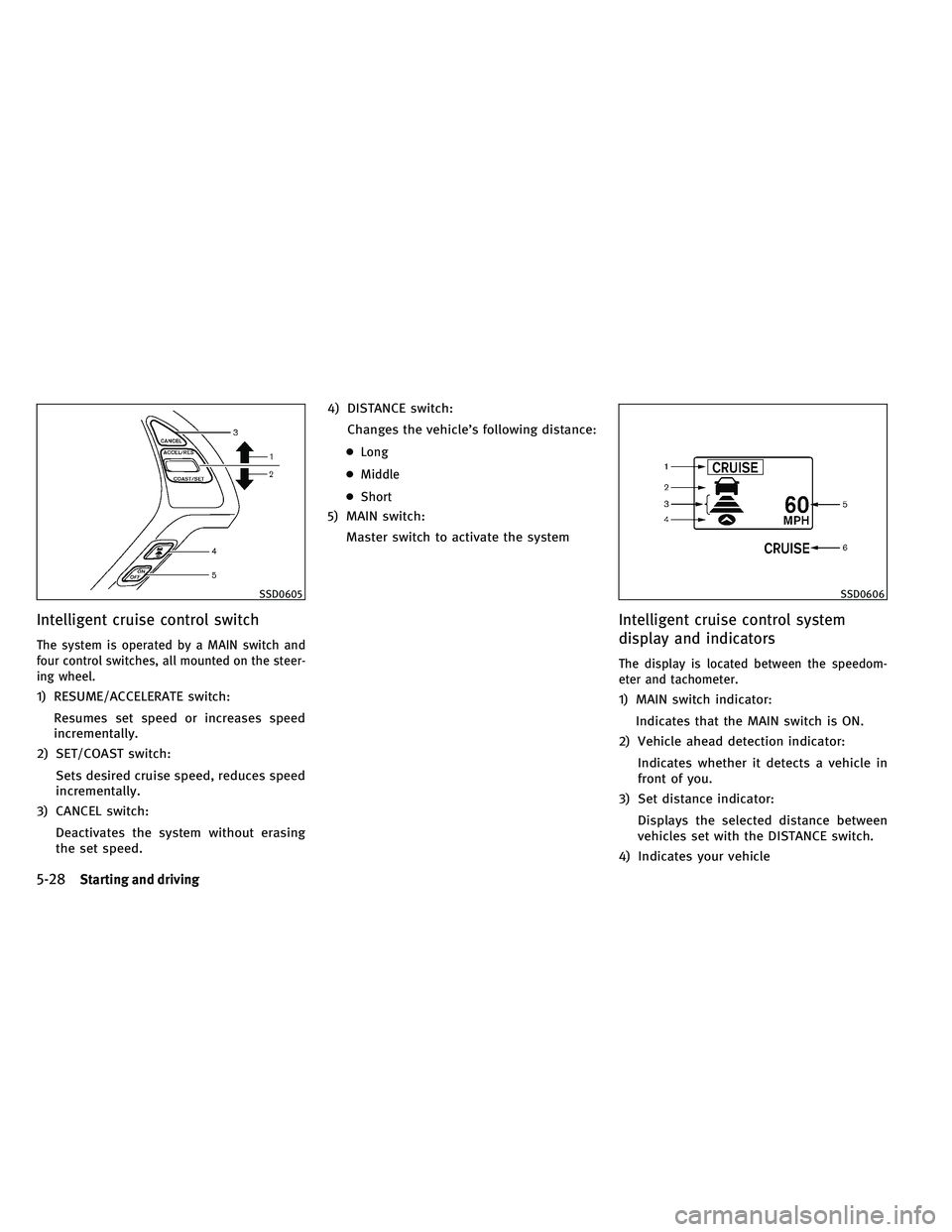

Intelligent cruise control switch
The system is operated by a MAIN switch and
four control switches, all mounted on the steer-
ing wheel.
1) RESUME/ACCELERATE switch:Resumes set speed or increases speed
incrementally.
2) SET/COAST switch:
Sets desired cruise speed, reduces speed
incrementally.
3) CANCEL switch:
Deactivates the system without erasing
the set speed. 4) DISTANCE switch:
Changes the vehicle’s following distance:
●Long
● Middle
● Short
5) MAIN switch:
Master switch to activate the system
Intelligent cruise control system
display and indicators
The display is located between the speedom-
eter and tachometer.
1) MAIN switch indicator:
Indicates that the MAIN switch is ON.
2) Vehicle ahead detection indicator:
Indicates whether it detects a vehicle in
front of you.
3) Set distance indicator:
Displays the selected distance between
vehicles set with the DISTANCE switch.
4) Indicates your vehicle
SSD0605SSD0606
5-28Starting and driving

5) Set vehicle speed indicator:Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
6) Intelligent Cruise Control system warning light (orange):
The light comes on if there is a malfunc-
tion in the ICC system.
When the ignition switch is pushed to the ON
position, the indicators come on as illustrated
to check for a burned-out bulb, and it turns off
when the engine is started.Operating vehicle-to-vehicle distance
control mode
To turn on the cruise control, quickly push and
release the MAIN switch
Aon. The cruise
indicator light, set distance indicator and set
vehicle speed indicator come on and in a
standby state for setting.
SSD0607SSD0608
Starting and driving5-29

To set cruising speed,accelerate your vehicle to
the desired speed, push the SET/COAST switch
and release it. (Vehicle ahead detection indica-
tor, set distance indicator and set vehicle speed
indicator come on.) Take your foot off the
accelerator pedal. Your vehicle will maintain the
set speed. When the SET/COAST switch is pushed under
the following conditions, the system cannot be
set and the ICC indicators will blink for approxi-
mately 2 seconds.
●
When traveling below 25 MPH (40 km/h) and
the vehicle ahead is not detected
● When the selector lever is not in the D, DS or
Manual mode
● When the windshield wipers are operating at
low (LO) or high speed (HI) ●
When the rain sensing auto wiper system is
operated and the wiper speed is at least the
same as the LO (low ) position speed
● When the brakes are operated by the driver
SSD0609SSD0784
5-30Starting and driving

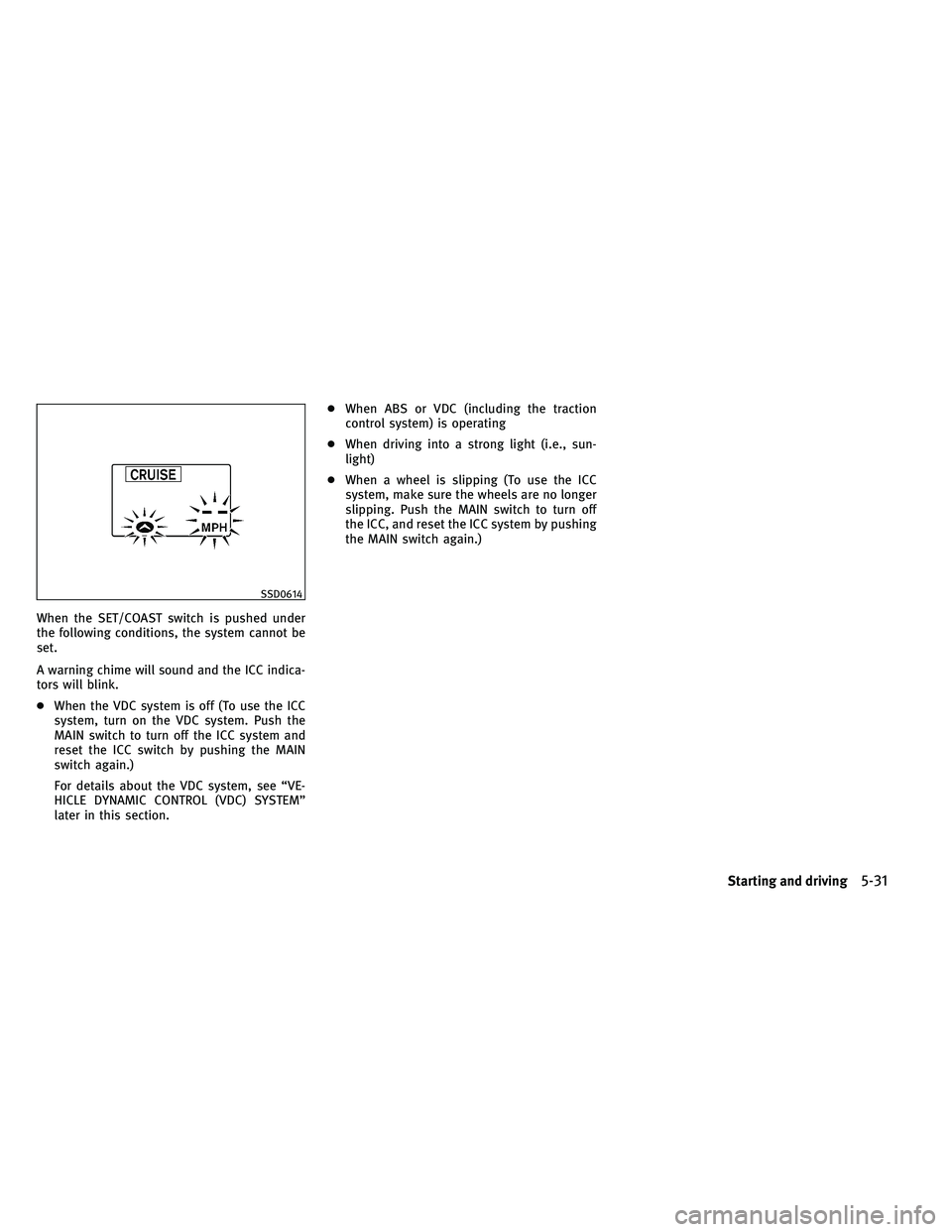

When the SET/COAST switch is pushed under
the following conditions, the system cannot be
set.
A warning chime will sound and the ICC indica-
tors will blink.
●When the VDC system is off (To use the ICC
system, turn on the VDC system. Push the
MAIN switch to turn off the ICC system and
reset the ICC switch by pushing the MAIN
switch again.)
For details about the VDC system, see “VE-
HICLE DYNAMIC CONTROL (VDC) SYSTEM”
later in this section. ●
When ABS or VDC (including the traction
control system) is operating
● When driving into a strong light (i.e., sun-
light)
● When a wheel is slipping (To use the ICC
system, make sure the wheels are no longer
slipping. Push the MAIN switch to turn off
the ICC, and reset the ICC system by pushing
the MAIN switch again.)
SSD0614
Starting and driving5-31

1. System set display with vehicle ahead
2. System set display without vehicle ahead
System operation
WARNING
Normally when controlling the distance to a
vehicle ahead, this system automatically accel-
erates or decelerates your vehicle according to
the speed of the vehicle ahead. Depress the
accelerator to properly accelerate your vehicle
when acceleration is required for a lanechange. Depress the brake pedal when decel-
eration is required to maintain a safe distance
to the vehicle ahead due to its sudden braking
or if a vehicle cuts in. Always stay alert when
using the ICC system.
The driver sets the desired vehicle speed based
on the road conditions. The ICC system main-
tains the set vehicle speed, similar to standard
cruise control, as long as no vehicle is detected
in the lane ahead.
The ICC system displays the set speed. Vehicle detected ahead :
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by con-
trolling the throttle and applying the brakes to
match the speed of a slower vehicle ahead. The
system then controls the vehicle speed based
on the speed of the vehicle ahead to maintain
the driver selected distance.
The stoplights of the vehicle come on when brak-
ing is performed by the ICC system.
When the brake operates, a noise may be heard.
This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and
selected distance.
Vehicle ahead not detected :
When a vehicle is no longer detected ahead, the
ICC system gradually accelerates your vehicle to
resume the previously set vehicle speed. The
ICC system then maintains the set speed.
When a vehicle is no longer detected the vehicle
ahead detection indicator turns off.
SSD0610
5-32Starting and driving

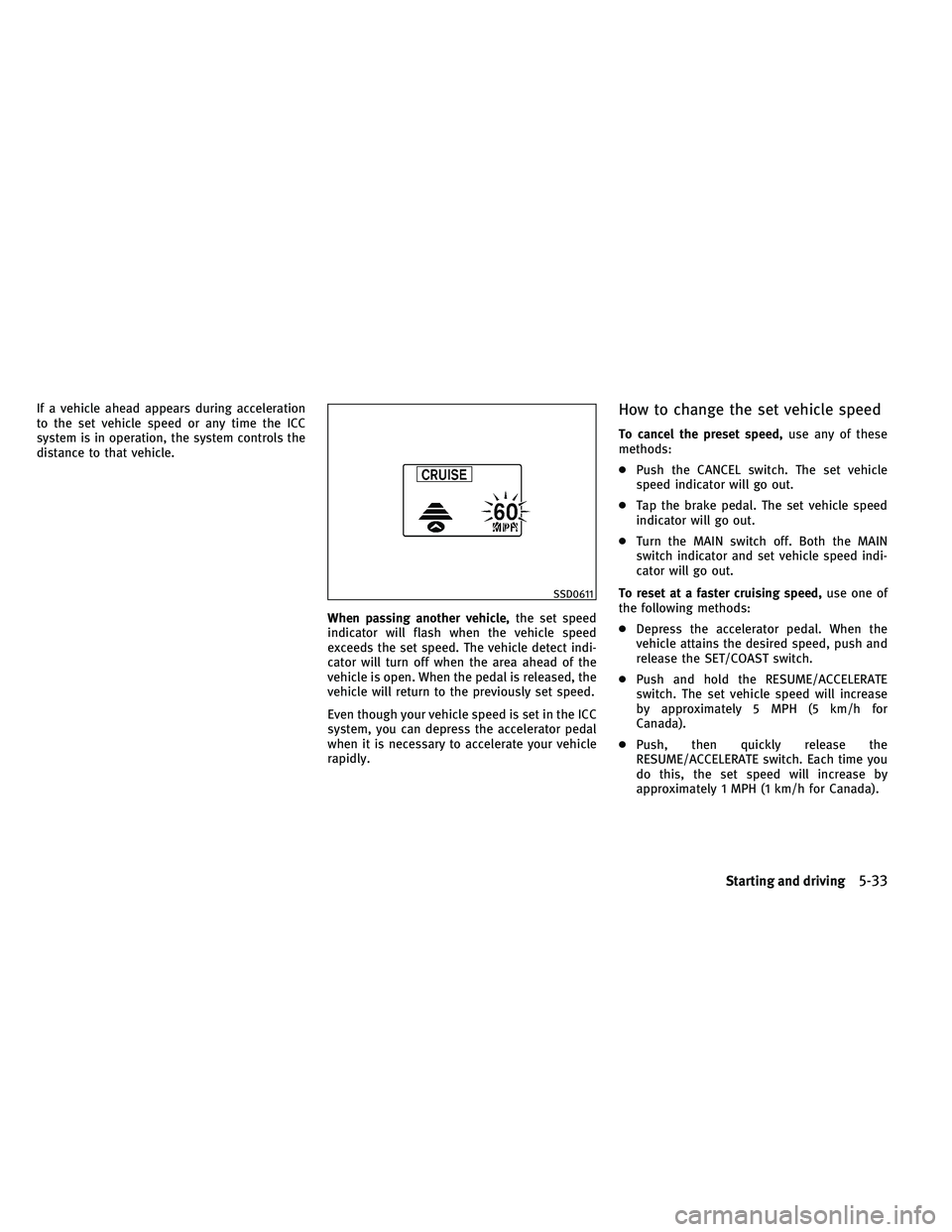

If a vehicle ahead appears during acceleration
to the set vehicle speed or any time the ICC
system is in operation, the system controls the
distance to that vehicle.When passing another vehicle,the set speed
indicator will flash when the vehicle speed
exceeds the set speed. The vehicle detect indi-
cator will turn off when the area ahead of the
vehicle is open. When the pedal is released, the
vehicle will return to the previously set speed.
Even though your vehicle speed is set in the ICC
system, you can depress the accelerator pedal
when it is necessary to accelerate your vehicle
rapidly.How to change the set vehicle speed
To cancel the preset speed, use any of these
methods:
● Push the CANCEL switch. The set vehicle
speed indicator will go out.
● Tap the brake pedal. The set vehicle speed
indicator will go out.
● Turn the MAIN switch off. Both the MAIN
switch indicator and set vehicle speed indi-
cator will go out.
To reset at a faster cruising speed, use one of
the following methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the SET/COAST switch.
● Push and hold the RESUME/ACCELERATE
switch. The set vehicle speed will increase
by approximately 5 MPH (5 km/h for
Canada).
● Push, then quickly release the
RESUME/ACCELERATE switch. Each time you
do this, the set speed will increase by
approximately 1 MPH (1 km/h for Canada).
SSD0611
Starting and driving5-33

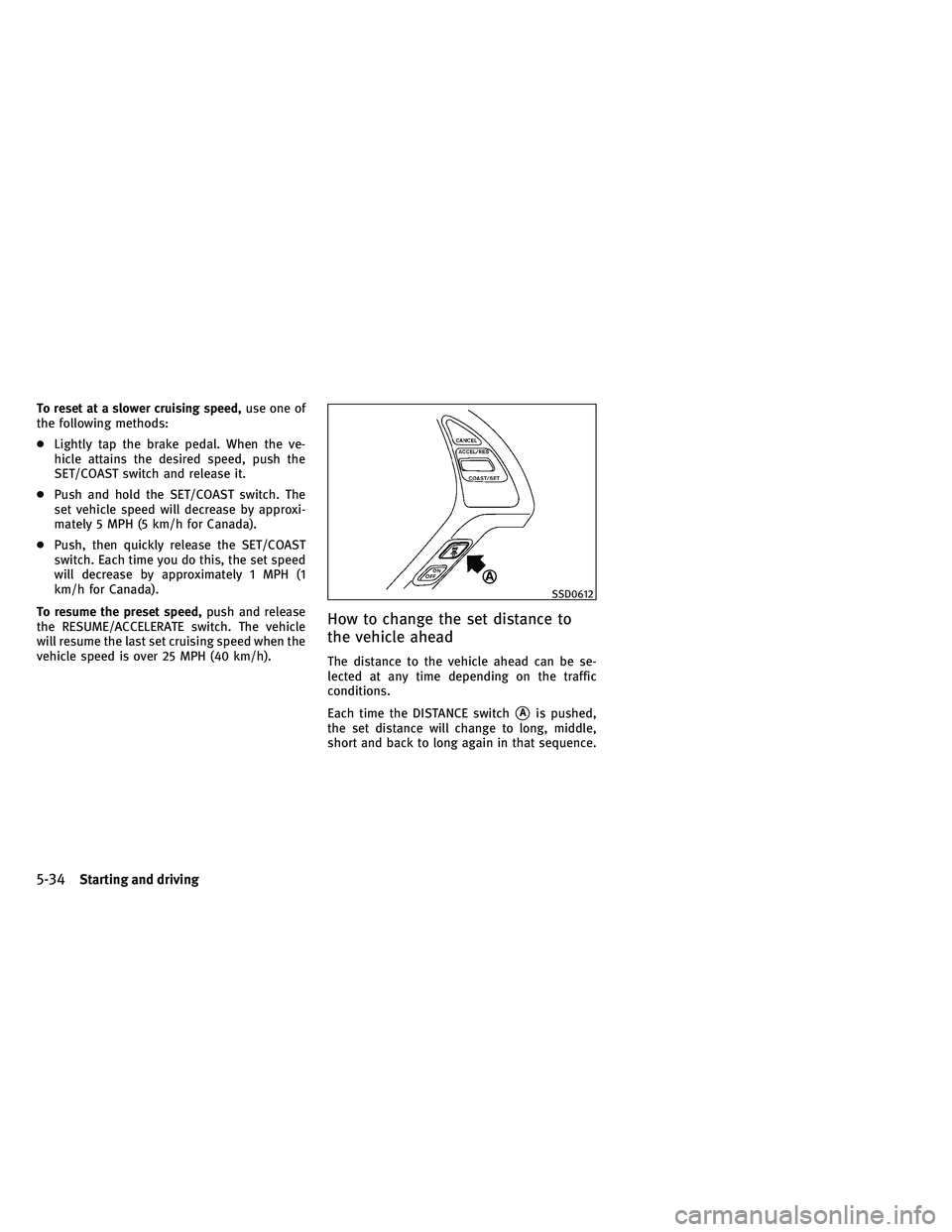

To reset at a slower cruising speed,use one of
the following methods:
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
SET/COAST switch and release it.
● Push and hold the SET/COAST switch. The
set vehicle speed will decrease by approxi-
mately 5 MPH (5 km/h for Canada).
● Push, then quickly release the SET/COAST
switch. Each time you do this, the set speed
will decrease by approximately 1 MPH (1
km/h for Canada).
To resume the preset speed, push and release
the RESUME/ACCELERATE switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
How to change the set distance to
the vehicle ahead
The distance to the vehicle ahead can be se-
lected at any time depending on the traffic
conditions.
Each time the DISTANCE switch
Ais pushed,
the set distance will change to long, middle,
short and back to long again in that sequence.
SSD0612
5-34Starting and driving

●The distance to the vehicle ahead will
change according to the vehicle speed. The
higher the vehicle speed, the longer the
distance. ●
If the engine is stopped, the set distance
becomes “long”. (Each time the engine is
started, the initial setting becomes “long”.)
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that vehicle
or if another vehicle cuts in, the system warns
the driver with the chime and ICC system dis-
play. Decelerate by depressing the brake pedal
to maintain a safe vehicle distance if:
● The chime sounds.
● The vehicle ahead detection and set dis-
tance indicator blink.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are:
● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing
● When a vehicle cuts in near your vehicle
The warning chime will not sound when:
● Your vehicle approaches vehicles that are
parked or moving slowly.
● The accelerator pedal is depressed, overrid-
ing the system.
SSD0613
Starting and driving5-35
