INFINITI G-COUPE 2010 Owners Manual

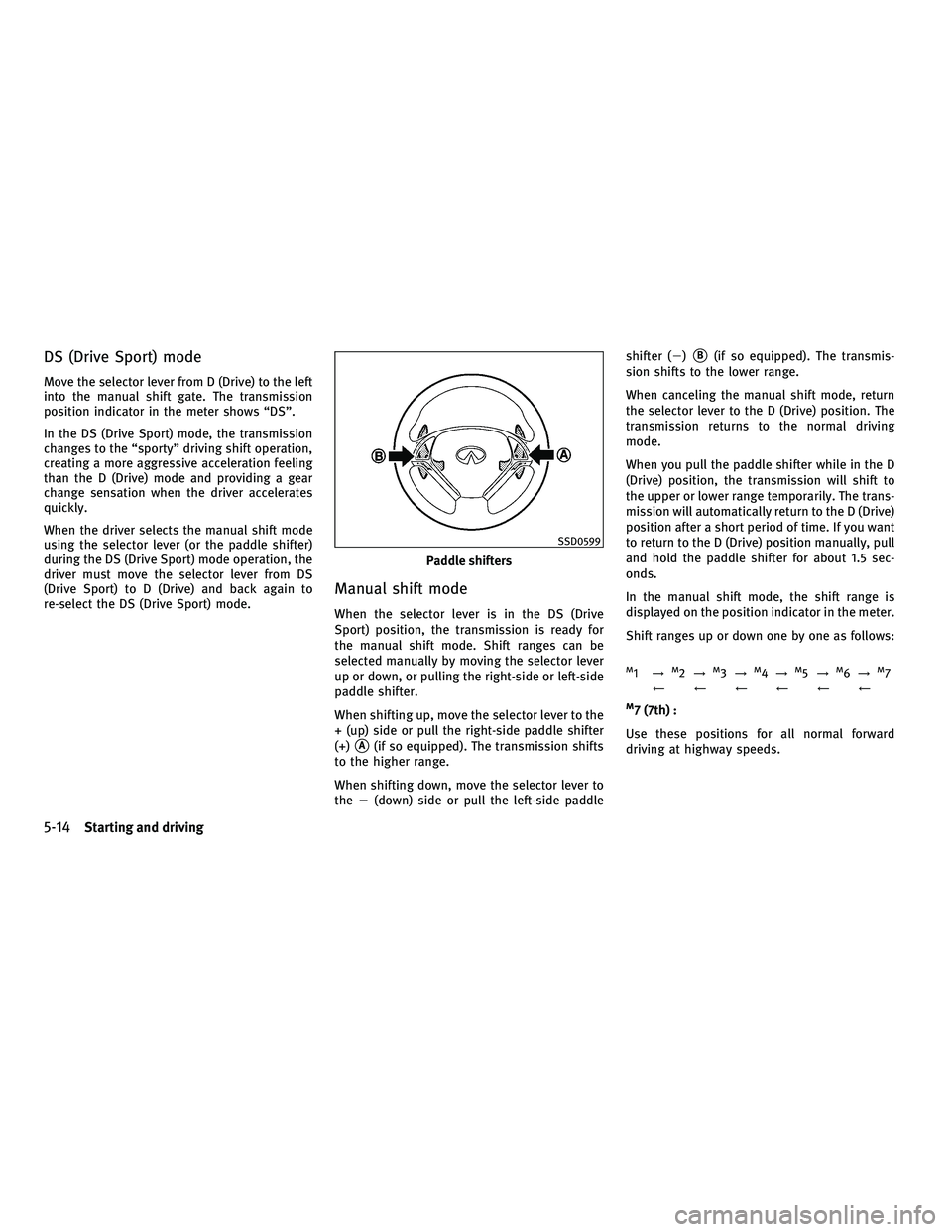

DS (Drive Sport) mode
Move the selector lever from D (Drive) to the left
into the manual shift gate. The transmission
position indicator in the meter shows “DS”.
In the DS (Drive Sport) mode, the transmission
changes to the “sporty” driving shift operation,
creating a more aggressive acceleration feeling
than the D (Drive) mode and providing a gear
change sensation when the driver accelerates
quickly.
When the driver selects the manual shift mode
using the selector lever (or the paddle shifter)
during the DS (Drive Sport) mode operation, the
driver must move the selector lever from DS
(Drive Sport) to D (Drive) and back again to
re-select the DS (Drive Sport) mode.
Manual shift mode
When the selector lever is in the DS (Drive
Sport) position, the transmission is ready for
the manual shift mode. Shift ranges can be
selected manually by moving the selector lever
up or down, or pulling the right-side or left-side
paddle shifter.
When shifting up, move the selector lever to the
+ (up) side or pull the right-side paddle shifter
(+)
A(if so equipped). The transmission shifts
to the higher range.
When shifting down, move the selector lever to
the (down) side or pull the left-side paddle shifter ()
B(if so equipped). The transmis-
sion shifts to the lower range.
When canceling the manual shift mode, return
the selector lever to the D (Drive) position. The
transmission returns to the normal driving
mode.
When you pull the paddle shifter while in the D
(Drive) position, the transmission will shift to
the upper or lower range temporarily. The trans-
mission will automatically return to the D (Drive)
position after a short period of time. If you want
to return to the D (Drive) position manually, pull
and hold the paddle shifter for about 1.5 sec-
onds.
In the manual shift mode, the shift range is
displayed on the position indicator in the meter.
Shift ranges up or down one by one as follows:
M1 →
←M2→
←M3→
←M4→
←M5→
←M6→
←M7
M7 (7th) :
Use these positions for all normal forward
driving at highway speeds.
Paddle shifters
SSD0599
5-14Starting and driving
—
—
04/21/10—debbie


M6 (6th) andM5 (5th) :
Use this position when driving up long slopes,
or for engine braking when driving down long
slopes.
M4 (4th),M3 (3rd) andM2 (2nd) :
Use these positions for hill climbing or engine
braking on downhill grades.
M1 (1st) :
Use this position when climbing steep hills
slowly or driving slowly through deep snow, or
for maximum engine braking on steep downhill
grades.
● Remember not to drive at high speeds for
extended periods of time in lower than 7th
gear. This reduces fuel economy.
● Moving the selector lever rapidly to the same
side twice will shift the ranges in succes-
sion.
● In the manual shift mode, the transmission
may not shift to the selected gear. This helps
maintain driving performance and reduces
the chance of vehicle damage or loss of con-
trol.
When this situation occurs, the Automatic
Transmission (AT) position indicator light (on
the dot matrix liquid crystal display) will
blink and the chime will sound. ●
In the manual shift mode, the transmission
automatically shifts down to 1st gear before
the vehicle comes to a stop. When accelerat-
ing again, it is necessary to shift up to the
desired range.
Accelerator downshift — In D (Drive)
position —
For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into the lower gear, depend-
ing on the vehicle speed.
Fail-safe
When the fail-safe operation occurs, note that
the transmission will be locked in any of the
forward gears according to the condition.
If the vehicle is driven under extreme conditions,
such as excessive wheel spinning and subse-
quent hard braking, the fail-safe system may be
activated. This will occur even if all electrical
circuits are functioning properly. In this case,
push the ignition switch to the OFF position and
wait for 3 seconds. Then push the ignition switch
back to the ON position. The vehicle should re-
turn to its normal operating condition. If it does
not return to its normal operating condition,
have an INFINITI retailer check the transmission
and repair if necessary.Shift lock release
If the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed and the selector lever button pushed.
To move the selector lever, perform the follow-
ing procedure:
1. Push the ignition switch to the OFF or
LOCK position.
2. Apply the parking brake.
3. Remove the shift lock cover
Ausing a
suitable tool.
SSD0598
Starting and driving5-15
—
—
04/21/10—debbie


4. Push down the shift lockBas illustrated.
5. Push the selector lever button
Cand
move the selector lever to N (Neutral)
position
Dwhile holding down the shift
lock.
Push the ignition switch to the ON position to
unlock the steering wheel. Now the vehicle may
be moved to the desired location.
If the battery is discharged completely, the
steering wheel cannot be unlocked. Do not
move the vehicle with the steering wheel
locked.
If the lever cannot be moved out of P (Park),
have an INFINITI retailer check the automatic
transmission system as soon as possible.
MANUAL TRANSMISSION
WARNING
● Do not downshift abruptly on slippery roads.
This may cause a loss of control.
● Do not over-rev the engine when shifting to a
lower gear. This may cause a loss of control
or engine damage.
CAUTION
● Do not rest your foot on the clutch pedal
while driving. This may damage the clutch.
● Fully depress the clutch pedal before shift-
ing to help prevent transmission damage.
● Stop your vehicle completely before shifting
into R (Reverse).
● When the vehicle is stopped for a period of
time, for example at a stop light, shift to N
(Neutral) and release the clutch pedal with
the foot brake applied.
Shifting
To change gears, or when upshifting or down-
shifting, fully depress the clutch pedal, shift
into the appropriate gear, then slowly and
smoothly release the clutch pedal.
This vehicle is equipped with a short throw
shifter manual transmission. To ensure smooth
gear changes, fully depress the clutch pedal
before operating the shift lever. If the clutch
pedal is not fully depressed before the trans-
mission is shifted, a gear noise may be heard.
Transmission damage could occur.
Start the vehicle in 1st gear and shift to 2nd,
3rd, 4th, 5th and 6th gear in sequence accord-
ing to vehicle speed.
SSD0536
5-16Starting and driving
—
—
04/21/10—debbie

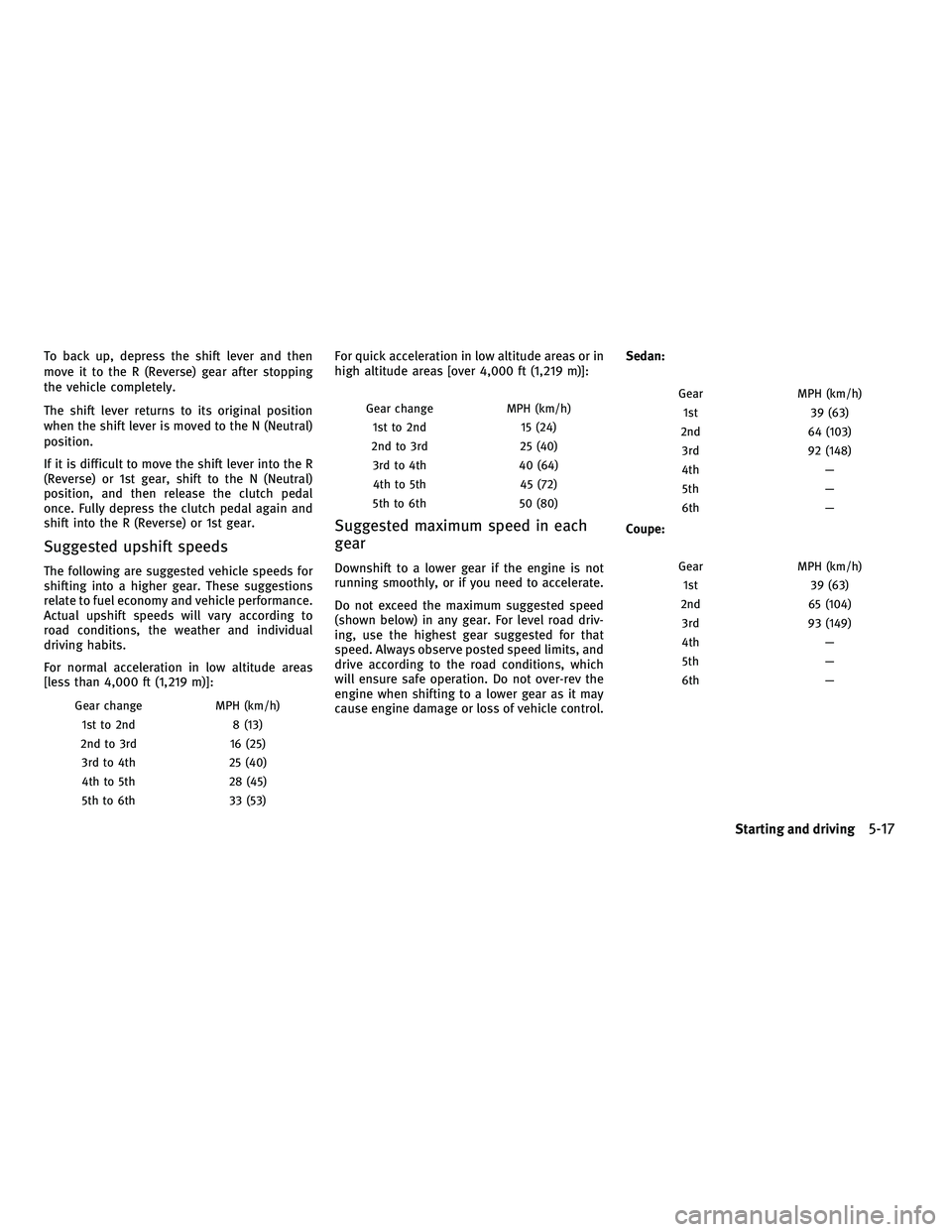

To back up, depress the shift lever and then
move it to the R (Reverse) gear after stopping
the vehicle completely.
The shift lever returns to its original position
when the shift lever is moved to the N (Neutral)
position.
If it is difficult to move the shift lever into the R
(Reverse) or 1st gear, shift to the N (Neutral)
position, and then release the clutch pedal
once. Fully depress the clutch pedal again and
shift into the R (Reverse) or 1st gear.
Suggested upshift speeds
The following are suggested vehicle speeds for
shifting into a higher gear. These suggestions
relate to fuel economy and vehicle performance.
Actual upshift speeds will vary according to
road conditions, the weather and individual
driving habits.
For normal acceleration in low altitude areas
[less than 4,000 ft (1,219 m)]:
Gear changeMPH (km/h)
1st to 2nd 8 (13)
2nd to 3rd 16 (25)
3rd to 4th 25 (40)
4th to 5th 28 (45)
5th to 6th 33 (53)
For quick acceleration in low altitude areas or in
high altitude areas [over 4,000 ft (1,219 m)]:
Gear changeMPH (km/h)
1st to 2nd 15 (24)
2nd to 3rd 25 (40)
3rd to 4th 40 (64)
4th to 5th 45 (72)
5th to 6th 50 (80)
Suggested maximum speed in each
gear
Downshift to a lower gear if the engine is not
running smoothly, or if you need to accelerate.
Do not exceed the maximum suggested speed
(shown below) in any gear. For level road driv-
ing, use the highest gear suggested for that
speed. Always observe posted speed limits, and
drive according to the road conditions, which
will ensure safe operation. Do not over-rev the
engine when shifting to a lower gear as it may
cause engine damage or loss of vehicle control. Sedan:
Gear
MPH (km/h)
1st 39 (63)
2nd 64 (103)
3rd 92 (148)
4th —
5th —
6th —
Coupe:
GearMPH (km/h)
1st 39 (63)
2nd 65 (104)
3rd 93 (149)
4th —
5th —
6th —
Starting and driving5-17
—
—
04/21/10—debbie

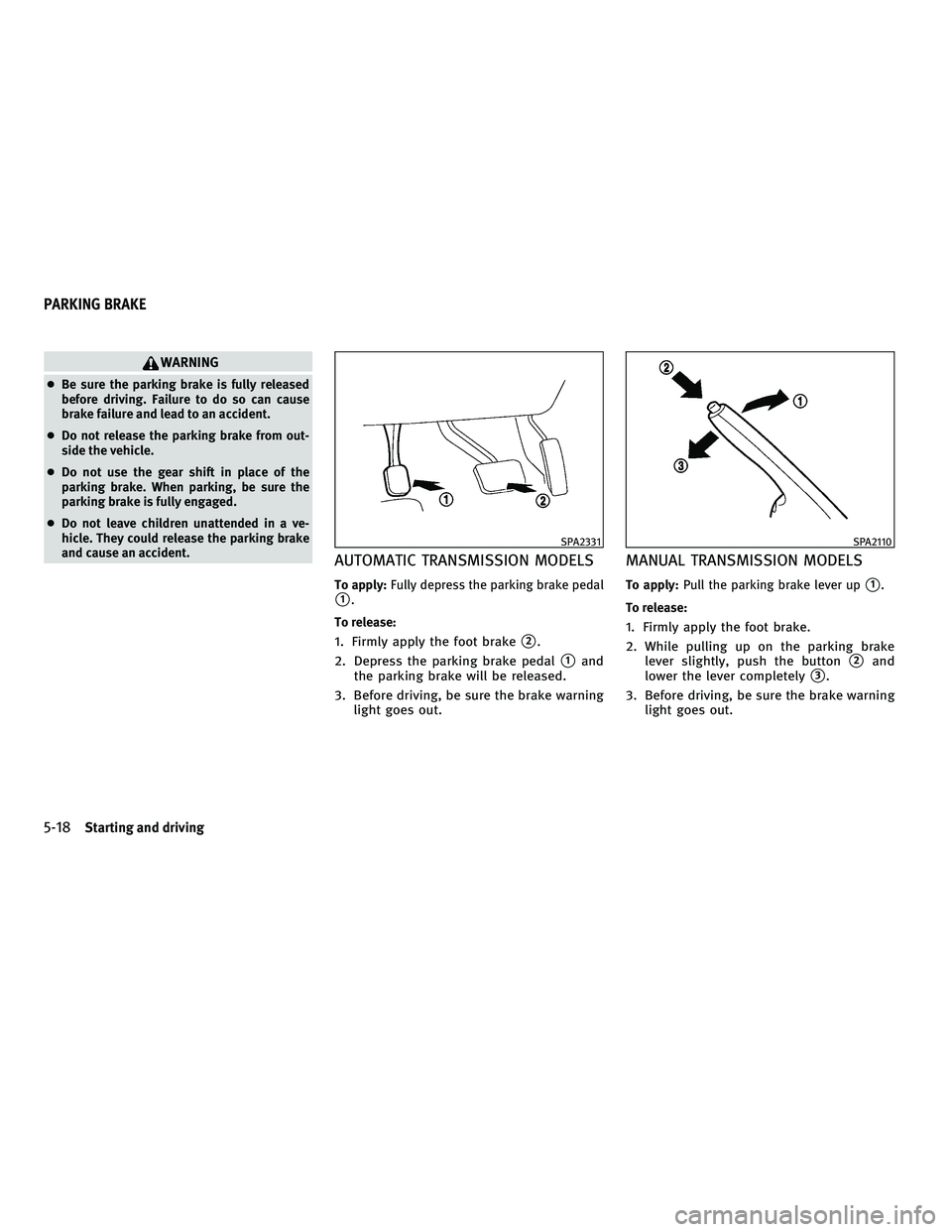

WARNING
●Be sure the parking brake is fully released
before driving. Failure to do so can cause
brake failure and lead to an accident.
● Do not release the parking brake from out-
side the vehicle.
● Do not use the gear shift in place of the
parking brake. When parking, be sure the
parking brake is fully engaged.
● Do not leave children unattended in a ve-
hicle. They could release the parking brake
and cause an accident.
AUTOMATIC TRANSMISSION MODELS
To apply: Fully depress the parking brake pedal
1.
To release:
1. Firmly apply the foot brake2.
2. Depress the parking brake pedal
1and
the parking brake will be released.
3. Before driving, be sure the brake warning light goes out.
MANUAL TRANSMISSION MODELS
To apply: Pull the parking brake lever up1.
To release:
1. Firmly apply the foot brake.
2. While pulling up on the parking brake lever slightly, push the button
2and
lower the lever completely
3.
3. Before driving, be sure the brake warning light goes out.
SPA2331SPA2110
PARKING BRAKE
5-18Starting and driving
—
—
04/21/10—debbie

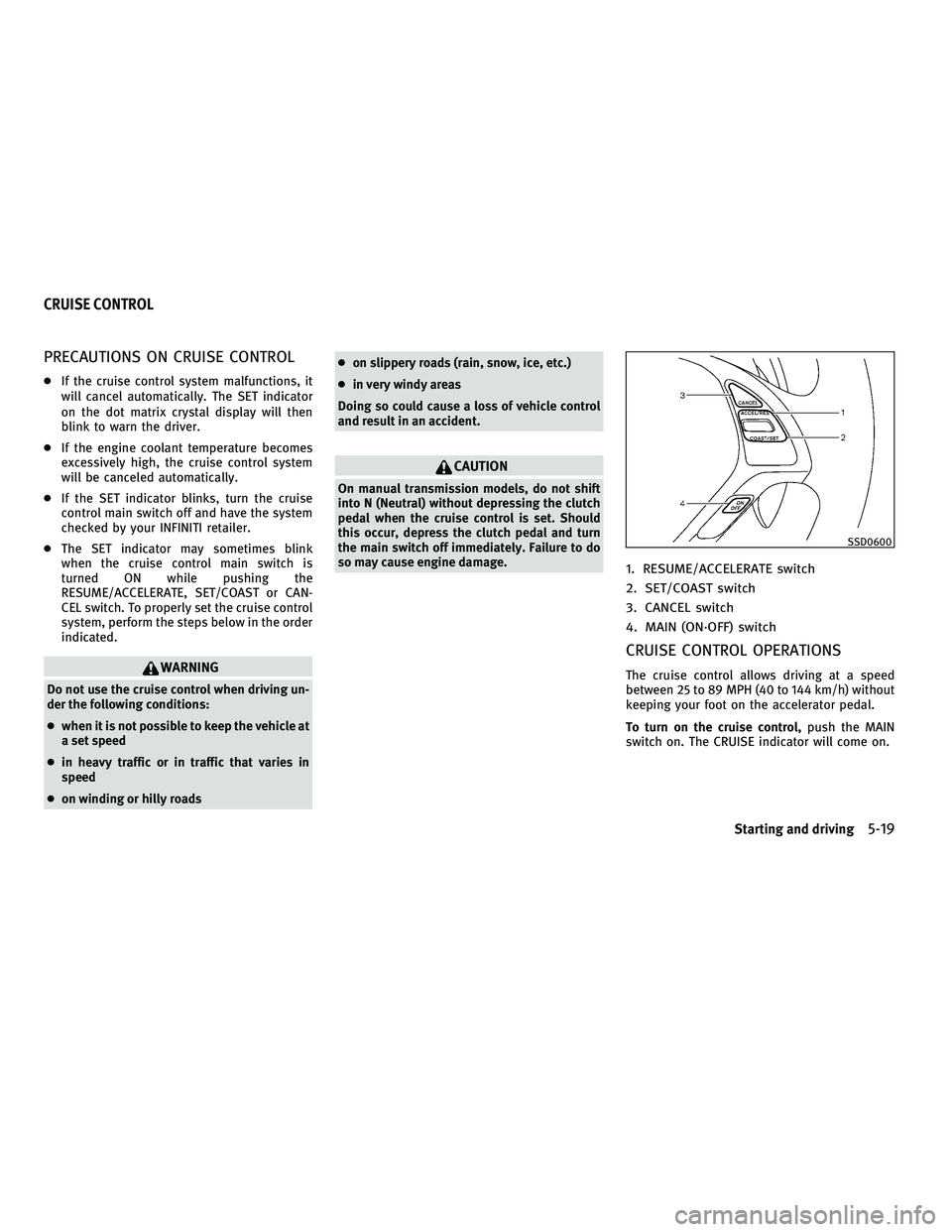

PRECAUTIONS ON CRUISE CONTROL
●If the cruise control system malfunctions, it
will cancel automatically. The SET indicator
on the dot matrix crystal display will then
blink to warn the driver.
● If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the SET indicator blinks, turn the cruise
control main switch off and have the system
checked by your INFINITI retailer.
● The SET indicator may sometimes blink
when the cruise control main switch is
turned ON while pushing the
RESUME/ACCELERATE, SET/COAST or CAN-
CEL switch. To properly set the cruise control
system, perform the steps below in the order
indicated.
WARNING
Do not use the cruise control when driving un-
der the following conditions:
● when it is not possible to keep the vehicle at
a set speed
● in heavy traffic or in traffic that varies in
speed
● on winding or hilly roads ●
on slippery roads (rain, snow, ice, etc.)
● in very windy areas
Doing so could cause a loss of vehicle control
and result in an accident.
CAUTION
On manual transmission models, do not shift
into N (Neutral) without depressing the clutch
pedal when the cruise control is set. Should
this occur, depress the clutch pedal and turn
the main switch off immediately. Failure to do
so may cause engine damage.
1. RESUME/ACCELERATE switch
2. SET/COAST switch
3. CANCEL switch
4. MAIN (ON·OFF) switch
CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed
between 25 to 89 MPH (40 to 144 km/h) without
keeping your foot on the accelerator pedal.
To turn on the cruise control, push the MAIN
switch on. The CRUISE indicator will come on.
SSD0600
CRUISE CONTROL
Starting and driving5-19
—
—
04/21/10—debbie

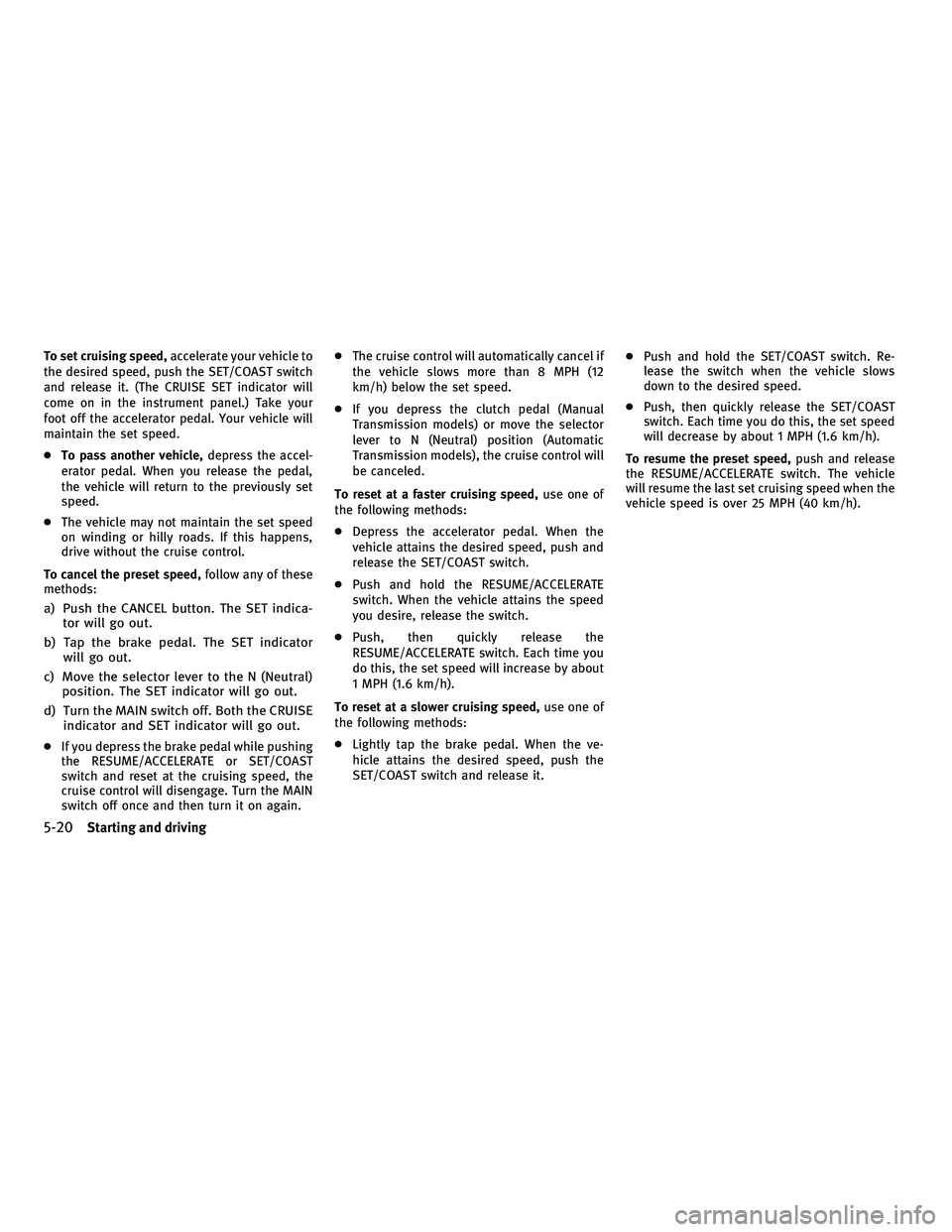

To set cruising speed,accelerate your vehicle to
the desired speed, push the SET/COAST switch
and release it. (The CRUISE SET indicator will
come on in the instrument panel.) Take your
foot off the accelerator pedal. Your vehicle will
maintain the set speed.
● To pass another vehicle, depress the accel-
erator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.
● The vehicle may not maintain the set speed
on winding or hilly roads. If this happens,
drive without the cruise control.
To cancel the preset speed, follow any of these
methods:
a) Push the CANCEL button. The SET indica- tor will go out.
b) Tap the brake pedal. The SET indicator will go out.
c) Move the selector lever to the N (Neutral) position. The SET indicator will go out.
d) Turn the MAIN switch off. Both the CRUISE indicator and SET indicator will go out.
●If you depress the brake pedal while pushing
the RESUME/ACCELERATE or SET/COAST
switch and reset at the cruising speed, the
cruise control will disengage. Turn the MAIN
switch off once and then turn it on again. ●
The cruise control will automatically cancel if
the vehicle slows more than 8 MPH (12
km/h) below the set speed.
● If you depress the clutch pedal (Manual
Transmission models) or move the selector
lever to N (Neutral) position (Automatic
Transmission models), the cruise control will
be canceled.
To reset at a faster cruising speed, use one of
the following methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the SET/COAST switch.
● Push and hold the RESUME/ACCELERATE
switch. When the vehicle attains the speed
you desire, release the switch.
● Push, then quickly release the
RESUME/ACCELERATE switch. Each time you
do this, the set speed will increase by about
1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one of
the following methods:
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
SET/COAST switch and release it. ●
Push and hold the SET/COAST switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
● Push, then quickly release the SET/COAST
switch. Each time you do this, the set speed
will decrease by about 1 MPH (1.6 km/h).
To resume the preset speed, push and release
the RESUME/ACCELERATE switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
5-20Starting and driving
—
—
04/21/10—debbie

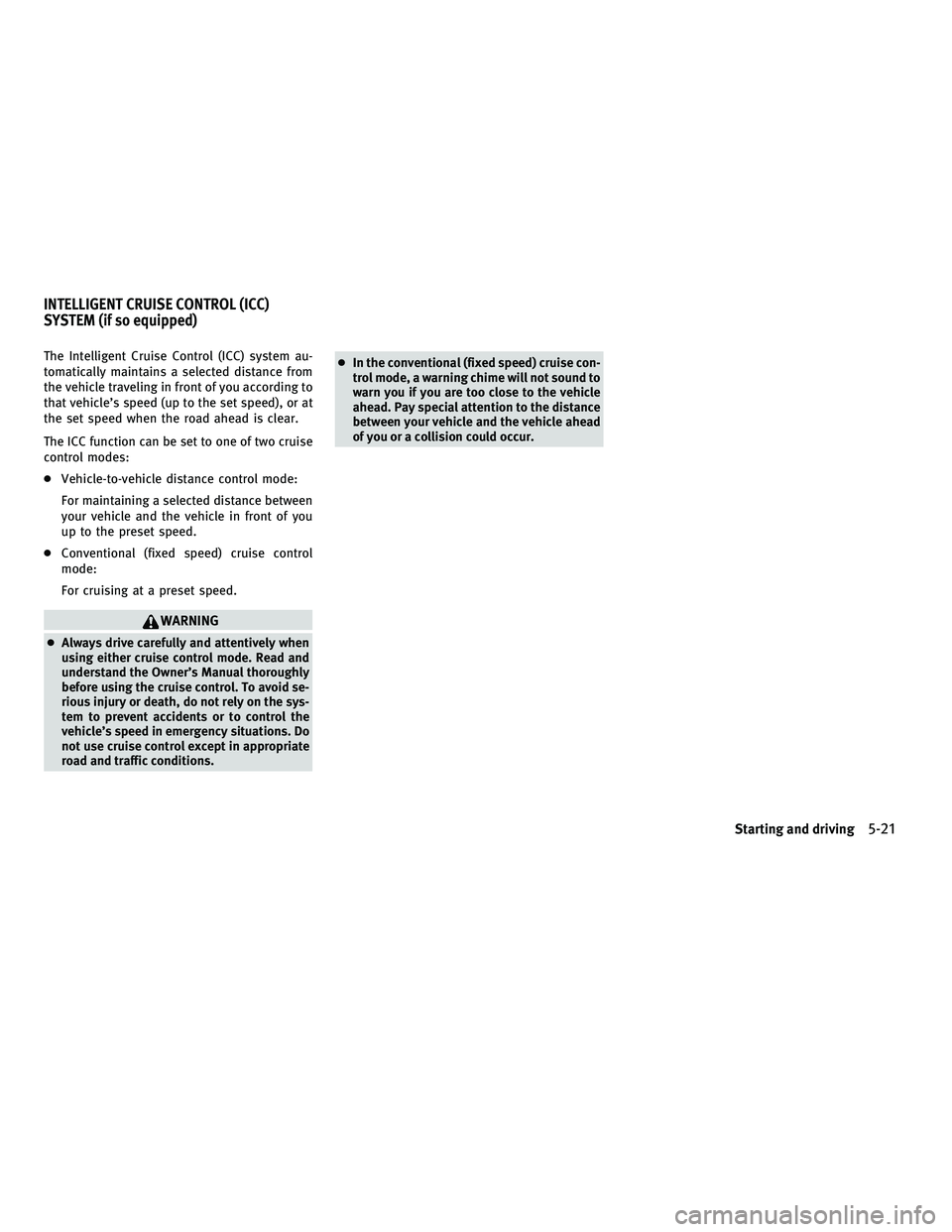

The Intelligent Cruise Control (ICC) system au-
tomatically maintains a selected distance from
the vehicle traveling in front of you according to
that vehicle’s speed (up to the set speed), or at
the set speed when the road ahead is clear.
The ICC function can be set to one of two cruise
control modes:
●Vehicle-to-vehicle distance control mode:
For maintaining a selected distance between
your vehicle and the vehicle in front of you
up to the preset speed.
● Conventional (fixed speed) cruise control
mode:
For cruising at a preset speed.
WARNING
● Always drive carefully and attentively when
using either cruise control mode. Read and
understand the Owner’s Manual thoroughly
before using the cruise control. To avoid se-
rious injury or death, do not rely on the sys-
tem to prevent accidents or to control the
vehicle’s speed in emergency situations. Do
not use cruise control except in appropriate
road and traffic conditions. ●
In the conventional (fixed speed) cruise con-
trol mode, a warning chime will not sound to
warn you if you are too close to the vehicle
ahead. Pay special attention to the distance
between your vehicle and the vehicle ahead
of you or a collision could occur.
INTELLIGENT CRUISE CONTROL (ICC)
SYSTEM (if so equipped)
Starting and driving5-21
—
—
04/21/10—debbie

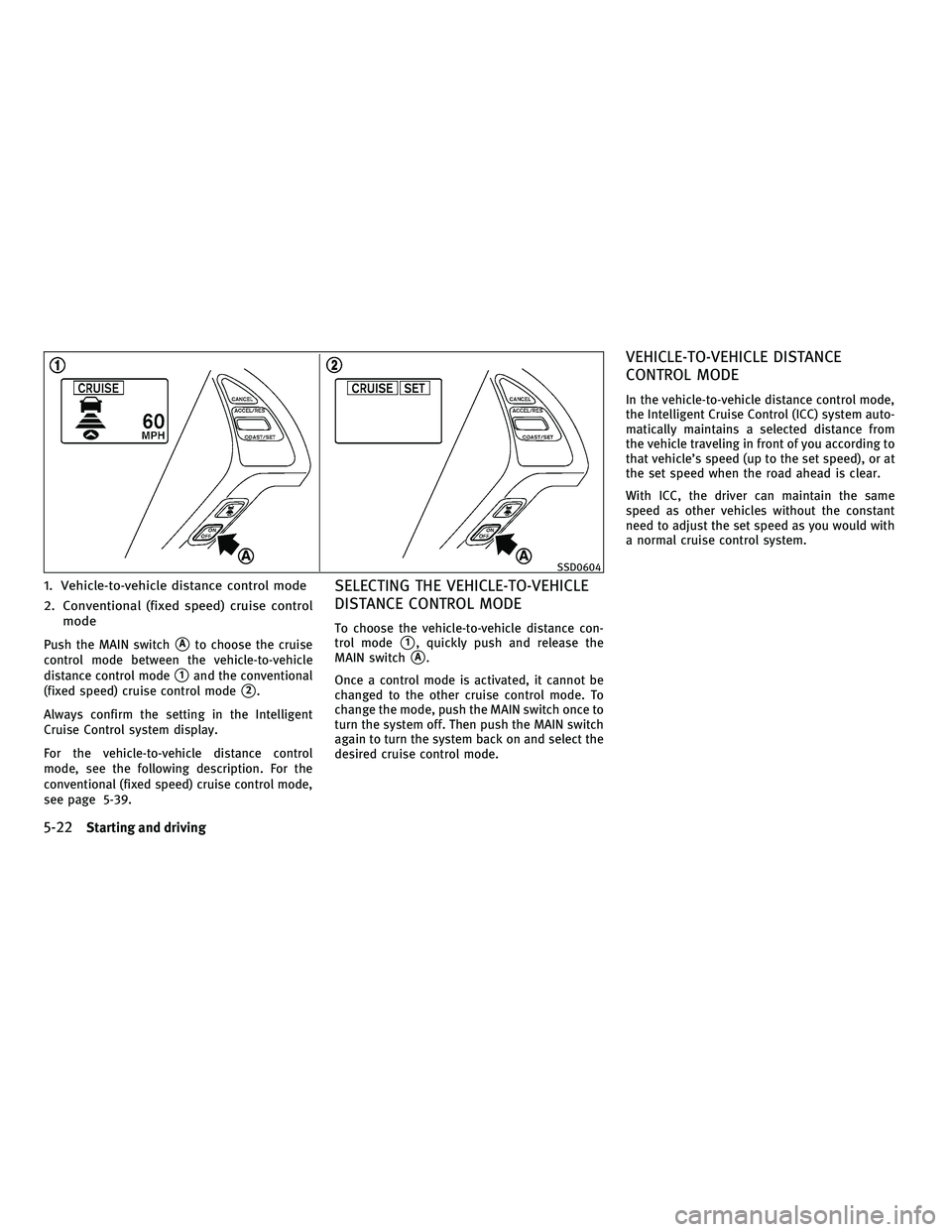

1. Vehicle-to-vehicle distance control mode
2. Conventional (fixed speed) cruise controlmode
Push the MAIN switchAto choose the cruise
control mode between the vehicle-to-vehicle
distance control mode
1and the conventional
(fixed speed) cruise control mode
2.
Always confirm the setting in the Intelligent
Cruise Control system display.
For the vehicle-to-vehicle distance control
mode, see the following description. For the
conventional (fixed speed) cruise control mode,
see page 5-39.
SELECTING THE VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
To choose the vehicle-to-vehicle distance con-
trol mode
1, quickly push and release the
MAIN switch
A.
Once a control mode is activated, it cannot be
changed to the other cruise control mode. To
change the mode, push the MAIN switch once to
turn the system off. Then push the MAIN switch
again to turn the system back on and select the
desired cruise control mode.
VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE
In the vehicle-to-vehicle distance control mode,
the Intelligent Cruise Control (ICC) system auto-
matically maintains a selected distance from
the vehicle traveling in front of you according to
that vehicle’s speed (up to the set speed), or at
the set speed when the road ahead is clear.
With ICC, the driver can maintain the same
speed as other vehicles without the constant
need to adjust the set speed as you would with
a normal cruise control system.
SSD0604
5-22Starting and driving
—
—
04/29/10—pattie


PRECAUTIONS ON VEHICLE-TO-
VEHICLE DISTANCE CONTROL MODE
The system is intended to enhance the opera-
tion of the vehicle when following a vehicle
traveling in the same lane and direction.
If the distance sensor
Adetects a slower
moving vehicle ahead, the system will reduce
the vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The system automatically controls the throttle
and applies the brakes (up to 25% of vehicle
braking power) if necessary. The detection range of the sensor is approxi-
mately 390 ft (120 m) ahead.
WARNING
●
This system is only an aid to assist the driver
and is not a collision warning or avoidance
device. It is the driver’s responsibility to stay
alert, drive safely and be in control of the
vehicle at all times.
● The system is primarily intended for use on
straight, dry, open roads with light traffic. It
is not advisable to use the system in city
traffic or congested areas.
● This system will not adapt automatically to
road conditions. This system should be used
in evenly flowing traffic. Do not use the sys-
tem on roads with sharp curves, or on icy
roads, in heavy rain or in fog.
The distance sensor will not detect under most
conditions:
● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane
● Motorcycles traveling offset in the travel
lane
Sedan
SSD0926
Coupe — Type A
SSD0662
Coupe — Type B
SSD0663
Starting and driving5-23
—
—
04/29/10—pattie
