2. Open the engine hood and remove thecover on the battery and the fuse/fusible
link holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller.
5. If the fuse is open
A, replace it with a
new fuse
B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the elec- trical system checked and repaired by an
INFINITI retailer.
Fusible links
If any electrical equipment does not operate
and fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace only with genuine INFINITI
parts.
SDI1754
8-22Maintenance and do-it-yourself
Page 412 of 468

PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the head-
light switch is turned to OFF.
2. Open the fuse box lid. 3. Remove the fuse with the fuse puller
A.
4. If the fuse is open, replace it with a new fuse.
5. If a new fuse also opens, have the electri- cal system checked and repaired by an
INFINITI retailer. Spare fuses are stored in
the fuse box.Extended storage switch (if equipped)
To reduce battery drain, the extended storage
switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If any electrical equipment does not operate,
remove the extended storage switch and check
for an open fuse.
SDI2034SDI2704
Maintenance and do-it-yourself8-23
Page 413 of 468

NOTE:
If the extended storage switch malfunctions, or
if the fuse is open, it is not necessary to replace
the switch. In this case, remove the extended
storage switch and replace it with a new fuse of
the same rating.
How to remove the extended storage switch:
1. To remove the extended storage switch,be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
1found on each
side of the storage switch.
5. Pull the storage switch straight out from the fuse box
2.
Replace the battery as follows:1. Release the lock knob at the back of theIntelligent Key and remove the mechanical
key.
2. Insert a flat-blade screwdriver
A
wrapped with a cloth into the slitBof
the corner and twist it to separate the
upper part from the lower part. 3. Replace the battery with a new one.
Recommended battery: CR2032 or equivalent.
●
Do not touch the internal circuit and
electric terminals as it could cause a
malfunction.
● Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
● Make sure that the + side faces the
bottom of the case.
4. Align the tips of the upper and lower parts, and then push them together until
it is securely closed.
5. Push the buttons two or three times to check its operation.
SDI1834SDI2042
INTELLIGENT KEY BATTERY REPLACEMENT
8-24Maintenance and do-it-yourself
Page 414 of 468

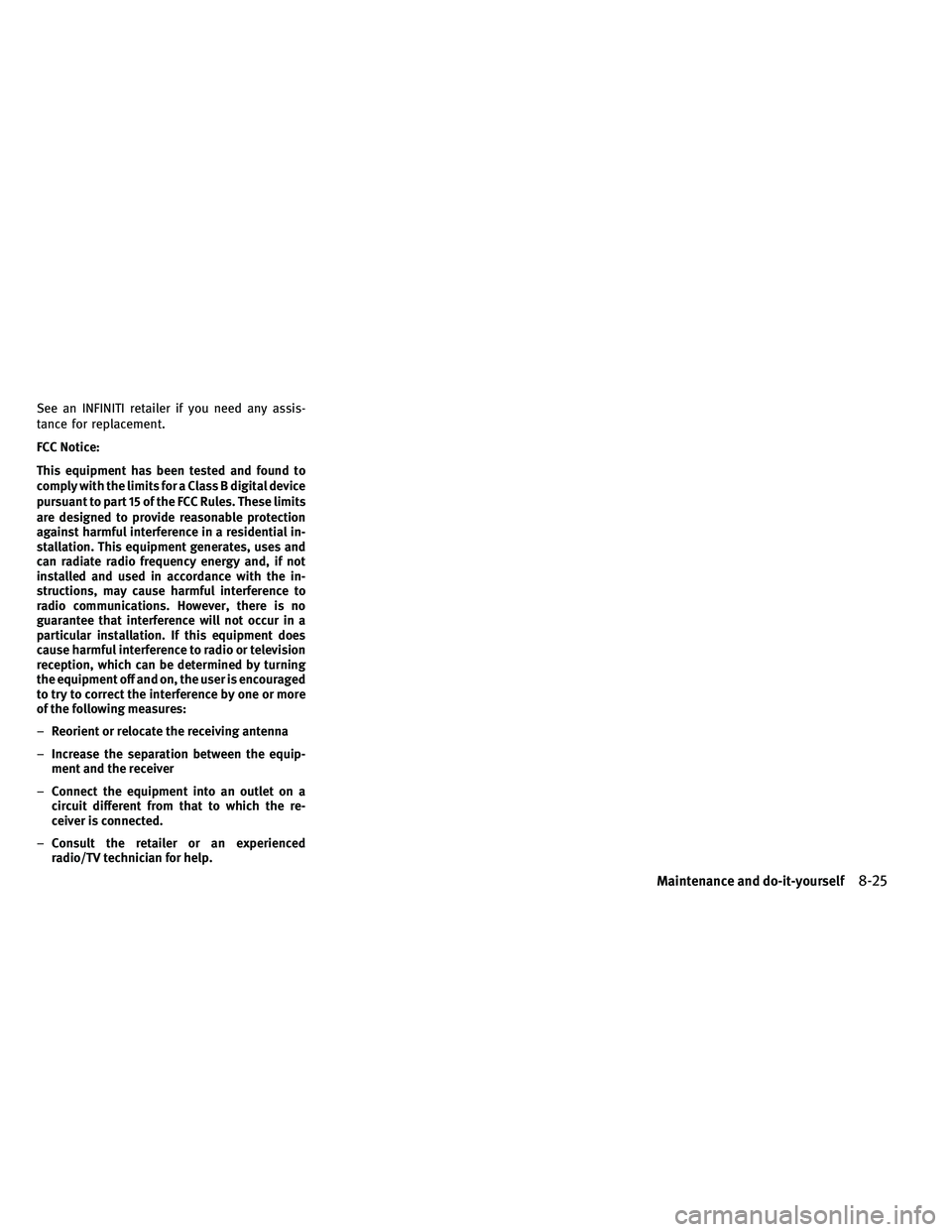

See an INFINITI retailer if you need any assis-
tance for replacement.
FCC Notice:
This equipment has been tested and found to
comply with the limits for a Class B digital device
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential in-
stallation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the in-
structions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
–Reorient or relocate the receiving antenna
– Increase the separation between the equip-
ment and the receiver
– Connect the equipment into an outlet on a
circuit different from that to which the re-
ceiver is connected.
– Consult the retailer or an experienced
radio/TV technician for help.
Maintenance and do-it-yourself8-25
Page 415 of 468

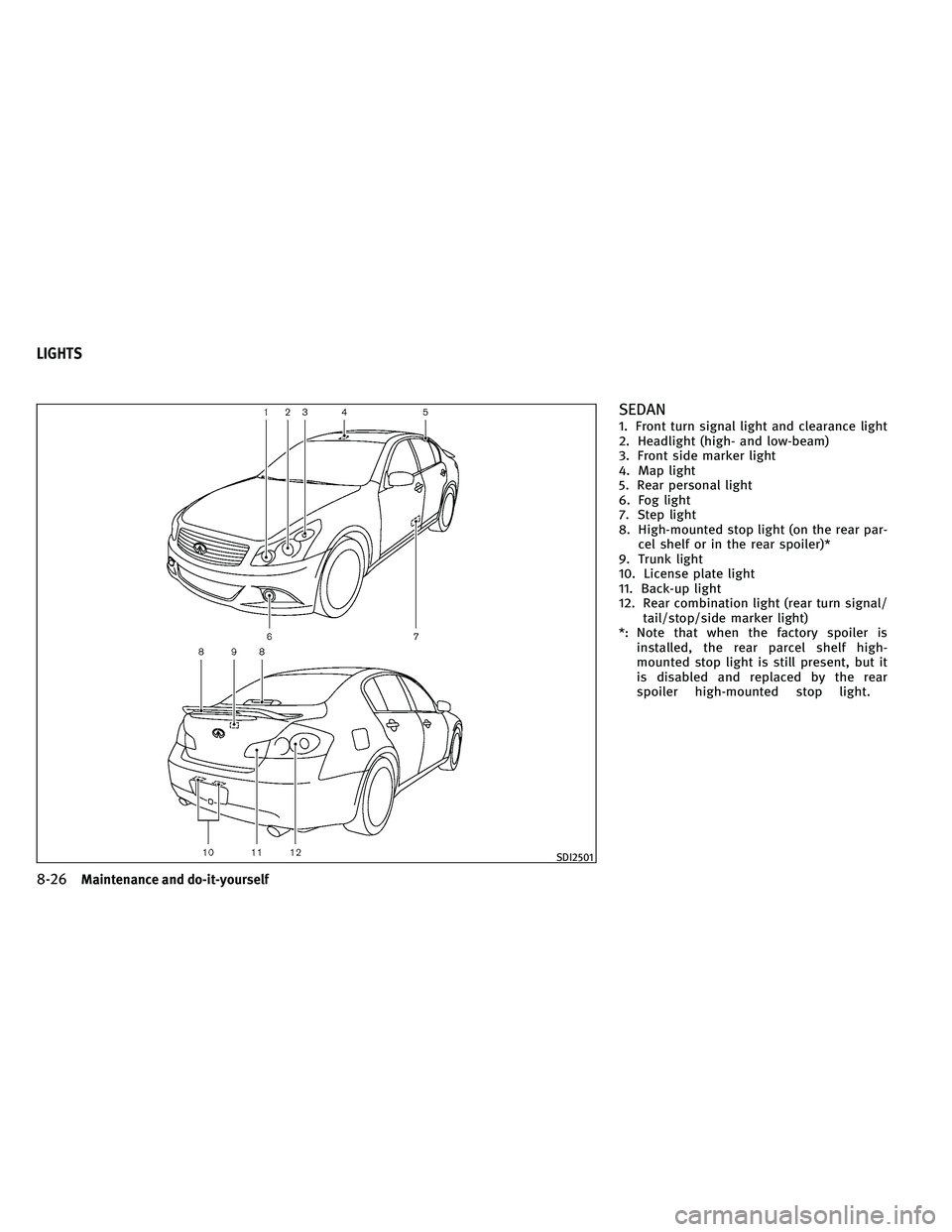

SEDAN
1. Front turn signal light and clearance light
2. Headlight (high- and low-beam)
3. Front side marker light
4. Map light
5. Rear personal light
6. Fog light
7. Step light
8. High-mounted stop light (on the rear par-cel shelf or in the rear spoiler)*
9. Trunk light
10. License plate light
11. Back-up light
12. Rear combination light (rear turn signal/ tail/stop/side marker light)
*: Note that when the factory spoiler is installed, the rear parcel shelf high-
mounted stop light is still present, but it
is disabled and replaced by the rear
spoiler high-mounted stop light.
SDI2501
LIGHTS
8-26Maintenance and do-it-yourself
Page 416 of 468

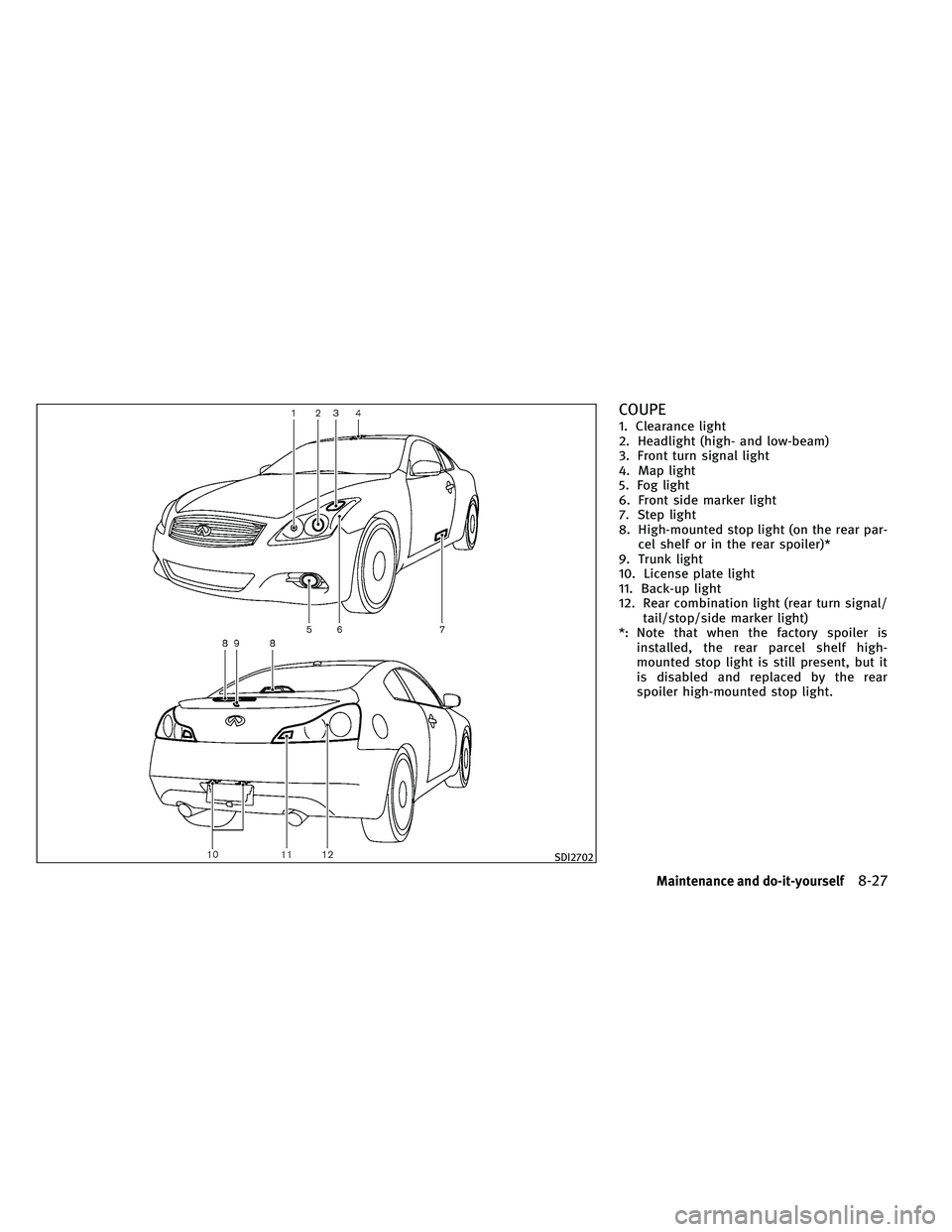

COUPE
1. Clearance light
2. Headlight (high- and low-beam)
3. Front turn signal light
4. Map light
5. Fog light
6. Front side marker light
7. Step light
8. High-mounted stop light (on the rear par-cel shelf or in the rear spoiler)*
9. Trunk light
10. License plate light
11. Back-up light
12. Rear combination light (rear turn signal/ tail/stop/side marker light)
*: Note that when the factory spoiler is installed, the rear parcel shelf high-
mounted stop light is still present, but it
is disabled and replaced by the rear
spoiler high-mounted stop light.
SDI2702
Maintenance and do-it-yourself8-27
Page 417 of 468

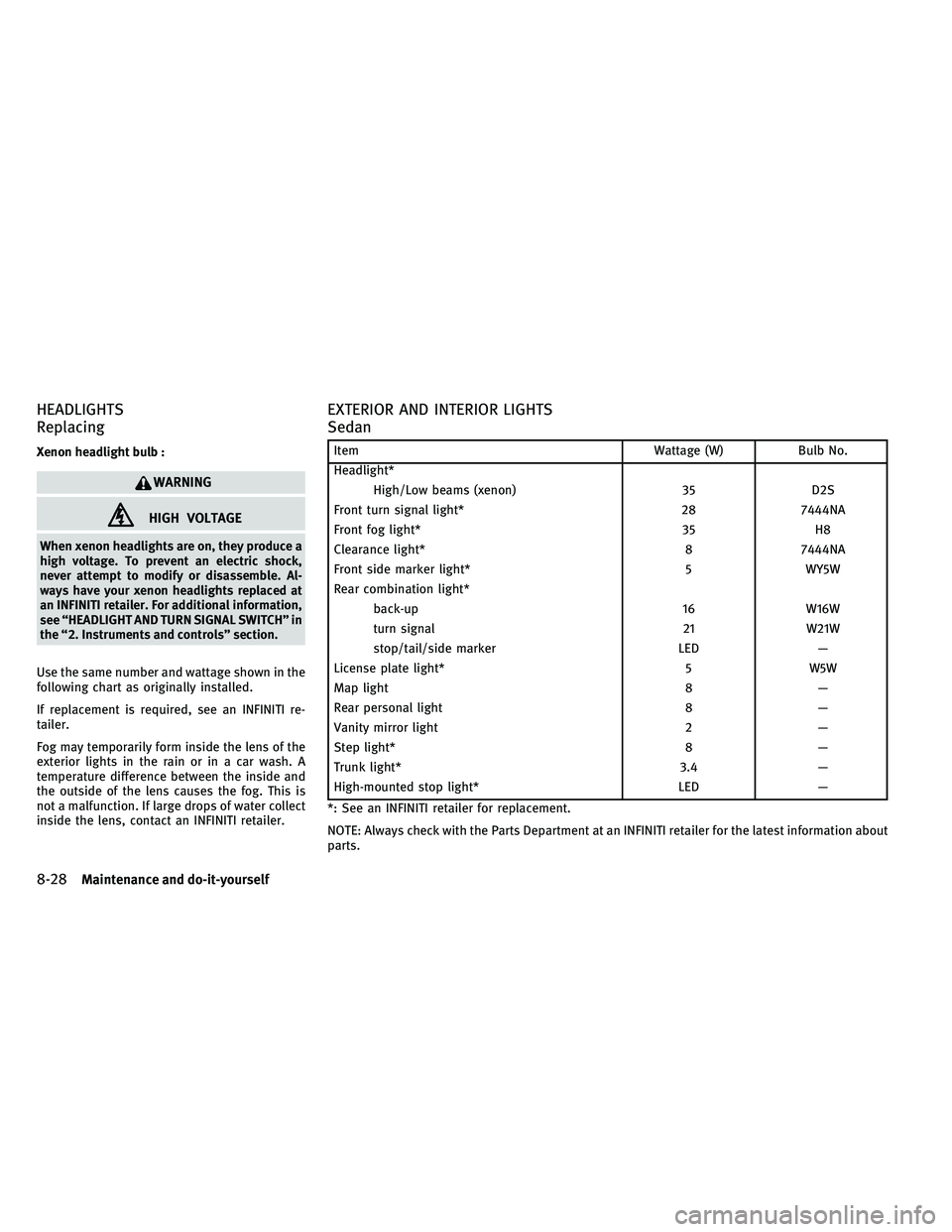

HEADLIGHTS
Replacing
Xenon headlight bulb :
WARNING
HIGH VOLTAGE
When xenon headlights are on, they produce a
high voltage. To prevent an electric shock,
never attempt to modify or disassemble. Al-
ways have your xenon headlights replaced at
an INFINITI retailer. For additional information,
see “HEADLIGHT AND TURN SIGNAL SWITCH” in
the “2. Instruments and controls” section.
Use the same number and wattage shown in the
following chart as originally installed.
If replacement is required, see an INFINITI re-
tailer.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact an INFINITI retailer.
EXTERIOR AND INTERIOR LIGHTS
Sedan
Item Wattage (W)Bulb No.
Headlight* High/Low beams (xenon) 35D2S
Front turn signal light* 287444NA
Front fog light* 35H8
Clearance light* 87444NA
Front side marker light* 5WY5W
Rear combination light* back-up 16W16W
turn signal 21W21W
stop/tail/side marker LED—
License plate light* 5W5W
Map light 8—
Rear personal light 8—
Vanity mirror light 2—
Step light* 8—
Trunk light* 3.4—
High-mounted stop light* LED—
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest information about
parts.
8-28Maintenance and do-it-yourself
Page 418 of 468

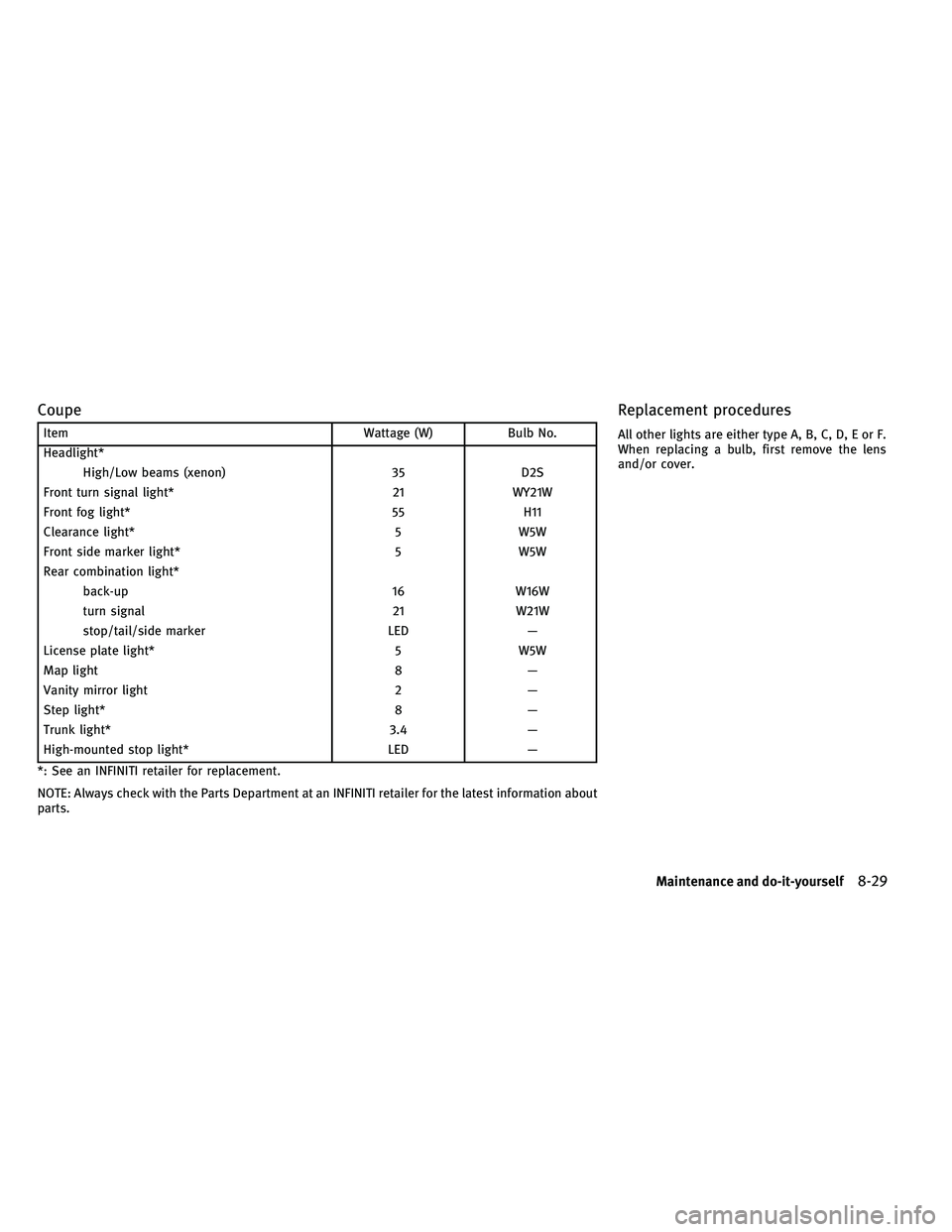

Coupe
ItemWattage (W)Bulb No.
Headlight* High/Low beams (xenon) 35D2S
Front turn signal light* 21WY21W
Front fog light* 55H11
Clearance light* 5W5W
Front side marker light* 5W5W
Rear combination light* back-up 16W16W
turn signal 21W21W
stop/tail/side marker LED—
License plate light* 5W5W
Map light 8—
Vanity mirror light 2—
Step light* 8—
Trunk light* 3.4—
High-mounted stop light* LED—
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest information about
parts.

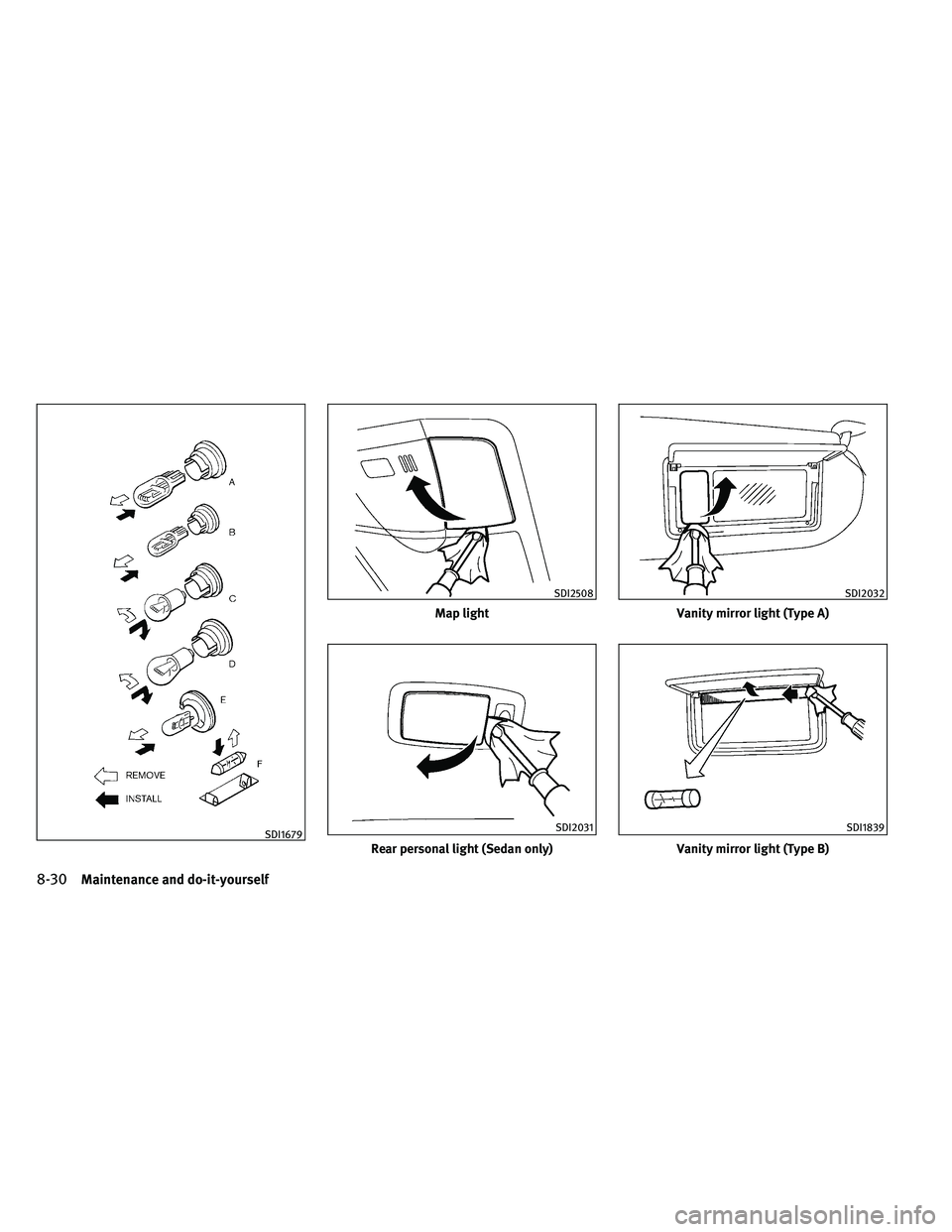

Replacement procedures
All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
Maintenance and do-it-yourself8-29
Page 419 of 468

SDI1679
Map light
SDI2508
Rear personal light (Sedan only)
SDI2031
Vanity mirror light (Type A)
SDI2032
Vanity mirror light (Type B)
SDI1839
8-30Maintenance and do-it-yourself
Page 420 of 468

If you have a flat tire, see “FLAT TIRE” in the “6. In
case of emergency” section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on the
dot matrix liquid crystal display, one or more of
your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h). Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving).
For more details, see “Low tire pressure warn-
ing light” in the “2. Instruments and controls”
section, “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “5. Starting and driving” section
and “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “6. In case of emergency” sec-
tion.
Tire inflation pressure
Check the pressure of the tires (includ-
ing the spare) often and always prior to
long distance trips. The recommended
tire pressure specifications are shown
on the Tire and Loading Information
label under the “Cold Tire Pressure”
heading. The Tire and Loading Informa-
tion label is affixed to the driver side
center pillar. Tire pressures should be
checked regularly because:
●Most tires naturally lose air over time.
●Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds. Incorrect tire pressure, including under
inflation, may adversely affect tire life
and vehicle handling.
WARNING
●Improperly inflated tires can fail sud-
denly and cause an accident.
●The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.S./
C.M.V.S.S. label. The vehicle weight
capacity is indicated on the Tire and
Loading Information label. Do not
load your vehicle beyond this capac-
ity. Overloading your vehicle may re-
sult in reduced tire life, unsafe operat-
ing conditions due to premature tire
failure, or unfavorable handling char-
acteristics and could also lead to a
serious accident. Loading beyond the
specified capacity may also result in
failure of other vehicle components.
WHEELS AND TIRES
Maintenance and do-it-yourself8-31
