INFINITI G-COUPE 2011 Owners Manual

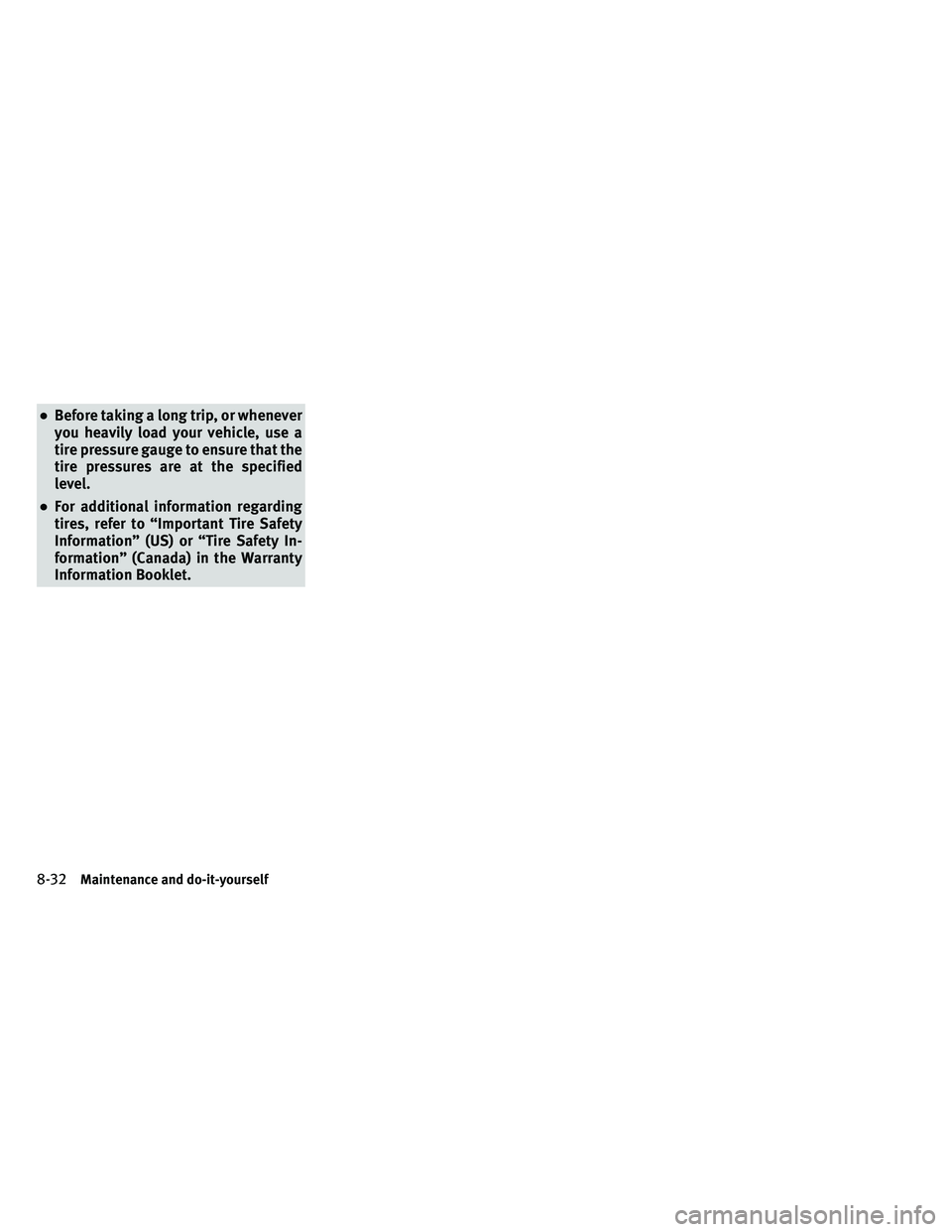

●Before taking a long trip, or whenever
you heavily load your vehicle, use a
tire pressure gauge to ensure that the
tire pressures are at the specified
level.
●For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
8-32
Maintenance and do-it-yourself

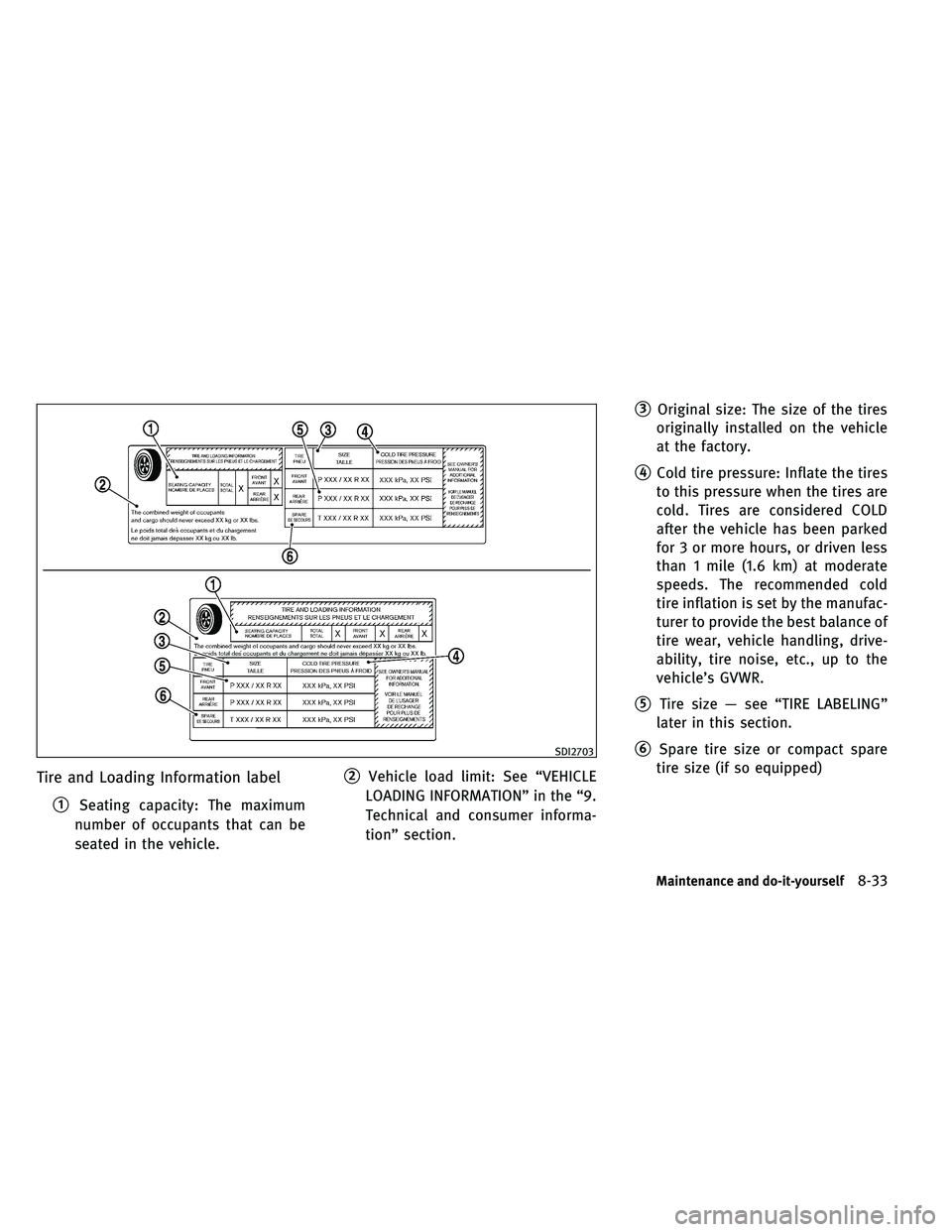

Tire and Loading Information label
1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
2Vehicle load limit: See “VEHICLE
LOADING INFORMATION” in the “9.
Technical and consumer informa-
tion” section.
3Original size: The size of the tires
originally installed on the vehicle
at the factory.
4Cold tire pressure: Inflate the tires
to this pressure when the tires are
cold. Tires are considered COLD
after the vehicle has been parked
for 3 or more hours, or driven less
than 1 mile (1.6 km) at moderate
speeds. The recommended cold
tire inflation is set by the manufac-
turer to provide the best balance of
tire wear, vehicle handling, drive-
ability, tire noise, etc., up to the
vehicle’s GVWR.
5Tire size — see “TIRE LABELING”
later in this section.
6Spare tire size or compact spare
tire size (if so equipped)SDI2703
Maintenance and do-it-yourself8-33

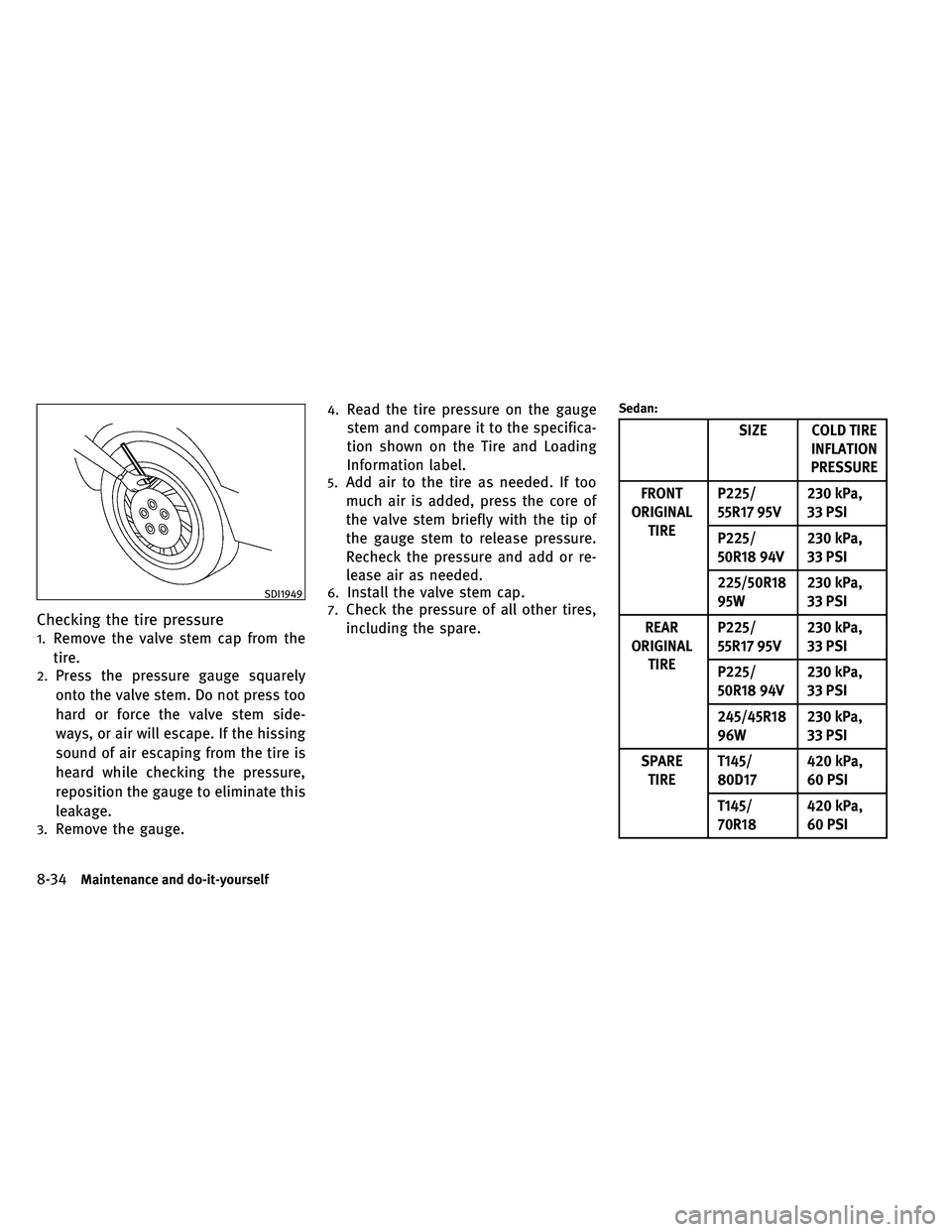

Checking the tire pressure
1.Remove the valve stem cap from the
tire.
2.Press the pressure gauge squarely
onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape. If the hissing
sound of air escaping from the tire is
heard while checking the pressure,
reposition the gauge to eliminate this
leakage.
3.Remove the gauge.
4.Read the tire pressure on the gauge
stem and compare it to the specifica-
tion shown on the Tire and Loading
Information label.
5.Add air to the tire as needed. If too
much air is added, press the core of
the valve stem briefly with the tip of
the gauge stem to release pressure.
Recheck the pressure and add or re-
lease air as needed.
6.Install the valve stem cap.
7.Check the pressure of all other tires,
including the spare.
Sedan:
SIZE COLD TIRE INFLATION
PRESSURE
FRONT
ORIGINAL TIRE P225/
55R17 95V
230 kPa,
33 PSI
P225/
50R18 94V 230 kPa,
33 PSI
225/50R18
95W 230 kPa,
33 PSI
REAR
ORIGINAL TIRE P225/
55R17 95V
230 kPa,
33 PSI
P225/
50R18 94V 230 kPa,
33 PSI
245/45R18
96W 230 kPa,
33 PSI
SPARE TIRE T145/
80D17 420 kPa,
60 PSI
T145/
70R18 420 kPa,
60 PSI
SDI1949
8-34Maintenance and do-it-yourself

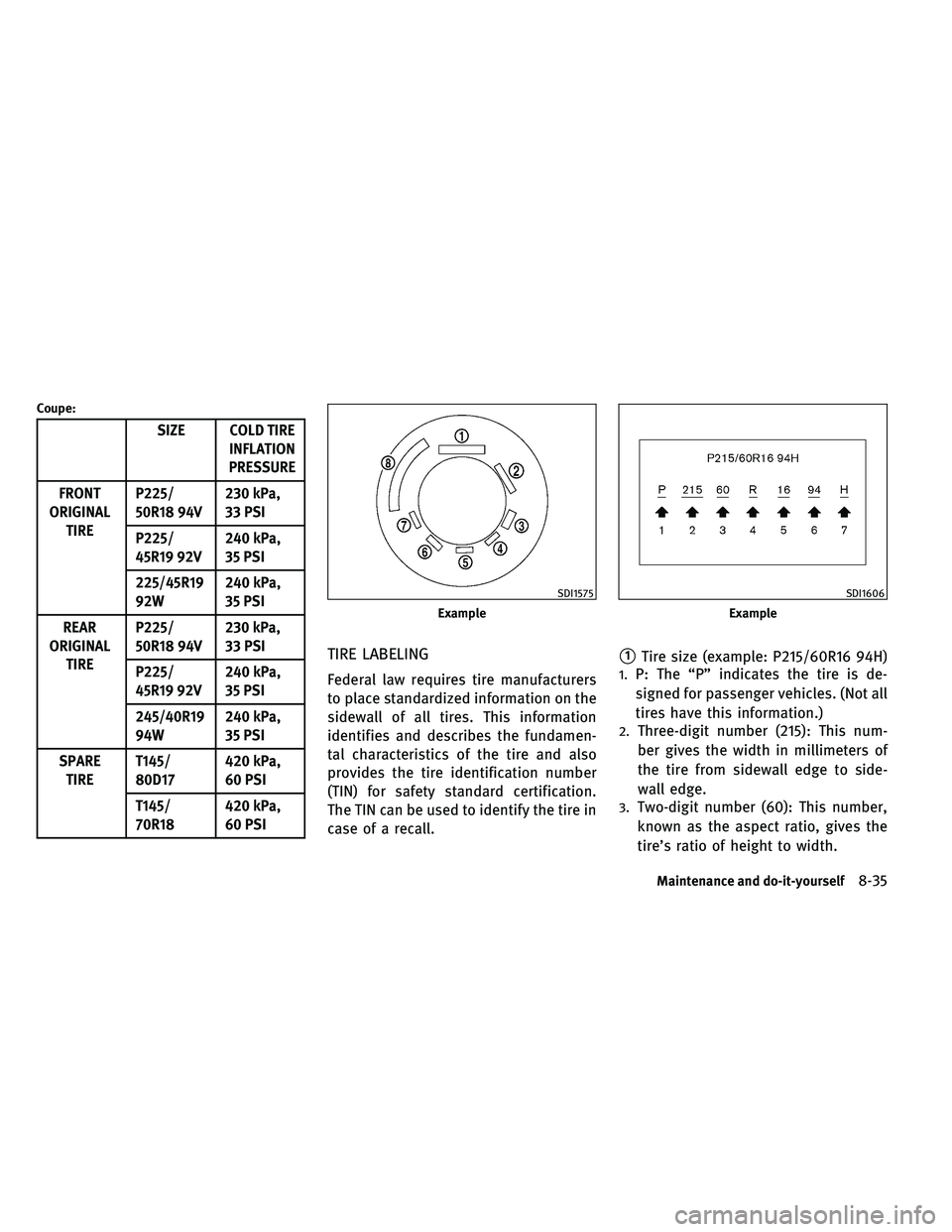

Coupe:
SIZE COLD TIREINFLATION
PRESSURE
FRONT
ORIGINAL TIRE P225/
50R18 94V
230 kPa,
33 PSI
P225/
45R19 92V 240 kPa,
35 PSI
225/45R19
92W 240 kPa,
35 PSI
REAR
ORIGINAL TIRE P225/
50R18 94V
230 kPa,
33 PSI
P225/
45R19 92V 240 kPa,
35 PSI
245/40R19
94W 240 kPa,
35 PSI
SPARE TIRE T145/
80D17 420 kPa,
60 PSI
T145/
70R18 420 kPa,
60 PSI
TIRE LABELING
Federal law requires tire manufacturers
to place standardized information on the
sidewall of all tires. This information
identifies and describes the fundamen-
tal characteristics of the tire and also
provides the tire identification number
(TIN) for safety standard certification.
The TIN can be used to identify the tire in
case of a recall.
1Tire size (example: P215/60R16 94H)
1.P: The “P” indicates the tire is de-
signed for passenger vehicles. (Not all
tires have this information.)
2.Three-digit number (215): This num-
ber gives the width in millimeters of
the tire from sidewall edge to side-
wall edge.
3.Two-digit number (60): This number,
known as the aspect ratio, gives the
tire’s ratio of height to width.
Example
SDI1575
Example
SDI1606
Maintenance and do-it-yourself8-35

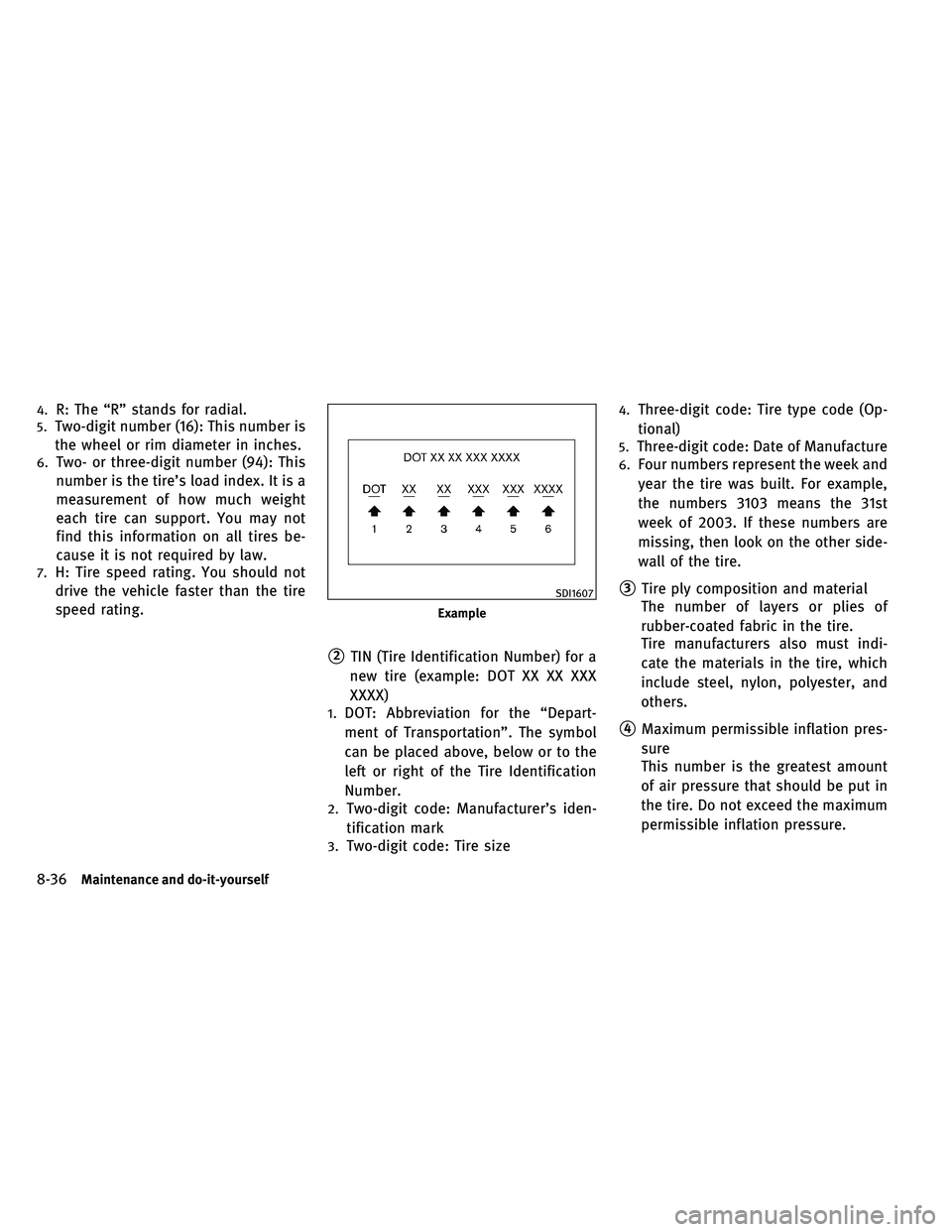

4.R: The “R” stands for radial.
5.Two-digit number (16): This number is
the wheel or rim diameter in inches.
6.Two- or three-digit number (94): This
number is the tire’s load index. It is a
measurement of how much weight
each tire can support. You may not
find this information on all tires be-
cause it is not required by law.
7.H: Tire speed rating. You should not
drive the vehicle faster than the tire
speed rating.
2TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX
XXXX)
1.DOT: Abbreviation for the “Depart-
ment of Transportation”. The symbol
can be placed above, below or to the
left or right of the Tire Identification
Number.
2.Two-digit code: Manufacturer’s iden-
tification mark
3.Two-digit code: Tire size
4.Three-digit code: Tire type code (Op-
tional)
5.Three-digit code: Date of Manufacture
6.Four numbers represent the week and
year the tire was built. For example,
the numbers 3103 means the 31st
week of 2003. If these numbers are
missing, then look on the other side-
wall of the tire.
3Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must indi-
cate the materials in the tire, which
include steel, nylon, polyester, and
others.
4Maximum permissible inflation pres-
sure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure.
Example
SDI1607
8-36Maintenance and do-it-yourself

5Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.
6Term of “tubeless” or “tube type”
Indicates whether the tire requires an
inner tube (“tube type”) or not
(“tubeless”).
7The word “radial”
The word “radial” is shown, if the tire
has radial structure.
8Manufacturer or brand name
Manufacturer or brand name is
shown.
Other tire-related terminology:
In addition to the many terms that are
defined throughout this section, In-
tended Outboard Sidewall is (1) the side-
wall that contains a whitewall, bears white lettering or bears manufacturer,
brand and/or model name molding that
is higher or deeper than the same mold-
ing on the other sidewall of the tire, or
(2) the outward facing sidewall of an
asymmetrical tire that has a particular
side that must always face outward
when mounted on a vehicle.
TYPES OF TIRES
WARNING
●
When changing or replacing tires, be sure all
four tires are of the same type (Example:
Summer, All Season or Snow) and construc-
tion. An INFINITI retailer may be able to help
you with information about tire type, size,
speed rating and availability.
● Replacement tires may have a lower speed
rating than the factory equipped tires, and
may not match the potential maximum ve-
hicle speed. Never exceed the maximum
speed rating of the tire.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS. ●
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire side-
wall. Snow tires have better snow traction than
All Season tires and may be more appropriate in
some areas.
Summer tires
INFINITI specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance is substantially re-
duced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.
Maintenance and do-it-yourself8-37

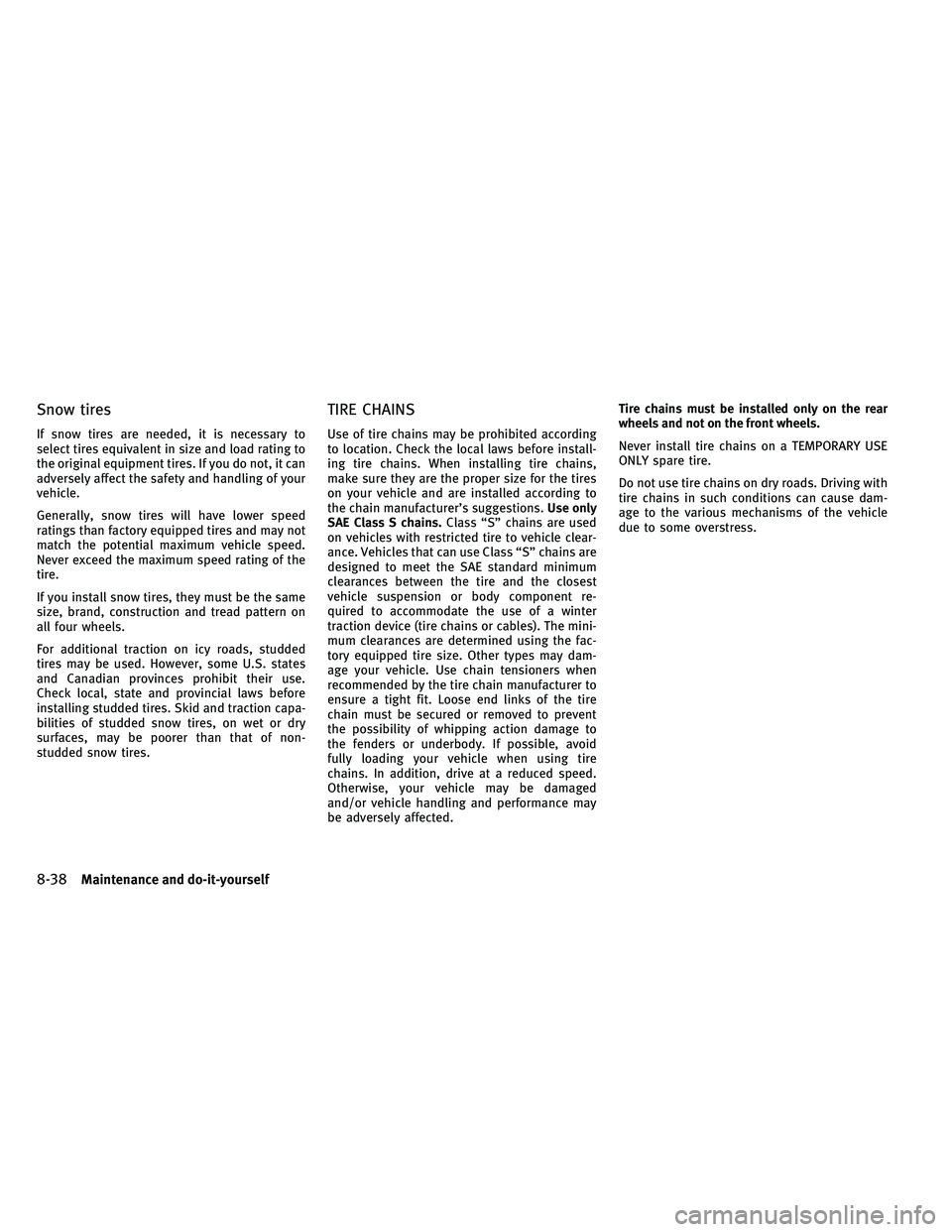

Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating to
the original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.
If you install snow tires, they must be the same
size, brand, construction and tread pattern on
all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction capa-
bilities of studded snow tires, on wet or dry
surfaces, may be poorer than that of non-
studded snow tires.
TIRE CHAINS
Use of tire chains may be prohibited according
to location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure they are the proper size for the tires
on your vehicle and are installed according to
the chain manufacturer’s suggestions.Use only
SAE Class S chains. Class “S” chains are used
on vehicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component re-
quired to accommodate the use of a winter
traction device (tire chains or cables). The mini-
mum clearances are determined using the fac-
tory equipped tire size. Other types may dam-
age your vehicle. Use chain tensioners when
recommended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the tire
chain must be secured or removed to prevent
the possibility of whipping action damage to
the fenders or underbody. If possible, avoid
fully loading your vehicle when using tire
chains. In addition, drive at a reduced speed.
Otherwise, your vehicle may be damaged
and/or vehicle handling and performance may
be adversely affected. Tire chains must be installed only on the rear
wheels and not on the front wheels.
Never install tire chains on a TEMPORARY USE
ONLY spare tire.
Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause dam-
age to the various mechanisms of the vehicle
due to some overstress.
8-38Maintenance and do-it-yourself

CHANGING WHEELS AND TIRES
Tire rotation (Models equipped with
same size tires on all wheels)
INFINITI recommends rotating the tires
every 7,500 miles (12,000 km). (See
“FLAT TIRE” in the “6. In case of emer-
gency” section for tire replacing proce-
dures.)
As soon as possible, tighten the wheel
nuts to the specified torque with a torque
wrench.Wheel nut tightening torque:
80 ft-lb (108 N·m)
The wheel nuts must be kept tightened to
the specification at all times. It is recom-
mended that wheel nuts be tightened to
the specification at each tire rotation in-
terval.
WARNING
●After rotating the tires, check and ad-
just the tire pressure.
●Retighten the wheel nuts when the ve-
hicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).
●Do not include the T-type spare tire or
any other small size spare tire in the tire
rotation.
●For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
Tire rotation (Models equipped with
different size tires on front and rear)
Tires cannot be rotated on this vehicle,
as front tires are a different size from
rear tires.
A pin is on the front brake rotor to
prevent the rear wheels from being in-
stalled in place of the front wheels. The
spare tire can be installed in place of the
front and rear wheels. When installing
the spare tire in the front wheel, the hole
in the spare tire wheel must be aligned
with the pin on the brake rotor.
WARNING
●Retighten the wheel nuts when the ve-
hicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).
SDI1662
Maintenance and do-it-yourself8-39

●For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
1. Wear indicator
2. Wear indicator location mark
Tire wear and damage
WARNING
●Tires should be periodically inspected
for wear, cracking, bulging or objects
caught in the tread. If excessive wear,
cracks, bulging or deep cuts are found,
the tire(s) should be replaced.
●The original tires have built-in tread
wear indicators. When wear indicators
are visible, the tire(s) should be
replaced.
●Tires degrade with age and use. Have
tires, including the spare, over 6 years
old checked by a qualified technician,
because some tire damage may not be
obvious. Replace the tires as necessary
to prevent tire failure and possible per-
sonal injury.
●Improper service of the spare tire may
result in serious personal injury. If it is
necessary to repair the spare tire, con-
tact an INFINITI retailer.
●For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
SDI1663
8-40Maintenance and do-it-yourself

Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “SPECIFICATIONS”
in the “9. Technical and consumer information”
section for recommended types and sizes of
tires and wheels.)
WARNING
●The use of tires other than those recom-
mended or the mixed use of tires of different
brands, construction (bias, bias-belted or ra-
dial), or tread patterns can adversely affect
the ride, braking, handling, ground clear-
ance, body-to-tire clearance, tire chain
clearance, speedometer calibration, head-
light aim and bumper height. Some of these
effects may lead to accidents and could re-
sult in serious personal injury. ●
If the wheels are changed for any reason,
always replace with wheels which have the
same off-set dimension. Wheels of a differ-
ent off-set could cause premature tire wear,
degrade vehicle handling characteristics
and/or interference with the brake
discs/drums. Such interference can lead to
decreased braking efficiency and/or early
brake pad/shoe wear. See “WHEELS AND
TIRES” in the “9. Technical and consumer
information” section of this manual for
wheel off-set dimensions.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not install a damaged or deformed wheel
or tire even if it has been repaired. Such
wheels or tires could have structural damage
and could fail without warning.
● The use of retread tire is not recommended. ●
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
All-Wheel Drive (AWD) models
CAUTION
● Always use tires of the same type, size,
brand, construction (bias, bias-belted or ra-
dial), and tread pattern on all four wheels.
Failure to do so may result in a circumference
difference between tires on the front and
rear axles which will cause excessive tire
wear and may damage the transmission,
transfer case and differential gears.
● ONLY use spare tires specified for the AWD
model.
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. Contact an INFINITI retailer.
Maintenance and do-it-yourself8-41
