INFINITI G-COUPE 2011 Owners Manual

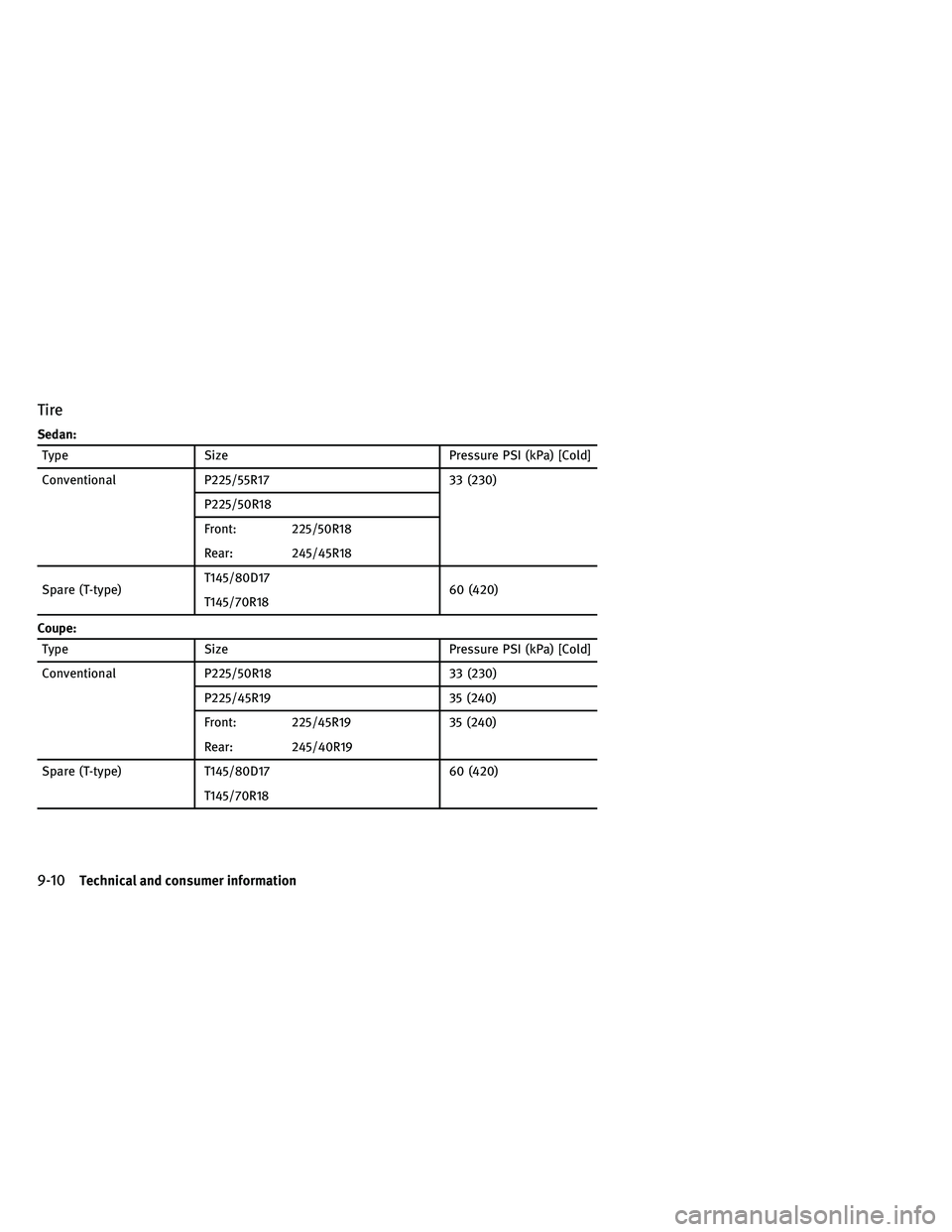

Tire
Sedan:
TypeSize Pressure PSI (kPa) [Cold]
Conventional P225/55R17 33 (230)
P225/50R18
Front: 225/50R18
Rear: 245/45R18
Spare (T-type) T145/80D17
60 (420)
T145/70R18
Coupe:
Type Size Pressure PSI (kPa) [Cold]
Conventional P225/50R18 33 (230)
P225/45R19 35 (240)
Front: 225/45R19 35 (240)
Rear: 245/40R19
Spare (T-type) T145/80D17 60 (420)
T145/70R18
9-10Technical and consumer information

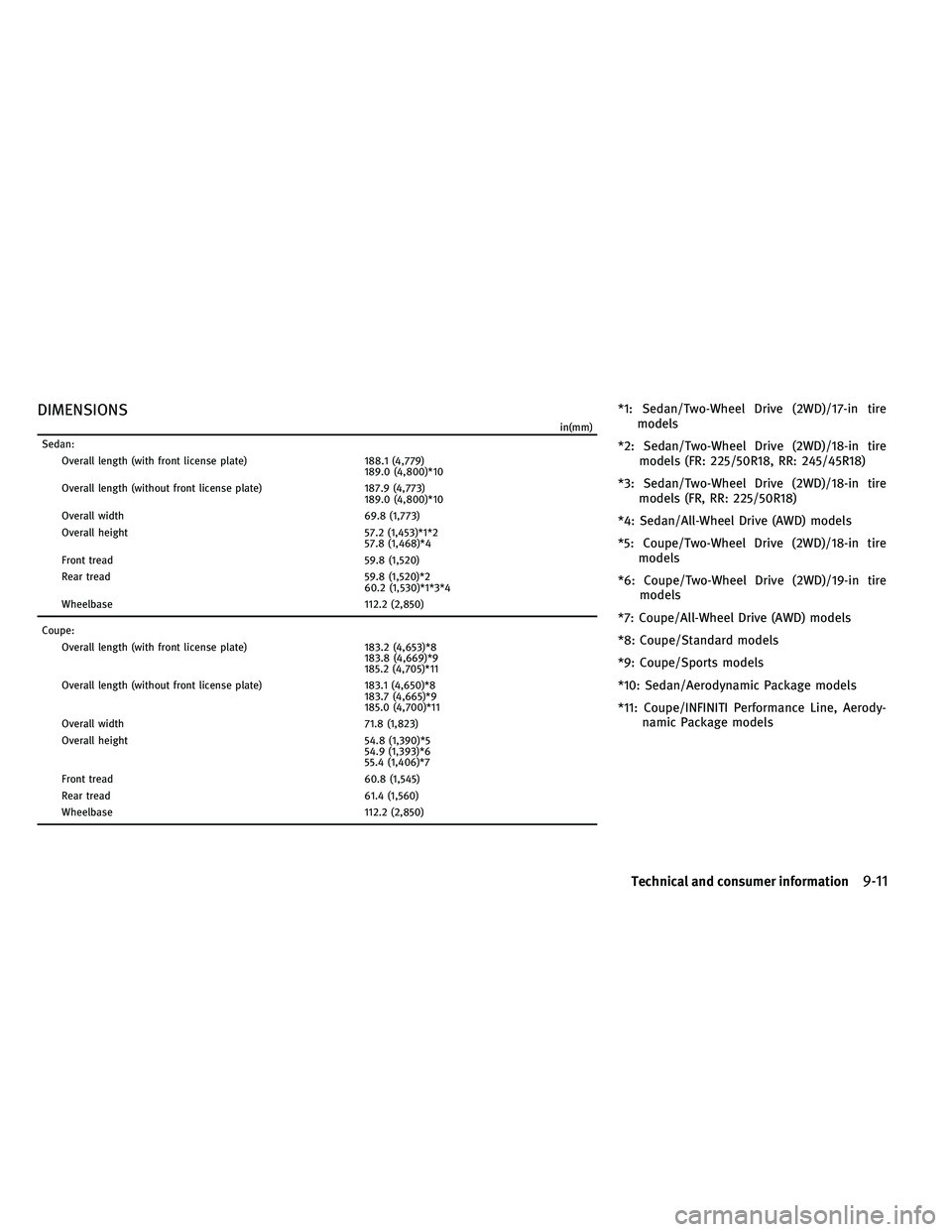

DIMENSIONS
in(mm)
Sedan: Overall length (with front license plate) 188.1 (4,779)
189.0 (4,800)*10
Overall length (without front license plate) 187.9 (4,773)
189.0 (4,800)*10
Overall width 69.8 (1,773)
Overall height 57.2 (1,453)*1*2
57.8 (1,468)*4
Front tread 59.8 (1,520)
Rear tread 59.8 (1,520)*2
60.2 (1,530)*1*3*4
Wheelbase 112.2 (2,850)
Coupe: Overall length (with front license plate) 183.2 (4,653)*8
183.8 (4,669)*9
185.2 (4,705)*11
Overall length (without front license plate) 183.1 (4,650)*8
183.7 (4,665)*9
185.0 (4,700)*11
Overall width 71.8 (1,823)
Overall height 54.8 (1,390)*5
54.9 (1,393)*6
55.4 (1,406)*7
Front tread 60.8 (1,545)
Rear tread 61.4 (1,560)
Wheelbase 112.2 (2,850)
*1: Sedan/Two-Wheel Drive (2WD)/17-in tire
models
*2: Sedan/Two-Wheel Drive (2WD)/18-in tire models (FR: 225/50R18, RR: 245/45R18)
*3: Sedan/Two-Wheel Drive (2WD)/18-in tire models (FR, RR: 225/50R18)
*4: Sedan/All-Wheel Drive (AWD) models
*5: Coupe/Two-Wheel Drive (2WD)/18-in tire models
*6: Coupe/Two-Wheel Drive (2WD)/19-in tire models
*7: Coupe/All-Wheel Drive (AWD) models
*8: Coupe/Standard models
*9: Coupe/Sports models
*10: Sedan/Aerodynamic Package models
*11: Coupe/INFINITI Performance Line, Aerody- namic Package models
Technical and consumer information9-11

If you plan to travel in another country,you
should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your ve-
hicle to another country, state, province or dis-
trict, it may be necessary to modify the vehicle
to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and regis-
tered, its modifications, transportation, and reg-
istration are the responsibility of the user.
INFINITI is not responsible for any inconvenience
that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The number is stamped as shown in the engine
compartment.
STI0431STI0492
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
9-12Technical and consumer information

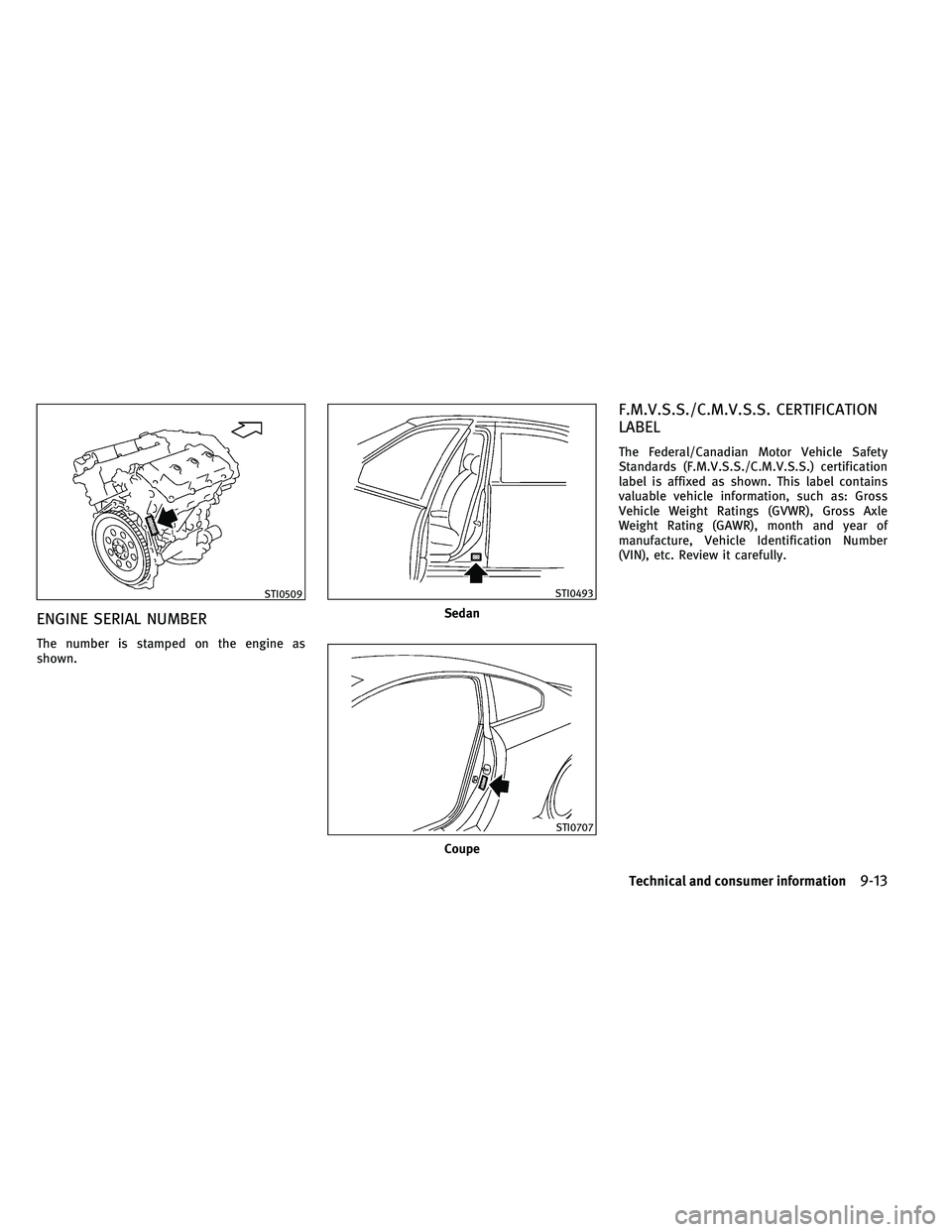

ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR), Gross Axle
Weight Rating (GAWR), month and year of
manufacture, Vehicle Identification Number
(VIN), etc. Review it carefully.
STI0509
Sedan
STI0493
Coupe
STI0707
Technical and consumer information9-13

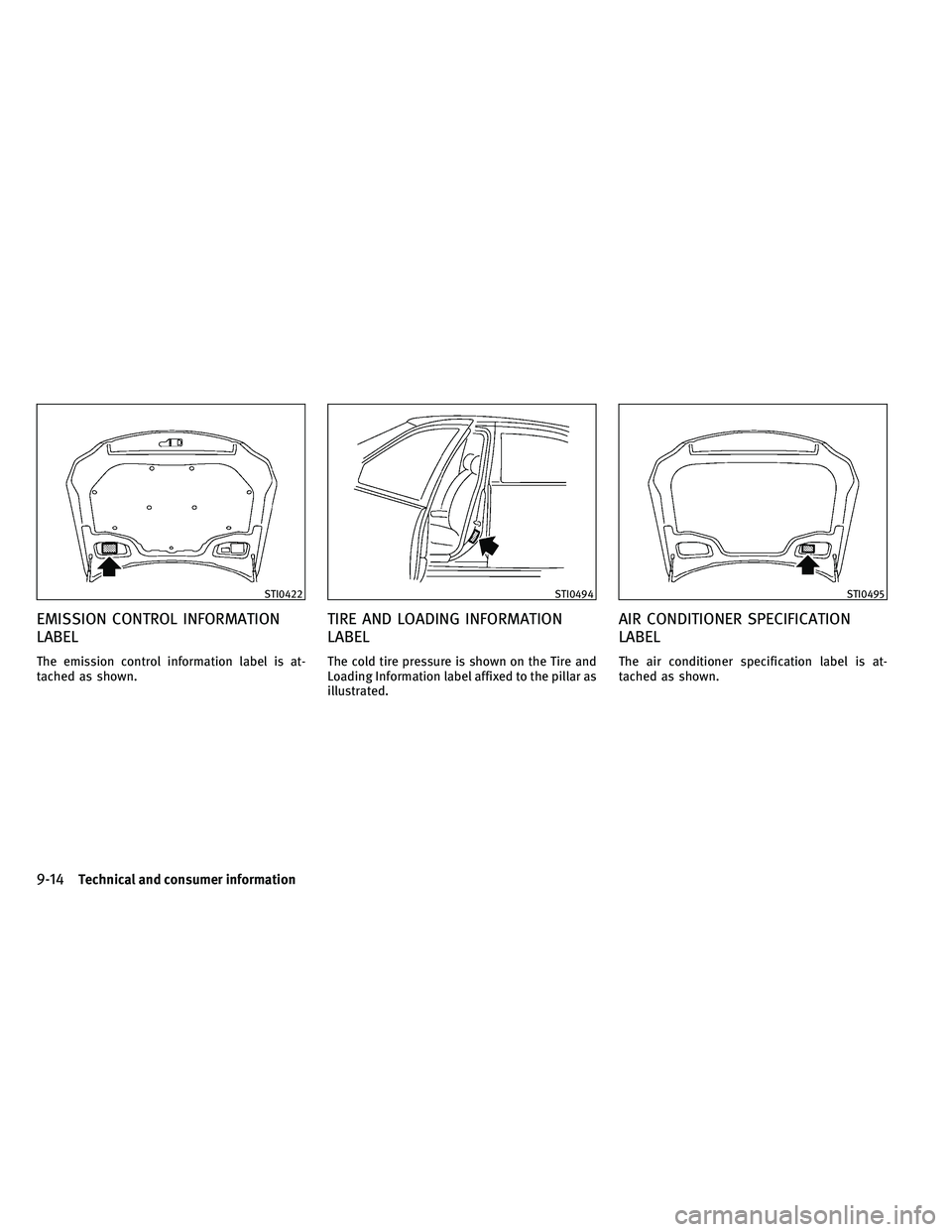

EMISSION CONTROL INFORMATION
LABEL
The emission control information label is at-
tached as shown.
TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
illustrated.
AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is at-
tached as shown.
STI0422STI0494STI0495
9-14Technical and consumer information

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
Only use the recommended mounting position,
otherwise the Intelligent Cruise Control (ICC)
sensor obstruction (if so equipped) may result.
●License plate bracket
● J-nut × 2
● Screw × 2
● Screw grommet × 2
SEDAN
1. Park the vehicle on flat, level ground.
2. Locate the center position
Aas illus-
trated. Position the license plate bracket
at a distance of approximately 0.35 in (9
mm)
Bfrom the bottom of the bumper.
Hold the license plate bracket in place.
3. Mark the center of the hole
Cwith a
felt-tip pen.
4. Carefully drill two pilot holes using a 0.39 in (10 mm) drill bit at the marked loca-
tions. (Be sure that the drill only goes
through the bumper fascia.)
5. Insert grommets into the hole on the fascia.
Sedan
STI0696
INSTALLING FRONT LICENSE PLATE
Technical and consumer information9-15

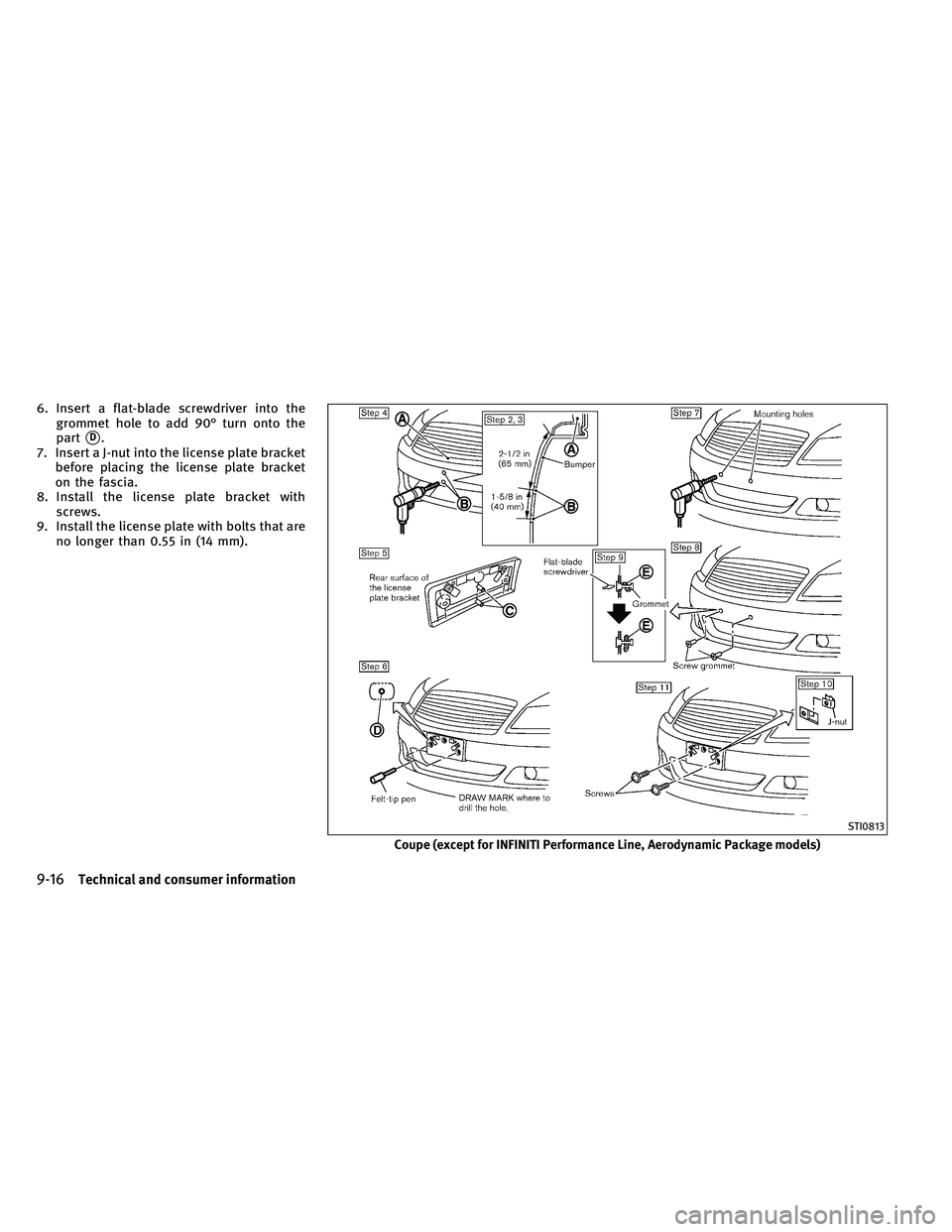

6. Insert a flat-blade screwdriver into thegrommet hole to add 90° turn onto the
part
D.
7. Insert a J-nut into the license plate bracket before placing the license plate bracket
on the fascia.
8. Install the license plate bracket with screws.
9. Install the license plate with bolts that are no longer than 0.55 in (14 mm).
Coupe (except for INFINITI Performance Line, Aerodynamic Package models)
STI0813
9-16Technical and consumer information

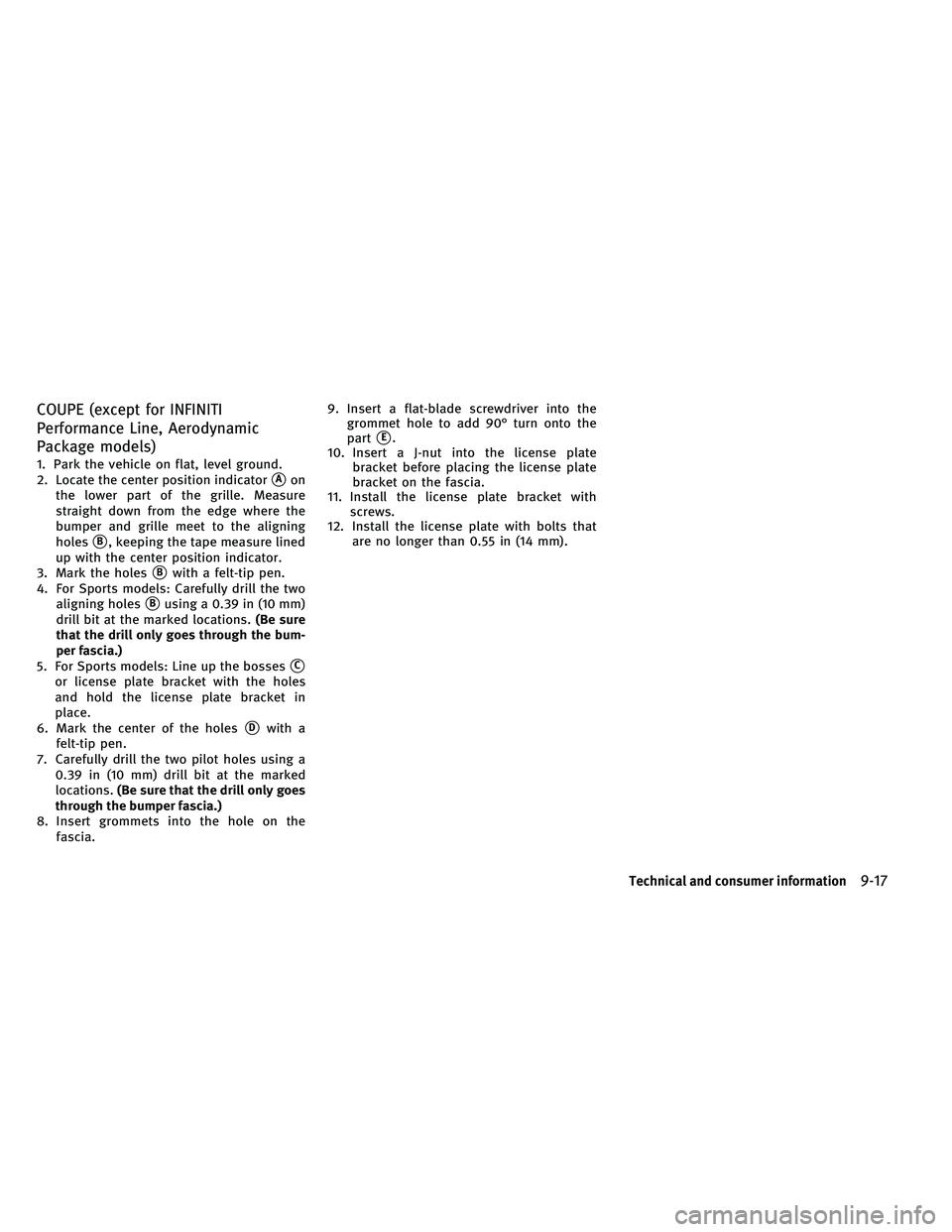

COUPE (except for INFINITI
Performance Line, Aerodynamic
Package models)
1. Park the vehicle on flat, level ground.
2. Locate the center position indicator
Aon
the lower part of the grille. Measure
straight down from the edge where the
bumper and grille meet to the aligning
holes
B, keeping the tape measure lined
up with the center position indicator.
3. Mark the holes
Bwith a felt-tip pen.
4. For Sports models: Carefully drill the two aligning holes
Busing a 0.39 in (10 mm)
drill bit at the marked locations. (Be sure
that the drill only goes through the bum-
per fascia.)
5. For Sports models: Line up the bosses
C
or license plate bracket with the holes
and hold the license plate bracket in
place.
6. Mark the center of the holes
Dwith a
felt-tip pen.
7. Carefully drill the two pilot holes using a 0.39 in (10 mm) drill bit at the marked
locations. (Be sure that the drill only goes
through the bumper fascia.)
8. Insert grommets into the hole on the fascia. 9. Insert a flat-blade screwdriver into the
grommet hole to add 90° turn onto the
part
E.
10. Insert a J-nut into the license plate bracket before placing the license plate
bracket on the fascia.
11. Install the license plate bracket with screws.
12. Install the license plate with bolts that are no longer than 0.55 in (14 mm).
Technical and consumer information9-17

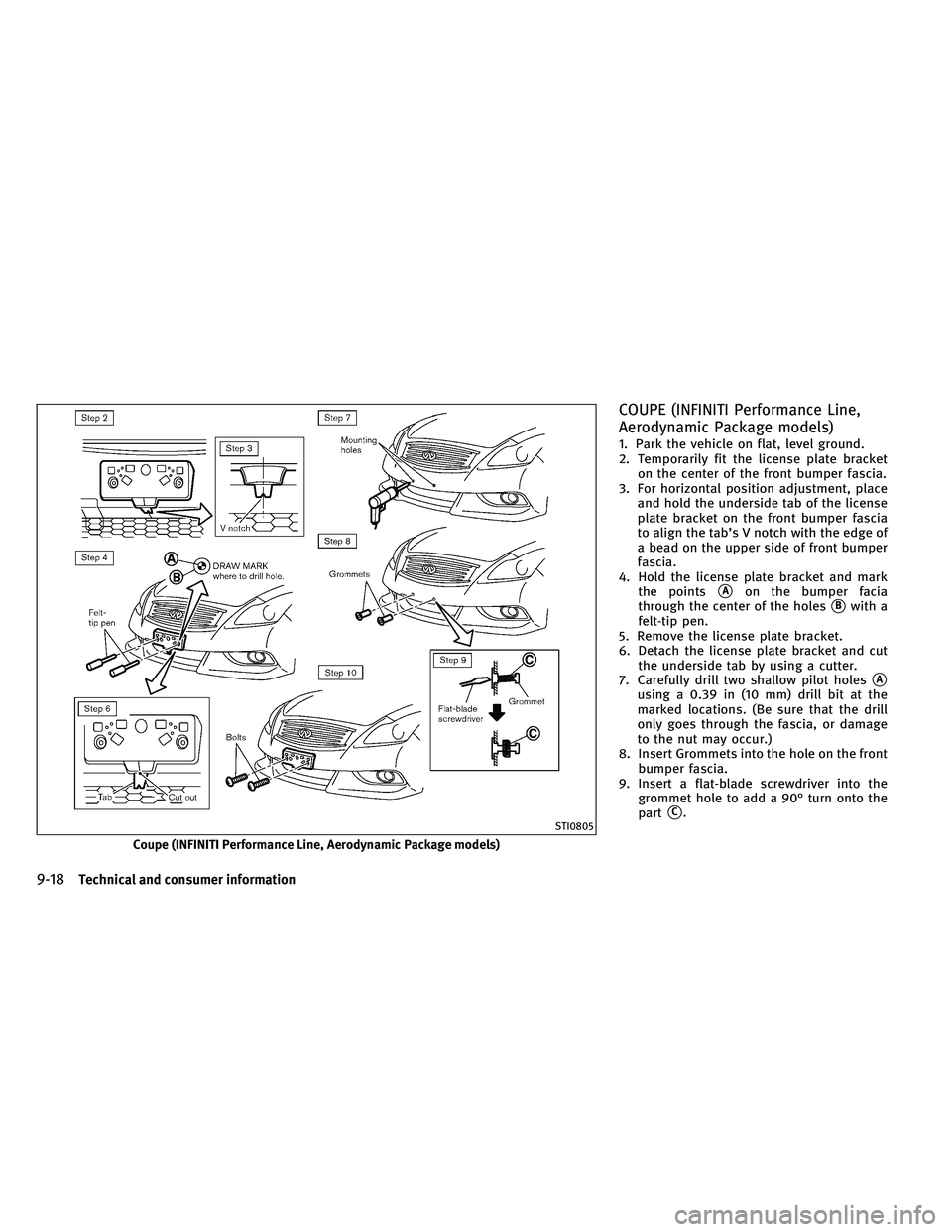

COUPE (INFINITI Performance Line,
Aerodynamic Package models)
1. Park the vehicle on flat, level ground.
2. Temporarily fit the license plate bracketon the center of the front bumper fascia.
3. For horizontal position adjustment, place and hold the underside tab of the license
plate bracket on the front bumper fascia
to align the tab’s V notch with the edge of
a bead on the upper side of front bumper
fascia.
4. Hold the license plate bracket and mark the points
Aon the bumper facia
through the center of the holes
Bwith a
felt-tip pen.
5. Remove the license plate bracket.
6. Detach the license plate bracket and cut the underside tab by using a cutter.
7. Carefully drill two shallow pilot holes
A
using a 0.39 in (10 mm) drill bit at the
marked locations. (Be sure that the drill
only goes through the fascia, or damage
to the nut may occur.)
8. Insert Grommets into the hole on the front bumper fascia.
9. Insert a flat-blade screwdriver into the grommet hole to add a 90° turn onto the
part
C.
Coupe (INFINITI Performance Line, Aerodynamic Package models)
STI0805
9-18Technical and consumer information

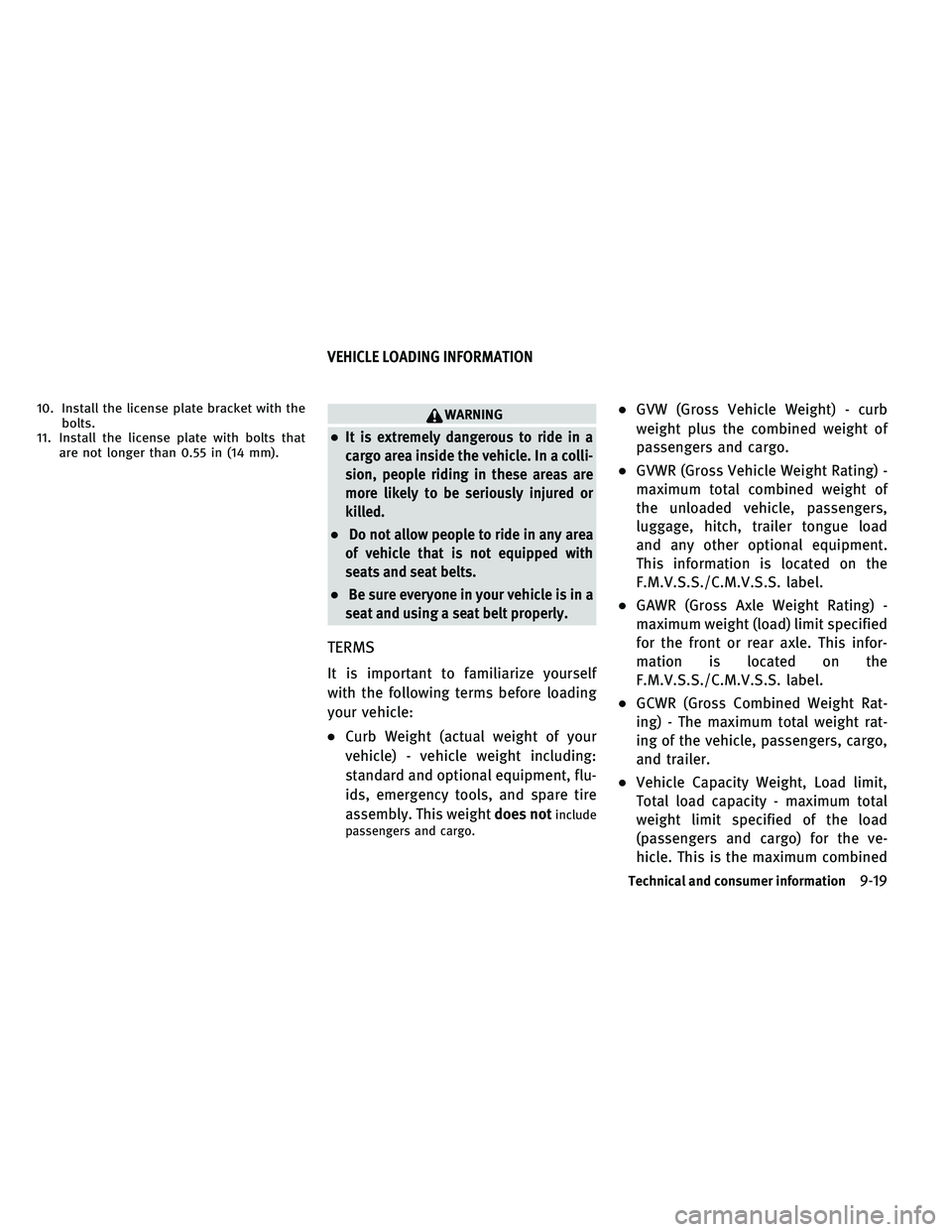

10. Install the license plate bracket with thebolts.
11. Install the license plate with bolts that are not longer than 0.55 in (14 mm).WARNING
●It is extremely dangerous to ride in a
cargo area inside the vehicle. In a colli-
sion, people riding in these areas are
more likely to be seriously injured or
killed.
●Do not allow people to ride in any area
of vehicle that is not equipped with
seats and seat belts.
●Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
TERMS
It is important to familiarize yourself
with the following terms before loading
your vehicle:
●Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard and optional equipment, flu-
ids, emergency tools, and spare tire
assembly. This weight does not
include
passengers and cargo. ●
GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.
●GVWR (Gross Vehicle Weight Rating) -
maximum total combined weight of
the unloaded vehicle, passengers,
luggage, hitch, trailer tongue load
and any other optional equipment.
This information is located on the
F.M.V.S.S./C.M.V.S.S. label.
●GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified
for the front or rear axle. This infor-
mation is located on the
F.M.V.S.S./C.M.V.S.S. label.
●GCWR (Gross Combined Weight Rat-
ing) - The maximum total weight rat-
ing of the vehicle, passengers, cargo,
and trailer.
●Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum combined
VEHICLE LOADING INFORMATION
Technical and consumer information9-19
