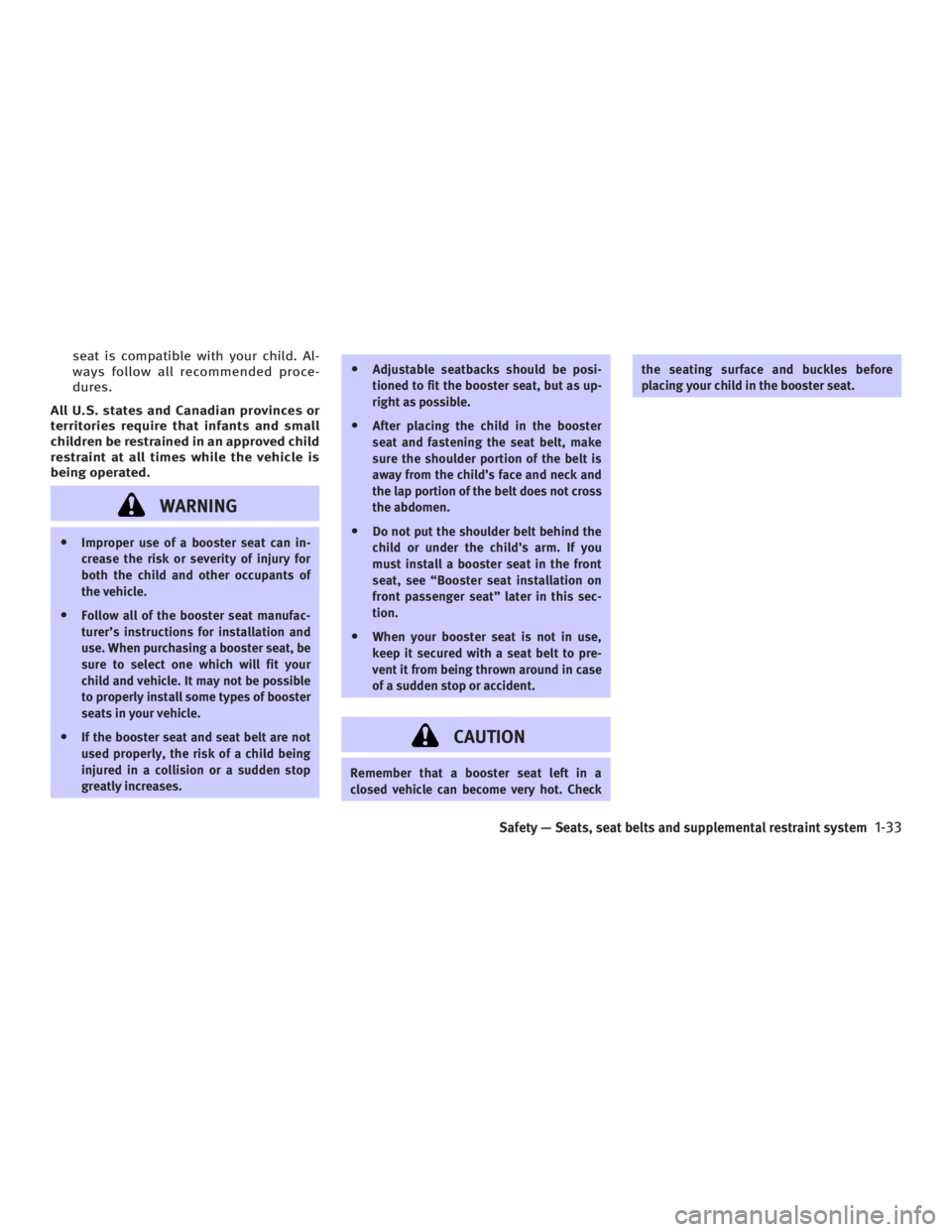

seat is compatible with your child. Al-
ways follow all recommended proce-
dures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
WARNINGO Improper use of a booster seat can in-
crease the risk or severity of injury for
both the child and other occupants of
the vehicle.
O Follow all of the booster seat manufac-
turer's instructions for installation and
use. When purchasing a booster seat, be
sure to select one which will fit your
child and vehicle. It may not be possible
to properly install some types of booster
seats in your vehicle.
O If the booster seat and seat belt are not
used properly, the risk of a child being
injured in a collision or a sudden stop
greatly increases. O Adjustable seatbacks should be posi-
tioned to fit the booster seat, but as up-
right as possible.
O After placing the child in the booster
seat and fastening the seat belt, make
sure the shoulder portion of the belt is
away from the child's face and neck and
the lap portion of the belt does not cross
the abdomen.
O Do not put the shoulder belt behind the
child or under the child's arm. If you
must install a booster seat in the front
seat, see ªBooster seat installation on
front passenger seatº later in this sec-
tion.
O When your booster seat is not in use,
keep it secured with a seat belt to pre-
vent it from being thrown around in case
of a sudden stop or accident.
CAUTION Remember that a booster seat left in a
closed vehicle can become very hot. Check the seating surface and buckles before
placing your child in the booster seat.
Safety Ð Seats, seat belts and supplemental restraint system
1-33
w 06.1.4/V35-D/V5.0
X

BOOSTER SEAT INSTALLATION ON
REAR SEAT OUTBOARD OR CENTER
POSITIONS
CAUTIONDo not use a lap/shoulder belt automatic
locking mode when using a booster seat
with the seat belts.
When you install a booster seat in the
rear seat, follow these steps: 1. Position the booster seat on the seat.
Only place it in a front-facing direc-
tion. Always follow the booster seat
manufacturer's instructions.
2. The booster seat should be positioned
on the vehicle seat so that it is stable.
If necessary, adjust or remove the
head restraint to obtain the correct
booster seat fit. See ªHead restraint
adjustmentº earlier in this section. If
the head restraint is removed, store it
in a secure place. Be sure to install
the head restraint when the booster
seat is removed. If the seating posi-
tion does not have an adjustable head restraint and it is interfering with the
proper booster seat fit, try another
seating position or a different booster
seat.
3. Position the lap portion of the seat
belt low and snug on the child's hips.
Be sure to follow the booster seat
manufacturer's instructions for ad-
justing the belt routing.
4. Pull the shoulder belt portion of the
seat belt toward the retractor to take
up extra slack. Be sure the shoulder
belt is positioned across the top,
middle portion of the child's shoulder.
Be sure to follow the booster seat
manufacturer's instructions for ad-
justing the belt routing.
5. Follow the warnings, cautions and in-
structions for properly fastening a seat
belt shown in the ªThree-point type
seat belts with retractorº earlier in
this section.LRS0452
Outboard position LRS0451
Center position
1-34 Safety Ð Seats, seat belts and supplemental restraint system
w 06.1.4/V35-D/V5.0
X

BOOSTER SEAT INSTALLATION ON
FRONT PASSENGER SEAT
WARNINGINFINITI recommends that child restraints be
installed in the rear seat. However, if you
must install a booster seat in the front pas-
senger seat, move the passenger seat to the
rearmost position. Also be sure that the front
passenger air bag status light is illuminated
to indicate the passenger air bag is OFF. See ªFront passenger air bag and status
lightº later in this section for details.
If you must install a booster seat in the
front seat, follow these steps:
1. Move the seat to the rearmost posi-
tion.
2. Position the booster seat on the seat.
Only place it in a front-facing direc-
tion. Always follow the booster seat
manufacturer's instructions.
3. The booster seat should be positioned
on the vehicle seat so that it is stable.
If necessary, adjust or remove the
head restraint to obtain the correct
booster seat fit. See ªHead restraint
adjustmentº earlier in this section. If
the head restraint is removed, store it
in a secure place. Be sure to install
the head restraint when the booster
seat is removed. If the seating posi-
tion does not have an adjustable head
restraint and it is interfering with the
proper booster seat fit, try another
seating position or a different booster
seat. 4. Position the lap portion of the seat
belt low and snug on the child's hips.
Be sure to follow the booster seat
manufacturer's instructions for ad-
justing the belt routing.
5. Pull the shoulder belt portion of the
seat belt toward the retractor to take
up extra slack. Be sure the shoulder
belt is positioned across the top,
middle portion of the child's shoulder.
Be sure to follow the booster seat
manufacturer's instructions for ad-
justing the belt routing.
6. Follow the warnings, cautions and in-
structions for properly fastening a seat
belt shown in the ªThree-point type
seat belt with retractorº earlier in this
section.
7. Turn the ignition switch to the ON po-
sition. The passenger air bag status
light should illuminate. If this
light is not illuminated, see ªFront
passenger air bag and status lightº
later in this section. Move the booster
seat to another seating position. Have
the system checked by an INFINITI
dealer.LRS0454
Safety Ð Seats, seat belts and supplemental restraint system
1-35
w 06.1.4/V35-D/V5.0
X

PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM This Supplemental Restraint System (SRS)
section contains important information
concerning the driver and passenger front
impact supplemental air bags (INFINITI ad-
vanced air bag system), front seat side-
impact supplemental air bags, curtain air
bags and front seat pre-tensioner seat
belts.
Supplemental front-impact air bag system:
The INFINITI advanced air bag system can
help cushion the impact force to the head
and chest of the driver and front pas-
senger in certain frontal collisions.
Supplemental side air bag system: This
system can help cushion the impact force
to the chest area of the driver and front
passenger in certain side impact colli-
sions. The front seat side-impact supple-
mental air bags are designed to inflate on
the side where the vehicle is impacted.
Supplemental curtain side-impact air bag
system: This system can help cushion the
impact force to the head of occupants in
front and rear outboard seating positions
in certain side impact collisions. The cur-
tain side-impact air bags are designed to
inflate on the side where the vehicle is
impacted. These supplemental restraint systems are
designed to supplement the crash protec-
tion provided by the driver and passenger
seat belts and are not a substitute for
them. Seat belts should always be cor-
rectly worn and the occupant seated a
suitable distance away from the steering
wheel, instrument panel and door fin-
ishers. (See ªSeat beltsº earlier in this
section for instructions and precautions
on seat belt usage.)
The supplemental air bags operate only
when the ignition switch is in the ON or
START position.
After turning the ignition switch to the ON
position, the supplemental air bag
warning light illuminates. The supple-
mental air bag warning light will turn off
after about 7 seconds if the systems are
operational.SUPPLEMENTAL RESTRAINT SYSTEM
1-36 Safety Ð Seats, seat belts and supplemental restraint system
w 06.1.4/V35-D/V5.0
X

WARNINGO The supplemental front air bags ordi-
narily will not inflate in the event of a
side impact, rear impact, rollover, or
lower severity frontal collision. Always
wear your seat belts to help reduce the
risk or severity of injury in various kinds
of accidents.
O The front passenger air bag will not in-
flate if the passenger air bag status light is lit or if the front passenger seat is un-
occupied. See 0 Front passenger air bag
and status light 0 later in this section.
O
The seat belts and the supplemental front
air bags are most effective when you are
sitting well back and upright in the seat.
Supplemental front air bags inflate with
great force. Even with the INFINITI ad-
vanced air bag system, if you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at greater risk of injury or death in a crash.
You may also receive serious or fatal in-
juries from the supplemental front air
bag if you are up against it when it in-
flates. Always sit back against the seat
back and as far away as practical from
the steering wheel or instrument panel.
Always use the seat belts.
O The driver and front passenger seat belt
buckles are equipped with sensors that
detect if the seat belts are fastened. The
INFINITI advanced air bag system moni-
tors the severity of a collision and seat
belt usage then inflates the air bags.
Failure to properly wear seat belts can
increase the risk or severity of injury in
an accident.
O The front passenger seat is equipped
with an occupant classification sensor
(pressure sensor) that turns the front
passenger air bag OFF under some con-
ditions. This sensor is only used in this
seat. Failure to be properly seated and
wearing the seat belt can increase the
risk or severity of injury in an accident. SSS0131B
Safety Ð Seats, seat belts and supplemental restraint system
1-37
w 06.1.4/V35-D/V5.0
X

See ªFront Passenger air bag and status
lightº later in this section.
O Keep hands on the outside of the
steering wheel. Placing them inside the
steering wheel rim could increase the
risk that they are injured when the
supplemental front air bag inflates. SSS0132B
1-38 Safety Ð Seats, seat belts and supplemental restraint system
w 06.1.4/V35-D/V5.0
X

SSS0006
SSS0007 SSS0008
SSS0009 SSS0099
SSS0100
Safety Ð Seats, seat belts and supplemental restraint system
1-39
w 06.1.4/V35-D/V5.0
X

WARNINGO Never let children ride unrestrained or
extend their hands or face out of the
window. Do not attempt to hold them in
your lap or arms. Some examples of dan-
gerous riding positions are shown in the
previous illustrations.
O Children may be severely injured or
killed when the supplemental front air
bags, side air bags or curtain side-
impact air bags inflate if they are not
properly restrained. Pre-teens and chil-
dren should be properly restrained in the
rear seat, if possible.
O Even with the INFINITI advanced air bag
system, never install a rear-facing child
restraint in the front seat. An inflating
supplemental front air bag could seri-
ously injure or kill your child. For addi-
tional information, see ªChild re-
straintsº earlier in this section.
WARNING Supplemental side air bag and curtain side-
impact air bag:
O The supplemental side air bag and cur-
tain side-impact air bag ordinarily will
not inflate in the event of a frontal im-
pact, rear impact, rollover or lower se-
verity side collision. Always wear your
seat belts to help reduce the risk or se-
verity of injury in various kinds of
accidents. O The seat belts, the supplemental side air
bags and curtain side-impact air bags
are most effective when you are sitting
well back and upright in the seat. The
side air bag and curtain side-impact air
bag inflate with great force. Do not allow
anyone to place their hand, leg or face
near the side air bag on the side of the
seatback of the front seat or near the
side roof rails. Do not allow anyone sit-
ting in the front seats or rear outboard
seats to extend their hand out of the SSS0059A
SSS0188A
1-40 Safety Ð Seats, seat belts and supplemental restraint system
w 06.1.4/V35-D/V5.0
X

window or lean against the door. Some
examples of dangerous riding positions
are shown in the previous illustrations.
O When sitting in the rear seat, do not hold
onto the seatback of the front seat. If the
side air bag inflates, you may be seri-
ously injured. Be especially careful with
children, who should always be properly
restrained.
O Do not use seat covers on the front seat-
backs. They may interfere with supple-
mental side air bag inflation. SSS0140 SSS0159 SSS0162
Safety Ð Seats, seat belts and supplemental restraint system
1-41
w 06.1.4/V35-D/V5.0
X

1. Crash zone sensor
2. Supplemental front air bag modules
3. Supplemental side air bag modules
4. Occupant classification sensor (pres-
sure sensor) 5. Supplemental curtain side-impact air
bags
6. Supplemental curtain side-impact air
bag modules
7. Diagnosis sensor unit 8. Seat belt pre-tensioner
9. Satellite sensors
10. Occupant classification system control
unit
INFINITI ADVANCED AIR BAG
SYSTEM (front seats) This vehicle is equipped with the INFINITI
advanced air bag system for the driver
and front passenger seats. This system is
designed to meet certification require-
ments under U.S. regulations. It is also
permitted in Canada. However, all of the
information, cautions and warnings in this
manual still apply and must be followed.
The driver supplemental air bag is located
in the center of the steering wheel. The
front passenger supplemental air bag is
mounted in the dashboard above the
glove box. The supplemental front air
bags are designed to inflate in higher se-
verity frontal collisions, although they
may inflate if the forces in another type of
collision are similar to those of a higher
severity frontal impact. They may not in-
flate in certain frontal collisions. Vehicle
damage (or lack of it) is not always an in-
dication of proper supplemental air bag
operation. SSS0416
Sedan
1-42 Safety Ð Seats, seat belts and supplemental restraint system
w 06.1.4/V35-D/V5.0
X
