CAUTIONNever use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed to
the OFF or LOCK position and the
headlight switch is turned to OFF. 2. Open the engine hood and remove the
cover on the battery and the fuse/
fusible link holder.
3. Remove the fuse/fusible link holder
cover.
4. Remove the fuse with the fuse puller.
SDI1754
5. If the fuse is open
* A
, replace it with a
new fuse
* B
. Spare fuses are stored in
the passenger compartment fuse box.
6. If a new fuse also opens, have the
electrical system checked and repaired
by an INFINITI retailer.
Fusible links GUID-E9133FFB-99A7-4084-8BC3-32BBC0B20EAC
If any electrical equipment does not
operate and fuses are in good condition,
check the fusible links. If any of these
fusible links are melted, replace only with
genuine INFINITI parts.FUSES
Page 432 of 490
![INFINITI G37 2012 Owners Manual Black plate (431,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] SDI2034
PASSENGER COMPARTMENT GUID-B150D9E0-F345-4BB5-BF72-57CEBE3509C0
CAUTIONNever use a fuse of a higher or lower
amperage rating than that sp INFINITI G37 2012 Owners Manual Black plate (431,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] SDI2034
PASSENGER COMPARTMENT GUID-B150D9E0-F345-4BB5-BF72-57CEBE3509C0
CAUTIONNever use a fuse of a higher or lower
amperage rating than that sp](/img/42/58895/w960_58895-431.png)
Black plate (431,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] SDI2034
PASSENGER COMPARTMENT GUID-B150D9E0-F345-4BB5-BF72-57CEBE3509C0
CAUTIONNever use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed to
the OFF or LOCK position and the
headlight switch is turned to OFF. 2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
* A
.
4. If the fuse is open, replace it with a new
fuse.
5. If a new fuse also opens, have the
electrical system checked and repaired
by an INFINITI retailer. Spare fuses are
stored in the fuse box. SDI2704
Extended storage switch (if
equipped) GUID-686D0C65-BB54-46EA-AAE5-01212C2311DD
To reduce battery drain, the extended
storage switch comes from the factory
switched off. Prior to delivery of your
vehicle, the switch is pushed in (switched
on) and should always remain on.
If any electrical equipment does not
operate, remove the extended storage
switch and check for an open fuse.
NOTE:
If the extended storage switch malfunc-
tions, or if the fuse is open, it is not
necessary to replace the switch. In this
Maintenance and do-it-yourself
8-25
Page 433 of 490
![INFINITI G37 2012 Owners Manual Black plate (432,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-26 Maintenance and do-it-yourselfcase, remove the extended storage switch
and replace it with a new fuse of the same
rating.
How to remove the e INFINITI G37 2012 Owners Manual Black plate (432,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-26 Maintenance and do-it-yourselfcase, remove the extended storage switch
and replace it with a new fuse of the same
rating.
How to remove the e](/img/42/58895/w960_58895-432.png)
Black plate (432,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-26 Maintenance and do-it-yourselfcase, remove the extended storage switch
and replace it with a new fuse of the same
rating.
How to remove the extended storage
switch: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
1. To remove the extended storage switch,
be sure the ignition switch is in the OFF
or LOCK position.
2. Be sure the headlight switch is in the
OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
* 1
found on
each side of the storage switch.
5. Pull the storage switch straight out
from the fuse box
* 2
. GUID-D6C7487D-F01A-4963-A132-57E4904379BF
SDI1834
Replace the battery as follows:
1. Release the lock knob at the back of the
Intelligent Key and remove the mechan-
ical key.
2. Insert a flat-blade screwdriver
* A
wrapped with a cloth into the slit
* B
of the corner and twist it to separate
the upper part from the lower part. SDI2042
3. Replace the battery with a new one.
Recommended battery: CR2032 or
equivalent. .
Do not touch the internal circuit and
electric terminals as it could cause a
malfunction. .
Hold the battery by the edges.
Holding the battery across the con-
tact points will seriously deplete the
storage capacity. .
Make sure that the + side faces the
bottom of the case.
4. Align the tips of the upper and lower
parts, and then push them together
until it is securely closed.INTELLIGENT KEY BATTERY REPLACEMENT
Page 434 of 490
![INFINITI G37 2012 Owners Manual Black plate (433,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5. Push the buttons two or three times to
check its operation.
See an INFINITI retailer if you need any
assistance for replacement.
FCC Notice:
Fo INFINITI G37 2012 Owners Manual Black plate (433,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5. Push the buttons two or three times to
check its operation.
See an INFINITI retailer if you need any
assistance for replacement.
FCC Notice:
Fo](/img/42/58895/w960_58895-433.png)
Black plate (433,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5. Push the buttons two or three times to
check its operation.
See an INFINITI retailer if you need any
assistance for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user ’ s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Maintenance and do-it-yourself
8-27
Page 435 of 490
![INFINITI G37 2012 Owners Manual Black plate (434,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-28 Maintenance and do-it-yourself GUID-CC43F1E0-CD84-4C89-AE76-E3BF74F58A31
JVM0099XSEDAN GUID-DC499FCB-C993-49FE-B186-4299E70AF763
1. Front tur INFINITI G37 2012 Owners Manual Black plate (434,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-28 Maintenance and do-it-yourself GUID-CC43F1E0-CD84-4C89-AE76-E3BF74F58A31
JVM0099XSEDAN GUID-DC499FCB-C993-49FE-B186-4299E70AF763
1. Front tur](/img/42/58895/w960_58895-434.png)
Black plate (434,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-28 Maintenance and do-it-yourself GUID-CC43F1E0-CD84-4C89-AE76-E3BF74F58A31
JVM0099XSEDAN GUID-DC499FCB-C993-49FE-B186-4299E70AF763
1. Front turn signal light and parking
light
2. Headlight (high- and low-beam)
3. Front side marker light
4. Map light
5. Rear personal light
6. Fog light
7. Step light
8. Trunk light
9. High-mounted stop light
10. License plate light
11. Back-up light
12. Rear combination light (rear turn
signal/tail/stop/side marker light)LIGHTS
Page 436 of 490
![INFINITI G37 2012 Owners Manual Black plate (435,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] SDI2702COUPE GUID-0388FA1F-19E7-4691-88ED-9037CE2CE37C
1. Parking light
2. Headlight (high- and low-beam)
3. Front turn signal light
4. Map light INFINITI G37 2012 Owners Manual Black plate (435,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] SDI2702COUPE GUID-0388FA1F-19E7-4691-88ED-9037CE2CE37C
1. Parking light
2. Headlight (high- and low-beam)
3. Front turn signal light
4. Map light](/img/42/58895/w960_58895-435.png)
Black plate (435,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] SDI2702COUPE GUID-0388FA1F-19E7-4691-88ED-9037CE2CE37C
1. Parking light
2. Headlight (high- and low-beam)
3. Front turn signal light
4. Map light
5. Fog light
6. Front side marker light
7. Step light
8. High-mounted stop light (on the rear
parcel shelf or in the rear spoiler)*
9. Trunk light
10. License plate light
11. Back-up light
12. Rear combination light (rear turn
signal/tail/stop/side marker light)
*: Note that when the factory spoiler is
installed, the rear parcel shelf high-
mounted stop light is still present, but
it is disabled and replaced by the rear
spoiler high-mounted stop light.
Maintenance and do-it-yourself
8-29
Page 437 of 490
![INFINITI G37 2012 Owners Manual Black plate (436,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-30 Maintenance and do-it-yourselfHEADLIGHTS GUID-2C37EBF3-FE69-4D64-AE03-00ECA5091687
Replacing GUID-782124E3-CA8B-42A2-90B0-1AC5B2F9C37A
Xenon INFINITI G37 2012 Owners Manual Black plate (436,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-30 Maintenance and do-it-yourselfHEADLIGHTS GUID-2C37EBF3-FE69-4D64-AE03-00ECA5091687
Replacing GUID-782124E3-CA8B-42A2-90B0-1AC5B2F9C37A
Xenon](/img/42/58895/w960_58895-436.png)
Black plate (436,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-30 Maintenance and do-it-yourselfHEADLIGHTS GUID-2C37EBF3-FE69-4D64-AE03-00ECA5091687
Replacing GUID-782124E3-CA8B-42A2-90B0-1AC5B2F9C37A

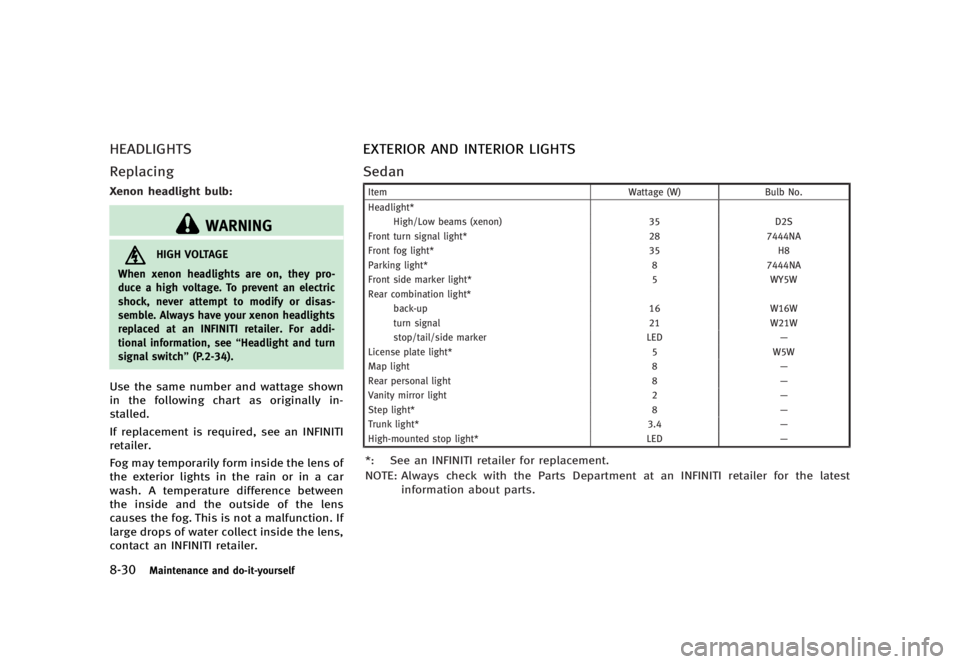

Xenon headlight bulb: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
WARNING HIGH VOLTAGE
When xenon headlights are on, they pro-
duce a high voltage. To prevent an electric
shock, never attempt to modify or disas-
semble. Always have your xenon headlights
replaced at an INFINITI retailer. For addi-
tional information, see “ Headlight and turn
signal switch ” (P.2-34).
Use the same number and wattage shown
in the following chart as originally in-
stalled.
If replacement is required, see an INFINITI
retailer.
Fog may temporarily form inside the lens of
the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
contact an INFINITI retailer. EXTERIOR AND INTERIOR LIGHTS GUID-BDE3C310-75C1-4F4D-9E48-5E09104465DA
Sedan GUID-4998FE6F-5C4E-43C2-BA3C-10A3EF2B9ECB

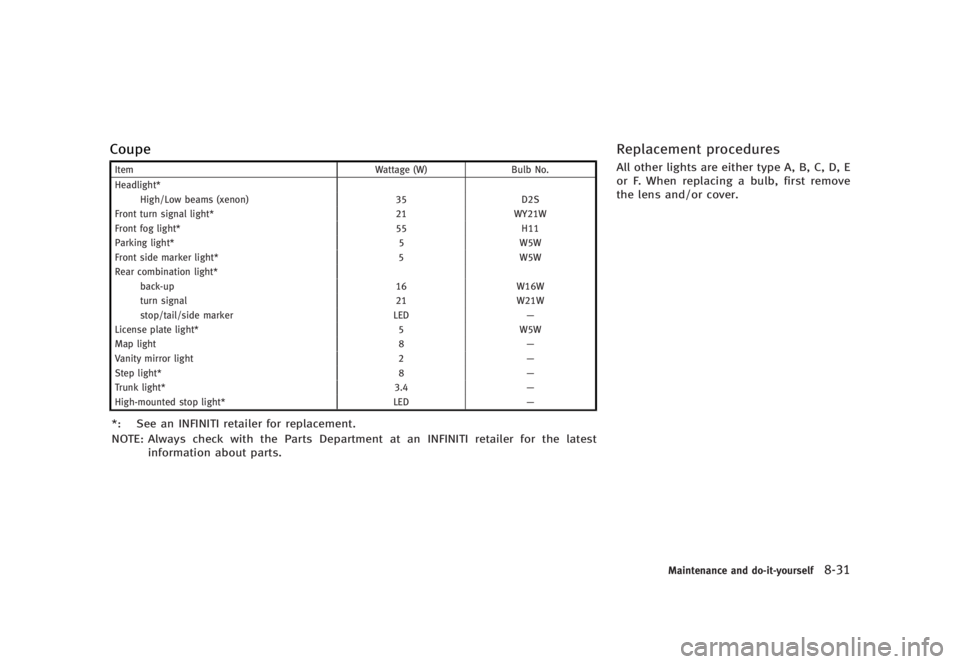

Item Wattage (W) Bulb No.
Headlight*
High/Low beams (xenon) 35 D2S
Front turn signal light* 28 7444NA
Front fog light* 35 H8
Parking light* 8 7444NA
Front side marker light* 5 WY5W
Rear combination light*
back-up 16 W16W
turn signal 21 W21W
stop/tail/side marker LED —
License plate light* 5 W5W
Map light 8 —
Rear personal light 8 —
Vanity mirror light 2 —
Step light* 8 —
Trunk light* 3.4 —
High-mounted stop light* LED —
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest
information about parts.
Page 438 of 490
![INFINITI G37 2012 Owners Manual Black plate (437,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Coupe GUID-6BE0C122-8A5E-4B16-9AFC-881BF27CAAA6
Item Wattage (W) Bulb No.
Headlight*
High/Low beams (xenon) 35 D2S
Front turn signal light* 21 WY2 INFINITI G37 2012 Owners Manual Black plate (437,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Coupe GUID-6BE0C122-8A5E-4B16-9AFC-881BF27CAAA6
Item Wattage (W) Bulb No.
Headlight*
High/Low beams (xenon) 35 D2S
Front turn signal light* 21 WY2](/img/42/58895/w960_58895-437.png)
Black plate (437,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Coupe GUID-6BE0C122-8A5E-4B16-9AFC-881BF27CAAA6
Item Wattage (W) Bulb No.
Headlight*
High/Low beams (xenon) 35 D2S
Front turn signal light* 21 WY21W
Front fog light* 55 H11
Parking light* 5 W5W
Front side marker light* 5 W5W
Rear combination light*
back-up 16 W16W
turn signal 21 W21W
stop/tail/side marker LED —
License plate light* 5 W5W
Map light 8 —
Vanity mirror light 2 —
Step light* 8 —
Trunk light* 3.4 —
High-mounted stop light* LED —
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest
information about parts. Replacement procedures GUID-D8D045ED-1B5F-4082-8769-1BABE97FBC3A
All other lights are either type A, B, C, D, E
or F. When replacing a bulb, first remove
the lens and/or cover.
Maintenance and do-it-yourself
8-31
Page 439 of 490
![INFINITI G37 2012 Owners Manual Black plate (438,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-32 Maintenance and do-it-yourself SDI1679 SDI2508
Map light
SDI2031
Rear personal light (Sedan only) SDI2032
Vanity mirror light (Type A)
SDI183 INFINITI G37 2012 Owners Manual Black plate (438,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-32 Maintenance and do-it-yourself SDI1679 SDI2508
Map light
SDI2031
Rear personal light (Sedan only) SDI2032
Vanity mirror light (Type A)
SDI183](/img/42/58895/w960_58895-438.png)
Black plate (438,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-32 Maintenance and do-it-yourself SDI1679 SDI2508
Map light
SDI2031
Rear personal light (Sedan only) SDI2032
Vanity mirror light (Type A)
SDI1839
Vanity mirror light (Type B)
Page 440 of 490
![INFINITI G37 2012 Owners Manual Black plate (439,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-9503AF79-9CA5-400E-9F06-81B6757D713C
If you have a flat tire, see “ Flat tire ” (P.6-
2).
TIRE PRESSURE GUID-059CBC2D-BB1C-4DE2-B26E-A891 INFINITI G37 2012 Owners Manual Black plate (439,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-9503AF79-9CA5-400E-9F06-81B6757D713C
If you have a flat tire, see “ Flat tire ” (P.6-
2).
TIRE PRESSURE GUID-059CBC2D-BB1C-4DE2-B26E-A891](/img/42/58895/w960_58895-439.png)
Black plate (439,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-9503AF79-9CA5-400E-9F06-81B6757D713C
If you have a flat tire, see “ Flat tire ” (P.6-
2).
TIRE PRESSURE GUID-059CBC2D-BB1C-4DE2-B26E-A89198E003F1
Tire Pressure Monitoring System
(TPMS) GUID-54149EBD-6C2B-4EEC-AE1A-FDADBBA021B3
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not
detect a sudden drop in tire pressure (for
example a flat tire while driving).
For more details, see “ Low tire pressure
warning light ” (P.2-15), “ Tire Pressure
Monitoring System (TPMS) ” (P.5-4) and
“ Tire Pressure Monitoring System (TPMS) ”
(P.6-2).
Tire inflation pressure GUID-FDC2587E-609D-4595-9387-574BE1BDEAC6
Check the pressure of the tires
(including the spare) often and al- ways prior to long distance trips. The
recommended tire pressure specifi-
cations are shown on the Tire and
Loading Information label under the
“ Cold Tire Pressure ” heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because: .
Most tires naturally lose air over
time. .
Tires can lose air suddenly when
driven over potholes or other
objects or if the vehicle strikes a
curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds.
Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling. WARNING .
Improperly inflated tires can fail
suddenly and cause an accident. .
The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.
S./C.M.V.S.S. label. The vehicle
weight capacity is indicated on
the Tire and Loading Information
label. Do not load your vehicle
beyond this capacity. Overloading
your vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire failure,
or unfavorable handling character-
istics and could also lead to a
serious accident. Loading beyond
the specified capacity may also
result in failure of other vehicle
components. .
Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure gauge
to ensure that the tire pressures
Maintenance and do-it-yourself
8-33WHEELS AND TIRES
