INFINITI G37 2012 Owners Manual

Black plate (440,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-34 Maintenance and do-it-yourselfare at the specified level. .
For additional information regard-
ing tires, refer to “ Important Tire
Safety Information ” (US) or “ Tire
Safety Information ” (Canada) in
the Warranty Information Booklet.
SDI2703
Tire and Loading Information label GUID-5F11D76D-958D-427C-91EF-04C50D9803D6
* 1
Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
* 2
Vehicle load limit: See “ Vehicle
loading information ” (P.9-20).* 3
Original size: The size of the tires
originally installed on the vehicle
at the factory.
* 4
Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-

Black plate (441,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6
km) at moderate speeds. The
recommended cold tire inflation
is set by the manufacturer to
provide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the
vehicle ’ s GVWR.
* 5
Tire size — see “ Tire labeling ”
(P.8-36).
* 6
Spare tire size or compact spare
tire size (if so equipped) SDI1949
Checking the tire pressure GUID-CC708595-2C70-4CAE-BDC3-D716681157B7
1.Remove the valve stem cap from
the tire.
2.Press the pressure gauge
squarely onto the valve stem. Do
not press too hard or force the
valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard
while checking the pressure, re-
position the gauge to eliminate
this leakage. 3.Remove the gauge.
4.Read the tire pressure on the
gauge stem and compare it to
the specification shown on the
Tire and Loading Information la-
bel.
5.Add air to the tire as needed. If
too much air is added, press the
core of the valve stem briefly with
the tip of the gauge stem to
release pressure. Recheck the
pressure and add or release air
as needed.
6.Install the valve stem cap.
7.Check the pressure of all other
tires, including the spare.
Maintenance and do-it-yourself
8-35

Black plate (442,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-36 Maintenance and do-it-yourselfSedan: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
SIZE COLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL
TIRE P225/55R17 95V 230 kPa,
33 PSI
P225/50R18 94V 230 kPa,
33 PSI
225/50R18 95W 230 kPa,
33 PSI
REAR ORI-
GINAL TIRE P225/55R17 95V 230 kPa,
33 PSI
P225/50R18 94V 230 kPa,
33 PSI
245/45R18 96W 230 kPa,
33 PSI
SPARE TIRE T145/80D17
107M 420 kPa,
60 PSI
T145/70R18
107M 420 kPa,
60 PSI Coupe: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
SIZE COLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL
TIRE P225/50R18 94V 230 kPa,
33 PSI
P225/45R19 92V 240 kPa,
35 PSI
225/45R19 92W 240 kPa,
35 PSI
REAR ORI-
GINAL TIRE P225/50R18 94V 230 kPa,
33 PSI
P225/45R19 92V 240 kPa,
35 PSI
245/40R19 94W 240 kPa,
35 PSI
SPARE TIRE T145/80D17
107M 420 kPa,
60 PSI
T145/70R18
107M 420 kPa,
60 PSI SDI1575
Example
TIRE LABELING GUID-7CDDB6DE-92AD-4E32-995B-54060312AD14
Federal law requires tire manufac-
turers to place standardized informa-
tion on the sidewall of all tires. This
information identifies and describes
the fundamental characteristics of
the tire and also provides the tire
identification number (TIN) for safety
standard certification. The TIN can be
used to identify the tire in case of a
recall.

Black plate (443,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]SDI1606
Example
* 1
Tire size (example: P215/60R16
94H)
1. P: The “ P ” indicates the tire is
designed for passenger vehicles.
(Not all tires have this informa-
tion.)
2. Three-digit number (215): This
number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.
3. Two-digit number (60): This num-
ber, known as the aspect ratio, gives the tire ’ s ratio of height to
width.
4.R: The “ R ” stands for radial.
5.Two-digit number (16): This num-
ber is the wheel or rim diameter in
inches.
6.Two- or three-digit number (94):
This number is the tire ’ s load
index. It is a measurement of
how much weight each tire can
support. You may not find this
information on all tires because it
is not required by law.
7.H: Tire speed rating. You should
not drive the vehicle faster than
the tire speed rating. SDI1607
Example
* 2
TIN (Tire Identification Number)
for a new tire (example: DOT XX
XX XXX XXXX)
1.DOT: Abbreviation for the “ Depart-
ment of Transportation ” . The sym-
bol can be placed above, below or
to the left or right of the Tire
Identification Number.
2.Two-digit code: Manufacturer ’ s
identification mark
3.Two-digit code: Tire size
Maintenance and do-it-yourself
8-37

Black plate (444,1)

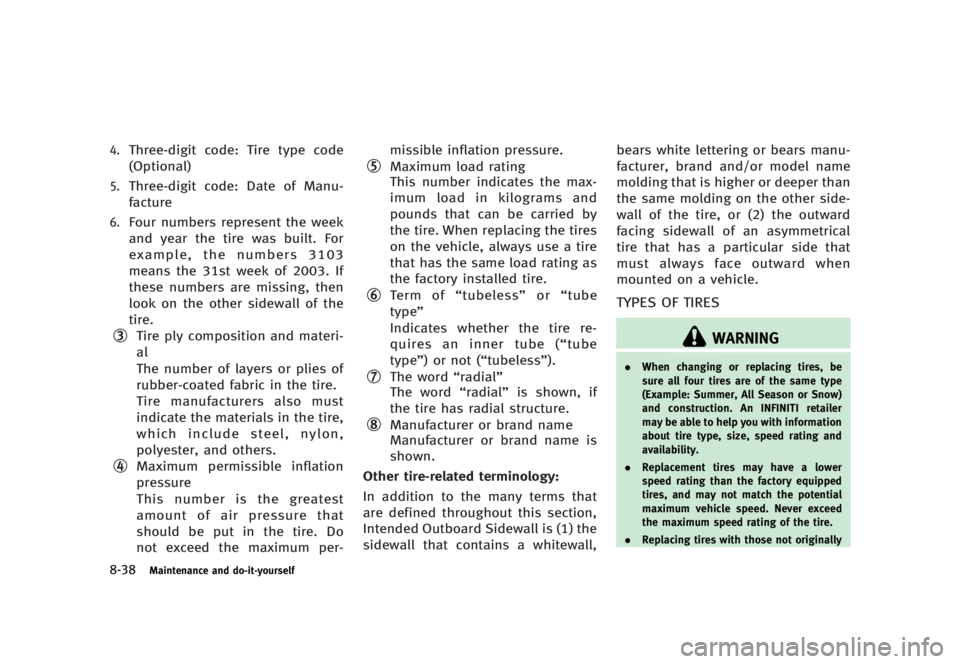

[ Edit: 2012/ 1/ 17 Model: V36-D ]8-38 Maintenance and do-it-yourself4. Three-digit code: Tire type code
(Optional)
5. Three-digit code: Date of Manu-
facture
6. Four numbers represent the week
and year the tire was built. For
example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing, then
look on the other sidewall of the
tire.
* 3
Tire ply composition and materi-
al
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must
indicate the materials in the tire,
which include steel, nylon,
polyester, and others.
* 4
Maximum permissible inflation
pressure
This number is the greatest
amount of air pressure that
should be put in the tire. Do
not exceed the maximum per- missible inflation pressure.
* 5
Maximum load rating
This number indicates the max-
imum load in kilograms and
pounds that can be carried by
the tire. When replacing the tires
on the vehicle, always use a tire
that has the same load rating as
the factory installed tire.
* 6
Term of “ tubeless ” or “ tube
type ”
Indicates whether the tire re-
quires an inner tube ( “ tube
type ” ) or not ( “ tubeless ” ).
* 7
The word “ radial ”
The word “ radial ” is shown, if
the tire has radial structure.
* 8
Manufacturer or brand name
Manufacturer or brand name is
shown.
Other tire-related terminology:
In addition to the many terms that
are defined throughout this section,
Intended Outboard Sidewall is (1) the
sidewall that contains a whitewall, bears white lettering or bears manu-
facturer, brand and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical
tire that has a particular side that
must always face outward when
mounted on a vehicle.
TYPES OF TIRES GUID-42D58B1A-32E5-4966-9D89-2C4B16EEE249
WARNING . When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or Snow)
and construction. An INFINITI retailer
may be able to help you with information
about tire type, size, speed rating and
availability.
. Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.
. Replacing tires with those not originally

Black plate (445,1)

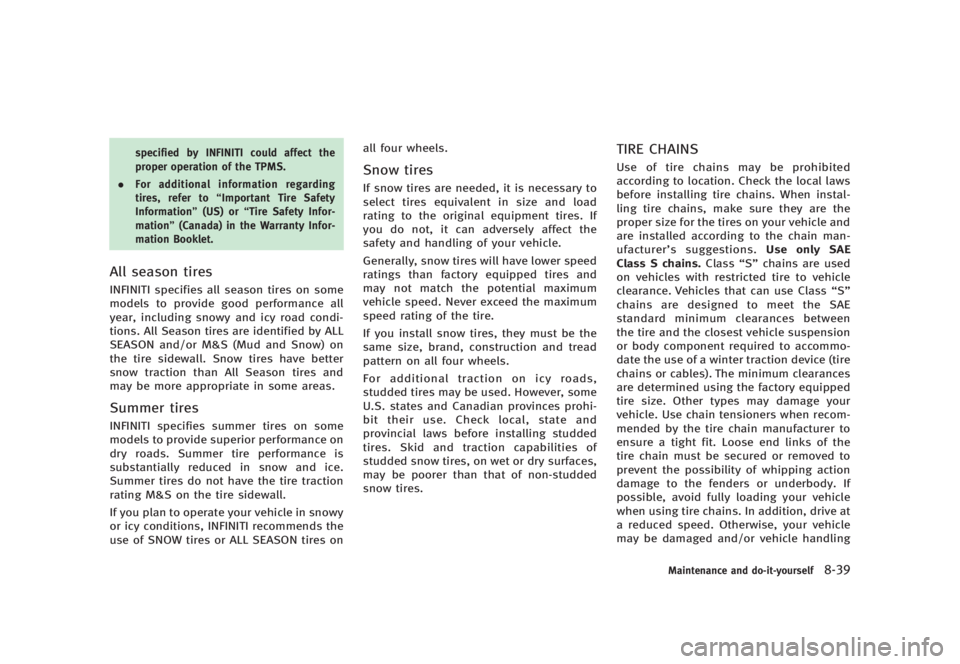

[ Edit: 2012/ 1/ 17 Model: V36-D ]specified by INFINITI could affect the
proper operation of the TPMS.
. For additional information regarding
tires, refer to “ Important Tire Safety
Information ” (US) or “ Tire Safety Infor-
mation ” (Canada) in the Warranty Infor-
mation Booklet.
All season tires GUID-87E8714D-2B3D-4DE3-B5B1-0FDB34C6A1BF
INFINITI specifies all season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and
may be more appropriate in some areas.
Summer tires GUID-560BBD79-0719-4B8B-AF1C-4D895DD18219
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating M&S on the tire sidewall.
If you plan to operate your vehicle in snowy
or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on all four wheels.
Snow tires GUID-1B1B74F7-B51D-4FB4-94BD-BD6E5230D2DC
If snow tires are needed, it is necessary to
select tires equivalent in size and load
rating to the original equipment tires. If
you do not, it can adversely affect the
safety and handling of your vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and
may not match the potential maximum
vehicle speed. Never exceed the maximum
speed rating of the tire.
If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.
For additional traction on icy roads,
studded tires may be used. However, some
U.S. states and Canadian provinces prohi-
bit their use. Check local, state and
provincial laws before installing studded
tires. Skid and traction capabilities of
studded snow tires, on wet or dry surfaces,
may be poorer than that of non-studded
snow tires. TIRE CHAINS GUID-F5ABB636-5D7F-4312-B53A-0F3C651BAF08
Use of tire chains may be prohibited
according to location. Check the local laws
before installing tire chains. When instal-
ling tire chains, make sure they are the
proper size for the tires on your vehicle and
are installed according to the chain man-
ufacturer ’ s suggestions. Use only SAE
Class S chains. Class “ S ” chains are used
on vehicles with restricted tire to vehicle
clearance. Vehicles that can use Class “ S ”
chains are designed to meet the SAE
standard minimum clearances between
the tire and the closest vehicle suspension
or body component required to accommo-
date the use of a winter traction device (tire
chains or cables). The minimum clearances
are determined using the factory equipped
tire size. Other types may damage your
vehicle. Use chain tensioners when recom-
mended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the
tire chain must be secured or removed to
prevent the possibility of whipping action
damage to the fenders or underbody. If
possible, avoid fully loading your vehicle
when using tire chains. In addition, drive at
a reduced speed. Otherwise, your vehicle
may be damaged and/or vehicle handling
Maintenance and do-it-yourself
8-39

Black plate (446,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-40 Maintenance and do-it-yourselfand performance may be adversely af-
fected.
Tire chains must be installed only on the
rear wheels and not on the front wheels.
Never install tire chains on a TEMPORARY
USE ONLY spare tire.
Do not use tire chains on dry roads. Driving
with tire chains in such conditions can
cause damage to the various mechanisms
of the vehicle due to some overstress. SDI1662
CHANGING WHEELS AND TIRES GUID-2274D4EA-A493-4122-8F01-70F7A39EC40C
Tire rotation (Models equipped with
same size tires on all wheels) GUID-A3A28418-DE08-410B-A7FA-043A8A0FEFF1
INFINITI recommends rotating the
tires every 7,500 miles (12,000 km).
(See “ Flat tire ” (P.6-2) for tire repla-
cing procedures.)
As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
Wheel nut tightening torque:
80 ft-lb (108 N·m) The wheel nuts must be kept tigh-
tened to the specification at all
times. It is recommended that wheel
nuts be tightened to the specifica-
tion at each tire rotation interval.
WARNING . After rotating the tires, check and
adjust the tire pressure.
. Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).
. Do not include the T-type spare
tire or any other small size spare
tire in the tire rotation.
. For additional information regard-
ing tires, refer to “ Important Tire
Safety Information ” (US) or “ Tire
Safety Information ” (Canada) in
the Warranty Information Booklet.

Black plate (447,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Tire rotation (Models equipped with
different size tires on front and
rear) GUID-42591FA5-788F-4ABA-B1AA-2564E2B3FCB6
Tires cannot be rotated on this
vehicle, as front tires are a different
size from rear tires.
A pin is on the front brake rotor to
prevent the rear wheels from being
installed in place of the front wheels.
The spare tire can be installed in
place of the front and rear wheels.
When installing the spare tire in the
front wheel, the hole in the spare tire
wheel must be aligned with the pin
on the brake rotor.
WARNING. Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).
. For additional information regard-
ing tires, refer to “ Important Tire
Safety Information ” (US) or “ Tire Safety Information ” (Canada) in
the Warranty Information Booklet.
SDI1663
1.
Wear indicator 2.
Wear indicator location mark
Tire wear and damage GUID-973CEC61-209F-4E9E-A422-6F36DFD5AF83
WARNING . Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.
Maintenance and do-it-yourself
8-41

Black plate (448,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-42 Maintenance and do-it-yourself. The original tires have built-in
tread wear indicators. When wear
indicators are visible, the tire(s)
should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare tire
may result in serious personal
injury. If it is necessary to repair
the spare tire, contact an INFINITI
retailer.
. For additional information regard-
ing tires, refer to “ Important Tire
Safety Information ” (US) or “ Tire
Safety Information ” (Canada) in
the Warranty Information Booklet. Replacing wheels and tires GUID-4EF95767-87A1-46D1-823F-01023BAE60AA
When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. (See
“ Specifications ” (P.9-8) for recommended
types and sizes of tires and wheels.)
WARNING . The use of tires other than those
recommended or the mixed use of tires
of different brands, construction (bias,
bias-belted or radial), or tread patterns
can adversely affect the ride, braking,
handling, ground clearance, body-to-tire
clearance, tire chain clearance, speed-
ometer calibration, headlight aim and
bumper height. Some of these effects
may lead to accidents and could result in
serious personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimension.
Wheels of a different off-set could cause
premature tire wear, degrade vehicle
handling characteristics and/or interfer-
ence with the brake discs/drums. Such
interference can lead to decreased brak- ing efficiency and/or early brake pad/
shoe wear. See “ Wheels and tires ” (P.9-
9) of this manual for wheel off-set
dimensions.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have struc-
tural damage and could fail without
warning.
. The use of retread tire is not recom-
mended.
. For additional information regarding
tires, refer to “ Important Tire Safety
Information ” (US) or “ Tire Safety Infor-
mation ” (Canada) in the Warranty Infor-
mation Booklet.

Black plate (449,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]All-Wheel Drive (AWD) models GUID-0EB56D0C-6EAC-46F4-9C56-5E4540701594
CAUTION. Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may
damage the transmission, transfer case
and differential gears.
. ONLY use spare tires specified for the
AWD model.
If excessive tire wear is found, it is
recommended that all four tires be re-
placed with tires of the same size, brand,
construction and tread pattern. The tire
pressure and wheel alignment should also
be checked and corrected as necessary.
Contact an INFINITI retailer.
Wheel balance GUID-E8819382-6D86-409C-A6FD-5113A53508AB
Unbalanced wheels may affect vehicle
handling and tire life. Even with regular
use, wheels can get out of balance. There-
fore, they should be balanced as required. Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires,
refer to “ Important Tire Safety Information ”
(US) or “ Tire Safety Information ” (Canada)
in the INFINITI Warranty Information Book-
let.
Care of wheels GUID-C1AC6B0A-3969-4BA4-85FF-DEEAE1EBA8AB
See “ Cleaning exterior ” (P.7-2) for details
about care of the wheels.
Spare tire (TEMPORARY USE ONLY
(T-type) spare tire) GUID-3D33E4D2-DC59-460C-941C-8160D646B5B6
Observe the following precautions if the T-
type spare tire must be used, otherwise
your vehicle could be damaged or involved
in an accident.
WARNING . The T-type spare tire should be used for
emergency use. It should be replaced
with the standard tire at the first
opportunity to avoid possible tire or
differential damage. . Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.
. Periodically check spare tire inflation
pressure. Always keep the pressure of
the TEMPORARY USE ONLY spare tire at
60 psi (420 kPa, 4.2 bar). Always keep
the pressure of the full size spare tire (if
so equipped) at the recommended pres-
sure for standard tires, as indicated on
the Tire and Loading Information label.
For Tire and Loading Information label
location, see “ Tire and Loading Informa-
tion label ” in the index of this manual.
. With the TEMPORARY USE ONLY spare
tire installed do not drive your vehicle at
speeds faster than 50 MPH (80 km/h).
. When driving on roads covered with
snow or ice, the TEMPORARY USE ONLY
spare tire should be used on the front
wheels and original tire used on the rear
wheels (drive wheels). Use tire chains
only on the two rear original tires.
. Tire tread of the TEMPORARY USE ONLY
spare tire will wear at a faster rate than
the standard tire. Replace the spare tire
as soon as the tread wear indicators
Maintenance and do-it-yourself
8-43
