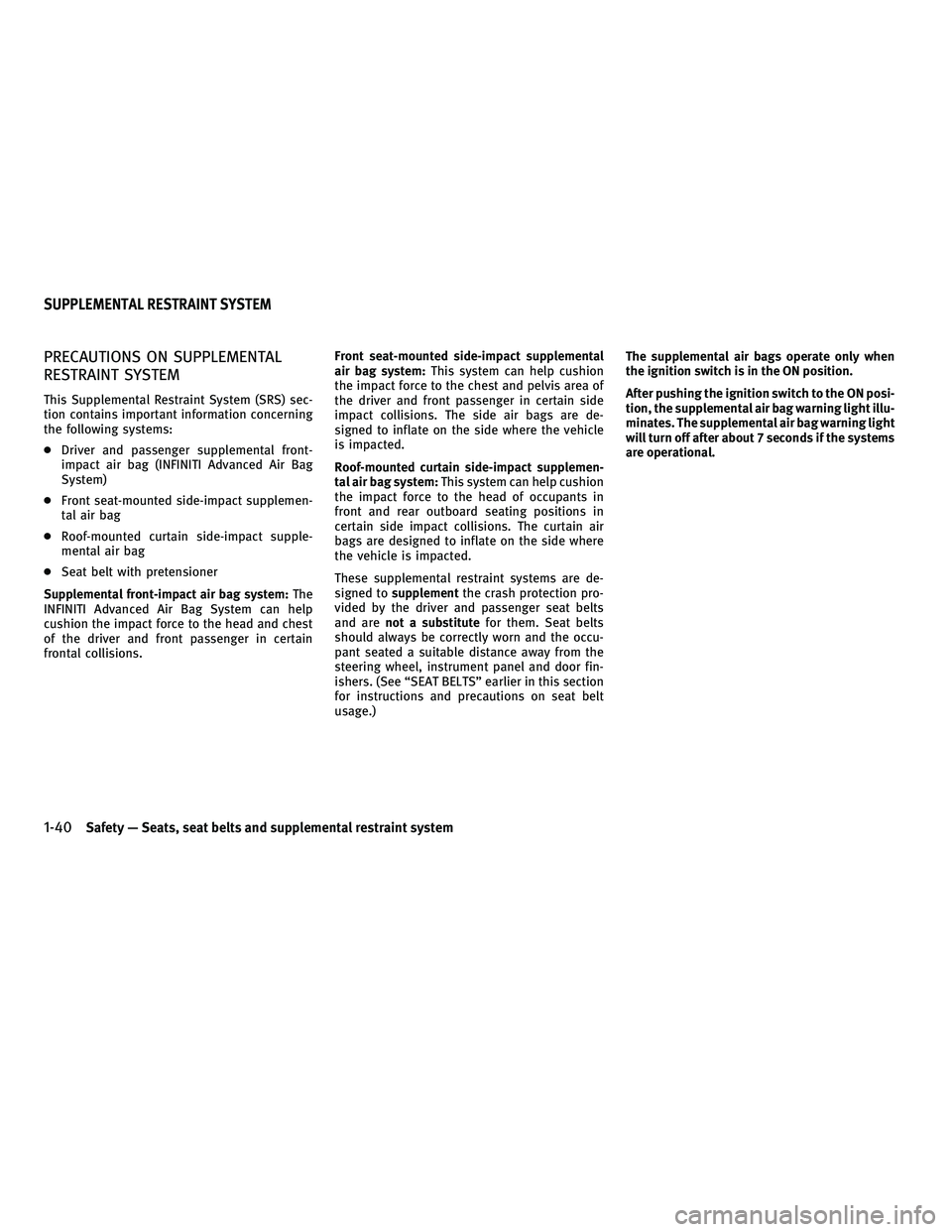

PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
This Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the following systems:
cDriver and passenger supplemental front-
impact air bag (INFINITI Advanced Air Bag
System)
c Front seat-mounted side-impact supplemen-
tal air bag
c Roof-mounted curtain side-impact supple-
mental air bag
c Seat belt with pretensioner
Supplemental front-impact air bag system: The
INFINITI Advanced Air Bag System can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions. Front seat-mounted side-impact supplemental
air bag system:
This system can help cushion
the impact force to the chest and pelvis area of
the driver and front passenger in certain side
impact collisions. The side air bags are de-
signed to inflate on the side where the vehicle
is impacted.
Roof-mounted curtain side-impact supplemen-
tal air bag system: This system can help cushion
the impact force to the head of occupants in
front and rear outboard seating positions in
certain side impact collisions. The curtain air
bags are designed to inflate on the side where
the vehicle is impacted.
These supplemental restraint systems are de-
signed to supplement the crash protection pro-
vided by the driver and passenger seat belts
and are not a substitute for them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel and door fin-
ishers. (See ªSEAT BELTSº earlier in this section
for instructions and precautions on seat belt
usage.) The supplemental air bags operate only when
the ignition switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the systems
are operational.
SUPPLEMENTAL RESTRAINT SYSTEM
1-40Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

WARNING

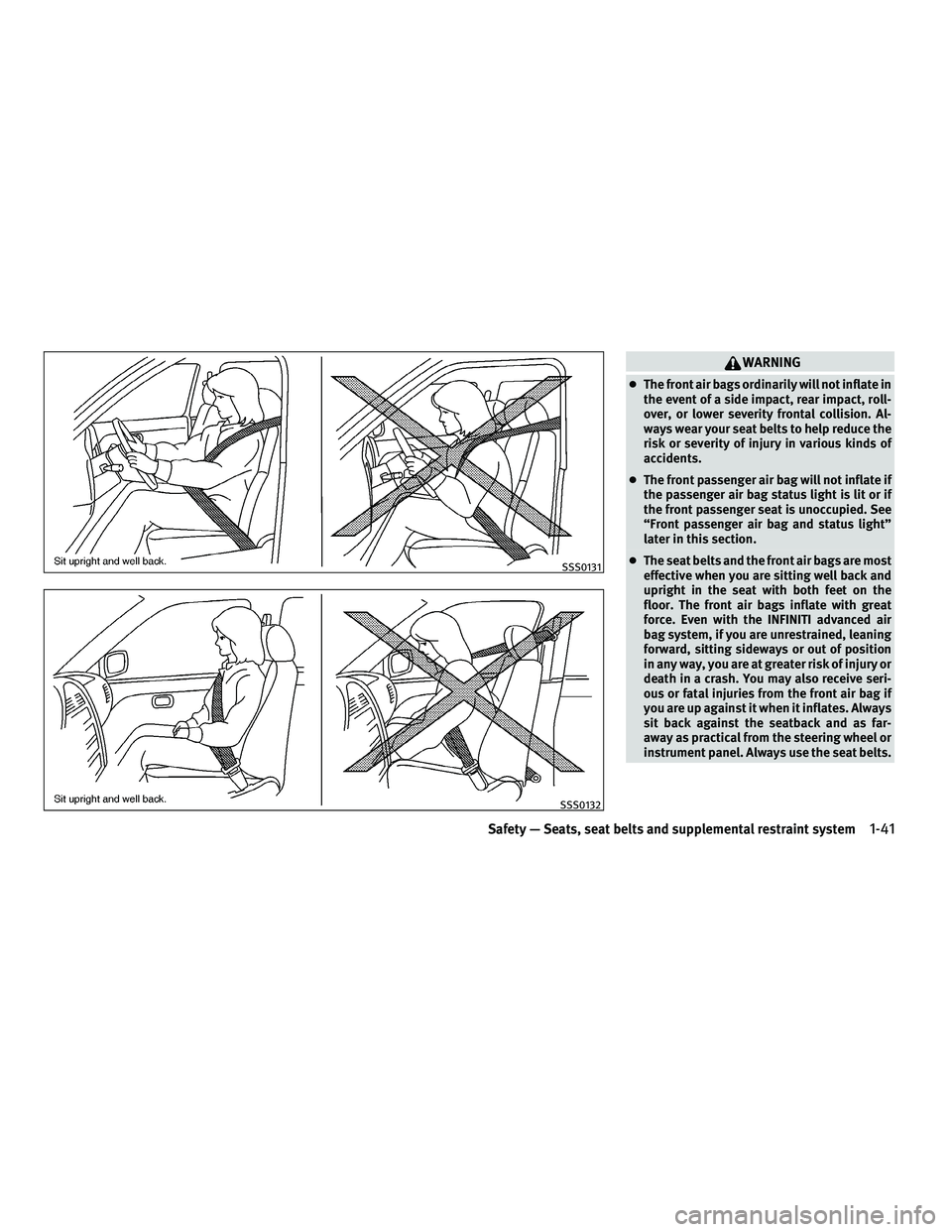

cThe front air bags ordinarily will not inflate in
the event of a side impact, rear impact, roll-
over, or lower severity frontal collision. Al-
ways wear your seat belts to help reduce the
risk or severity of injury in various kinds of
accidents.
c The front passenger air bag will not inflate if
the passenger air bag status light is lit or if
the front passenger seat is unoccupied. See
ªFront passenger air bag and status lightº
later in this section.
c The seat belts and the front air bags are most
effective when you are sitting well back and
upright in the seat with both feet on the
floor. The front air bags inflate with great
force. Even with the INFINITI advanced air
bag system, if you are unrestrained, leaning
forward, sitting sideways or out of position
in any way, you are at greater risk of injury or
death in a crash. You may also receive seri-
ous or fatal injuries from the front air bag if
you are up against it when it inflates. Always
sit back against the seatback and as far-
away as practical from the steering wheel or
instrument panel. Always use the seat belts.
SSS0131
SSS0132
Safety Ð Seats, seat belts and supplemental restraint system1-41
wÐ
Ð
05/14/09Ðpattie
X

The INFINITI Advanced Air Bag System has dual
stage inflators. The system monitors informa-
tion from the crash zone sensor, the Air bag
Control Unit (ACU), seat belt buckle switches,
occupant classification sensor (pressure sen-
sor) and passenger seat belt tension sensor.
Inflator operation is based on the severity of a
collision and seat belt usage for the driver. For
the front passenger, it additionally monitors the
weight of an occupant or object on the seat and
seat belt tension. Based on information from
the sensors, only one front air bag may inflate
in a crash, depending on the crash severity and
whether the front occupants are belted or un-
belted. Additionally, the front passenger air bag
may be automatically turned OFF under some
conditions, depending on the weight detected
on the passenger seat and how the seat belt is
used. If the front passenger air bag is OFF, the
passenger air bag status light will be illumi-
nated (if the seat is unoccupied, the light will
not be illuminated, but the air bag will be off).
(See ªFront passenger air bag and status lightº
later in this section for further details.) One
front air bag inflating does not indicate im-
proper performance of the system.
If you have any questions about your air bag
system, contact INFINITI or an INFINITI retailer. If
you are considering modification of your vehicle
due to a disability, you may also contactINFINITI. Contact information is contained in the
front of this Owner's Manual.
When a front air bag inflates, a fairly loud noise
may be heard, followed by release of smoke.
This smoke is not harmful and does not indicate
a fire. Care should be taken not to inhale it, as
it may cause irritation and choking. Those with
a history of a breathing condition should get
fresh air promptly.
Front air bags, along with the use of seat belts,
help to cushion the impact force on the head
and chest of the front occupants. They can help
save lives and reduce serious injuries. However,
an inflating front air bag may cause facial
abrasions or other injuries. Front air bags do
not provide restraint to the lower body.
Even with INFINITI advanced air bags, seat belts
should be correctly worn and the driver and
passenger seated upright as far as practical
away from the steering wheel or instrument
panel. The front air bags inflate quickly in order
to help protect the front occupants. Because of
this, the force of the front air bag inflating can
increase the risk of injury if the occupant is too
close to, or is against, the front air bag module
during inflation.
The front air bags deflate quickly after a colli-
sion.The front air bags operate only when the ignition
switch is in the ON position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the system is
operational.
1-46Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

Front passenger air bag and status
light
WARNING
The front passenger air bag is designed to au-
tomatically turn OFF under some conditions.
Read this section carefully to learn how it oper-
ates. Proper use of the seat, seat belt and child
restraints is necessary for most effective pro-
tection. Failure to follow all instructions in this
manual concerning the use of seats, seat belts
and child restraints can increase the risk or
severity of injury in an accident.Status light :
The front passenger air bag status light
is located on the overhead console. The light
operates as follows:
c
Unoccupied passenger seat: The
light
is OFF and the front passenger air bag is OFF
and will not inflate in a crash.
c Passenger seat occupied by a small adult,
child or child restraint as outlined in this
section: The
light illuminates to indi-
cate that the front passenger air bag is OFF
and will not inflate in a crash.
c Occupied passenger seat and the passenger
meets the conditions outlined in this sec-
tion: The
light is OFF to indicate that
the front passenger air bag is operational.
Front passenger air bag :
The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as described
below as permitted by U.S. regulations. If the
front passenger air bag is OFF, it will not inflate
in a crash. The driver air bag and other air bags
in your vehicle are not part of this system.
The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air
bag to certain front passenger seat occupants, such as children, by requiring the air bag to be
automatically turned OFF. Certain sensors are
used to meet the requirements.
One sensor used is the occupant classification
sensor (pressure sensor). It is in the bottom of
the front passenger seat cushion and is de-
signed to detect an occupant and objects on the
seat by weight. It works together with seat belt
sensors described later. For example, if a child
is in the front passenger seat, the Advanced Air
Bag System is designed to turn the passenger
air bag OFF in accordance with the regulations.
Also, if a child restraint of the type specified in
the regulations is on the seat, its weight and
the child's weight can be detected and cause
the air bag to turn OFF. The occupant classifi-
cation sensor operation can vary depending on
the front passenger seat belt sensors.
The front passenger seat belt sensors are de-
signed to detect if the seat belt is buckled and
the amount of tension on the seat belt, such as
when it is in the Automatic Locking Retractor
(ALR) mode (child restraint mode). Based on the
weight on the seat detected by the occupant
classification sensor and the belt tension de-
tected on the seat belt, the Advanced Air Bag
System determines whether the front passen-
ger air bag should be automatically turned OFF
as required by the regulations.
Front passenger air bag status light
SSS0481
Safety Ð Seats, seat belts and supplemental restraint system1-47
wÐ
Ð
05/14/09Ðpattie
X

If a malfunction occurs in the front passenger
air bag system, the supplemental air bag warn-
ing light
, located in the meter and
gauges area, will blink. Have the system
checked by an INFINITI retailer.
Other supplemental front-impact air
bag precautions
WARNING
c Do not place any objects on the steering
wheel pad or on the instrument panel. Also,
do not place any objects between any occu-
pant and the steering wheel or instrument
panel. Such objects may become dangerous
projectiles and cause injury if the front air
bag inflates.
c Immediately after inflation, several front air
bag system components will be hot. Do not
touch them; you may severely burn yourself.
c No unauthorized changes should be made to
any components or wiring of the supplemen-
tal air bag system. This is to prevent acciden-
tal inflation of the supplemental air bag or
damage to the supplemental air bag system. c
Do not make unauthorized changes to your
vehicle's electrical system, suspension sys-
tem or front end structure. This could affect
proper operation of the front air bag system.
c Tampering with the air bag system may re-
sult in serious personal injury. Tampering
includes changes to the steering wheel and
the instrument panel assembly by placing
material over the steering wheel pad and
above the instrument panel or by installing
additional trim material around the air bag
system.
c Modifying or tampering with the front pas-
senger seat may result in serious personal
injury. For example, do not change the front
seats by placing material on the seat cush-
ion or by installing additional trim material,
such as seat covers, on the seat that is not
specifically designed to assure proper air
bag operation. Additionally, do not stow any
objects under the front passenger seat or the
seat cushion and seatback. Such objects
may interfere with the proper operation of
the occupant classification sensor (pressure
sensor). c
No unauthorized changes should be made to
any components or wiring of the seat belt
system. This may affect the front air bag
system. Tampering with the seat belt system
may result in serious personal injury.
c Maintenance on and around the front air bag
system should be done by an INFINITI re-
tailer. Installation of electrical equipment
should also be done by an INFINITI retailer.
The Supplemental Restraint System (SRS)
wiring harnesses* should not be modified or
disconnected. Unauthorized electrical test
equipment and probing devices should not
be used on the air bag system.
c A cracked windshield should be replaced im-
mediately by a qualified repair facility. A
cracked windshield could affect the function
of the supplemental air bag system.
* The SRS wiring harness connectors are yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner's Manual.
Safety Ð Seats, seat belts and supplemental restraint system1-49
wÐ
Ð
05/14/09Ðpattie
X

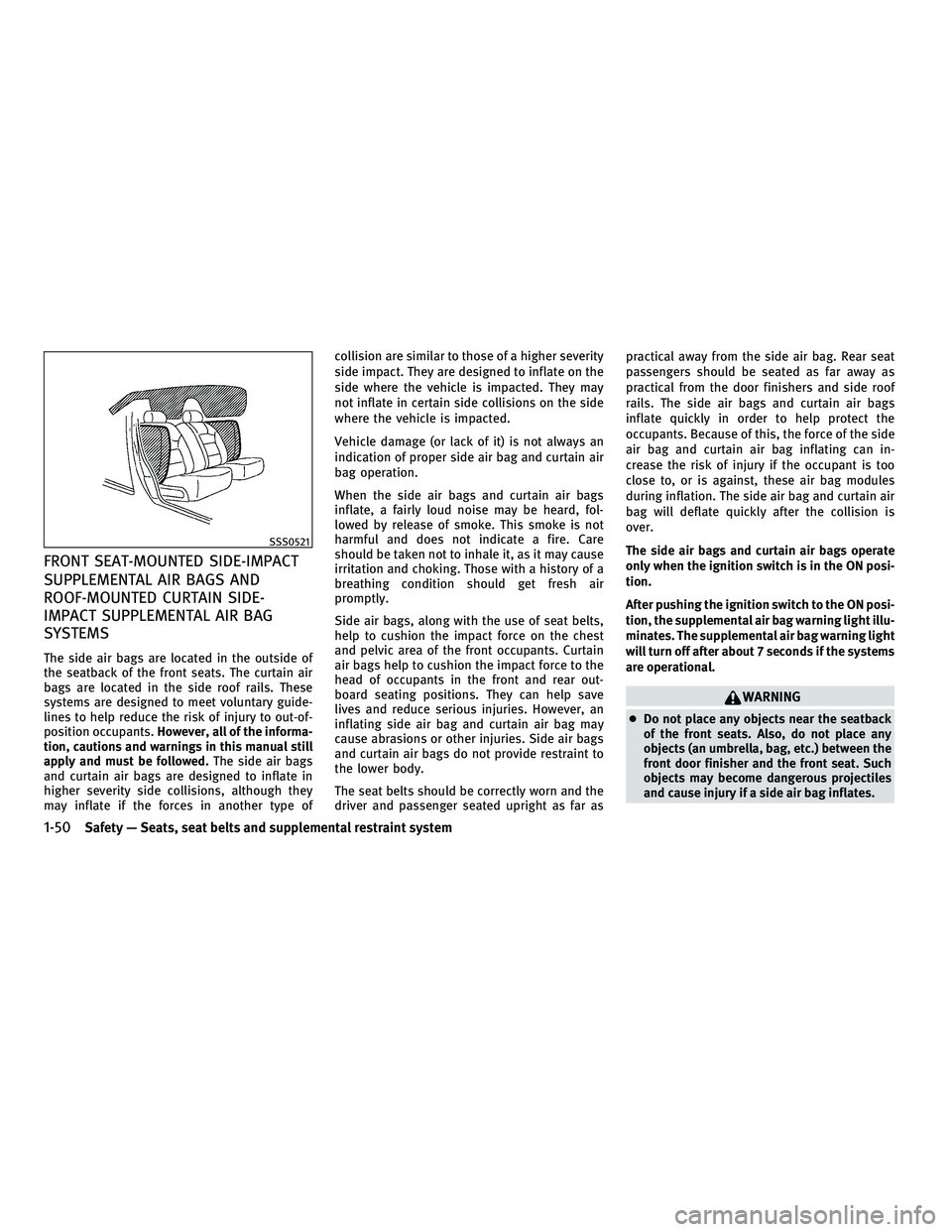

FRONT SEAT-MOUNTED SIDE-IMPACT
SUPPLEMENTAL AIR BAGS AND
ROOF-MOUNTED CURTAIN SIDE-
IMPACT SUPPLEMENTAL AIR BAG
SYSTEMS
The side air bags are located in the outside of
the seatback of the front seats. The curtain air
bags are located in the side roof rails. These
systems are designed to meet voluntary guide-
lines to help reduce the risk of injury to out-of-
position occupants.However, all of the informa-
tion, cautions and warnings in this manual still
apply and must be followed. The side air bags
and curtain air bags are designed to inflate in
higher severity side collisions, although they
may inflate if the forces in another type of collision are similar to those of a higher severity
side impact. They are designed to inflate on the
side where the vehicle is impacted. They may
not inflate in certain side collisions on the side
where the vehicle is impacted.
Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain air
bag operation.
When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard, fol-
lowed by release of smoke. This smoke is not
harmful and does not indicate a fire. Care
should be taken not to inhale it, as it may cause
irritation and choking. Those with a history of a
breathing condition should get fresh air
promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
and pelvic area of the front occupants. Curtain
air bags help to cushion the impact force to the
head of occupants in the front and rear out-
board seating positions. They can help save
lives and reduce serious injuries. However, an
inflating side air bag and curtain air bag may
cause abrasions or other injuries. Side air bags
and curtain air bags do not provide restraint to
the lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far aspractical away from the side air bag. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof
rails. The side air bags and curtain air bags
inflate quickly in order to help protect the
occupants. Because of this, the force of the side
air bag and curtain air bag inflating can in-
crease the risk of injury if the occupant is too
close to, or is against, these air bag modules
during inflation. The side air bag and curtain air
bag will deflate quickly after the collision is
over.
The side air bags and curtain air bags operate
only when the ignition switch is in the ON posi-
tion.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The supplemental air bag warning light
will turn off after about 7 seconds if the systems
are operational.
WARNING
c
Do not place any objects near the seatback
of the front seats. Also, do not place any
objects (an umbrella, bag, etc.) between the
front door finisher and the front seat. Such
objects may become dangerous projectiles
and cause injury if a side air bag inflates.
SSS0521
1-50Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

cIf you need to dispose of a pretensioner or
scrap the vehicle, contact an INFINITI re-
tailer. Correct pretensioner disposal proce-
dures are set forth in the appropriate
INFINITI Service Manual. Incorrect disposal
procedures could cause personal injury.
The pretensioner system activates in conjunc-
tion with the front air bag system. Working with
the seat belt retractor, it helps tighten the seat
belt when the vehicle becomes involved in
certain types of collisions, helping to restrain
front seat occupants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. The
smoke is not harmful, and it does not indicate a
fire. Care should be taken not to inhale it as it
may cause irritation and choking. Those with a
history of a breathing condition should get
fresh air promptly.
After pretensioner activation, load limiters al-
low the seat belt to release webbing (if neces-
sary) to reduce forces against the chest. If any abnormality occurs in the pretensioner
system, the supplemental air bag warning light
will not come on, will flash intermittently
or will turn on for 7 seconds and remain on after
the ignition switch has been pushed to the ON
position. In this case, the pretensioner system
may not function properly. They must be
checked and repaired. Take your vehicle to the
nearest INFINITI retailer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner's Manual.
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental front-
impact air bag are placed in the vehicle as
shown in the illustration.
s1SRS air bag
The warning labels are located on the surface of
the sun visors.
SSS1016
1-52Safety Ð Seats, seat belts and supplemental restraint system
wÐ
Ð
05/14/09Ðpattie
X

SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light, dis-
playing
in the instrument panel, moni-
tors the circuits of the supplemental front-
impact air bag, front seat-mounted side-impact
supplemental air bag, roof-mounted curtain
side-impact supplemental air bag and seat belt
pretensioner systems. The monitored circuits
include the Air bag Control Unit (ACU), satellite
sensors, occupant classification system, crash
zone sensor, front air bag modules, side air bag
modules, curtain air bag modules, pretension-
ers and all related wiring. When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag and
pretensioner systems need servicing:
c
The supplemental air bag warning light re-
mains on after approximately 7 seconds.
c The supplemental air bag warning light
flashes intermittently.
c The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side
air bag, curtain air bag or pretensioner systems
may not operate properly. They must be
checked and repaired. Take your vehicle to the
nearest INFINITI retailer.
WARNING
If the supplemental air bag warning light is on,
it could mean that the front air bag, side air
bag, curtain air bag and/or pretensioner sys-
tems will not operate in an accident. To help
avoid injury to yourself or others, have your
vehicle checked by a retailer as soon as
possible.
REPAIR AND REPLACEMENT
PROCEDURE
The front air bags, side air bags, curtain air
bags and pretensioners are designed to acti-
vate on a one-time-only basis. As a reminder,
unless it is damaged, the supplemental air bag
warning light will remain illuminated after infla-
tion has occurred. Repair and replacement of
these systems should be done only by an
INFINITI retailer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags, pretensioners and related parts
should be pointed out to the person conducting
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
c Once a front air bag, side air bag or curtain
air bag has inflated, the air bag module will
not function again and must be replaced.
Additionally, if any of the front air bags in-
flate, the activated pretensioner system
must also be replaced. The air bag module
and pretensioners should be replaced by an
INFINITI retailer. The air bag modules and
pretensioner system cannot be repaired.
SPA1097
Safety Ð Seats, seat belts and supplemental restraint system1-53
wÐ
Ð
05/14/09Ðpattie
X

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-5
Speedometer and odometer ..................... 2-6
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-7
Fuel gauge ..................................... 2-7
Meter/ring illumination and needle sweep ........ 2-8
Compass (if so equipped) .......................... 2-9
Zone variation change procedure ...............2-10
Warning/indicator lights and audible reminders .....2-12
Checking bulbs ............................... 2-13
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20
Dot matrix liquid crystal display ...................2-21
Indicators for operation ........................ 2-22
Security systems ................................. 2-24
Vehicle security system ........................ 2-24
INFINITI Vehicle Immobilizer System ............2-25
Windshield wiper and washer switch ...............2-27
Rain-sensing auto wiper system ................2-28
Rear window and outside mirror defroster switch . . . 2-28 Headlight and turn signal switch
..................2-29
Xenon headlights ............................. 2-29
Headlight switch .............................. 2-29
Turn signal switch ............................. 2-33
Fog light switch ............................... 2-33
Hazard warning flasher switch .....................2-33
Horn ............................................ 2-34
Heated seats (rear seats) (if so equipped) ..........2-34
Climate controlled seats (front seats) ..............2-35
Lane Departure Warning (LDW) switch
(if so equipped) .................................. 2-36
SNOW mode switch (if so equipped) ...............2-37
Vehicle Dynamic Control (VDC) OFF switch ..........2-37
Clock ............................................ 2-38
Adjusting the time ............................. 2-38
Power outlets .................................... 2-38
Cigarette lighter and ashtrays .....................2-39
Front ......................................... 2-39
Rear ......................................... 2-39
Storage ......................................... 2-40
Cup holders .................................. 2-40
Sunglasses holder ............................. 2-41
Glove box .................................... 2-41
wÐ
Ð
05/19/09Ðtbrooks
X

1. Instrument brightness control switch(P. 2-32)
2. Outside mirror remote control switch (P. 3-24)
3. Adaptive Front lighting System (AFS) switch (P. 2-31) 4. Vehicle Dynamic Control (VDC) OFF switch
(P. 2-37)
5. Headlight, fog light and turn signal switch (P. 2-29)
6. Steering-wheel-mounted controls (left side) Ð ENTER switch (if so equipped)
(P. 4-6, P. 4-58)
Ð For audio system (P. 4-58)
Ð For phone system (P. 4-74, P. 4-84)
Ð For voice recognition system
(if so equipped) (P. 4-98)
7. Windshield wiper and washer switch (P. 2-27)
8. Steering-wheel-mounted controls (right side)
Ð Cruise control switches (P. 5-23)
Ð Intelligent Cruise Control (ICC) switches
(if so equipped) (P. 5-25)
Ð Lane Departure Prevention (LDP) switch
(if so equipped) (P. 5-16)
9. Hood release handle (P. 3-17)
10. Trunk lid release switch (P. 3-18)
11. Lane Departure Warning (LDW) switch (if so equipped) (P. 2-36, P. 5-16)
12. Intelligent Key port (P. 5-9)
13. Tilting/telescopic steering wheel switch (P. 3-22)
14. Steering wheel Ð Horn (P. 2-34)
Ð Driver supplemental air bag (P. 1-40)
15. Automatic Transmission (AT) selector lever (P. 5-11)
SIC3601
COCKPIT
2-2Instruments and controls
wÐ
Ð
05/19/09Ðtbrooks
X
