tains information about the digital music file
such as song title, artist, album title, encod-
ing bit rate, track time duration, etc. ID3 tag
information is displayed on the
Album/Artist/Track title line on the display.
* Windows and Windows Media are regis-
tered trademarks or trademarks of Microsoft
Corporation in the United States of America
and/or other countries.
Playback order :
●The folder names of folders not containing
compressed audio files are not shown in the
display.
● If there is a file in the top level of a disc/USB,
“Root Folder” is displayed. ●
The playback order is the order in which the
files were written by the writing software, so
the files might not play in the desired order.
● Music playback order of compressed audio
files is as illustrated in the next figure.
SAA2494
4-50Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Specification chart :
Supported mediaCD, CD-R, CD-RW, DVD-ROM (models with navigation system), DVD±R, DVD±RW, DVD±R DL, USB2.0
Supported file systems CD, CD-R, CD-RW, DVD-ROM (models with navigation system), DVD±R, DVD±RW, DVD±R DL: ISO9660
LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are not
supported.UDF Bridge (UDF1.02+ISO9660), UDF1.5, UDF2.0
* VDF1.5/VDF2.0 (packet writing) is not supported.
USB memory: FAT16, FAT32
Supported
versions*1 MP3
Version
MPEG1 Audio Layer 3
Sampling fre-
quency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR*4
WMA*2 Version
WMA7, WMA8, WMA9
Sampling fre-
quency 32 kHz - 48 kHz
Bit rate 32 kbps - 192 kbps, VBR*4
AAC Version MPEG-AAC
Sampling fre-
quency 8kHz-96kHz
Bit rate 16 kbps - 320 kbps, VBR*4
Tag information (Song title and Artist name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
Monitor, climate, audio, phone and voice recognition systems4-51
—
—
07/15/10—tbrooks


Supported mediaCD, CD-R, CD-RW, DVD-ROM, (models with navigation system) DVD±R, DVD±RW, DVD±R DL, USB2.0
Folder levels Models with navigation system:
Folder levels: 8, Folders: 512 (including root folder), Files: 5,000
Models without navigation system:
Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)
Text character number limitation Models with navigation system: 100 characters
Models without navigation system: 64 characters
Displayable character codes*3 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big
Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian), 07: SHIFT-JIS
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be played.
*3 Available codes depend on what kind of media, versions and information are going to be displayed.
*4 When VBR files are played, the playback time may not be displayed correctly.
4-52Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Troubleshooting guide :
SymptomCause and Countermeasure
Cannot play Check if the disc or USB device was inserted correctly.
Check if the disc is scratched or dirty.
Check if there is condensation inside the player, and if there is, wait until the condensation is gone (about 1 hour) be-
fore using the player.
If there is a temperature increase error, the player will play correctly after it returns to the normal temperature.
If there is a mixture of music CD files (CD-DA data) and compressed audio files on a CD, only the music CD files (CD-DA
data) will be played.
Files with extensions other than “.MP3 (.mp3)”, “.WMA (.wma)”, “.AAC (.aac)”, “.M4A (.m4a)”, or “.AA3 (.aa3)” cannot
be played. In addition, the character codes and number of characters for folder names and file names should be in
compliance with the specifications.
Check if the disc or the file is generated in an irregular format. This may occur depending on the variation or the set-
ting of compressed audio writing applications or other text editing applications.
Check if the finalization process, such as session close and disc close, is done for the disc.
Check if the disc or USB device is protected by copyright.
Poor sound quality Check if the disc is scratched or dirty.
It takes a relatively long time
before the music starts playing. If there are many folder or file levels on the disc or USB device, some time may be required before the music starts
playing.
Music cuts off or skips The writing software and hardware combination might not match, or the writing speed, writing depth, writing width,
etc., might not match the specifications. Try using the slowest writing speed.
Skipping with high bit rate files Skipping may occur with large quantities of data, such as for high bit rate data.
Move immediately to the next
song when playing. If an unsupported compressed audio file has been given a supported extension like .MP3, or when play is prohibited
by copyright protection, the player will skip to the next song.
Monitor, climate, audio, phone and voice recognition systems4-53
—
—
07/15/10—tbrooks

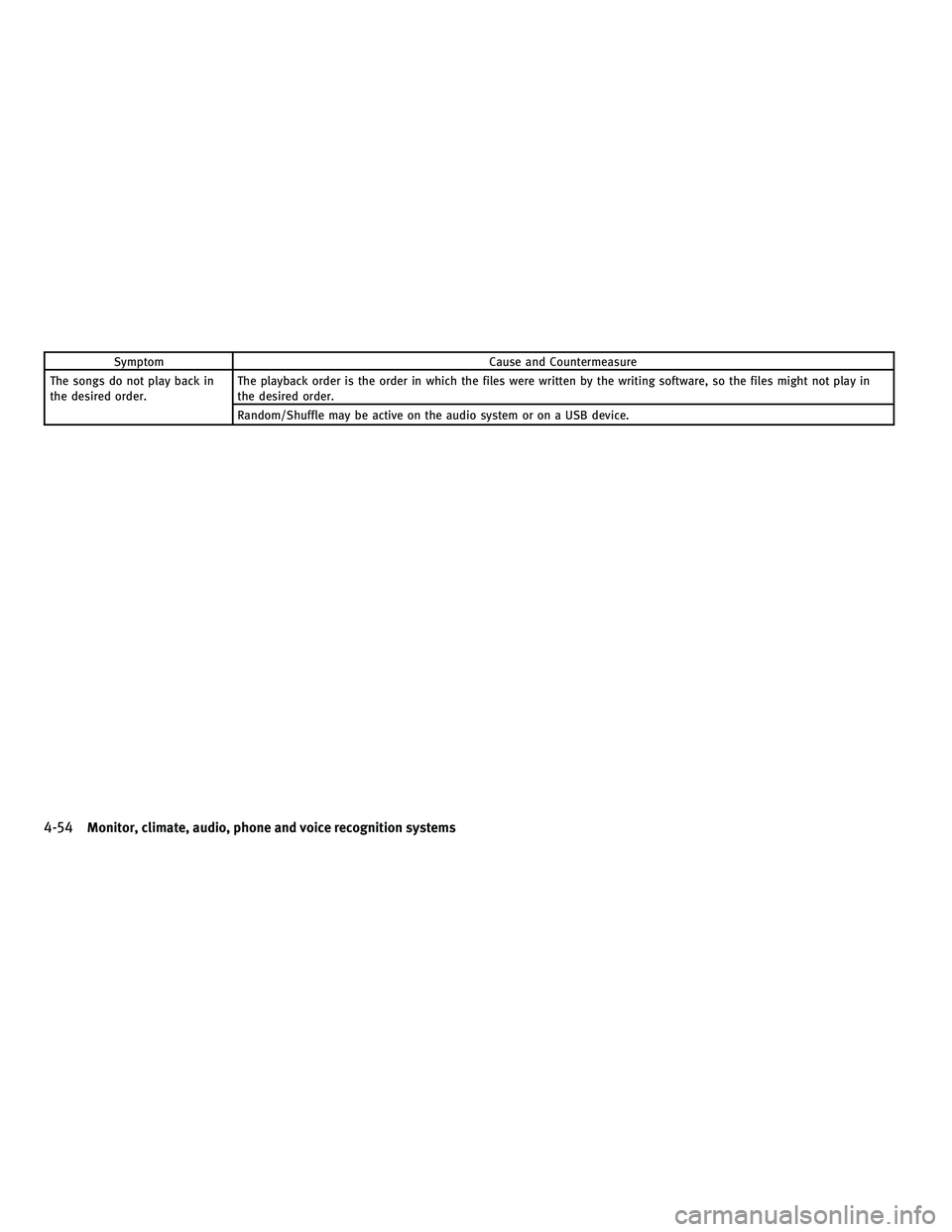

SymptomCause and Countermeasure
The songs do not play back in
the desired order. The playback order is the order in which the files were written by the writing software, so the files might not play in
the desired order.
Random/Shuffle may be active on the audio system or on a USB device.
4-54Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Compressed Video Files (models with
navigation system)
Explanation of terms :
●DivX - DivX refers to the DivX codec
owned by DivX, Inc. used for a lossy com-
pression of video based on MPEG-4.
● AVI - AVI stands for Audio Video Interleave. It
is a standard file format originated by Micro-
soft Corporation. A “.divx” encoded file can
be saved into the “.avi” file format for play-
back on this system if it meets the require-
ments stated in the table in this section.
However, not all the “.avi” files are playable
on this system since different encodings can
be used than the DivX codec.
● ASF - ASF stands for Advanced Systems
Format. It is a file format owned by Microsoft
Corporation. Note: Only “.asf” files that meet
the requirements stated in the table in this
section can be played.
● Bit rate — Bit rate denotes the number of
bits per second used by a digital video file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.
Monitor, climate, audio, phone and voice recognition systems4-55
—
—
07/15/10—tbrooks


Requirement for Supporting Video Playback:
MediaCD, CD-R, CD-RW, DVD, DVD±R, DVD±RW, DVD±RW DL, USB 2.0 Memory
File Systems CD, CD-R,
CD-RW,
DVD,
DVD±R,
DVD±RW,
DVD±RW DL ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet, UDF Bridge (UDF1.
02+ISO9660), UDF1.5, UDF2.0- ISO9660 Level 3 (packet writing) is not
supported.
- Files saved using the Live File System component (on a Windows Vista-
based computer) are not supported.
- VDF1.5/VDF2.0 (packet writing) is not supported.
USB Memory FAT16, FAT32
File Types .divx, .avi Video CodecsDivX3, DivX4, DivX5, DivX6
Audio Codecs MP3, MPEG2.5 Audio Layer3, AC3, LPCM
.asf Video Codec ISO-MPEG4
Audio Codec G.726
Bit Rates .divx, .avi Maximum Average4Mbps
Maximum Peak 8Mbps
Resolution .divx, .avi Minimum32 × 32
Maximum 720 × 480
.asf Minimum 32 × 32
Maximum 720 × 576
BluetoothAudio player (models with
navigation system)
● Some Bluetooth audio devices may not be
recognized by the in-vehicle audio system.
● It is necessary to set up the wireless connec-
tion between a compatible Bluetooth audio
device and the in-vehicle Bluetooth module
before using the Bluetooth audio player.
● Operating procedure of the Bluetooth audio
player will vary depending on the device.
Make sure it is understood how to operate
an audio device before using it with this
system.
● The Bluetooth audio player may be stopped
under the following conditions:
– Receiving a hands-free call.
– Checking the connection to the hands- free phone.
● Do not place a Bluetooth audio device in an
area surrounded by metal or far away from
the in-vehicle Bluetooth module to prevent
tone quality degradation and wireless con-
nection disruption.
● While an audio device is connected through
a Bluetooth wireless connection, the bat-
tery power of the device may discharge
quicker than usual.
4-56Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


●This system supports the Bluetooth Audio
Distribution Profile (A2DP, AVRCP).
● Bluetooth is a trademark owned by
Bluetooth SIG, Inc. and licensed to Clarion
Co., Ltd.Music Box hard drive (models with
navigation system)
Recording :
● Note that data that is lost and not stored to
the hard disk drive due to system damage,
improper operation or malfunction is not
under warranty.
● Vehicle owners are not permitted to record
music without permission of the owner of
the copyright except for personal use.
● Check if the music is appropriately recorded
to the hard disk drive after recording when
the compact disc cannot be rerecorded.
● Some music cannot be recorded depending
on the disc condition due to high-speed
recording.
● Jumping sounds may be recorded when a
compact disc is recorded while driving on
rough roads and excessive vibration occurs.
● A mark indicating jumping sounds is dis-
played if jumping sounds are recorded.
● No sounds may be recorded if jumping
sounds occurs or the disc is in poor condi-
tion.
● Tracks that include Serial Copy Management
System (SCMS) are not recorded. ●
If a compact disc is scratched or dirty, it may
not be recorded, jumping sounds may occur
or it may take a long time to record.
Automatic title download :
● The title information that is automatically
downloaded may differ from the actual title.
● When newly released compact discs are
recorded, their title information may not be
downloaded.
● The title information in the hard disk can be
updated. (See “Playing recorded songs”
later in this section.
Monitor, climate, audio, phone and voice recognition systems4-57
—
—
07/15/10—tbrooks


1. ON·OFF/VOLUME control knob
2. Radio CAT (category)/REW (rewind) buttonfor SEEK/TRACK
3. Radio CAT(category)/FF (fast forward) but- ton for SEEK/TRACK
4. AM·FM radio band select button 5. XM radio band select button
6. DISC·AUX selector button
7. RDM (random) RPT (repeat) play button
8. Radio SCAN (tuning) button
9. CD EJECT button10. Radio tuning / MP3/WMA/AAC folder se-
lector / AUDIO control knob
11. Radio station preset buttons
No satellite radio reception is available unless
an XM Satellite Radio subscription is active.
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER
For all operation precautions, see “AUDIO OP-
ERATION PRECAUTIONS” earlier in this section.
The satellite radio mode requires an active XM
Satellite Radio subscription. The satellite radio
is not available in Alaska, Hawaii and Guam.
It may take some time to receive the activation
signal after subscribing the XM Satellite Radio.
After receiving the activation signal, an avail-
able channel list will be automatically updated
in the radio. For XM, push the ignition switch
from LOCK to ACC to update the channel list.
Audio main operation
Head unit :
The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
SAA2957
4-58Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


ON·OFF/Volume control :
Push the ignition switch to the ACC or ON
position, and then push the ON·OFF button
while the system is off to turn on the last audio
source (i.e. FM or CD), which was playing im-
mediately before the system was turned off.
While the system is on, pushing the ON·OFF
button turns the system off.
Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker balance :
To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display
shows the setting you want to change (Bass,
Treble, Balance and Fade), rotate the Audio
control knob to set the desired setting. For the
other setting methods, see “HOW TO USE SET-
TING BUTTON” earlier in this section.
This vehicle has some sound effect functions as
follows:
●Speed Sensitive Vol.
● Precision Phased Audio (if so equipped)
● BOSE Centerpoint 2 (if so equipped)
● BOSE AudioPilot
TM2 (if so equipped)
For more details, see “VEHICLE INFORMATION
AND SETTINGS” earlier in this section. Switching the display :
Pushing the DISC·AUX button will switch the
displays as follows:
●
Models with navigation system
iPod/USB →CD/DVD →Music Box →
Bluetooth Audio→iPod/USB
● Models without navigation system
iPod/USB →CD →iPod/USB
Linking Intelligent Key (models with navigation
system) :
The audio settings can be memorized for each
Intelligent Key. For more details, see “SETTING
MEMORY FUNCTION” in the “3. Pre-driving
checks and adjustments” section.
FM-AM-SAT radio operation
When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.
The last channel played will also come on when
the ON·OFF button is pushed to ON.
If another audio source is playing when the
radio band select button is turned to ON, the
audio source will automatically be turned off
and the last radio channel played will come on. When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
radio (FM·AM) band select :
Pushing the XM radio band select button will
change the band as follows:
AM →FM1 →FM2 →AM
radio (XM) band select :
Pushing the XM radio band select button will
change the band as follows:
XM1 →XM2 →XM3 →XM1
The satellite radio is not available in Alaska,
Hawaii and Guam.
TUNE (Tuning) :
● For AM and FM radio
Turn the radio TUNE knob for manual tuning.
● For XM Satellite Radio
Turn the radio TUNE knob to seek channels
from all of the categories when any category
is not selected.
Monitor, climate, audio, phone and voice recognition systems4-59
—
—
07/15/10—tbrooks
