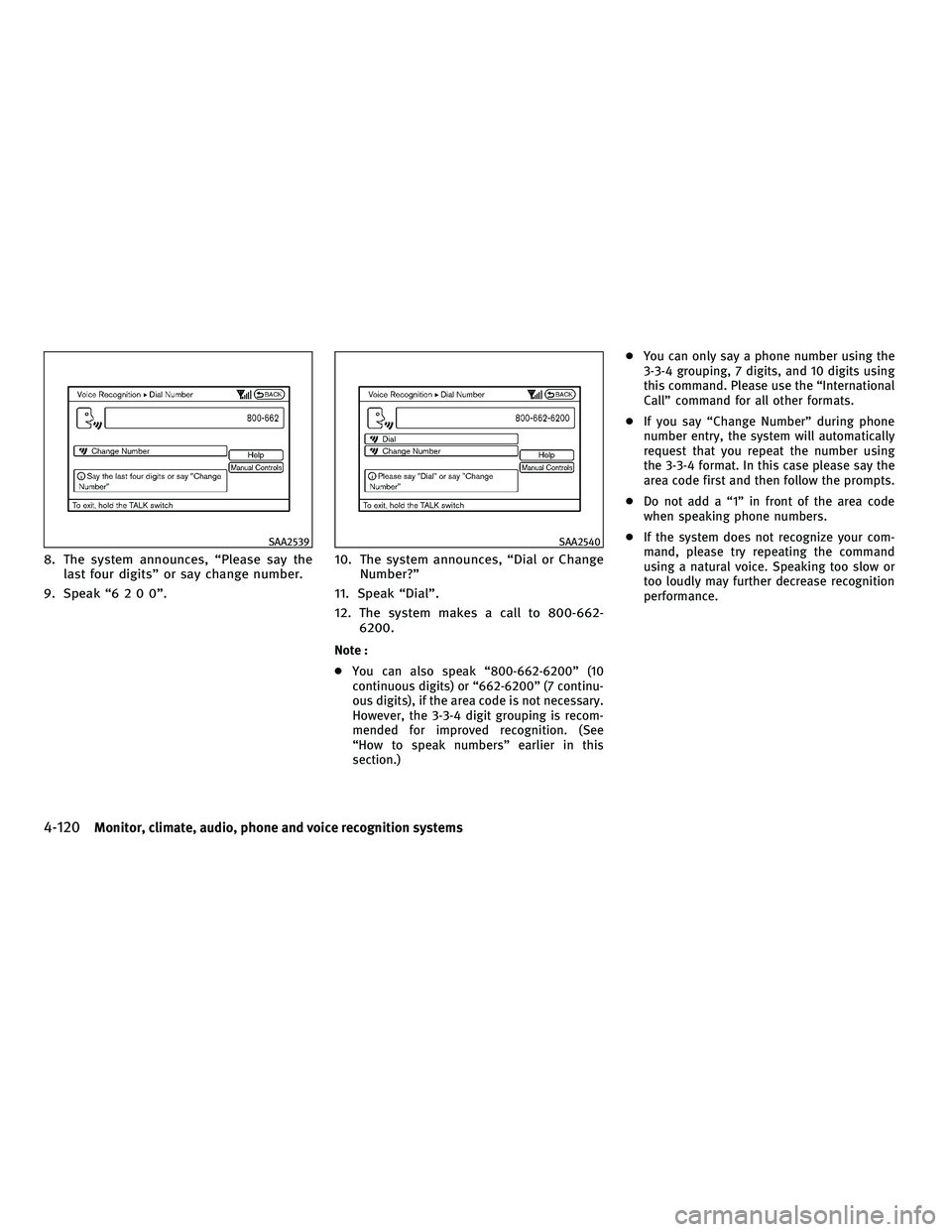

8. The system announces, “Please say thelast four digits” or say change number.
9. Speak “6200”. 10. The system announces, “Dial or Change
Number?”
11. Speak “Dial”.
12. The system makes a call to 800-662- 6200.
Note :
●You can also speak “800-662-6200” (10
continuous digits) or “662-6200” (7 continu-
ous digits), if the area code is not necessary.
However, the 3-3-4 digit grouping is recom-
mended for improved recognition. (See
“How to speak numbers” earlier in this
section.) ●
You can only say a phone number using the
3-3-4 grouping, 7 digits, and 10 digits using
this command. Please use the “International
Call” command for all other formats.
● If you say “Change Number” during phone
number entry, the system will automatically
request that you repeat the number using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts.
● Do not add a “1” in front of the area code
when speaking phone numbers.
● If the system does not recognize your com-
mand, please try repeating the command
using a natural voice. Speaking too slow or
too loudly may further decrease recognition
performance.
SAA2539SAA2540
4-120Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

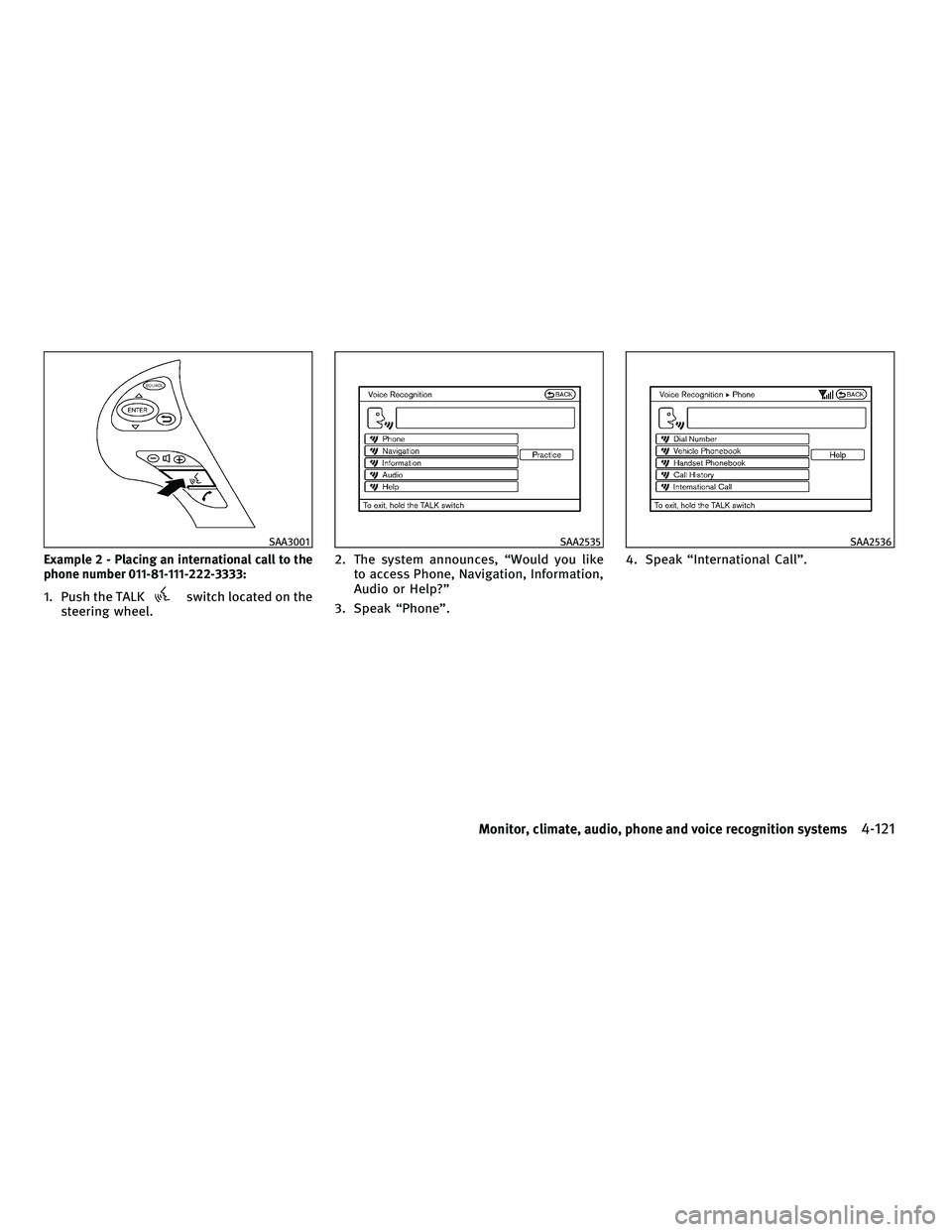

Example 2 - Placing an international call to the
phone number 011-81-111-222-3333:
1. Push the TALKswitch located on the
steering wheel. 2. The system announces, “Would you like
to access Phone, Navigation, Information,
Audio or Help?”
3. Speak “Phone”. 4. Speak “International Call”.
SAA3001SAA2535SAA2536
Monitor, climate, audio, phone and voice recognition systems4-121
—
—
07/15/10—tbrooks


5. Speak “011811112223333”.6. Speak “Dial”.
7. System makes a call to 011-81-111-222- 3333.
Note :
Any digit input format is available in the Inter-
national Number input process.
INFINITI VOICE RECOGNITION
ALTERNATE COMMAND MODE
The following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated, an
expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker Ad-
aptation Function available in that mode. (See
“Speaker adaptation function (for Alternate
Command Mode)” later in this section.) Other-
wise it is recommended that Alternate Com-
mand Mode be turned OFF and Standard Mode
be used for the best recognition performance.
SAA2541SAA2542
4-122Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Activating Alternate Command Mode
When the Standard Mode is active, perform the
following steps to switch to the Alternate Com-
mand Mode.
1. Push the SETTING button on the instru-ment panel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key. 4. Highlight the “Alternate Command Mode”
key.
5. The confirmation message is displayed on the screen. Push the “OK” key to activate
the Alternate Command Mode.Displaying command list
If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the fol-
lowing procedure for displaying the voice com-
mand list (available only in Alternate Command
Mode).
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.
SAA2529SAA2543SAA2544
Monitor, climate, audio, phone and voice recognition systems4-123
—
—
07/15/10—tbrooks

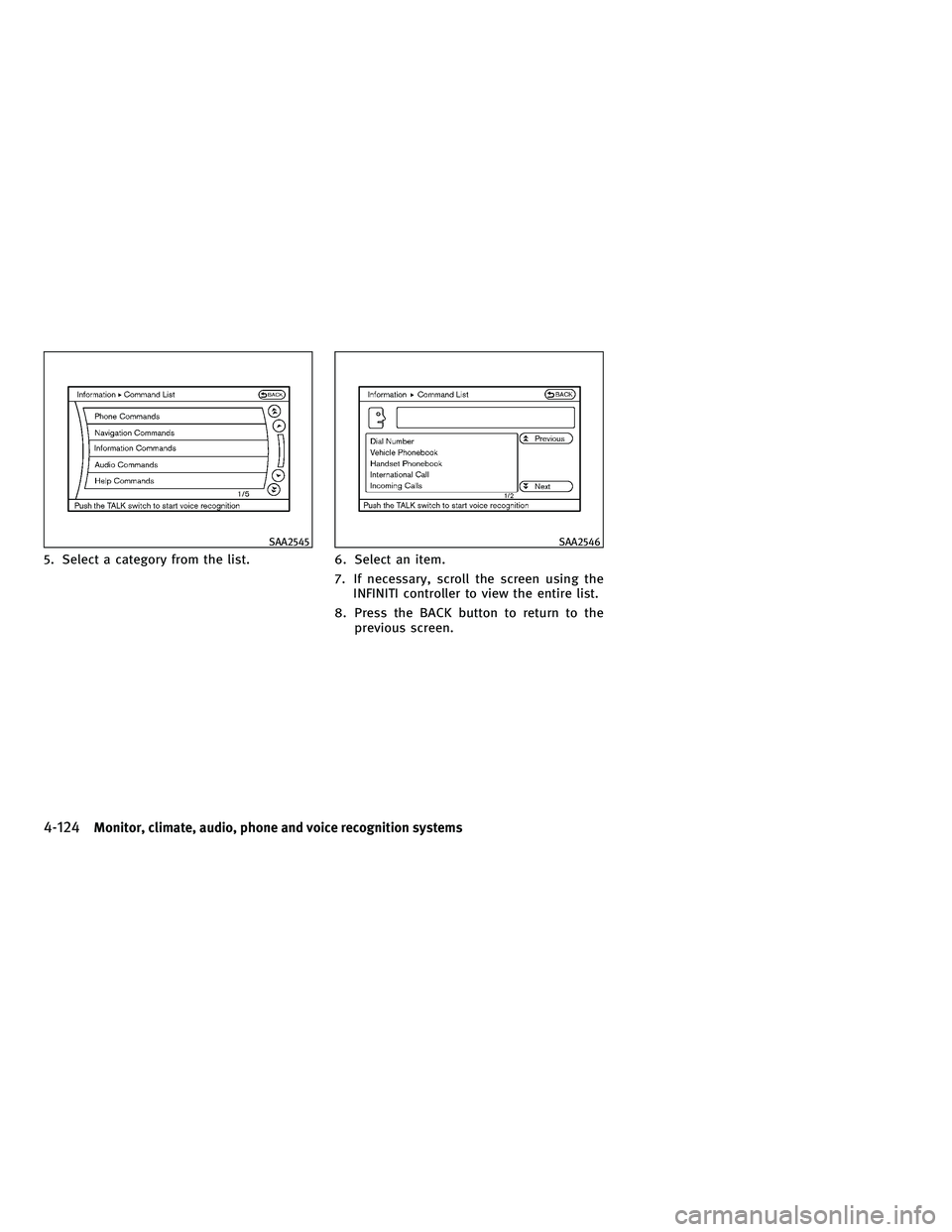

5. Select a category from the list.6. Select an item.
7. If necessary, scroll the screen using the INFINITI controller to view the entire list.
8. Press the BACK button to return to the previous screen.
SAA2545SAA2546
4-124Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

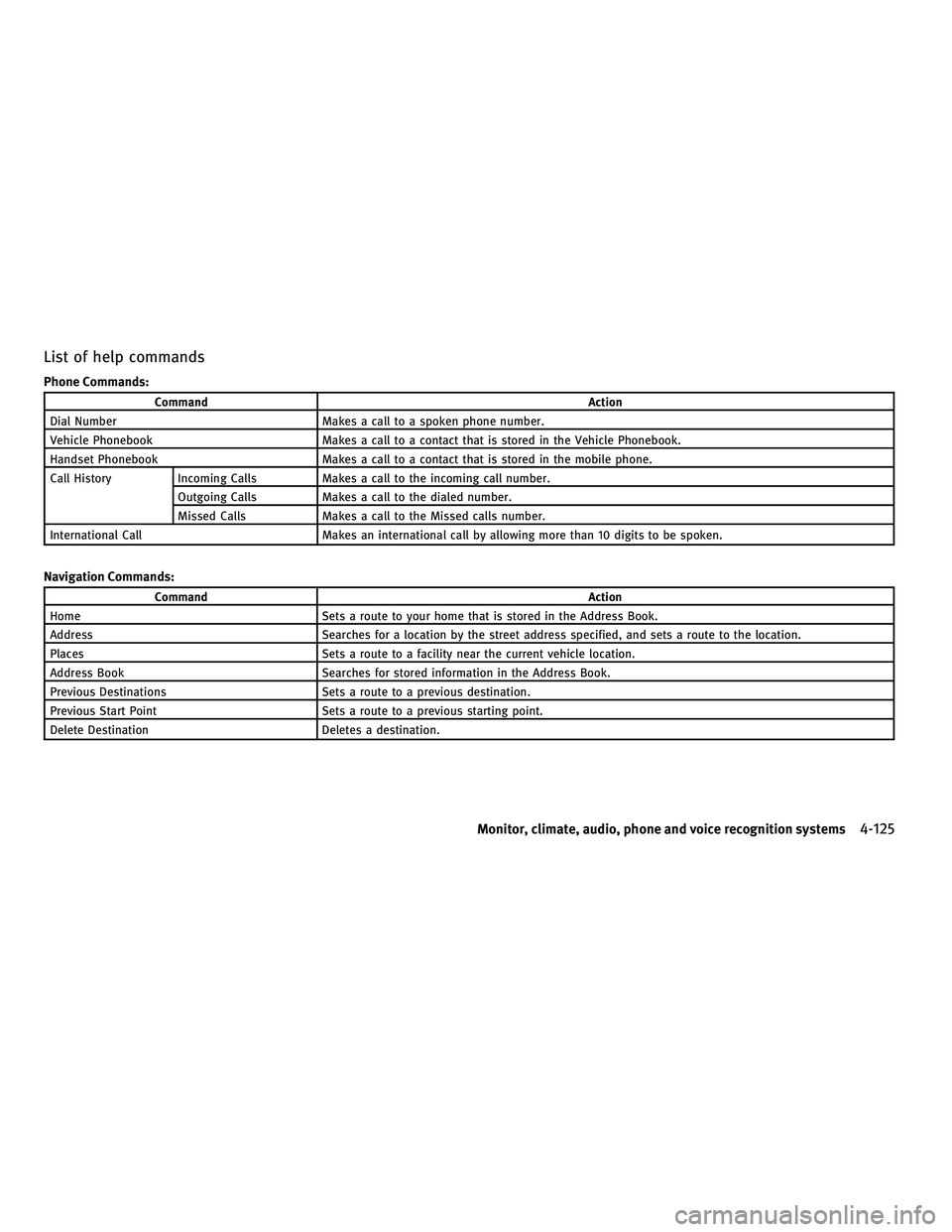

List of help commands
Phone Commands:
CommandAction
Dial Number Makes a call to a spoken phone number.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Navigation Commands:
Command Action
Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
Previous Start Point Sets a route to a previous starting point.
Delete Destination Deletes a destination.
Monitor, climate, audio, phone and voice recognition systems4-125
—
—
07/15/10—tbrooks


Information Commands:
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Tire Pressure (if so equipped) Displays tire pressure information
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Audio Commands:
Command Action
Music Box Turns on the “Music Box” hard drive audio system.
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the XM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetoothaudio player.
4-126Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

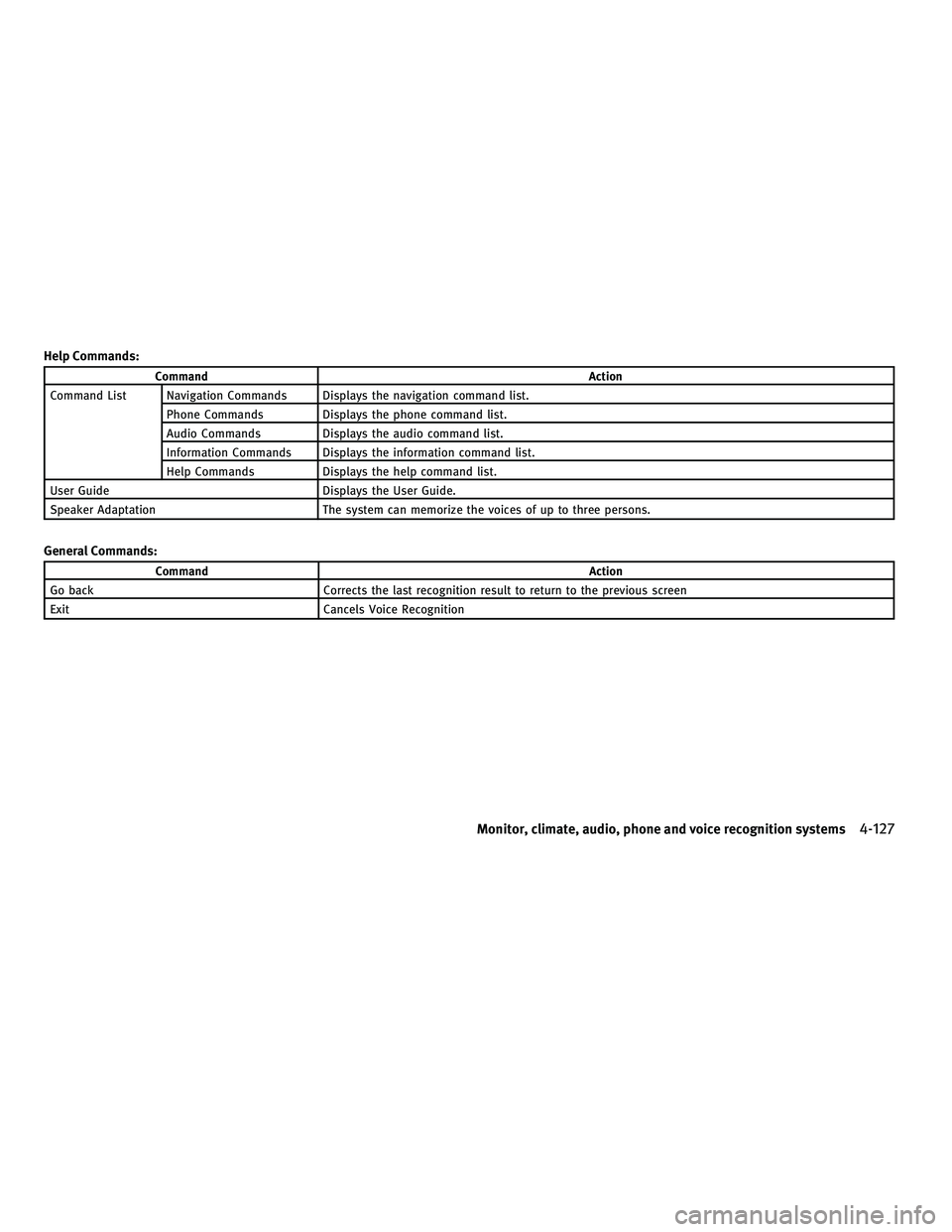

Help Commands:
CommandAction
Command List Navigation Commands Displays the navigation command list. Phone Commands Displays the phone command list.
Audio Commands Displays the audio command list.
Information Commands Displays the information command list.
Help Commands Displays the help command list.
User Guide Displays the User Guide.
Speaker Adaptation The system can memorize the voices of up to three persons.
General Commands:
Command Action
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
Monitor, climate, audio, phone and voice recognition systems4-127
—
—
07/15/10—tbrooks


Displaying user guide
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key using the INFINITI controller and push the ENTER button.
3. Highlight the “Voice Recognition” key us- ing the INFINITI controller and push the
ENTER button. 4. Highlight the “User Guide” key using the
INFINITI controller and push the ENTER
button.
5. Highlight an item using the INFINITI con- troller and push the ENTER button.
Available items :
● Getting Started
Describe the basics of how to operate the
INFINITI Voice Recognition system.
● Let’s Practice
Mode that allows practicing by following the
instructions of the system voice.
● Using the Address Book
Refer to Navigation System Owner’s Manual.
● Finding a Street Address (if so equipped)
Refer to Navigation System Owner’s Manual.
● Placing Calls
Tutorial for making a phone call by voice
command operation.
● Help on Speaking
Displays useful tips for how to correctly
speak commands in order for them to be
properly recognized by the system. ●
Voice Recognition Settings
Describes the available voice recognition
settings.
● Adapting the System to Your Voice
Tutorial adapting the system to your voice.USING THE SYSTEM
Initialization
When the ignition switch is pushed to the ON
position, INFINITI Voice Recognition is initial-
ized, which takes a few seconds. When com-
pleted, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes the display
will show the message: “Phonetic data down-
loaded. Please wait.” or a beep sounds.
SAA2547
4-128Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Before starting
To get the best performance from INFINITI Voice
Recognition, observe the following.
●Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● When the air conditioner is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.
● Wait until a tone sounds before speaking a
command.
● Speak in a natural voice without pausing
between words.
Giving voice command
1. Push and release the TALKswitch
located on the steering wheel. 2. A list of commands appears on the
screen, and the system announces,
“Please say a command”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command.
Operating tips :
● Voice commands cannot be accepted when
the icon is
.
● The list displayed can be scrolled by tilting
the menu control switch on the steering
wheel.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
SAA3001SAA2548
