“Help”. The system announces the available
commands.
● When you speak numbers, you can speak
both “zero” or “oh” for “0”.
Personal vocabulary (voicetags) :
Voice Recognition System is equipped with the
function called “voicetags”, which can be asso-
ciated with the phone number and name in the
phonebook. Using the voice tag will automati-
cally generate a speed dial to the registered
number.
See “PHONEBOOK REGISTRATION” earlier in
this section.
You can call the identified number using the
following command: “Dial” followed by the
voice tag.
Dialling a name with a voice tag :
It is possible to call up a name via a voice tag
instead of a number, provided the name and
number of your correspondent has been previ-
ously stored in the phonebook. Dial via a voice tag, according to the following
procedure.
1. Push theswitch.
2. The system replies “please say a com- mand after the beep. Available commands
are: Call, Phonebook, Recent Calls, Con-
nect Phone or Help”.
3. Give your instructions to the system by saying: “Dial John” for example (“John”
must have been previously set as a voice
tag for John’s phone number) or “Dial
One” if John is classified as one in the
phonebook.
If the system cannot understand your com-
mand, repeat it according to the recommen-
dations mentioned in “How to speak com-
mands” earlier in this section.
4. If the given name (voice tag) is correct, the phone system will dial the number
registered for “John”.
INFO
To end the voice command phase at any stage
of the procedure, push the
switch once
in order to activate the cancel command. Manual command selection :
Commands can be selected manually. While the
commands are displayed on the screen, select a
command by operating the Tune switch, and
then push the
button. Once a command
is manually selected, the voice command func-
tion is cancelled. To return to voice command
mode, push the
button to cancel the
current operation, and then perform the first
procedure of voice command.
4-100Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


List of voice commands:
COMMANDACTION
“Call/Dial” “” Dials the specified .
“Call/Dial” “Redial” Dials the last number.
“Call” “” Dials the specified .
“Phonebook” “” Displays the specified in the phonebook.
“Phonebook” “List Names” Displays all the names in the phonebook.
“Phonebook” “Transfer Entry” Transfers the phonebook data to the system.
“Phonebook” “Delete Entry” Deletes the phonebook registered in the system.
“Connect Phone” “Software Version” Displays the software version of the system to be connected.
“Connect Phone” “Add Phone” Connects a cellular phone to the system.
“Connect Phone” “Select Phone” Selects a registered cellular phone.
“Connect Phone” “Delete Phone” Deletes a registered cellular phone.
“Connect Phone” “Bluetooth Off” Turns the Bluetoothconnection off.
“Connect Phone” “Replace Phone” Changes the registered order of the cellular phones.
“Connect Phone” “Delete Phone” “All Phones” Deletes all registered cellular phones.
“Connect Phone” “Delete Phone” “List Phones” Selects a registered cellular phone and deletes it.
Monitor, climate, audio, phone and voice recognition systems4-101
—
—
07/15/10—tbrooks

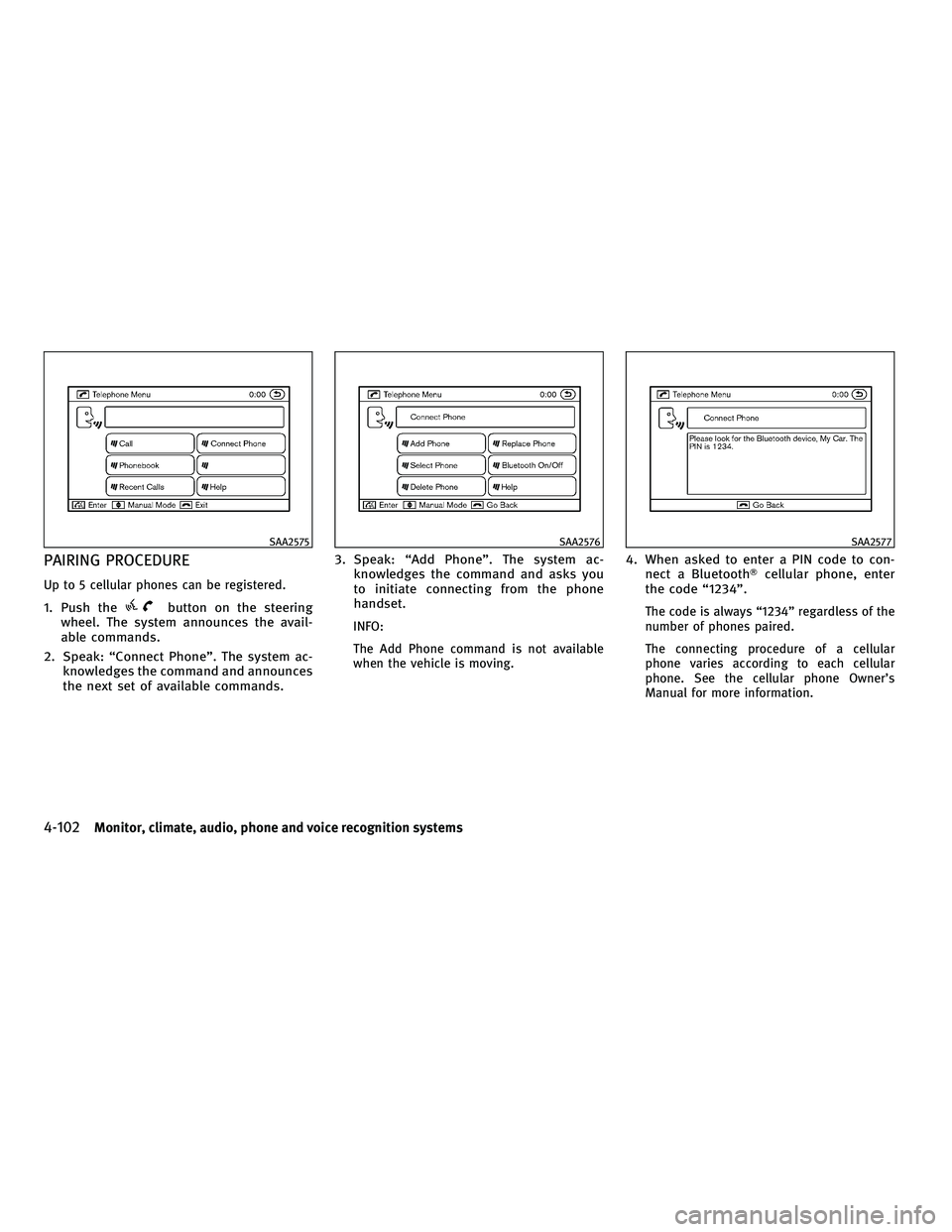

PAIRING PROCEDURE
Up to 5 cellular phones can be registered.
1. Push thebutton on the steering
wheel. The system announces the avail-
able commands.
2. Speak: “Connect Phone”. The system ac- knowledges the command and announces
the next set of available commands. 3. Speak: “Add Phone”. The system ac-
knowledges the command and asks you
to initiate connecting from the phone
handset.
INFO:
The Add Phone command is not available
when the vehicle is moving.
4. When asked to enter a PIN code to con- nect a Bluetooth cellular phone, enter
the code “1234”.
The code is always “1234” regardless of the
number of phones paired.
The connecting procedure of a cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for more information.
SAA2575SAA2576SAA2577
4-102Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

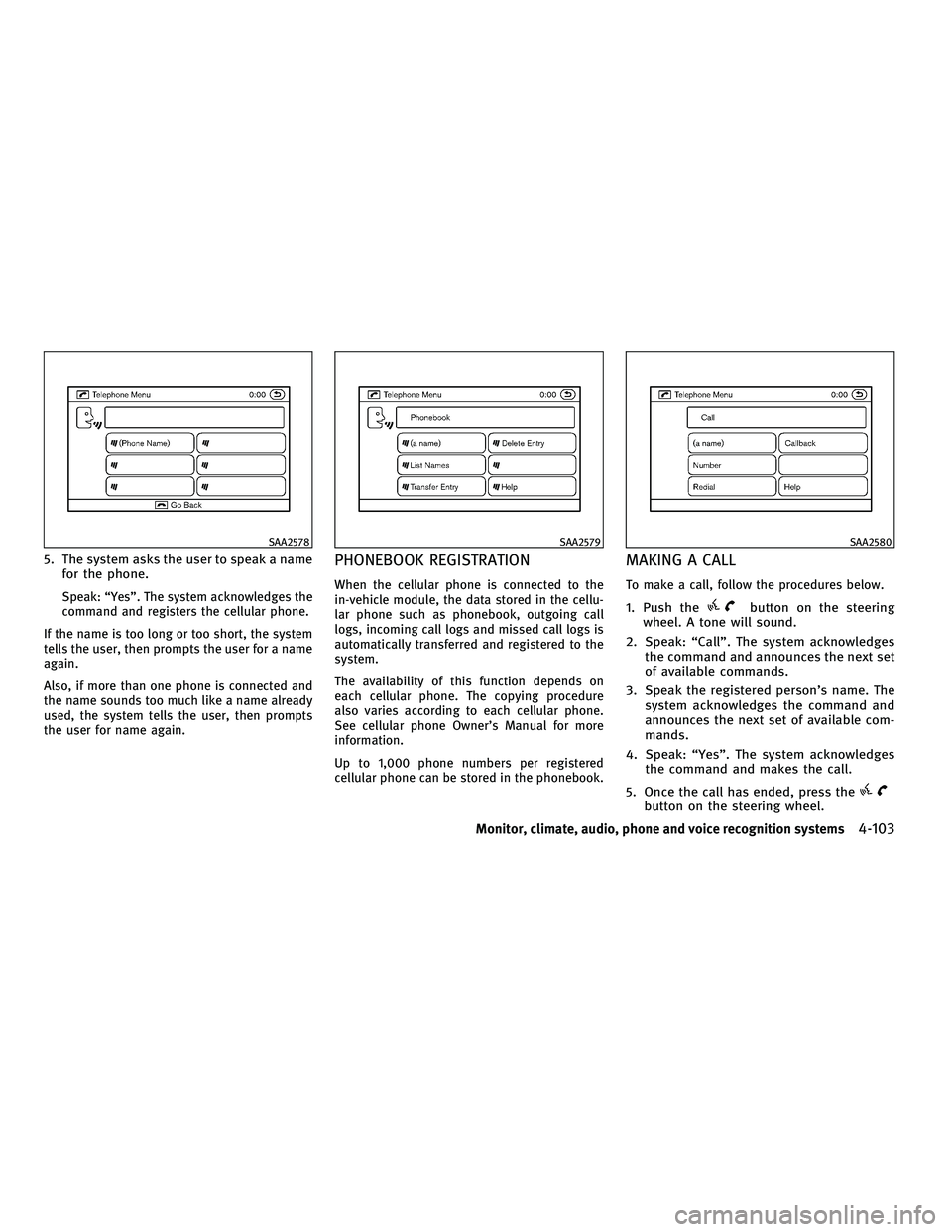

5. The system asks the user to speak a namefor the phone.
Speak: “Yes”. The system acknowledges the
command and registers the cellular phone.
If the name is too long or too short, the system
tells the user, then prompts the user for a name
again.
Also, if more than one phone is connected and
the name sounds too much like a name already
used, the system tells the user, then prompts
the user for name again.
PHONEBOOK REGISTRATION
When the cellular phone is connected to the
in-vehicle module, the data stored in the cellu-
lar phone such as phonebook, outgoing call
logs, incoming call logs and missed call logs is
automatically transferred and registered to the
system.
The availability of this function depends on
each cellular phone. The copying procedure
also varies according to each cellular phone.
See cellular phone Owner’s Manual for more
information.
Up to 1,000 phone numbers per registered
cellular phone can be stored in the phonebook.
MAKING A CALL
To make a call, follow the procedures below.
1. Push thebutton on the steering
wheel. A tone will sound.
2. Speak: “Call”. The system acknowledges the command and announces the next set
of available commands.
3. Speak the registered person’s name. The system acknowledges the command and
announces the next set of available com-
mands.
4. Speak: “Yes”. The system acknowledges the command and makes the call.
5. Once the call has ended, press the
button on the steering wheel.
SAA2578SAA2579SAA2580
Monitor, climate, audio, phone and voice recognition systems4-103
—
—
07/15/10—tbrooks

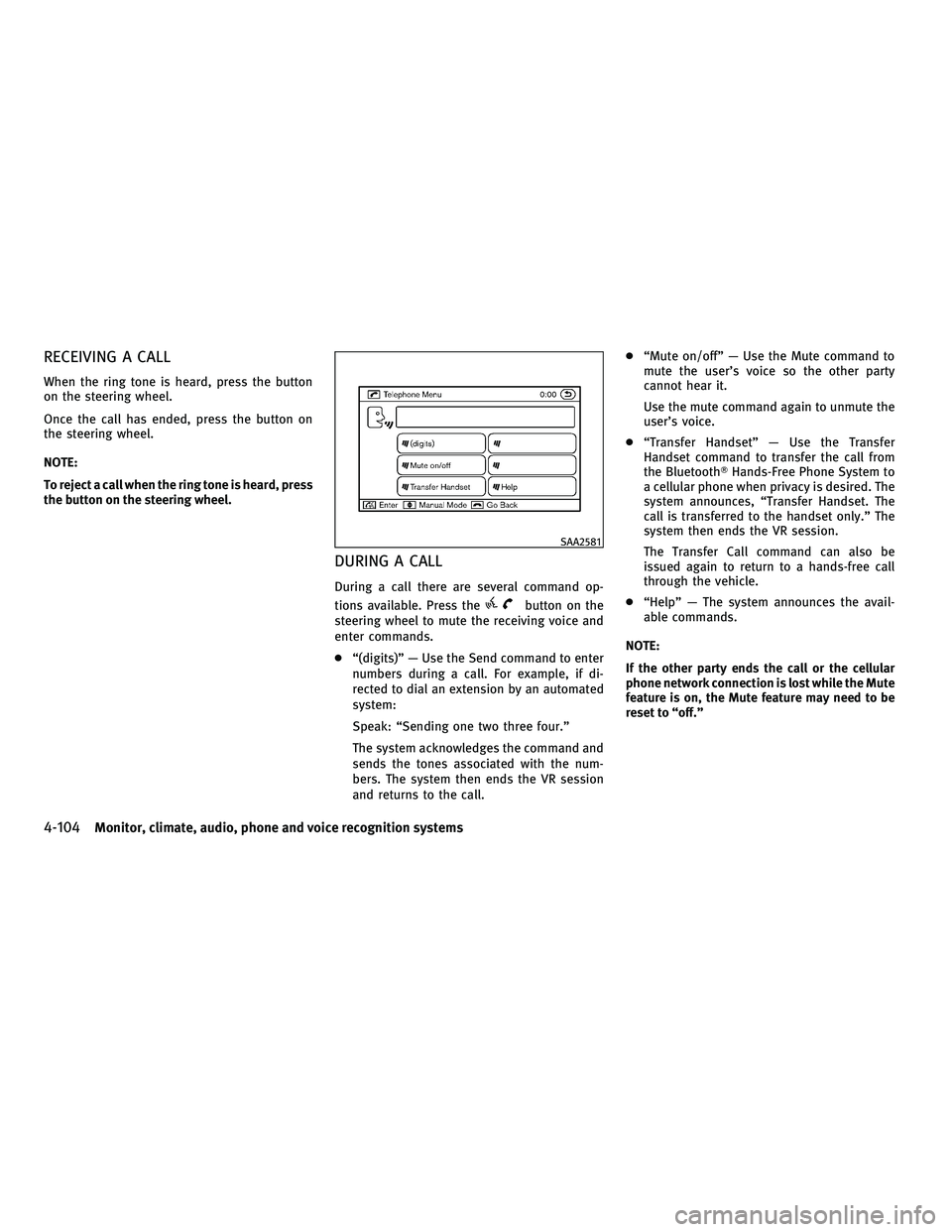

RECEIVING A CALL
When the ring tone is heard, press the button
on the steering wheel.
Once the call has ended, press the button on
the steering wheel.
NOTE:
To reject a call when the ring tone is heard, press
the button on the steering wheel.
DURING A CALL
During a call there are several command op-
tions available. Press the
button on the
steering wheel to mute the receiving voice and
enter commands.
● “(digits)” — Use the Send command to enter
numbers during a call. For example, if di-
rected to dial an extension by an automated
system:
Speak: “Sending one two three four.”
The system acknowledges the command and
sends the tones associated with the num-
bers. The system then ends the VR session
and returns to the call. ●
“Mute on/off” — Use the Mute command to
mute the user’s voice so the other party
cannot hear it.
Use the mute command again to unmute the
user’s voice.
● “Transfer Handset” — Use the Transfer
Handset command to transfer the call from
the Bluetooth Hands-Free Phone System to
a cellular phone when privacy is desired. The
system announces, “Transfer Handset. The
call is transferred to the handset only.” The
system then ends the VR session.
The Transfer Call command can also be
issued again to return to a hands-free call
through the vehicle.
● “Help” — The system announces the avail-
able commands.
NOTE:
If the other party ends the call or the cellular
phone network connection is lost while the Mute
feature is on, the Mute feature may need to be
reset to “off.”
SAA2581
4-104Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

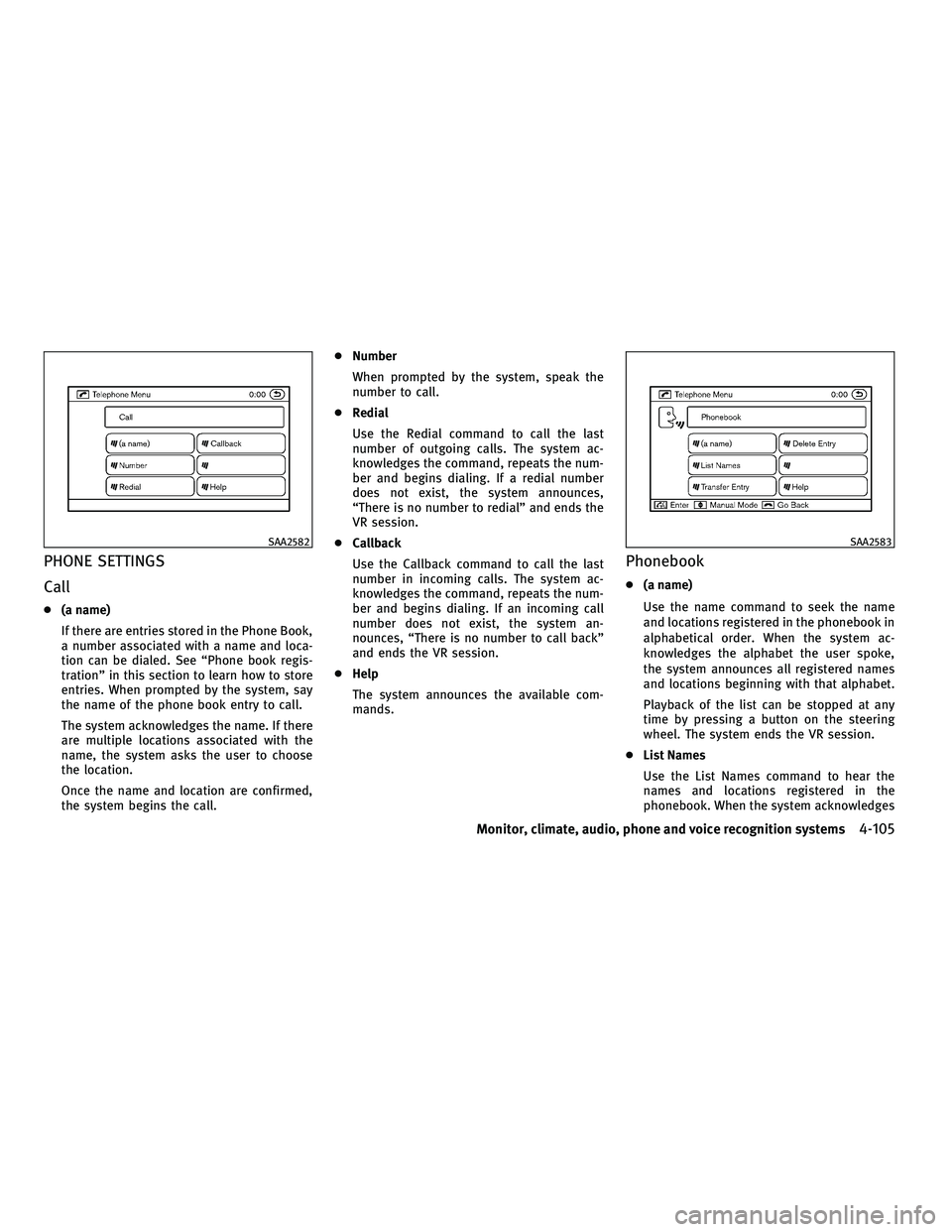

PHONE SETTINGS
Call
●(a name)
If there are entries stored in the Phone Book,
a number associated with a name and loca-
tion can be dialed. See “Phone book regis-
tration” in this section to learn how to store
entries. When prompted by the system, say
the name of the phone book entry to call.
The system acknowledges the name. If there
are multiple locations associated with the
name, the system asks the user to choose
the location.
Once the name and location are confirmed,
the system begins the call. ●
Number
When prompted by the system, speak the
number to call.
● Redial
Use the Redial command to call the last
number of outgoing calls. The system ac-
knowledges the command, repeats the num-
ber and begins dialing. If a redial number
does not exist, the system announces,
“There is no number to redial” and ends the
VR session.
● Callback
Use the Callback command to call the last
number in incoming calls. The system ac-
knowledges the command, repeats the num-
ber and begins dialing. If an incoming call
number does not exist, the system an-
nounces, “There is no number to call back”
and ends the VR session.
● Help
The system announces the available com-
mands.
Phonebook
● (a name)
Use the name command to seek the name
and locations registered in the phonebook in
alphabetical order. When the system ac-
knowledges the alphabet the user spoke,
the system announces all registered names
and locations beginning with that alphabet.
Playback of the list can be stopped at any
time by pressing a button on the steering
wheel. The system ends the VR session.
● List Names
Use the List Names command to hear the
names and locations registered in the
phonebook. When the system acknowledges
SAA2582SAA2583
Monitor, climate, audio, phone and voice recognition systems4-105
—
—
07/15/10—tbrooks

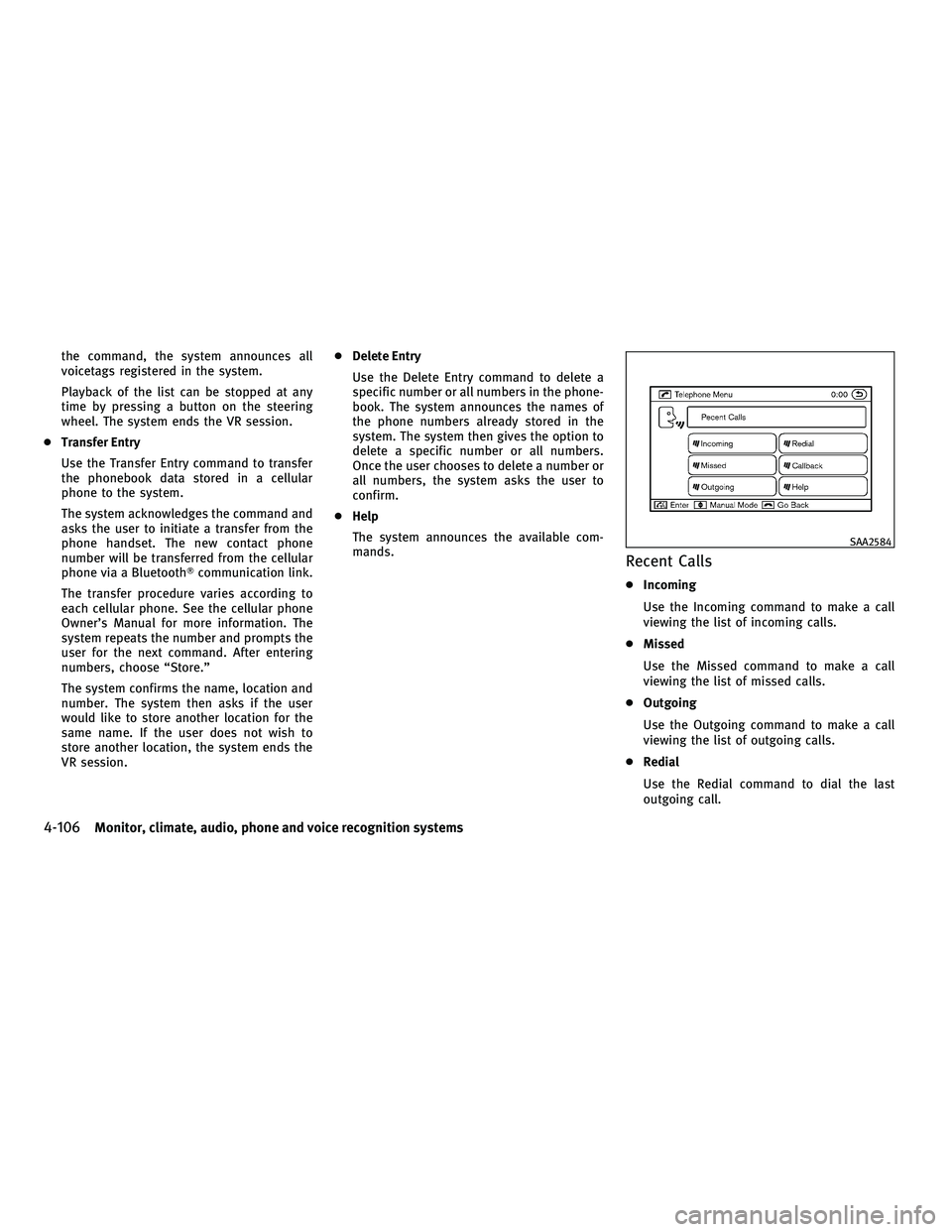

the command, the system announces all
voicetags registered in the system.
Playback of the list can be stopped at any
time by pressing a button on the steering
wheel. The system ends the VR session.
● Transfer Entry
Use the Transfer Entry command to transfer
the phonebook data stored in a cellular
phone to the system.
The system acknowledges the command and
asks the user to initiate a transfer from the
phone handset. The new contact phone
number will be transferred from the cellular
phone via a Bluetooth communication link.
The transfer procedure varies according to
each cellular phone. See the cellular phone
Owner’s Manual for more information. The
system repeats the number and prompts the
user for the next command. After entering
numbers, choose “Store.”
The system confirms the name, location and
number. The system then asks if the user
would like to store another location for the
same name. If the user does not wish to
store another location, the system ends the
VR session. ●
Delete Entry
Use the Delete Entry command to delete a
specific number or all numbers in the phone-
book. The system announces the names of
the phone numbers already stored in the
system. The system then gives the option to
delete a specific number or all numbers.
Once the user chooses to delete a number or
all numbers, the system asks the user to
confirm.
● Help
The system announces the available com-
mands.
Recent Calls
● Incoming
Use the Incoming command to make a call
viewing the list of incoming calls.
● Missed
Use the Missed command to make a call
viewing the list of missed calls.
● Outgoing
Use the Outgoing command to make a call
viewing the list of outgoing calls.
● Redial
Use the Redial command to dial the last
outgoing call.
SAA2584
4-106Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

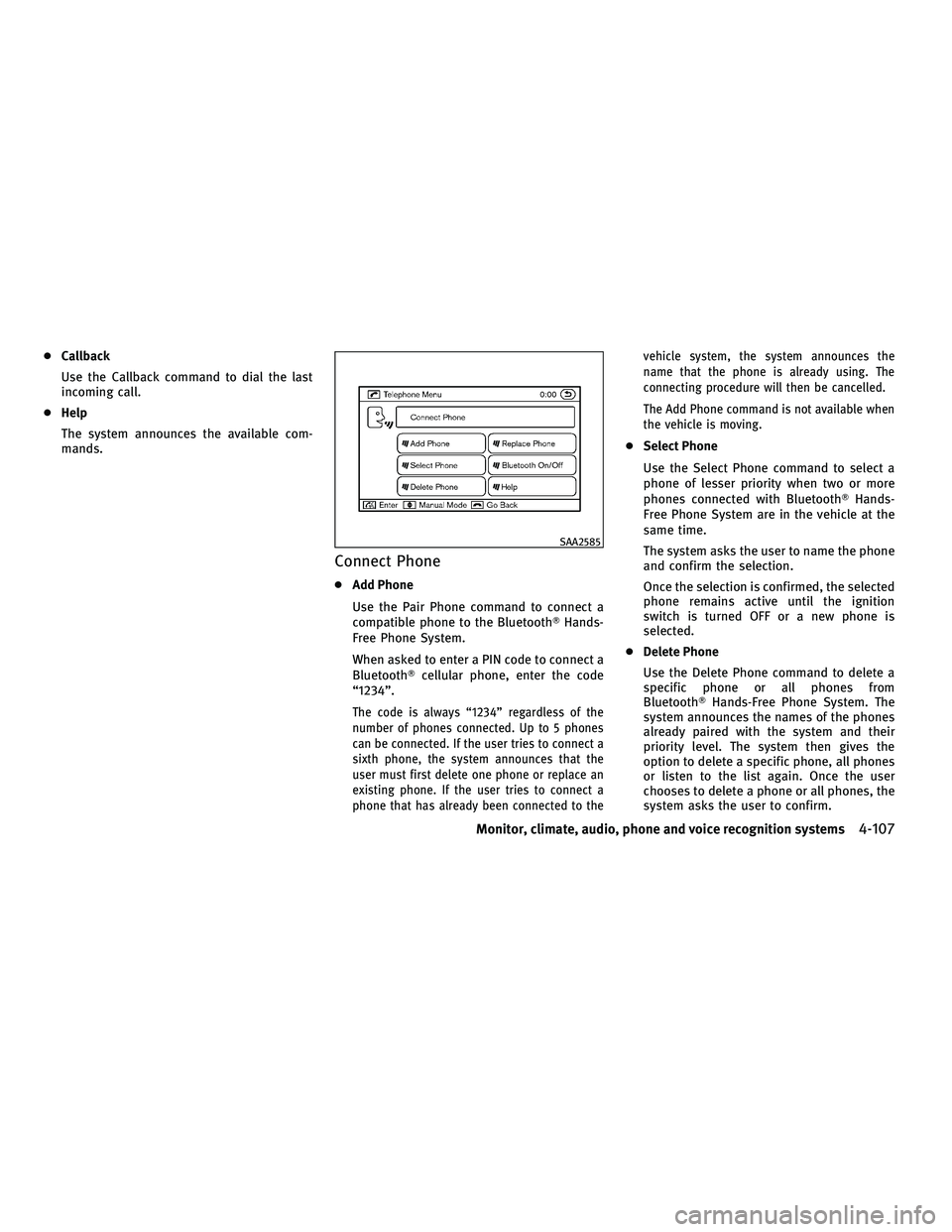

●Callback
Use the Callback command to dial the last
incoming call.
● Help
The system announces the available com-
mands.
Connect Phone
● Add Phone
Use the Pair Phone command to connect a
compatible phone to the Bluetooth Hands-
Free Phone System.
When asked to enter a PIN code to connect a
Bluetooth cellular phone, enter the code
“1234”.
The code is always “1234” regardless of the
number of phones connected. Up to 5 phones
can be connected. If the user tries to connect a
sixth phone, the system announces that the
user must first delete one phone or replace an
existing phone. If the user tries to connect a
phone that has already been connected to the vehicle system, the system announces the
name that the phone is already using. The
connecting procedure will then be cancelled.
The Add Phone command is not available when
the vehicle is moving.
●
Select Phone
Use the Select Phone command to select a
phone of lesser priority when two or more
phones connected with Bluetooth Hands-
Free Phone System are in the vehicle at the
same time.
The system asks the user to name the phone
and confirm the selection.
Once the selection is confirmed, the selected
phone remains active until the ignition
switch is turned OFF or a new phone is
selected.
● Delete Phone
Use the Delete Phone command to delete a
specific phone or all phones from
Bluetooth Hands-Free Phone System. The
system announces the names of the phones
already paired with the system and their
priority level. The system then gives the
option to delete a specific phone, all phones
or listen to the list again. Once the user
chooses to delete a phone or all phones, the
system asks the user to confirm.
SAA2585
Monitor, climate, audio, phone and voice recognition systems4-107
—
—
07/15/10—tbrooks


NOTE:
When the user deletes a phone, the associated
phone book for that phone will also be deleted.
●Replace Phone
Use the Replace Phone command to change
the priority level of the active phone.
The priority level determines which phone is
active when more than one paired
Bluetooth phone is in the vehicle.
The system states the priority level of the
active phone and asks for a new priority
level (1, 2, 3, 4, 5).
If the new priority level is already being used
for another phone, the two phones will swap
priority levels.
For example, if the current priority levels are: Priority Level 1 = Phone A
Priority Level 2 = Phone B
Priority Level 3 = Phone C
and you change the priority level of Phone C to
Level 1, then: Priority Level 1 = Phone C
Priority Level 2 = Phone B
Priority Level 3 = Phone A ●
Bluetooth On/Off
Use the Bluetooth On/Off command to turn
on/off Bluetooth Hands-Free Phone Sys-
tem.
● Help
The system announces the available com-
mands.
VOICE ADAPTATION MODE
The Voice Adaptation mode allows up to two
users with different dialects to train the system
to improve recognition accuracy. By repeating a
number of commands, the users can create a
voice model of their own voice that is stored in
the system. The system is capable of storing a
different voice adaptation model for each con-
nected phone.
Training procedure
1. Position the vehicle in a reasonably quiet outdoor location.
2. Sit in the driver’s seat with the engine running, the parking brake on, and the
transmission in Park.
3. Press the
button. 4. Speak: “Help”. The system acknowledges
the command and announces the next set
of available commands.
5. Speak: Voice Adaptation. The system
acknowledges the command and displays
the voice adaptation mode screen.
6. Voice memory A or memory B is selected automatically. If both memory locations
are already in use, the system will prompt
you to overwrite one. Follow the instruc-
tions provided by the system.
7. When preparation is complete and you are ready to begin, press the
button.
8. The voice adaptation mode will be ex- plained. Follow the instructions provided
by the system.
9. When training is finished, the system will tell you an adequate number of phrases
have been recorded.
10. The system will ask you to say your name. Follow the instructions to register
your name.
11. The system will announce that voice ad- aptation has been completed and the
system is ready.
4-108Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


The voice adaptation mode will stop if:
●The
button is pressed in voice adap-
tation mode.
● The vehicle is driven during voice adaptation
mode.
● The ignition switch is turned to the OFF or
LOCK position. INFINITI Voice Recognition allows hands-free
operation of the Phone, Navigation, Information
and Audio systems in one of two modes, Stan-
dard Mode or Alternate Command Mode.
In Standard Mode, commands that are available
are always shown on the display and an-
nounced by the system. You can complete your
desired operation by simply following the
prompts given by the system. (See “INFINITI
VOICE RECOGNITION STANDARD MODE” later in
this section for details.)
For advanced operation, you can use the Alter-
nate Command Mode. (See “INFINITI VOICE REC-
OGNITION ALTERNATE COMMAND MODE” later
in this section for details.) When this mode is
active, an expanded list of commands can be
spoken after pushing the TALK
switch,
and the voice command menu prompts are
turned off. Review the expanded command list,
which is available when this mode is active.
Note that in this mode the recognition success
rate may be affected as the number of available
commands and the ways of speaking each
command are increased.
To switch one mode to another, see each mode
description later in this section.
To improve the recognition success rate when
Alternate Command Mode is active, try using
the Speaker Adaptation Function available in that mode. Otherwise, it is recommended that
Alternate Command Mode be turned off and
Standard Mode be used for the best recognition
performance.
For the voice commands for the navigation
system, refer to the Navigation System Owner’s
Manual of your vehicle.
INFINITI VOICE RECOGNITION
STANDARD MODE
The following section is applicable when the
Standard Mode is activated.
The Standard Mode enables you to complete
the desired operation by simply following the
prompts that appear on the display and also are
announced by the system.
INFINITI VOICE RECOGNITION SYSTEM
(models with navigation system)
Monitor, climate, audio, phone and voice recognition systems4-109
—
—
07/15/10—tbrooks
