●Push the BACK button once to return to the
previous screen.
● If you want to cancel the command, push
and hold the TALK
switch for 1 sec-
ond. The message “Voice canceled” will be
announced.
● To skip the voice guidance function and give
the command immediately, press the TALK
switch to interrupt the system. Re-
member to speak after the tone.
● If you want to adjust the volume of the
system feedback, push the volume control
switch (+ or ) on the steering wheel or use
the audio system volume knob while the
system is making an announcement.
How to speak numbers :
INFINITI Voice Recognition requires a certain
way to speak numbers when giving voice com-
mands. Refer to the following examples.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot. Phone numbers
Speak phone numbers according to the follow-
ing examples:
●
1-800-662-6200
– “Dial one eight zero zero six six two six two zero zero.”
Note 1: For the best voice recognition phone
dialing results, say phone numbers as single
digits.
Note 2: You cannot say 555-6000 as “five five
five six thousands”.
Note 3: When speaking a house number, speak
the number “0” as “zero”. If the letter “o (Oh)”
is included in the house number, it will not be
recognized as the number “0 (zero)” even if you
speak “oh” instead of “zero”. Please speak
“zero” for the number “0 (zero)”, “oh” for the
letter “o (oh)”.
Speaker adaptation function (for
Alternate Command Mode)
The voice recognition system has a function to
learn the user’s voice for better voice recogni-
tion performance. The system can memorize the
voices of up to three persons.
Having the system learn the user’s voice:
1. Push the SETTING button on the instru- ment panel and select the “Others” key.
2. Select the “Voice Recognition” key.
3. Select the “Speaker Adaptation” key.
SAA2549
4-130Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

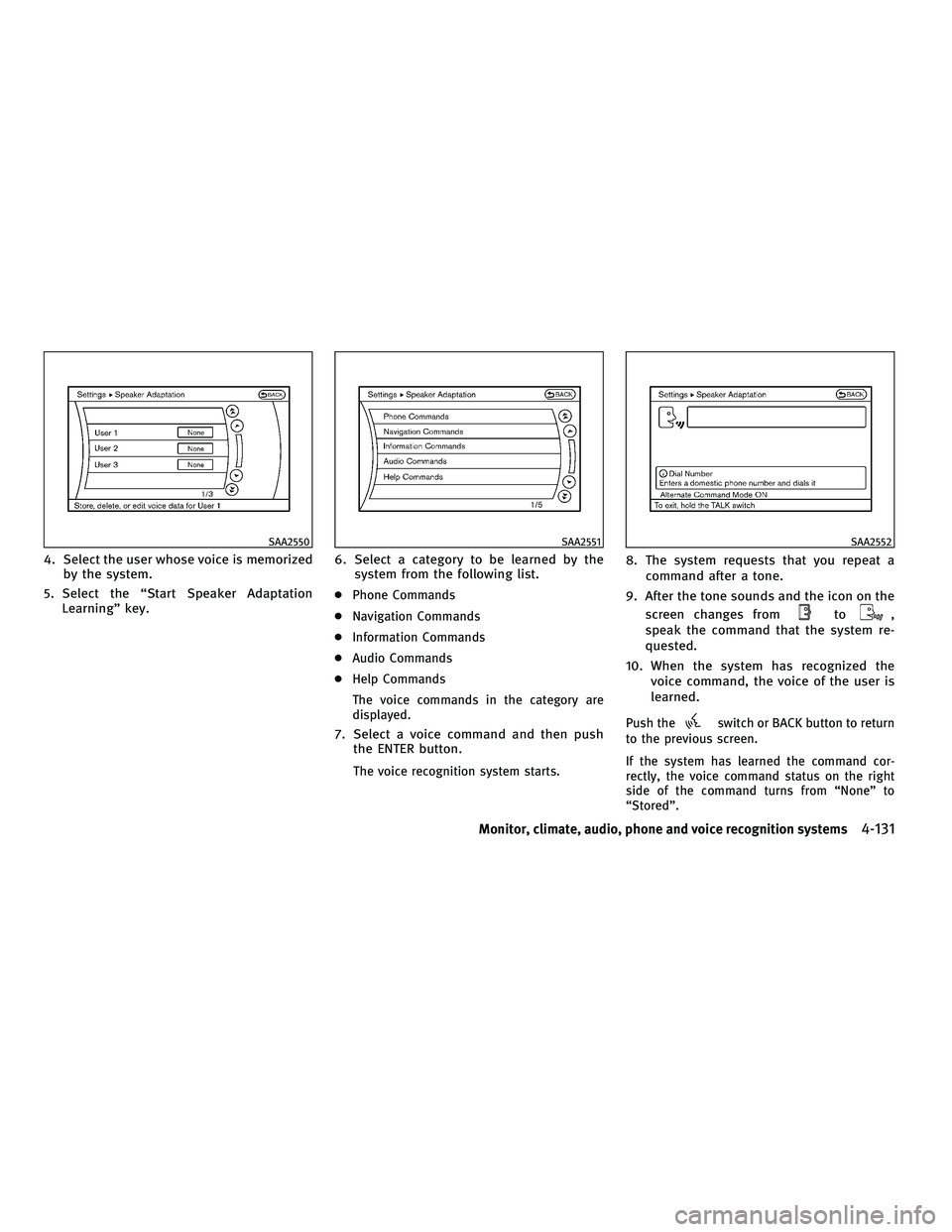

4. Select the user whose voice is memorizedby the system.
5. Select the “Start Speaker Adaptation Learning” key. 6. Select a category to be learned by the
system from the following list.
●Phone Commands
● Navigation Commands
● Information Commands
● Audio Commands
● Help Commands
The voice commands in the category are
displayed.
7. Select a voice command and then push the ENTER button.
The voice recognition system starts.
8. The system requests that you repeat a
command after a tone.
9. After the tone sounds and the icon on the screen changes from
to,
speak the command that the system re-
quested.
10. When the system has recognized the voice command, the voice of the user is
learned.
Push theswitch or BACK button to return
to the previous screen.
If the system has learned the command cor-
rectly, the voice command status on the right
side of the command turns from “None” to
“Stored”.
SAA2550SAA2551SAA2552
Monitor, climate, audio, phone and voice recognition systems4-131
—
—
07/15/10—tbrooks


Speaker Adaptation function settings :
Edit User Name
Edit the user name using the keypad displayed
on the screen.
Delete Voice Data
Resets the user’s voice that the voice recogni-
tion system has learned.
Continuous Learning
When this item is turned to ON, you can have
the system learn the voice commands in suc-
cession, without selecting commands one by
one.
Minimize voice feedback (for
Alternate Command Mode)
To minimize the voice feedback from the sys-
tem, perform the following steps.
1. Push the SETTING button on the instru-ment panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Minimize Voice Feedback” key.
5. The setting is turned to ON and the voice guidance will now be reduced when using
the Voice Recognition system.
SAA2553
4-132Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


TROUBLESHOOTING GUIDE
The system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in this guide for
the appropriate error.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved.
Symptom/error messageSolution
Displays “COMMAND NOT RECOGNIZED” or the
system fails to interpret the command correctly. 1. Ensure that the command format is valid, see “Command List” earlier in this section.
2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
4. If optional words of the command have been omitted, then the command should be tried with these
in place.
The system consistently selects the wrong voic-
etag in the phonebook. 1. Ensure that the voicetag requested matches what was originally stored. (See “BLUETOOTH
HANDS-
FREE PHONE SYSTEM (models with navigation system)” earlier in this section; page 4-86.)
2. Replace one of the voicetags being confused with a different voicetag.
Monitor, climate, audio, phone and voice recognition systems4-133
—
—
07/15/10—tbrooks


5 Starting and driving
Precautions when starting and driving.............. 5-2
Exhaust gas (carbon monoxide) .................. 5-2
Three-way catalyst ............................. 5-2
Tire Pressure Monitoring System (TPMS) ......... 5-3
Avoiding collision and rollover ................... 5-5
Off-road recovery ............................... 5-5
Rapid air pressure loss ......................... 5-6
Drinking alcohol/drugs and driving .............. 5-6
Intelligent All-Wheel Drive (AWD) driving
safety precautions .............................. 5-7
Push-button ignition switch ........................ 5-7
Operating range for engine start function ......... 5-8
Push-button ignition switch operation ............ 5-8
Push-button ignition switch positions ............ 5-9
Emergency engine shut off ...................... 5-9
Intelligent Key battery discharge ................5-10
Before starting the engine ........................5-10
Starting the engine ................................ 5-11
Driving the vehicle ................................ 5-12
Automatic transmission ......................... 5-12
Parking brake .................................... 5-16
INFINITI drive mode selector .......................5-16
Standard mode ................................ 5-17Sport mode
.................................... 5-17
Snow mode .................................... 5-17
Eco mode ...................................... 5-17
Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system
(if so equipped) .................................. 5-20
Lane Departure Warning (LDW) system ...........5-21
Lane Departure Prevention (LDP) system .........5-23
Lane camera unit maintenance .................5-27
Blind spot warning (BSW) system/blind spot
intervention™ (BSI) system (if so equipped) ........5-28
BSW system operation ......................... 5-29
BSI system operation .......................... 5-30
BSW/BSI driving situations .....................5-33
BSW/BSI malfunction .......................... 5-38
System maintenance .......................... 5-39
Cruise control .................................... 5-39
Precautions on cruise control ...................5-39
Cruise control operations ......................5-40
Intelligent

Cruise Control (ICC) system
(if so equipped) ................................... 5-41
Selecting the vehicle-to-vehicle distance
control mode ................................. 5-43
—
—
07/15/10—tbrooks


Vehicle-to-vehicle distance control mode........5-43
Precautions on vehicle-to-vehicle distance
control mode ................................. 5-43
Vehicle-to-vehicle distance control mode
operation ..................................... 5-45
Conventional (FIXED SPEED) cruise control
mode ........................................ 5-58
Preview function (for Intelligent Cruise
Control system equipped models) ..............5-62
Distance Control Assist (DCA) system
(if so equipped) .................................. 5-62
Precautions on distance control assist system.....5-62
Distance control assist operation ...............5-64
Forward Collision Warning (FCW) system
(if so equipped) .................................. 5-73
Precautions on FCW system ....................5-74
Intelligent brake assist (IBA) system
(if so equipped) .................................. 5-77
Precautions on IBA system .....................5-77
Break-in schedule ................................ 5-80
Increasing fuel economy .......................... 5-81
Intelligent All-Wheel Drive (AWD) (if so equipped) . . . 5-81
Parking/parking on hills .......................... 5-83
Power steering ................................... 5-84Brake system
.................................... 5-84
Braking precautions ........................... 5-84
Parking brake break-in ......................... 5-84
Brake assist ..................................... 5-85
Brake assist .................................. 5-85
Preview function (Intelligent Cruise Control
system equipped models) ......................5-85
Anti-lock Braking System (ABS) .................5-87
Vehicle Dynamic Control (VDC) system .............5-89
Active trace control (if so equipped) ............5-89
Rise-up and build-up .......................... 5-90
Brake force distribution ........................ 5-90
Hill start assist system ............................ 5-91
4 wheel active steer (4WAS) system
(if so equipped) ................................... 5-91
Cold weather driving ............................. 5-92
Freeing a frozen door lock .....................5-92
Antifreeze .................................... 5-92
Battery ....................................... 5-92
Draining of coolant water ......................5-92
Tire equipment ................................ 5-92
Special winter equipment ......................5-93
Driving on snow or ice ......................... 5-93
Engine block heater (if so equipped) ............5-93
Active noise control .............................. 5-94
—
—
07/15/10—tbrooks


WARNING
●Do not leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. They could accidentally injure them-
selves or others through inadvertent opera-
tion of the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause severe
or possibly fatal injuries to people or
animals.
● Closely supervise children when they are
around cars to prevent them from playing
and becoming locked in the trunk where they
could be seriously injured. Keep the car
locked, with the rear seatback and trunk lid
securely latched when not in use, and pre-
vent children’s access to car keys.
EXHAUST GAS (carbon monoxide)
WARNING
● Do not breathe exhaust gases; they contain
colorless and odorless carbon monoxide.
Carbon monoxide is dangerous. It can cause
unconsciousness or death. ●
If you suspect that exhaust fumes are enter-
ing the vehicle, drive with all windows fully
open, and have the vehicle inspected
immediately.
● Do not run the engine in closed spaces such
as a garage.
● Do not park the vehicle with the engine run-
ning for any extended length of time.
● Keep the trunk lid closed while driving, oth-
erwise exhaust gases could be drawn into
the passenger compartment. If you must
drive with the trunk lid open, follow these
precautions:
1) Open all the windows.
2) Set the
air recirculation to off and
the fan control to high to circulate the air.
● If electrical wiring or other cable connec-
tions must pass to a trailer through the seal
on the trunk lid or the body, follow the manu-
facturer’s recommendation to prevent car-
bon monoxide entry into the vehicle.
● The exhaust system and body should be in-
spected by a qualified mechanic whenever:
– The vehicle is raised for service.
– You suspect that exhaust fumes are en- tering into the passenger compartment. – You notice a change in the sound of the
exhaust system.
– You have had an accident involving dam- age to the exhaust system, underbody, or
rear of the vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.
WARNING
●The exhaust gas and the exhaust system are
very hot. Keep people, animals or flammable
materials away from the exhaust system
components.
● Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
PRECAUTIONS WHEN STARTING AND
DRIVING
5-2Starting and driving
—
—
07/15/10—tbrooks


CAUTION
●Do not use leaded gasoline. Deposits from
leaded gasoline seriously reduce the three-
way catalyst’s ability to help reduce exhaust
pollutants.
● Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems can cause overrich fuel flow into the
three-way catalyst, causing it to overheat.
Do not keep driving if the engine misfires, or
if noticeable loss of performance or other
unusual operating conditions are detected.
Have the vehicle inspected promptly by an
INFINITI retailer.
● Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
● Do not race the engine while warming it up.
● Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale. Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Additional information
●
The TPMS does not monitor the tire pressure
of the spare tire.
● The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).
Starting and driving5-3
—
—
07/15/10—tbrooks


●The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
●
The CHECK TIRE PRESSURE warning (if so
equipped) appears in the dot matrix liquid
crystal display when the low tire pressure
warning light is illuminated and low tire pres-
sure is detected. The CHECK TIRE PRESSURE
warning (if so equipped) turns off when the
low tire pressure warning light turns off.
● The CHECK TIRE PRESSURE warning does not
appear if the tire pressure warning light
illuminates to indicate a TPMS malfunction.
● Tire pressure rises and falls depending on
the heat caused by the vehicle’s operation
and the outside temperature. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to illumi-
nate. If the warning light illuminates in low
ambient temperature, check the tire pres-
sure for all four tires. ●
You can also check the pressure of all tires
(except the spare tire) on the display screen.
The order of the tire pressure figures dis-
played on the screen does not correspond
with the actual order of the tire position. See
“TIRE PRESSURE information” in the “4.
Monitor, climate, audio, phone and voice
recognition systems” section.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “TIRE PRESSURE MONI-
TORING SYSTEM (TPMS)” in the “6. In case of
emergency” section.
WARNING
● If the low tire pressure warning light illumi-
nates or LOW PRESSURE information is dis-
played on the monitor screen while driving,
avoid sudden steering maneuvers or abrupt
braking, reduce vehicle speed, pull off the
road to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage the
tires and increase the likelihood of tire fail-
ure. Serious vehicle damage could occur and
may lead to an accident and could result in
serious personal injury. Check the tire pres-
sure for all four tires. Adjust the tire pressure
to the recommended COLD tire pressure
shown on the Tire and Loading Information label to turn the low tire pressure warning
light OFF. If the light still illuminates while
driving after adjusting the tire pressure, a
tire may be flat. If you have a flat tire, replace
it with a spare tire as soon as possible. (See
“FLAT TIRE” in the “6. In case of emergency”
section for changing a flat tire.)
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CAUTION
● The TPMS may not function properly when
the wheels are equipped with tire chains or
the wheels are buried in snow.
● Do not place metalized film or any metal
parts (antenna, etc.) on the windows. This
may cause poor reception of the signals from
the tire pressure sensors, and the TPMS will
not function properly.
5-4Starting and driving
—
—
07/15/10—tbrooks


Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
– Facilities or electric devices using similarradio frequencies are near the vehicle.
– If a transmitter set to similar frequencies is being used in or near the vehicle.
–
If a computer (or similar equipment) or a DC/AC
converter is being used in or near the vehicle.
FCC Notice:
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC
Rules and RSS-210 of Industry Canada.
Operation is subject to the following two condi-
tions: (1) This device may not cause harmful inter-
ference, and (2) this device must accept any inter-
ference received, including interference that may
cause undesired operation of the device.
AVOIDING COLLISION AND ROLLOVER
WARNING
Failure to operate this vehicle in a safe and
prudent manner may result in loss of control or
an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle. As
with any vehicle, a loss of control could result in
a collision with other vehicles or objects, or
cause the vehicle to rollover, particularly if the
loss of control causes the vehicle to slide side-
ways. Be attentive at all times, and avoid
driving when tired. Never drive when under the
influence of alcohol or drugs (including pre-
scription or over-the-counter drugs which may
cause drowsiness). Always wear your seat belt
as outlined in the “SEAT BELTS” in the “1. Safety
— Seats, seat belts and supplemental restraint
system” section of this manual, and also in-
struct your passengers to do so.
Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is signifi- cantly more likely to be injured or killed than a
person properly wearing a seat belt.OFF-ROAD RECOVERY
While driving, the right side or left side wheels
may unintentionally leave the road surface. If
this occurs, maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
1. Remain calm and do not overreact.
2. Do not apply the brakes.
3. Maintain a firm grip on the steering wheel
with both hands and try to hold a straight
course.
4. When appropriate, slowly release the ac- celerator pedal to gradually slow the ve-
hicle.
5. If there is nothing in the way, steer the vehicle to follow the road while the ve-
hicle speed is reduced. Do not attempt to
drive the vehicle back onto the road sur-
face until vehicle speed is reduced.
6. When it is safe to do so, gradually turn the steering wheel until both tires return
to the road surface. When all tires are on
the road surface, steer the vehicle to stay
in the appropriate driving lane.
Starting and driving5-5
—
—
07/15/10—tbrooks
