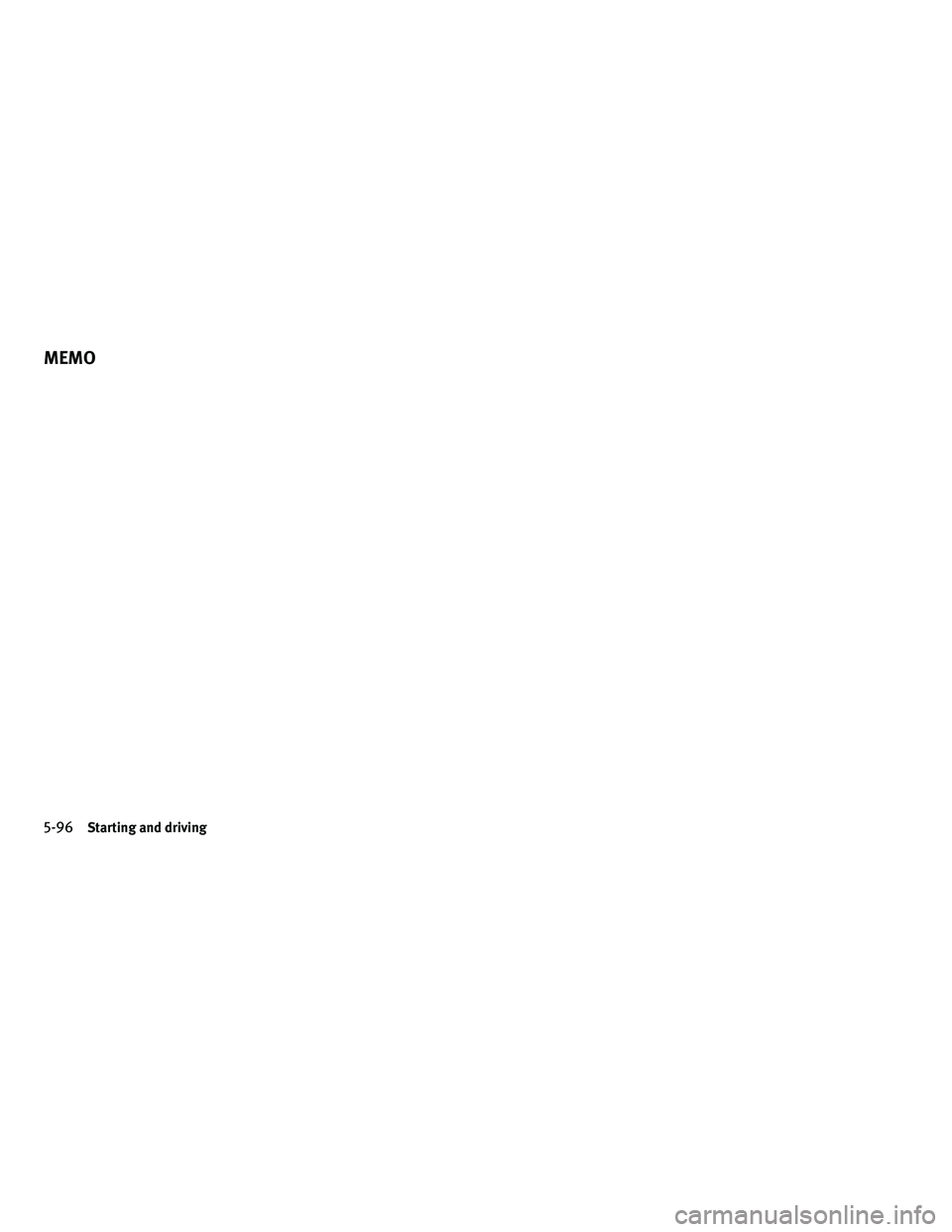

MEMO

6 In case of emergency
Roadside assistance program...................... 6-2
Emergency engine shut off ......................... 6-2
Flat tire ........................................... 6-2
Tire Pressure Monitoring System (TPMS) ......... 6-2
Changing a flat tire ............................. 6-3
Jump starting ..................................... 6-8 Push starting
.................................... 6-10
If your vehicle overheats ........................... 6-11
Towing your vehicle .............................. 6-12
Towing recommended by INFINITI ...............6-13
Vehicle recovery (freeing a stuck vehicle) ........6-15
—
—
07/15/10—tbrooks


In the event of a roadside emergency, Roadside
Assistance Service is available to you. Please
refer to your Warranty Information Booklet
(U.S.) or Warranty & Roadside Assistance Infor-
mation Booklet (Canada) for details.To shut off the engine in an emergency situa-
tion, while driving perform the following proce-
dure:
●
Rapidly push the push-button ignition
switch 3 consecutive times, or
● Push and hold the push-button ignition
switch for more than 2 seconds.TIRE PRESSURE MONITORING SYSTEM
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning (if so equipped)
appears in the dot matrix liquid crystal display,
one or more of your tires is significantly under-
inflated. If the vehicle is being driven with low
tire pressure, the TPMS will activate and warn
you of it by the low tire pressure warning light.
This system will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h). For
more details, see “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section and “TIRE PRES-
SURE MONITORING SYSTEM (TPMS)” in the “5.
Starting and driving” section.
ROADSIDE ASSISTANCE PROGRAM EMERGENCY ENGINE SHUT OFFFLAT TIRE
6-2In case of emergency
—
—
07/15/10—tbrooks


WARNING
●If the low tire pressure warning light illumi-
nates or LOW PRESSURE information is dis-
played on the monitor screen while driving,
avoid sudden steering maneuvers or abrupt
braking, reduce vehicle speed, pull off the
road to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage the
tires and increase the likelihood of tire fail-
ure. Serious vehicle damage could occur and
may lead to an accident and could result in
serious personal injury. Check the tire pres-
sure for all four tires. Adjust the tire pressure
to the recommended COLD tire pressure
shown on the Tire and Loading Information
label to turn the low tire pressure warning
light OFF. If the light still illuminates while
driving after adjusting the tire pressure, a
tire may be flat. If you have a flat tire, replace
it with a spare tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting. ●
Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions
below.
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the selector lever to
the P (Park) position.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance
personnel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from
traffic and clear of the vehicle.
WARNING
●Make sure the parking brake is securely ap-
plied and the automatic transmission into P
(Park).
● Never change tires when the vehicle is on a
slope, ice or slippery areas. This is
hazardous.
● Never change tires if oncoming traffic is
close to your vehicle. Wait for professional
road assistance.
In case of emergency6-3
—
—
01/12/10—pattie


Blocking wheels
Place suitable blocks1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it
is jacked up.
WARNING
Be sure to block the wheel as the vehicle may
move and result in personal injury.
Getting the spare tire and tools
Raise the trunk floor cover1using the tabA.
Remove jacking tools located inside the trunk
as illustrated.
The spare tire is located under the jacking tools.
Remove the cap
2holding the spare tire.
MCE0001A
SCE0881
SCE0882
6-4In case of emergency
—
—
01/12/10—pattie


Jacking up the vehicle and removing
the damaged tire
WARNING
●Never get under the vehicle while it is sup-
ported only by the jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Use only the jack provided with your vehicle
to lift the vehicle. Do not use the jack pro-
vided with your vehicle on other vehicles.
The jack is designed for lifting only your ve-
hicle during a tire change.
● Use the correct jack-up points. Never use any
other part of the vehicle for jack support.
● Never jack up the vehicle more than
necessary.
● Never use blocks on or under the jack.
● Do not start or run the engine while vehicle is
on the jack, as it may cause the vehicle to
move. This is especially true for vehicles
with limited slip differentials.
● Do not allow passengers to stay in the ve-
hicle while it is on the jack. Carefully read the caution label attached to the
jack body and the following instructions.
1. Place the jack directly under the jack-up
point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head be-
tween the notches as shown.
The jack should be used on level firm ground.
Jack-up point
CE1089-A
In case of emergency6-5
—
—
01/12/10—pattie


2. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the ground.
3. Carefully raise the vehicle until the tire clears the ground. To lift the vehicle,
securely hold the jack lever and rod with
both hands as shown above. Remove the
wheel nuts, and then remove the tire.Installing the spare tire
The T-type spare tire is designed for emergency
use. (See specific instructions under the head-
ing “WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section.)
1. Clean any mud or dirt from the surface
between the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
Models equipped with different sized tires in
the front and rear:
When replacing a front tire, make sure that
the hole in the spare tire wheel is aligned
with the pin on the brake rotor.
SCE0504SCE0661
6-6In case of emergency
—
—
01/12/10—pattie


3. With the wheel nut wrench, tighten wheelnuts alternately and evenly in the se-
quence as illustrated (
1,2,3,4,5)
until they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts se-
curely in the sequence as illustrated.
Lower the vehicle completely.
WARNING
●Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become
loose or come off. This could cause an
accident.
● Do not use oil or grease on the wheel studs or
nuts. This could cause the nuts to become
loose.
● Retighten the wheel nuts when the vehicle
has been driven for 600 miles (1,000 km)
(also in cases of a flat tire, etc.).
● As soon as possible, tighten the wheel nuts
to the specified torque with a torque wrench. Wheel nut tightening torque:
80 ft-lb (108 N·m)
The wheel nuts must be kept tightened to speci-
fication at all times. It is recommended that
wheel nuts be tightened to specifications at
each lubrication interval.
● Adjust tire pressure to the COLD pressure.
COLD pressure:
After the vehicle has been parked for three hours
or more or driven less than 1 mile (1.6 km).
COLD tire pressures are shown on the Tire and
Loading Information label affixed to the driver
side center pillar.
5. Securely store the flat tire and jacking equipment in the vehicle.
6. Place the spare tire cover and the trunk floor carpeting over the damaged tire.
7. Close the trunk.
WARNING
● Always make sure that the spare tire and
jacking equipment are properly secured af-
ter use. Such items can become dangerous
projectiles in an accident or sudden stop.
SCE0883
In case of emergency6-7
—
—
01/12/10—pattie


●The T-type spare tire and small size spare
tire are designed for emergency use. See
specific instructions under the heading
“WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada). To start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING
●
If done incorrectly, jump starting can lead to
a battery explosion, resulting in severe in-
jury or death. It could also damage your
vehicle.
● Explosive hydrogen gas is always present in
the vicinity of the battery. Keep all sparks
and flames away from the battery.
● Do not allow battery fluid to come into con-
tact with eyes, skin, clothing or painted sur-
faces. Battery fluid is a corrosive sulphuric
acid solution which can cause severe burns.
If the fluid should come into contact with
anything, immediately flush the contacted
area with water.
● Keep the battery out of the reach of children.
● The booster battery must be rated at 12
volts. Use of an improperly rated battery can
damage your vehicle. ●
Whenever working on or near a battery, al-
ways wear suitable eye protectors (for ex-
ample, goggles or industrial safety spec-
tacles) and remove rings, metal bands, or
any other jewelry. Do not lean over the bat-
tery when jump starting.
● Do not attempt to jump start a frozen battery.
It could explode and cause serious injury.
● Your vehicle has an automatic engine cool-
ing fan. It could come on at any time. Keep
hands and other objects away from it.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada).
JUMP STARTING
6-8In case of emergency
—
—
01/13/10—pattie


WARNING
Always follow the instructions below. Failure to
do so could result in damage to the charging
system and cause personal injury.
1. If the booster battery is in another vehicle
A, position the two vehicles (AandB)
to bring their batteries into close proxim-
ity to each other.
Do not allow the two vehicles to touch.
2. Apply parking brake. Move the selector lever to the P (Park) position. Switch off
all unnecessary electrical systems (light,
heater, air conditioner, etc.).
3. Remove vent caps on the battery (if so equipped). Cover the battery with a firmly
wrung out moist cloth
Cto reduce explo-
sion hazard.
4. Connect jumper cables in the sequence as illustrated (
1→2→3→4).
If the battery is disconnected or discharged,
the steering wheel will lock and cannot be
turned. Supply power using jumper cables
before pushing the ignition switch and dis-
engaging the steering lock.
VK56VD engine
SCE0886
VQ37VHR engine
SCE0884
In case of emergency6-9
—
—
01/13/10—pattie
