INFINITI M 2011 Owner's Manual

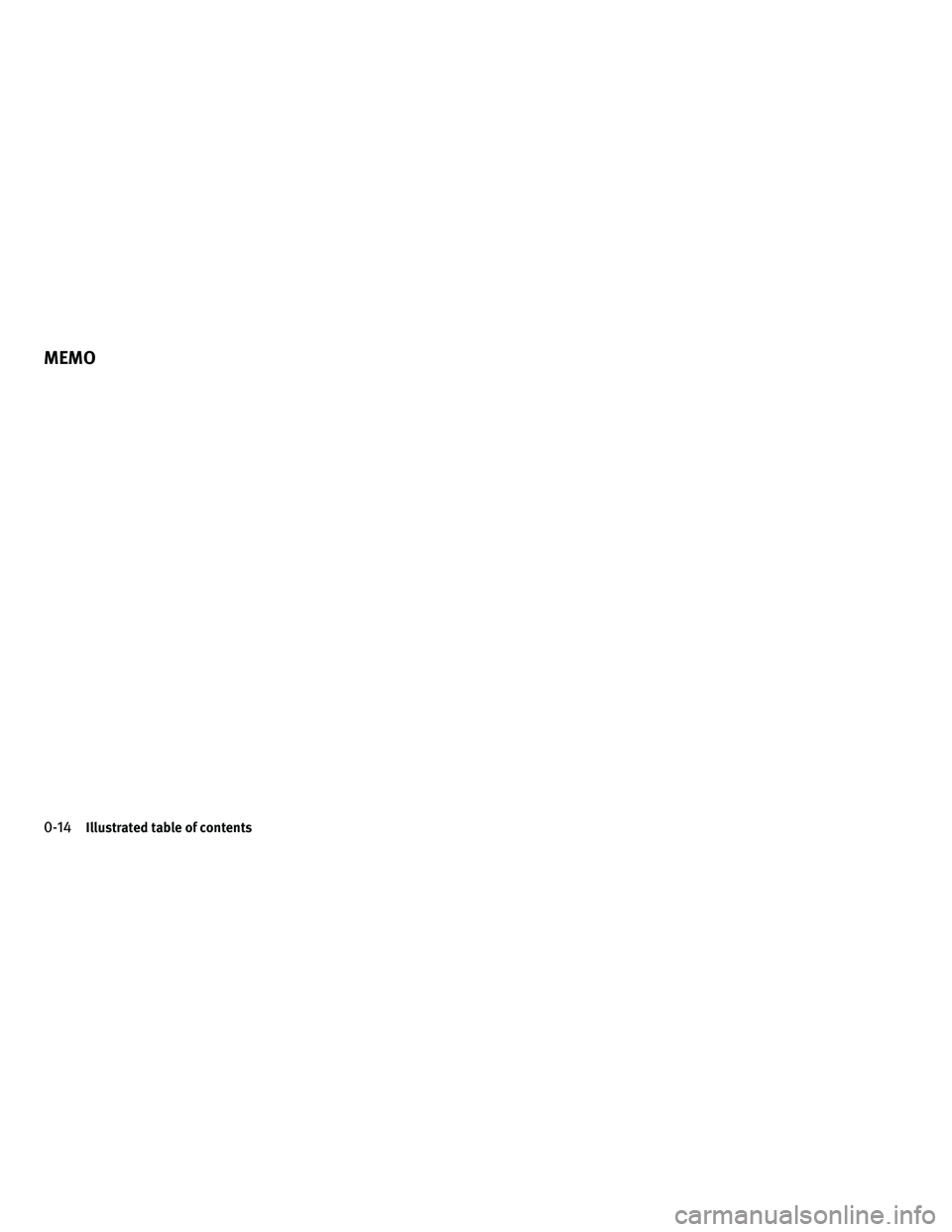

0-14Illustrated table of contents
MEMO

1 Safety — Seats, seat belts and supplemental
restraint system
Seats.............................................1-2
Front seats .....................................1-3
Head restraints .................................1-4
Adjustable headrests ............................1-7
Armrest ....................................... 1-10
Seat belts ........................................ 1-11
Precautions on seat belt usage ..................1-11
Pregnant women ............................... 1-13
Injured persons ................................ 1-13
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ....................1-13
Three-point type seat belt .......................1-14
Seat belt extenders ............................. 1-16
Seat belt maintenance .......................... 1-17
Child safety ....................................... 1-17
Infants ........................................ 1-18
Small children ................................. 1-18
Larger children ................................. 1-18
Child restraints ................................... 1-19
Precautions on child restraints ..................1-19
Lower Anchors and Tethers for CHildren
System (LATCH) ................................ 1-21Rear-facing Child restraint installation
using LATCH
.................................. 1-23
Rear-facing child restraint installation using
the seat belts .................................. 1-25
Forward-facing Child restraint installation
using LATCH ................................... 1-27
Forward-facing child restraint installation
using the seat belts ........................... 1-29
Installing top tether strap ......................1-32
Booster seats ................................. 1-33
Supplemental restraint system ....................1-36
Precautions on supplemental restraint
system ....................................... 1-36
INFINITI Advanced Air Bag System (front
seats) ......................................... 1-41
Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact supplemental air bag
systems ...................................... 1-46
Seat belts with pretensioners (front seats) ......1-47
Supplemental air bag warning labels ...........1-48
Supplemental air bag warning light .............1-48
Repair
and replacement procedure ..............1-49
—
—
07/15/10—tbrooks

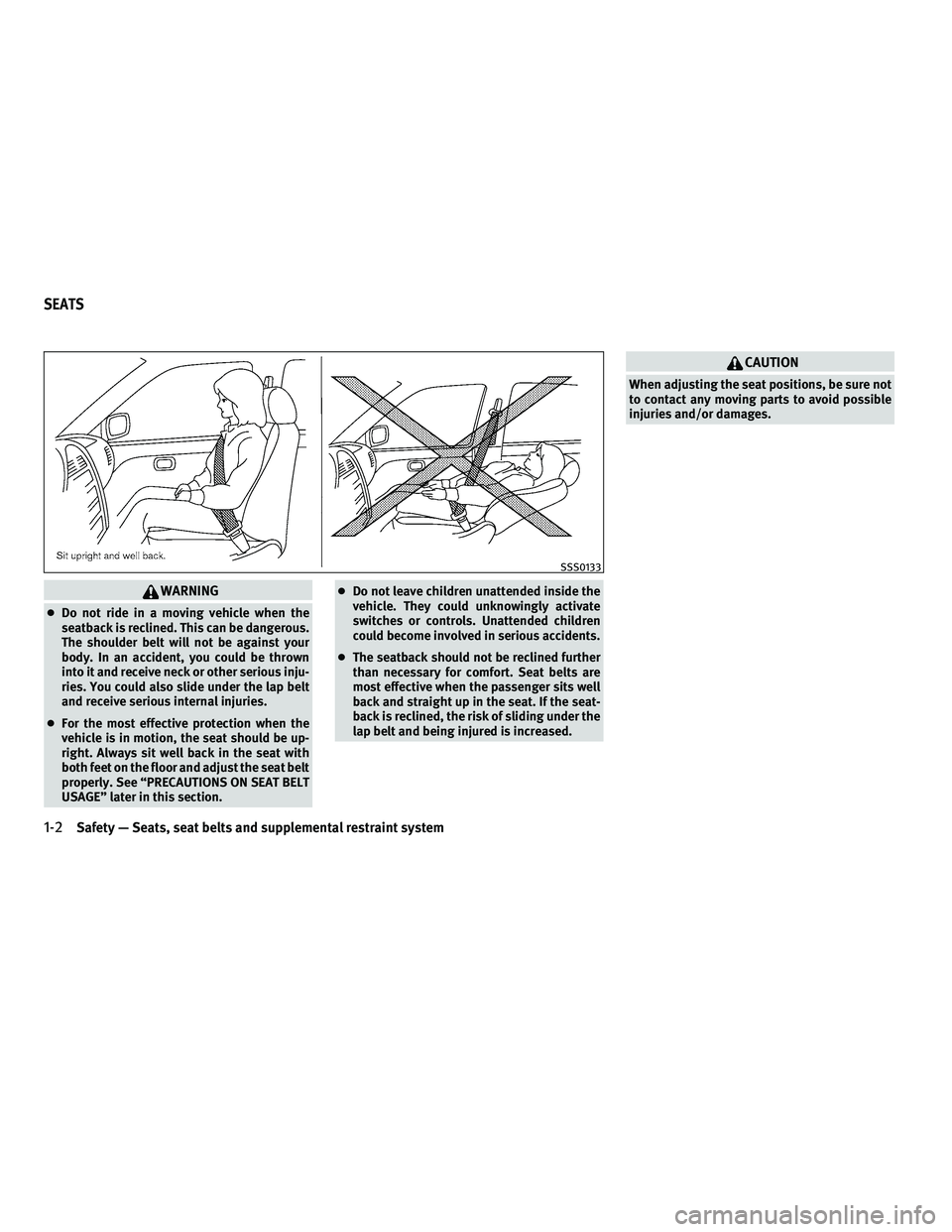

WARNING
●Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
● For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section. ●
Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
● The seatback should not be reclined further
than necessary for comfort. Seat belts are
most effective when the passenger sits well
back and straight up in the seat. If the seat-
back is reclined, the risk of sliding under the
lap belt and being injured is increased.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damages.
SSS0133
SEATS
1-2Safety — Seats, seat belts and supplemental restraint system
—
—
01/13/10—tbrooks


FRONT SEATS
Front power seat adjustment
Operating tips :
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function.
Forward and backward :
Moving the switch
1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining :
Move the recline switch
2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback can be reclined to allow occupants to rest when
the vehicle is parked.
SSS0834
Safety — Seats, seat belts and supplemental restraint system1-3
—
—
01/11/10—pattie

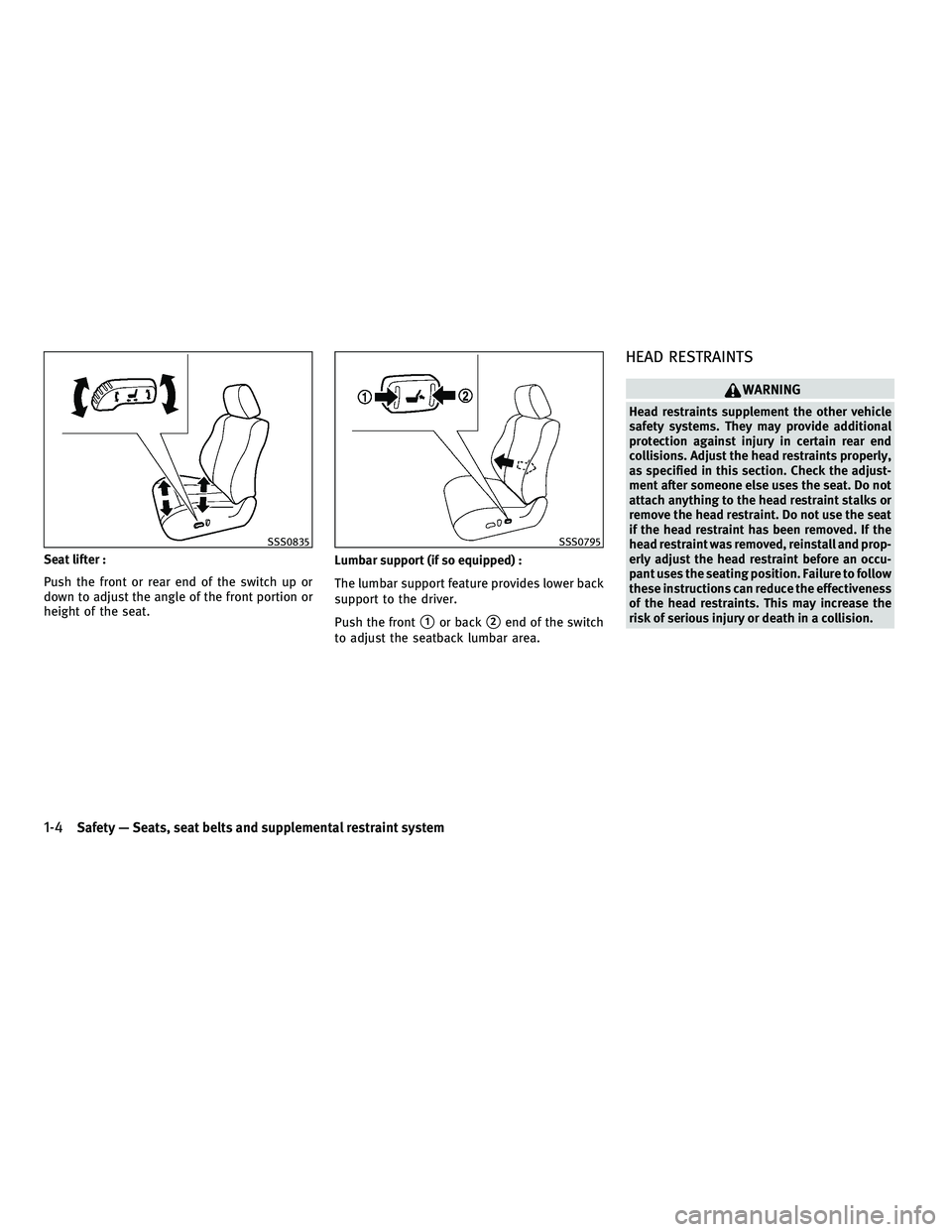

Seat lifter :
Push the front or rear end of the switch up or
down to adjust the angle of the front portion or
height of the seat.Lumbar support (if so equipped) :
The lumbar support feature provides lower back
support to the driver.
Push the front
1or back2end of the switch
to adjust the seatback lumbar area.
HEAD RESTRAINTS
WARNING
Head restraints supplement the other vehicle
safety systems. They may provide additional
protection against injury in certain rear end
collisions. Adjust the head restraints properly,
as specified in this section. Check the adjust-
ment after someone else uses the seat. Do not
attach anything to the head restraint stalks or
remove the head restraint. Do not use the seat
if the head restraint has been removed. If the
head restraint was removed, reinstall and prop-
erly adjust the head restraint before an occu-
pant uses the seating position. Failure to follow
these instructions can reduce the effectiveness
of the head restraints. This may increase the
risk of serious injury or death in a collision.
SSS0835SSS0795
1-4Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie

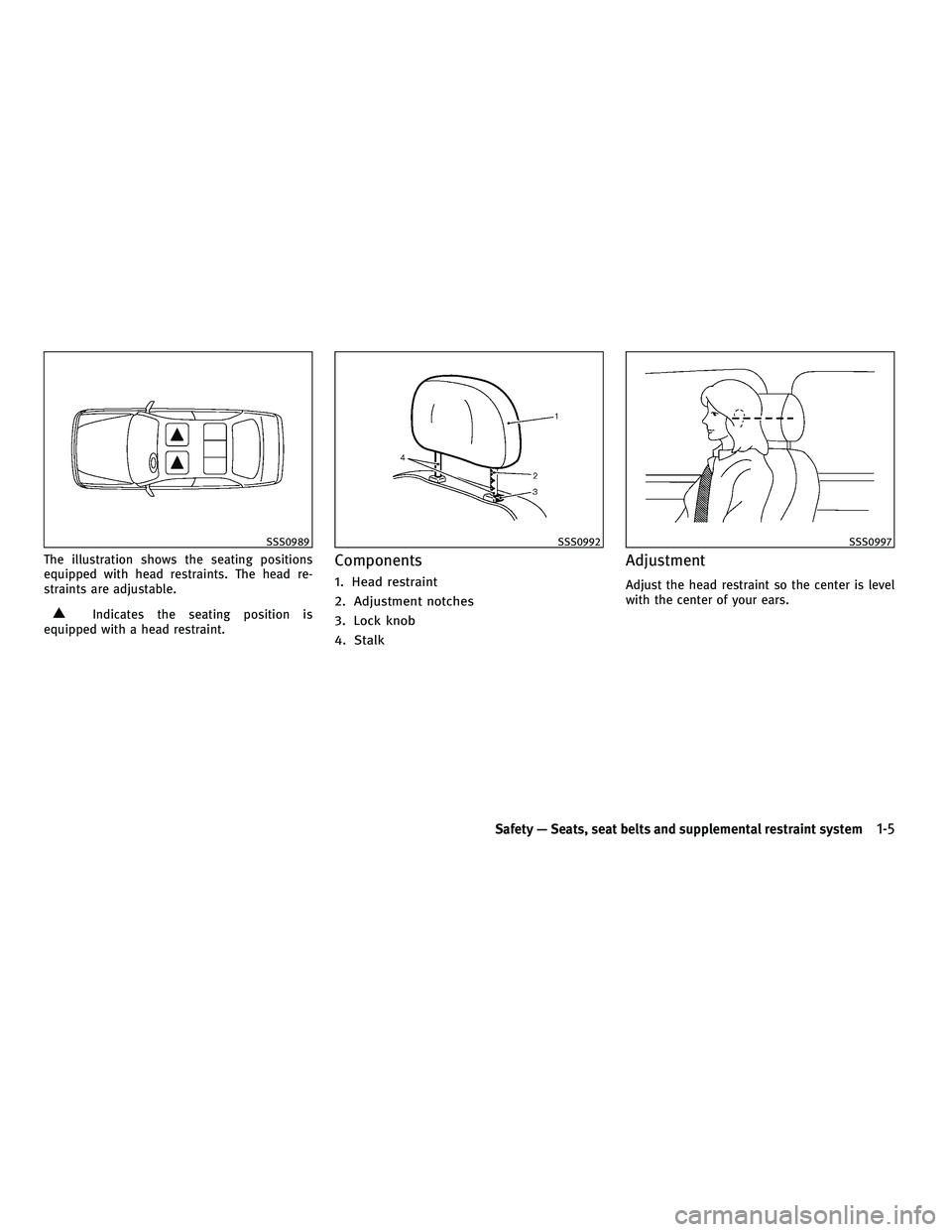

The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is
equipped with a head restraint.
Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalk
Adjustment
Adjust the head restraint so the center is level
with the center of your ears.
SSS0989SSS0992SSS0997
Safety — Seats, seat belts and supplemental restraint system1-5
—
—
01/11/10—pattie

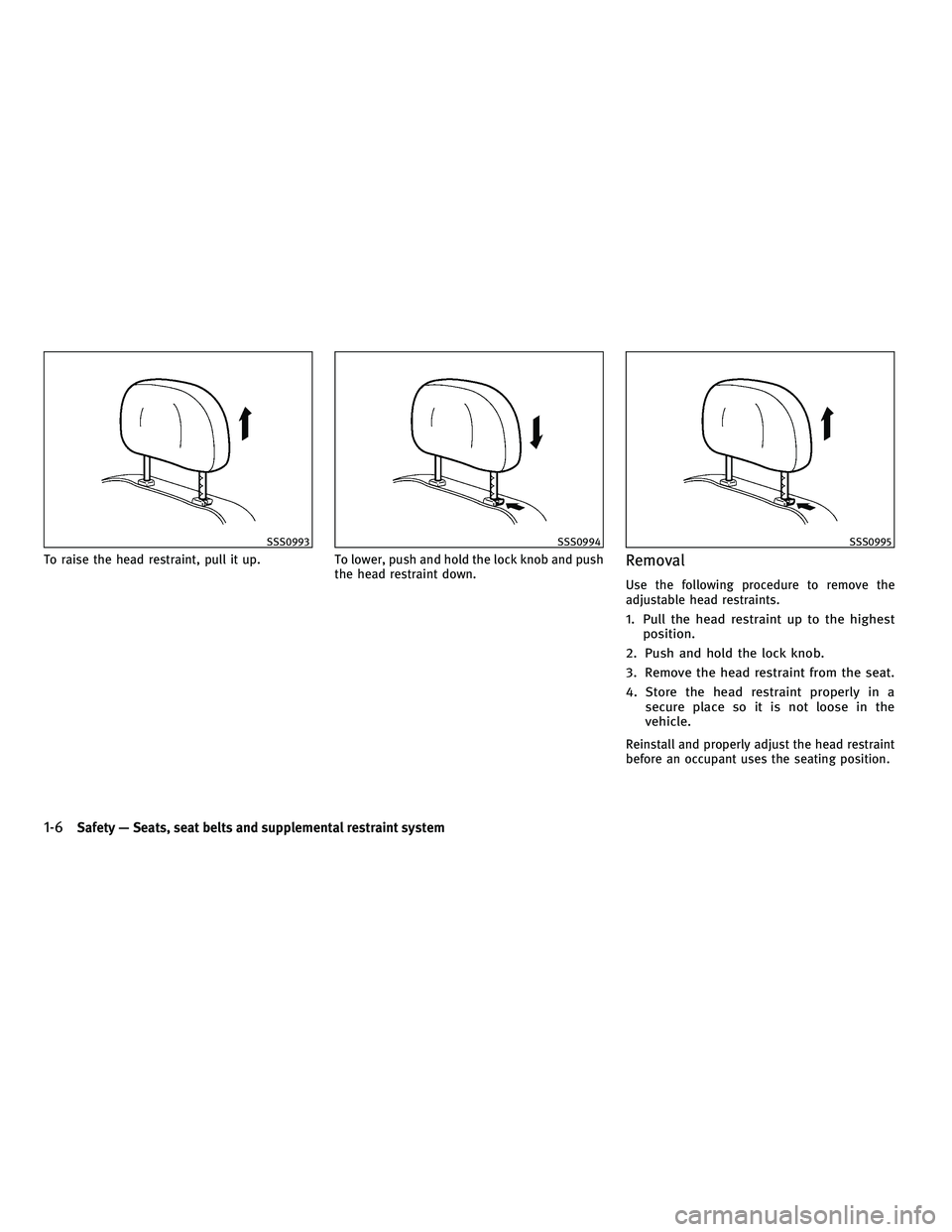

To raise the head restraint, pull it up.To lower, push and hold the lock knob and push
the head restraint down.Removal
Use the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the
vehicle.
Reinstall and properly adjust the head restraint
before an occupant uses the seating position.
SSS0993SSS0994SSS0995
1-6Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie


Install
1. Align the head restraint stalks with theholes in the seat. Make sure that the head
restraint is facing the correct direction.
The stalk with the adjustment notches
1
must be installed in the hole with the lock
knob
2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
Front-seat Active Head Restraints
The Active Head Restraint moves forward utiliz-
ing the force that the seatback receives from
the occupant in a rear-end collision. The move-
ment of the head restraint helps support the
occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is
said that whiplash-type injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions. Adjust the Active Head Restraints properly as
described earlier in this section.
ADJUSTABLE HEADRESTS
WARNING
The adjustable headrests supplement the
other vehicle safety systems. They may provide
additional protection against injury in certain
rear end collisions. Adjust the headrest prop-
erly, as specified in this section. Check the ad-
justment after someone else uses the seat. Do
not attach anything to the headrest stalks or
remove the headrest. Do not use the seat if the
headrest has been removed. If the headrest
was removed, install and properly adjust the
headrest before an occupant uses the seating
position. Failure to follow these instructions
can reduce the effectiveness of the headrests.
This may increase the risk of serious injury or
death in a collision.
SSS0996SSS0508
Safety — Seats, seat belts and supplemental restraint system1-7
—
—
01/11/10—pattie


The illustration shows the seating positions
equipped with adjustable headrests.
Indicates the seating position is
equipped with an adjustable headrest.
Components
1. Adjustable headrest
2. Adjustment notches
3. Lock knob
4. Stalks
Adjustment
Adjust the headrest so the center is level with
the center of your ears.
SSS1015SSS0992SSS0997
1-8Safety — Seats, seat belts and supplemental restraint system
—
—
01/11/10—pattie


To raise the headrest, pull it up.To lower, push and hold the lock knob and push
the headrest down.Removal
Use the following procedure to remove the
adjustable headrests.
1. Pull the headrest up to the highest posi- tion.
2. Push and hold the lock knob.
3. Remove the headrest from the seat.
4. Store the headrest properly in a secure place so it is not loose in the vehicle.
5. Install and properly adjust the headrest before an occupant uses the seating po-
sition.
SSS0993SSS0994SSS0995
Safety — Seats, seat belts and supplemental restraint system1-9
—
—
01/11/10—pattie
