6-4In case of emergency
MCE0001A
Blocking wheels
Place suitable blocks*1at both the front
and back of the wheel diagonally opposite
the flat tire to prevent the vehicle from
moving when it is jacked up.
WARNING
Be sure to block the wheel as the vehicle
may move and result in personal injury.
SCE0881
SCE0882
Getting the spare tire and tools
Raise the trunk floor cover*1using the
tab
*A.
Remove jacking tools located inside the
trunk as illustrated.
The spare tire is located under the trunk
room. Remove the cap
*2holding the
spare tire.
6-4In case of emergency
MCE0001A
Blocking wheels
Place suitable blocks*1at both the front
and back of the wheel diagonally opposite
the flat tire to prevent the vehicle from
moving when it is jacked up.
WARNING
Be sure to block the wheel as the vehicle
may move and result in personal injury.
SCE0881
SCE0882
Getting the spare tire and tools
Raise the trunk floor cover*1using the
tab
*A.
Remove jacking tools located inside the
trunk as illustrated.
The spare tire is located under the trunk
room. Remove the cap
*2holding the
spare tire.

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 216 A
Jacking up the vehicle and remov-
ing the damaged tire
WARNING
.Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use only the jack provided with your
vehicle to lift the vehicle. Do not use the
jack provided with your vehicle on other
vehicles. The jack is designed for lifting
only your vehicle during a tire change.
. Use the correct jack-up points. Never use
any other part of the vehicle for jack
support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the jack.
. Do not start or run the hybrid system
while vehicle is on the jack, as it may
cause the vehicle to move. This is
especially true for vehicles with limited
slip differentials.
. Do not allow passengers to stay in the
vehicle while it is on the jack.
Carefully read the caution label attached to
the jack body and the following instruc-
tions.
CE1089-A
Jack-up point
1. Place the jack directly under the jack-up
point as illustrated so the top of the
jack contacts the vehicle at the jack-up
point. Align the jack head between the
two notches in the front or the rear as
shown. Also fit the groove of the jack
head between the notches as shown.
The jack should be used on level firm
ground.
In case of emergency6-5
Jacking up the vehicle and remov-
ing the damaged tire
WARNING
. Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use only the jack provided with your
vehicle to lift the vehicle. Do not use the
jack provided with your vehicle on other
vehicles. The jack is designed for lifting
only your vehicle during a tire change.
. Use the correct jack-up points. Never use
any other part of the vehicle for jack
support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the jack.
. Do not start or run the hybrid system
while vehicle is on the jack, as it may
cause the vehicle to move. This is
especially true for vehicles with limited
slip differentials.
. Do not allow passengers to stay in the
vehicle while it is on the jack.
Carefully read the caution label attached to
the jack body and the following instruc-
tions.
CE1089-A
Jack-up point
1. Place the jack directly under the jack-up
point as illustrated so the top of the
jack contacts the vehicle at the jack-up
point. Align the jack head between the
two notches in the front or the rear as
shown. Also fit the groove of the jack
head between the notches as shown.
The jack should be used on level firm
ground.
In case of emergency6-5

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 216 B
6-6In case of emergency
SCE0504
2. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.
3. Carefully raise the vehicle until the tire clears the ground. To lift the vehicle,
securely hold the jack lever and rod
with both hands as shown above.
Remove the wheel nuts, and then
remove the tire.
SCE0661
Installing the spare tire
The T-type spare tire is designed for
emergency use. (See specific instructions
under the heading “Wheels and tires”in
the “8. Maintenance and do-it-yourself ”
section.)
1. Clean any mud or dirt from the surface
between the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
Models equipped with different sized
tires in the front and rear:
When replacing a front tire, make sure
6-6In case of emergency
SCE0504
2. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.
3. Carefully raise the vehicle until the tire clears the ground. To lift the vehicle,
securely hold the jack lever and rod
with both hands as shown above.
Remove the wheel nuts, and then
remove the tire.
SCE0661
Installing the spare tire
The T-type spare tire is designed for
emergency use. (See specific instructions
under the heading “Wheels and tires”in
the “8. Maintenance and do-it-yourself ”
section.)
1. Clean any mud or dirt from the surface
between the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
Models equipped with different sized
tires in the front and rear:
When replacing a front tire, make sure

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 217 A
that the hole in the spare tire wheel is
aligned with the pin on the brake rotor.
3. With the wheel nut wrench, tighten wheel nuts alternately and evenly in the
sequence as illustrated (
*1,*2,*3,
*4,*5) until they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as
illustrated. Lower the vehicle comple-
tely.
WARNING
. Incorrect wheel nuts or improperly tigh-
tened wheel nuts can cause the wheel to
become loose or come off. This could
cause an accident.
. Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.
. Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).
.As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
Wheel nut tightening torque: 80 ft-lb (108 N·m)
The wheel nuts must be kept tigh-
tened to specification at all times. It
is recommended that wheel nuts be
tightened to specifications at each
lubrication interval.
.Adjust tire pressure to the COLDpressure.
COLD pressure:
After the vehicle has been parked
for three hours or more or driven
less than 1 mile (1.6 km).
COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver side center
pillar.
SCE0883
5. Securely store the flat tire and jacking
equipment in the vehicle.
In case of emergency6-7

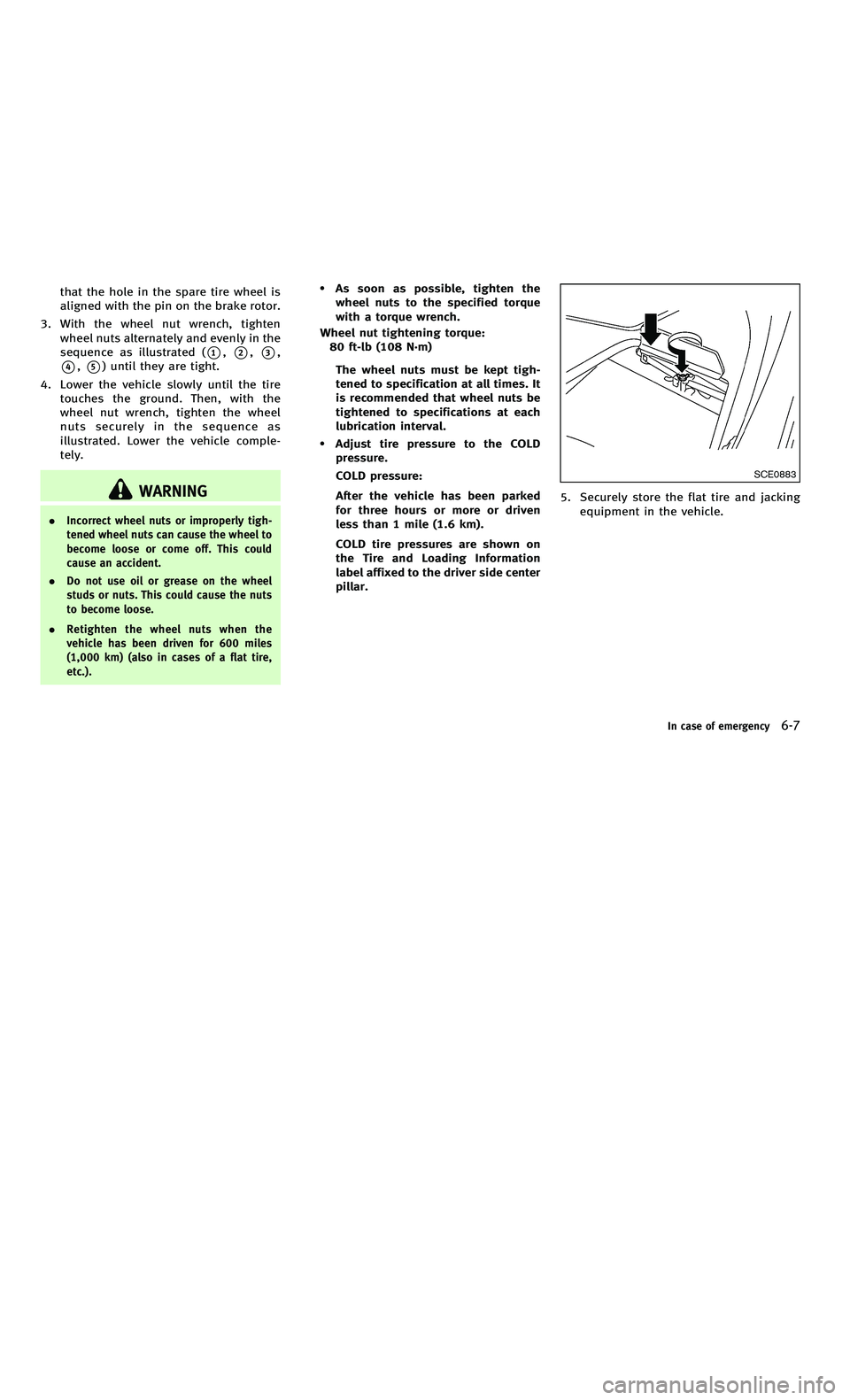

that the hole in the spare tire wheel is
aligned with the pin on the brake rotor.
3. With the wheel nut wrench, tighten wheel nuts alternately and evenly in the
sequence as illustrated (
*1,*2,*3,
*4,*5) until they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as
illustrated. Lower the vehicle comple-
tely.
WARNING
. Incorrect wheel nuts or improperly tigh-
tened wheel nuts can cause the wheel to
become loose or come off. This could
cause an accident.
. Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.
. Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).
.As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.
Wheel nut tightening torque: 80 ft-lb (108 N·m)
The wheel nuts must be kept tigh-
tened to specification at all times. It
is recommended that wheel nuts be
tightened to specifications at each
lubrication interval.
.Adjust tire pressure to the COLDpressure.
COLD pressure:
After the vehicle has been parked
for three hours or more or driven
less than 1 mile (1.6 km).
COLD tire pressures are shown on
the Tire and Loading Information
label affixed to the driver side center
pillar.
SCE0883
5. Securely store the flat tire and jacking
equipment in the vehicle.
In case of emergency6-7

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 217 B
6-8In case of emergency
JVE0012X
6. Put trunk floor cover*1against in the
trunk room and store the damaged tire.
7. Close the trunk.
WARNING
. Always make sure that the spare tire and
jacking equipment are properly secured
after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
. The T-type spare tire and small size
spare tire are designed for emergency
use. See specific instructions under the heading
“Wheels and tires ”in the “8.
Maintenance and do-it-yourself ”section.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada). Before attempting to jump start the vehi-
cle, make sure the fuel tank is not empty
and the correct starting procedure is
followed. See
“Starting the INFINITI Direct
Response HybridTMSystem ”in the “5.
Starting and driving ”section. Do not drive
the vehicle on battery power only if the fuel
tank is empty. The Lithium ion (Li-ion)
battery will become discharged and the
INFINITI Direct Response Hybrid
TMSystem
will turn off.
CONFIRM BATTERY IS DISCHARGED
If any of the following conditions occurs,
the 12-volt battery might discharged:
. The instrument cluster and/or head-
lights are not normal brightness.
. Audio accessories cannot be turned on.
. The hybrid system does not become
ready to drive mode.
. The ignition switch cannot be placed in
the ON position.
Check the following if you notice above
conditions.
1. Check that the 12-volt battery terminals are tight and clean. See “12-volt
battery ”in the “8. Maintenance and
do-it-yourself ”section. The battery is
located on the left hand side of the
IF THE VEHICLE DOES NOT START
6-8In case of emergency
JVE0012X
6. Put trunk floor cover*1against in the
trunk room and store the damaged tire.
7. Close the trunk.
WARNING
. Always make sure that the spare tire and
jacking equipment are properly secured
after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
. The T-type spare tire and small size
spare tire are designed for emergency
use. See specific instructions under the heading
“Wheels and tires ”in the “8.
Maintenance and do-it-yourself ”section.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada). Before attempting to jump start the vehi-
cle, make sure the fuel tank is not empty
and the correct starting procedure is
followed. See
“Starting the INFINITI Direct
Response HybridTMSystem ”in the “5.
Starting and driving ”section. Do not drive
the vehicle on battery power only if the fuel
tank is empty. The Lithium ion (Li-ion)
battery will become discharged and the
INFINITI Direct Response Hybrid
TMSystem
will turn off.
CONFIRM BATTERY IS DISCHARGED
If any of the following conditions occurs,
the 12-volt battery might discharged:
. The instrument cluster and/or head-
lights are not normal brightness.
. Audio accessories cannot be turned on.
. The hybrid system does not become
ready to drive mode.
. The ignition switch cannot be placed in
the ON position.
Check the following if you notice above
conditions.
1. Check that the 12-volt battery terminals are tight and clean. See “12-volt
battery ”in the “8. Maintenance and
do-it-yourself ”section. The battery is
located on the left hand side of the
IF THE VEHICLE DOES NOT START

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 218 A
trunk behind an access panel. If the 12-
volt battery terminals are loose, contact
your INFINITI retailer.
2. If the 12-volt battery terminals are tight and clean, try to jump start the vehicle.
See “Jump starting ”later in this sec-
tion.
If the hybrid system still does not start,
contact an INFINITI retailer. To start your INFINITI Direct Response
HybridTMSystem with a booster battery,
the instructions and precautions below
must be followed.
Jump starting provides power to the 12 volt
system to allow the electrical systems to
operate. The electrical systems must be
operating to allow the Lithium ion (Li-ion)
battery to be charged. Jump starting does
not charge the Li-ion battery.
WARNING
. If done incorrectly, jump starting can
lead to a 12-volt battery explosion,
resulting in severe injury or death. It
could also damage your vehicle.
. Explosive hydrogen gas is always pre-
sent in the vicinity of the 12-volt battery.
Make sure that the vent tube is
mounted.
. Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a
corrosive sulfuric acid solution which
can cause severe burns. If the fluid
should come into contact with anything,
immediately flush the contacted area
with water. .
Keep the 12-volt battery out of the reach
of children.
. The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle.
. Whenever working on or near a 12-volt
battery, always wear suitable eye pro-
tectors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other jewelry.
Do not lean over the 12-volt battery
when jump starting.
. Do not attempt to jump start a frozen
battery.Itcouldexplodeandcause
serious injury.
. Your vehicle has an automatic engine
cooling fan. It could come on at any time.
Keep hands and other objects away from
it.
CAUTION
Do not attempt to jump start a hybrid
vehicle as a booster vehicle.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
In case of emergency6-9
JUMP STARTING
trunk behind an access panel. If the 12-
volt battery terminals are loose, contact
your INFINITI retailer.
2. If the 12-volt battery terminals are tight and clean, try to jump start the vehicle.
See “Jump starting ”later in this sec-
tion.
If the hybrid system still does not start,
contact an INFINITI retailer. To start your INFINITI Direct Response
HybridTMSystem with a booster battery,
the instructions and precautions below
must be followed.
Jump starting provides power to the 12 volt
system to allow the electrical systems to
operate. The electrical systems must be
operating to allow the Lithium ion (Li-ion)
battery to be charged. Jump starting does
not charge the Li-ion battery.
WARNING
. If done incorrectly, jump starting can
lead to a 12-volt battery explosion,
resulting in severe injury or death. It
could also damage your vehicle.
. Explosive hydrogen gas is always pre-
sent in the vicinity of the 12-volt battery.
Make sure that the vent tube is
mounted.
. Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a
corrosive sulfuric acid solution which
can cause severe burns. If the fluid
should come into contact with anything,
immediately flush the contacted area
with water. .
Keep the 12-volt battery out of the reach
of children.
. The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle.
. Whenever working on or near a 12-volt
battery, always wear suitable eye pro-
tectors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other jewelry.
Do not lean over the 12-volt battery
when jump starting.
. Do not attempt to jump start a frozen
battery.Itcouldexplodeandcause
serious injury.
. Your vehicle has an automatic engine
cooling fan. It could come on at any time.
Keep hands and other objects away from
it.
CAUTION
Do not attempt to jump start a hybrid
vehicle as a booster vehicle.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
In case of emergency6-9
JUMP STARTING

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 218 B
6-10In case of emergency
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada).
JVE0010X
WARNING
Always follow the instructions below. Failure
to do so could result in damage to the
charging system and cause personal injury.
1. If the booster battery is in anothervehicle
*A, position the two vehicles
(
*Aand*B)tobringthe12-volt
battery and fuse box into close proxi-
mity to each other.
Do not allow the two vehicles to touch. 2. Apply parking brake. Move the selector
lever to the P (Park) position. Switch off
all unnecessary electrical systems
(light, heater, air conditioner, etc.).
3. Connect jumper cables in the sequence as illustrated (
*1?*2?*3?*4).
For models with a steering wheel lock
mechanism: If the 12-volt battery is
disconnected or discharged, the steer-
ing wheel will lock and cannot be
turned. Supply power using jumper
cables before pushing the ignition
switch and disengaging the steering
lock.
6-10In case of emergency
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada).
JVE0010X
WARNING
Always follow the instructions below. Failure
to do so could result in damage to the
charging system and cause personal injury.
1. If the booster battery is in another vehicle
*A, position the two vehicles
(
*Aand*B)tobringthe12-volt
battery and fuse box into close proxi-
mity to each other.
Do not allow the two vehicles to touch. 2. Apply parking brake. Move the selector
lever to the P (Park) position. Switch off
all unnecessary electrical systems
(light, heater, air conditioner, etc.).
3. Connect jumper cables in the sequence as illustrated (
*1?*2?*3?*4).
For models with a steering wheel lock
mechanism: If the 12-volt battery is
disconnected or discharged, the steer-
ing wheel will lock and cannot be
turned. Supply power using jumper
cables before pushing the ignition
switch and disengaging the steering
lock.

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 219 A
CAUTION
.Always connect positive (+) to positive
(+) and negative ( −) to body ground (as
illustrated) −not to the 12-volt battery.
. Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that clamps do not contact
any other metal.
4. Start the engine of the booster vehicle
*Aand let it run for a few minutes.
5. Start the hybrid system of the vehicle being jump started
*B.
CAUTION
If the hybrid system does not start right
away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
6. After starting your vehicle, carefully
disconnect the negative cable and then
the positive cable (
*4?*3?*2?
*1). 7. Put the battery cover and fuse cover on.
NOTE:
If it is not possible to turn the hybrid
system ON by following this procedure,
contact an INFINITI retailer immediately.
Do not attempt to start the engine by
pushing.
CAUTION
.
Automatic transmission models cannot
be push-started or tow-started. Attempt-
ing to do so may cause transmission
damage.
. Three way catalyst equipped models
should not be started by pushing since
the three way catalyst may be damaged.
. Never try to start the vehicle by towing
it; when the engine starts, the forward
surge could cause the vehicle to collide
with the tow vehicle.
. Hybrid models cannot be push-started or
tow-started. Attempting to do so may
cause electrical or transmission damage.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada).
In case of emergency6-11
PUSH STARTING
CAUTION
.Always connect positive (+) to positive
(+) and negative ( −) to body ground (as
illustrated) −not to the 12-volt battery.
. Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that clamps do not contact
any other metal.
4. Start the engine of the booster vehicle
*Aand let it run for a few minutes.
5. Start the hybrid system of the vehicle being jump started
*B.
CAUTION
If the hybrid system does not start right
away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
6. After starting your vehicle, carefully
disconnect the negative cable and then
the positive cable (
*4?*3?*2?
*1). 7. Put the battery cover and fuse cover on.
NOTE:
If it is not possible to turn the hybrid
system ON by following this procedure,
contact an INFINITI retailer immediately.
Do not attempt to start the engine by
pushing.
CAUTION
.
Automatic transmission models cannot
be push-started or tow-started. Attempt-
ing to do so may cause transmission
damage.
. Three way catalyst equipped models
should not be started by pushing since
the three way catalyst may be damaged.
. Never try to start the vehicle by towing
it; when the engine starts, the forward
surge could cause the vehicle to collide
with the tow vehicle.
. Hybrid models cannot be push-started or
tow-started. Attempting to do so may
cause electrical or transmission damage.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada).
In case of emergency6-11
PUSH STARTING

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 219 B
6-12In case of emergency
CAUTION
.Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
. To avoid the danger of being scalded,
never remove the radiator cap while the
engine is still hot. When the radiator cap
is removed, pressurized hot water will
spurt out, possibly causing serious
injury.
. Do not open the hood if steam is coming
out.
If your vehicle is overheating (indicated by
an extremely high temperature gauge
reading), or if you feel a lack of engine
power, detect abnormal noise, etc., take
the following steps:
1. Move the vehicle safely off the road,
apply the parking brake and move the
selector lever to the P (Park) position.
Do not turn the INFINITI Direct Re-
sponse Hybrid
TMSystem off.
2. Turn off the climate control. Open all the windows, move the heater or air
conditioner temperature control to maximum hot and fan control to high
speed.
3. If engine overheating is caused by climbing a long hill on a hot day, run
the engine at a fast idle (approximately
1,500 rpm) until the temperature gauge
indication returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off
the hybrid system.) Do not open the
hood further until no steam or coolant
can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Also check if the cooling fan is running. The radiator hoses and radiator should
not leak water. If coolant is leaking or
the cooling fan does not run, stop the
hybrid system.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.
7. After the engine cools down, check thecoolant level in the reservoir tank with
the engine running. Add coolant to the
reservoir tank if necessary. Have your
vehicle repaired at the nearest INFINITI
retailer.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada).
IF YOUR VEHICLE OVERHEATS
6-12In case of emergency
CAUTION
. Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
. To avoid the danger of being scalded,
never remove the radiator cap while the
engine is still hot. When the radiator cap
is removed, pressurized hot water will
spurt out, possibly causing serious
injury.
. Do not open the hood if steam is coming
out.
If your vehicle is overheating (indicated by
an extremely high temperature gauge
reading), or if you feel a lack of engine
power, detect abnormal noise, etc., take
the following steps:
1. Move the vehicle safely off the road,
apply the parking brake and move the
selector lever to the P (Park) position.
Do not turn the INFINITI Direct Re-
sponse Hybrid
TMSystem off.
2. Turn off the climate control. Open all the windows, move the heater or air
conditioner temperature control to maximum hot and fan control to high
speed.
3. If engine overheating is caused by climbing a long hill on a hot day, run
the engine at a fast idle (approximately
1,500 rpm) until the temperature gauge
indication returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off
the hybrid system.) Do not open the
hood further until no steam or coolant
can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Also check if the cooling fan is running. The radiator hoses and radiator should
not leak water. If coolant is leaking or
the cooling fan does not run, stop the
hybrid system.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.
7. After the engine cools down, check thecoolant level in the reservoir tank with
the engine running. Add coolant to the
reservoir tank if necessary. Have your
vehicle repaired at the nearest INFINITI
retailer.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada).
IF YOUR VEHICLE OVERHEATS

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 220 A
When towing your vehicle, all State (Pro-
vincial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from an
INFINITI retailer. Local service operators are
familiar with the applicable laws and
procedures for towing. To assure proper
towing and to prevent accidental damage
to your vehicle, INFINITI recommends that
you have a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following pre-
cautions.
WARNING
.Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it has
been lifted by a tow truck.
CAUTION
.When towing, make sure that the trans-
mission, axles, steering system and
powertrain are in working condition. If
any unit is damaged, dollies must be used.
. Always attach safety chains before tow-
ing.
For information about towing your vehicle
behind a recreational vehicle (RV), see
“Flat towing ”in the “9. Technical and
consumer information ”section of this
manual.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada).
In case of emergency6-13
TOWING YOUR VEHICLE
When towing your vehicle, all State (Pro-
vincial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from an
INFINITI retailer. Local service operators are
familiar with the applicable laws and
procedures for towing. To assure proper
towing and to prevent accidental damage
to your vehicle, INFINITI recommends that
you have a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following pre-
cautions.
WARNING
. Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it has
been lifted by a tow truck.
CAUTION
.When towing, make sure that the trans-
mission, axles, steering system and
powertrain are in working condition. If
any unit is damaged, dollies must be used.
. Always attach safety chains before tow-
ing.
For information about towing your vehicle
behind a recreational vehicle (RV), see
“Flat towing ”in the “9. Technical and
consumer information ”section of this
manual.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada).
In case of emergency6-13
TOWING YOUR VEHICLE
