8. CHECK SHIFT LOCK SOLENOID
1. Connect A/T device harness connector.
2. Turn ignition switch ON. (Do not start engine.)
3. Check shift lock solenoid operation.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damage parts.
Condition Brake pedal Operation
When ignition switch is turned to ON position and
selector lever is set in “P” position.Depressed Yes
Released No

AT-248
ON-VEHICLE SERVICE
Revision: 2006 January2006 M35/M45
Parking Components (2WD Models Only)NCS001QU
REMOVAL AND INSTALLATION (VQ35DE MODELS)
Components
Removal
1. Drain ATF through drain plug.
2. Remove exhaust front tube and center muffler with power tool. Refer to EX-5, "
Removal and Installation" .
3. Remove rear propeller shaft. Refer to PR-8, "
Removal and Installation" .
4. Remove control rod. Refer to AT-226, "
Control Rod Removal and Installation" .
5. Support A/T assembly with a transmission jack.
CAUTION:
When setting transmission jack, be careful not to allow it to collide against the drain plug.
6. Remove rear engine mounting member with power tool. Refer to AT-271, "
Removal and Installation (2WD
Models)" .
7. Remove engine mounting insulator (rear). Refer to AT-271, "
Removal and Installation (2WD Models)" .
1. Rear oil seal 2. Rear extension 3. Parking actuator support
4. Return spring 5. Parking pawl 6. Pawl shaft
7. Self-sealing bolt 8. Seal ring 9. Parking gear
10. Output shaft 11. Bearing race 12. Needle bearing
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
However, refer to the following symbols for others.
*:Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48, "Recommended Chemical Products and Sealants"
.
SCIA7030E

AT-254
ON-VEHICLE SERVICE
Revision: 2006 January2006 M35/M45
10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to GI-48, "
Recommended Chemical Prod-
ucts and Sealants" .) to rear extension assembly as shown in
the figure.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.
11. Install rear extension assembly to transmission case. (With nee-
dle bearing.)
CAUTION:
Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.
12. Tighten rear extension assembly bolts to the specified torque.
Refer to AT-248, "
Components" .
CAUTION:
Do not reuse self-sealing bolts.
13. Install engine mounting insulator (rear). Refer to AT-271, "
Removal and Installation (2WD Models)" .
14. Install rear engine mounting member. Refer to AT- 2 7 1 , "
Removal and Installation (2WD Models)" .
15. Install control rod. Refer to AT-226, "
Control Rod Removal and Installation" .
16. Install rear propeller shaft. Refer to PR-8, "
Removal and Installation" .
17. Install exhaust front tube and center muffler. Refer to EX-5, "
Removal and Installation" .
18. Install drain plug to oil pan. Tighten a necessary drain plug with specified torque. Refer to AT- 2 3 6 , "
Control
Valve With TCM and A/T Fluid Temperature Sensor 2" .
CAUTION:
Do not reuse drain plug gasket.
19. Pour ATF into A/T assembly. Refer to AT- 1 2 , "
Changing A/T Fluid" .
SCIA5212E
SCIA3431E
SCIA6941E

ON-VEHICLE SERVICE
AT-255
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
REMOVAL AND INSTALLATION (VK45DE MODELS)
Components
Removal
1. Drain ATF through drain plug.
2. Remove exhaust front tube and center muffler with a power tool. Refer to EX-7, "
Removal and installation"
.
3. Remove rear propeller shaft. Refer to PR-8, "
Removal and Installation" .
4. Remove control rod. Refer to AT-226, "
Control Rod Removal and Installation" .
5. Support A/T assembly with a transmission jack.
CAUTION:
When setting transmission jack, be careful not to allow it to collide against the drain plug.
6. Remove rear engine mounting member with a power tool. Refer to AT- 2 7 1 , "
Removal and Installation
(2WD Models)" .
7. Remove engine mounting insulator (rear). Refer to AT-271, "
Removal and Installation (2WD Models)" .
1. Output shaft & companion flange complement 2. Parking actuator support 3. Return spring
4. Parking pawl 5. Pawl shaft 6. Self-sealing bolt
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
However, refer to the following symbols for others.
*:Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48, "Recommended Chemical Products and Sealants"
.
SCIA7029E

ON-VEHICLE SERVICE
AT-259
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
7. Install engine mounting insulator (rear). Refer to AT- 2 7 1 , "Removal and Installation (2WD Models)" .
8. Install rear engine mounting member. Refer to AT-271, "
Removal and Installation (2WD Models)" .
9. Install control rod. Refer to AT- 2 2 6 , "
Control Rod Removal and Installation" .
10. Install rear propeller shaft. Refer to PR-8, "
Removal and Installation" .
11. Install exhaust front tube and center muffler. Refer to EX-7, "
Removal and installation" .
12. Install drain plug to oil pan. Tighten a necessary drain plug with specified torque. Refer to AT- 2 3 6 , "
Control
Valve With TCM and A/T Fluid Temperature Sensor 2" .
CAUTION:
Do not reuse drain plug gasket.
13. Pour ATF into A/T assembly. Refer to AT-12, "
Changing A/T Fluid" .

ON-VEHICLE SERVICE
AT-263
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
7. Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.
If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to AT- 1 4 , "
A/T Fluid Cooler Cleaning" .
8. Support A/T assembly with a transmission jack.
CAUTION:
When setting transmission jack, place wooden blocks to
prevent from damaging control valve with TCM and trans-
mission case.
9. Remove rear engine mounting member with power tool. Refer to AT-271, "
Removal and Installation (2WD
Models)" .
10. Remove rear extension assembly (VQ35DE models) or output shaft & companion flange complement
(VK45DE models) according to the following procedures.
a.VQ35DE models
i. Remove tightening bolts for rear extension assembly and trans-
mission case.
ii. Tap rear extension assembly with a soft hammer.
iii. Remove rear extension assembly from transmission case. (With
needle bearing.)
SCIA5199E
SCIA6941E
SCIA3432E
SCIA3431E

ON-VEHICLE SERVICE
AT-267
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
i. Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to GI-48, "
Recommended Chemical Prod-
ucts and Sealants" .) to output shaft & companion flange com-
plement as shown in the figure.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
from the transmission case and output shaft & companion
flange complement mounting surfaces.
ii. Install output shaft & companion flange complement to transmis-
sion case.
iii. Tighten output shaft & companion flange complement bolts (1)
to the specified torque. Refer to AT- 2 6 1 , "
REMOVAL AND
INSTALLATION" .
: Bolt (10)
CAUTION:
Do not reuse self-sealing bolts (2).
Refer to GI section to make sure icons (symbol marks) in the fig-
ure. Refer to GI-11, "
Components" .
5. Install rear engine mounting member. Refer to AT-271, "
Removal and Installation (2WD Models)" .
6. Install oil pan to transmission case.
a. Install oil pan gasket to oil pan.
CAUTION:
Do not reuse oil pan gasket.
Install it in the direction to align hole positions.
Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
b. Install oil pan (with oil pan gasket) to transmission case.
CAUTION:
Install it so that drain plug comes to the position as
shown in the figure.
Be careful not to pinch harnesses.
Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.
SCIA5212E
SCIA5688E
SCIA6943E
SCIA2308E

AIR BREATHER HOSE
AT-269
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
AIR BREATHER HOSEPFP:31098
Removal and InstallationNCS001QX
VQ35DE ENGINE MODEL

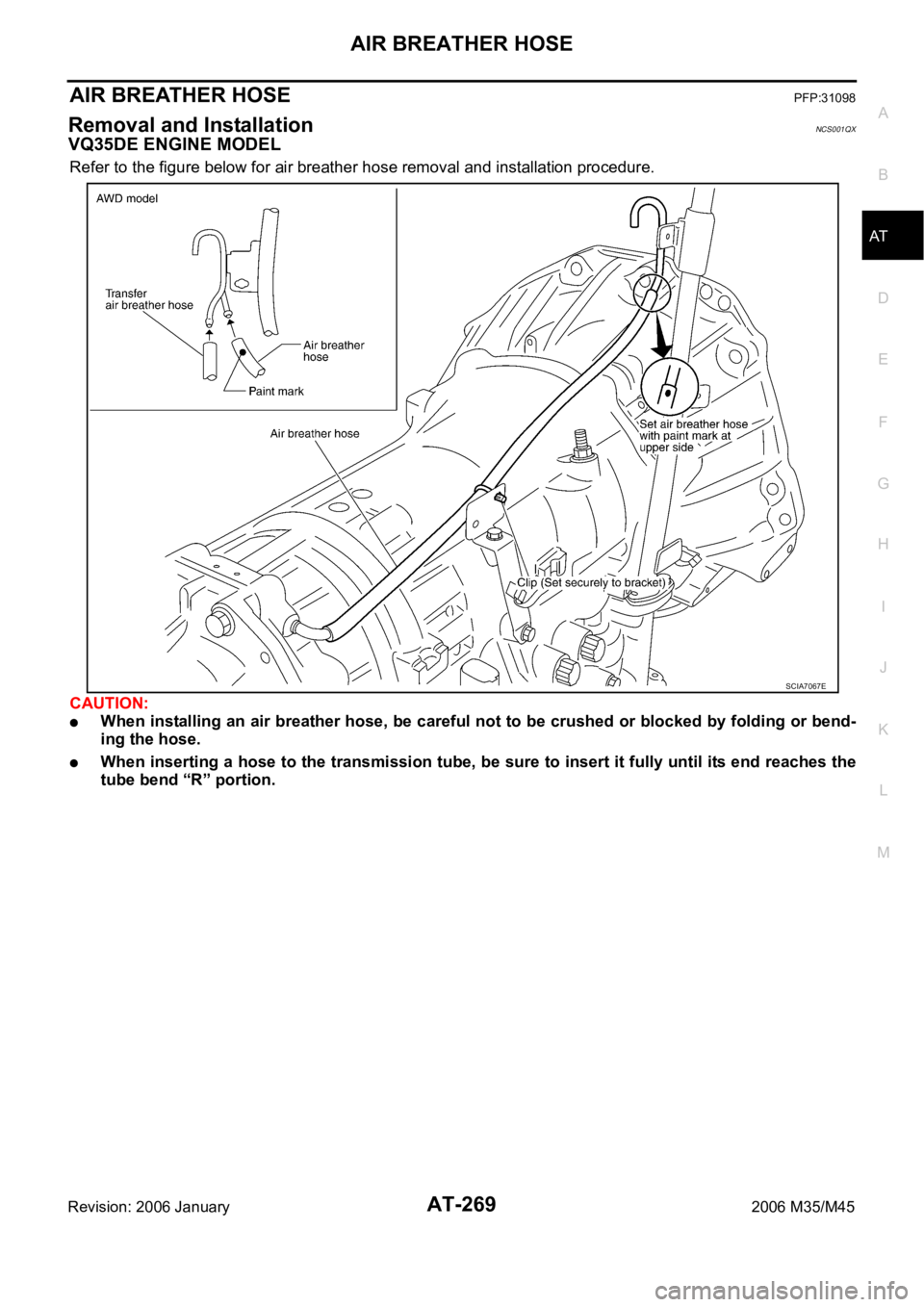

Refer to the figure below for air breather hose removal and installation procedure.
CAUTION:
When installing an air breather hose, be careful not to be crushed or blocked by folding or bend-
ing the hose.
When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the
tube bend “R” portion.
SCIA7067E

AT-270
AIR BREATHER HOSE
Revision: 2006 January2006 M35/M45
VK45DE ENGINE MODEL

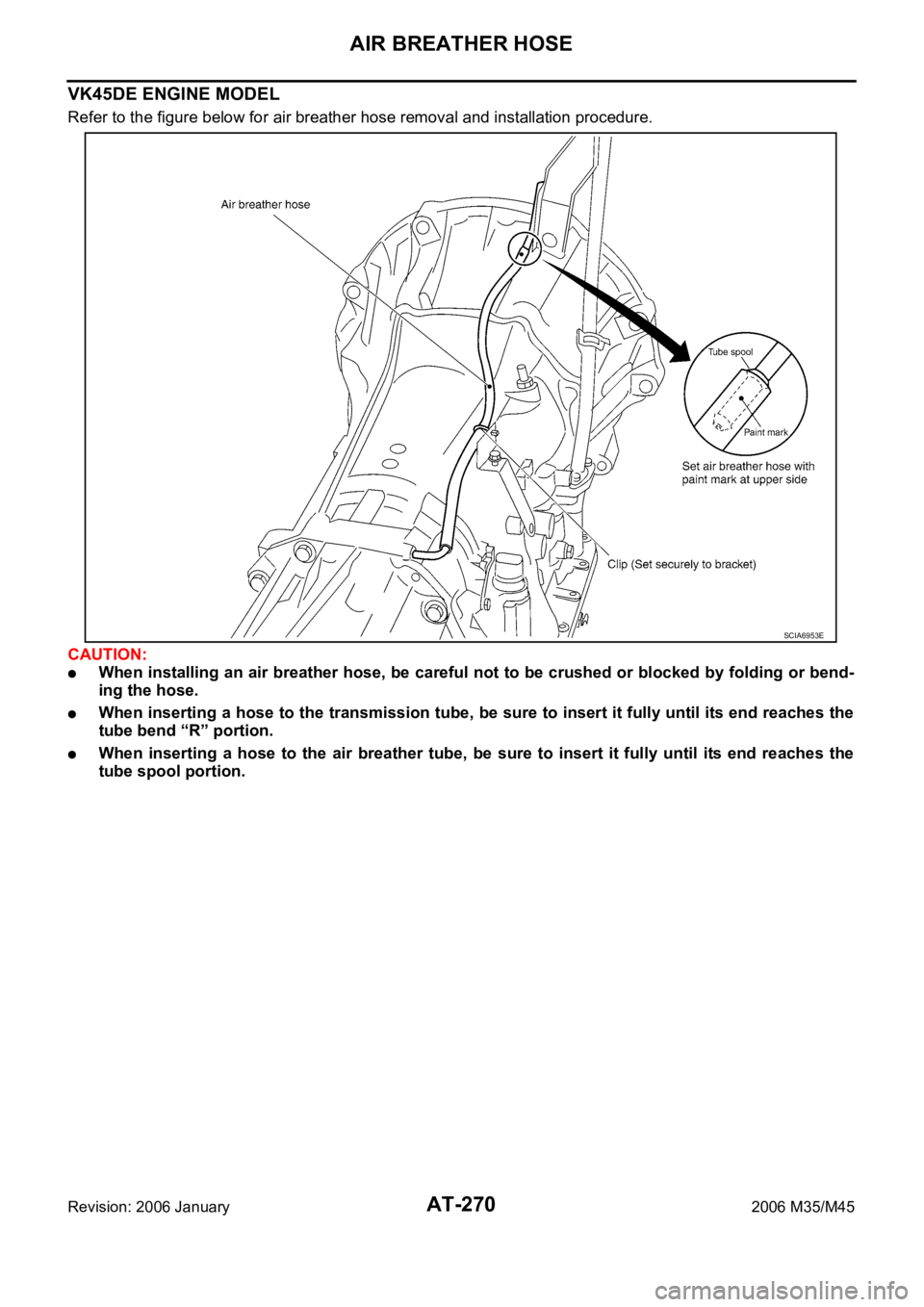

Refer to the figure below for air breather hose removal and installation procedure.
CAUTION:
When installing an air breather hose, be careful not to be crushed or blocked by folding or bend-
ing the hose.
When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the
tube bend “R” portion.
When inserting a hose to the air breather tube, be sure to insert it fully until its end reaches the
tube spool portion.
SCIA6953E

TRANSMISSION ASSEMBLY
AT-271
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
TRANSMISSION ASSEMBLYPFP:31020
Removal and Installation (2WD Models)NCS001QY
COMPONENTS
VQ35DE models
SCIA6751E
1. A/T assembly 2. A/T fluid level gauge 3. A/T fluid charging pipe
4. O-ring 5. Copper washer 6. Fluid cooler tube
7. Bracket 8. Rear engine mounting member 9. Engine mounting insulator (rear)
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
However, refer to the following symbols for others.
:For tightening torque, refer to AT-274, "
INSTALLATION" .
