INFINITI M35 2006 Factory Service Manual
M35 2006
INFINITI
INFINITI
https://www.carmanualsonline.info/img/42/57023/w960_57023-0.png
INFINITI M35 2006 Factory Service Manual
Page 4150 of 5621
CAN SYSTEM (TYPE 10)
LAN-481
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

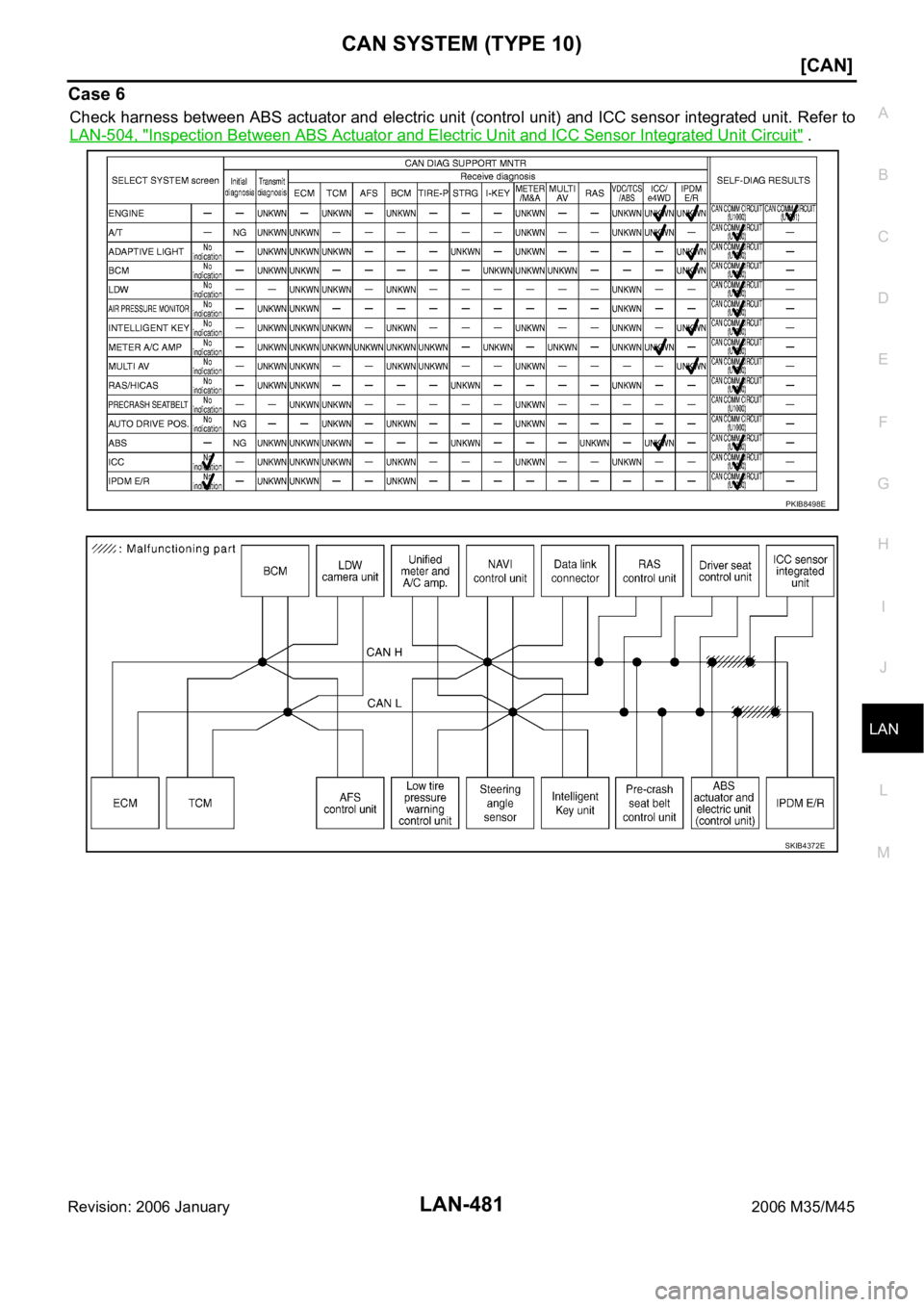

Case 6
Check harness between ABS actuator and electric unit (control unit) and ICC sensor integrated unit. Refer to
LAN-504, "
Inspection Between ABS Actuator and Electric Unit and ICC Sensor Integrated Unit Circuit" .
PKIB8498E
SKIB4372E
Page 4151 of 5621
LAN-482
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
Case 7
Check ECM circuit. Refer to LAN-504, "ECM Circuit Inspection" .
PKIB8499E
SKIB4374E
Page 4152 of 5621
CAN SYSTEM (TYPE 10)
LAN-483
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

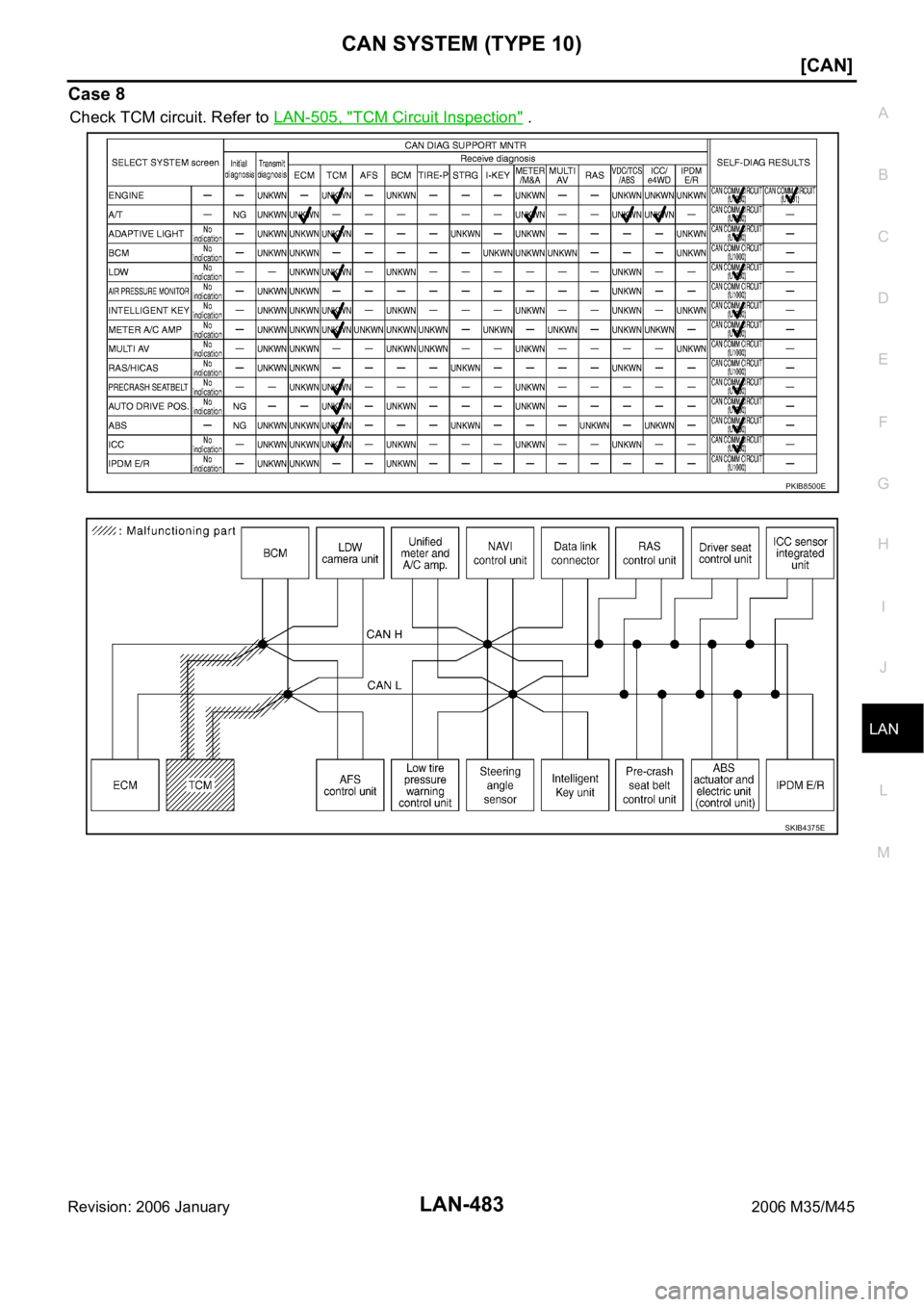

Case 8
Check TCM circuit. Refer to LAN-505, "TCM Circuit Inspection" .
PKIB8500E
SKIB4375E
Page 4153 of 5621
LAN-484
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45

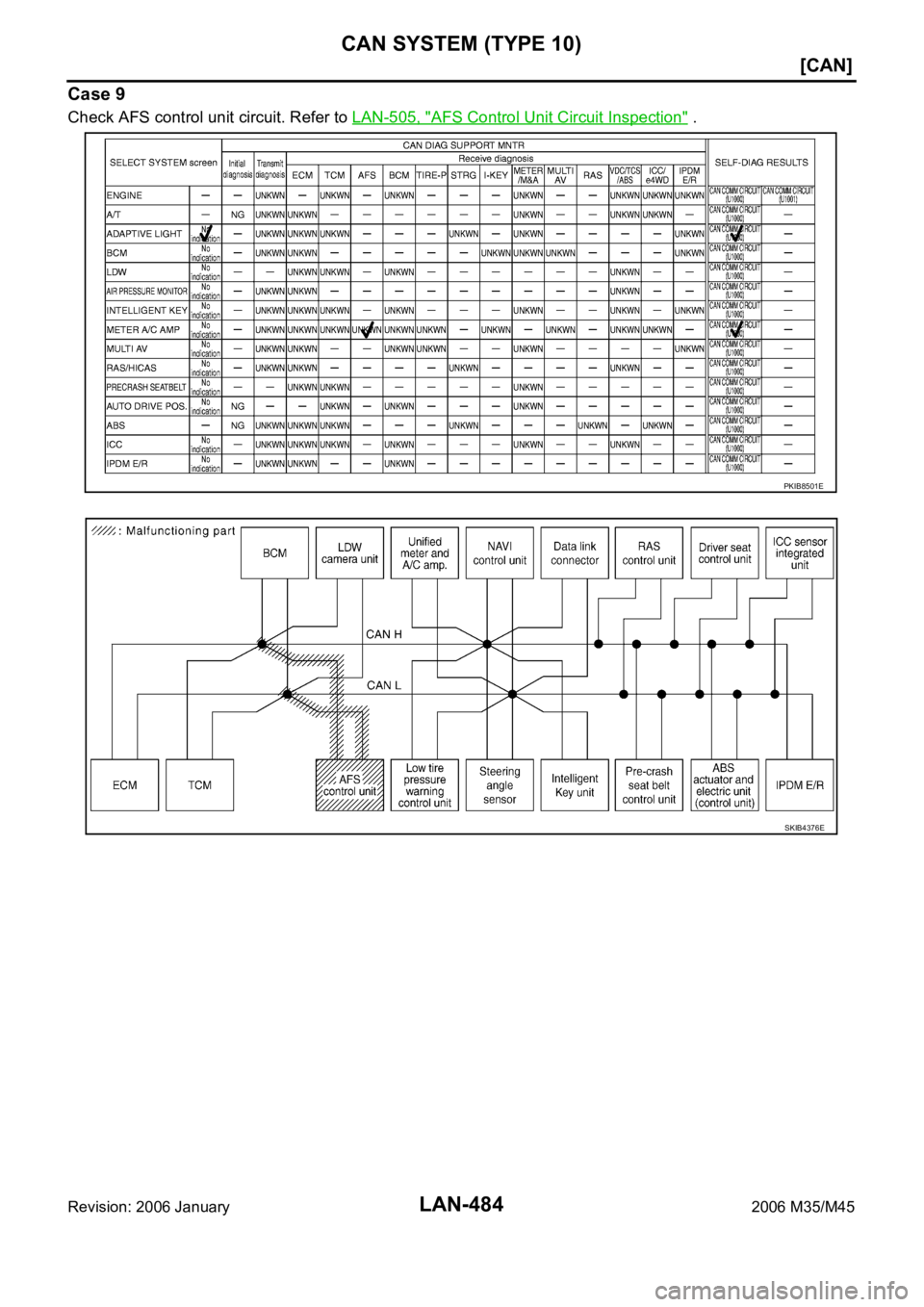

Case 9
Check AFS control unit circuit. Refer to LAN-505, "AFS Control Unit Circuit Inspection" .
PKIB8501E
SKIB4376E
Page 4154 of 5621
CAN SYSTEM (TYPE 10)
LAN-485
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

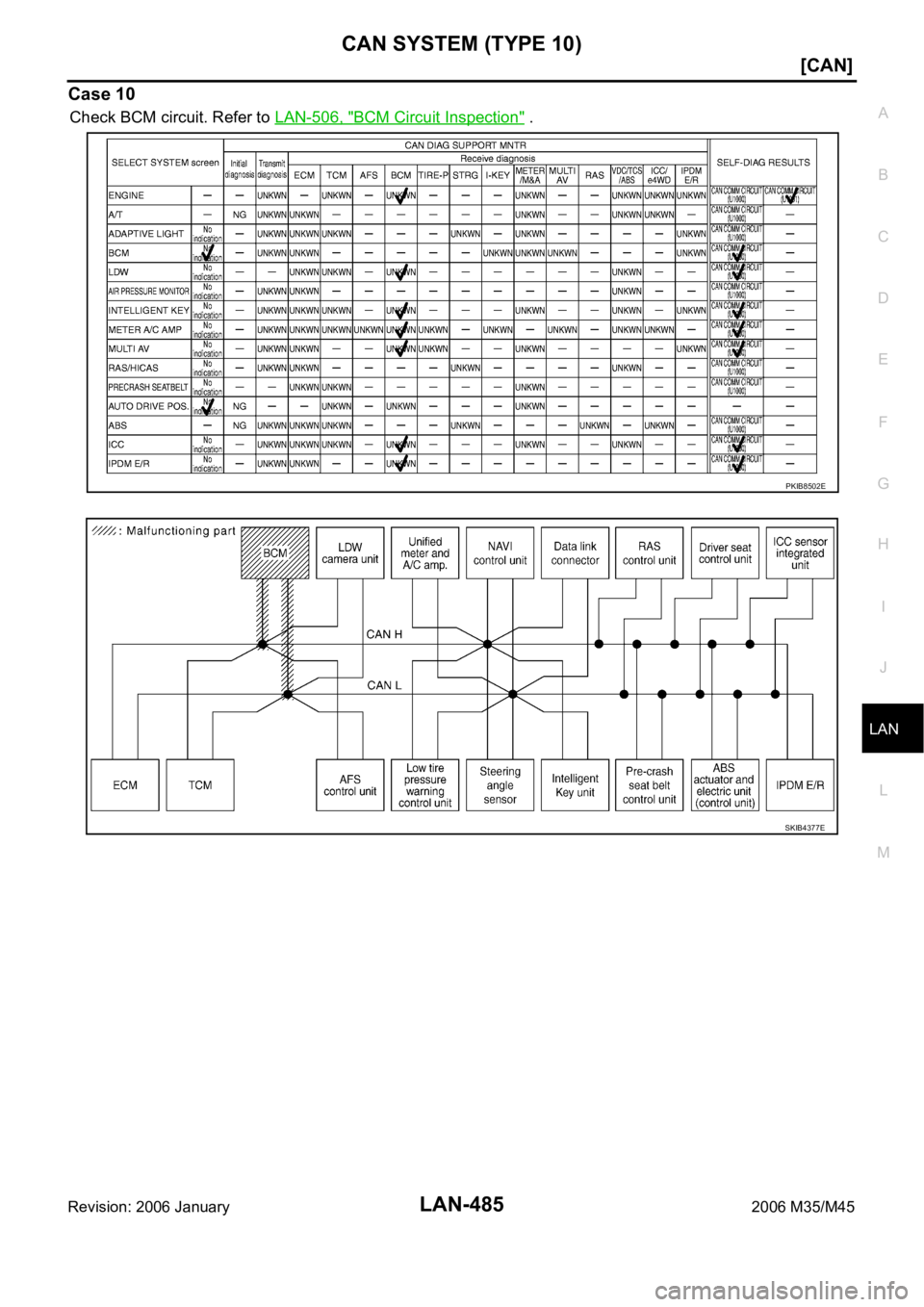

Case 10
Check BCM circuit. Refer to LAN-506, "BCM Circuit Inspection" .
PKIB8502E
SKIB4377E
Page 4155 of 5621
LAN-486
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45

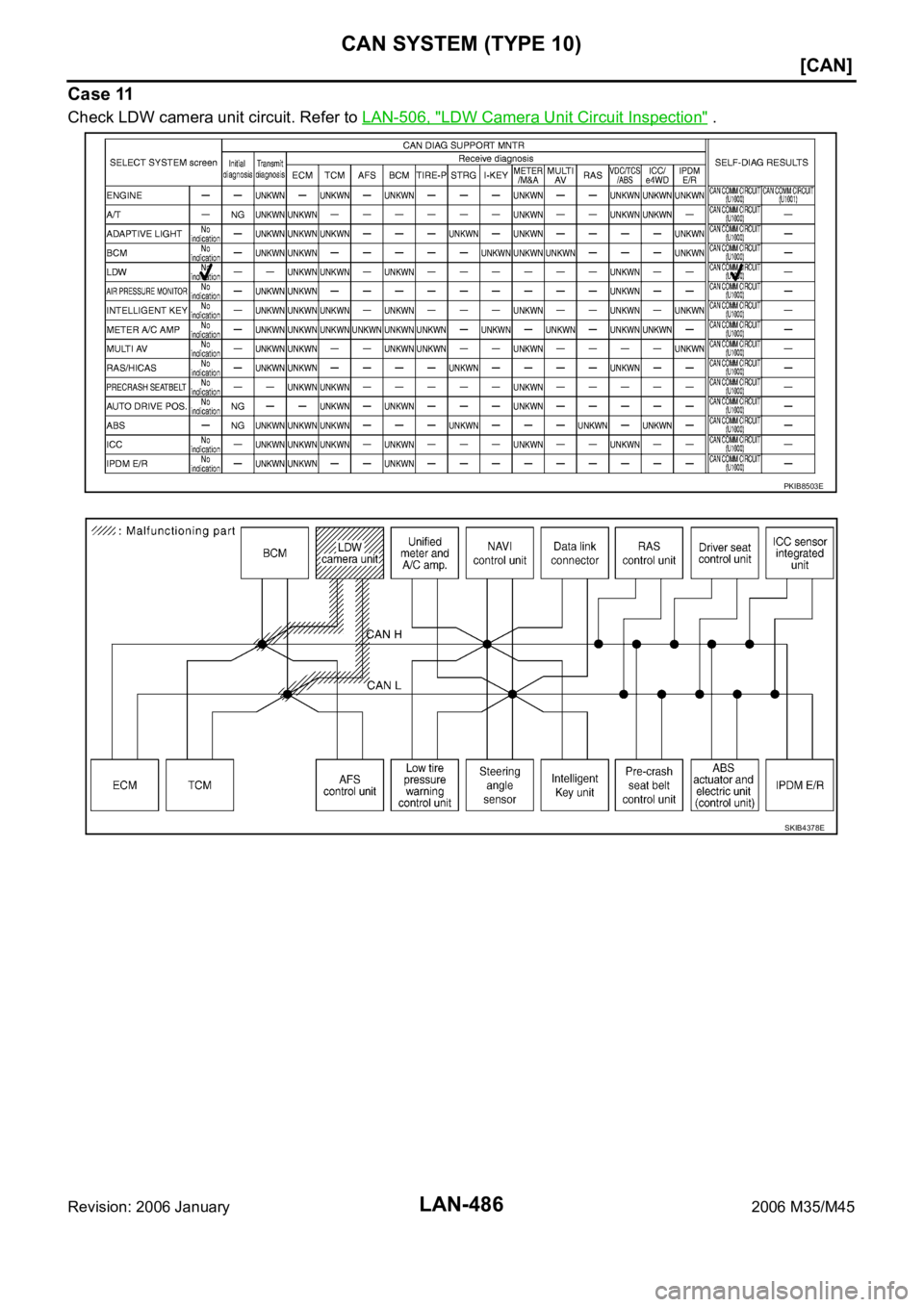

Case 11
Check LDW camera unit circuit. Refer to LAN-506, "LDW Camera Unit Circuit Inspection" .
PKIB8503E
SKIB4378E
Page 4156 of 5621
CAN SYSTEM (TYPE 10)
LAN-487
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

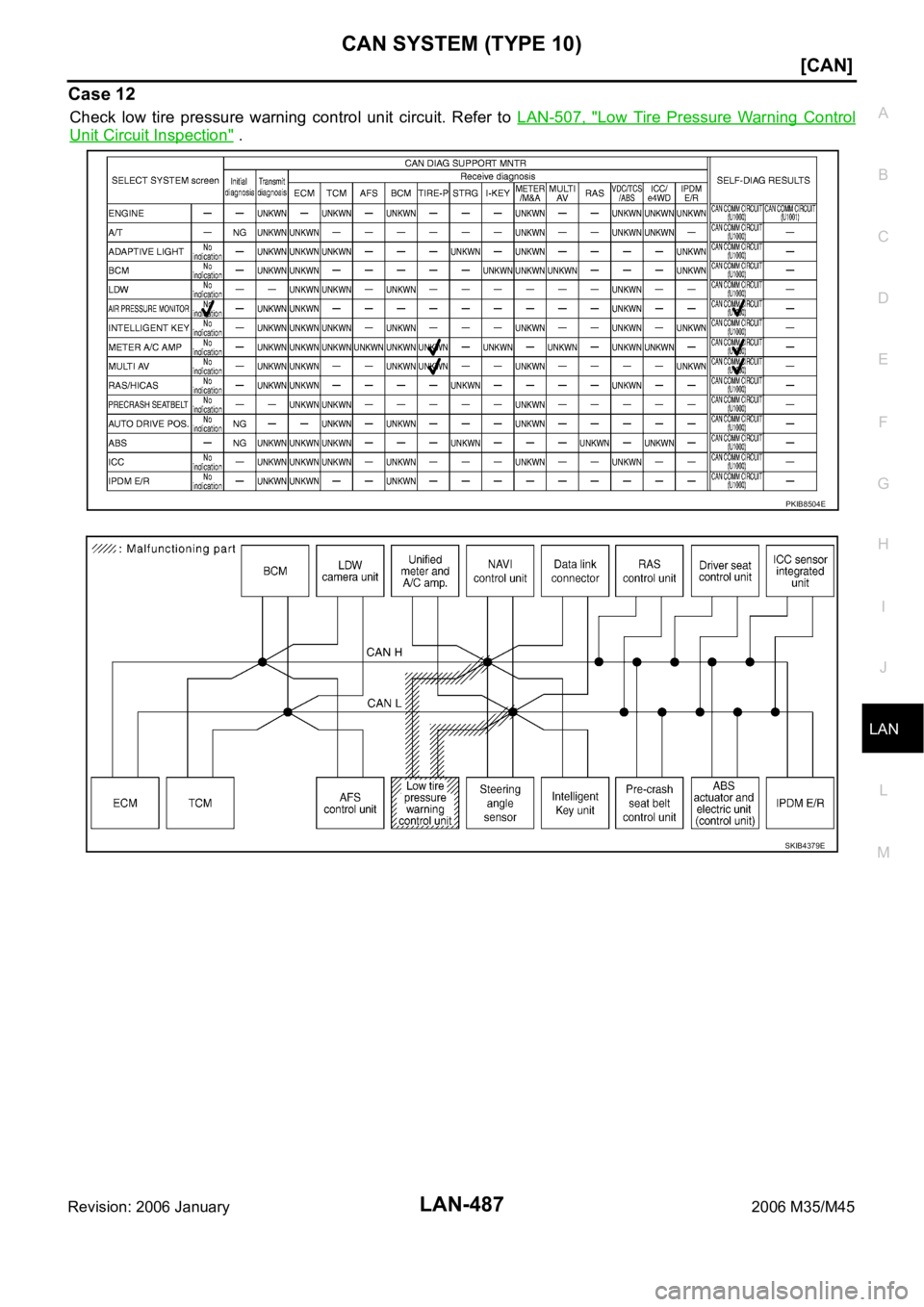

Case 12
Check low tire pressure warning control unit circuit. Refer to LAN-507, "Low Tire Pressure Warning Control
Unit Circuit Inspection" .
PKIB8504E
SKIB4379E
Page 4157 of 5621
LAN-488
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45
Case 13
Check steering angle sensor circuit. Refer to LAN-507, "Steering Angle Sensor Circuit Inspection" .
PKIB8505E
SKIB4380E
Page 4158 of 5621
CAN SYSTEM (TYPE 10)
LAN-489
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

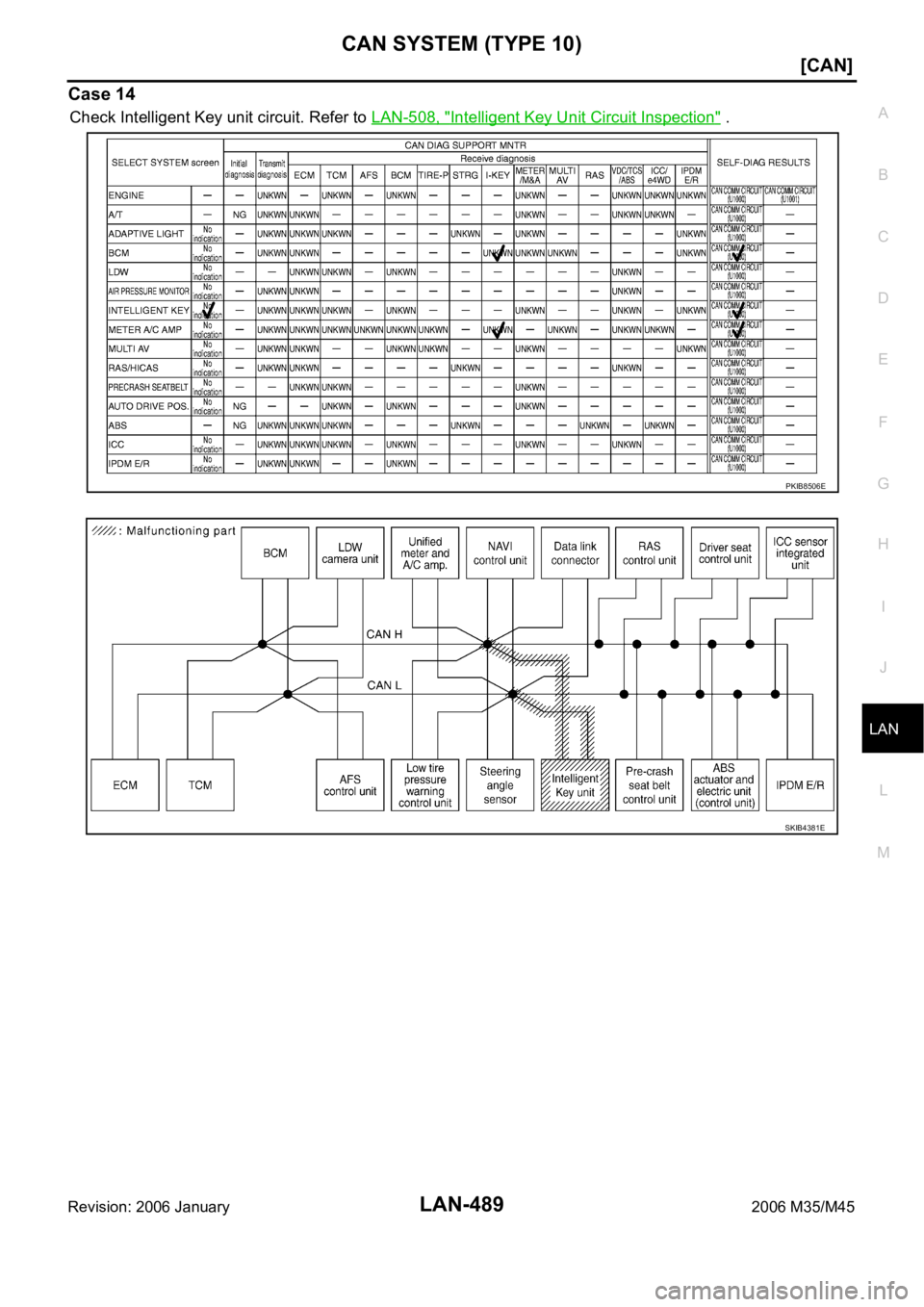

Case 14
Check Intelligent Key unit circuit. Refer to LAN-508, "Intelligent Key Unit Circuit Inspection" .
PKIB8506E
SKIB4381E
Page 4159 of 5621
LAN-490
[CAN]
CAN SYSTEM (TYPE 10)
Revision: 2006 January2006 M35/M45

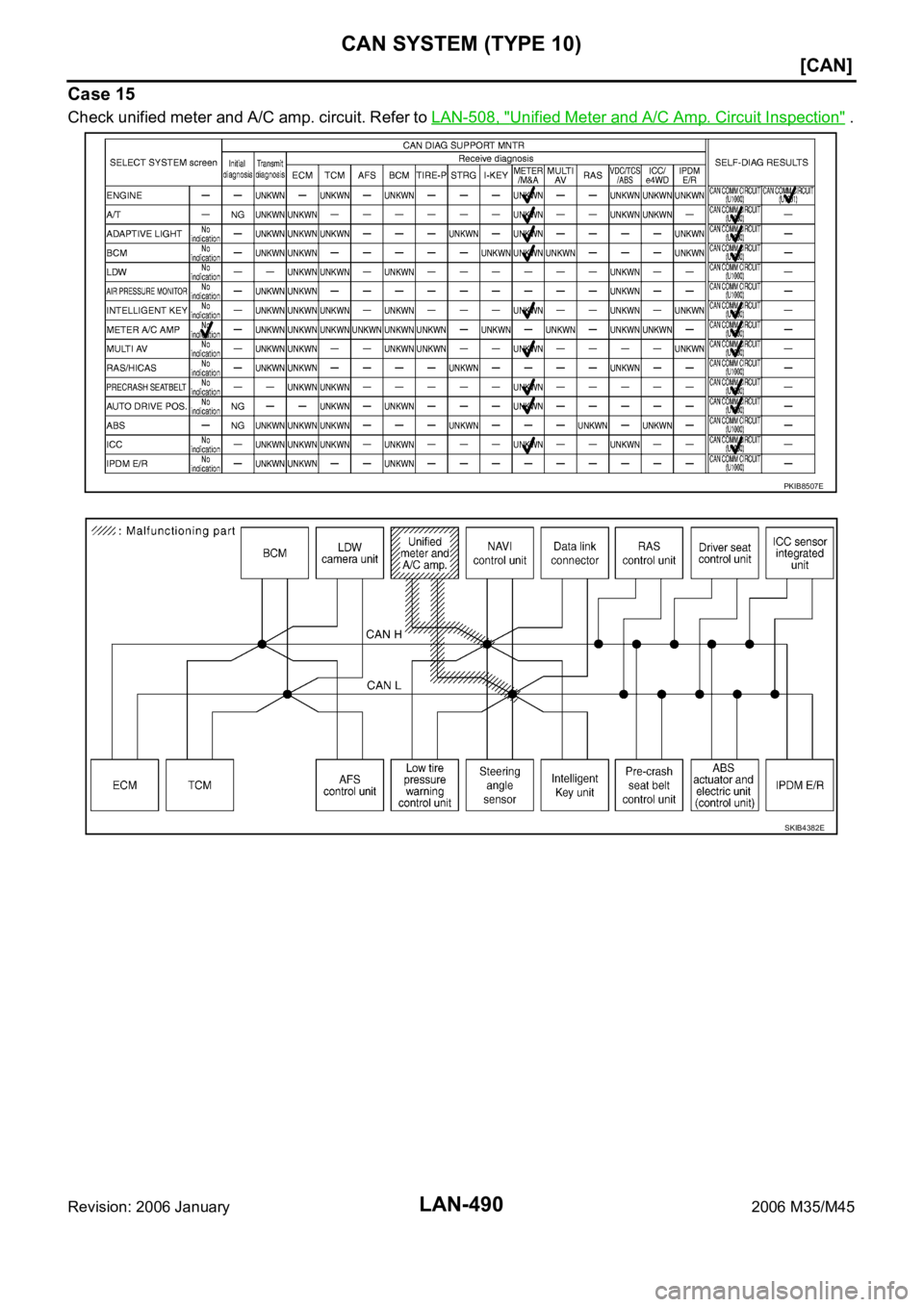

Case 15
Check unified meter and A/C amp. circuit. Refer to LAN-508, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIB8507E
SKIB4382E
