CAN SYSTEM (TYPE 14)
LAN-671
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 7
Check AWD control unit circuit. Refer to LAN-689, "AWD Control Unit Circuit Inspection" .
PKIB8546E
SKIB4464E
Page 4341 of 5621
LAN-672
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45
Case 8
Check AFS control unit circuit. Refer to LAN-690, "AFS Control Unit Circuit Inspection" .
PKIB8547E
SKIB4465E
Page 4342 of 5621
CAN SYSTEM (TYPE 14)
LAN-673
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 9
Check BCM circuit. Refer to LAN-690, "BCM Circuit Inspection" .
PKIB8548E
SKIB4466E
Page 4343 of 5621
LAN-674
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45
Case 10
Check low tire pressure warning control unit circuit. Refer to LAN-691, "Low Tire Pressure Warning Control
Unit Circuit Inspection" .
PKIB8549E
SKIB4467E
Page 4344 of 5621
CAN SYSTEM (TYPE 14)
LAN-675
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 11
Check steering angle sensor circuit. Refer to LAN-691, "Steering Angle Sensor Circuit Inspection" .
PKIB8550E
SKIB4468E
Page 4345 of 5621
LAN-676
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45
Case 12
Check Intelligent Key unit circuit. Refer to LAN-692, "Intelligent Key Unit Circuit Inspection" .
PKIB8551E
SKIB4469E
Page 4346 of 5621
CAN SYSTEM (TYPE 14)
LAN-677
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 13
Check unified meter and A/C amp. circuit. Refer to LAN-692, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIB8552E
SKIB4470E
Page 4347 of 5621
LAN-678
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45
Case 14
Check NAVI control unit circuit. Refer to LAN-693, "NAVI Control Unit Circuit Inspection" .
PKIB8553E
SKIB4471E
Page 4348 of 5621
CAN SYSTEM (TYPE 14)
LAN-679
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 15
Check data link connector circuit. Refer to LAN-693, "Data Link Connector Circuit Inspection" .
PKIB8554E
SKIB4472E
Page 4349 of 5621
LAN-680
[CAN]
CAN SYSTEM (TYPE 14)
Revision: 2006 January2006 M35/M45

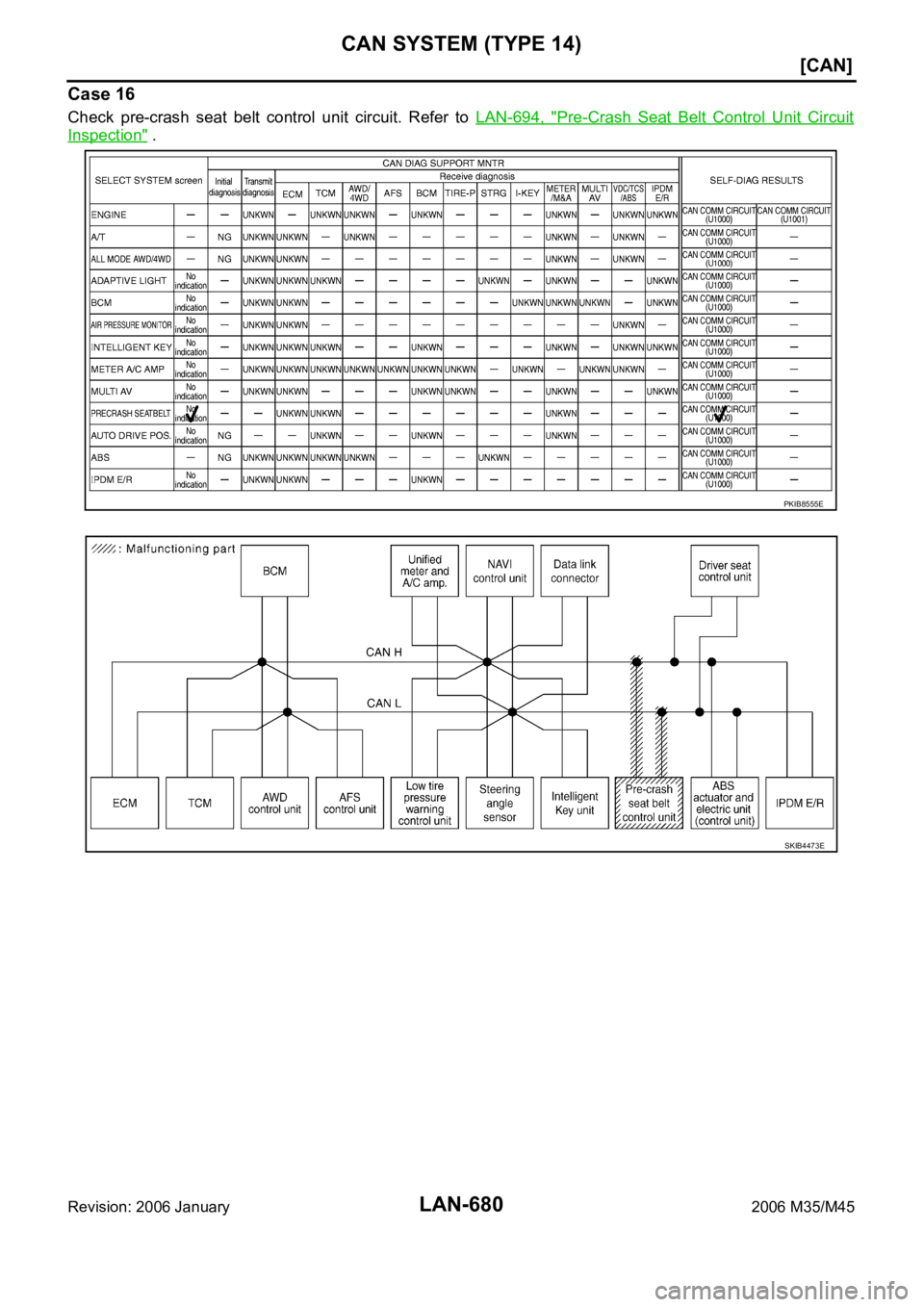

Case 16
Check pre-crash seat belt control unit circuit. Refer to LAN-694, "Pre-Crash Seat Belt Control Unit Circuit
Inspection" .
PKIB8555E
SKIB4473E
