MAIN POWER SUPPLY AND GROUND CIRCUIT
Revision: 2006 January2006 M35/M45
3. DETECT MALFUNCTIONING ITEM
Check the following.
Harness for short or open between battery and A/T assembly harness connector terminals 1, 2
Harness for short or open between push-button ignition switch and A/T assembly harness connector ter-
minal 6
10A fuse (No. 34, located in the fuse and fusible link block) and 10A fuse (No. 83, located in the IPDM E/
R)
Push-button ignition switch (Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" )
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect A/T assembly harness connector.
3. Check continuity between A/T assembly harness connector ter-
minals and ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
5. DETECT MALFUNCTIONING ITEM
Check the following.
The A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. PERFORM SELF-DIAGNOSIS
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" .
OK or NG
OK >>INSPECTION END
NG-1 >> Self-diagnosis does not activate: GO TO 7.
NG-2 >> DTC is displayed: Check the malfunctioning system. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC
RESULT MODE" . Continuity should exist.
SCIA2106E

MAIN POWER SUPPLY AND GROUND CIRCUIT
AT-183
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
7. CHECK TERMINAL CORD ASSEMBLY
1. Remove control valve with TCM. Refer to AT-236, "
Control Valve With TCM and A/T Fluid Temperature
Sensor 2" .
2. Disconnect A/T assembly harness connector and TCM connector.
3. Check continuity between A/T assembly harness connector ter-
minals and TCM connector terminals.
4. Check continuity between A/T assembly harness connector ter-
minals and TCM connector terminals.
5. If OK, check harness for short to ground and short to power.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 6 , "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Replace open circuit or short to ground and short to power in harness or connectors.
Item Connector Terminal Continuity
A/T assembly harness con-
nectorF42 1
Ye s
TCM connector F502 9
A/T assembly harness con-
nectorF42 2
Ye s
TCM connector F502 10
A/T assembly harness con-
nectorF42 6
Ye s
TCM connector F502 4
SCIA5464E
Item Connector Terminal Continuity
A/T assembly harness con-
nectorF42 5
Ye s
TCM connector F504 21
A/T assembly harness con-
nectorF42 10
Ye s
TCM connector F504 22
SCIA5465E

AT-184
CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION CIR-
CUIT
Revision: 2006 January2006 M35/M45
CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION CIR-
CUIT
PFP:18002
CONSULT-II Reference ValueNCS001PR
Diagnostic ProcedureNCS001PS
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "Diagnostic Pro-
cedure without CONSULT-II" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 5 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK THROTTLE POSITION SIGNAL CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Depress accelerator pedal and read out the value of “CLSD THL
POS” and “W/O THL POS”.
OK or NG
OK >>INSPECTION END
NG >> Check the following. If NG, repair or replace damaged parts.
Perform the self-diagnosis for “ENGINE” with CONSULT-II. Refer to EC-137, "SELF-DIAG
RESULTS MODE" (for VQ35DE engine), EC-850, "SELF-DIAG RESULTS MODE" (for
VK45DE engine).
Open circuit or short to ground or short to power in harness or connectors.
Pin terminals for damage or loose connection with harness connector.
Item name Condition Display value
CLSD THL POSReleased accelerator pedal. ON
Fully depressed accelerator pedal. OFF
W/O THL POSFully depressed accelerator pedal. ON
Released accelerator pedal. OFF
Accelerator Pedal OperationMonitor Item
CLSD THL POS W/O THL POS
Released ON OFF
Fully depressed OFF ON
PCIA0070E

BRAKE SIGNAL CIRCUIT
AT-185
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
BRAKE SIGNAL CIRCUITPFP:25320
CONSULT-II Reference ValueNCS001PT
Diagnostic ProcedureNCS001PU
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "Diagnostic Pro-
cedure without CONSULT-II" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT-105, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out ON/OFF switching action of the “BRAKE SW”.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
Check continuity between stop lamp switch harness connector termi-
nals. Refer to AT-187, "
Wiring Diagram — AT — NONDTC" .
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
BRAKE PEDAL" .
OK or NG
OK >> Check the following. If NG, repair or replace damaged
parts.
Harness for short or open between battery and stop lamp switch.
Harness for short or open between stop lamp switch and unified meter and A/C amp.
10A fuse (No.20, located in fuse block).
NG >> Repair or replace the stop lamp switch.
Item name Condition Display value
BRAKE SWDepressed brake pedal. ON
Released brake pedal. OFF
Item name Condition Display value
BRAKE SWDepressed brake pedal. ON
Released brake pedal. OFF
PCIA0070E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA4782E

AT-186
A/T INDICATOR CIRCUIT
Revision: 2006 January2006 M35/M45
A/T INDICATOR CIRCUITPFP:24810
DescriptionNCS001PV
TCM sends the switch signals to unified meter and A/C amp. By CAN communication line. Then manual mode
switch position is indicated on the A/T indicator.
CONSULT-II Reference ValueNCS001PW
Diagnostic ProcedureNCS001PX
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II and read out the value of “GEAR”.
3. Drive vehicle in the manual mode, and confirm that the actual
gear position and the meter's indication of the position mutually
coincide when the selector lever is shifted to the “+ (up)” or “-
(down)” side (1st
5th gear).
OK or NG
OK >>INSPECTION END
NG >> Check the following.
A/T INDICATOR SYMPTOM CHART
Item name Condition Display value
GEAR During driving 1, 2, 3, 4, 5
PCIA0065E
Items Possible location of malfunction
The actual gear position does not change, or shifting into the
manual mode is not possible (no gear shifting in the manual mode
possible).
The A/T indicator is not indicated.Manual mode switch
Refer to AT- 1 6 7 , "
DTC P1815 MANUAL MODE SWITCH" .
A/T main system (Fail-safe function actuated)
Refer to AT- 9 2 , "SELF-DIAGNOSTIC RESULT MODE" .
The actual gear position changes, but the A/T indicator is not indi-
cated.Perform the self-diagnosis function.
Refer to AT- 9 2 , "SELF-DIAGNOSTIC RESULT MODE" .
The actual gear position and the indication on the A/T indicator do
not coincide.Perform the self-diagnosis function.
Refer to AT- 9 2 , "SELF-DIAGNOSTIC RESULT MODE" .
Only a specific position or positions is/are not indicated on the A/T
indicator.Check the unified meter and A/C amp.
Refer to DI-5, "
COMBINATION METERS" .

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-187
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007

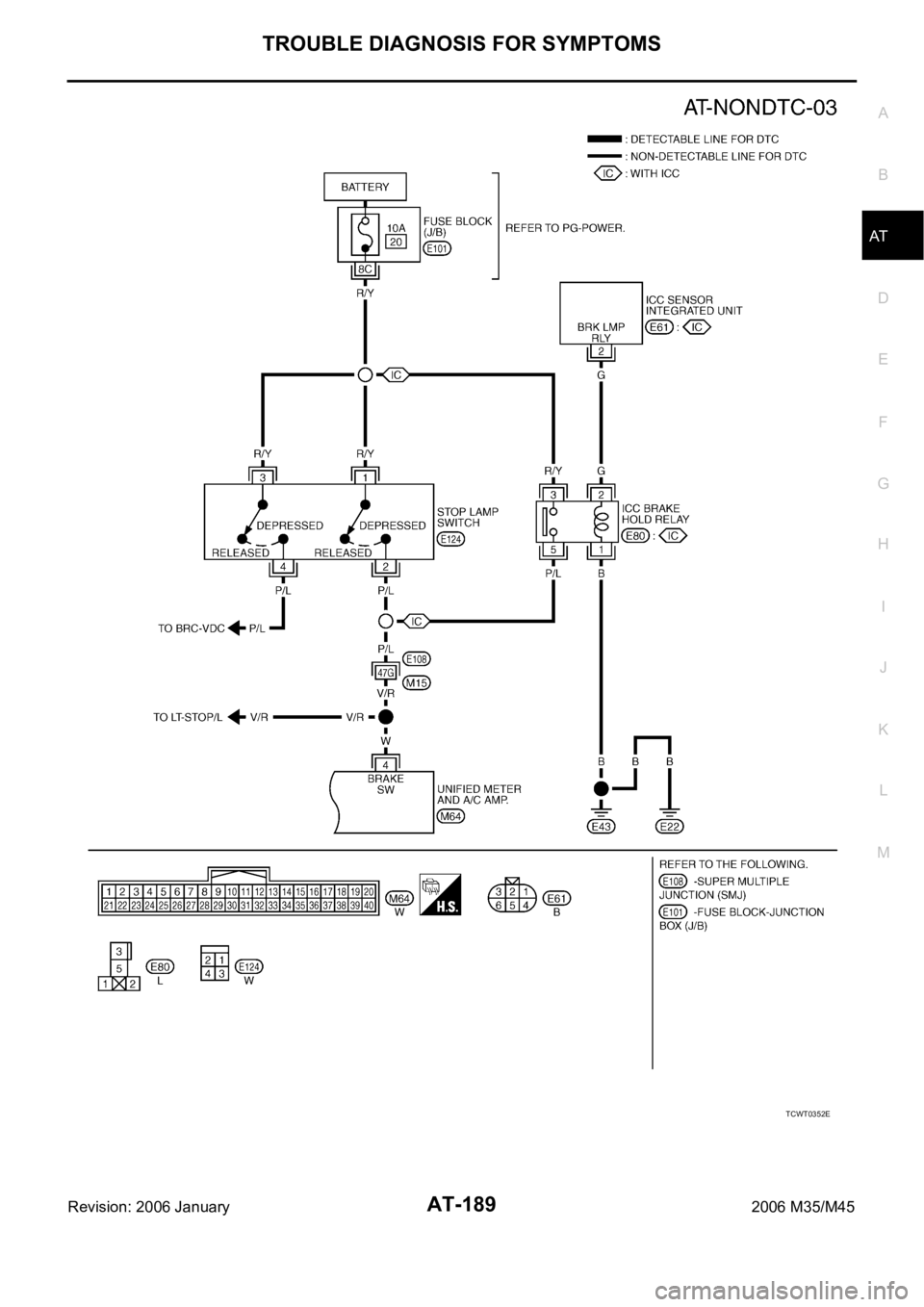

Wiring Diagram — AT — NONDTCNCS001PY
TCWT0350E

AT-188
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 January2006 M35/M45
TCWT0351E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-189
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
TCWT0352E

AT-190
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 January2006 M35/M45
TCM terminals and data are reference value. Measured between each terminal and ground.
A/T CHECK Indicator Lamp Does Not Come OnNCS001PZ
SYMPTOM:
A/T CHECK indicator lamp does not come on for about 2 seconds when turning ignition switch to ON.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 5 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK A/T CHECK INDICATOR LAMP CIRCUIT
Check combination meters. Refer to DI-5, "
COMBINATION METERS" .
OK or NG
OK >> GO TO 3
NG >> Repair or replace damaged parts.
3. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 0 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Engine Cannot Be Started in “P” or “N” PositionNCS001Q0
SYMPTOM:
Engine cannot be started with selector lever in “P” or “N” position.
Engine can be started with selector lever in “D”or “R” position.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Do the self-diagnostic results indicate PNP switch?
YES >> Check malfunctioning system. Refer to AT- 11 3 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
Terminal Item Condition Data (Approx.)
3CAN-H – –
4K-line (CONSULT-II
signal)The terminal is connected to the data link connector for CONSULT- I I. –
7 Back-up lamp relaySelector lever in “R” position. 0V
Selector lever in other positions. Battery voltage
8CAN-L – –

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-191
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
2. CHECK CONTROL LINKAGE
Check control linkage.
Refer to AT-228, "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control linkage. Refer to AT-227, "
Adjustment of A/T Position" .
3. CHECK STARTING SYSTEM
Check starting system. Refer to SC-10, "
STARTING SYSTEM" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
In “P” Position, Vehicle Moves When PushedNCS001Q1
SYMPTOM:
Even though the selector lever is set in “P” position, the parking mechanism is not actuated, allowing
the vehicle to be moved when it is pushed.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Do the self-diagnostic results indicate PNP switch?
YES >> Check malfunctioning system. Refer to AT- 11 3 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" .
NO >> GO TO 2.
2. CHECK CONTROL LINKAGE
Check control linkage.
Refer to AT-228, "Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control linkage. Refer to AT-227, "
Adjustment of A/T Position" .
3. CHECK PARKING COMPONENTS
Check parking components. Refer to AT-248, "
REMOVAL AND INSTALLATION (VQ35DE MODELS)"
(VQ35DE models for 2WD), AT-298, "DISASSEMBLY" (VQ35DE models for AWD), AT- 2 5 5 , "REMOVAL AND
INSTALLATION (VK45DE MODELS)" (VK45DE models).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 6 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT-53, "
A/T Fluid Condition Check" .
OK or NG
OK >>INSPECTION END
NG >> Check malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT-
64, "Symptom Chart" (Symptom No.65).
