QUICK REFERENCE CHART M35/M45
QUICK REFERENCE CHART M35/M45PFP:00000
ENGINE TUNE-UP DATA (VQ35DE)ELS0003W
Engine modelVQ35DE
Firing order1-2-3-4-5-6
Idle speed
A/T (In “P” or “N” position)rpm
650 ± 50
Ignition timing (BTDC at idle speed)
A/T (In “P” or “N” position)15
± 5
CO% at idle 0.7 - 9.9% and engine runs smoothly
Drive BeltDeflection adjustment Unit: mm (in) Tension adjustment Unit: N (kg, lb)
Used belt
New beltUsed belt
New belt
Limit After adjustment Limit After adjustment
Alternator and power
steering oil pump belt7 (0.28)4 - 5
(0.16 - 0.20)3.5 - 4.5
(0.138 - 0.177)294 (30, 66)730 - 818
(74.5 - 83.5,
164 - 184)838 - 926
(85.5 - 94.5,
188 - 208)
A/C compresor belt 12 (0.47)9 - 10
(0.35 - 0.39)8 - 9
(0.31 - 0.35)196 (20, 44)348 - 436
( 35.5 - 44.5,
78 - 98)470 - 559
( 4 8 - 5 7 ,
106 - 126)
Applied pushing force 98N (10kg, 22lb) —
Radiator cap relief pressure
kPa (kg/cm
2 , psi)
Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Cooling system leakage testing pres-
surekPa (kg/cm
2 , psi)157 (1.6, 23)
Compression pressure
kPa (kg/cm
2 , psi)/rpm
Standard 1,275 (13.0, 185) /300
Minimum 981 (10.0, 142) /300
Spark plug Standard type PLFR5A-11
Hot type PLFR4A-11
Cold type PLFR6A-11
2006

QUICK REFERENCE CHART M35/M45
ENGINE TUNE-UP DATA (VK45DE)
FRONT WHEEL ALIGNMENT (Unladen* )
ELS0003X
Engine modelVK45DE
Firing order1-8-7-3-6-5-4-2
Idle speed
A/T (In “P” or “N” position) rpm650
50
Ignition timing
(BTDC at idle speed)12
5
CO% at idle 0.7 - 9.9% and engine runs smoothly
Tensions of drive belts Auto adjustment by auto tensioner
Radiator cap relief pressure
kPa (kg/cm
2 , psi)
7 8 - 98 (0.8 - 1.0 , 11 - 14) Standard
Limit 59 (0.6, 9)
Cooling system leakage testing pressure
157 (1.6, 23)
kPa (kg/cm
2 , psi)
Compression pressure
kPa (kg/cm
2 , psi)/rpm
1,320 (13.5, 191) /300 Standard
Minimum 1,130 (11.5, 164) /300
Spark plug Standard type PLFR5A-11
Hot type PLFR4A-11
Cold type PLFR6A-11
Axle2WD AWD
Tire P245/45R18 245/40R19 245/45R18
Camber
Degree minute (Decimal degree)Minimum – 1
00 (– 1.00)
Nominal – 0
15 (– 0.25)
Maximum 0
30 (0.50)
Left and right difference 33
(0.55) or less
Caster
Degree minute (Decimal degree)Minimum 3
45 ( 3.75 ) 3 50 (3.83)3 05 ( 3.08 )
Nominal 4
30 ( 4.50 ) 4 35 (4.58)3 50 ( 3.83 )
Maximum 5
15 ( 5.25 ) 5 20 (5.33)4 35 ( 4.58 )
Left and right difference 39
(0.65) or less
Kingpin inclination
Degree minute (Decimal degree)Minimum 6
30 (6.50)
Nominal 7
15 (7.25)
Maximum 8
00 (8.00)
Total toe-inDistance (A – B)Minimum 0 mm (0 in)
Nominal 1 mm (0.04 in)
Maximum 2 mm (0.08 in)
Angle (left plus right)
Degree minute
(Degree)Minimum 0
(0)
Nominal 3
(0.05)
Maximum 6
(0.10)
2006

ACS-12
[ICC]
ACTION TEST
Revision: 2006 January2006 M35/M45
Check For Increase Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed increases by 1 MPH (1.6 km/h for CANADA models) as RESUME/ACCELERATE
switch is pushed up.
NOTE:
If the RESUME/ACCELERATE switch is kept pushing up during cruise control driving, the vehicle speed
increases until the switch is released.
The maximum set speed is 90 MPH (144 km/h for CANADA models).
Check For Decrease Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed decreases by 1 MPH (1.6 km/h for CANADA models) as SET/COAST switch is
pushed down.
NOTE:
Conventional (fixed speed) cruise control mode is automatically cancelled when the driving speed lowers
to 20 MPH (32 km/h for CANADA models).
The lowest set speed is 25 MPH (40 km/h for CANADA models).
Check For Cancellation Of Conventional (Fixed Speed) Cruise Control Mode (Normal Driving
Condition) In The Following Cases:
Refer to ACS-10, "Check For Cancellation Of Vehicle-To-Vehicle Distance Control Mode (Normal Driving Con-
dition) In The Following Cases:" .
Check For Restoring Speed That Is Set By Conventional (Fixed Speed) Cruise Control Mode
Before ICC Cancellation
Refer to ACS-10, "Check For Restoring Speed That Is Set By Vehicle-To-Vehicle Distance Control Mode
Before Cancellation" .
Check For MAIN Switch
1. Start engine. Then, check if the following operations are per-
formed correctly.
2. “CRUISE” lamp illuminates and dot matrix LCD goes off when
MAIN switch is pressed “ON” for more than 1.5 seconds, and
then ready for operation. The illumination goes off when MAIN
switch is turned to OFF.
3. “CRUISE” illumination go off when the ignition switch is turned to
OFF while MAIN switch is ON.
Check For RESUME/ACCELERATE, SET/COAST, CANCEL Switches
1. Check if RESUME/ACCELERATE, SET/COAST, CANCEL switches are operated smoothly.
2. Check if switches come up as hand is released from the switches.
PKIB5342J

ACS-16
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 January2006 M35/M45

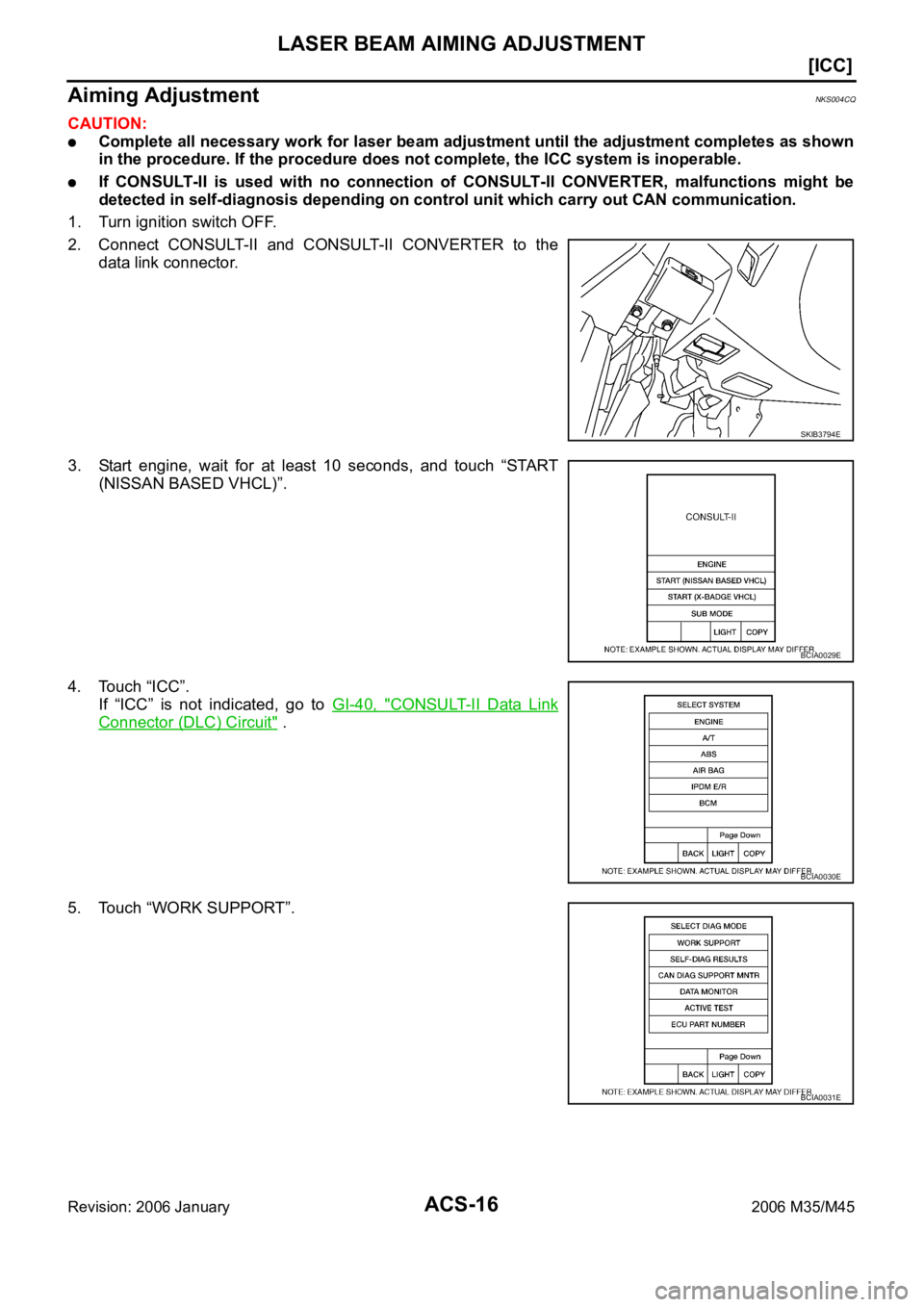

Aiming AdjustmentNKS004CQ
CAUTION:
Complete all necessary work for laser beam adjustment until the adjustment completes as shown
in the procedure. If the procedure does not complete, the ICC system is inoperable.
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
3. Start engine, wait for at least 10 seconds, and touch “START
(NISSAN BASED VHCL)”.
4. Touch “ICC”.
If “ICC” is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
5. Touch “WORK SUPPORT”.
SKIB3794E
BCIA0029E
BCIA0030E
BCIA0031E

ACS-26
[ICC]
TERMINALS AND REFERENCE VALUE
Revision: 2006 January2006 M35/M45
TERMINALS AND REFERENCE VALUEPFP:00000
Terminals and Reference Value for ICC Sensor Integrated UnitNKS004CU
Terminals
(Wire color)
ItemCondition
Voltage (V)
+–Ignition
switchOperation
1 (G/B)
GroundIgnition switch ON or START ON — Battery voltage
2 (G) Stop lamp drive output signal ONAt “STOP LAMP” test on
“ACTIVE TEST”Approx.12
— Approx. 0
3 (L) CAN
H———
4 (B/Y) Ground ON — Approx. 0
6 (P) CAN
L — — —

ACS-28
[ICC]
TROUBLE DIAGNOSIS - GENERAL DESCRIPTION
Revision: 2006 January2006 M35/M45
CONSULT-II Function (ICC)NKS004CX
DESCRIPTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “ICC” on “SELECT SYSTEM” screen.
If “ICC” is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
Test mode Function Reference page
WORK SUPPORT
Monitors aiming direction to facilitate laser beam aiming operation.
Indicates causes of automatic cancellation of the ICC system.ACS-29
SELF-DIAGNOSTIC RESULTS Displays malfunctioning system memorized in ICC sensor integrated unit.ACS-30
DATA MONITOR Displays real-time input/output data of ICC sensor integrated unit.ACS-30
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of CAN communication can be read.LAN-20
ACTIVE TEST Enables operation check of electrical loads by sending driving signal to them.ACS-33
ECU PART NUMBER Displays part number of ICC sensor integrated unit. —
SKIB3794E
BCIA0029E
BCIA0030E

TROUBLE DIAGNOSIS - GENERAL DESCRIPTION
ACS-29
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45
6. Touch any of “WORK SUPPORT”, “SELF-DIAG RESULTS”,
“DATA MONITOR”, “CAN DIAG SUPPORT MNTR”, “ACTIVE
TEST” and “ECU PART NUMBER” on selection screen.
WORK SUPPORT
Work Item
Cause of Auto-Cancel
1. Touch “WORK SUPPORT” on the “SELECT DIAG MODE”
screen.
2. Touch “CAUSE OF AUTO-CANCEL” on the “SELECT WORK
ITEM” screen.
3. Cause of automatic cancellation screen will be shown.
NOTE:
Last five cancel (system cancel) causes are displayed.
“CAUSE OF AUTO-CANCEL” displays times of ignition switch
ON/OFF up to 254 maximum. 254 is kept though the number
exceeds 254. The number returns to 0 when detecting the
same cancellation causes.
BCIA0031E
Operation Function
CAUSE OF AUTO-CANCEL Indicates causes of automatic cancellation of the ICC system.
LASER BEAM ADJUST Outputs laser beam, calculates dislocation of the beam, and indicates adjustment direction.
SKIA6191E

ACS-34
[ICC]
TROUBLE DIAGNOSIS - GENERAL DESCRIPTION
Revision: 2006 January2006 M35/M45
Self-Diagnostic FunctionNKS004CY
WITH CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-10, "ACTION
TEST" .
2. Stop vehicle, turn ignition switch OFF, then connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.
3. With engine started, touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULTS” on CON-
SULT-II screen in this order.
CAUTION:
If “ICC” cannot be shown after several attempts, the ICC sensor integrated unit may have had mal-
function. Repair or replace it. Refer to GI-40, "
CONSULT-II Data Link Connector (DLC) Circuit" .
4. “DTC RESULTS” and “TIME” are indicated on “SELF-DIAG RESULTS”. “TIME” is used as a reference
data of diagnosis. It shows when malfunction is detected.
NOTE:
“TIME” shows the following.
0: malfunction is detected at present (from malfunction detection to ignition switch OFF).
CAN communication ([U1000], [U1010])
1 ~ 39: Displays when it is normal at present and finds malfunction in the past. It increases like
0
12...3839 after returning to the normal condition whenever IGN OFFON. If it is over 39, it is
fixed to 39 until the self-diagnostic results are erased. It returns to 0 when malfunction is detected again
in the process.
Other than CAN communication (other than [U1000], [U1010])
1 ~ 49: Displays when it is normal at present and finds malfunction in the past. It increases like
0
12...4849 after returning to the normal condition whenever IGN OFFON. If it is over 49, it is
fixed to 49 until the self-diagnostic results are erased. It returns to 0 when malfunction is detected again
in the process.
If “NO DTC...” is shown, check ICC system warning lamp. If any malfunction is indicated, GO TO step 5.
5. According to ACS-39, "
Diagnostic Trouble Code (DTC) Chart" , perform appropriate check, and repair or
replace malfunctioning part as necessary.
6. Turn ignition switch OFF.
7. Start engine and touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULTS” and “ERASE”
on CONSULT-II display in turn to erase the memory.
CAUTION:
If the memory does not erase, go to 5.
8. Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC system
warning lamp does not illuminate.
WITHOUT CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-10, "ACTION
TEST" .
2. Stop the vehicle and turn ignition switch OFF.
3. Start engine.
4. From 5 seconds through 15 seconds after start engine, press
RESUME/ACCELERATE switch 5 times, and SET/COAST
switch 5 times.
CAUTION:
Never turn the MAIN switch ON.
When operation above is not completed from 5 seconds
through 15 seconds, start again from above go to 3.
If self-diagnosis mode cannot be started after several
attempts, the ICC sensor integrated unit may have had
malfunction. Repair or replace it. Refer to ACS-36, "
SELF-
DIAGNOSIS BY DOT MATRIX LCD WILL NOT RUN" .PKIB8371E

TROUBLE DIAGNOSIS - GENERAL DESCRIPTION
ACS-35
[ICC]
C
D
E
F
G
H
I
J
L
MA
B
ACS
Revision: 2006 January2006 M35/M45
5. When self-diagnosis mode is started, DTC are shown on set vehicle speed indicator.
CAUTION:
DTC will disappear after 5 minutes.
When more than one malfunction is detected, a maximum of 3 code numbers can be stored; the
latest malfunction will be displayed first.
6. Check ACS-39, "
Diagnostic Trouble Code (DTC) Chart" , and repair or replace if necessary.
7. After repair, erase DTC stored in the ICC sensor integrated unit.
8. DTC 55 will be shown.
9. Turn ignition switch OFF to exit the diagnosis.
10. Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC system
warning lamp (Orange) does not illuminate.
Self-Diagnostic Erasing Method
1. Stop the vehicle and turn ignition switch OFF.
2. Start engine and start self-diagnosis.
3. During self-diagnosis mode, press CANCEL switch 5 times, and
DISTANCE switch 5 times in this order.
CAUTION:
Press them within 10 seconds after pressing CANCEL
switch at first.
When operation is not completed within 10 seconds, start
again from step 2 above.
4. DTC 55 will be shown.
CAUTION:
DTC of an existing malfunction will not be erased.
5. Turn ignition switch OFF to exit the diagnosis.
6. Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC system
warning lamp (Orange) does not illuminate.
PKIB8372E
PKIB8373E

ACS-36
[ICC]
TROUBLE DIAGNOSIS - GENERAL DESCRIPTION
Revision: 2006 January2006 M35/M45
SELF-DIAGNOSIS BY DOT MATRIX LCD WILL NOT RUN
Possible Irregular Condition
1. CHECK FUSE
Check if the fuse is blown.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
2. CHECK ICC SYSTEM DISPLAY
Check if dot matrix LCD in the combination meter illuminates. Refer to DI-17, "
Self-Diagnosis Mode of Combi-
nation Meter" .
OK or NG
OK >> GO TO 3.
NG >> Check combination meter. Refer to DI-18, "
HOW TO PERFORM TROUBLE DIAGNOSIS" .
PKIB8374E
Open or short lines Symptoms Malfunction causes
ICC sensor integrated unit power supply
malfunctionNo voltage supply from ignition switch Fuse blown.
Harness open.
Harness shorted.
Ground cable not connected Harness open.
Harness shorted.
ICC steering switch malfunction No signal transmitted Harness open.
Harness shorted.
Spiral cable open.
Spiral cable shorted.
ICC steering switch or ECM malfunction.
CAN communication system malfunction Signal not transmitted Harness open.
Harness shorted.
CAN communication malfunction.
Combination meter system malfunction Indication not possible Combination meter malfunction.
Unified meter and A/C amp. malfunction.
Dot matrix LCD malfunction.
ICC sensor integrated unit malfunctionICC sensor integrated unit internal mal-
function.
Unit Power source Fuse No.
ICC sensor integrated unit Ignition switch ON or START 82
