CYLINDER HEAD
EM-109
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Valve Guide Clearance
(Valve guide clearance) = (Valve guide inner diameter) – (Valve stem diameter)
If the calculated value exceeds the limit, replace valve and/or valve guide. When valve guide must be
replaced, refer to EM-109, "
VALVE GUIDE REPLACEMENT" .
VALVE GUIDE REPLACEMENT
When valve guide is removed, replace with oversized [0.2 mm (0.008 in)] valve guide.
1. To remove valve guide, heat cylinder head to 110 to 130
C (230
to 266
F) by soaking in heated oil.
2. Drive out valve guide with a press [under a 20 kN (2 ton, 2.2 US
ton, 2.0 lmp ton) pressure] or a hammer and the valve guide drift
(commercial service tool).
WAR NING :
Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.
3. Using the valve guide reamer (commercial service tool), ream
cylinder head valve guide hole.Standard
Intake and Exhaust : 6.000 - 6.018 mm (0.2362 - 0.2369 in)
Valve guide clearance:
Standard
Intake : 0.020 - 0.053 mm (0.0008 - 0.0021 in)
Exhaust : 0.030 - 0.063 mm (0.0012 - 0.0025 in)
Limit
Intake : 0.08 mm (0.003 in)
Exhaust : 0.10 mm (0.004 in)
SEM008A
SEM931C
Valve guide hole diameter (for service parts):
Intake and exhaust
: 10.175 - 10.196 mm (0.4006 - 0.4014 in)
SEM932C

EM-110
[VQ35DE]
CYLINDER HEAD
Revision: 2006 January2006 M35/M45
4. Heat cylinder head to 110 to 130C (230 to 266F) by soaking in
heated oil.
5. Using the valve guide drift (commercial service tool), press valve
guide from camshaft side to the dimensions as in the figure.
WA R N I N G :
Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.
6. Using the valve guide reamer (commercial service tool), apply
reamer finish to valve guide.
VALVE SEAT CONTACT
After confirming that the dimensions of valve guides and valves
are within the specifications, perform this procedure.
Apply prussian blue (or white lead) onto contacting surface of
valve seat to check the condition of the valve contact on the sur-
face.
Check if the contact area band is continuous all around the cir-
cumference.
If not, grind to adjust valve fitting and check again. If the contact-
ing surface still has “NG” conditions even after the re-check,
replace valve seat. Refer to EM-110, "
VALVE SEAT REPLACE-
MENT" .
VALVE SEAT REPLACEMENT
When valve seat is removed, replace with oversized [0.5 mm (0.020 in)] valve seat.
1. Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat recess
in cylinder head. Set the machine depth stop to ensure this. Refer to EM-156, "
Va l v e S e a t" .
CAUTION:
Prevent to scratch cylinder head by excessive boring.
SEM008A
Projection “L”
Intake and exhaust
: 12.6 - 12.8 mm (0.496 - 0.504 in)
SEM950E
Standard:
Intake and exhaust
: 6.000 - 6.018 mm (0.2362 - 0.2369 in)
SEM932C
SBIA0322E

CYLINDER HEAD
EM-111
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
2. Ream cylinder head recess diameter for service valve seat.
Be sure to ream in circles concentric to valve guide center.
This will enable valve to fit correctly.
3. Heat cylinder head to 110 to 130
C (230 to 266F) by soaking in
heated oil.
4. Provide valve seats cooled well with dry ice. Force fit valve seat into cylinder head.
WAR NING :
Cylinder head contains heat. When working, wear protective equipment to avoid getting burned.
CAUTION:
Avoid directly touching cold valve seats.
5. Using the valve seat cutter set (commercial service tool) or valve
seat grinder, finish seat to the specified dimensions. Refer to
EM-156, "
Va l v e S e a t" .
CAUTION:
When using the valve seat cutter, firmly grip cutter handle
with both hands. Then, press on the contacting surface all
around the circumference to cut in a single drive. Improper
pressure on with cutter or cutting many different times may
result in stage valve seat.
6. Using compound, grind to adjust valve fitting.
7. Check again for normal contact. Refer to EM-110, "
VA LV E S E AT C O N TA C T" .
VALVE SPRING SQUARENESS
Set a try square along the side of valve spring and rotate spring.
Measure the maximum clearance between the top of spring and
try square.
If it exceeds the limit, replace valve spring.Oversize [0.5 mm (0.020 in)]
Intake : 38.500 - 38.516 mm (1.5157 - 1.5164 in)
Exhaust : 32.700 - 32.716 mm (1.2874 - 1.2880 in)
SEM795A
SEM008A
SEM934C
Limit : 2.1 mm (0.083 in)
PBIC0080E

ENGINE ASSEMBLY
EM-115
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Vehicle Underbody
1. Remove A/T fluid cooler hoses and power steering oil pump oil cooler hoses.
Install plug to avoid leakage of A/T fluid and power steering fluid.
2. Disconnect heated oxygen sensor 2 harness.
3. Remove three way catalyst and exhaust front tube. Refer to EX-3, "
EXHAUST SYSTEM" .
4. Disconnect steering lower joint at power steering gear assembly side, and release steering lower shaft.
Refer to PS-13, "
STEERING COLUMN" .
5. Remove rear propeller shaft. Refer to PR-6, "
REAR PROPELLER SHAFT" .
6. Disengage A/T control rod at control device assembly side. Then, temporarily secure it on the transmis-
sion assembly, so that it does not sag. Refer to AT- 2 2 2 , "
SHIFT CONTROL SYSTEM" .
7. Remove rear plate cover from oil pan (upper). Then remove bolts fixing drive plate to torque converter.
Refer to EM-29, "
OIL PAN AND OIL STRAINER" and AT- 2 7 1 , "TRANSMISSION ASSEMBLY" .
8. Remove transmission joint bolts which pierce at oil pan (upper) lower rear side. Refer to AT- 2 7 1 , "
TRANS-
MISSION ASSEMBLY" .
9. Remove front stabilizer at transverse link side. Refer to FSU-18, "
STABILIZER BAR" .
10. Remove lower ends of left and right strut from transverse link. Refer to FSU-6, "
FRONT SUSPENSION
ASSEMBLY" .
11. Separate steering outer sockets from steering knuckle. Refer to PS-18, "
POWER STEERING GEAR" .
12. Remove transverse links mounting bolts at knuckle side. Refer to FSU-14, "
TRANSVERSE LINK" .
Removal Work
1. Use a manual lift table caddy (commercial service tool) or equiv-
alently rigid tool such as a transmission jack. Securely support
bottom of suspension member and the transmission assembly.
CAUTION:
Put a piece of wood or something similar as the supporting
surface, secure a completely stable condition.
2. Remove rear engine mounting member bolts.
3. Remove front suspension member mounting bolts and nuts. Refer to FSU-6, "
FRONT SUSPENSION
ASSEMBLY" .
4. Carefully lower jack, or raise lift to remove the engine, the transmission assembly and front suspension
member. When performing work, observe the following caution:
CAUTION:
Confirm there is no interference with the vehicle.
Make sure that all connection points have been disconnected.
Keep in mind the center of vehicle gravity changes. If necessary, use jack(s) to support the vehi-
cle at rear jacking point(s) to prevent it from falling it off the lift.
Separation Work
1. Install engine slingers into front of cylinder head (right bank) and
rear of cylinder head (left bank).
PBIC0804E
Slinger bolts:
: 28.0 Nꞏm (2.9 kg-m, 21 ft-lb)
PBIC2061E

EM-120
[VQ35DE]
ENGINE ASSEMBLY
Revision: 2006 January2006 M35/M45
1. Remove passenger-side kicking plate, dash side finisher, and glove box. Refer to EI-37, "BODY SIDE
TRIM" and IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Disconnect engine room harness connectors at unit sides TCM, ECM and other.
3. Disengage intermediate fixing point. Pull out engine room harnesses to engine room side, and temporarily
secure them on engine.
CAUTION:
When pulling out harnesses, take care not to damage harnesses and connectors.
After temporarily securing, cover connectors with vinyl or similar material to protect against for-
eign material adhesion.
Vehicle Underbody
1. Remove A/T fluid cooler hoses and power steering oil pump oil cooler hoses.
Install plug to avoid leakage of A/T fluid and power steering fluid.
2. Disconnect heated oxygen sensor 2 harness. Refer to EX-3, "
EXHAUST SYSTEM" .
3. Remove three way catalyst and exhaust front tube. Refer to EX-3, "
EXHAUST SYSTEM" .
4. Disconnect steering lower joint at power steering gear assembly side, and release steering lower shaft.
Refer to PS-13, "
STEERING COLUMN" .
5. Remove rear propeller shaft. Refer to PR-6, "
REAR PROPELLER SHAFT" .
6. Remove front drive shaft (both side). Refer to FAX-8, "
FRONT DRIVE SHAFT" .
7. Disconnect harness connector from transmission assembly and transfer assembly.
8. Disengage A/T control rod at control device assembly side. Then, temporarily secure it on the transmis-
sion assembly, so that it does not sag. Refer to AT-222, "
SHIFT CONTROL SYSTEM" .
9. Remove rear plate cover from oil pan (upper). Then remove bolts fixing drive plate to torque converter.
Refer to EM-29, "
OIL PAN AND OIL STRAINER" and AT-271, "TRANSMISSION ASSEMBLY" .
10. Remove bolts fixing the transmission assembly to lower rear side of oil pan (upper). Refer to AT- 2 7 1 ,
"TRANSMISSION ASSEMBLY" .
11. Remove front stabilizer at transverse link side. Refer to FSU-18, "
STABILIZER BAR" .
12. Remove lower ends of left and right strut from transverse link. Refer to FSU-23, "
FRONT SUSPENSION
ASSEMBLY" .
13. Separate steering outer sockets from steering knuckle. Refer to PS-18, "
POWER STEERING GEAR" .
14. Remove transverse links mounting bolts at knuckle side. Refer to FSU-31, "
TRANSVERSE LINK" .
Removal Work
1. Use a manual lift table caddy (commercial service tool) or equiv-
alently rigid tool such as a transmission jack. Securely support
bottom of suspension member and transmission.
CAUTION:
Put a piece of wood or something similar as the supporting
surface, secure a completely stable condition.
2. Remove rear engine mounting member bolts.
3. Remove front suspension member mounting bolts and nuts. Refer to FSU-23, "
FRONT SUSPENSION
ASSEMBLY" .
4. Carefully lower jack, or raise lift to remove the engine, transmission assembly, transfer, front final drive
assembly and front suspension member. When performing work, observe the following caution:
CAUTION:
Confirm there is no interference with the vehicle.
Make sure that all connection points have been disconnected.
Keep in mind the center of the vehicle gravity changes. If necessary, use jack(s) to support the
vehicle at rear jacking point(s) to prevent it from falling it off the lift.
PBIC0804E

CYLINDER BLOCK
EM-127
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
b. Remove connecting rod bearing cap.
c. Using a hammer handle or similar tool, push piston and connect-
ing rod assembly out to the cylinder head side.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod big
end.
12. Remove connecting rod bearings from connecting rod and connecting rod bearing cap.
CAUTION:
Be careful not to drop connecting rod bearing, and to scratch the surface.
Identify installation positions, and store them without mixing them up.
13. Remove piston rings form piston.
Before removing piston rings, check the piston ring side clearance. Refer to EM-141, "PISTON RING
SIDE CLEARANCE" .
Use a piston ring expander (commercial service tool).
CAUTION:
When removing piston rings, be careful not to damage
piston.
Be careful not to damage piston rings by expanding them
excessively.
14. Remove piston from connecting rod as follows:
a. Using a snap ring pliers, remove snap rings.
b. Heat piston to 60 to 70
C (140 to 158F) with an industrial use
drier or equivalent.
EMQ0191D
PBIC0087E
PBIC1638E
PBIC1639E

CYLINDER BLOCK
EM-131
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
8. Install main bearing cap bolts in numerical order as shown in the
figure as follows:
a. Inspect the outer diameter of main bearing cap bolt. Refer to
EM-148, "
MAIN BEARING CAP BOLT OUTER DIAMETER" .
b. Apply new engine oil to threads and seat surfaces of main bear-
ing cap bolts.
c. Tighten main bearing cap bolts in several different steps.
d. Turn all main bearing cap bolts 90 degrees clockwise (Angle
tightening).
CAUTION:
Use the angle wrench [SST: KV10112100 (BT8653-A)] to
check tightening angle. Do not make judgment by visual
inspection.
After installing main bearing cap bolts, make sure that crank-
shaft can be rotated smoothly by hand.
Check the crankshaft end play. Refer to EM-140, "CRANK-
SHAFT END PLAY" .
9. Install piston to connecting rod as follows:
a. Using a snap ring pliers, install new snap ring to the groove of piston rear side.
Insert it fully into groove to install.
b. Install piston to connecting rod.
Using an industrial use drier or similar tool, heat piston until piston pin can be pushed in by hand without
excess force [approx. 60 to 70
C (140 to 158F)]. From the front to the rear, insert piston pin into piston
and connecting rod.
Assemble so that the front mark on the piston head and the
cylinder number on connecting rod are positioned as shown in
the figure.
c. Install new snap ring to the groove of the piston front side.
Insert it fully into groove to install.
After installing, make sure that connecting rod moves
smoothly.
10. Using a piston ring expander (commercial service tool), install
piston rings.
CAUTION:
When installing piston rings, be careful not to damage
piston.
Be careful not to damage piston rings by expending them
excessively.: 35.3 Nꞏm (3.6 kg-m, 26 ft-lb)
PBIC1800E
PBIC0921E
SEM838F
PBIC0087E

CYLINDER BLOCK
EM-135
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
How to Select Piston and Bearing NBS004O2
DESCRIPTION
*: For the service parts, the grade for fitting cannot be selected between piston pin and connecting rod. (Only “0” grade is available.) The
information at the shipment from the plant is described as a reference.
The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.
For details of the measurement method of each part, the reuse standards and the selection method of the
selective fitting parts, refer to the text.
HOW TO SELECT PISTON
When New Cylinder Block is Used

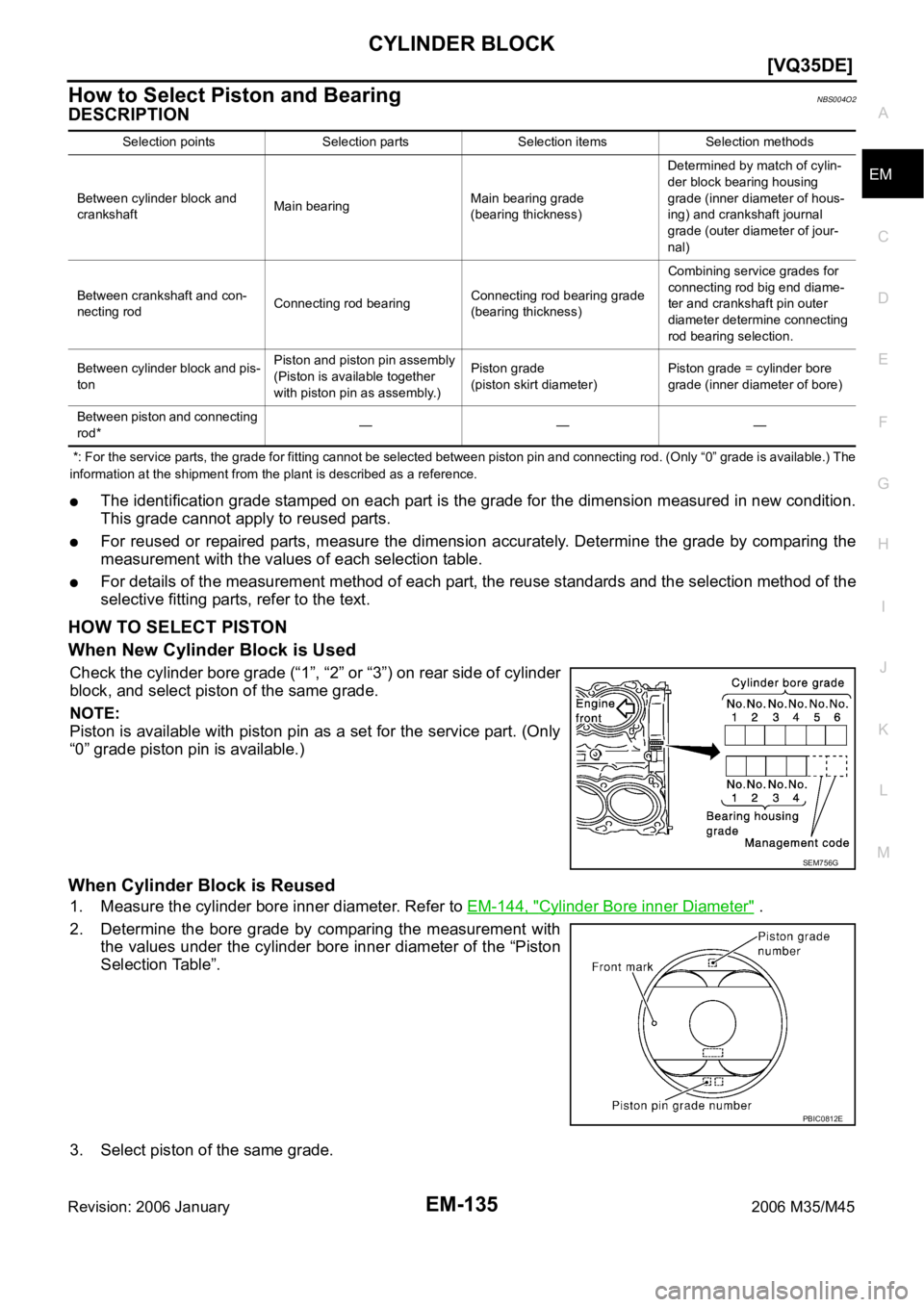

Check the cylinder bore grade (“1”, “2” or “3”) on rear side of cylinder
block, and select piston of the same grade.
NOTE:
Piston is available with piston pin as a set for the service part. (Only
“0” grade piston pin is available.)
When Cylinder Block is Reused
1. Measure the cylinder bore inner diameter. Refer to EM-144, "Cylinder Bore inner Diameter" .
2. Determine the bore grade by comparing the measurement with
the values under the cylinder bore inner diameter of the “Piston
Selection Table”.
3. Select piston of the same grade.
Selection points Selection parts Selection items Selection methods
Between cylinder block and
crankshaftMain bearingMain bearing grade
(bearing thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft and con-
necting rodConnecting rod bearingConnecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod big end diame-
ter and crankshaft pin outer
diameter determine connecting
rod bearing selection.
Between cylinder block and pis-
tonPiston and piston pin assembly
(Piston is available together
with piston pin as assembly.)Piston grade
(piston skirt diameter)Piston grade = cylinder bore
grade (inner diameter of bore)
Between piston and connecting
rod*———
SEM756G
PBIC0812E

EM-136
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
Piston Selection Table
Unit: mm (in)
NOTE:
Piston is available together with piston pin as assembly.
Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no
piston pin grades can be selected. (Only “0” grade is available.)
No second grade mark is available on piston.
HOW TO SELECT CONNECTING ROD BEARING
When New Connecting Rod and Crankshaft are Used
Check pin diameter grade (“0”, “1” or “2”) on front of crankshaft, and
select connecting rod bearing of the same grade.
NOTE:
There is no grading for connecting rod big end diameter.
When Crankshaft and Connecting Rod are Reused
1. Measure the connecting rod big end diameter. Refer to EM-142, "CONNECTING ROD BIG END DIAME-
TER" .
2. Make sure that the connecting rod big end diameter is within the standard value.
3. Measure the crankshaft pin journal diameter. Refer to EM-146, "
CRANKSHAFT PIN JOURNAL DIAME-
TER" .
4. Determine the grade of crankshaft pin diameter grade by corresponding to the measured dimension in
“Crankshaft pin journal diameter” column of “Connecting Rod Bearing Selection Table”.
5. Select connecting rod bearing of the same grade.
Connecting Rod Bearing Selection Table
Unit: mm (in)
Unit: mm (in)
Undersize Bearings Usage Guide
When the specified connecting rod bearing oil clearance is not obtained with standard size connecting rod
bearings, use undersize (US) bearings.
When using undersize (US) bearing, measure the connecting rod bearing inner diameter with bearing
installed, and grind crankshaft pin so that the connecting rod bearing oil clearance satisfies the standard.
Grade 1 2 (or no mark) 3
Cylinder bore inner diameter95.500 - 95.510
(3.7598 - 3.7602)95.510 - 95.520
(3.7602- 3.7606)95.520 - 95.530
(3.7606 - 3.7610)
Piston skirt diameter95.480 - 95.490
(3.7590 - 3.7594)95.490 - 95.500
(3.7594 - 3.7598)95.500 - 95.510
(3.7598 - 3.7602)
SEM452G
Connecting rod big end diameter 55.000 - 55.013 (2.1654 - 2.1659)
Crankshaft Connecting rod bearing
Crankshaft pin journal diameter Grade (Mark) Dimension (Bearing thickness range) Bearing grade No. Color
51.968 - 51.974 (2.0460 - 2.0462) 0 1.500 - 1.503 (0.0591 - 0.0592) STD 0 Black
51.962 - 51.968 (2.0457 - 2.0460) 1 1.503 - 1.506 (0.0592 - 0.0593) STD 1 Brown
51.956 - 51.962 (2.0455 - 2.0457) 2 1.506 - 1.509 (0.0593 - 0.0594) STD 2 Green

CYLINDER BLOCK
EM-141
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
When replacing piston and piston pin assembly, refer to EM-135, "HOW TO SELECT PISTON" .
NOTE:
Piston is available together with piston pin as assembly.
Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts,
no piston pin grades can be selected. (Only “0” grade is available.)
PISTON RING SIDE CLEARANCE
Measure the side clearance of piston ring and piston ring groove
with a feeler gauge.
If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
replace piston also.
PISTON RING END GAP
Make sure that the cylinder bore inner diameter is within the
specification. Refer to EM-144, "
Cylinder Bore inner Diameter" .
Lubricate with new engine oil to piston and piston ring, and then
insert piston ring until middle of cylinder with piston, and mea-
sure the piston ring end gap with a feeler gauge.
If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
re-bore cylinder and use oversize piston and piston rings.Standard:
Top ring : 0.045 - 0.080 mm (0.0018 - 0.0031 in)
2nd ring : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Oil ring : 0.065 - 0.135 mm (0.0026 - 0.0053 in)
Limit:

Top ring : 0.11 mm (0.0043 in)

2nd ring : 0.10 mm (0.004 in)
SEM024AA
Standard:
Top ring : 0.23 - 0.33 mm (0.0091 - 0.0130 in)
2nd ring : 0.33 - 0.48 mm (0.0130 - 0.0189 in)
Oil ring : 0.20 - 0.50 mm (0.0079 - 0.0197 in)
Limit:


Top ring : 0.54 mm (0.0213 in)


2nd ring : 0.80 mm (0.0315 in)
Oil ring : 0.95 mm (0.0374 in)
PBIC0118E
