13. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector terminals and ground.
OK or NG
OK >> GO TO 14.
NG >> Replace harness.
14. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check continuity between driver seat control unit harness con-
nector terminals.
OK or NG
OK >> GO TO 15.
NG >> Repair harness between driver seat control unit and har-
ness connector B202.
15. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between driver seat control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 16.
NG >> Repair harness between driver seat control unit and har-
ness connector B202.
Harness connector Terminal
GroundContinuity
B153No
19 No
PKIC0293E
Driver seat control
unit connectorTerminal Continuity
B204 3 19 No
PKIA6842E
Driver seat control
unit connectorTerminal
GroundContinuity
B2043No
19 No
SKIA5025E

CAN SYSTEM (TYPE 5)
LAN-273
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
16. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ABS actuator and electric unit (control unit) connector
–ICC sensor integrated unit connector
–IPDM E/R connector
2. Check continuity between IPDM E/R harness connector termi-
nals.
OK or NG
OK >> GO TO 17.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between IPDM E/R and harness connector
E105
Harness between IPDM E/R and ABS actuator and electric unit (control unit)
Harness between IPDM E/R and ICC sensor integrated unit
17. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector terminals
and ground.
OK or NG
OK >> GO TO 18.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between IPDM E/R and harness connector E105
Harness between IPDM E/R and ABS actuator and electric unit (control unit)
Harness between IPDM E/R and ICC sensor integrated unit
18. CHECK ECM AND IPDM E/R INTERNAL CIRCUIT
1. Remove ECM and IPDM E/R from vehicle.
2. Check resistance between ECM terminals.
3. Check resistance between IPDM E/R terminals.
OK or NG
OK >> GO TO 19.
NG >> Replace ECM and/or IPDM E/R.
IPDM E/R
connectorTerminal Continuity
E9 49 50 No
PKIC0290E
IPDM E/R
connectorTerminal
GroundContinuity
E949 No
50 No
PKIC0294E
Te r m i n a lResistance
(Approx.)
94 86 108 – 132
Te r m i n a lResistance
(Approx.)
49 50 108 – 132
LKIA0037E

LAN-274
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 January2006 M35/M45
19. CHECK SYMPTOM
1. Fill in described symptoms on the column “Symptom” in the check sheet.
2. Connect all connectors, and then make sure that the symptom is reproduced.
OK or NG
OK >> GO TO 20.
NG >> Refer to LAN-18, "
Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced"
.
20. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform reproducibility test.
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect the unit connector.
4. Connect the battery cable to the negative terminal.
5. Make sure that the symptom filled in the “Symptom” of the check sheet is reproduced. (Do not confuse it
with the symptom related to removed unit.)
6. Make sure that the same symptom is reproduced.
–A/T assembly
–AFS control unit
–BCM
–LDW camera unit
–Low tire pressure warning control unit
–Steering angle sensor
–Intelligent Key unit
–Unified meter and A/C amp.
–NAVI control unit
–Pre-crash seat belt control unit
–Driver seat control unit
–ABS actuator and electric unit (control unit)
–ICC sensor integrated unit
–ECM
–IPDM E/R
Check results
Reproduce>>Install removed unit, and then check the other unit.
Not reproduced>>Replace removed unit.
IPDM E/R Ignition Relay Circuit InspectionNKS00415
Check the following. If no malfunction is found, replace the IPDM E/R.
IPDM E/R power supply circuit. Refer to PG-30, "Check IPDM E/R Power Supply and Ground Circuit" .
Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY — IGNITION SW. IN “ON”
AND/OR “START”" .

CAN SYSTEM (TYPE 6)
LAN-275
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
CAN SYSTEM (TYPE 6)PFP:23710
Component Parts and Harness Connector LocationNKS00416

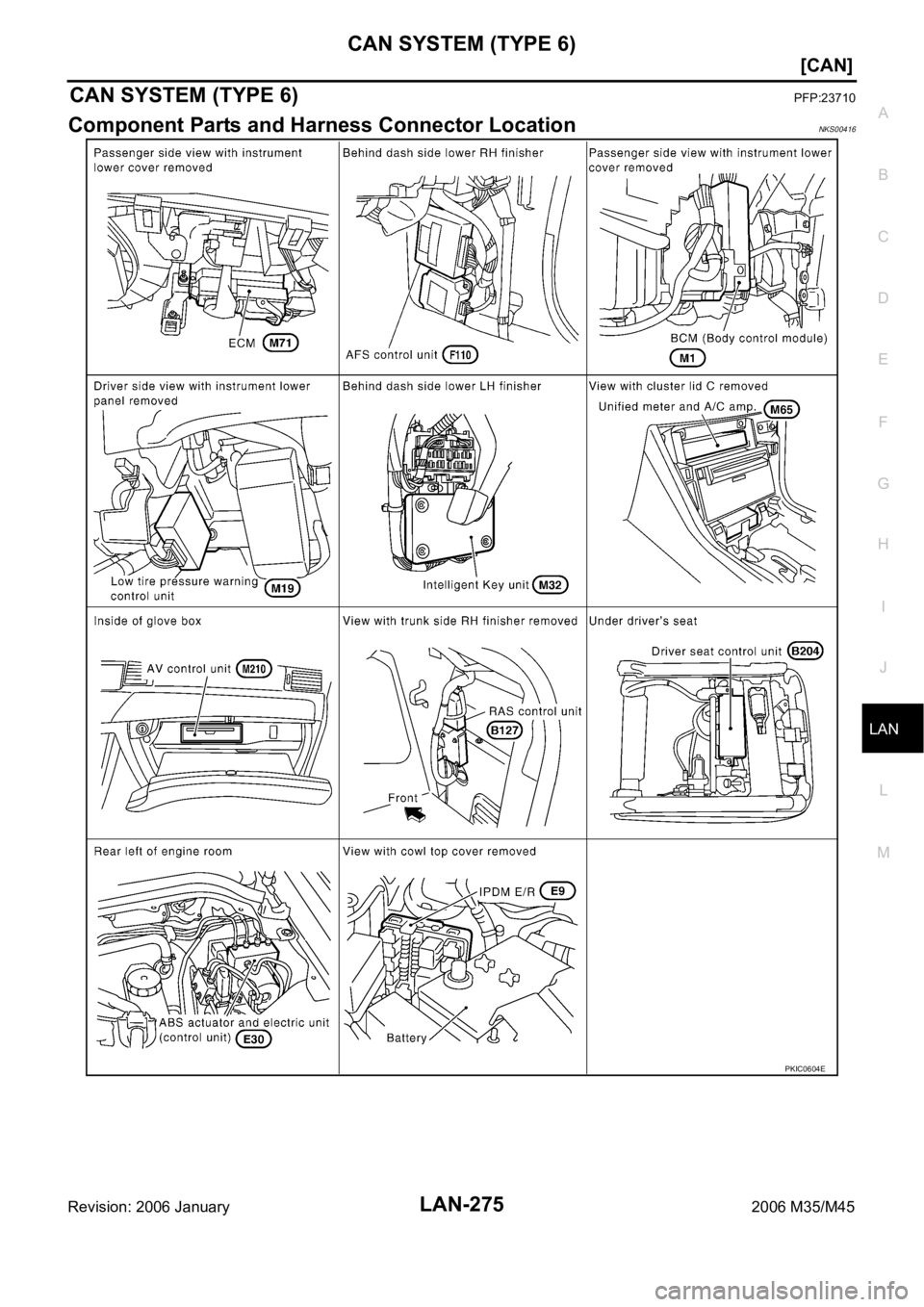

PKIC0604E

LAN-276
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 January2006 M35/M45
SchematicNKS00417

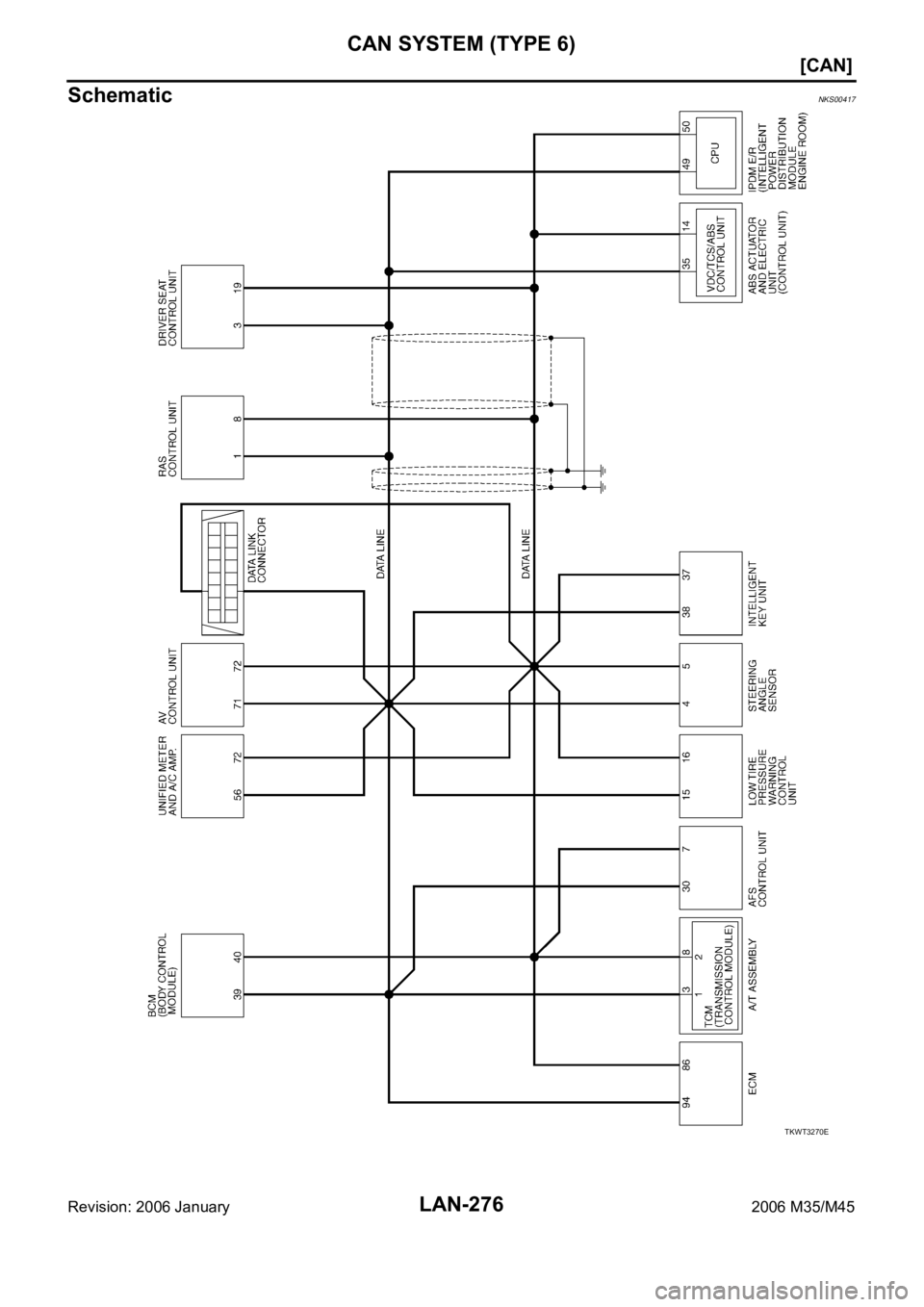

TKWT3270E

CAN SYSTEM (TYPE 6)
LAN-277
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Wiring Diagram — CAN —NKS00418
TKWT3271E

LAN-278
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 January2006 M35/M45

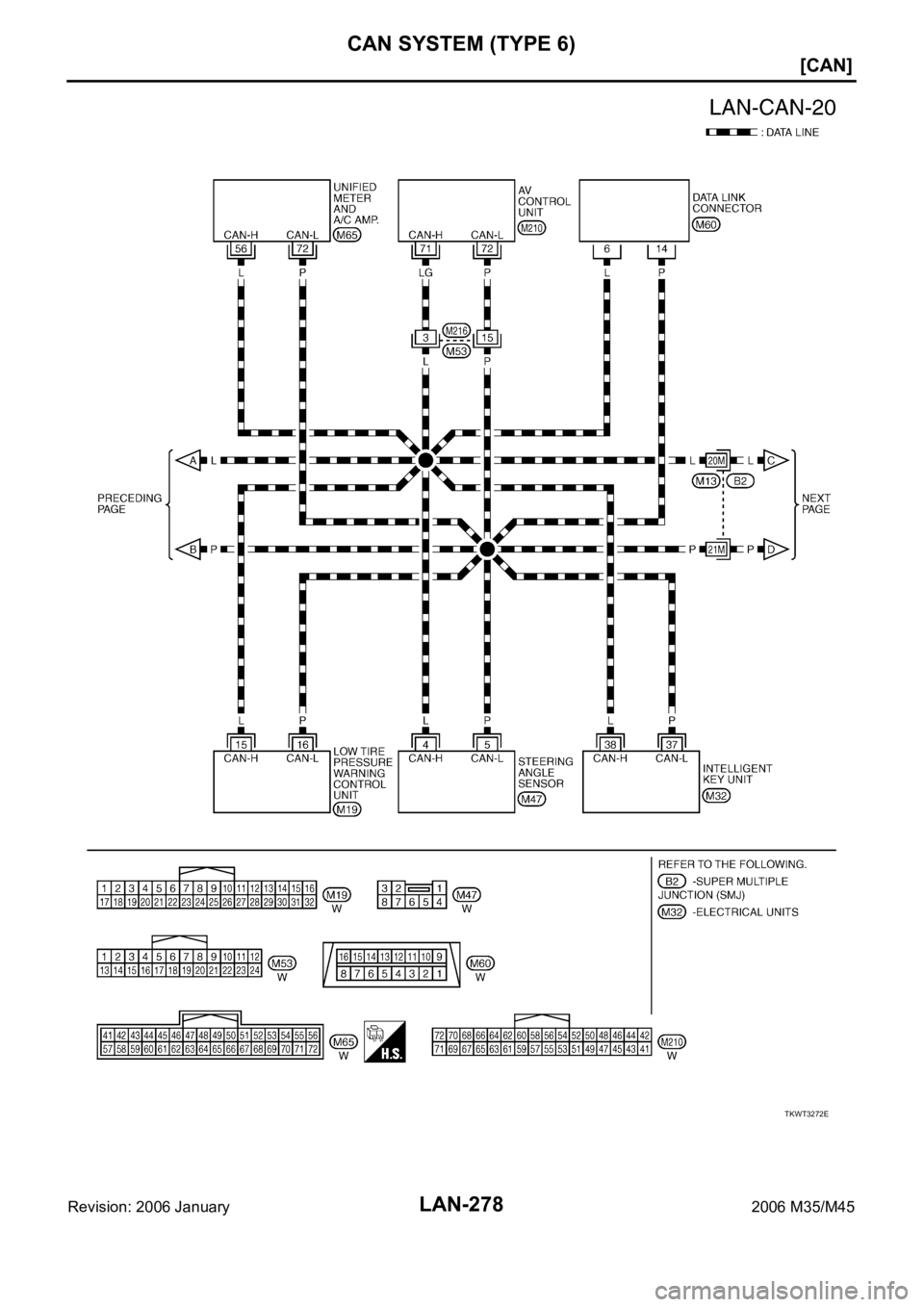

TKWT3272E

CAN SYSTEM (TYPE 6)
LAN-279
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

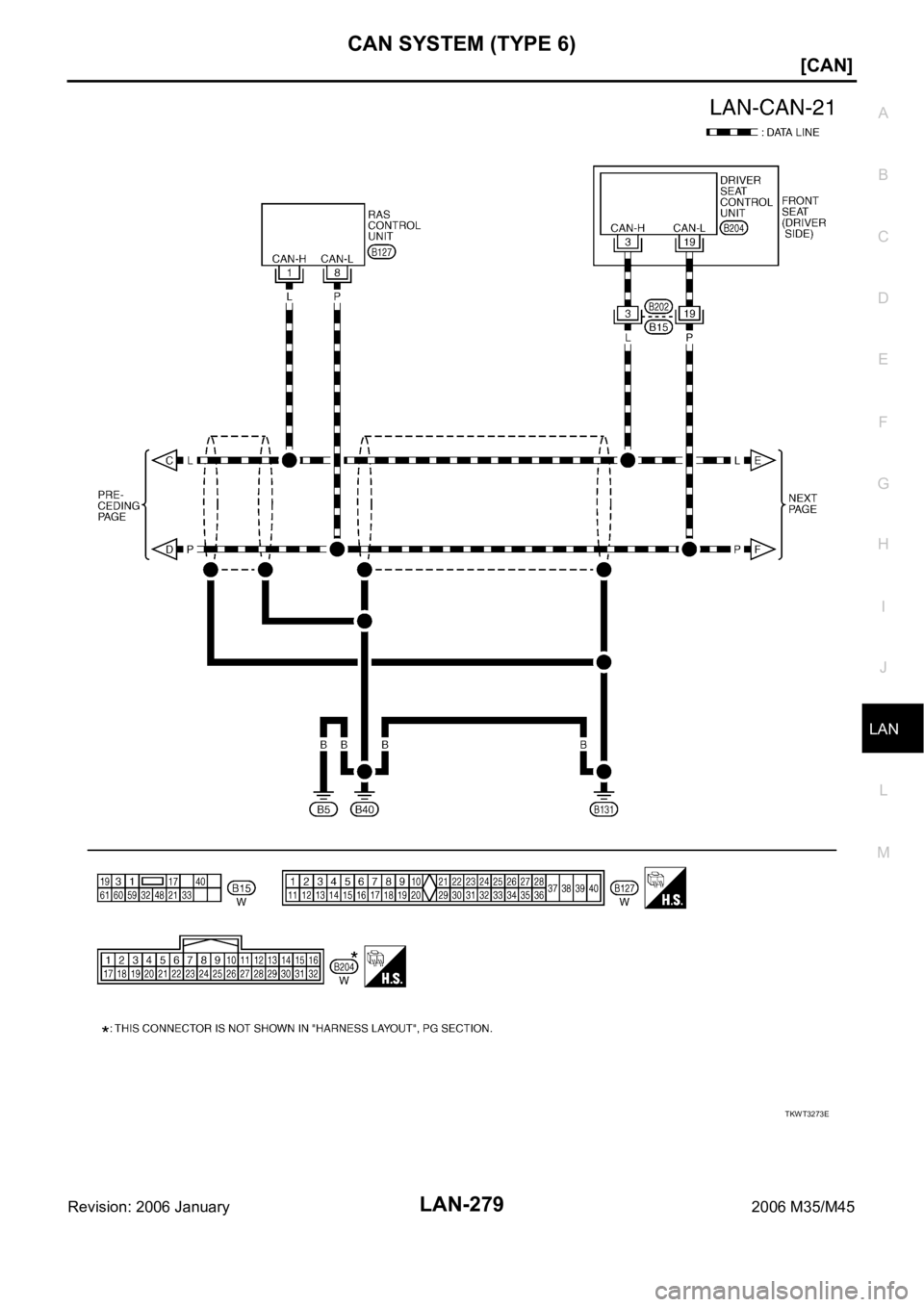

TKWT3273E

LAN-280
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 January2006 M35/M45

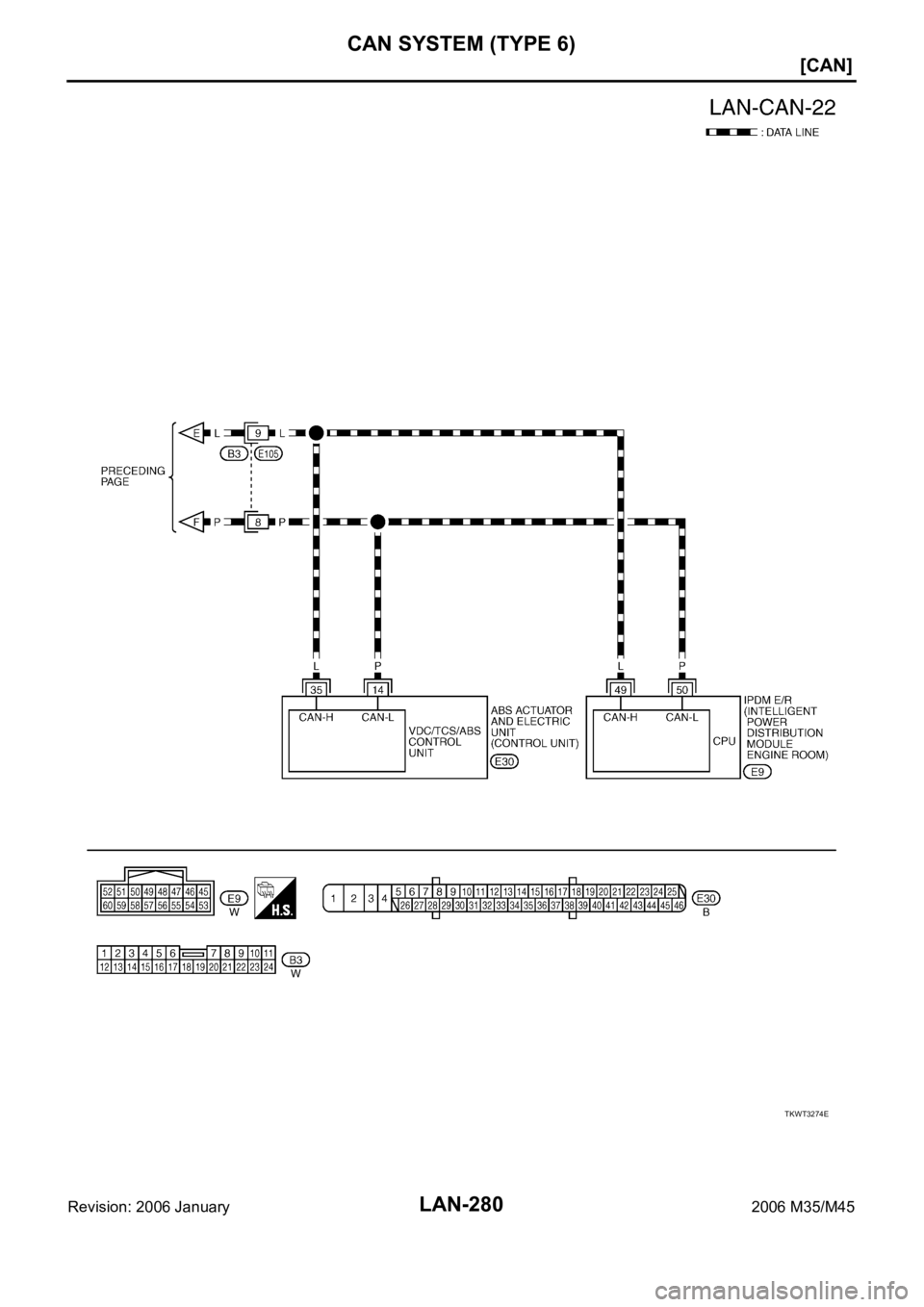

TKWT3274E

CAN SYSTEM (TYPE 6)
LAN-281
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Check SheetNKS00419
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB8446E
