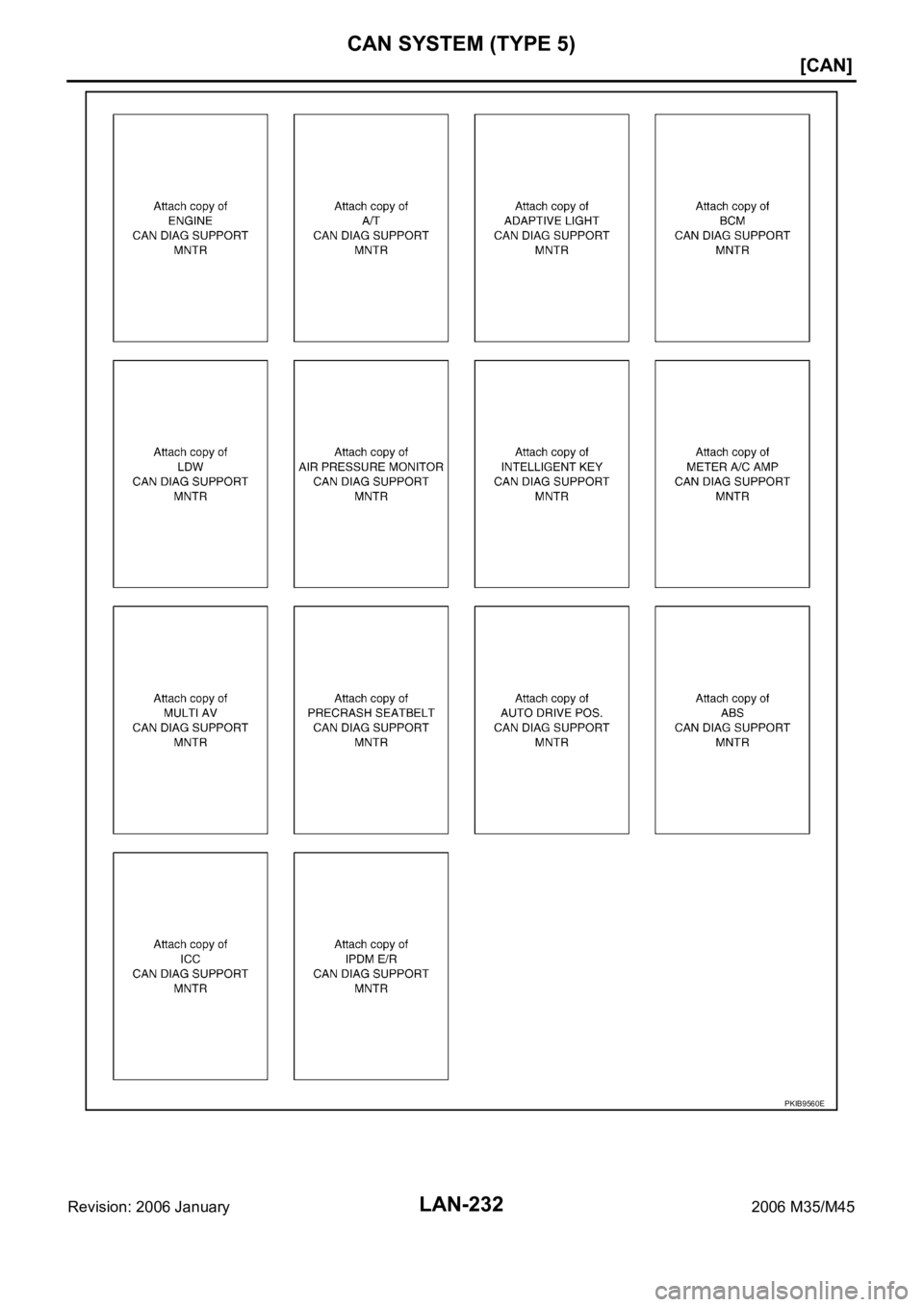

Page 3901 of 5621
LAN-232
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 January2006 M35/M45
PKIB9560E
Page 3902 of 5621
CAN SYSTEM (TYPE 5)
LAN-233
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-255, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB8422E
SKIB4163E
Page 3903 of 5621
LAN-234
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 January2006 M35/M45
Case 2
Check harness between data link connector and pre-crash seat belt control unit. Refer to LAN-256, "Inspec-
tion Between Data Link Connector and Pre-Crash Seat Belt Control Unit Circuit" .
PKIB8423E
SKIB4164E
Page 3904 of 5621
CAN SYSTEM (TYPE 5)
LAN-235
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 3
Check harness between pre-crash seat belt control unit and driver seat control unit. Refer to LAN-257,
"Inspection Between Pre-Crash Seat Belt Control Unit and Driver Seat Control Unit Circuit" .
PKIB8424E
SKIB4165E
Page 3905 of 5621
LAN-236
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 January2006 M35/M45
Case 4
Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN-
257, "Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIB8425E
SKIB4166E
Page 3906 of 5621
CAN SYSTEM (TYPE 5)
LAN-237
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 5
Check harness between ABS actuator and electric unit (control unit) and ICC sensor integrated unit. Refer to
LAN-258, "
Inspection Between ABS Actuator and Electric Unit and ICC Sensor Integrated Unit Circuit" .
PKIB8426E
SKIB4167E
Page 3907 of 5621
LAN-238
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 January2006 M35/M45
Case 6
Check ECM circuit. Refer to LAN-259, "ECM Circuit Inspection" .
PKIB8427E
SKIB4168E
Page 3908 of 5621
CAN SYSTEM (TYPE 5)
LAN-239
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 7
Check TCM circuit. Refer to LAN-259, "TCM Circuit Inspection" .
PKIB8428E
SKIB4169E
Page 3909 of 5621
LAN-240
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 January2006 M35/M45
Case 8
Check AFS control unit circuit. Refer to LAN-260, "AFS Control Unit Circuit Inspection" .
PKIB8429E
SKIB4170E
Page 3910 of 5621
CAN SYSTEM (TYPE 5)
LAN-241
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 9
Check BCM circuit. Refer to LAN-260, "BCM Circuit Inspection" .
PKIB8430E
SKIB4171E
