brake sensor INFINITI M35 2007 Factory Service Manual

EC-788
[VK45DE]
BASIC SERVICE PROCEDURE
Revision: 2007 April2007 M35/M45
Accelerator Pedal Released Position LearningNBS005AA
DESCRIPTION
Accelerator Pedal Released Position Learning is an operation to learn the fully released position of the accel-
erator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each time
harness connector of accelerator pedal position sensor or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Repeat steps 2 and 3 four times.
Throttle Valve Closed Position LearningNBS005AB
DESCRIPTION
Throttle Valve Closed Position Learning is an operation to learn the fully closed position of the throttle valve by
monitoring the throttle position sensor output signal. It must be performed each time harness connector of
electric throttle control actuator or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.
Idle Air Volume LearningNBS005AC
DESCRIPTION
Idle Air Volume Learning is an operation to learn the idle air volume that keeps each engine within the specific
range. It must be performed under any of the following conditions:

Each time electric throttle control actuator or ECM is replaced.

Idle speed or ignition timing is out of specification.
PREPARATION
Before performing Idle Air Volume Learning, make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.

Battery voltage: More than 12.9V (At idle)

Engine coolant temperature: 70 - 105°C (158 - 221°F)

PNP switch: ON

Electric load switch: OFF
(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, if the parking brake is applied before the engine
is started the headlamp will not be illuminated.

Steering wheel: Neutral (Straight-ahead position)

Vehicle speed: Stopped

Transmission: Warmed-up
–With CONSULT-II: Drive vehicle until “ATF TEMP SE 1” in “DATA MONITOR” mode of “A/T” system indi-
cates less than 0.9V.
–Without CONSULT-II: Drive vehicle for 10 minutes.
OPERATION PROCEDURE
With CONSULT-II
1. Perform EC-788, "Accelerator Pedal Released Position Learning" .
2. Perform EC-788, "
Throttle Valve Closed Position Learning" .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.

TROUBLE DIAGNOSIS
EC-799
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2
P0031 P0032 P0051 P0052 Air fuel ratio (A/F) sensor 1 heater

P0037 P0038 P0057 P0058 Heated oxygen sensor 2 heater

P0075 P0081 Intake valve timing control solenoid valve

P0130 P0131 P0132 P0133 P0150 P0151 P0152 P0153 P2A00 P2A03 Air fuel ratio (A/F) sensor 1

P0137 P0138 P0139 P0157 P0158 P0159 Heated oxygen sensor 2

P0441 EVAP control system purge flow monitoring

P0443 P0444 P0445 EVAP canister purge volume control solenoid valve

P0447 P0448 EVAP canister vent control valve

P0451 P0452 P0453 EVAP control system pressure sensor

P0550 Power steering pressure sensor

P0603 ECM power supply

P0710 P0717 P0720 P0740 P0744 P0745 P1730 P1752 P1754 P1757 P1759 P1762 P1764 P1767 P1769 P1772
P1774 A/T related sensors, solenoid valves and switches

P1140 P1145 Intake valve timing control position sensor

P1217 Engine over temperature (OVERHEAT)

P1220 Fuel pump control module

P1805 Brake switch

P2100 P2103 Throttle control motor relay

P2101 Electric throttle control function

P2118 Throttle control motor
3

P0011 P0021 Intake valve timing control

P0171 P0172 P0174 P0175 Fuel injection system function

P0300 - P0308 Misfire

P0420 P0430 Three way catalyst function

P0442 P0456 EVAP control system (SMALL LEAK, VERY SMALL LEAK)

P0455 EVAP control system (GROSS LEAK)

P0506 P0507 Idle speed control system

P1148 P1168 Closed loop control

P1211 TCS control unit

P1212 TCS communication line

P1564 ICC steering switch / ASCD steering switch

P1568 ICC command value

P1572 ICC brake switch / ASCD brake switch

P1574 ICC vehicle speed sensor / ASCD vehicle speed sensor

P1715 Turbine revolution sensor

P1800 VIAS control solenoid valve

P2119 Electric throttle control actuator Priority Detected items (DTC)

TROUBLE DIAGNOSIS
EC-805
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Engine Control Component Parts LocationNBS005AI
1. IPDM E/R 2. ICC brake hold relay
(ICC models only)3. Battery current sensor
4. Cooling fan relay 5. Refrigerant pressure sensor 6. Intake valve timing control position
sensor (bank 2)
7. Vacuum tank 8. Cooling fan motor-2 9. Intake valve timing control solenoid
valve (bank 2)
10. Cooling fan control module 11. Electric throttle control actuator 12. Intake valve timing control solenoid
valve (bank 1)
13. Cooling fan motor-1 14. Intake valve timing control position
sensor (bank 1)15. Camshaft position sensor (PHASE)
16. Mass air flow sensor
(with intake air temperature sensor)17. Ignition coil (with power transistor)
and spark plug (bank 1)18. VIAS control solenoid valve
19. Fuel injector (bank 1) 20. Engine coolant temperature sensor 21. Power valve actuator
22. Knock sensor (bank 1) 23. Knock sensor (bank 2) 24. Fuel injector (bank 2)
25. EVAP canister purge volume control
solenoid valve26. EVAP service port 27. Ignition coil (with power transistor)
and spark plug (bank 2)
PBIB2674E

EC-812
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45

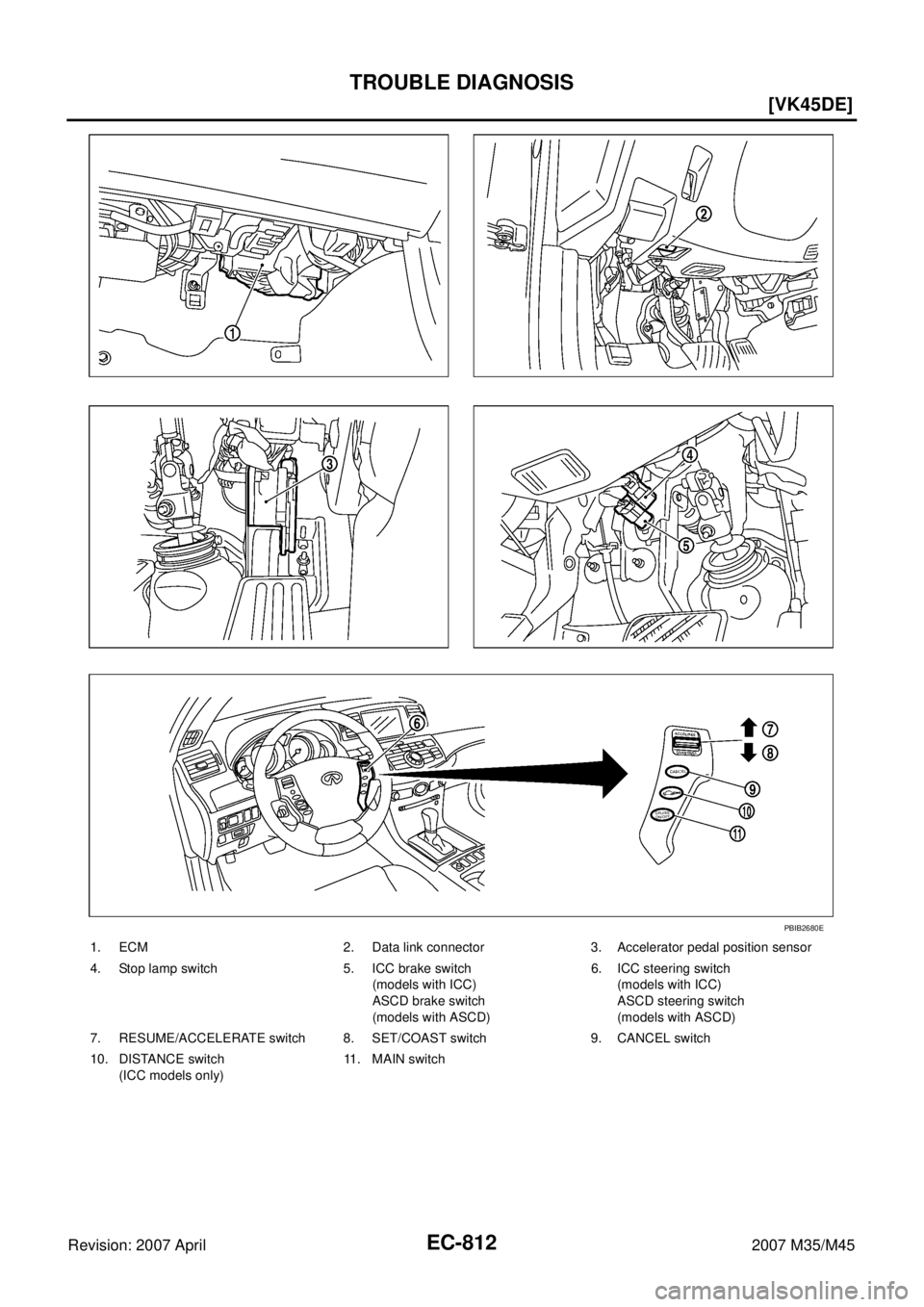

1. ECM 2. Data link connector 3. Accelerator pedal position sensor
4. Stop lamp switch 5. ICC brake switch
(models with ICC)
ASCD brake switch
(models with ASCD)6. ICC steering switch
(models with ICC)
ASCD steering switch
(models with ASCD)
7. RESUME/ACCELERATE switch 8. SET/COAST switch 9. CANCEL switch
10. DISTANCE switch
(ICC models only)11. MAIN switch
PBIB2680E

EC-824
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
83 PSensor ground
(APP sensor 2)[Engine is running]
Warm-up condition

Idle speedApproximately 0V
85 V Data link connector[Ignition switch: ON]

CONSULT-II or GST: DisconnectedApproximately 5V - Battery volt-
age (11 - 14V)
86 P CAN communication line[Ignition switch: ON]Approximately 1.1 - 2.3V
Output voltage varies with the
communication status.
90 LSensor power supply
(APP sensor 1)[Ignition switch: ON]Approximately 5V
91 BRSensor power supply
(APP sensor 2)[Ignition switch: ON]Approximately 5V
94 L CAN communication line[Ignition switch: ON]Approximately 2.6 - 3.2V
Output voltage varies with the
communication status.
98 RAccelerator pedal position
sensor 2[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully released0.20 - 0.55V
[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully depressed1.85 - 2.40V
99 G/YICC steering switch
(models with ICC system)[Ignition switch: ON]

ICC steering switch: OFFApproximately 4.3V
[Ignition switch: ON]

MAIN switch: PressedApproximately 0V
[Ignition switch: ON]

CANCEL switch: PressedApproximately 1.3V
[Ignition switch: ON]

RESUME/ACCELERATE switch: PressedApproximately 3.7V
[Ignition switch: ON]

SET/COAST switch: PressedApproximately 3V
[Ignition switch: ON]

DISTANCE switch: PressedApproximately 2.2V
99 YASCD steering switch
(models with ASCD system)[Ignition switch: ON]

ASCD steering switch: OFFApproximately 4V
[Ignition switch: ON]

MAIN switch: PressedApproximately 0V
[Ignition switch: ON]

CANCEL switch: PressedApproximately 1V
[Ignition switch: ON]

RESUME/ACCELERATE switch: PressedApproximately 3V
[Ignition switch: ON]

SET/COAST switch: PressedApproximately 2V
101 V/R Stop lamp switch[Ignition switch: OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

TROUBLE DIAGNOSIS
EC-825
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SC-5, "
SPECIFIC GRAVITY CHECK" . 102 G PNP switch[Ignition switch: ON]

Selector lever: P or NApproximately 0V
[Ignition switch: ON]

Selector lever: Except aboveBATTERY VOLTAGE
(11 - 14V)
104 O Throttle control motor relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
106 LGAccelerator pedal position
sensor 1[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released0.4 - 1.1V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed3.7 - 4.8V
107 V/WFuel tank temperature sen-
sor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with fuel
tank temperature.
108 BRICC brake switch (models
witch ICC system)
ASCD brake switch (models
witch ASCD system)[Ignition switch: ON]

Brake pedal: Slightly depressedApproximately 0V
[Ignition switch: ON]

Brake pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
109 L Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
111 S BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
113 GR Fuel pump relay[Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
11 5
11 6B
BECM ground[Engine is running]

Idle speedBody ground
11 7 G R / LEVAP canister vent control
valve[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
11 9
120R
RPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
121 LPower supply for ECM
(Back-up)[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

TROUBLE DIAGNOSIS
EC-827
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
ItemDIAGNOSTIC TEST MODE
WORK
SUP-
PORTSELF-DIAGNOS-
TIC RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*1FREEZE
FRAME
DATA*2SRT
STATUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor
(PHASE)××××
Mass air flow sensor×××
Engine coolant temperature sen-
sor×××××
Air fuel ratio (A/F) sensor 1×××××
Heated oxygen sensor 2×××××
Wheel sensor××××
Accelerator pedal position sensor×××
Throttle position sensor××××
Fuel tank temperature sensor××××
EVAP control system pressure
sensor×××
Intake air temperature sensor××××
Knock sensor×
Refrigerant pressure sensor××
Closed throttle position switch
(accelerator pedal position sensor
signal)××
Air conditioner switch××
Park/neutral position (PNP) switch×××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Load signal××
Intake valve timing control position
sensor×××
Fuel level sensor×××
Battery current sensor×××
ICC steering switch×××
ASCD steering switch×××
ICC brake switch×××
ASCD brake switch×××

TROUBLE DIAGNOSIS
EC-831
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45THRTL SEN 1 [V]××
The throttle position sensor signal voltage
is displayed.
THRTL SEN 2 signal is converted by
ECM internally. Thus, it differs from ECM
terminal voltage signal. THRTL SEN 2 [V]×
FUEL T/TMP SE
[°C] or [°F]×

The fuel temperature (determined by the
signal voltage of the fuel tank tempera-
ture sensor) is displayed.
INT/A TEMP SE
[°C] or [°F]××

The intake air temperature (determined
by the signal voltage of the intake air tem-
perature sensor) is indicated.
EVAP SYS PRES
[V]×

The signal voltage of EVAP control sys-
tem pressure sensor is displayed.
FPCM DR VOLT
[V]

The voltage between fuel pump and
FPCM is displayed.
FUEL LEVEL SE
[V]×

The signal voltage of the fuel level sensor
is displayed.
START SIGNAL
[ON/OFF]××

Indicates start signal status [ON/OFF]
computed by the ECM according to the
signals of engine speed and battery volt-
age.

After starting the engine, [OFF] is dis-
played regardless of the starter signal.
CLSD THL POS
[ON/OFF]××

Indicates idle position [ON/OFF] com-
puted by ECM according to the accelera-
tor pedal position sensor signal.
AIR COND SIG
[ON/OFF]××

Indicates [ON/OFF] condition of the air
conditioner switch as determined by the
air conditioner signal.
P/N POSI SW
[ON/OFF]××

Indicates [ON/OFF] condition from the
park/neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF]××

[ON/OFF] condition of the power steering
system (determined by the signal voltage
of the power steering pressure sensor
signal) is indicated.
LOAD SIGNAL
[ON/OFF]××

Indicates [ON/OFF] condition from the
electrical load signal.
ON: Rear window defogger switch is ON
and/or lighting switch is in 2nd position.
OFF: Both rear window defogger switch
and lighting switch are OFF.
IGNITION SW
[ON/OFF]×

Indicates [ON/OFF] condition from igni-
tion switch signal.
HEATER FAN SW
[ON/OFF]×

Indicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF]×

Indicates [ON/OFF] condition from the
stop lamp switch signal.
INJ PULSE-B1
[msec]×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
When the engine is stopped, a certain
computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING
[BTDC]×

Indicates the ignition timing computed by
ECM according to the input signals.
When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE [%]

“Calculated load value” indicates the
value of the current air flow divided by
peak air flow. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks

TROUBLE DIAGNOSIS
EC-833
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45VEHICLE SPEED
[km/h] or [MPH]
The vehicle speed computed from the
vehicle speed signal sent from TCM is
displayed.
IDL A/V LEARN
[YET/CMPLT]

Display the condition of idle air volume
learning
YET: Idle air volume learning has not
been performed yet.
CMPLT: Idle air volume learning has
already been performed successfully.
TRVL AFTER MIL
[km] or [mile]

Distance traveled while MIL is activated.
A/F S1 HTR (B1)
[%]

Air fuel ratio (A/F) sensor 1 heater control
value computed by ECM according to the
input signals.

The current flow to the heater becomes
larger as the value increases. A/F S1 HTR (B2)
[%]
AC PRESS SEN
[V]

The signal voltage from the refrigerant
pressure sensor is displayed.
VHCL SPEED SE
[km/h] or [mph]

The vehicle speed computed from the
vehicle speed signal sent from combina-
tion meter is displayed.
SET VHCL SPD
[km/h] or [mph]

The preset vehicle speed is displayed.
MAIN SW
[ON/OFF]

Indicates [ON/OFF] condition from MAIN
switch signal.
CANCEL SW
[ON/OFF]

Indicates [ON/OFF] condition from CAN-
CEL switch signal.
RESUME/ACC SW
[ON/OFF]

Indicates [ON/OFF] condition from
RESUME/ACCELERATE switch signal.
SET SW
[ON/OFF]

Indicates [ON/OFF] condition from SET/
COAST switch signal.
BRAKE SW1
[ON/OFF]

Indicates [ON/OFF] condition from ASCD
brake switch signal.
BRAKE SW2
[ON/OFF]

Indicates [ON/OFF] condition of stop
lamp switch signal.
DIST SW
[ON/OFF]

Indicates [ON/OFF] condition from DIS-
TANCE switch signal.
CRUISE LAMP
[ON/OFF]

Indicates [ON/OFF] condition of CRUISE
lamp determined by the ECM according
to the input signals.
SET LAMP
[ON/OFF]

Indicates [ON/OFF] condition of SET
lamp determined by the ECM according
to the input signals.
FAN DUTY
[%]

Indicates a command value for cooling
fan. The value is calculated by ECM
based on input signals.
AC EVA TEMP
[°C] or [°F]

Indicates A/C evaporator temperature
sent from “unified meter and A/C amp.”.
AC EVA TARGET
[°C] or [°F]

Indicates target A/C evaporator tempera-
ture sent from “unified meter and A/C
amp.”. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks

EC-948
[VK45DE]
DTC P0130, P0150 A/F SENSOR 1
Revision: 2007 April2007 M35/M45
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Let engine idle for 2 minutes.
4. If 1st trip DTC is detected, go to EC-953, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
CAUTION:
Always drive vehicle at a safe speed.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” or “A/F SEN1 (B2)” in “DATA MONITOR” mode with CONSULT-II.
3. Check “A/F SEN1 (B1)” or “A/F SEN1 (B2)” indication.
If the indication is constantly approx. 1.5V and does not fluctuates, go to EC-953, "
Diagnostic Procedure" .
If the indication fluctuates around 1.5V, go to next step.
4. Select “A/F SEN1 (B1) P1276” (for DTC P0130) or “A/F SEN1 (B2) P1286” (for DTC P0150) of “A/F
SEN1” in “DTC WORK SUPPORT” mode with CONSULT-II.
5. Touch “START”.
6. When the following conditions are met, “TESTING” will be dis-
played on the CONSULT-II screen.
If “TESTING” is not displayed after 20 seconds, retry from
step 2.
7. Release accelerator pedal fully.
NOTE:
Never apply brake during releasing the accelerator pedal.
SEF174Y
ENG SPEED 1,300 - 3,200 rpm
Vehicle speed More than 64 km/h (40 MPH)
B/FUEL SCHDL 1.0 - 8.0 msec
Selector lever D position
SEF576Z
SEF577Z
