LANE DEPARTURE WARNING SYSTEM
Revision: 2007 April2007 M35/M45
Terminals and Reference Value for LDW Camera UnitNKS003VL
NOTE:
*: Perform “ACTIVE TEST” with CONSULT-II. Refer to DI-91, "
ACTIVE TEST" .
CONSULT-II Function (LDW)NKS003VM
DESCRIPTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, and then turn
ignition switch ON.
Te r m i n a l
No.Wire
colorItemCondition
Reference value
(Approx.) Ignition
switchOperation or condition
1 B/R Ignition switch ON or START ON — Battery voltage
3 R/W LDW chime ON LDW chimeActivated
*0 V
Not activated 12 V
4 V System ON indicator ON LDW systemON 0 V
OFF 12 V
5 P CAN–L — — —
6 B Ground ON — 0 V
8 G/W LDW indicator lamp ON LDW indicator lamp Illuminated
*0 V
Turned OFF 12 V
9 GR LDW switch ON LDW switchPushed 0 V
Released 5 V
10 L CAN–H — — —
12 B Ground ON — 0 V
System Diagnosis mode DescriptionReference
page
LDWWORK SUPPORT Displays causes of automatic cancellation of the LDW system.DI-89
SELF-DIAG RESULTS Displays malfunctioning system memorized in LDW camera unit.DI-89
DATA MONITOR Displays real-time input/output data of LDW camera unit.DI-90
CAN DIAG SUPPORT MNTR Displays the results of transmit/receive diagnosis of CAN communication.LAN-44
ACTIVE TEST Enables operation check of electrical loads by sending driving signal to them.DI-91
ECU PART NUMBER Displays part number of LDW camera unit. —
SKIB3794E

LANE DEPARTURE WARNING SYSTEM
DI-89
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45

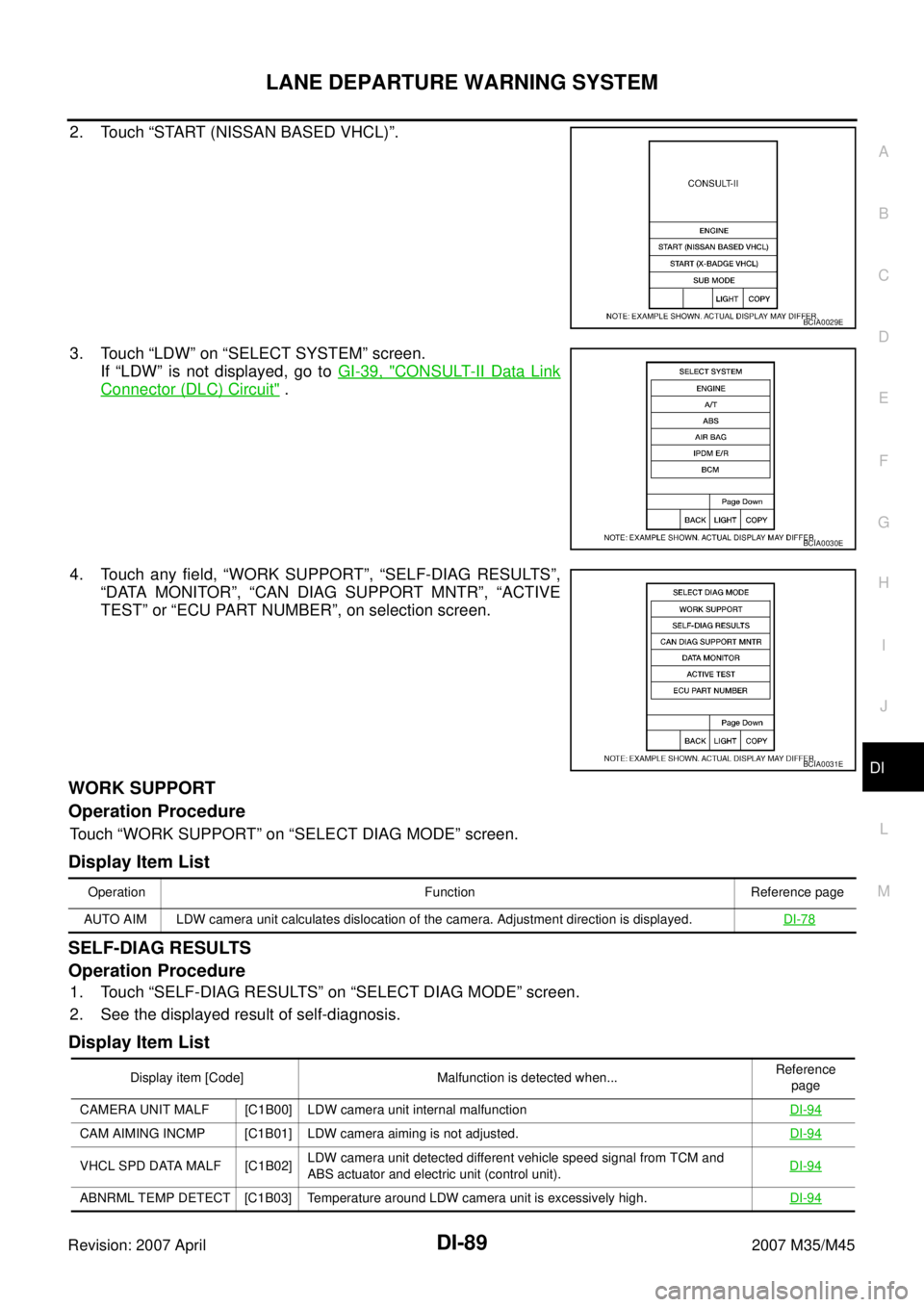

2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “LDW” on “SELECT SYSTEM” screen.
If “LDW” is not displayed, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
4. Touch any field, “WORK SUPPORT”, “SELF-DIAG RESULTS”,
“DATA MONITOR”, “CAN DIAG SUPPORT MNTR”, “ACTIVE
TEST” or “ECU PART NUMBER”, on selection screen.
WORK SUPPORT
Operation Procedure
Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
Display Item List
SELF-DIAG RESULTS
Operation Procedure
1. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
2. See the displayed result of self-diagnosis.
Display Item List
BCIA0029E
BCIA0030E
BCIA0031E
Operation Function Reference page
AUTO AIM LDW camera unit calculates dislocation of the camera. Adjustment direction is displayed. DI-78
Display item [Code] Malfunction is detected when...Reference
page
CAMERA UNIT MALF [C1B00] LDW camera unit internal malfunctionDI-94
CAM AIMING INCMP [C1B01] LDW camera aiming is not adjusted.DI-94
VHCL SPD DATA MALF [C1B02]LDW camera unit detected different vehicle speed signal from TCM and
ABS actuator and electric unit (control unit).DI-94
ABNRML TEMP DETECT [C1B03] Temperature around LDW camera unit is excessively high.DI-94

DI-90
LANE DEPARTURE WARNING SYSTEM
Revision: 2007 April2007 M35/M45
NOTE:

When a DTC is detected, the LDW system dose not operate.

When the DTC except “ABNRML TEMP DETECT [C1B03] ” is detected, the LDW indicator lamp turns ON.

When the DTC “ABNRML TEMP DETECT [C1B03] ” is detected, the LDW system ON indicator lamp blinks.
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch any of “ALL SIGNALS” and “SELECTION FROM MENU” on selection screen.
3. Touch “START”.
4. Display the data monitor.
5. If necessary, touch “COPY” in turn, and print data.
Display Item List
CAN COMM CIRCUIT [U1000] LDW camera unit detected CAN communication malfunction.DI-95
CONTROL UNIT (CAN) [U1010] LDW camera unit detected internal CAN communication circuit malfunction.DI-95
Display item [Code] Malfunction is detected when...Reference
page
Monitored Item [unit] Description
MAIN SW [ON/OFF] Displays [ON/OFF] status as judged from LDW switch signal.
SW ON LAMP [ON/OFF] Displays [ON/OFF] status of LDW system ON indicator signal output.
INDICATE LAMP [ON/OFF] Displays [ON/OFF] status of LDW indicator signal output.
BUZZER OUTPUT [ON/OFF] Displays [ON/OFF] status of LDW chime operation signal output.
LDW INACCURAT [ON/OFF] Displays LDW camera unit status.
VHCL SPD SE [km/h] or [mph]Displays vehicle speed calculated by LDW camera unit through CAN communication [ABS
actuator and electric unit (control unit) transmits wheel sensor signal through CAN communi-
cation].
VHCL SPD AT [km/h] or [mph]Displays vehicle speed calculated from A/T vehicle speed sensor by LDW camera unit through
CAN communication (TCM transmits A/T vehicle speed sensor signal through CAN communi-
cation).
TURN SIGNAL [OFF/LH/RH] Displays “Turn signal” status, determined from BCM through CAN communication.
LANE DETCT LH [ON/OFF] Displays left lane marker is detected.
LANE DETCT RH [ON/OFF] Displays right lane marker is detected.
CROSS LANE LH [ON/OFF] Displays vehicle is crossing left lane.
CROSS LANE RH [ON/OFF] Displays vehicle is crossing right lane.
WARN LANE LH [ON/OFF] Displays warning for left lane.
WARN LANE RH [ON/OFF] Displays warning for right lane.
VALID POS LH [VLD/INVLD] Displays lateral position for left lane marker is valid.
VALID POS RH [VLD/INVLD] Displays lateral position for right lane marker is valid.
AIMING DONE [OK/NG] Displays camera aiming done.
AIMING RESULT [OK/NOK] Displays camera aiming result.
FCTRY AIM YAW [deg] Displays camera unit installation condition.
FCTRY AIM ROL [deg] Displays camera unit installation condition.
FCTRY AIM PIT [deg] Displays camera unit installation condition.
XOFFSET [pixel] Displays camera unit installation condition.

DI-94
LANE DEPARTURE WARNING SYSTEM
Revision: 2007 April2007 M35/M45
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect LDW camera unit connector.
3. Check continuity between LDW camera unit harness connector
and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Repair ground harness.
DTC [C1B00] CAMERA UNIT MALFNKS003VP
1. CHECK LDW CAMERA UNIT
1. Perform self-diagnosis of LDW camera unit.
2. Check if any item other than “[C1B00] CAMERA UNIT” is displayed on self-diagnosis display.
Is any displayed?
YES >> Repair or replace applicable item.
NO >> Replace LDW camera unit.
DTC [C1B01] CAM AIMING INCMPNKS003VQ
1. PREFORM CAMERA AIMING ADJUSTMENT
1. Preform camera aiming adjustment. Refer to DI-78, "
Camera Aiming Adjustment" .
2. Erase DTC and perform LDW camera unit self-diagnosis.
Self
-diagnostic results content
No malfunction detected>>INSPECTION END
Malfunction detected>>Replace LDW camera unit.
DTC [C1B02] VHCL SPD DATA MALFNKS003VR
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) {CONSULT-II}
Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-23, "
CONSULT-II Functions
(ABS)" .
Self
-diagnostic results content
No malfunction detected>>GO TO 2.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
2. CHECK TCM (CONSULT-II)
Perform TCM self-diagnosis. Refer to AT- 9 0 , "
CONSULT-II Function (A/T)" .
Self
-diagnostic results content
No malfunction detected>>Replace LDW camera unit.
Malfunction detected>>Check applicable parts, and repair or replace corresponding parts.
DTC [C1B03] ABNRML TEMP DETECTNKS003VS
1. COOLING CAMERA UNIT
1. Cooling camera unit.
2. Erase DTC and perform LDW camera unit self-diagnosis.
Self
-diagnostic results content
No malfunction detected>>INSPECTION END
Malfunction detected>>Replace LDW camera unit.
LDW camera unit connector Terminal
GroundContinuity
M1826
Ye s
12
PKIC0247E

LANE DEPARTURE WARNING SYSTEM
DI-95
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
DTC [U1000] CAN COMM CIRCUITNKS003VT
1. CHECK CAN COMMUNICATION
1. Select “SELF-DIAG RESULTS” mode for “LDW” with CONSULT-II.
2. Print out CONSULT-II screen.
>> Go to “LAN SYSTEM”. Refer to LAN-44, "
CAN Diagnostic Support Monitor" .
DTC [U1010] CONTROL UNIT (CAN)NKS003VU
Replace LDW camera unit, when “[U1010] CONTROL UNIT (CAN)” is displayed on self-diagnosis display.
LDW Chime Circuit InspectionNKS003VV
1. CHECK OPERATION OF LDW CHIME
Check LDW chime operation “BUZZER DRIVE” in “ACTIVE TEST”
mode with CONSULT-II.
OK or NG
OK >> LDW chime is OK. Return to DI-93, "SYMPTOM
CHART" .
NG >> GO TO 2.
2. CHECK LDW CHIME POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect LDW chime connector.
3. Turn ignition switch ON.
4. Check voltage between LDW chime harness connector and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between fuse and LDW chime.
3. CHECK LDW CHIME GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between LDW chime harness connector and
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.“BUZZER DRIVE”
Touch “ON” : LDW chime is activated.
Touch “OFF” : LDW chime is not activated.
SKIB1787E
Te r m i n a l s
Voltage (Approx.) (+)
(–)
LDW chime connector Terminal
M58 1 Ground Battery voltage
PKIC0248E
LDW chime connector Terminal
GroundContinuity
M58 3 Yes
PKIC0249E

CAN COMMUNICATION
DI-109
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
CAN COMMUNICATIONPFP:23710
System DescriptionNKS003VD
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS003VE
Refer to LAN-52, "CAN Communication Signal Chart" in “LAN SYSTEM”.

EC-5
C
D
E
F
G
H
I
J
K
L
M
ECA
Revision: 2007 April2007 M35/M45 DTC Confirmation Procedure ............................... 438
Wiring Diagram .................................................... 439
Diagnostic Procedure ........................................... 440
Component Inspection ......................................... 444
DTC P0455 EVAP CONTROL SYSTEM ................ 445
On Board Diagnosis Logic ................................... 445
DTC Confirmation Procedure ............................... 446
Diagnostic Procedure ........................................... 447
DTC P0456 EVAP CONTROL SYSTEM ................ 453
On Board Diagnosis Logic ................................... 453
DTC Confirmation Procedure ............................... 454
Overall Function Check ........................................ 455
Diagnostic Procedure ........................................... 456
DTC P0460 FUEL LEVEL SENSOR ...................... 462
Component Description ........................................ 462
On Board Diagnosis Logic ................................... 462
DTC Confirmation Procedure ............................... 462
Diagnostic Procedure ........................................... 463
Removal and Installation ...................................... 463
DTC P0461 FUEL LEVEL SENSOR ...................... 464
Component Description ........................................ 464
On Board Diagnosis Logic ................................... 464
Overall Function Check ........................................ 464
Diagnostic Procedure ........................................... 465
Removal and Installation ...................................... 465
DTC P0462, P0463 FUEL LEVEL SENSOR CIR-
CUIT ........................................................................ 466
Component Description ........................................ 466
On Board Diagnosis Logic ................................... 466
DTC Confirmation Procedure ............................... 466
Diagnostic Procedure ........................................... 467
Removal and Installation ...................................... 467
DTC P0500 VSS ..................................................... 468
Description ........................................................... 468
On Board Diagnosis Logic ................................... 468
DTC Confirmation Procedure ............................... 468
Overall Function Check ........................................ 469
Diagnostic Procedure ........................................... 469
DTC P0506 ISC SYSTEM ....................................... 470
Description ........................................................... 470
On Board Diagnosis Logic ................................... 470
DTC Confirmation Procedure ............................... 470
Diagnostic Procedure ........................................... 471
DTC P0507 ISC SYSTEM ....................................... 472
Description ........................................................... 472
On Board Diagnosis Logic ................................... 472
DTC Confirmation Procedure ............................... 472
Diagnostic Procedure ........................................... 473
DTC P0550 PSP SENSOR ..................................... 474
Component Description ........................................ 474
CONSULT-II Reference Value in Data Monitor Mode
. 474
On Board Diagnosis Logic ................................... 474
DTC Confirmation Procedure ............................... 474
Wiring Diagram .................................................... 475
Diagnostic Procedure ........................................... 476
Component Inspection ......................................... 478
Removal and Installation ...................................... 478DTC P0603 ECM POWER SUPPLY .......................479
Component Description ........................................479
On Board Diagnosis Logic ....................................479
DTC Confirmation Procedure ...............................479
Wiring Diagram .....................................................480
Diagnostic Procedure ...........................................481
DTC P0605 ECM .....................................................483
Component Description ........................................483
On Board Diagnosis Logic ....................................483
DTC Confirmation Procedure ...............................483
Diagnostic Procedure ...........................................484
DTC P0643 SENSOR POWER SUPPLY ................486
On Board Diagnosis Logic ....................................486
DTC Confirmation Procedure ...............................486
Wiring Diagram .....................................................487
Diagnostic Procedure ...........................................489
DTC P0850 PNP SWITCH ......................................491
Component Description ........................................491
CONSULT-II Reference Value in Data Monitor Mode
.491
On Board Diagnosis Logic ....................................491
DTC Confirmation Procedure ...............................491
Overall Function Check ........................................492
Wiring Diagram .....................................................493
Diagnostic Procedure ...........................................494
DTC P1148, P1168 CLOSED LOOP CONTROL ....496
On Board Diagnosis Logic ....................................496
DTC P1211 TCS CONTROL UNIT ..........................497
Description ............................................................497
On Board Diagnosis Logic ....................................497
DTC Confirmation Procedure ...............................497
Diagnostic Procedure ...........................................497
DTC P1212 TCS COMMUNICATION LINE ............498
Description ............................................................498
On Board Diagnosis Logic ....................................498
DTC Confirmation Procedure ...............................498
Diagnostic Procedure ...........................................498
DTC P1217 ENGINE OVER TEMPERATURE ........499
Description ............................................................499
CONSULT-II Reference Value in Data Monitor Mode
.500
On Board Diagnosis Logic ....................................500
Overall Function Check ........................................500
Wiring Diagram .....................................................502
Diagnostic Procedure ...........................................504
Main 12 Causes of Overheating ...........................507
Component Inspection ..........................................509
DTC P1220 FUEL PUMP CONTROL MODULE
(FPCM) ....................................................................510
Description ............................................................510
CONSULT-II Reference Value in Data Monitor Mode
.510
On Board Diagnosis Logic ....................................510
DTC Confirmation Procedure ...............................511
Wiring Diagram .....................................................512
Diagnostic Procedure ...........................................513
Component Inspection ..........................................517
DTC P1225 TP SENSOR ........................................518
Component Description ........................................518

EC-12Revision: 2007 April2007 M35/M45 DTC Confirmation Procedure ..............................11 4 6
Wiring Diagram ....................................................11 4 7
Diagnostic Procedure ..........................................11 4 8
Component Inspection .........................................11 5 2
DTC P0455 EVAP CONTROL SYSTEM ................115 3
On Board Diagnosis Logic ...................................11 5 3
DTC Confirmation Procedure ..............................11 5 4
Diagnostic Procedure ..........................................11 5 5
DTC P0456 EVAP CONTROL SYSTEM ................116 0
On Board Diagnosis Logic ...................................11 6 0
DTC Confirmation Procedure ..............................11 6 1
Overall Function Check .......................................11 6 2
Diagnostic Procedure ..........................................11 6 3
DTC P0460 FUEL LEVEL SENSOR ......................116 9
Component Description .......................................11 6 9
On Board Diagnosis Logic ...................................11 6 9
DTC Confirmation Procedure ..............................11 6 9
Diagnostic Procedure ..........................................11 7 0
Removal and Installation .....................................11 7 0
DTC P0461 FUEL LEVEL SENSOR ......................117 1
Component Description .......................................11 7 1
On Board Diagnosis Logic ...................................11 7 1
Overall Function Check .......................................11 7 1
Diagnostic Procedure ..........................................11 7 2
Removal and Installation .....................................11 7 2
DTC P0462, P0463 FUEL LEVEL SENSOR CIR-
CUIT .......................................................................117 3
Component Description .......................................11 7 3
On Board Diagnosis Logic ...................................11 7 3
DTC Confirmation Procedure ..............................11 7 3
Diagnostic Procedure ..........................................11 7 4
Removal and Installation .....................................11 7 4
DTC P0500 VSS .....................................................117 5
Description ...........................................................11 7 5
On Board Diagnosis Logic ...................................11 7 5
DTC Confirmation Procedure ..............................11 7 5
Overall Function Check .......................................11 7 6
Diagnostic Procedure ..........................................11 7 6
DTC P0506 ISC SYSTEM ......................................117 7
Description ...........................................................11 7 7
On Board Diagnosis Logic ...................................11 7 7
DTC Confirmation Procedure ..............................11 7 7
Diagnostic Procedure ..........................................11 7 8
DTC P0507 ISC SYSTEM ......................................117 9
Description ...........................................................11 7 9
On Board Diagnosis Logic ...................................11 7 9
DTC Confirmation Procedure ..............................11 7 9
Diagnostic Procedure ..........................................11 8 0
DTC P0550 PSP SENSOR .....................................118 1
Component Description .......................................11 8 1
CONSULT-II Reference Value in Data Monitor Mode
11 8 1
On Board Diagnosis Logic ...................................11 8 1
DTC Confirmation Procedure ..............................11 8 1
Wiring Diagram ....................................................11 8 2
Diagnostic Procedure ..........................................11 8 3
Component Inspection .........................................11 8 5
Removal and Installation .....................................11 8 5DTC P0603 ECM POWER SUPPLY .......................11 86
Component Description .......................................11 8 6
On Board Diagnosis Logic ...................................11 8 6
DTC Confirmation Procedure ...............................11 8 6
Wiring Diagram ....................................................11 8 7
Diagnostic Procedure ...........................................11 8 8
DTC P0605 ECM ....................................................11 90
Component Description .......................................11 9 0
On Board Diagnosis Logic ...................................11 9 0
DTC Confirmation Procedure ...............................11 9 0
Diagnostic Procedure ...........................................11 9 1
DTC P0643 SENSOR POWER SUPPLY ...............11 93
On Board Diagnosis Logic ...................................11 9 3
DTC Confirmation Procedure ...............................11 9 3
Wiring Diagram ....................................................11 9 4
Diagnostic Procedure ...........................................11 9 6
DTC P0850 PNP SWITCH ......................................11 98
Component Description .......................................11 9 8
CONSULT-II Reference Value in Data Monitor Mode
11 9 8
On Board Diagnosis Logic ...................................11 9 8
DTC Confirmation Procedure ...............................11 9 8
Overall Function Check ........................................11 9 9
Wiring Diagram ....................................................1200
Diagnostic Procedure ...........................................1201
DTC P1140, P1145 IVT CONTROL POSITION SEN-
SOR ........................................................................1203
Component Description .......................................1203
CONSULT-II Reference Value in Data Monitor Mode
1203
On Board Diagnosis Logic ...................................1203
DTC Confirmation Procedure ...............................1203
Wiring Diagram ....................................................1204
Diagnostic Procedure ...........................................1207
Component Inspection .........................................1210
Removal and Installation ......................................1210
DTC P1148, P1168 CLOSED LOOP CONTROL ...1211
On Board Diagnosis Logic ...................................1211
DTC P1211 TCS CONTROL UNIT .........................1212
Description ...........................................................1212
On Board Diagnosis Logic ...................................1212
DTC Confirmation Procedure ...............................1212
Diagnostic Procedure ...........................................1212
DTC P1212 TCS COMMUNICATION LINE ............1213
Description ...........................................................1213
On Board Diagnosis Logic ...................................1213
DTC Confirmation Procedure ...............................1213
Diagnostic Procedure ...........................................1213
DTC P1217 ENGINE OVER TEMPERATURE .......1214
Description ...........................................................1214
CONSULT-II Reference Value in Data Monitor Mode
1215
On Board Diagnosis Logic ...................................1215
Overall Function Check ........................................1215
Wiring Diagram ....................................................1217
Diagnostic Procedure ...........................................1219
Main 13 Causes of Overheating ..........................1223
Component Inspection .........................................1224
DTC P1220 FUEL PUMP CONTROL MODULE

EC-16
[VQ35DE]
INDEX FOR DTC
Revision: 2007 April2007 M35/M45
[VQ35DE]INDEX FOR DTCPFP:00024
DTC No. IndexNBS004RU
NOTE:

If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-161, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC U1010 is displayed with other DTC, first perform the trouble diagnosis for DTC U1010. Refer
to EC-164, "
DTC U1010 CAN COMMUNICATION" .
DTC*1
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*
2ECM*3
U1000
1000*4CAN COMM CIRCUITEC-161
U1001
1001*4CAN COMM CIRCUITEC-161
U1010 1010 CONTROL UNIT(CAN)EC-164
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.—
P0011 0011 INT/V TIM CONT-B1EC-166
P0021 0021 INT/V TIM CONT-B2EC-166
P0031 0031 A/F SEN1 HTR (B1)EC-170
P0032 0032 A/F SEN1 HTR (B1)EC-170
P0037 0037 HO2S2 HTR (B1)EC-177
P0038 0038 HO2S2 HTR (B1)EC-177
P0051 0051 A/F SEN1 HTR (B2)EC-170
P0052 0052 A/F SEN1 HTR (B2)EC-170
P0057 0057 HO2S2 HTR (B2)EC-177
P0058 0058 HO2S2 HTR (B2)EC-177
P0075 0075 INT/V TIM V/CIR-B1EC-185
P0081 0081 INT/V TIM V/CIR-B2EC-185
P0101 0101 MAF SEN/CIRCUITEC-193
P0102 0102 MAF SEN/CIRCUITEC-202
P0103 0103 MAF SEN/CIRCUITEC-202
P0112 0112 IAT SEN/CIRCUITEC-209
P0113 0113 IAT SEN/CIRCUITEC-209
P0117 0117 ECT SEN/CIRCEC-214
P0118 0118 ECT SEN/CIRCEC-214
P0122 0122 TP SEN 2/CIRCEC-219
P0123 0123 TP SEN 2/CIRCEC-219
P0125 0125 ECT SENSOREC-226
P0127 0127 IAT SENSOREC-229
P0128 0128 THERMSTAT FNCTNEC-232
P0130 0130 A/F SENSOR1 (B1)EC-234
P0131 0131 A/F SENSOR1 (B1)EC-244
P0132 0132 A/F SENSOR1 (B1)EC-253
P0133 0133 A/F SENSOR1 (B1)EC-262
P0137 0137 HO2S2 (B1)EC-274
P0138 0138 HO2S2 (B1)EC-285

INDEX FOR DTC
EC-21
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45CLOSED LOOP-B2 P1168 1168EC-496
CMP SEN/CIRC-B1 P0340 0340EC-371
CMP SEN/CIRC-B2 P0345 0345EC-371
COLD START CONTROL P1421 1421EC-522
CONTROL UNIT(CAN) U1010 1010EC-164
CTP LEARNING P1225 1225EC-518
CTP LEARNING P1226 1226EC-520
CYL 1 MISFIRE P0301 0301EC-349
CYL 2 MISFIRE P0302 0302EC-349
CYL 3 MISFIRE P0303 0303EC-349
CYL 4 MISFIRE P0304 0304EC-349
CYL 5 MISFIRE P0305 0305EC-349
CYL 6 MISFIRE P0306 0306EC-349
D/C SOLENOID/CIRC P1762 1762AT-155
D/C SOLENOID FNCTN P1764 1764AT-157
ECM P0605 0605EC-483
ECM BACK UP/CIRCUIT P0603 0603EC-479
ECT SEN/CIRC P0117 0117EC-214
ECT SEN/CIRC P0118 0118EC-214
ECT SENSOR P0125 0125EC-226
ENG OVER TEMP P1217 1217EC-499
ENGINE SPEED SIG P0725 0725AT-124
ETC ACTR P2119 2119EC-615
ETC FUNCTION/CIRC P2101 2101EC-604
ETC MOT P2118 2118EC-610
ETC MOT PWR P2100 2100EC-598
ETC MOT PWR P2103 2103EC-598
EVAP GROSS LEAK P0455 0455EC-445
EVAP PURG FLOW/MON P0441 0441EC-386
EVAP SMALL LEAK P0442 0442EC-391
EVAP SYS PRES SEN P0451 0451EC-428
EVAP SYS PRES SEN P0452 0452EC-431
EVAP SYS PRES SEN P0453 0453EC-437
EVAP VERY SML LEAK P0456 0456EC-453
FPCM/CIRCUIT P1220 1220EC-510
FR/B SOLENOID/CIRC P1757 1757AT-151
FR/B SOLENOID FNCT P1759 1759AT-153
FTT SEN/CIRCUIT P0182 0182EC-337
FTT SEN/CIRCUIT P0183 0183EC-337
FTT SENSOR P0181 0181EC-331
FUEL LEVEL SENSOR P0461 0461EC-464
FUEL LEVL SEN/CIRC P0462 0462EC-466
Items
(CONSULT-II screen terms)DTC*
1
Reference page
CONSULT-II
GST*
2ECM*3
