DTC P1554 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
DTC P1554 BATTERY CURRENT SENSORPFP:294G0
Component DescriptionNBS005M0
The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator. The battery cur-
rent sensor (1) is installed to the battery cable at the negative termi-
nal. The sensor measures the charging/discharging current of the
battery. Based on the sensor signal, ECM judges whether or not the
power generation voltage variable control is performed. When per-
forming the power generation voltage variable control, ECM calcu-
lates the target power generation voltage based on the sensor
signal. And ECM sends the calculated value as the power genera-
tion command value to IPDM E/R. For the details of the power gen-
eration voltage variable control, refer to SC section.
CAUTION:
Do not connect the electrical component or the ground wire directly to the battery terminal. The con-
nection causes the malfunction of the power generation voltage variable control, and then the battery
discharge may occur.
CONSULT-II Reference Value in Data Monitor ModeNBS005M1
Specification data are reference values.
*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SC-5, "SPECIFIC GRAVITY CHECK" .
On Board Diagnosis LogicNBS005M2
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1554 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
EC-1193, "
DTC P0643 SENSOR POWER SUPPLY" .
PBIB2685E
MONITOR ITEM CONDITION SPECIFICATION
BAT CUR SEN

Engine speed: Idle

Battery: Fully charged*

Selector lever: P or N

Air conditioner switch: OFF

No loadApprox. 2,600 - 3,500mV
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1554
1554Battery current sensor performanceThe output voltage of the battery current
sensor is lower than the specified value
while the battery voltage is high enough.

Harness or connectors
(The sensor circuit is open or shorted.)

Battery current sensor

FUEL PUMP
EC-1395
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
FUEL PUMPPFP:17042
DescriptionNBS005Q1
SYSTEM DESCRIPTION
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
startability. If the ECM receives a engine speed signal from the camshaft position sensor (PHASE), it knows
that the engine is rotating, and causes the pump to operate. If the engine speed signal is not received when
the ignition switch is ON, the engine stalls. The ECM stops pump operation and prevents battery discharging,
thereby improving safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump
relay, which in turn controls the fuel pump.
COMPONENT DESCRIPTION
A turbine type design fuel pump is used in the fuel tank.

Fuel level sensor unit and fuel pump (1)

Fuel pressure regulator (2)

Fuel tank temperature sensor (3)
CONSULT-II Reference Value in Data Monitor ModeNBS005Q2
Specification data are reference values.
Sensor Input signal to ECM ECM Function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
Fuel pump control Fuel pump relay
Battery Battery voltage*
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and crankingOperates.
When engine is stoppedStops in 1.5 seconds.
Except as shown aboveStops.
PBIB2707E
MONITOR ITEM CONDITION SPECIFICATION
FUEL PUMP RLY

For 1 seconds after turning ignition switch: ON

Engine running or crankingON

Except above OFF

FAX-10
FRONT DRIVE SHAFT
Revision: 2007 April2007 M35/M45
22. Install joint sub-assembly to shaft using plastic hammer.
CAUTION:
Confirm that joint sub-assembly is correctly engaged while
rotating drive shaft.
23. Apply the balance of the specified amount of grease (NISSAN
genuine grease or equivalent) into the boot inside from large
diameter side of boot.
24. Install the boot securely into grooves (indicated by *marks)
shown in the figure.
CAUTION:
If grease adheres to the boot mounting surface (with *mark)
on the shaft and joint sub-assembly, boot may come off.
Remove all grease from the surface.
25. To prevent from the deformation of the boot, adjust the boot
installation length to the specified value shown below (L) by
inserting the flat-bladed screwdriver into inside of the boot from
the large diameter side of the boot and discharging the inside
air.
CAUTION:

If the boot mounting length is outside the standard, it may cause breakage in the boot.

Be careful not to touch the inside of the boot with a tip of a flat-bladed screwdriver.
26. Secure the large and small ends of the boot with new boot
bands using the boot band crimping tool [SST: KV40107300
( – )] as shown in the figure.
NOTE:
Secure boot band so that dimension “M” meets the specification
as shown.
27. Secure joint sub-assembly and shaft, and then make sure that
they are in the correct position when rotating boot. Install them
with new boot band when boot installation positions become
incorrect.
28. Insert drive shaft to wheel hub and bearing assembly, and then
temporarily tighten hub lock nut.
29. Install transverse link to steering knuckle. Refer to FAX-5,
"COMPONENT" .
30. Install steering outer socket to steering knuckle. Refer to FA X - 5 , "
COMPONENT" .
31. Install disc rotor. Refer to FAX-5, "
Removal and Installation" .
32. Install torque member fixing bolts to steering knuckle. Refer to BR-22, "
FRONT DISC BRAKE" .
33. Install brake hose bracket to steering knuckle. Refer to BR-11, "
BRAKE TUBE AND HOSE" . Grease amount : 77 – 97 g (2.71 – 3.42 oz)
SDIA2372E
Boot installation length (L) : 136 mm (5.35 in)
SDIA1760E
RAC1133D
Dimension “M” : 2.0 – 3.0 mm (0.079 – 0.118 in)
DSF0047D

FRONT DRIVE SHAFT
FAX-15
C
E
F
G
H
I
J
K
L
MA
B
FA X
Revision: 2007 April2007 M35/M45
ASSEMBLY
Front Final Drive Side
1. If plug has been removed, use a drift [SST] to press in a new
one. (LH side)
2. Wrap serration on shaft with tape to protect boot from damage.
Install new boot and boot bands to shaft.
3. Remove the tape wrapped around the serration on shaft.
4. Align matching marks painted when spider assembly was
removed. Install spider assembly with chamfer facing shaft.
5. Secure spider assembly onto shaft with snap ring.
6. Apply the appropriate amount of grease (NISSAN genuine
grease or equivalent) to spider assembly and sliding surface.
7. Assemble the housing onto spider assembly, and apply the bal-
ance of the specified amount grease (NISSAN genuine grease
or equivalent).
8. Install boot securely into grooves (indicated by *marks) shown in the figure.
CAUTION:
If grease adheres to the boot mounting surface (with *mark) on shaft and housing, boot may come
off. Remove all grease from the surface.
9. To prevent from deformation of the boot, adjust the boot installation length to the value shown below (L) by
inserting a flat-bladed screwdriver or similar tool into the inside of boot from the large diameter side of
boot and discharging inside air.
SDIA1153E
SFA800
SDIA2629E
Grease amount RH side : 113 – 123 g
(3.99–4.34 oz)
LH side : 95 – 105 g
(3.35 – 3.70 oz)
SFA023A

IDX-2
ALPHABETICAL INDEX
Symbols
(VK45DE) .............................................................. GI-6
(VQ35DE) ............................................................. GI-6
A
A/C air flow ...................................................... ATC-37
A/C component layout ..................................... ATC-25
A/C compressor mounting ........... ATC-153, ATC-157,
ATC-158
, ATC-159, ATC-161, ATC-163, ATC-164,
ATC-166
, ATC-167, ATC-168
A/C compressor precaution ............................. ATC-12
A/C compressor special service tool ................ ATC-16
A/C control operation (auto A/C) ...................... ATC-33
A/C diagnostic work flow (auto A/C) .............. ATC-110
A/C evaporator ............................................... ATC-167
A/C HFC134a (R134a) system precaution ........ ATC-6
A/C HFC134a (R134a) system service procedure .......
ATC-150
A/C HFC134a (R134a) system service tools ... ATC-17
A/C HFC134a system service equipment precaution ...
ATC-13
A/C lubricant (R134a) ...................................... ATC-26
A/C lubrication oil ........................................... ATC-173
A/C operational check ...................................... ATC-65
A/C self-diagnoses (auto A/C) ........ ATC-56, ATC-110
A/C service data specification ........................ ATC-173
A/C system description (auto A/C) ................... ATC-29
A/C trouble diagnoses (auto A/C) .................... ATC-40
A/C, A - Wiring diagram ................................... ATC-46
A/T fluid checking ...................... AT-13, AT-53, MA-29
A/T fluid cooler cleaning .................................... AT-14
A/T fluid replacement ............................. AT-12, MA-31
A/T fluid temperature sensor ........................... AT-135
A/T IND - Wiring diagram .................................... DI-56
A/T self-diagnoses ............................... AT-92, AT-103
A/T shift lock system ........................................ AT-229
A/T shift lock system - Wiring diagram ............ AT-230
A/T trouble diagnoses ........................................ AT-44
Accelerator control system ............................... ACC-3
Accelerator pedal position (APP) sensor ........ EC-617,
EC-624
, EC-638, EC-1336, EC-1343, EC-1357
Accelerator pedal released position learning .... EC-86,
EC-788
AF1B1-Wiring diagram ...... EC-237, EC-246, EC-255,
EC-265
, EC-648, EC-950, EC-959, EC-968, EC-978,
EC-1367
AF1B2-Wiring diagram ...... EC-239, EC-248, EC-257,
EC-267
, EC-650, EC-952, EC-961, EC-970, EC-980,
EC-1369
AF1HB1-Wiring diagram .................... EC-171, EC-884
AF1HB2-Wiring diagram .................... EC-173, EC-886
Air bag .............................................................. SRS-3
Air bag precautions ........................................... SRS-3
Air cleaner and air duct(VK45DE) ................... EM-177
Air cleaner and air duct(VQ35DE) .................... EM-19
Air cleaner filter replacement ............................ MA-25
Air cleaner filter replacement(VQ35DE) ........... MA-18
Air cleaner filter(VQ35DE) ................................ EM-20
Air conditioner cut control ................... EC-35, EC-737
Air flow meter - See Mass air flow sensor ....... EC-193,
EC-202
, EC-906, EC-915
Air fuel ratio sensor 1 ......... EC-234, EC-244, EC-253,
EC-262
, EC-646, EC-947, EC-957, EC-966, EC-975,
EC-1365
Air fuel ratio sensor 1 heater ............. EC-170, EC-883
Air mix. door motor ......................... ATC-82, ATC-140
Ambient sensor ............................. ATC-112, ATC-125
Angular tightening application ............................. EM-7
Angular tightening application(VK45DE) ........ EM-165
APPS1 - Wiring diagram ................. EC-619, EC-1338
APPS2 - Wiring diagram ................. EC-626, EC-1345
APPS3 - Wiring diagram ................. EC-640, EC-1359
ASC/BS - Wiring diagram ............... EC-578, EC-1291
ASC/SW - Wiring diagram .............. EC-561, EC-1274
ASCBOF - Wiring diagram .............. EC-658, EC-1378
ASCD .................................................. EC-36, EC-738
ASCD (automatic speed control device) ........... ACS-3
ASCIND - Wiring diagram ............... EC-665, EC-1385
AT indicator lamp ................................................ DI-55
Auto air conditioner - Wiring diagram ............. ATC-46
Auto amp ...................................................... ATC-124
Auto anti-dazzling inside mirror .......... GW-69, GW-70
Automatic amplifier ........... ATC-54, ATC-67, ATC-124
Automatic transmission fluid replacement ........ MA-32
AWD - Wiring diagram ....................................... TF-17
Axle ................................................................... MA-37
B
Back-up lamp ................................................... LT-245
Basic inspection .................................. EC-78, EC-780
Battery ................................................................. SC-4
Battery current sensor ....... EC-524, EC-531, EC-538,
EC-545
, EC-1237, EC-1244, EC-1251, EC-1258
Battery/Starting/Charging System Tester SC-7, SC-11,
SC-25
BCM (Body control module) .............................. BCS-3
Block heater(VK45DE) .................................... EM-252
Block heater(VQ35DE) ................................... EM-124
Blower motor ................................... ATC-88, ATC-131
Blower unit .................................................... ATC-129
Brake fluid level ................................................ MA-35
Brake hydraulic line ........................................... BR-11
Brake inspection ............................................... MA-36
Brake lines and cables inspection .................... MA-35
Brake pedal .......................................................... BR-6
Brake switch ................................... EC-589, EC-1307
BRK/SW - Wiring diagram .............. EC-591, EC-1309
Bulb specifications ........................................... LT-313
Bumper, front ...................................................... EI-11
Bumper, rear ....................................................... EI-14
C
Camshaft inspection(VK45DE) ....................... EM-217
Camshaft inspection(VQ35DE) ......................... EM-87

IDX-3
A
C
D
E
F
G
H
I
J
K
L B
IDX
ALPHABETICAL INDEX
Camshaft position sensor (PHASE) EC-371, EC-1082
Camshaft(VK45DE) ......................................... EM-215
Camshaft(VQ35DE) ........................................... EM-85
CAN .................................................................. DI-109
CAN - Wiring diagram .......... EC-162, EC-866, AT-106
CAN (Controller Area Network) ... SB-5, BL-26, BL-59,
BL-221
, GW-19, GW-73, GW-95, SE-16
CAN communication ........... EC-161, EC-164, EC-740,
EC-865
, EC-868, AT-32, AT-105, TF-13, TF-32, SB-5,
BL-26
, BL-59, BL-221, GW-19, GW-73, GW-95, SE-16,
WW-11
Canister-See EVAP canister ............... EC-42, EC-744
Center bearing assembly (propeller shaft) ........ PR-12
Center bearing disassembly (propeller shaft) .... PR-11
CHARGE - Wiring diagram ................................ SC-22
Charging system ................................................ SC-20
Chassis and body maintenance ........................ MA-29
CHIME - Wiring diagram ..................................... DI-63
CIGAR - Wiring diagram .................................. WW-50
Cigarette lighter ............................................... WW-50
Circuit breaker ................................................... PG-17
Clock ................................................................. DI-107
CLOCK - Wiring diagram .................................. DI-107
Closed loop control .............................. EC-32, EC-734
Closed loop control (Bank 1) ........... EC-496, EC-1211
Closed loop control (Bank 2) ........... EC-496, EC-1211
Collision diagnosis ........................................... SRS-54
Combination lamp, front, removal and installation ........
LT-75
Combination lamp, rear, removal and installation ........
LT-265
Combination meter ............................................... DI-5
COMPAS - Wiring diagram ............................... DI-105
Compass .......................................................... DI-102
Component Location (auto A/C) ...................... ATC-42
Compression pressure(VK45DE) .................... EM-235
Compression pressure(VQ35DE) .................... EM-102
Compressor special service tool ...................... ATC-16
Condenser ..................................................... ATC-164
Connecting rod bearing clearance(VK45DE) .. EM-275
Connecting rod bushing clearance .................. EM-143
Connecting rod bushing clearance(VK45DE) .. EM-271
Connecting rod(VK45DE) ................................ EM-271
Connecting rod(VQ35DE) ................................ EM-141
CONSULT-II Reference value (A/T) .................. AT-90
Control units (terminal arrangement) ............... PG-107
Control valve (A/T) ............................................. AT-38
Controller Area Network (CAN) ... SB-5, BL-26, BL-59,
BL-221
, GW-19, GW-73, GW-95, SE-16
Converter housing installation ............ AT-277, AT-280
COOL/F - Wiring diagram ................ EC-502, EC-1217
Coolant replacement(VQ35DE) ......................... MA-15
Cooling circuit (engine)(VK45DE) ...................... CO-38
Cooling circuit (engine)(VQ35DE) ....................... CO-9
Cooling fan motor ............................ EC-509, EC-1224
Cooling fan(VK45DE) ........................................ CO-51
Cooling fan(VQ35DE) ........................................ CO-22
Cowl top ............................................................... EI-18
Cowl top cover ..................................................... EI-18
Crankcase ventilation system - See Positive crankcase
ventilation ............................................. EC-51
, EC-753
Crankshaft position sensor (POS) ... EC-364, EC-1075
Crankshaft(VK45DE) ...................................... EM-253
Crankshaft(VQ35DE) ...................................... EM-141
Crash zone sensor .......................................... SRS-49
CUR/SE - Wiring diagram .. EC-526, EC-533, EC-540,
EC-547
, EC-1239, EC-1246, EC-1253, EC-1260
Cylinder block boring(VK45DE) ...................... EM-274
Cylinder block(VK45DE) ................................. EM-252
Cylinder block(VQ35DE) ................................. EM-124
Cylinder head bolt tightening(VK45DE) .......... EM-237
Cylinder head bolt tightening(VQ35DE) .......... EM-105
Cylinder head(VK45DE) ................................. EM-235
Cylinder head(VQ35DE) ................................. EM-102
D
D/LOCK - Wiring diagram .................................. BL-28
Daytime light system ........................................... LT-78
Daytime running light - See Daytime light system LT-78
DEF - Wiring diagram ............................ SB-7, SE-119
Diagnosis sensor unit ..................................... SRS-52
Diagnostic trouble code (DTC) for OBD system EC-16,
EC-59
, EC-718, EC-761
Direct clutch solenoid valve ............... AT-155, AT-157
Display and amp.assembly ............... ATC-54, ATC-67
Door glass ........................................... GW-61, GW-65
Door glass Fitting Adjustment(Front) ................ GW-64
Door glass Fitting Adjustment(Rear) ................. GW-68
Door lock .......................................................... BL-194
Door mirror ...................................................... GW-118
Door trim ............................................................. EI-34
Door, front ........................................... BL-188, GW-61
Door, rear ............................................ BL-188, GW-65
Drive belt inspection ......................................... MA-22
Drive belt(VK45DE) ........................................ EM-174
Drive belt(VQ35DE) .......................................... EM-16
Drive shaft ......................................................... MA-38
Drive shaft (rear) ............................................... RAX-8
Driver air bag .................................................. SRS-42
DTRL - Wiring diagram ....................................... LT-83
Duct and grilles .............................................. ATC-143
E
ECM power supply EC-154
, EC-479, EC-858, EC-1186
ECM/PW - Wiring diagram ............... EC-480, EC-1187
ECTS - Wiring diagram ...................... EC-216, EC-928
Electric sunroof .................................................. RF-10
Electric throttle control actuator ........ EC-604, EC-615,
EC-1322
, EC-1334
Electric throttle control actuator (VK45DE) ..... EM-179
Electric throttle control actuator (VQ35DE) ....... EM-21
Electrical load signal circuit .............. EC-667, EC-1387
Electrical unit ................................................... PG-107
Electrical units location ...................................... PG-98
Electronic ignition (EI) system ............. EC-33, EC-735
Engine control module (ECM) .......... EC-483, EC-1190

IDX-6
ALPHABETICAL INDEX
MMSW - Wiring diagram .................................. AT-168
Mode door control linkage adjustment ATC-78, ATC-81
Mode door motor .............. ATC-76, ATC-79, ATC-139
Molding - See Exterior .............................. EI-25, EI-29
Mud guard - See Exterior .................................... EI-22
Multiport fuel injection (MFI) system .... EC-31, EC-733
Multiport fuel injection precautions ....................... GI-6
N
NATS - Wiring diagram .................................... BL-252
NONDTC - Wiring diagram .............................. AT-187
NVH troubleshooting (EM) .............................. EM-171
NVH troubleshooting (EM)(VQ35DE) ............... EM-13
NVH troubleshooting (Final drive) ......... FFD-6, RFD-7
NVH troubleshooting (Propeller shaft) ................. PR-3
NVH troubleshooting (Transfer) ........................... TF-8
O
O2H2B1 - Wiring diagram .................. EC-179
, EC-892
O2H2B2 - Wiring diagram .................. EC-181, EC-894
O2S2B1 - Wiring diagram .. EC-277, EC-288, EC-301,
EC-990
, EC-1001, EC-1014
O2S2B2 - Wiring diagram .. EC-279, EC-290, EC-303,
EC-992
, EC-1003, EC-1016
Oil cooler (engine)(VQ35DE) ............................. LU-15
Oil filter(VK45DE) .............................................. LU-30
Oil filter(VQ35DE) .............................................. LU-11
Oil pan (engine)(VK45DE) .............................. EM-187
Oil pan (engine)(VQ35DE) ................................ EM-31
Oil pressure (engine)(VK45DE) ......................... LU-27
Oil pressure (engine)(VQ35DE) ........................... LU-8
Oil pressure relief valve (engine)(VQ35DE) ........ LU-6
Oil pump (A/T) ................................................. AT-322
Oil pump (engine)(VK45DE) .............................. LU-31
Oil pump (engine)(VQ35DE) .............................. LU-19
Oil pump regulator valve (engine)(VK45DE) ..... LU-31
Oil pump regulator valve (engine)(VQ35DE) ..... LU-19
Oil seal replacement (engine)(VK45DE) ......... EM-231
Oil seal replacement (engine)(VQ35DE) .......... EM-99
Oil seal replacement (front of final drive) .......... FFD-9,
RFD-10
Oil seal replacement (side of final drive) ......... FFD-11,
RFD-14
On board diagnostic system ................ EC-54, EC-756
ORVR (On-board Refueling Vapor Recovery) .. EC-46,
EC-748
Out side mirror ................................................ GW-118
Overheat .......................................... EC-499, EC-1214
P
P/SCKT - Wiring diagram ................................ WW-52
Park/Neutral position switch ............ EC-491, EC-1198
Park/neutral position switch (A/T) .................... AT-113
Parking brake control ........................................... PB-4
Parking lamp ..................................................... LT-248
PCV (positive crankcase ventilation) ... EC-51, EC-753
PGC/V - Wiring diagram .. EC-402, EC-410, EC-1110,
EC-1118
PHASE - Wiring diagram ............................... EC-1084
PHSB1 - Wiring diagram .................................. EC-373
PHSB2 - Wiring diagram .................................. EC-375
Pilot bushing replacement - See Pilot
converter(VQ35DE) ........................................ EM-125
Piston assembly(VK45DE) ............................. EM-263
Piston assembly(VQ35DE) ............................. EM-136
Piston pin inspection(VK45DE) ....................... EM-269
Piston pin inspection(VQ35DE) ...................... EM-141
Piston ring inspection(VK45DE) ..................... EM-270
Piston ring inspection(VQ35DE) ..................... EM-142
Piston to bore clearance(VK45DE) ................. EM-273
Piston to bore clearance(VQ35DE) ................ EM-145
PNP/SW - Wiring diagram . EC-493, EC-1200, AT-114
POS - Wiring diagram ..................... EC-366, EC-1077
POWER - Wiring diagram ................................... PG-5
Power door mirror .............................................. BL-24
Power socket ................................................... WW-52
Power steering fluid level ........................ PS-8, MA-37
Power steering hydraulic pressure .................... PS-30
Power steering oil pump .................................... PS-30
Power steering system bleeding .......................... PS-8
Power supply routing .......................................... PG-3
Power window .................................................. GW-14
PRE/SE - Wiring diagram EC-433, EC-439, EC-1141,
EC-1147
Precations for Leak detection dye .................. ATC-15
Precautions (General) ........................................... GI-4
Pressure switch 1 .............................. AT-153, AT-172
Pressure switch 2 ............................................ AT-165
Pressure switch 3 .............................. AT-149, AT-174
Pressure switch 5 .............................. AT-157, AT-176
Pressure switch 6 .............................. AT-161, AT-178
Pressure test (A/T) ............................................. AT-55
Propeller shaft ........................................... PR-4, PR-6
Propeller shaft on vehicle service ............. PR-4, PR-6
Propeller shaft vibration ............................ PR-4, PR-6
PS/SEN - Wiring diagram ............... EC-475, EC-1182
R
Radiator(VK45DE) ............................................ CO-43
Radiator(VQ35DE) ............................................ CO-14
Rear axle .......................................................... RAX-5
Rear bumper ....................................................... EI-14
Rear combination lamp removal and installation ..........
LT-265
Rear disc brake .................................................. BR-28
Rear door ............................................ BL-188, GW-65
Rear parcel shelf finisher .................................... EI-42
Rear seat ......................................................... SE-173
Rear seat belt .................................................... SB-31
Rear suspension ............................................... RSU-5
Rear window .................................................... GW-59
Rear window defogger ..................................... GW-71
Refrigerant connection precaution .................... ATC-7
Refrigerant discharging evacuating charging ATC-150

CHASSIS AND BODY MAINTENANCE
MA-29
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: 2007 April2007 M35/M45
CHASSIS AND BODY MAINTENANCEPFP:00100
Checking Exhaust SystemNLS0007Z
Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage, chafing or deterioration.

If anything is found, repair or replace damaged parts.
Checking A/T FluidNLS00080
1. Warm up engine.
2. Check for A/T fluid leakage.
3. Loosen the level gauge bolt.
4. Before driving, A/T fluid level can be checked at A/T fluid tem-
peratures of 30 to 50°C (86 to 122°F) using “COLD” range on A/
T fluid level gauge as follows.
a. Park vehicle on level surface and set parking brake.
b. Start engine and move selector lever through each gear posi-
tion. Leave selector lever in “P” position.
c. Check A/T fluid level with engine idling.
d. Remove A/T fluid level gauge and wipe clean with lint-free
paper.
CAUTION:
When wiping away the A/T fluid level gauge, always use
lint-free paper, not a cloth one.
e. Re-insert A/T fluid level gauge into A/T fluid charging pipe as far as it will go.
CAUTION:
To check A/T fluid level, insert the A/T fluid level gauge until the cap contacts the end of the A/T
fluid charging pipe, with the A/T fluid level gauge reversed from the normal attachment conditions.
f. Remove A/T fluid level gauge and note reading. If reading is at low side of range, add ATF to the A/T fluid
charging pipe.
CAUTION:
Do not overfill.
5. Drive vehicle for approximately 5 minutes in urban areas.
6. Make the A/T fluid temperature approximately 65°C (149°F).
SMA211A
SCIA4835E

MA-30
CHASSIS AND BODY MAINTENANCE
Revision: 2007 April2007 M35/M45

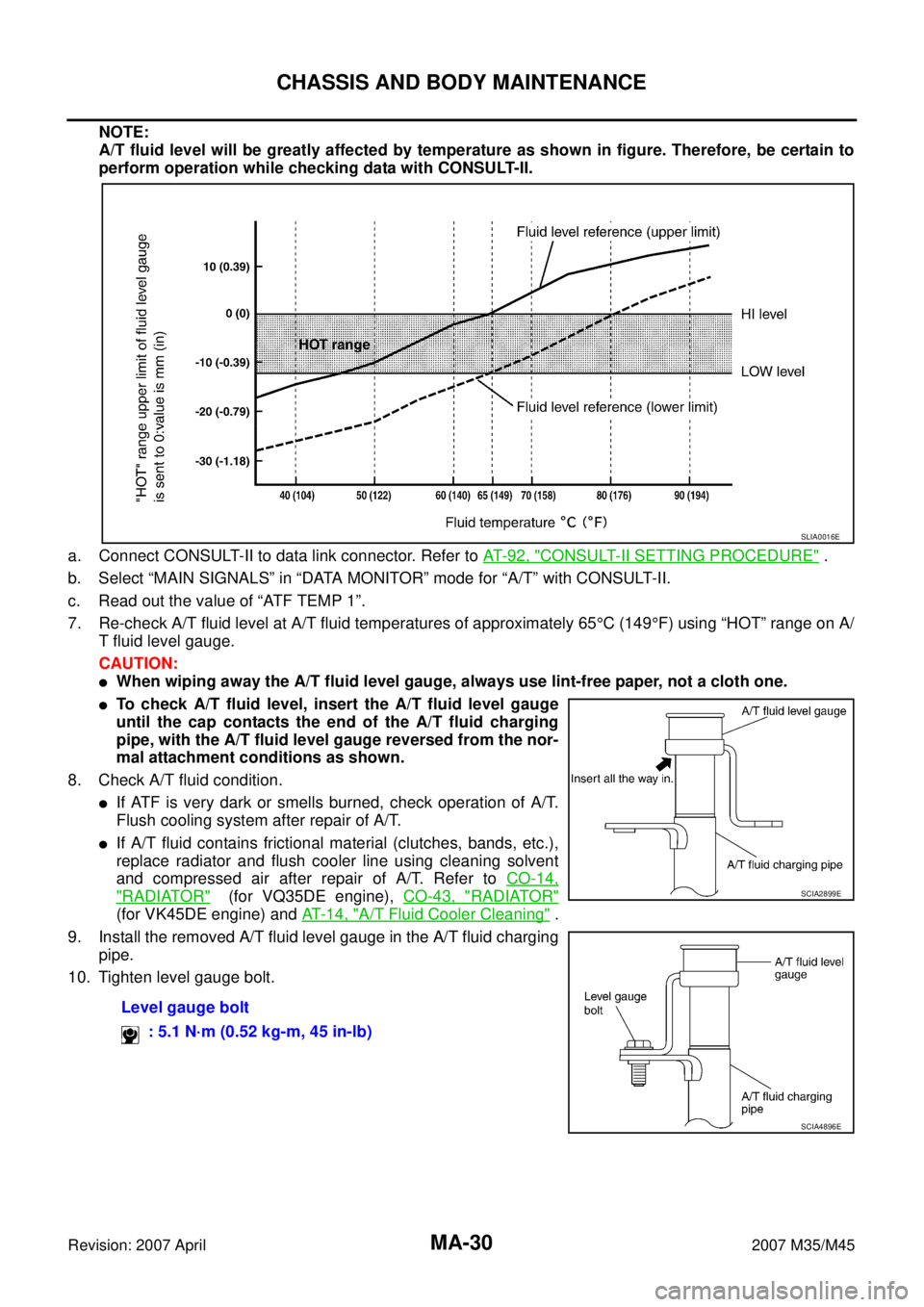

NOTE:
A/T fluid level will be greatly affected by temperature as shown in figure. Therefore, be certain to
perform operation while checking data with CONSULT-II.
a. Connect CONSULT-II to data link connector. Refer to AT- 9 2 , "
CONSULT-II SETTING PROCEDURE" .
b. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
c. Read out the value of “ATF TEMP 1”.
7. Re-check A/T fluid level at A/T fluid temperatures of approximately 65°C (149°F) using “HOT” range on A/
T fluid level gauge.
CAUTION:

When wiping away the A/T fluid level gauge, always use lint-free paper, not a cloth one.

To check A/T fluid level, insert the A/T fluid level gauge
until the cap contacts the end of the A/T fluid charging
pipe, with the A/T fluid level gauge reversed from the nor-
mal attachment conditions as shown.
8. Check A/T fluid condition.

If ATF is very dark or smells burned, check operation of A/T.
Flush cooling system after repair of A/T.

If A/T fluid contains frictional material (clutches, bands, etc.),
replace radiator and flush cooler line using cleaning solvent
and compressed air after repair of A/T. Refer to CO-14,
"RADIATOR" (for VQ35DE engine), CO-43, "RADIATOR"
(for VK45DE engine) and AT- 1 4 , "A/T Fluid Cooler Cleaning" .
9. Install the removed A/T fluid level gauge in the A/T fluid charging
pipe.
10. Tighten level gauge bolt.
Level gauge bolt
: 5.1 N·m (0.52 kg-m, 45 in-lb)
SLIA0016E
SCIA2899E
SCIA4896E

CHASSIS AND BODY MAINTENANCE
MA-31
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: 2007 April2007 M35/M45
Changing A/T FluidNLS00081
1. Warm up ATF.
2. Stop engine.
3. Loosen the level gauge bolt.
4. Drain ATF from drain plug and refill with new ATF. Always refill
same volume with drained ATF.

To replace the ATF, pour in new ATF at the A/T fluid charging
pipe with the engine idling and at the same time drain the old
ATF from the radiator cooler hose return side.

When the color of the ATF coming out is about the same as
the color of the new ATF, the replacement is complete. The
amount of new ATF to use should be 30 to 50% increase of
the stipulated amount.
CAUTION:

Use only genuine NISSAN Matic J ATF. Do not mix with other ATF.

Using ATF other than genuine NISSAN Matic J ATF will cause deterioration in driveability and
automatic transmission durability, and may damage the automatic transmission, which is not
covered by the warranty.

When filling ATF, take care not to scatter heat generating parts such as exhaust.

Do not reuse drain plug gasket.
5. Run engine at idle speed for 5 minutes.
6. Check A/T fluid level and condition. Refer to AT- 1 3 , "
Checking A/T Fluid" . If ATF is still dirty, repeat step 2.
through 5.
7. Install the removed A/T fluid level gauge into A/T fluid charging pipe.
8. Tighten the level gauge bolt.
Checking Transfer FluidNLS00082
Check for fluid leakage and fluid level.
(For details, refer to TF-9, "
Inspection" .)
CAUTION:
Never start engine while checking fluid level.ATF: Genuine NISSAN Matic J ATF
Fluid capacity:
10.3 (10-7/8 US qt, 9-1/8 lmp qt)
Drain plug
: 34 N·m (3.5 kg-m, 25 ft-lb)
Level gauge bolt
: 5.1 N·m (0.52 kg-m, 45 in-lb)
SCIA4896E
Filler plug:
: 35 N·m (3.6 kg-m, 26 ft-lb)
SDIA2028E
