those used on icy roads or to control dust.
It is very important to remove these
substances, otherwise rust will form on
the floor pan, frame, fuel lines and around
the exhaust system. At the end of winter,
the underbody should be thoroughly
flushed with plain water, being careful to
clean those areas where mud and dirt may
accumulate. For additional information,
see“Cleaning exterior” (P.7-2).
Windshield washer fluid*: Check that there
is adequate fluid in the reservoir. When performing any inspection or main-
tenance work on your vehicle, always take
care to prevent serious accidental injury to
yourself or damage to the vehicle. The
following are general precautions which
should be closely observed.

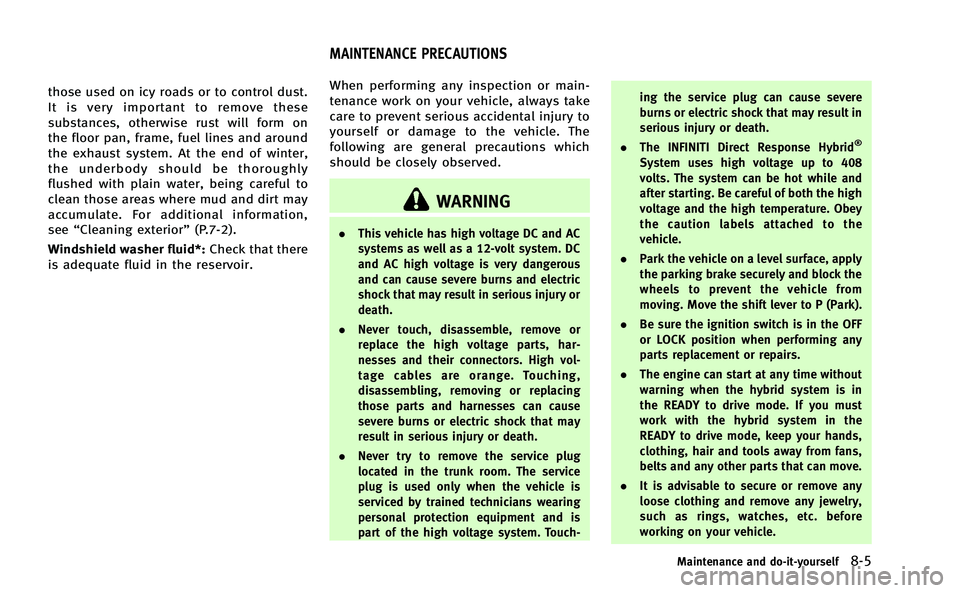

WARNING
.
This vehicle has high voltage DC and AC
systems as well as a 12-volt system. DC
and AC high voltage is very dangerous
and can cause severe burns and electric
shock that may result in serious injury or
death.
. Never touch, disassemble, remove or
replace the high voltage parts, har-
nesses and their connectors. High vol-
tage cables are orange. Touching,
disassembling, removing or replacing
those parts and harnesses can cause
severe burns or electric shock that may
result in serious injury or death.
. Never try to remove the service plug
located in the trunk room. The service
plug is used only when the vehicle is
serviced by trained technicians wearing
personal protection equipment and is
part of the high voltage system. Touch- ing the service plug can cause severe
burns or electric shock that may result in
serious injury or death.
. The INFINITI Direct Response Hybrid
®
System uses high voltage up to 408
volts. The system can be hot while and
after starting. Be careful of both the high
voltage and the high temperature. Obey
the caution labels attached to the
vehicle.
. Park the vehicle on a level surface, apply
the parking brake securely and block the
wheels to prevent the vehicle from
moving. Move the shift lever to P (Park).
. Be sure the ignition switch is in the OFF
or LOCK position when performing any
parts replacement or repairs.
. The engine can start at any time without
warning when the hybrid system is in
the READY to drive mode. If you must
work with the hybrid system in the
READY to drive mode, keep your hands,
clothing, hair and tools away from fans,
belts and any other parts that can move.
. It is advisable to secure or remove any
loose clothing and remove any jewelry,
such as rings, watches, etc. before
working on your vehicle.
Maintenance and do-it-yourself8-5
MAINTENANCE PRECAUTIONS

8-18Maintenance and do-it-yourself
for at least 15 minutes and seek medical
attention.
. The hybrid vehicle uses a special bat-
tery. If the 12-volt battery needs to be
replaced, use a 12-volt battery of the
same design. Using the wrong battery
can cause hydrogen gas to build up in
the vehicle, which could lead to an
explosion and personal injury.
. When working on or near a 12-volt
battery, always wear suitable eye pro-
tection and remove all jewelry.
. Battery posts, terminals and related
accessories contain lead and lead com-
pounds. Wash hands after handling.
. Keep the 12-volt battery out of the reach
of children.
JVM0064M
A: Indicated in blue
B: Indicated in red
C: Indicated in white
CHECKING BATTERY FLUID LEVEL
.*Aindicates that the 12-volt battery is
OK.
.
*Bindicates that the 12-volt battery
replacing is necessary.
.
*Cindicates that the 12-volt battery
charging is necessary.
If it is necessary to replace, contact an
INFINITI retailer.
JUMP STARTING
If jump starting is necessary, see “Jump
starting” (P.6-5). If the INFINITI Direct
Response Hybrid
®System does not start
by jump starting, the 12-volt battery may
have to be replaced. Contact an INFINITI
retailer.

8-26Maintenance and do-it-yourself
from the lower part.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as it could cause a
malfunction.
.Hold the battery by the edges.
Holding the battery across the con-
tact points will seriously deplete the
storage capacity.
.Make sure that the + side faces thebottom of the case.SDI2452
4. Align the tips of the upper and lower
parts
*1, and then push them together
*2until it is securely closed.
5. Operate the buttons to check its operation.
See an INFINITI retailer if you need any
assistance for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer- ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

retailer about acquiring the tools.
WARNING
.Make sure the parking brake is securely
applied and the transmission into the P
(Park) position.
. Never change tires when the vehicle is
on a slope, ice or slippery areas. This is
hazardous.
. Never change tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.
MCE0001A
Blocking wheels
Place suitable blocks*1at both the front
and back of the wheel diagonally opposite
the flat tire to prevent the vehicle from
moving when it is jacked up.
WARNING
Be sure to block the wheel as the vehicle
may move and result in personal injury.
Jacking up the vehicle and remov-
ing a tire
WARNING
. Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use the correct jack-up points. Never use
any other part of the vehicle for jack
support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the jack.
. Do not start or run the INFINITI Direct
Response Hybrid
®System while vehicle
is on the jack, as it may cause the
vehicle to move. This is especially true
for vehicles with limited slip differen-
tials.
. Do not allow passengers to stay in the
vehicle while it is on the jack.
Maintenance and do-it-yourself8-41

15%.)
. E-15 fuel contains more than 10%
oxygenate. E-15 fuel will adversely
affect the emission control devices
and systems of the vehicle and should
not be used. Damage caused by such
fuel is not covered by the INFINITI New
Vehicle Limited Warranty.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol). It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in INFINITI
vehicles.
If any undesirable driveability problems
such as engine stalling or hard hot starting
are experienced after using oxygenate-
blend fuels, immediately change to a
non-oxygenate fuel or a fuel with a low
blend of MTBE. Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.
E-15 fuel
E-15 fuel is a mixture of approximately
15% fuel ethanol and 85% unleaded
gasoline. E-15 can only be used in vehicles
designed to run on E-15 fuel. Do not use E-
15 in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified with small, square,
orange and black label with the common
abbreviation or the appropriate percentage
for that region.
E-85 fuel
E-85 fuel is a mixture of approximately
85% fuel ethanol and 15% unleaded
gasoline. E-85 can only be used in a
Flexible Fuel Vehicle (FFV). Do not use E-
85 fuel in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage
for that region.
Aftermarket fuel additives
INFINITI does not recommend the use of
any aftermarket fuel additives (Example:
fuel injector cleaner, octane booster, intake
valve deposit removers, etc.) which are
sold commercially. Many of these additives
intended for gum, varnish or deposit
removal may contain active solvent or
similar ingredients that can be harmful to
the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock.
(Spark knock is a metallic rapping noise.)
If severe, this can lead to engine damage.
If you detect a persistent heavy spark
knock even when using gasoline of the
stated octane rating, or if you hear steady
spark knock while holding a steady speed
on level roads, have an INFINITI retailer
correct the condition. Failure to correct the
condition is misuse of the vehicle, for
which INFINITI is not responsible.
Incorrect ignition timing will result in
knocking, after-run or overheating. This in
turn may cause excessive fuel consumption
or damage to the engine. If any of the
Technical and consumer information9-5

If you plan to travel in another country,
you should first find out if the fuel
available is suitable for your vehicle’s
engine.
Using fuel with too low an octane rating
may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your
vehicle to areas where appropriate fuel is
not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify
the vehicle to meet local laws and regula-
tions.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications
may differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, trans-
portation, and registration are the respon-
sibility of the user. INFINITI is not
responsible for any inconvenience that
may result.
STI0716
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used
in the vehicle registration.
STI0717
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The number is stamped as shown in the
engine compartment.
Technical and consumer information9-11
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY VEHICLE IDENTIFICATION

9-20Technical and consumer information

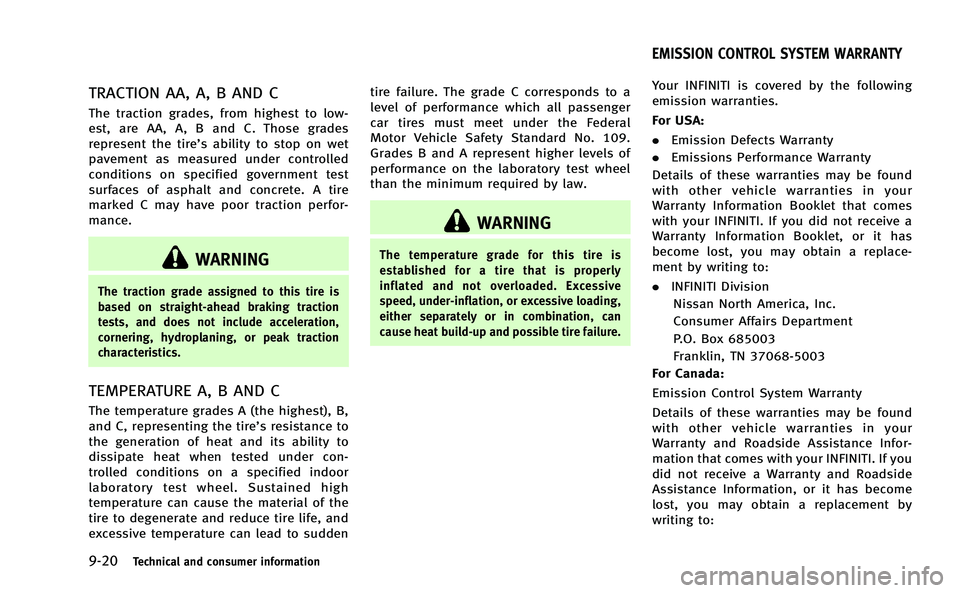

TRACTION AA, A, B AND C
The traction grades, from highest to low-
est, are AA, A, B and C. Those grades
represent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest), B,
and C, representing the tire’s resistance to
the generation of heat and its ability to
dissipate heat when tested under con-
trolled conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material of the
tire to degenerate and reduce tire life, and
excessive temperature can lead to suddentire failure. The grade C corresponds to a
level of performance which all passenger
car tires must meet under the Federal
Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive loading,
either separately or in combination, can
cause heat build-up and possible tire failure.
Your INFINITI is covered by the following
emission warranties.
For USA:
.
Emission Defects Warranty
. Emissions Performance Warranty
Details of these warranties may be found
with other vehicle warranties in your
Warranty Information Booklet that comes
with your INFINITI. If you did not receive a
Warranty Information Booklet, or it has
become lost, you may obtain a replace-
ment by writing to:
. INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada:
Emission Control System Warranty
Details of these warranties may be found
with other vehicle warranties in your
Warranty and Roadside Assistance Infor-
mation that comes with your INFINITI. If you
did not receive a Warranty and Roadside
Assistance Information, or it has become
lost, you may obtain a replacement by
writing to:
EMISSION CONTROL SYSTEM WARRANTY

10 Index
Number
12-volt battery charge warning light ................. 2-12
A
ABS (Anti-lock Braking System) ....................... 5-107
Acceleration guide ............................................ 2-31
Active Lane Control ........................................... 5-24
Active noise control ........................................ 5-115
Active sound control ....................................... 5-115
Active trace control ......................................... 5-110
Air bag systemFront-seat mounted side-impact
supplemental air bag system ....................... 1-47
Roof-mounted curtain side-impact
supplemental air bag system ....................... 1-47
Air bag warning labels ...................................... 1-50
Air bag warning light ............................... 1-50, 2-17
Air cleaner housing filter ................................... 8-20
Air conditioner Air conditioner specification label ................ 9-13
Air conditioning system refrigerant and
lubricant recommendations ............................ 9-7
Air deflectors .................................................... 9-15
Air vent ............................................................... 7-6
Alarm How to stop alarm (see vehicle
security system) ........................................... 2-36
Alcohol, drugs and driving .................................. 5-9
Antenna .............................................................. 4-3 Anti-lock Braking System (ABS) ....................... 5-107
Appearance care
Exterior appearance care ................................ 7-2
Interior appearance care ................................ 7-5
Approaching Vehicle Sound for Pedestrians
(VSP) system .................................. Hybrid System-8
Armrest ............................................................... 1-5
Ashtray ............................................................. 2-49
Assist charge gauge ................. Hybrid System-5, 2-8
Audible reminders ............................................ 2-20
Audio ................................................................ 2-34
Autolight system ............................................... 2-41
Automatic Automatic transmission fluid (ATF) ............... 8-15
Driving with automatic transmission ............ 5-14
Automatic door locks .......................................... 3-5
Automatic drive positioner ................................ 3-28
Automatic moonroof.......................................... 2-56
Automatic seat positioner ................................. 3-28
Average speed .................................................. 2-33
Avoiding collision and rollover ............................ 5-8
B
Back-up Collision Intervention (BCI) system ....... 5-48
Battery .............................................................. 8-17
Battery replacement, Intelligent Key ............... 3-2
Battery saver system ................................... 2-45
Intelligent Key .............................................. 8-25 Before starting the INFINITI Direct Response
Hybrid
®System ................................................ 5-13
Blind Spot Warning (BSW) system/Blind Spot
Intervention
TM(BSI) system ............................... 5-37
Brake
Anti-lock Braking System (ABS) .................. 5-107
Brake fluid ................................................... 8-15
Brake force distribution ............................. 5-109
Brake system ............................................. 5-106
Brake system warning light (yellow) ............. 2-13
Brake warning light (red) ............................. 2-13
Parking brake operation ............................... 5-20
Rise-up and build-up ................................. 5-109
Break-in schedule ............................................. 5-99
Bulb check/instrument panel ............................ 2-12
Bulb replacement .............................................. 8-27
C
Capacities and recommended fuel/lubricants ...... 9-2
Car phone or CB radio ........................................ 4-3
Card holder ....................................................... 2-52
Catalytic converter
Three-way catalyst ......................................... 5-4
Changing inverter coolant ................................. 8-12
Chassis control ............................................... 5-112
Chassis control warning .................................... 2-27
Checking battery fluid level ............................... 8-18
Checking inverter coolant level ......................... 8-12
Child restraints ................................................. 1-19

10-2
LATCH system .............................................. 1-21
Precautions on child restraints ..................... 1-19
Child safety ...................................................... 1-17
Child safety rear door lock .................................. 3-6
Chimes Audible reminders ....................................... 2-20
Seat belt warning light and chime ............... 2-17
Circuit breaker Fusible link .................................................. 8-23
Cleaning exterior and interior ....................... 7-2, 7-5
Clock ................................................................ 2-34
Coat hooks ....................................................... 2-53
Cockpit ............................................................... 2-3
Cold weather driving ....................................... 5-113
Compass ............................................................. 2-9
Console box ...................................................... 2-52
Coolant Capacities and recommended
fuel/ lubricants .............................................. 9-2
Changing engine coolant ............................. 8-10
Checking engine coolant level ...................... 8-10
Corrosion protection ........................................... 7-8
Courtesy light ................................................... 2-61
Cruise control ................................................... 5-56 Fixed speed cruise control (on ICC system) ... 5-74
Intelligent Cruise Control (ICC) system .......... 5-58
Cruise indicator ................................................ 2-27 Cup holders ...................................................... 2-49
Current fuel consumption .................................. 2-33D
Daytime running light system ........................... 2-45
Defroster switch Rear window and outside mirror
defroster switch ........................................... 2-41
Dimensions ....................................................... 9-10
Direct adaptive steering .................................. 5-104
Direct Response Hybrid
®System warning light
(hybrid system warning light) ............................ 2-14
Distance Control Assist (DCA) system ................ 5-79
Distance to empty ............................................. 2-33
Drive positioner ................................................ 3-28
Driver assist system indicator ........................... 2-28
Driving Cold weather driving .................................. 5-113
Driving with automatic transmission ............ 5-14
Precautions when starting and driving ........... 5-3
Driving aids ...................................................... 2-34
E
ECO drive indicator light ................................... 2-18
ECO mode ......................................................... 5-21
ECO pedal system ............................................. 5-22
Economy Fuel ........................................................... 5-100
Efficient use of your vehicle ............ Hybrid System-8
Elapsed time ..................................................... 2-33
Elapsed time and trip odometer ........................ 2-33
Emergency shut-off system ............. Hybrid System-4
Emission control information label .................... 9-12 Emission control system warranty ..................... 9-20
Energy flow ..................................... Hybrid System-5
Energy monitor ................................................. 2-31
Energy monitors .............................. Hybrid System-5
Engine
Break-in schedule ........................................ 5-99
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................. 8-10
Changing engine oil and filter ...................... 8-13
Checking engine coolant level ...................... 8-10
Checking engine oil level ............................. 8-12
Emergency hybrid system shut off ............... 5-12
Engine block heater ................................... 5-114
Engine compartment check locations ............. 8-7
Engine cooling system ................................... 8-9
Engine oil .................................................... 8-12
Engine oil and filter replacement indicator ... 2-29
Engine oil and oil filter recommendation ........ 9-6
Engine oil viscosity ........................................ 9-7
Engine serial number ................................... 9-12
Engine specifications ..................................... 9-8
If your vehicle overheats ................................ 6-7
Engine coolant temperature gauge .................... 2-33
Entry/exit function
Automatic drive positioner ........................... 3-28
EV mode odometer and twin trip odometer ....... 2-31
Event Data Recorders (EDR) ............................... 9-23
Exhaust gas (carbon monoxide) .......................... 5-3

10-4
Indicator lights ................................................. 2-18
INFINITI Direct Response
Hybrid
®System .............................. Hybrid System-2
Before starting the INFINITI Direct Response
Hybrid
®System ........................................... 5-13
Starting the INFINITI Direct Response
Hybrid
®System ........................................... 5-14
INFINITI Drive Mode Selector ............................. 5-21
Infiniti InTouch Owner’s Manual .......................... 4-2
INFINITI Vehicle Immobilizer System .................. 2-37 Engine start ................................................. 2-37
Inside mirror ..................................................... 3-25
Inspection/maintenance (I/M) test .................... 9-22
Instrument brightness control ........................... 2-46
Instrument panel ................................................ 2-5
Intelligent All-Wheel Drive (AWD) ..................... 5-101
Intelligent Cruise Control (ICC) system ............... 5-58
Intelligent Cruise Control (ICC) system
ON indicator ..................................................... 2-28
Intelligent Key ..................................................... 3-2
Intelligent Key system ......................................... 3-6 Battery replacement ..................................... 8-25
Key operating range ....................................... 3-8
Key operation ................................................ 3-9
Warning signals ........................................... 3-12
Interior light control switch ............................... 2-59
Interior light replacement .................................. 8-28
Interior lights .................................................... 2-58
Interior trunk lid release ................................... 3-21
Inverter cooling system ..................................... 8-11
ISOFIX child restraint ........................................ 1-21
J
Jump starting ...................................................... 6-5
K
Keyless entry (See remote keyless
entry system) .................................................... 3-14
Keys ................................................................... 3-2 For Intelligent Key system .............................. 3-6
L
LabelsAir bag warning labels ................................. 1-50
Air conditioner specification label ................ 9-13
Emission control information label ............... 9-12
Engine serial number ................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-12
Tire and Loading information label ...... 8-31, 9-13
Vehicle identification number (VIN) .............. 9-11
Lane Departure Prevention (LDP) system ........... 5-33
Lane Departure Warning (LDW) system .............. 5-31
Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system ................... 5-30
LATCH system ................................................... 1-21
License plate Installing front license plate ......................... 9-14
Light Air bag warning light ................................... 1-50
Bulb replacement ......................................... 8-27 Fog light switch ........................................... 2-47
Headlight switch .......................................... 2-41
Indicator lights ............................................ 2-18
Interior light control switch .......................... 2-59
Interior lights ............................................... 2-58
Map lights ................................................... 2-58
Personal lights ............................................. 2-59
Replacement ................................................ 8-27
Trunk light ................................................... 2-60
Vanity mirror lights ...................................... 2-60
Warning/indicator lights and
audible reminders ........................................ 2-12
Lights
Exterior and interior light replacement ......... 8-28
Lithium-ion (Li-ion) battery .............. Hybrid System-2
Loading information (See vehicle
loading information) ......................................... 9-16
Lock Automatic door locks ..................................... 3-5
Door locks ..................................................... 3-4
Power door lock ............................................. 3-4
Trunk lid ...................................................... 3-19
Locking with mechanical key ............................... 3-4
Log-in function .................................................. 3-14
Loose Fuel Cap warning ........................... 2-25, 3-23
Low fuel warning light ...................................... 2-15
Low outside temperature warning ..................... 2-27
Low tire pressure warning light ......................... 2-15
Low tire pressure warning system (See Tire Pressure
Monitoring System (TPMS)) ................. 5-4, 6-3, 8-30
