INFINITI Q50 HYBRID 2015 Roadside Assistance Guide

2. Loosen each wheel nut one or two turns by turning it counterclockwise with the wheel nutwrench. Do not remove the wheel nuts until the tire is off the ground.
3. To lift the vehicle, securely hold the jack lever and rod with both hands as shown. Carefully raise the vehicle until the tire clears the ground. Remove the wheel nuts, and then remove the tire.
4. Install new or repaired tire and hand-tighten the wheel nuts with the wheel nut wrench in an alternating pattern.
Always follow these instructions when changing a tire:
• Incorrect wheel nuts or improperly tightened wheel
nuts can cause the wheel to become loose or come
off. This could cause an accident.
• Do not use oil or grease on the wheel studs or nuts. This could cause the nuts to become loose.
Failure to follow these instructions can result in serious
personal injury or death and/or vehicle damage.
5. Securely torque the wheel nuts in an alternating pattern to 80 ft-lb (108 Nm) .
6. Lower the vehicle and remove the jack and securely store the flat tire, tools and jackingequipment in the vehicle.
Always follow these instructions when using the jacking equipment or after changing a tire:
• Always make sure that the spare tire and jacking equipment are properly secured after
use. Such items can become dangerous projectiles in an accident or sudden stop.
Failure to follow these instructions can result in serious personal injury or death and/or
vehicle damage.
NOTE:
To help prevent squeaks and rattles, check that the tools are reinstalled and properly secured
in the stored place after use.
AAYIA0136ZZ
BE
CD
A
AAYIA0137ZZ
RAG–31

5. Storing the Vehicle
The service plug must be removed to shut down the high voltage system for storage.
Do not store a vehicle inside a structure. Keep the vehicle away from other vehicles if the
high voltage battery is severely damaged. There is possibility of delayed fire from a severely
damaged high voltage battery.
5-1 Danger Sign Example
If the Q50 HYBRID needs to be stored or left unattended, the high voltage system must be shut down by
removing the service plug [refer to
5-2 Remove Service Plug (RAG–34)] and a sign put on the vehicle
indicating it is a hybrid vehicle with high voltage dangers. For example: RAG–32

AAYIA0020GBRAG–33

5-2 Remove Service Plug
DANGER
•Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the responder from serious injury or death
by electrical shock.
•
Immediately cover the service plug socket with insulated tape. The high voltage
battery retains high voltage power even when the service plug is removed. To avoid
electric shock, NEVER touch the terminals inside the socket.
To avoid unintended reinstallation and risk of electrical shock and severe personal injury
or death, the service plug should be securely stored away from the vehicle while the vehicle
is in storage.
NOTE: Before disconnecting the 12-volt battery terminal, if necessary, lower the windows, adjust
the steering column, adjust the seats, unlock the doors, etc. Once 12-volt battery is
disconnected, power controls will not operate. 1. If possible, check the READY
indicator status in the instrument cluster. If it is on, the high
voltage system is active.
2. Place the shift selector in the Park (P) position.
3. Push the ignition switch once to turn OFF the high voltage system. Then verify whether the READY indicator
is off.
If the READY indicator does not turn off, continue to
step 5 to open the trunk for 12-volt battery negative
cable access.
AAYIA0191ZZ
LOCK
ACC
(OFF)
ON
AAYIA0192ZZ
RAG–34

4. If possible, keep the Infiniti Intelligent Key at least5 meters (16 feet) away from the vehicle (except to
open the trunk as noted below) .
5. Open the trunk using any of the following: NOTE:
The trunk release power cancel switch must be in the
ON position in order for the trunk to be opened
using any of the methods below.
a. push-button switch on the lower LH side of theinstrument panel.
b. trunk button on the Infiniti Intelligent Key [press for longer than one (1) second].
AAYIA0068ZZ
OFF
ON
AAYIA0203ZZ
AAYIA0068ZZ
RAG–35

c. trunk open request switch (located abovelicense plate)*.
Method Shift Selector Position Ignition Switch Status
a P or N Any
b P OFF
c* Any Any
* You must have the Infiniti Intelligent Key within approximately 1 meter (3 feet) range of trunk request switch
to use the trunk open request switch function.
NOTE:
If the electrical release does not work, the trunk will have to be forced open.
6. Open the 12-volt battery service access cover.
7. Disconnect negative (-) battery cable and cover it withinsulated tape.
AAYIA0194ZZ
AAYIA0195ZZ
AAYIA0196ZZ
RAG–36

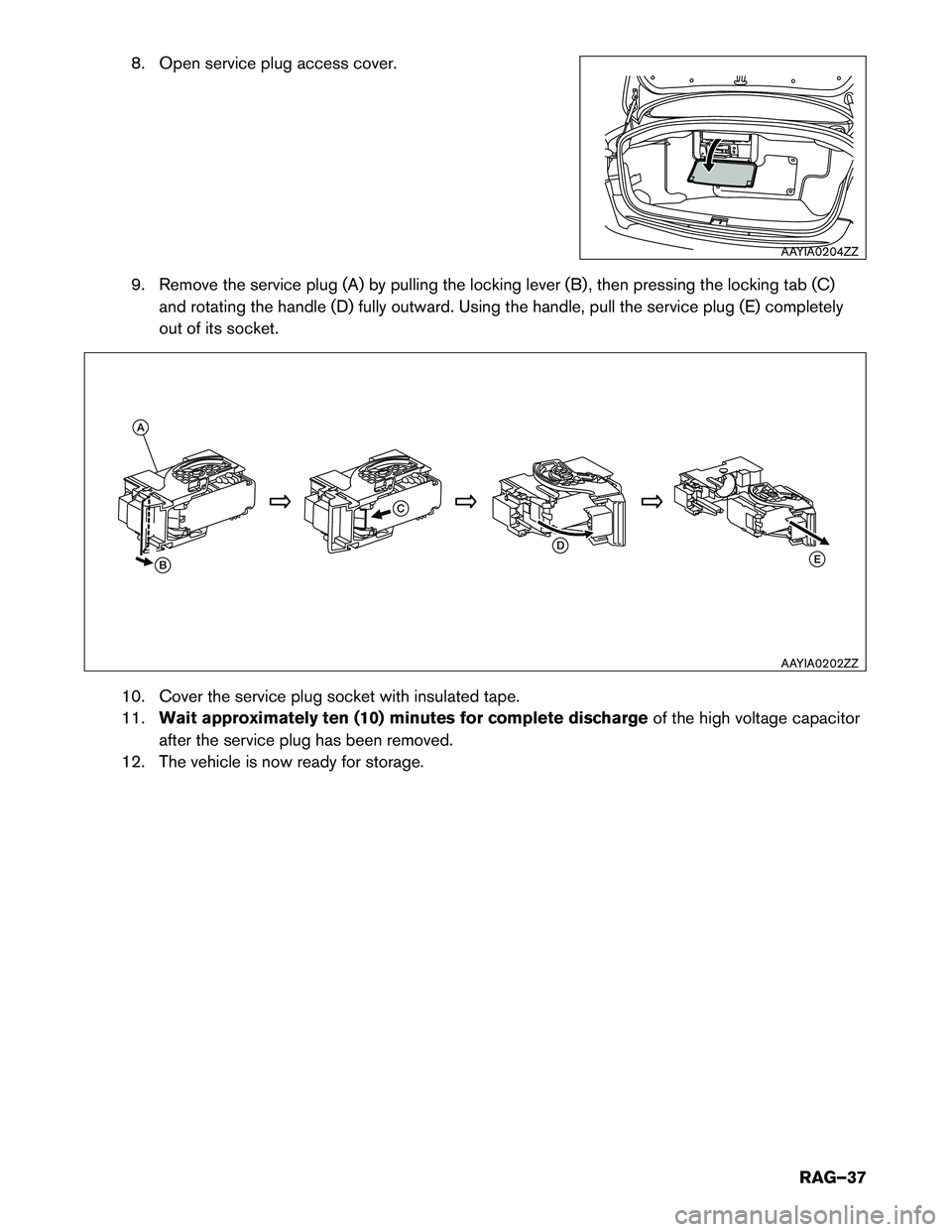

8. Open service plug access cover.
9. Remove the service plug (A) by pulling the locking lever (B) , then pressing the locking tab (C)and rotating the handle (D) fully outward. Using the handle, pull the service plug (E) completely
out of its socket.
10. Cover the service plug socket with insulated tape.11. Wait approximately ten (10) minutes for complete discharge of the high voltage capacitor
after the service plug has been removed.
12. The vehicle is now ready for storage.
AAYIA0204ZZ
A
B
C
DE
AAYIA0202ZZ
RAG–37
