INFINITI Q50 HYBRID 2015 Roadside Assistance Guide

4. Roadside Assistance
4-1 Jump Starting
To start the hybrid system with a booster battery, the instructions and precautions below must be followed.
If done incorrectly, jump starting can lead to a 12-volt battery explosion, resulting in severe
personal injury or death. It could also damage your vehicle.
Jump starting provides power to the 12-volt system to allow the electrical systems to operate. The electrical
systems must be operating to allow the high voltage battery to be charged. Jump starting does not charge
the high voltage battery.
Discharged 12-volt battery may cause the following issues: • The instrument cluster cannot be displayed while the ignition switch is turned ON. (The hybridsystem cannot start.)
• Headlamps, horn, etc. are weak.
•To avoid electrical shock, the high voltage battery CANNOT be jump started.
• Explosive hydrogen gas is always present in the vicinity of the 12-volt battery. Keep all sparks and flames away from the 12-volt battery. Make sure the vent tube is mounted.
• Do not allow battery fluid to come into contact with eyes, skin, clothing or painted surfaces. Battery fluid is a corrosive sulfuric acid solution that can cause severe burns.
If the fluid comes into contact with anything, immediately flush the contacted area
with water.
• The booster battery must be rated at 12 volts. Use of an improperly rated battery can damage the vehicle.
• Whenever working on or near a 12-volt battery, always wear suitable eye protectors (for example, goggles or industrial safety spectacles) and remove rings, metal bands, or
any other jewelry. Do not lean over the 12-volt battery when jump starting.
• Do not attempt to jump start a frozen battery. It could explode and cause serious injury.
• Q50 HYBRID is equipped with an automatic cooling fan. It could come on at any time. Keep hands and other objects away from it.
• Always follow the jump starting instructions below. Failure to do so could result in damage to the charging system and cause personal injury.
RAG–21

4-1.1 Jump Starting Procedures
NOTE:Jumper cable connections under the hood of the Q50 HYBRID are not connected directly to
a battery. They are connected to chassis ground and a fuse box terminal. Refer to the
following instructions and the above illustration.
1. If the booster battery is in another vehicle (A) , position the two vehicles (A and B) to bring the12-volt battery and fuse box into close proximity to each other.
DO NOT allow the two vehicles to touch.
2. Apply the parking brake. Move the selector lever the P (Park) position. Switch off all unnecessary electrical systems (headlights, heater, air conditioner, etc.) .
3. Remove fuse box cover on the Q50 HYBRID and connect jumper cables in the sequence as illustrated ( ) .
For models with a steering wheel lock mechanism:
If the 12-volt battery is disconnected or discharged, the steering wheel will lock and cannot be
turned. Supply power using jumper cables before pushing the ignition switch and disengaging
the steering lock.
A
3
3
B
4
4
2
2
1
1
AAYIA0219ZZ
RAG–22

• Always connect positive (+) to positive (+) and negative (-) to body ground (for example,as illustrated) , not to the 12-volt battery.
• Make sure the jumper cables do not touch moving parts in the engine compartment and that the cable clamps do not contact any other metal.
• If the hybrid system does not start right away, push the ignition switch to the OFF position and wait ten (10) seconds before trying again.
4. Start the engine of the booster vehicle (A) and let it run for a few minutes.
5. Start the hybrid system of the vehicle being jump started (B) .
6. After starting the hybrid system, carefully disconnect the negative cable and then the positive cable ( ) .
7. Reinstall the fuse box cover.
NOTE:
If it is not possible to turn the hybrid system ON by following this procedure, contact
an INFINITI retailer immediately.
4-1.2 Shift Selector Lever Lock Release
If the 12-volt battery is low or discharged, the selector lever cannot be moved from the Park (P) position. If a
booster battery is not available, the selector lever lock can be manually released. To manually release the
selector lever lock, perform the following procedure: 1. Push the ignition switch to the LOCK or OFF position.
2. Apply the parking brake.
3. Remove the shift lock cover (A) using a suitable tool.
4. Push down the shift lock (B) as shown in the illustration.
5. Push the selector lever button (C) and move the selectorlever to the Neutral (N) position (D) while holding down
the shift lock.
A
B
C
D
AAYIA0256ZZ
RAG–23

4-2 Tools Installed in the Vehicle
Tools (if so equipped):
The tools are located in the trunk area.• Raise the trunk floor cover (1) .
• Remove jacking tools located inside the trunk as illustrated.
Spare tire (if so equipped):
The spare tire is located under the trunk floor cover. • Remove the clamp (2) holding the spare tire.
1
AAYIA0417ZZ
2
AAYIA0401ZZ
RAG–24

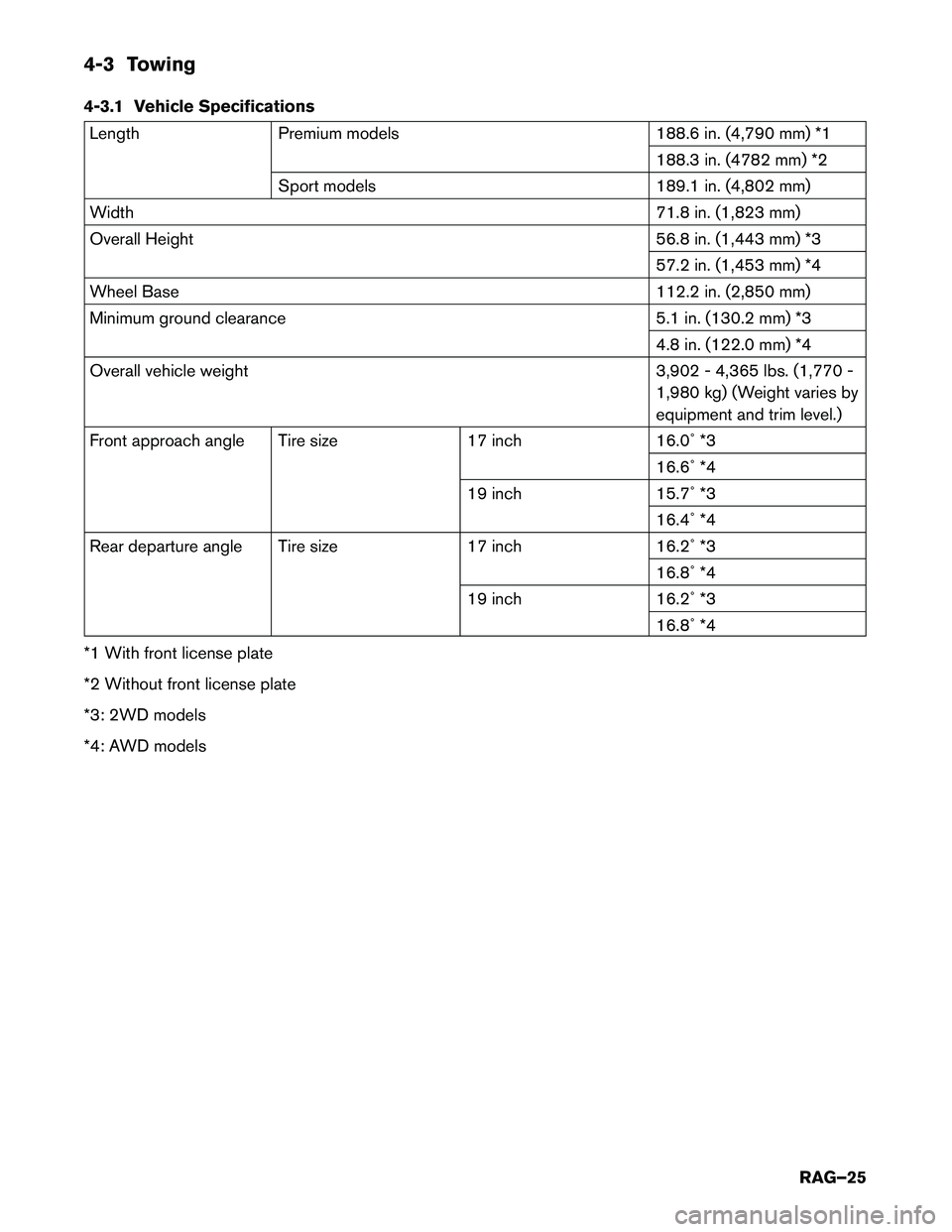

4-3 Towing
4-3.1 Vehicle Specifications
Length Premium models 188.6 in. (4,790 mm) *1188.3 in. (4782 mm) *2
Sport models 189.1 in. (4,802 mm)
Width 71.8 in. (1,823 mm)
Overall Height 56.8 in. (1,443 mm) *3
57.2 in. (1,453 mm) *4
Wheel Base 112.2 in. (2,850 mm)
Minimum ground clearance 5.1 in. (130.2 mm) *3
4.8 in. (122.0 mm) *4
Overall vehicle weight 3,902 - 4,365 lbs. (1,770 -
1,980 kg) (Weight varies by
equipment and trim level.)
Front approach angle Tire size 17 inch 16.0 *3
16.6 *4
19 inch 15.7 *3
16.4 *4
Rear departure angle Tire size 17 inch 16.2 *3
16.8 *4
19 inch 16.2 *3
16.8 *4
*1 With front license plate
*2 Without front license plate
*3: 2WD models
*4: AWD models
RAG–25

4-3.2 Towing Guidelines
Infiniti strongly recommends that Q50 HYBRID be towed with the driving (rear) wheels off the ground or
that a dolly be used as illustrated.
• Never tow with the rear wheels on the ground or four (4) wheels on the ground (forwardor backward) , as this may cause serious and expensive damage to the motor.
• Never tow AWD models with any of the wheels on the ground as this may cause serious and expensive damage to the powertrain.
• Transport the vehicle only after turning the ignition switch OFF.
• Safety chains or cables must be attached only to the vehicle recovery hook or main structural members of the vehicle. Otherwise, the vehicle body will be damaged.
• Do not use the vehicle tie down hook to free a vehicle stuck in sand, snow, mud, etc.
• Never tow a vehicle using the vehicle tie down hook or recovery hook.
• Always pull the cable straight out from the front of the vehicle. Never pull on the vehicle at an angle.
• Pulling devices should be routed so they do not touch any part of the suspension, steering, brake, high voltage or cooling systems.
• Pulling devices such as ropes or canvas straps are not recommended for use in vehicle towing or recovery.
Perform vehicle towing by holding up drive (rear) wheels or on flatbed in order to prevent secondary
damage from voltage generated by the motor. In addition, turn the ignition switch OFF when towing the
vehicle. Refer to the following illustrations:
2WD models
AAYIA0402ZZ
RAG–26

AWD models
It is also permissible to transport the Q50 facing rearward on a flatbed. If the vehicle cannot be
placed in Neutral, a P (Park) release procedure may be required. Refer to
4-1.2 Shift Selector
Lever Lock Release (RAG–23)
.
4-3.3 Use of Vehicle Equipped Hooks for Recovery Operations
Front: 1. Using a suitable tool wrapped with a protective cloth,remove the recovery hook cover from the bumper.
2. Securely install the recovery hook as illustrated. The recovery hook is located in the tool kit in the trunk area.
Failure to securely install the recovery hook may result
in serious personal injury or death and/or vehicledamage.
AAYIA0414ZZ
1AAYIA0415ZZ
AAYIA0397ZZ
RAG–27

3. Attach the winch cable securely to the recovery hook.
Failure to securely attach the winch cable to the recovery hook may result in serious
personal injury or death and/or vehicle damage.4. Make sure the winch cable remains fully connected to the recovery hook and does not interferewith surrounding area, take up the slack from the cable.
5. Release the parking brake.
6. Place the selector lever in the N (Neutral) position. Refer to
4-1.2 Shift Selector Lever Lock
Release (RAG–23)
.
7. Carefully pull the vehicle onto the flatbed.
8. Be careful not to pull the vehicle too close to the winch. Doing so will cause excessive downward force being
applied to the recovery hook. Too much downward force
may result in vehicle damage. Lower the flatbed and
finish rolling the vehicle forward if necessary.
9. Secure the vehicle to the flatbed by using wheel baskets at all 4 wheel positions.
10. Make sure that the vehicle recovery hook is properly secured in its original position after use and the recovery
hook cover has been reinstalled properly.
NOTE:
To help prevent squeaks and rattles, check that
the tools are reinstalled and properly secured
in the stored place after use.
AAYIA0399ZZ
AAYIA0396ZZ
RAG–28

Rear Tie Down Hook:
The recovery hook is located in the tool kit in the trunk area.
Do not use the rear tie down hook for towing or vehicle recovery.1. Using a suitable tool wrapped with a protective cloth,remove the recovery hook cover from the bumper.
2. Securely install the recovery hook (1) as illustrated.
3. Make sure that the vehicle recovery hook is properly secured in its original position after use and the recovery
hook cover has been reinstalled properly.
NOTE:
To help prevent squeaks and rattles, check that
the tools are reinstalled and properly secured
in the stored place after use.
AAYIA0400ZZ
1
AAYIA0416ZZ
RAG–29

4-4 Jacking Up the Vehicle and Changing a Tire
The Q50 is factory equipped with run-flat tires. It is not equipped with a jack or spare tire as standard
equipment. However, the following jacking instructions apply when using the optional Infiniti jack.
Always follow these instructions when jacking up the vehicle and changing a tire:
• Never change a tire when the vehicle is on a slope, ice or slippery areas. Jack must be onlevel ground.
• Make sure the parking brake is securely applied and shift selector is in P (Park) position.
• Never get under the vehicle while it is supported only by the jack. If it is necessary to work under the vehicle, support it with safety stands.
• Use the correct jack-up points. Never use any other part of the vehicle for jack support.
• Never jack up the vehicle more than necessary.
• Never use blocks on or under the jack.
• Do not start or run the engine while vehicle is on the jack. It may cause the vehicle to move. This is especially true for vehicles with limited slip differentials.
• Do not allow passengers to stay in the vehicle while it is on the jack.
• Never run the engine with a wheel(s) off the ground. It may cause the vehicle to move.
• Be sure to block the wheel diagonally opposite the wheel being removed as the vehicle may move and result in personal injury.
Failure to follow these instructions can result in serious personal injury or death and/or
vehicle damage.
1. Place the jack directly under the jack-up point as illustrated so the top of the jack contacts thevehicle at the jack-up point. Align the jack head between the two notches in the front or the rear
as shown. Also fit the groove of the jack head between the notches as shown. The jack
should be used on level firm ground.
AAYIA0403ZZ
RAG–30
