To close, slide the cup holder1back until it
engages.
CAUTION
Close the cup holder before folding the rear
armrest up, otherwise the cup holder could be
damaged.
COAT HOOKS
CAUTION
Do not apply a total load of more than 2 lb (1 kg)
to the hook.
The coat hooks are equipped at the rear assist
grips.
CARGO TIE-DOWN HOOKS
1Cargo tie-down hook
WARNING
•Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than the
seatbacks. In a sudden stop or collision,
unsecured cargo could cause personal in-
jury.
•Use suitable ropes and hooks to secure
cargo.
SIC3505ZNIC2670
2-80Instruments and controls

•Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-
down position. Use of these areas by pas-
sengers without proper restraints could re-
sult in serious injury or death in an accident
or sudden stop.
•Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts.
•The child restraint top tether strap may be
damaged by contact with items in the cargo
area. Secure any items in the cargo area.
Your child could be seriously injured or
killed in a collision if the top tether strap is
damaged.
•Be sure everyone in your vehicle is in a seat
and using a seat belt properly.
CAUTION
•Do not apply a total load of more than 22 lb
(10 kg) to a single eyelet.
•Secure the load using the cargo tie-down
hooks.
•Distribute the load on the cargo tie-down
hooks evenly.
•Do not use elastic straps or nets to secure a
load. These are only intended as anti-slip
protection for light loads.
•Do not route tie-down ropes or straps across
sharp edges or corners.
•Pad sharp edges for protection.
LUGGAGE HOOKS
The luggage hooks1are for shopping bags,
etc.
CAUTION
•Do not apply a total load of more than 7 lb
(3 kg) to the hook.
•Do not use luggage hooks to secure a load.
NIC2671
Instruments and controls2-81

FRONT SEAT STORAGE BOXES (IF
EQUIPPED)
To open the front seat storage boxes, pull
handle
1up and fold cover2forwards.
CAUTION
The maximum permissible load for the front
seat storage box is 2.6 lb (1.2 kg).
MAP POCKET (IF EQUIPPED)
Map pockets are located in the doors.
STORAGE NETS (IF EQUIPPED)
WARNING
Do not place sharp objects in the nets to help
prevent injury in an accident or sudden stop.
Storage nets are fitted in the front-passenger
footwell and on the back of the driver’s and
front passenger seat.
PARCEL SHELF
WARNING
•Never put anything on the parcel shelf, no
matter how small. Any object on it could
cause an injury in case of an accident or if
the brakes are applied suddenly.
•Do not leave the parcel shelf in position
when it is disengaged from the grooves.
•Properly secure all cargo to help prevent it
from sliding or shifting. Do not place cargo
higher than the seatbacks. In a sudden stop
or collision, unsecured cargo could cause
personal injury
NIC2666NIC2685NIC2687
2-82Instruments and controls

•Properly secure cargo and do not allow it to
contact the top tether strap when it is at-
tached to the top tether anchor. Cargo that
is not properly secured or cargo that con-
tacts the top tether strap may damage the
top tether strap during a collision. If the
cargo cover contacts the top tether strap
when it is attached to the top tether anchor,
remove the cargo cover from the vehicle or
secure it on the cargo floor below its attach-
ment location. If the cargo cover is not re-
moved, it may damage the top tether strap
during a collision. Your child could be seri-
ously injured or killed in a collision if the
child restraint top tether strap is damaged.
•Do not use the cargo cover if the rear seats
are folded down.
Removal
1. Open the lift gate (seeLift gate lockin the
2. Instruments and controls section).
2. Detach both of the cords (left and right)
1from the inside of the lift gate.
3. Detach the parcel shelf
2by simply pulling
it rearwards through the lift gate opening.
CAUTION
Make sure the parcel shelf is carefully stored
when not in use in order to prevent any
damage.
Installation
1. Open the lift gate.
2. Insert the parcel shelf by pushing it forwards as far as possible through the lift gate
opening.
3. Attach the corresponding cords to each side
1of the lift gate.
4. Close the lift gate (see Lift gate lockin the
2. Instruments and controls section).
ROOF RACK (IF EQUIPPED)
Genuine NISSAN accessory cross bars are avail-
able through an INFINITI retailer. It is recom-
mended you visit an INFINITI retailer for cross-
bar or other equipment information.
Always distribute the luggage evenly on the roof
rack. Observe the maximum load limit shown on
the crossbars or roof carriers when you attach
them on the roof rails. It is recommended you
visit an INFINITI retailer for cross bar or other
equipment information.
Do not apply any load directly to the roof side
rails. Cross bars (if so equipped) must be
installed before applying load/cargo/luggage
to the roof of the vehicle.
Be careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its Gross
Axle Weight Rating (GAWR front and rear). The
GVWR and GAWR are located on the F.M.V.S.S.
or C.V. M.S.S. certification label (located on the
driver’s door pillar). For additional information,
refer toVehicle loading information in the10.
Technical information section.
NIC2672
Instruments and controls2-83

WARNING
•Drive extra carefully when the vehicle is
loaded at or near the cargo carrying capac-
ity, especially if the significant portion of
that load is carried on the roof rack.
•Heavy loading of the roof rack has the po-
tential to affect the vehicle stability and
handling during sudden or unusual han-
dling maneuvers.
•Roof rack load should be evenly distributed.
•Do not exceed maximum roof rack load
weight capacity.
•Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, unse-
cured cargo could cause personal injury.
CAUTION
Always install the cross bars (if so equipped)
onto the roof side rails before loading cargo of
any kind. Loading cargo directly onto the roof
side rails or the vehicle’s roof may cause ve-
hicle damage.
SKI HATCH (IF EQUIPPED)
To open the ski hatch:
1. Fold down rear seat armrest.
2. Pull the center head restraint on the rearbench seat into the uppermost position.
3. Slide locking mechanism
1in the direction
of the arrow
4. Swing flap
2fully to the side. The flap is
held open by a magnet.
To close the ski hatch:
1. Swing flap
1in the luggage compartment
back until it engages.
2. Fold armrest fully up if necessary.
COMPARTMENT UNDER TRUNK FLOOR
Lift the trunk floor to access the underfloor
storage area.
NIC2668NIC2673
2-84Instruments and controls

CAUTION
•Turn off the lights when you leave the ve-
hicle.
•Do not use the lights for extended periods of
time with the engine stopped. This could
result in a discharged battery.
FRONT OVERHEAD CONTROL PANEL
1Switches the left-hand front reading lamp
on/off
2Switches the front interior lighting on
3Switches the rear interior lighting on/off
4Switches the right-hand front reading
lamp on/off
5Switches the front interior lighting/
automatic interior lighting control off
6Switches the automatic interior lighting
control on
Automatic interior lighting control
•To switch on: set the switch to center posi-
tion
6.
•To switch off: press switch5.
The interior lighting automatically switches on if
you:
•Unlock the vehicle
•Open a door
•Remove the key from the ignition lock.
The interior lighting is activated for a short time
when the key is removed from the ignition lock.
You can activate this delayed switch-off using
the vehicle information display (see Activating/
deactivating the interior lighting delay earlier
in this section).
NIC2630
INTERIOR LIGHTS
Instruments and controls2-85

REAR READING LIGHTS (IF EQUIPPED)
1Switches the left hand reading light on/
off
2Switches the right hand reading light
on/off
REAR ROOM LIGHT (IF EQUIPPED)
The rear room light (without switches) can be
switched on and off using the front overhead
control panel.
VANITY MIRROR LIGHTS
To access the vanity mirror, pull the sun visor
down and flip open the mirror cover.
The vanity mirror light illuminates when the
vanity mirror cover is opened. When the cover is
closed, the light will turn off.
LUGGAGE COMPARTMENT LIGHT
The light illuminates while the lift gate is
opened. When the lift gate is closed, the light
will turn off.
BATTERY SAVER SYSTEM
When the interior light stays on, it will auto-
matically turn off within a period of time after
the ignition switch has been turned to the OFF
position. To turn on the light again, put the
ignition switch in the ON position.The HomeLink® Universal Transceiver, inte-
grated in the vehicle’s inside rear view mirror,
provides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.
HomeLink® Universal Transceiver:
•Will operate most Radio Frequency (RF) de-
vices such as garage doors, gates, home and
office lighting, entry door locks and security
systems.
•Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink® will retain all program-
ming.
When the HomeLink® Universal Transceiver is
programmed, retain the original transmitter for
future programming procedures (Example: new
vehicle purchases). Upon sale of the vehicle, the
programmed HomeLink® Universal Transceiver
buttons should be erased for security purposes.
For additional information, refer to Program-
ming HomeLink® later in this section.
NIC2632SIC3869Z
HOMELINK® UNIVERSAL TRANSCEIVER (IF
EQUIPPED)
2-86Instruments and controls

WARNING
•Do not use the HomeLink® Universal Trans-
ceiver with any garage door opener that
lacks safety stop and reverse features as
required by federal safety standards.
(These standards became effective for
opener models manufactured after April 1,
1982). A garage door opener which cannot
detect an object in the path of a closing
garage door and then automatically stop
and reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases the
risk of serious injury or death.
•During the programming procedure your ga-
rage door or security gate will open and
close (if the transmitter is within range).
Make sure that people or objects are clear of
the garage door, gate, etc. that you are pro-
gramming.
•Your vehicle’s engine should be turned off
while programming the HomeLink® Univer-
sal Transceiver.NOTE
Certain garage door drives are incompatible
with the integrated garage door opener. If you
have difficulty programing the integrated ga-
rage door opener, it is recommended you contact
your INFINITI retailer.
PROGRAMMING HOMELINK®
If you have any questions or are having diffi-
culty programming your HomeLink® buttons,
refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.
1. Turn the ignition key to the ON position.
2. Press and hold one of buttons
2to4on
the HomeLink®.
HomeLink® is now in programing mode.
After a short time, indicator lamp
1lights
up yellow.
Indicator lamp
1lights up yellow as soon
as button
2,3or4is programed for the
first time. If the selected button has already
been programed, indicator lamp
1will only
light up yellow after ten seconds have
elapsed.
3. Release button
2,3or4. Indicator lamp
1flashes yellow.
NDI1631
Instruments and controls2-87

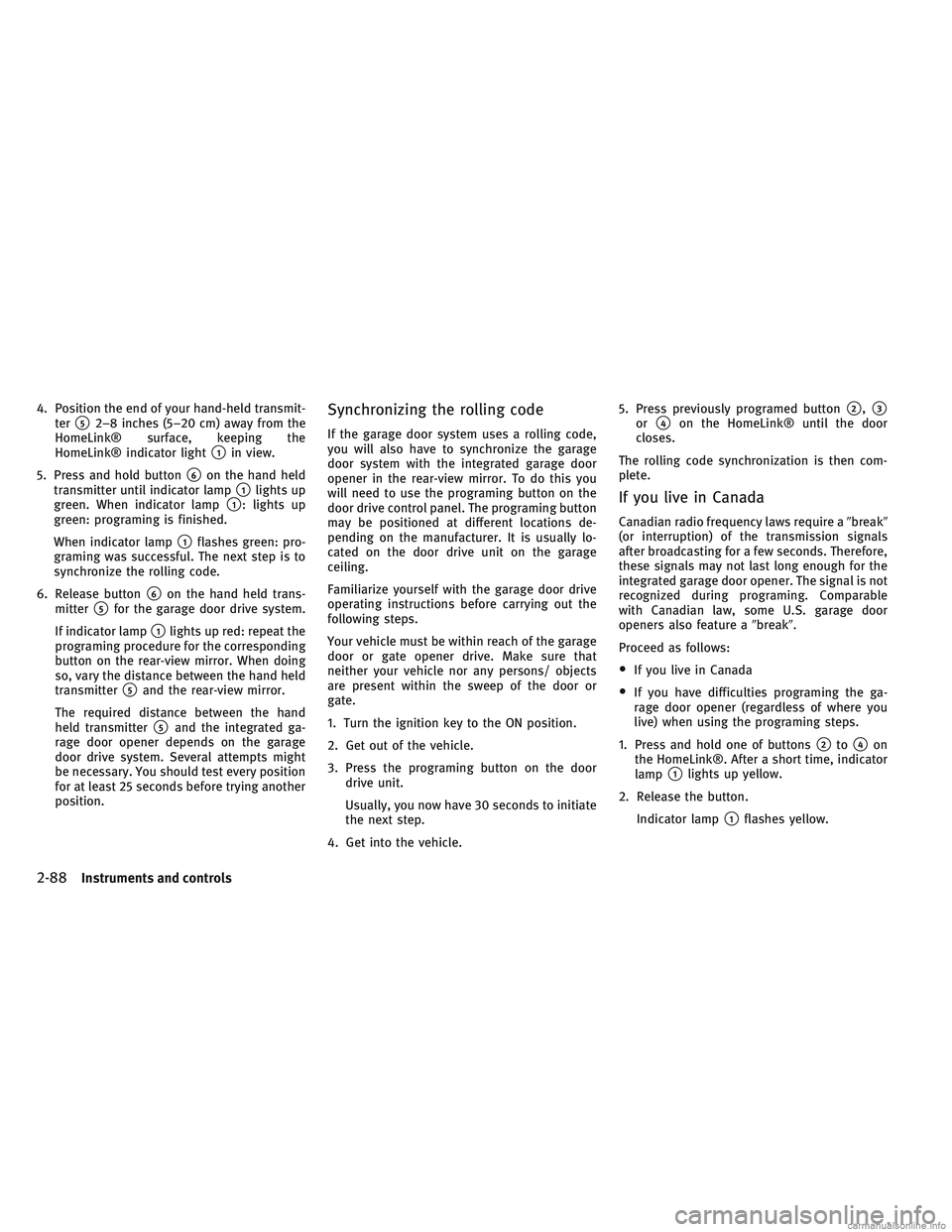

4. Position the end of your hand-held transmit-ter
52–8 inches (5–20 cm) away from the
HomeLink® surface, keeping the
HomeLink® indicator light
1in view.
5. Press and hold button
6on the hand held
transmitter until indicator lamp
1lights up
green. When indicator lamp
1: lights up
green: programing is finished.
When indicator lamp
1flashes green: pro-
graming was successful. The next step is to
synchronize the rolling code.
6. Release button
6on the hand held trans-
mitter
5for the garage door drive system.
If indicator lamp
1lights up red: repeat the
programing procedure for the corresponding
button on the rear-view mirror. When doing
so, vary the distance between the hand held
transmitter
5and the rear-view mirror.
The required distance between the hand
held transmitter
5and the integrated ga-
rage door opener depends on the garage
door drive system. Several attempts might
be necessary. You should test every position
for at least 25 seconds before trying another
position.
Synchronizing the rolling code
If the garage door system uses a rolling code,
you will also have to synchronize the garage
door system with the integrated garage door
opener in the rear-view mirror. To do this you
will need to use the programing button on the
door drive control panel. The programing button
may be positioned at different locations de-
pending on the manufacturer. It is usually lo-
cated on the door drive unit on the garage
ceiling.
Familiarize yourself with the garage door drive
operating instructions before carrying out the
following steps.
Your vehicle must be within reach of the garage
door or gate opener drive. Make sure that
neither your vehicle nor any persons/ objects
are present within the sweep of the door or
gate.
1. Turn the ignition key to the ON position.
2. Get out of the vehicle.
3. Press the programing button on the door drive unit.
Usually, you now have 30 seconds to initiate
the next step.
4. Get into the vehicle. 5. Press previously programed button
2,3or4on the HomeLink® until the door
closes.
The rolling code synchronization is then com-
plete.
If you live in Canada
Canadian radio frequency laws require a break
(or interruption) of the transmission signals
after broadcasting for a few seconds. Therefore,
these signals may not last long enough for the
integrated garage door opener. The signal is not
recognized during programing. Comparable
with Canadian law, some U.S. garage door
openers also feature a break.
Proceed as follows:
•If you live in Canada
•If you have difficulties programing the ga-
rage door opener (regardless of where you
live) when using the programing steps.
1. Press and hold one of buttons
2to4on
the HomeLink®. After a short time, indicator
lamp
1lights up yellow.
2. Release the button. Indicator lamp
1flashes yellow.
2-88Instruments and controls

3. Press button6of the hand held transmitter
5for two seconds, then release it for two
seconds.
4. Press button
6again for two seconds.
5. Repeat this sequence on button
6of the
hand held transmitter
5until indicator
lamp
1lights up green.
When indicator lamp
1lights up green:
programing is finished.
When indicator lamp
1flashes green: pro-
graming was successful. The next step is to
synchronize the rolling code.
6. Release button
6of the hand held trans-
mitter
5for the garage door drive.
If indicator lamp
1lights up red: repeat the
programing process for the corresponding
button on the rear-view mirror. When doing
so, vary the distance between the hand held
transmitter
5and the rear-view mirror.
The required distance between the hand
held transmitter
5and the HomeLink®
depends on the garage door drive system.
Several attempts might be necessary. You
should test every position for at least 25
seconds before trying another position.
PROGRAMMING TROUBLE DIAGNOSIS
If the HomeLink® does not quickly learn the
hand-held transmitter information:
•Check the transmitter frequency used by
garage door drive hand-held transmitter
5and whether it is supported. The transmitter
frequency can usually be found on the back
of the garage door drive hand-held transmit-
ter. HomeLink® is compatible with devices
that have units which operate in the fre-
quency range of 280 to 433 MHz.
•Replace the hand-held transmitter5batter-
ies with new batteries.
This increases the likelihood that the hand-
held transmitter
5will transmit a strong
and precise signal to the HomeLink®.
•When programing, hold the hand-held trans-
mitter
5at varying distances and angles
from the button which you are programing.
Try various angles at a distance between 2
and 12 inches (5 to 30 cm) or at the same
angle but at varying distances.
•If another hand-held transmitter is available
for the same garage door drive, repeat the
same programing steps with this hand-held
transmitter
5. Before performing these
steps, make sure that new batteries have been installed in the hand-held transmitter
5.
•Note that some hand-held transmitters only
transmit for a limited amount of time (the
indicator lamp on the hand-held transmitter
goes out). Press button
6on remote hand-
held transmitter
5again before transmis-
sion ends.
•Align the antenna cable of the garage door
opener unit. This can improve signal
reception/ transmission.
If you have any questions or are having diffi-
culty programming your HomeLink® buttons,
refer to the HomeLink® web site at:
www.homelink.com or 1-800-355-3515.
OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, after it is
programmed, can be used to activate the pro-
grammed device.
1. Turn the ignition key to the ON position.
2. Press button
2,3or4which you have
programed to operate the garage door.
Garage door system with a fixed code: indi-
cator lamp
1lights up green
Instruments and controls2-89
