SWITCHING THE WINDSHIELD WIPERS
ON/OFF
1Windshield wipers off.
2Intermittent wipe, low (rain sensor
set to low sensitivity).
3Intermittent wipe, high (rain sen-
sor set to high sensitivity).
4Continuous wipe, slow.
5Continuous wipe, fast.
ASingle wipe/
wipe the windshield using washer fluid.
The windshield wiper and washer operate when
the ignition switch is in the ON position.
Turn the combination switch to the desired
position.
Rain sensor (if equipped)
CAUTION
•Do not touch the rain sensor and around it
when the wiper switch is in theorposition and the ignition switch is in
the ON position. The wipers may operate
unexpectedly and cause an injury or may
damage a wiper.
•The rain-sensing auto wipers are intended
for use during rain. If the switch is left in the
orposition, the wipers may
operate unexpectedly when dirt, finger-
prints, oil film or insects are stuck on or
around the sensor. The wipers may also op-
erate when exhaust gas or moisture affect
the rain sensor.
•When the windshield glass is coated with
water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
•Be sure to turn off the rain-sensing auto
wiper system when you use a car wash.
•The rain-sensing auto wipers may not oper-
ate if rain does not hit the rain sensor even if
it is raining.
•Using genuine wiper blades is recom-
mended for proper operation of the rain-
sensing auto wiper system. For additional
information, refer to Wiper bladesin the
8. Do-it-yourself section.
•Vehicles with a rain sensor: if the wind-
shield becomes dirty in dry weather condi-
tions, the windshield wipers may be acti-
vated inadvertently. This could damage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
Vehicles with a rain sensor: in the
orposition, the appropriate wiping fre-
quency is automatically set according to the
intensity of the rain. In the
position, the
rain sensor is more sensitive than in the
position, causing the windshield wiper to wipe
more frequently.
If the wiper blades are worn, the windshield will
no longer be wiped properly. This could prevent
you from observing the traffic conditions.
The rain-sensing auto wiper system uses the
rain sensor located on the upper part of the
windshield.
NIC2810Combination switch
2-60Instruments and controls

SWITCHING THE REAR WINDOW WIPER
ON/OFF
WARNING
In freezing temperatures the washer solution
may freeze on the windshield and obscure your
vision which may lead to an accident. Warm
the windshield with the defroster before you
wash the windshield.
CAUTION
•Do not operate the washer continuously for
more than 30 seconds.
•Do not operate the washer if the window
washer fluid reservoir is empty.
•Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the
window washer reservoir tank.
•Pre-mix washer fluid concentrates with wa-
ter to the manufacturer’s recommended lev-
els before pouring the fluid into the window
washer reservoir tank. Do not use the win-
dow washer reservoir tank to mix the
washer fluid concentrate and water.
1Switch
2Wipes with washer fluid
3Switches on intermittent wiping
4Switches off intermittent wiping
5Wipes with washer fluid
1. Switch the ignition switch to the ON position.
2. Turn switch
1on the combination switch to
the corresponding position.
When the rear window wiper is switched on,
the
symbol appears in the assistance
graphic in the combination meter. Further
information on the assistance graphic (see
Showing the distance display earlier in this
section). The defroster switch
Boperates when the
ignition switch is in the ON position for the rear
window, and (if equipped) for the outside rear
view mirrors.
The defroster is used to reduce the moisture,
fog or frost on the rear window surface and on
the outside mirror surface to improve the rear
view.
When the defroster switch
is pushed, the
indicator light illuminates and the defroster
operates for several minutes. After the preset
time has passed, the defroster will turn off
automatically. To turn off the defroster manu-
ally, push the defroster switch
again, and
the indicator light turns off.
NIC2617NAA1659
REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH
Instruments and controls2-61

CAUTION
•When cleaning the inner side of the rear
window, be careful not to scratch or damage
the rear window defroster.
•When operating the defroster continuously,
be sure to start the engine. Otherwise, it
may cause the battery to discharge.
•When cleaning the inner side of the window,
be careful not to scratch or damage the elec-
trical conductors on the surface of the
window.The windshield de-icer switch (defogger switch)
Aoperates when the ignition switch is in the
ON position.
You can use this function to defrost the wind-
shield or to demist the inside of the windshield
and the side windows
NOTE
You should only select the windshield de-icer
function until the windshield is clear again.
When the switch
is pushed, the indicator
light in the switch illuminates. The climate
control system switches to the following func-
tions:
•High airflow
•High temperature
•Air distribution to the windshield and front
side windows
•Air recirculation mode off
NOTE
The “Windshield demisting” function automati-
cally sets the blower output to the optimum de-
misting effect. As a result, the airflow may in-
crease or decrease automatically after the
button is pressed
NOTE
You can adjust the blower output manually while
the “Windshield demisting” function is in opera-
tion: by adjusting the airflow control for the air-
conditioning or climate control system (see
Heater and air conditioner in the4. Display
screen, heater and air conditioner, and audio
system section).
To deactivate the de-icer:
•Press thebutton. The indicator lamp in
thebutton turns off. The previous
settings are reactivated. Air-recirculation
mode remains deactivated.
or
•Automatic climate control: press the
button. The indicator lamp in the
NAA1659
WINDSHIELD DE-ICER SWITCH (IF
EQUIPPED)
2-62Instruments and controls

button turns off. Airflow and air distribution
are set to automatic mode.
or
•Air-conditioning system or automatic climate
control: adjust the temperature control (see
Heater and air conditionerin the4. Display
screen, heater and air conditioner, and audio
system section).
HEADLIGHT SWITCH
1Left-hand parking lights
2Right-hand parking lights
3Side lights and license plate light-
ing
4 Automatic headlight mode, con-
trolled by the light sensor
5Low beam/high beam headlights
6Rear fog light
7Front fog lights (if equipped)
8Headlight aiming control (halogen head-
lights only)
INFINITI recommends that you consult the local
regulations concerning the use of lights. If you hear a warning tone when you leave the
vehicle, the side lights may still be switched on.
Turn the light switch to
.
The exterior lighting (except the side lights/
parking lights) switches off automatically if you:
•Remove the key from the ignition switch (if
equipped).
•Open the driver’s door with the ignition
switch in the OFF position.
CAUTION
Use the headlights with the engine running to
avoid discharging the vehicle battery.
NIC2619LED headlightsNIC2697Halogen headlights
HEADLIGHT AND TURN SIGNAL SWITCHES
Instruments and controls2-63

Automatic headlight mode
is the preferred light switch setting. The
light setting is automatically selected according
to the brightness of the ambient light (excep-
tion: poor visibility due to weather conditions
such as fog, snow or spray):
•Ignition switch in ACC or ON position: the
side lights are switched on or off automati-
cally depending on the brightness of the
ambient light.
•With the engine running: if you have
switched on the daytime driving lights func-
tion in the vehicle information display, the
side lights and low beam headlights are
switched on or off automatically depending
on the brightness of the ambient light.
To switch on automatic headlight mode: turn the
light switch to .
WARNING
When the light switch is set to , the
low-beam headlights may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There is a risk of an
accident
In such situations, turn the light switch to
. The automatic headlight feature is only an aid.
The driver is responsible for the vehicle lighting
at all times.
The daytime driving lights improve the detect-
ability of your vehicle during the day.
WARNING
When the daytime running light system is ac-
tive, tail lights on your vehicle are not on. It is
necessary at dusk to turn on your headlights.
Failure to do so could cause an accident injur-
ing yourself and others.
When the side lights and low-beam headlights
are switched on, the green
(side lights)
and(low-beam headlights) indicator
lights in the combination meter light up.
Low-beam headlights
When the ignition is switched on and the light
switch is in theposition, the side lights
and low-beam headlights are switched on even
if the light sensor does not sense dark ambient
light conditions. This is advantageous when
there is fog or rain.
To switch on the low-beam headlights:
•Switch the ignition switch to the ON position,
or start the engine.
•Turn the light switch to. The greenindicator light in the combination me-
ter lights up.
Side lights
NOTE
Always park your vehicle safely and sufficiently
lit according to legal standards. To reduce the
chance of a discharged vehicle battery, avoid the
continuous use of the
sidelights or park-
ing lights for several hours.
To switch on: turn the light switch to
. The
greenindicator light in the combination
meter lights up.
Parking lights
Switching on the parking lights ensures that the
corresponding side of the vehicle is illuminated.
To switch on the parking lights:
•The key is not in the ignition switch or the
switch is in the OFF position.
•Turn the light switch to(left-hand side
of the vehicle) or(right-hand side of
the vehicle).
2-64Instruments and controls

COMBINATION SWITCH
1Turn signal, right
2Turn signal, left
3High beam headlights
4Headlight flasher
Turn signal
Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signal cancels automatically.
Lane change signal
Move the lever up or down until the turn signal
begins to flash, but the lever does not latch, to
signal a lane change. Hold the lever until the
lane change is completed. Move the lever up or
down until the turn signal begins to flash, but
the lever does not latch, and release the lever.
The turn signal will automatically flash threetimes. Choose the appropriate method to signal
a lane change based on road and traffic condi-
tions.
High beam headlights
To switch on the high beam headlights:
•Turn the ignition switch to the ON position or
start the engine.
•Turn the light switch toor
.
•Press the combination switch beyond the
pressure point in the direction of arrow
3.
In the position, the high beam head-
lights are only switched on when it is dark
and the engine is running.
The blue
indicator light in the combi-
nation meter lights up when the high beam
headlights are switched on.
To switch off the high beam headlights:
•Move the combination switch back to its
normal position. The blueindicator
light in the combination meter goes out.
NOTE
Vehicles with High beam Assist: when High
beam Assist is active, it controls activation and
deactivation of the high beam headlights (see
 High beam assist (LED headlight only) later in
this section)
ADAPTIVE FRONT LIGHTING SYSTEM
(LED HEADLIGHT ONLY) (IF EQUIPPED)
The Adaptive Front Lighting System is a system
that adjusts the headlights automatically to suit
the prevailing driving and weather conditions. It
offers advanced functions for improved illumi-
nation of the road surface, e.g. depending on
the vehicle speed or weather conditions. The
system includes the active light function, cor-
nering light function and freeway mode. The
system is only active when it is dark.
You can activate or deactivate the “Adaptive
Front Lighting System” function using the ve-
hicle information display (see Switching the
Adaptive Front Lighting System on/off earlier in
this section)
NIC2618
Instruments and controls2-65

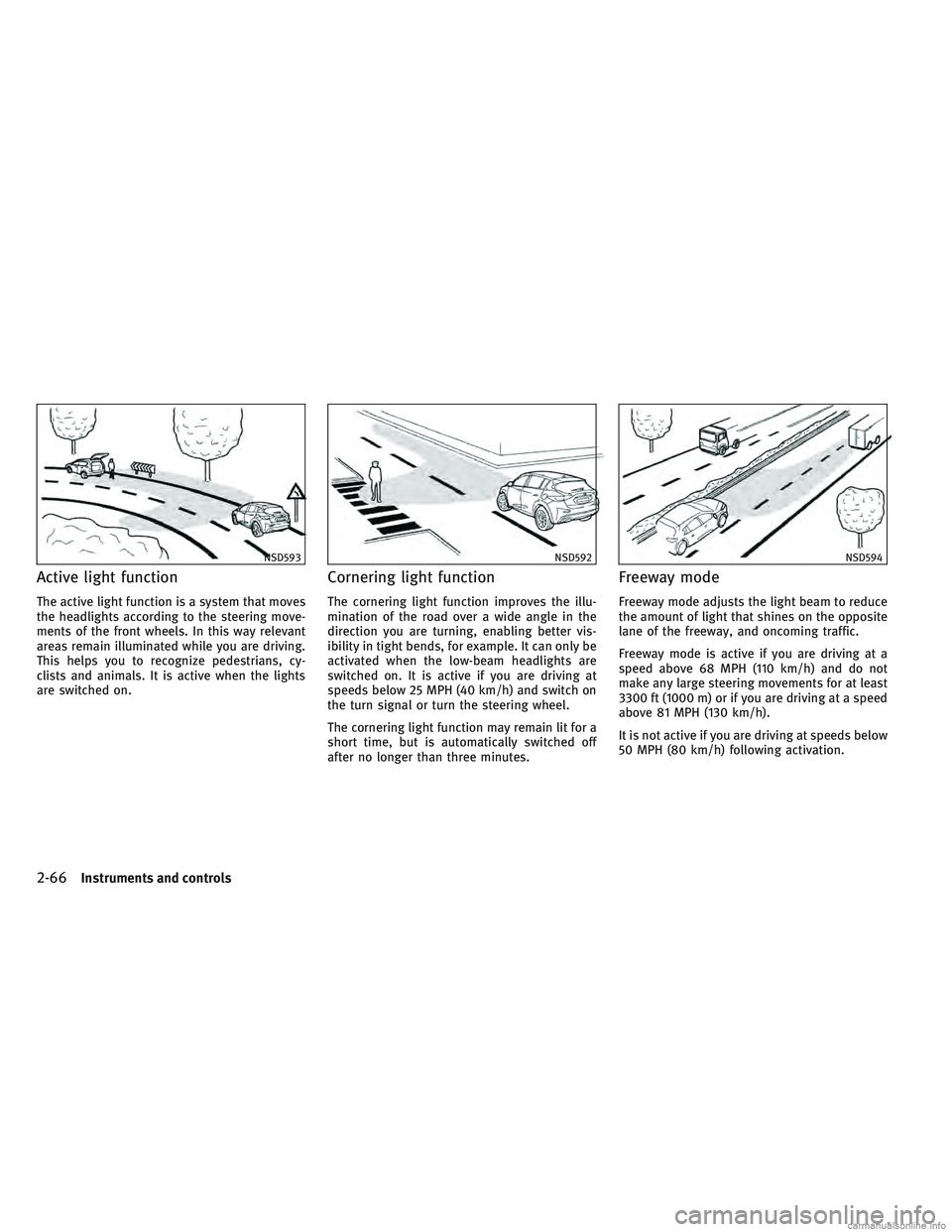

Active light function
The active light function is a system that moves
the headlights according to the steering move-
ments of the front wheels. In this way relevant
areas remain illuminated while you are driving.
This helps you to recognize pedestrians, cy-
clists and animals. It is active when the lights
are switched on.
Cornering light function
The cornering light function improves the illu-
mination of the road over a wide angle in the
direction you are turning, enabling better vis-
ibility in tight bends, for example. It can only be
activated when the low-beam headlights are
switched on. It is active if you are driving at
speeds below 25 MPH (40 km/h) and switch on
the turn signal or turn the steering wheel.
The cornering light function may remain lit for a
short time, but is automatically switched off
after no longer than three minutes.
Freeway mode
Freeway mode adjusts the light beam to reduce
the amount of light that shines on the opposite
lane of the freeway, and oncoming traffic.
Freeway mode is active if you are driving at a
speed above 68 MPH (110 km/h) and do not
make any large steering movements for at least
3300 ft (1000 m) or if you are driving at a speed
above 81 MPH (130 km/h).
It is not active if you are driving at speeds below
50 MPH (80 km/h) following activation.
NSD593NSD592NSD594
2-66Instruments and controls

HIGH BEAM ASSIST (LED HEADLIGHT
ONLY)
You can use this function to set the headlights
to change between low beam and high beam
automatically. The system recognizes vehicles
with their lights on, either approaching from the
opposite direction or traveling in front of your
vehicle, and consequently switches the head-
lights from high beam to low beam.
The system automatically adapts the low beam
headlight range depending on the distance to
the other vehicle. Once the system no longer
detects any other vehicles, it switches on the
high beam headlights again.
The system’s optical sensor is located behind
the windshield near the overhead control panel.
WARNING
•The high beam assist system is a conve-
nience but is not a substitute for safe driv-
ing operation. The driver should remain
alert at all times, ensure safe driving prac-
tices and switch the high beams and low
beam manually when necessary.
•The high beam or low beam may not switch
automatically under the following condi-
tions. Switch the high beam and low beam
manually.– During bad weather (rain, fog, snow,
wind, etc.).
– When a light source similar to a head-
light or tail light is in the vicinity of the
vehicle.
– When the headlights of the oncoming
vehicle or the leading vehicle are turned
off, when the color of the light is affected
due to foreign materials on the lights, or
when the light beam is out of position.
– When there is a sudden, continuous
change in brightness.
– When driving on a road that passes over
rolling hills, or a road that has level dif-
ferences.
– When driving on a road with many
curves. –
When a sign or mirror-like surface is re-
flecting intense light towards the front of
the vehicle.
– When the container, etc. being towed by
a leading vehicle is reflecting intense
light.
– When a headlight on your vehicle is dam-
aged or dirty.
– When the vehicle is leaning at an angle
due to a punctured tire, being towed, etc.
•The timing of switching the low beam and
high beam may change under the following
situations.
– The brightness of the headlights of the
oncoming vehicle or leading vehicle.
– The movement and direction of the on-
coming vehicle and the leading vehicle.
– When only one light on the oncoming
vehicle or the leading vehicle is illumi-
nated.
– When the oncoming vehicle or the lead-
ing vehicle is a two-wheeled vehicle.
– Road conditions (incline, curve, the road
surface, etc.).
– The number of passengers and the
amount of luggage.
•High beam Assist does not recognize road
users:
– Who have no lights, e.g. pedestrians.
NDS595
Instruments and controls2-67

–Who have low intensity lighting, e. g.
cyclists.
– Whose lighting is blocked, e.g. by a bar-
rier.
•In very rare cases, High beam Assist recog-
nizes road users too late or not at all. In this,
or in similar situations, the automatic high
beam headlights will not be deactivated or
activated regardless. There is a risk of an
accident.
•Always carefully observe the traffic condi-
tions and switch off the high beam head-
lights in good time.
CAUTION
High beam Assist cannot compensate for road
and weather circumstances while driving. The
system saves the driver from having to operate
the switch. The driver always remains respon-
sible for choosing the correct light setting.
Specific situations in which to operate the
headlight switch manually:
•In heavy rain, snowy conditions. (general
poor visibility and bad weather conditions).
•When the vehicle sensors are dirty, covered
or broken.
Switching High Beam Assist on/off
To switch on:
Turn the light switch to and press the
combination switch beyond the pressure point
in the direction of arrow
3. Theindicator
light in the vehicle information display lights up
when it is dark and the light sensor switches on
the low-beam headlights.
If you are driving at speeds above approxi-
mately 28 MPH (45 km/h) the headlight range is
set automatically depending on the distance
between the vehicle and other road users.
If you are driving at speeds above approxi-
mately 34 MPH (55 km/h) and no other road
users are detected, the high beam headlights
are switched on automatically. The
indi- cator light in the combination meter also lights
up.
If you are driving at speeds below approxi-
mately 28 MPH (45 km/h) or other road users
are detected or the roads are adequately lit The
high beam headlights are switched off auto-
matically. The
indicator light in the com-
bination meter goes out. Theindicator
light in the vehicle information display remains
lit.
To deactivate
:
Move the combination switch back to its normal
position Theindicator light in the vehicle
information display goes out.
HEADLIGHTS MISTED UP ON THE
INSIDE
Certain climatic and physical conditions may
cause moisture to form in the headlight. This
moisture does not affect the functionality of the
headlight.
NIC2618
2-68Instruments and controls

INSTRUMENT BRIGHTNESS CONTROL
The light sensor in the combination meter au-
tomatically controls the brightness of the in-
strument panel
In daylight, the displays in the combination
meter are not illuminated
The lighting in the combination meter, displays
and controls in the vehicle interior can be
adjusted using the brightness control knob.
The brightness control knob
1is located be-
hind the steering wheel.
Turn the brightness control knob clockwise or
counterclockwise. If the light switch is set to
orthe brightness is dependent
upon the brightness of the ambient light.
FRONT FOG LIGHTS
In conditions where visibility is poor due to fog,
snow or rain, the fog lights improve visibility as
well as making it easier for other road users to
see you. They can be operated together with the
side lights or together with the side lights and
low beam headlights.
To switch on the fog lights:
•Turn the ignition switch to the ON position or
start the engine.
•Turn the light switch toor .
•Press thebutton. The greenindicator light in the combination meter
lights up To switch off the front fog lights:
•press thebutton The greenindica-
tor light in the combination meter turns off.
Only vehicles with front fog lights are equipped
with the “Fog lights” function.
REAR FOG LIGHT
The rear fog light improves the visibility of your
vehicle in heavy fog for the following traffic.
Please observe the country-specific laws on the
use of rear fog lights.
NOTE
The front fog lights must be switched on before
the rear fog light will operate.
To switch on the rear fog light:
•Turn the ignition switch to the ON position or
start the engine.
•Turn the light switch toor .
•Press thebutton. The yellowindicator light in the combination meter
lights up
To switch off the rear fog light:
•press thebutton The yellowindicator light in the combination meter
turns off.
NIC2615NIC2699
FOG LIGHT SWITCH (IF SO EQUIPPED)
Instruments and controls2-69
