INFINITI QX30 2017 Owner's Manual

Setting and storing the parking position using
the memory button:
You can set the front-passenger side exterior
mirror so that you can see the rear wheel on
that side as soon as you engage reverse gear.
This setting can be stored using memory button
M
4.
1. Make sure that the vehicle is stationary.
2. Switch the ignition switch to the ON posi- tion.
3. Press button
2for the external mirror on
the front-passenger side.
4. Engage reverse gear. The exterior mirror on the front-passenger side moves to the preset
parking position.
5. Use adjustment button
3to adjust the
exterior mirror. You should see the rear
wheel and the curb in the exterior mirror.
6. Press memory button M
4and one of the
arrows on adjustment button
3within
three seconds. The parking position is
stored if the exterior mirror does not move.
7. If the mirror moves out of position, repeat the steps. Calling up a stored parking position
:
1. Switch the ignition switch to the ON position.
2. Adjust the exterior mirror on the front pas-
senger side with the corresponding button.
3. Engage reverse gear. The exterior mirror on the front-passenger side moves to the stored
parking position
The exterior mirror on the front-passenger side
moves back to its original position:
•As soon as you exceed a speed of 15 km/h.
•About ten seconds after you have disen-
gaged reverse gear.
•If you press button1for the exterior mirror
on the driver’s side.
WARNING
•If you use the memory function on the driv-
er’s side while driving, the adjustments
could cause you to lose control of the ve-
hicle. There is a risk of an accident. Only use
the memory function on the driver’s side
while the vehicle is stationary.
Only use the memory function on the driv-
er’s side while the vehicle is stationary.
•If the memory function adjusts the seat, you
and other vehicle occupants-particularly
children-could become trapped. There is a
risk of injury.
While the memory function is making ad-
justments, make sure that no one has any
part of their body within the sweep of the
NIC2637
MEMORY FUNCTION (IF EQUIPPED)
3-20Pre-driving checks and adjustments

seat. If someone becomes trapped, immedi-
ately release the memory function position
button The adjustment is stopped.
•If children activate the memory function,
they could become trapped, especially if
they are unattended. There is a risk of in-
jury.
When leaving the vehicle, always take the
key with you and lock the vehicle. Never
leave children unattended in the vehicle.
The memory function can be used at any time,
e.g. even when the key isn’t in the ignition lock.
STORING SETTINGS
With the memory function, you can store up to
three different settings.
•Seat and seatback position
•Driver’s side: position of the exterior mirrors
on the driver’s and front-passenger sides.
To store settings:
1. Adjust the seat (see Power seat adjustment
in the 1. Safety — seats, seat belts and
supplemental restraint system section).
2. Adjust the exterior mirror on the driver’s side (see Adjusting in the3. Pre-driving checks
and adjustments section).
3. Briefly press the M memory button
1, and
then press preset position button 1, 2 or 3
2within three seconds.
The settings are stored in the selected pre-
set position. A tone sounds when the set-
tings have been completed.
CALLING UP A STORED SETTING
Press and hold the relevant preset position
button 1, 2 or 3 until the seat and exterior
mirrors are in the stored position.
NOTE
The setting procedure is interrupted as soon as
you release the storage position button.
Pre-driving checks and adjustments3-21

4 Display screen, heater and air conditioner,
and audio system
Safety precautions..................... .4-2
Center multi function control panel ............4-2
INFINITI Controller .................... .4-2
Steering wheel mounted controls ...........4-3
USB connection ports ..................4-3
Starting system ..................... .4-4
Touch panel operation ..................4-5
Operating menu screen .................4-7
Scrolling message or list ................4-7
Selecting item ...................... .4-7
Adjusting volume and settings .............4-7
How to input letters and numbers ...........4-8
How to operate display .................4-8
Menu button operation .................4-10
System status screen ..................4-10
Items to be set initially .................4-11
Additional system information .............4-15
RearView monitor (if so equipped) ............4-16
RearView Monitor system operation .........4-17
How to read the displayed lines ...........4-17
Difference between predicted and actual
distances .........................4-18
How to park with predicted course lines ......4-19
Adjusting the screen ..................4-21
RearView Monitor setting ...............4-22
RearView Monitor system limitations ........4-22System maintenance
..................4-23
Around View Monitor (if so equipped) .........4-24
Around View Monitor system operation .......4-25
Difference between predicted and actual
distances .........................4-28
How to park with predicted course lines ......4-30
How to switch the display ...............4-31
Adjusting the screen ..................4-32
Around View Monitor setting .............4-33
Around View
®Monitor system limitations .....4-33
System maintenance ..................4-36
Sonar function settings (if so equipped) ......4-36
Moving Object Detection (if so equipped) .......4-37
MOD system operation .................4-38
MOD setting ...................... .4-39
MOD system limitations ................4-40
MOD malfunction ................... .4-40
System maintenance ..................4-40
Ventilators ..........................4-41
Center ventilators ................... .4-41
Side ventilators .................... .4-41
Rear ventilators (if equipped) .............4-41
Heater and air conditioner .................4-42
Air conditioning system ................4-43
Automatic climate control (2–zone) .........4-47
Servicing air conditioner ................4-51

Audio system (if equipped)................4-52
Audio operation precautions ..............4-52
Names and functions of audio control buttons . .4-63
Main audio operation ..................4-65
Radio .......................... .4-66
Compact Disc (CD) player ...............4-70
USB (Universal Serial Bus) connection port .....4-71
iPod player ....................... .4-74
Bluetooth® streaming audio .............4-76
Audio settings ..................... .4-80
Disc/USB memory device care and
cleaning Discs ..................... .4-81
USB memory device .................. .4-82
Gracenote® End User License Agreement .....4-82
Bluetooth® Hands-Free Phone System .........4-83
Regulatory information .................4-84
Phone .......................... .4-85
Connecting Bluetooth® device ............4-88
Hands-free text messaging assistant ........4-89
Phone and text message settings ..........4-92
Bluetooth® information ................4-96
INFINITI InTouch Apps overview ..............4-97
Using Applications .................. .4-98Vehicle Apps
...................... .4-98
Vehicle Apps Manager (if equipped) ........4-100
Major Apps available for use in this system . . . .4-101
Examples of how Vehicle Apps is used ......4-102
Mobile Apps ...................... .4-102
Getting user ID and password ............4-102
Notes on linking smartphone App to vehicle . . .4-103
Using smartphone applications ...........4-103
INFINITI Voice Recognition system ............4-103
Using Voice Recognition system ...........4-103
Before starting .................... .4-103
Giving voice commands ................4-104
Voice recognition settings ...............4-114
Information menu ..................... .4-115
SiriusXM Travel Link
R................4-116
Settings menu .................... .4-120
Troubleshooting guide .................. .4-122
Customer assistance ..................4-122
System unit ...................... .4-123
Audio system ..................... .4-124
Bluetooth® Hands-Free Phone System .......4-131
Monitor system .................... .4-134
Voice recognition ................... .4-135

WARNING
•Do not adjust the heater and air conditioner
controls or audio controls while driving so
that full attention may be given to vehicle
operation.
•Do not use this system if you notice any
abnormality, such as a frozen screen or lack
of sound. Continued use of the system may
result in accident, fire or electric shock.
•If you noticed any foreign objects entering
the system hardware, spilled liquid on the
system, or noticed smoke or fumes coming
out from the system, or any other unusual
operation is observed, stop using the sys-
tem immediately. It is recommended that
you contact the nearest INFINITI retailer. Ig-
noring such conditions may lead to an acci-
dent, fire or electric shock.
•Do not disassemble or modify this system. If
you do, it may lead to an accident, fire, or
electric shock.
•Park the vehicle in a safe location and apply
the parking brake to view the images on the
front center display screen.
CAUTION
Do not use the system when the engine is not
running for extended periods of time to pre-
vent battery discharge.
INFINITI CONTROLLER
1

Push again to display the Display View Bar and
the display views.
Push and hold to hear the current guidance for
a programmed route.
<
>(models without navigation system).
Push to display the hands-free phone operation
screen.
When you receive a phone call, push this switch
to answer the call.
2

1USB/iPod connection port:
Connect to play media from an iPod
R,
iPhone
Ror a USB memory device. When
using INFINITI InTouch Apps with an
iPhone
R, connect via a USB cable. Refer
to the device manufacturer’s owner infor-
mation regarding the proper use and care
of the device.
CAUTION
•Depending on the size and shape of USB
device, the console lid may not fully close.
Do not force the console lid closed as this
may damage the USB device. NOTE
•Even when iPodsRor iPhonesRare
connected to both of the two USB/iPod
Rconnection ports, the system recognizes only
one of the connected iPods
Ror iPhonesRat a time.
•Only one of the two connected USB devices
can be operated by the voice recognition
system.
STARTING SYSTEM
The system starts when the ignition switch is
placed in the ACC or ON position.
Start-up warning (models with
navigation system)
For this system, when the ignition switch is
placed in the ACC or ON position, the start-up
screen is displayed.
Touch [OK] after reading and agreeing to the
message. If you do not agree to the message,
some of Infiniti InTouch
TMfunctions will be
disabled. NOTE
•Do not keep the INFINITI InTouch system
turned on with the engine stopped. Doing so
may discharge the vehicle battery. When you
use INFINITI InTouch, always keep the engine
running.
•Once you select [Decline] on the start-up
screen, the [OK]/[Decline] screen will not be
displayed for 30 days.
NAA1628
4-4Display screen, heater and air conditioner, and audio system

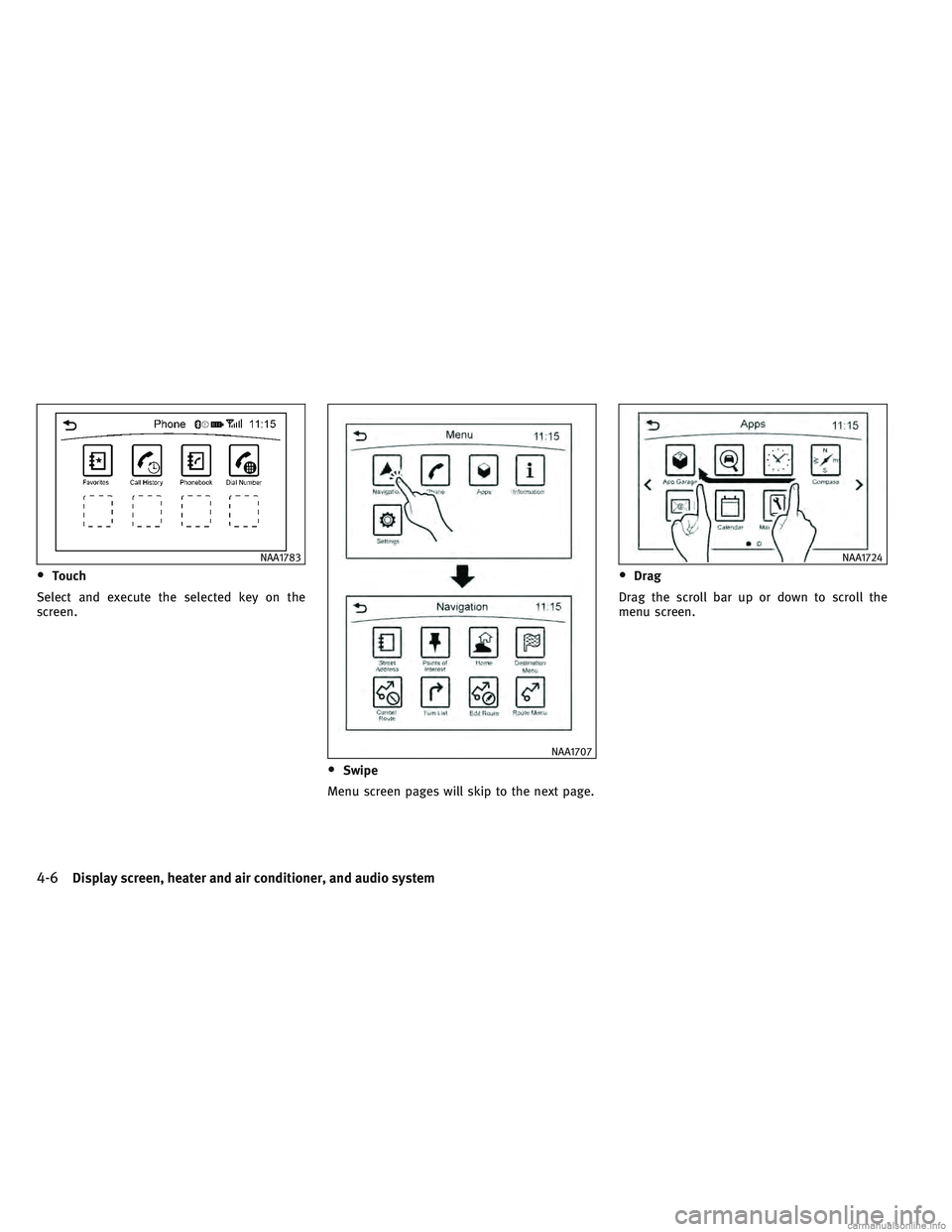

TOUCH PANEL OPERATION
CAUTION
•The glass screen on the liquid crystal dis-
play may break if it is hit with a hard or
sharp object. If the glass screen breaks, do
not touch it. Doing so could result in an
injury.
•To clean the display, use a soft, dry cloth. If
additional cleaning is necessary, use a
small amount of neutral detergent with a
soft cloth. Never use a rough cloth, alcohol,
benzine, thinner or any kind of solvent or
paper towel with a chemical cleaning agent.
They will scratch or deteriorate the panel.
•Do not splash any liquid such as water or car
fragrance on the display. Contact with liq-
uid will cause the system to malfunction.
WARNING
•ALWAYS give your full attention to driving.
•Avoid using vehicle features that could dis-
tract you. If distracted, you could lose con-
trol of your vehicle and cause an accident.
Screen illustrations
•The illustrations in this manual are represen-
tatives of various models and may not be
identical with the design and specifications
of your vehicle.
•Icons and menu items displayed on the
screen may be abbreviated or omitted from
the screen illustrations when appropriate.
The omitted icons and menu items are de-
scribed as dotted lines as illustrated.Basic touch panel operation methods are ex-
plained here.
5GH0158XZ
Display screen, heater and air conditioner, and audio system4-5

•Touch
Select and execute the selected key on the
screen.
•Swipe
Menu screen pages will skip to the next page.
•Drag
Drag the scroll bar up or down to scroll the
menu screen.
NAA1783
NAA1707
NAA1724
4-6Display screen, heater and air conditioner, and audio system

OPERATING MENU SCREEN
1Touchto scroll to the previous page.
2Touch the preferred icon to execute a
function and display the next screen.
3Touchto scroll to the next page.
4Indicates the position of the currently dis-
played page out of the total number of
available pages.
A swipe gesture can also be used to move
quickly between screens.
SCROLLING MESSAGE OR LIST
1Drag the scroll bar up or down to scroll
the message or list up or down.
2Touch the preferred item.
3If a listed item name is not completely
displayed (due to length), touchto
display the hidden part of the name.
4Touch []or[] to scroll the
message or list one item at a time.
Touch [
]or[] to skip to the
next page.
SELECTING ITEM
Touch an item to select it.
Touch [
] to return to the previous screen.
ADJUSTING VOLUME AND SETTINGS
Level of volume, brightness, etc. can be ad-
justed.
NAA1729NAA17255GH0030XZ
Display screen, heater and air conditioner, and audio system4-7
